2021 Reatta





The Reatta offers modern luxury in a shorter Class A body with independent front suspension (IFS). With a digital dashboard that features an improved graphics processor, enjoy the convenience of having a 360° camera monitoring, built-in GPS navigation, radio control, and Bluetooth® phone commands all at your fingertips. You can feel confident knowing you have everything you need as you experience your next great adventure.


Product Video

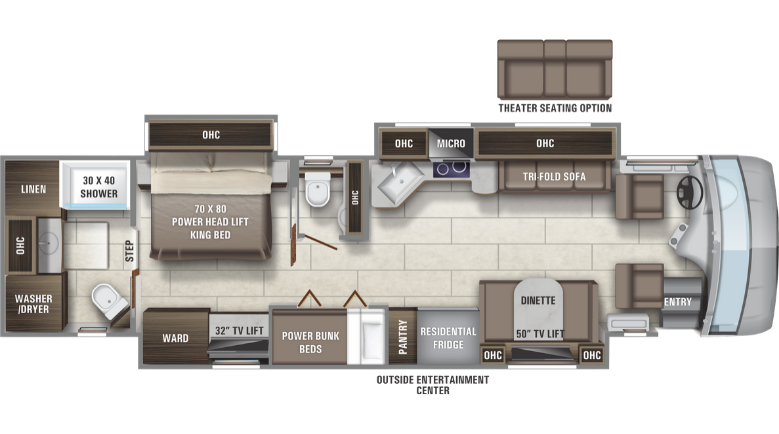

Ward = wardrobe

Lav = bathroom sink

Med = medicine cabinet

Ohc = overhead cabinets

Fridge = refrigerator

Micro = microwave

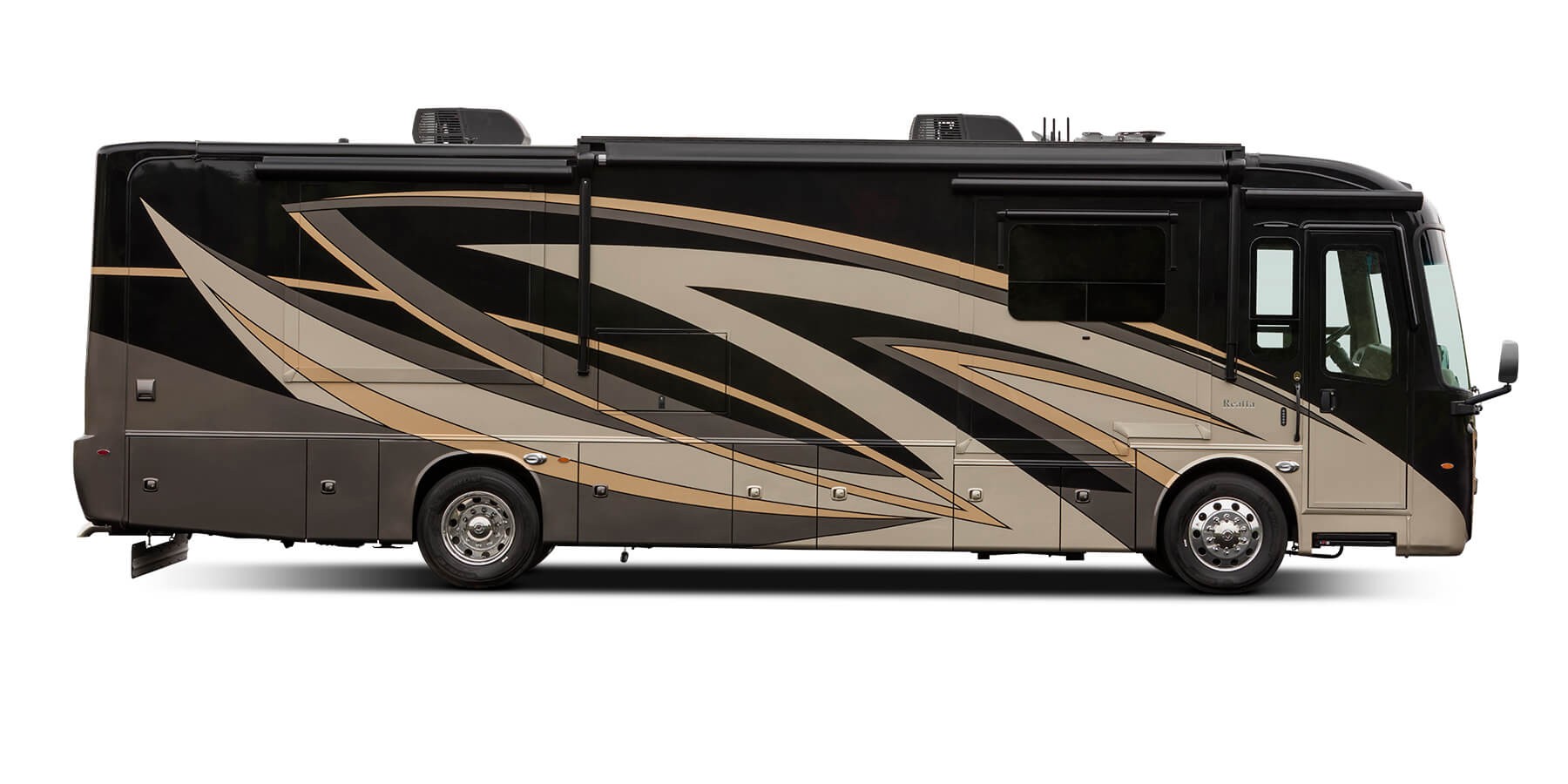

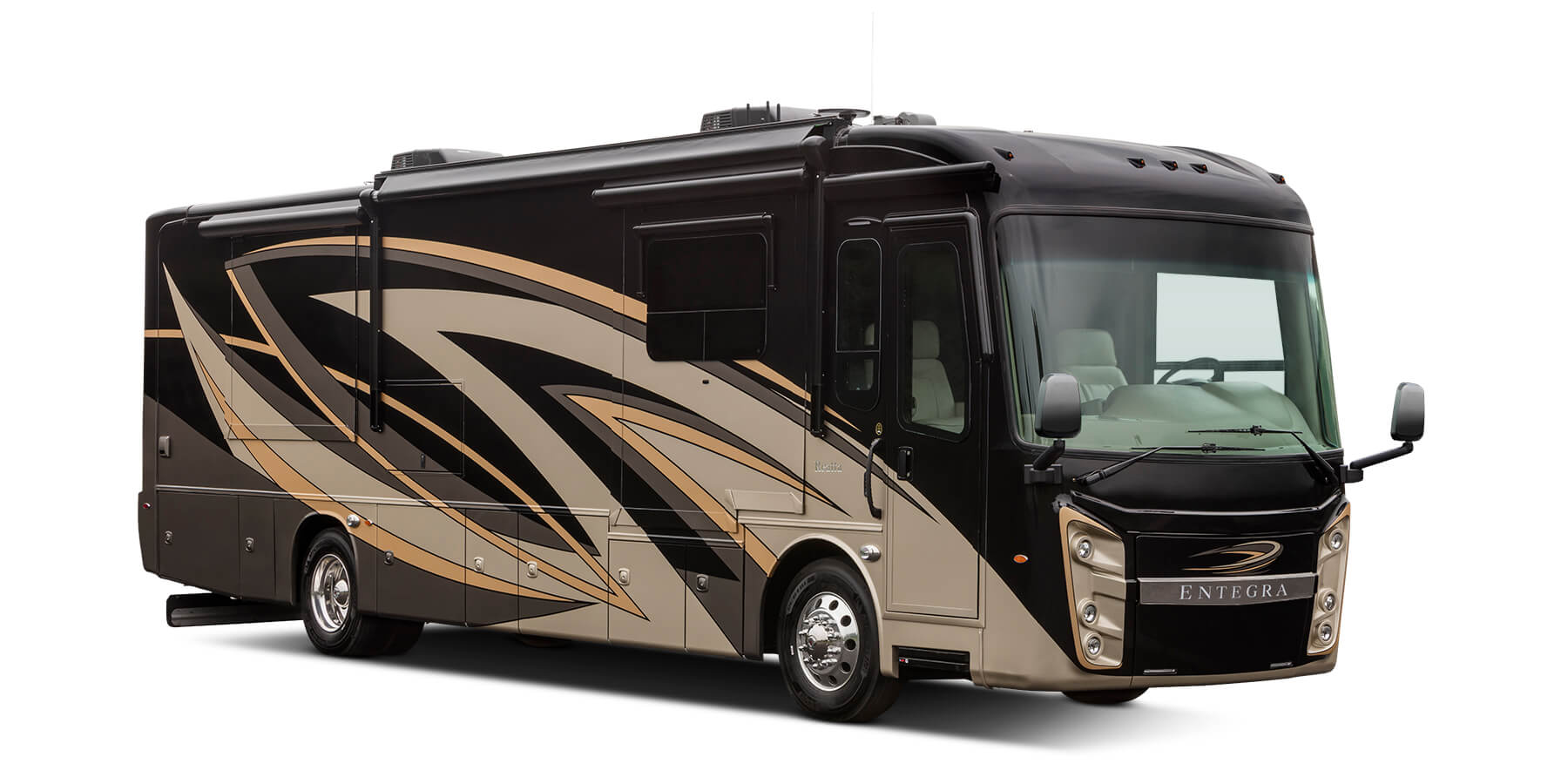

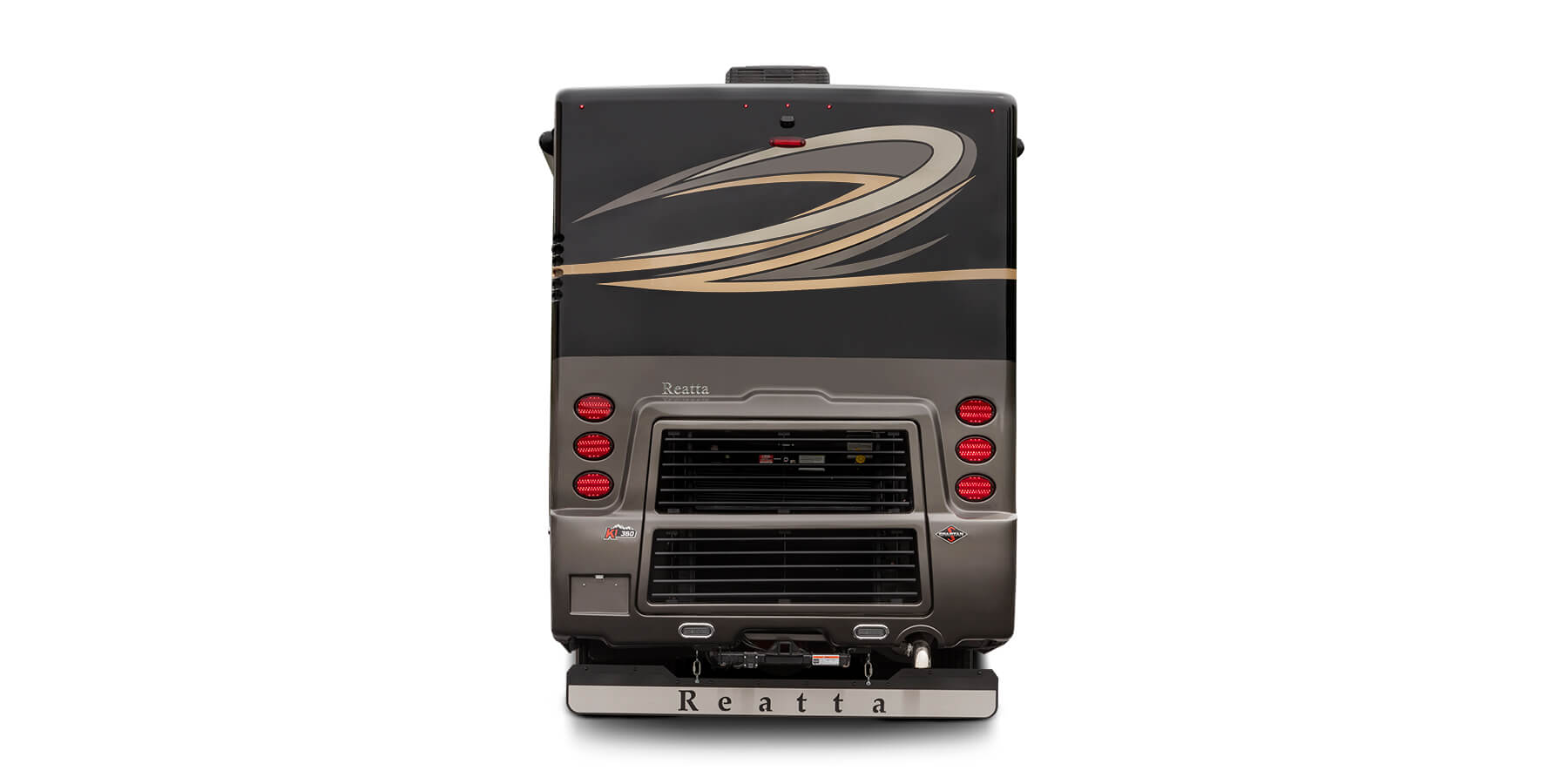

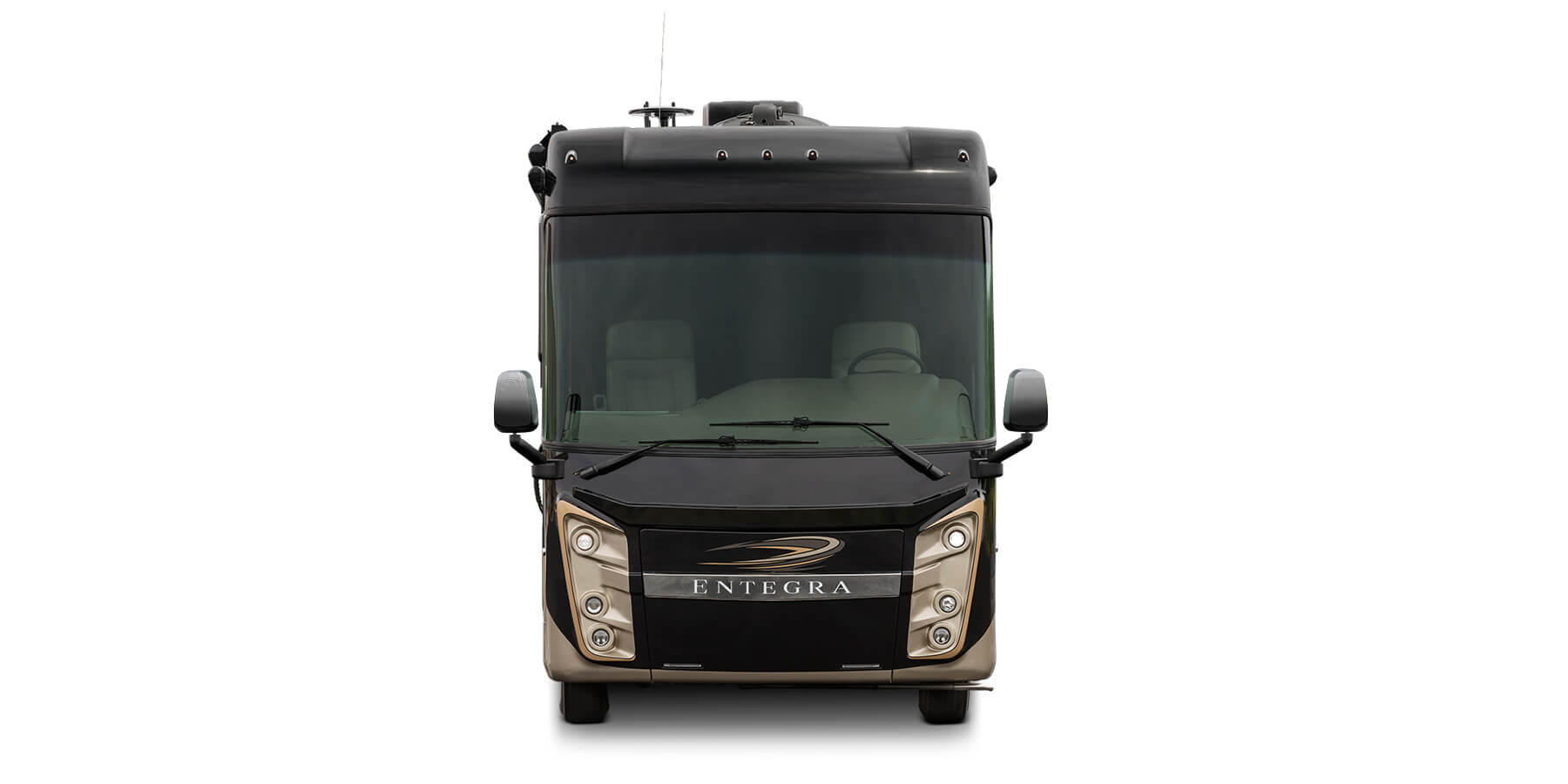

Exterior Graphics

Standards & Options


Air Connection Remote air connection
Leveling System Equalizer hydraulic automatic leveling system
Alternator 170-amp alternator
Braking System ABS brakes on front and rear
Chassis Spartan® K1 raised-rail chassis
Chassis Battery (2) 12V chassis batteries
DEF Tank 10-gal. DEF tank (driver side fill)
Engine Cummins® B6.7 turbocharged 360 HP engine 800 lb. ft. torque at 1,800 RPM
Engine Block Heater 750 watt engine block heater
Engine Brake Variable geometry turbo (VGT) engine brake
Front Axle Independent front air suspension (IFS) front axle- 12,600-lb.(37K) 14,320-lb.(39BH/39T2)
Front Suspension Independent front air suspension
Fuel Tank 100-gal. fuel tank (driver side fill)
Hitch 10,000-lb. hitch with 7/4-pin plug
Radiator Rear-mounted radiator
Rear Axle Rear axle 20,000-lb. (37K) 22,000-lb. (39BH/39T2)
Rear Axle Ratio 4.88 rear axle ratio
Shocks Bilstein® 46mm shocks
Tires Michelin® 275/80R 22.5" tires
Tow Air Brake System Spartan® Safehaul tow vehicle air brake system
Transmission Allison® 3,000 MH 6-speed transmission
Turning Radius 55° turning radius
Tire Pressure Monitoring Tire pressure monitoring system (TPMS) with temperature monitoring


Roof One-piece fiberglass with 3/8" plywood decking, 4" arched aluminum trusses, insulation and reflective Flexfoil® (R-24)
Floor Vacuum-bonded layers of Darco underbelly, a welded aluminum frame, R-9 bead-foam insulation, 3/8" Structurewood® and 1/4" plywood
Slideouts Electric-powered slideout rooms
Walls Vacuum-bonded, high-gloss gelcoat with R-8 bead-foam insulation
Frame X-Bridge™ bracing welded into chassis frame
Front Cap Insulated front and rear caps (R-24) with steel-reinforced front cap and windshield frame

Heat, AC, Water & Power

Air Conditioning (3) 15,000 BTU A/C units with heat pumps [(2)15,000 BTU units with heat pumps on 37K]
Generator Onan® 8,000 watt diesel generator, with automatic start, on slide-out tray
Heating System 35,000 BTU furnace (37K)/ (1) 20,000 and (1) 30,000 (39BH, 39T2)
Batteries (2) L16 AGM batteries (6V/390 amp hrs. ea.)
Inverter 2,000 watt pure sine wave inverter with 100 amp battery charger
Water Heater 10 gal. gas/electric water heater
Propane 24.5 gal. propane tank
Black Holding Tank Sprayer Black holding tank sprayer
Black Tank Management Sani-Con® Macerator holding tank dump system with manual gate valves and manual backup
Winterization Drain System Winterizing drain system
Water Filtration City and tank water filtration system
Heated Tanks Heated basement storage
Electrical Hookup 50 amp power cord
Power Management Surge protector transfer switch


Patio Awnings Power patio awning with LED lights
Door Awning Power entrance door awning with LED lights
Power Cord 50 amp power cord
Slideout Awnings Slideout awnings
Window Awnings Window awnings- manual
Windows Frameless, dual-pane, tinted, safety-glass windows
Exterior Entertainment Exterior 39” LED TV on adjustable TV bracket
Mirrors Heated, remote control, side-view mirrors with integrated cameras
Headlights Halogen high/low beam headlights and fog lights
Daytime Running Lights Daytime running lights
Rear Mudflap Full-width rear mudflap
Keypad Handle Grab handle with keypad system for keyless entry
Exterior Diamond Shield™ front protective film mask
TV Antenna Winegard® Rayzar Z1 TV antenna
Satellite Dish - US Winegard® TRAV'LER satellite dish DIRECTV®- standard with USA option
Satellite Dish - CA Winegard® TRAV'LER satellite dish Shaw TV- standard with CSA option
Third Brake Light LED third brake light
Paint Sikkens custom full body paint
Utility Center Exterior utility center
Cargo Features Slideout basement storage tray
LED Lights LED marker lights, turn lights, license plate light, accent lights, & docking lights
WiFI Winegard® WIFI extender with 4G/LTE
Solar Solar power prep
Entrance Door Removable screen on entry door


Dash Valid 12.3" digital dash with quad core graphics processor with ability to display on-board diagnostics, traditional instument cluster, 360 degree camera system or Rand McNally™ GPS navigation.
Infotainment System(s) Xite™ XSG3 infotainment system with navigation, Bluetooth, Sirius XM and AM/FM tuner
Cameras Xite™ 360° camera system that displays on digital dash screen
Windshield Ultra-Vision® one-piece wrap-around tinted windshield
Steering Wheel Tilt and telescoping steering wheel with integrated controls for cruise ,wipers, radio controls and Bluetooth phone functionality
Driver / Passenger Seats Power adjustable driver and passenger seats
Pedals Power adjustable brake and accelerator pedals
Visors & Privacy Shade Powered front sun visors and privacy shade
Power Features Powered flush stepwell cover
Additional Amenities (2) dual USB ports and (2) 12V socket for charging
Side Consoles Wrapped dash with molded side consoles

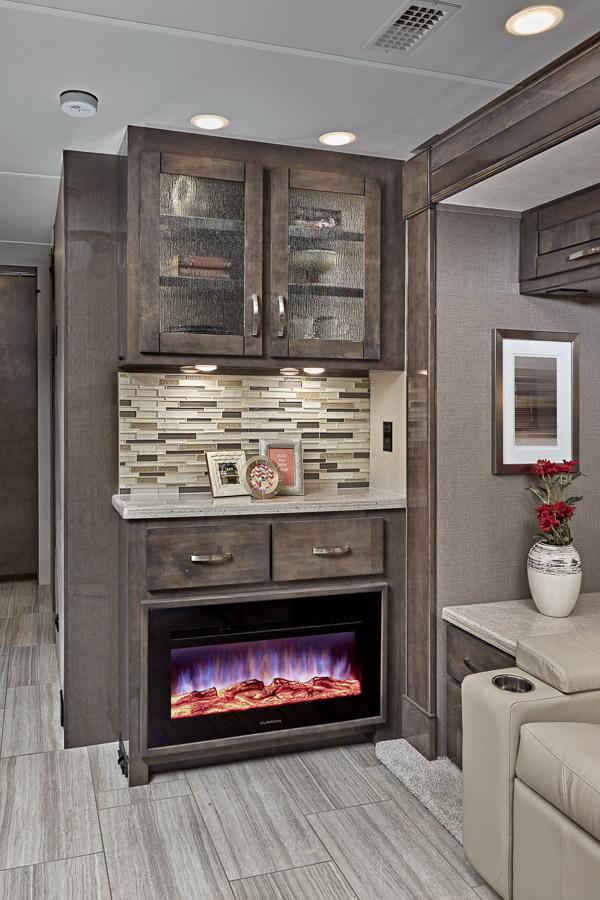

Electric Fireplace Fireplace (37K only)
Command Center 7” VegaTouch touchpad system for complete integration of coach controls (mobile app available)
DVD Systems LG® Blu-Ray® player
Television - Living Room 50” Insignia™ LED TV
Sound - Living Room Insignia™ sound bar
Washer/Dryer Whirlpool® stacked washer and dryer

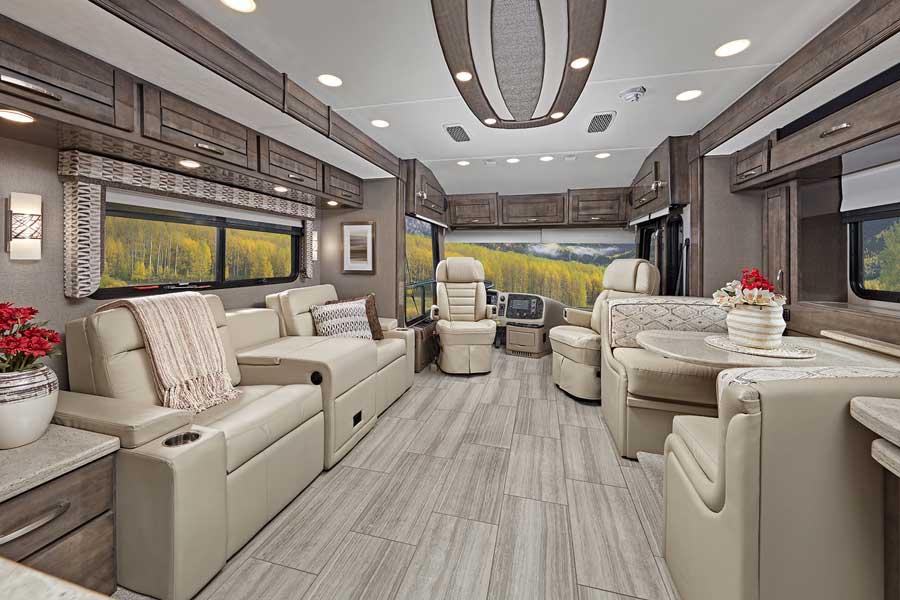

Furniture Flexsteel® furniture
Flooring Hand-laid polished porcelain floor tiles
Lighting Recessed, 12V, LED lighting
Ceiling Decorative ceiling feature with integrated accent lighting
Window Treatments Manual solar day shades and blackout night shades
Central Vacuuming System Central vacuum system
Bunks 300-lb. bunk capacity (39BH only)
Cabinetry Handcrafted hardwood cabinetry
Fascia Handcrafted hardwood fascia

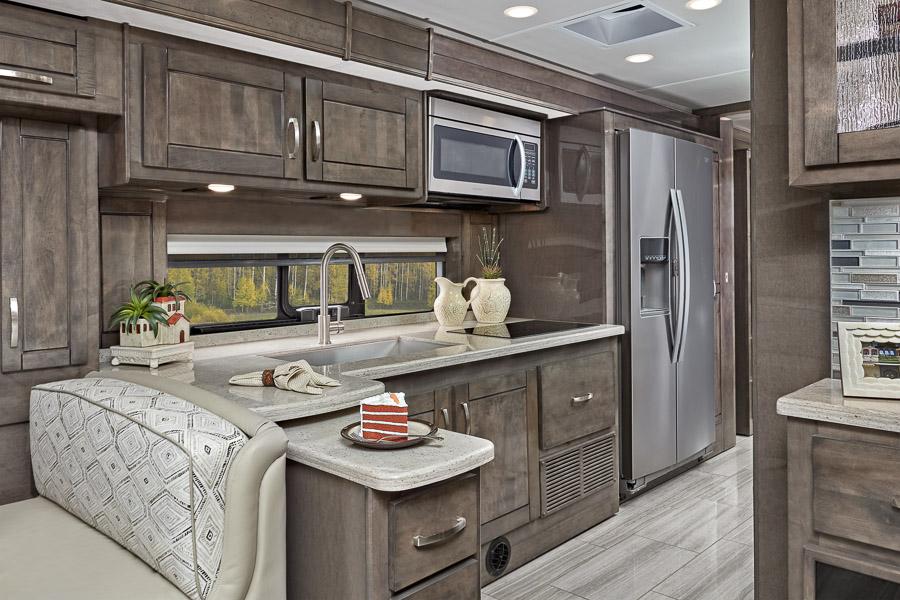

Refrigerator Whirlpool® stainless steel residential refrigerator with ice maker and water dispenser
Cooktop Induction cooktop
Microwave 1.5 cu. ft. convection microwave oven
Kitchen Countertops Solid surface countertops

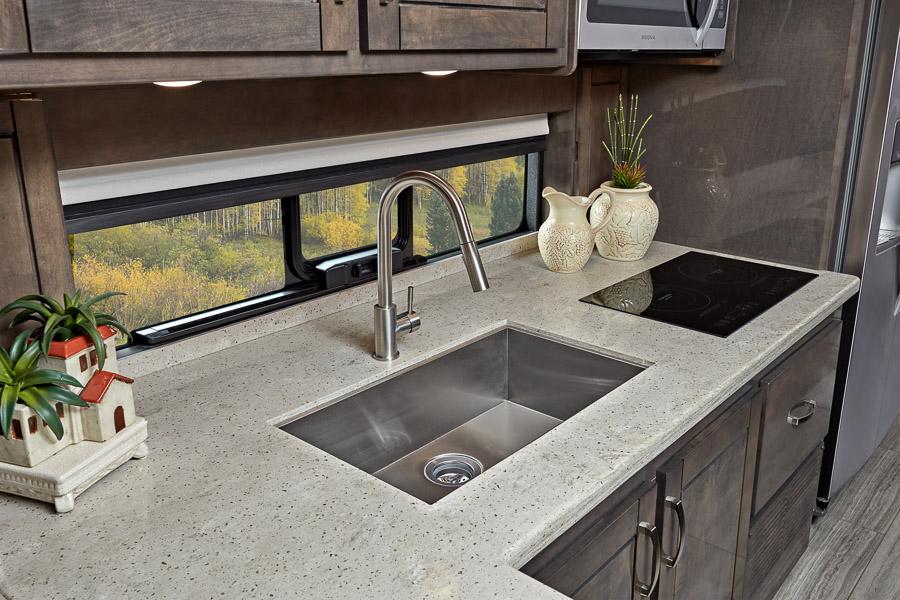

Sink Single-bowl, stainless steel sink
Vent Fan-Tastic power exhaust fan with intake

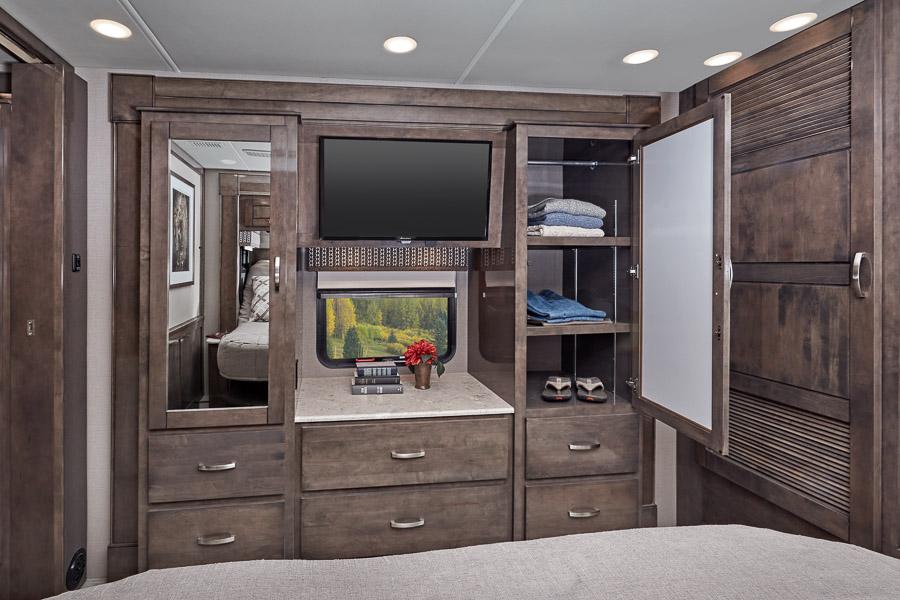

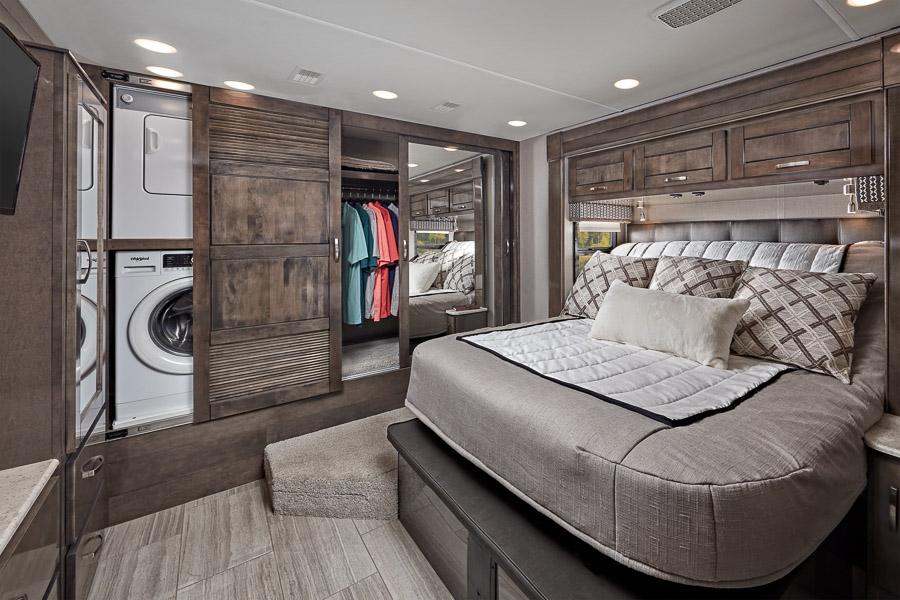

Bedroom Mattress / Bedding King-sized pillow top mattress on tilt bed
DVD Systems LG® Blu-Ray® player
Television 32” Insignia™ LED TV

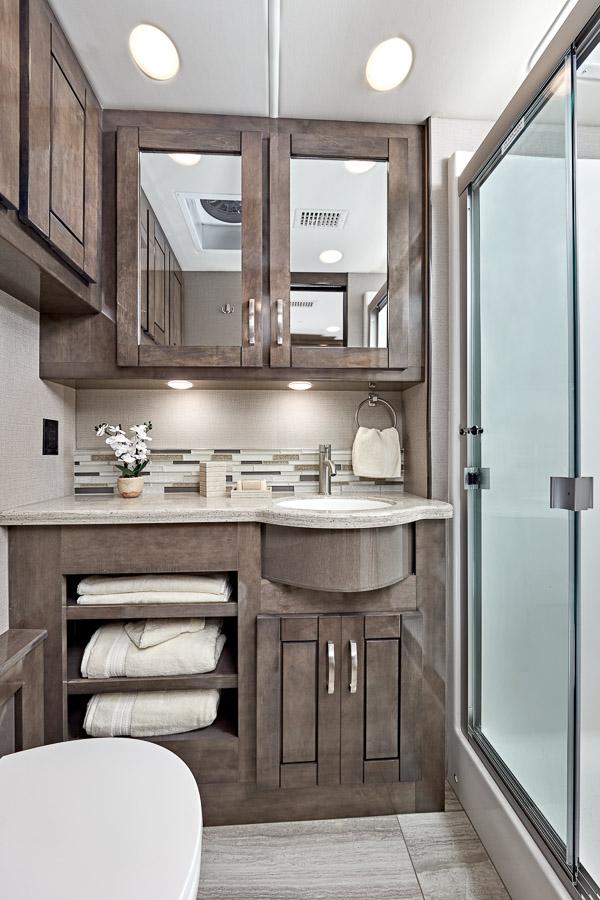

Bathroom Countertop(s) Solid surface countertops
Sink Integrated sink
Bathroom Shower One-piece fiberglass shower with skylight
Toilet Thetford® Aqua Magic toilet with foot flush
Bathroom Ventilation Fan-Tastic power exhaust fan with intake
Water Saving System Aqua View Showermiser water saving system


Carbon Monoxide Detector Combination carbon monoxide detector and LP gas alarm
Lights Porch light
Smoke Alarm Smoke Alarm
Seat Belts Seat belts in every designated seating position


Canadian Standards Canadian Standards- CSA
Customer Value Package (Mandatory) Customer Value Package- 8KW diesel generator, 2,000 watt invertor, (2)15,000 BTU A/Cs with heat pump, automatic leveling jacks, backup and sideview cameras, power awning with LED lights, exterior entertainment center with LED TV, solar shades
Theater Seating Theater seating with power recline
Satellite Dish Winegard In-Motion satellite dome
Satellite Dish - US Winegard TRAV'LER Dish Network

Décor Options

Entegra Coach peace of mind

2-3 years

At Entegra Coach, excellence doesn't end with our stunning interiors and superior craftsmanship. We back each luxury coach with the industry's highest level of service.

Entegra Coach's industry leading 2-year limited warranty is double that of any other manufacturer and offers more coverage. On top of this 2 year warranty, Entegra Coach supports our customers with a 3-year limited structural warranty for areas like the roof, walls and floors. This warranty comes directly from us, because we believe in the products we build and care for all owners as members of our Entegra Coach family. Ask your local Entegra Coach dealer for full warranty details.
