THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.

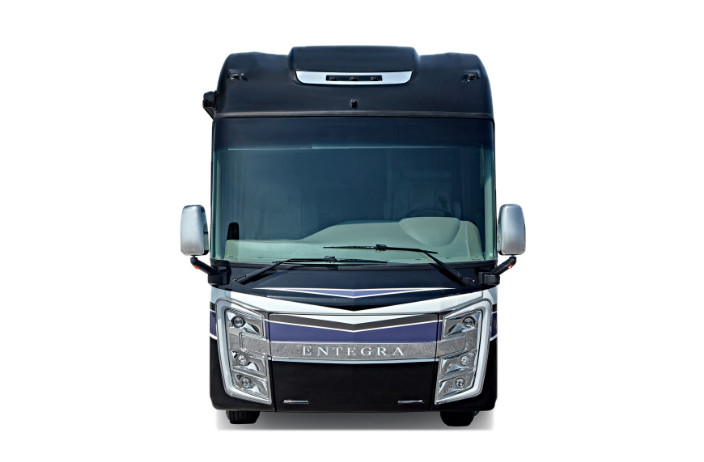

2023 ASPIRE
LENGTH 44' 11" | WIDTH 101"
Easy driving and enjoyable features are the showstoppers when it comes to the all-new 2023 Aspire Class A Motorhome. This luxury coach rides on a Spartan® K2 chassis with a Cummins® 450HP engine. Thanks to the E-Z Steer™ adjustable power steering assist, drivers are sure to enjoy the ride, while taking in the iconic panoramic view Class A's are known for. The stunning upgrades of this model don't end with the E-Z Steer technology. In fact, they extend to the interior with premium leather Crown Compass furniture in the living area. A 15 inch digital dash with an integrated 360° camera will put your mind at ease, and allow parking and backing up to be a stress point of the past. It's time to enjoy the journey as much as the destination.
Product Videos

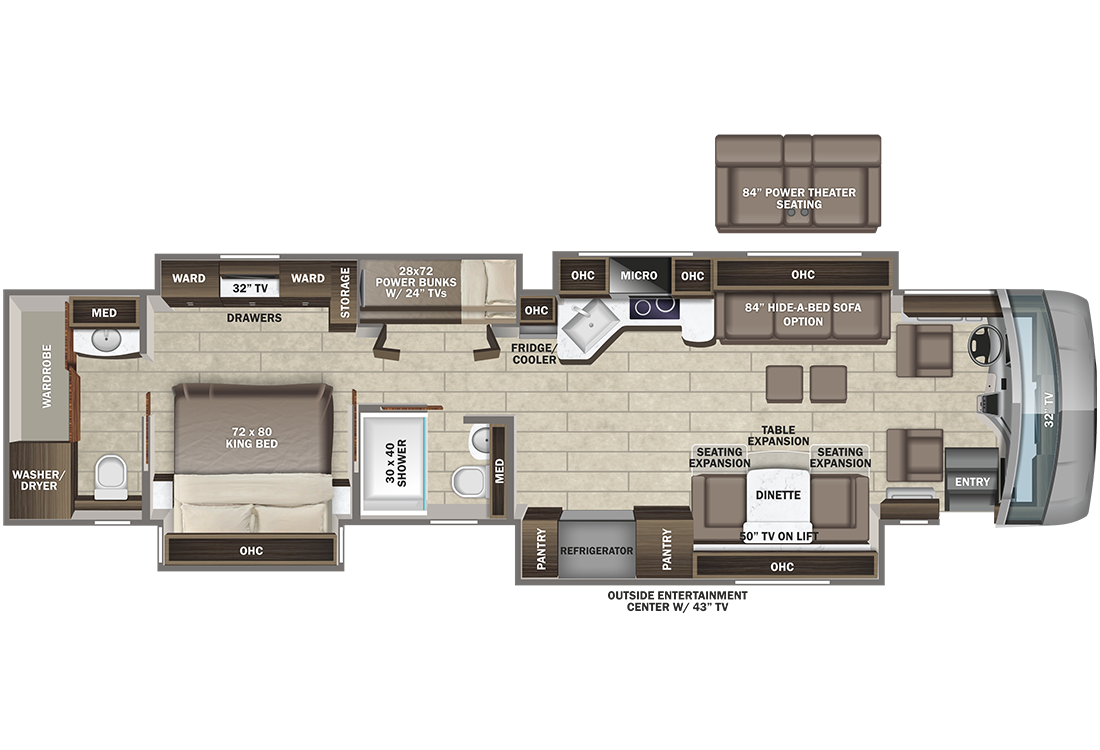

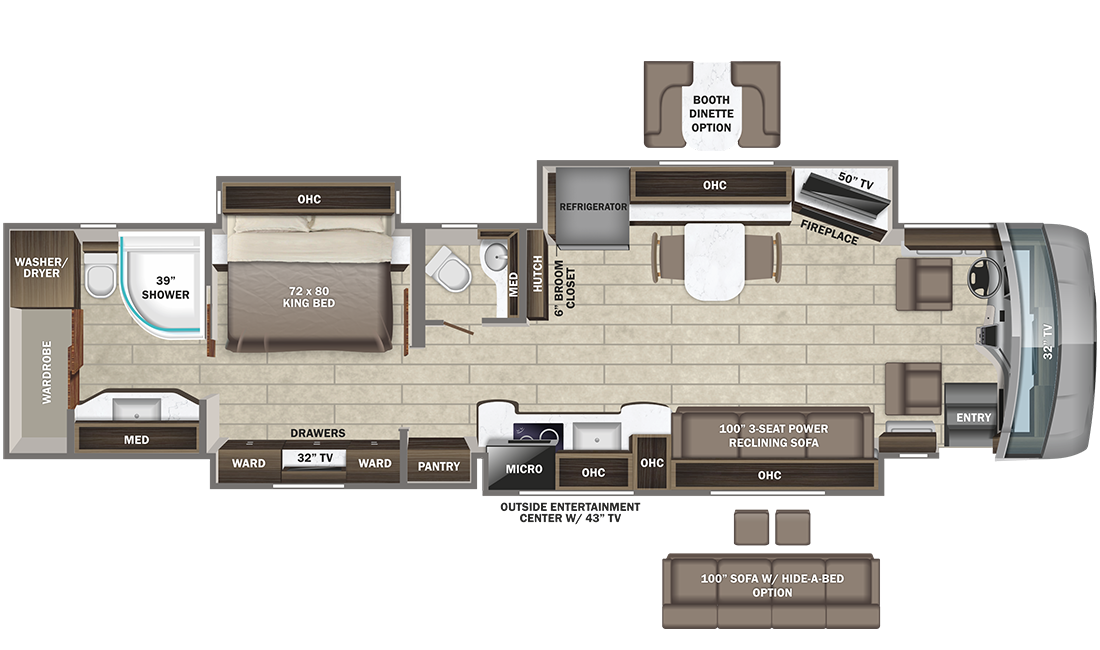

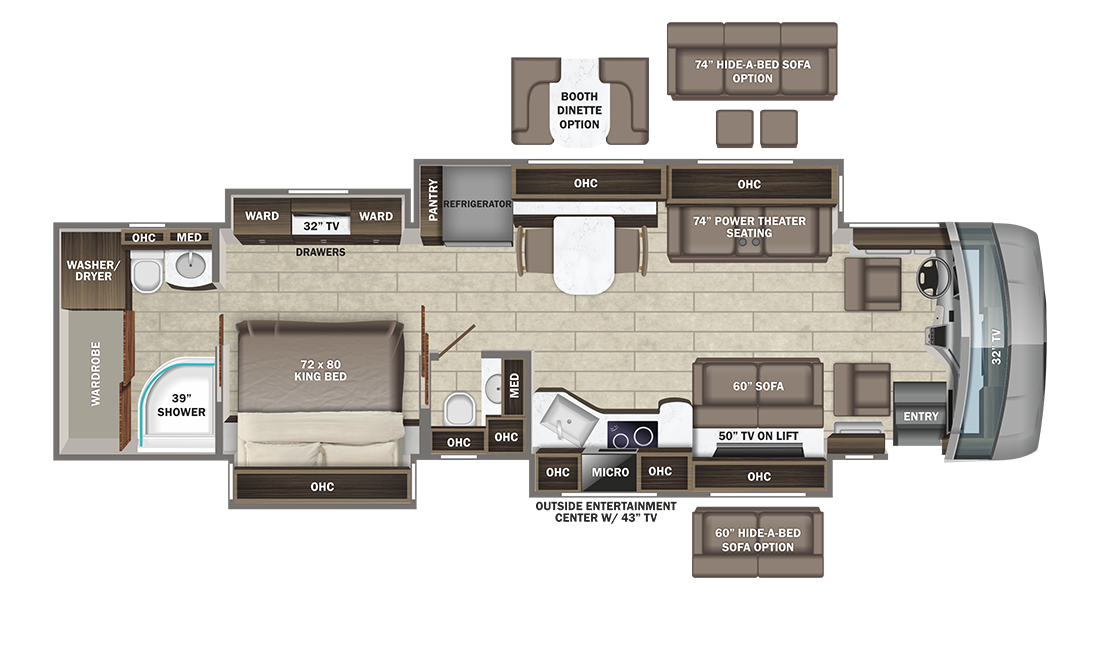

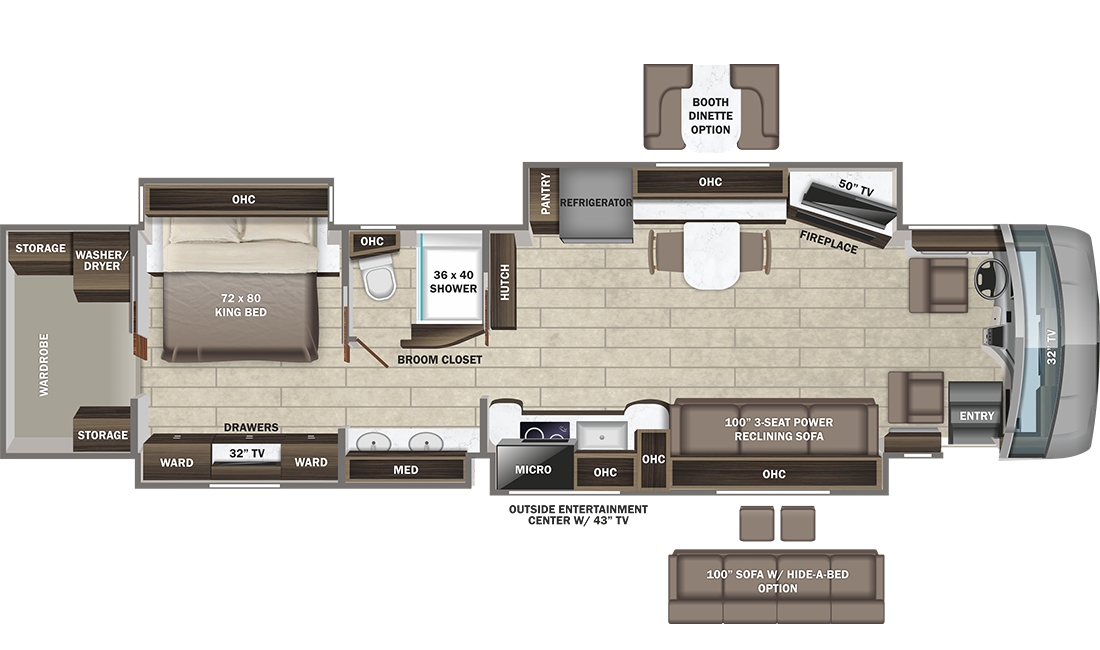

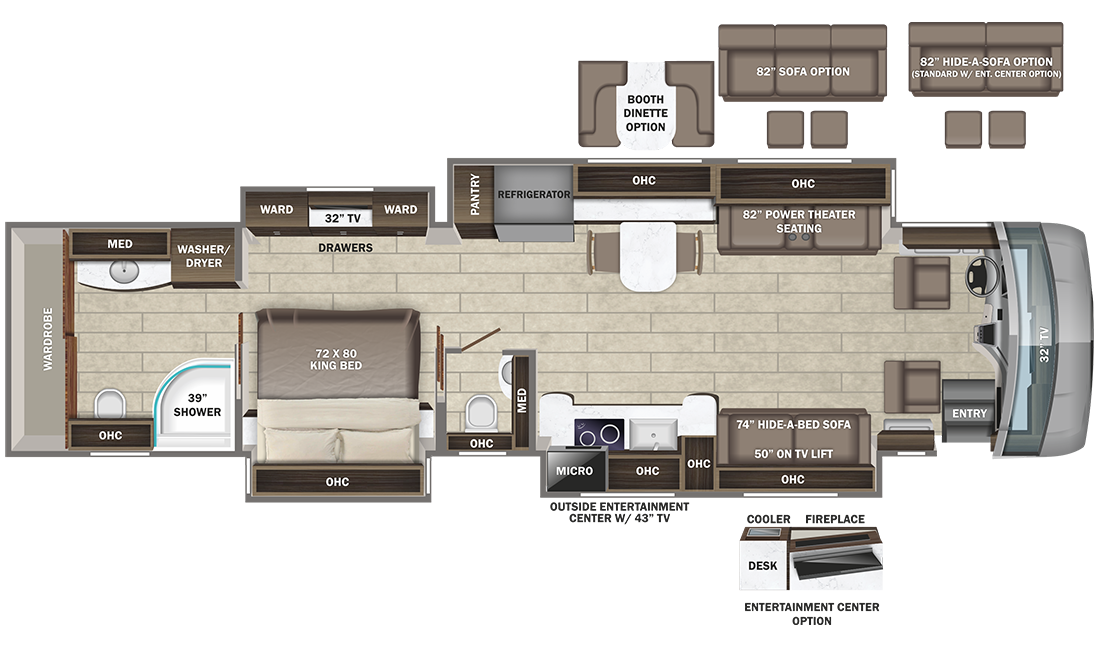

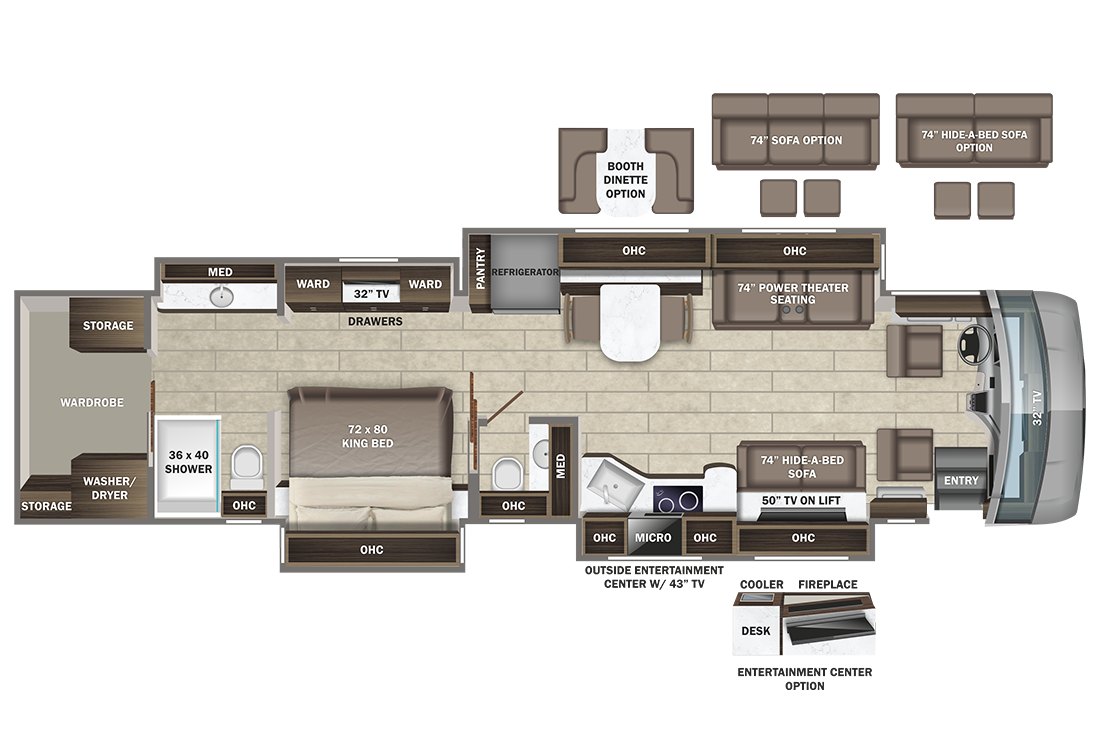

Floorplans

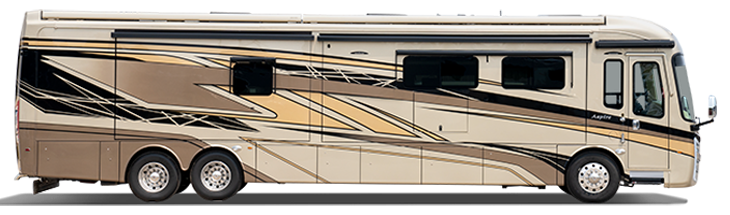

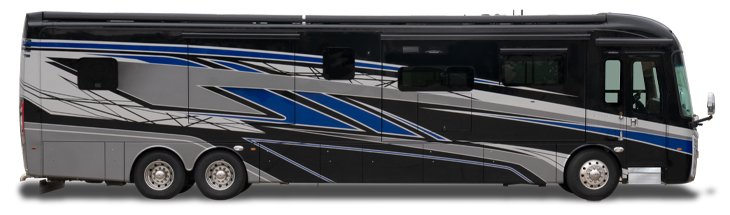

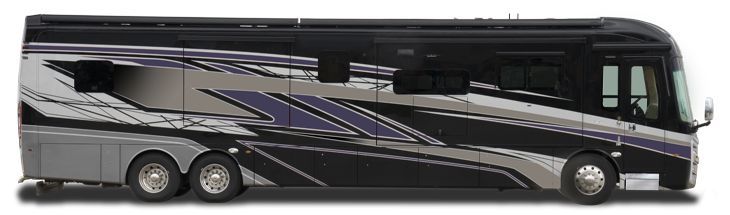

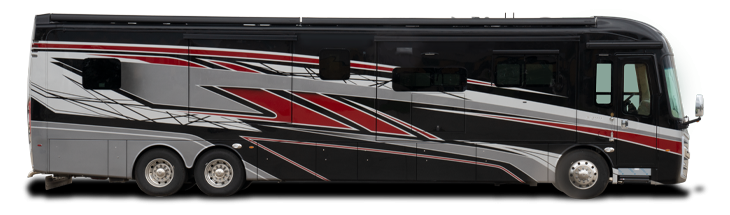

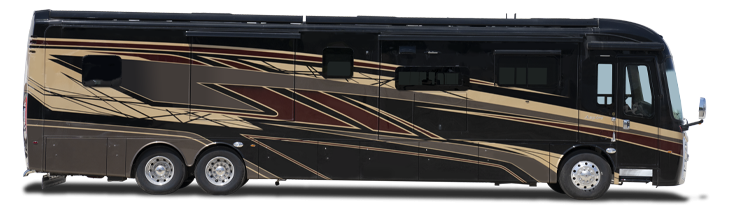

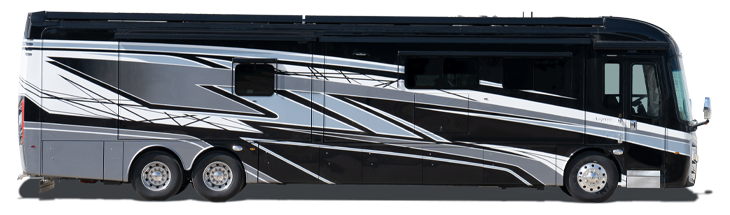

Exterior Graphics
STANDARDS & OPTIONS
Chassis
Spartan® K2 raised-rail chassis
Engine
Cummins® L9 turbocharged 450 HP engine with 1,250 lb.-ft. torque at 1,400 RPM
Transmission
Allison® 3,000 MH 6-speed transmission
Radiator
Side-mounted, parallel-airflow radiator
Alternator
170 amp alternator
Engine Block Heater
1,000W engine block heater
Engine Brake
Three-stage engine brake
Front Suspension
Independent front suspension (IFS)
Front Axle
Reyco® Granning® front axle - 17,000 lb. rating
Rear Axle
Meritor rear axle - 20,000 lb. rating (Dana® rear axle- 24,000 lb. rating on 40P)
Tag Axle
Tag axle with one-touch manual air dump - 12,000 lb. rating (N/A 40P)
Braking System
ABS disc brakes on front axle, drum brakes on drive and tag axle (ABS disc brakes on front and rear axle on 40P)
Rear Axle Ratio
4.88 rear axle ratio (4.78 on 40P)
Tires
Michelin® X Coach Z 295/80R22.5 tires
Shocks
Bilstein® 46mm shocks
Tire Pressure Monitoring
Tire pressure monitoring system (TPMS) with temperature monitoring
Leveling System
Equalizer™ hydraulic automatic coach leveling
Air Connection
Remote air connection
Chassis Battery
(2) 12V chassis batteries
Fuel Tank
150 gal. fuel tank with dual fills (100 gal. on 40P)
DEF Tank
15 gal. DEF tank with dual fills (single fill on 40P, 44D, 44R)
Tow Air Brake System
Spartan® Safe Haul™ tow vehicle air brake system
Hitch
15,000 lb. hitch with 7-pin plug (10,000 lb. hitch on 40P)
Décor Options
Flagstone
