THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.

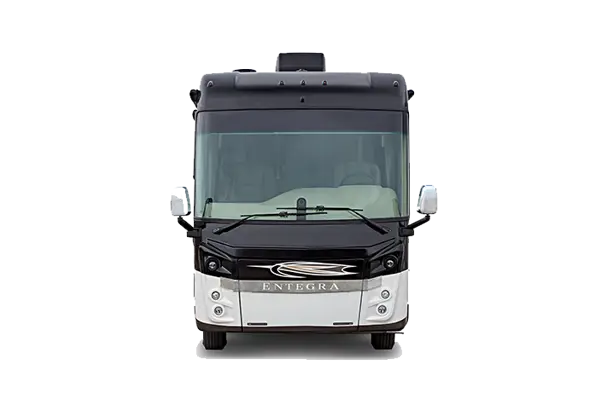

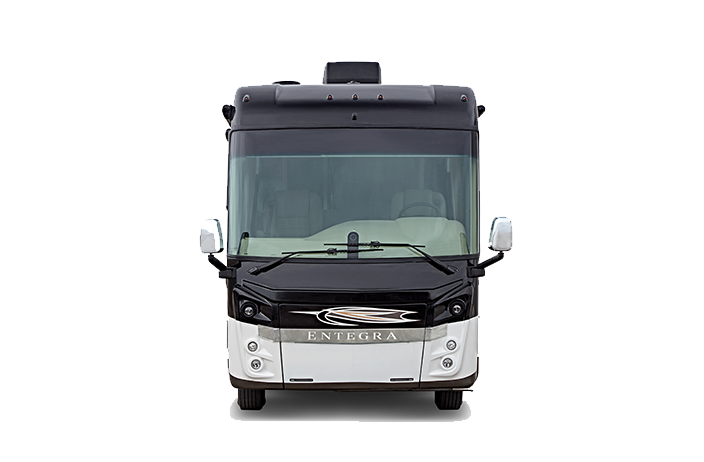

2024 REATTA
LENGTH 39' 11" | WIDTH 101"
Built on the Spartan K1 chassis with Cummins 360HP engine, the 2024 Reatta Luxury Diesel Motorhome is built for the road. It boasts the industry's best triple insulated roof, front cap and rear cap. Inside, you'll find technology for a safer ride, including a 15-inch. digital dash with an integrated 360° camera, TPMS with temperature monitoring and the Vegatouch Total Coach Control Center with a 7-inch touchscreen and app integration. Entegra Coach's independent front suspension (IFS) with front air disc brakes makes for the quietest riding and best handling coach on the market. Enjoy the ride in the 2024 Reatta.

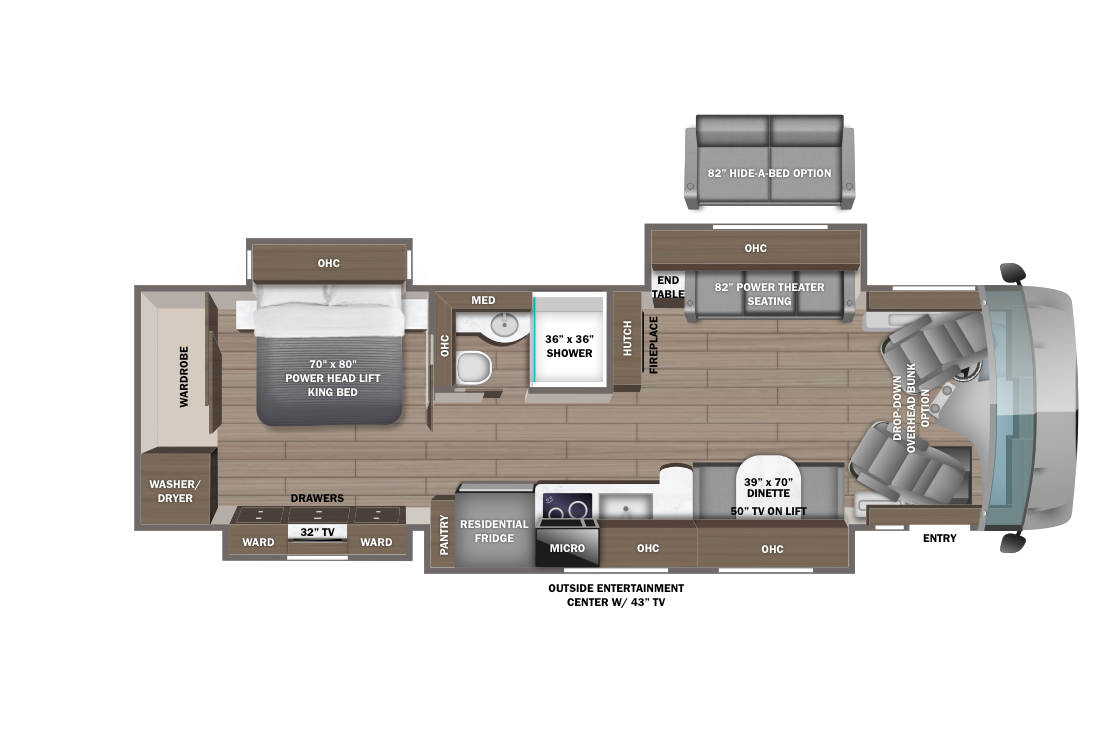

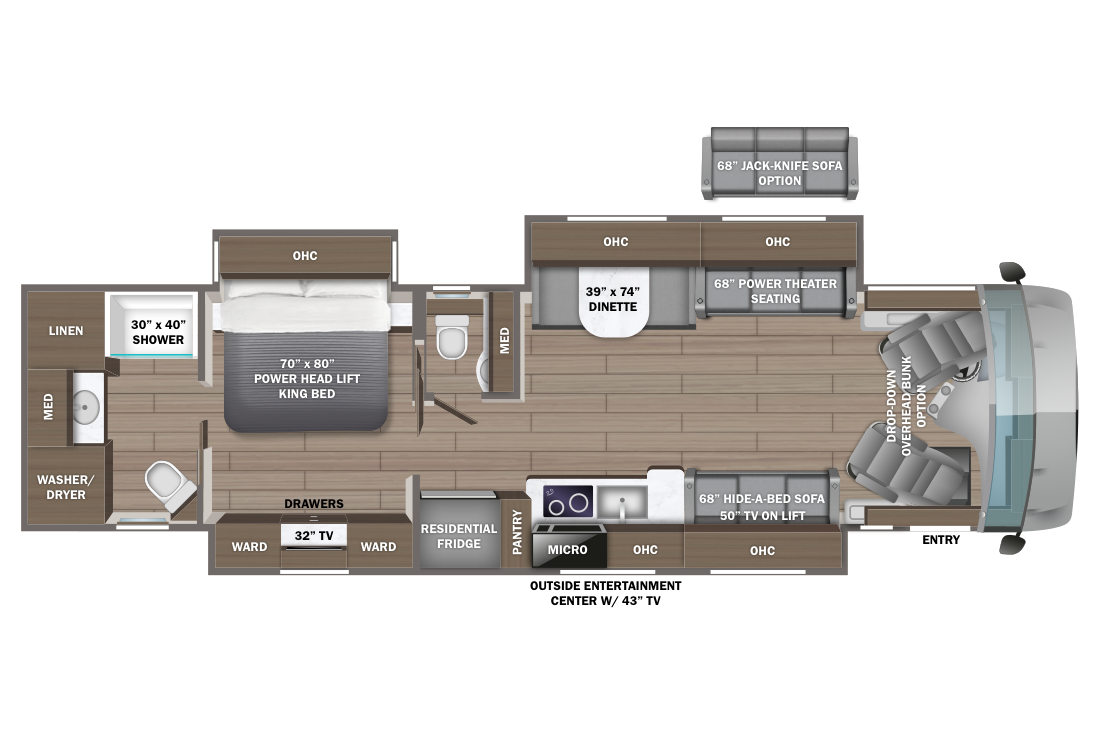

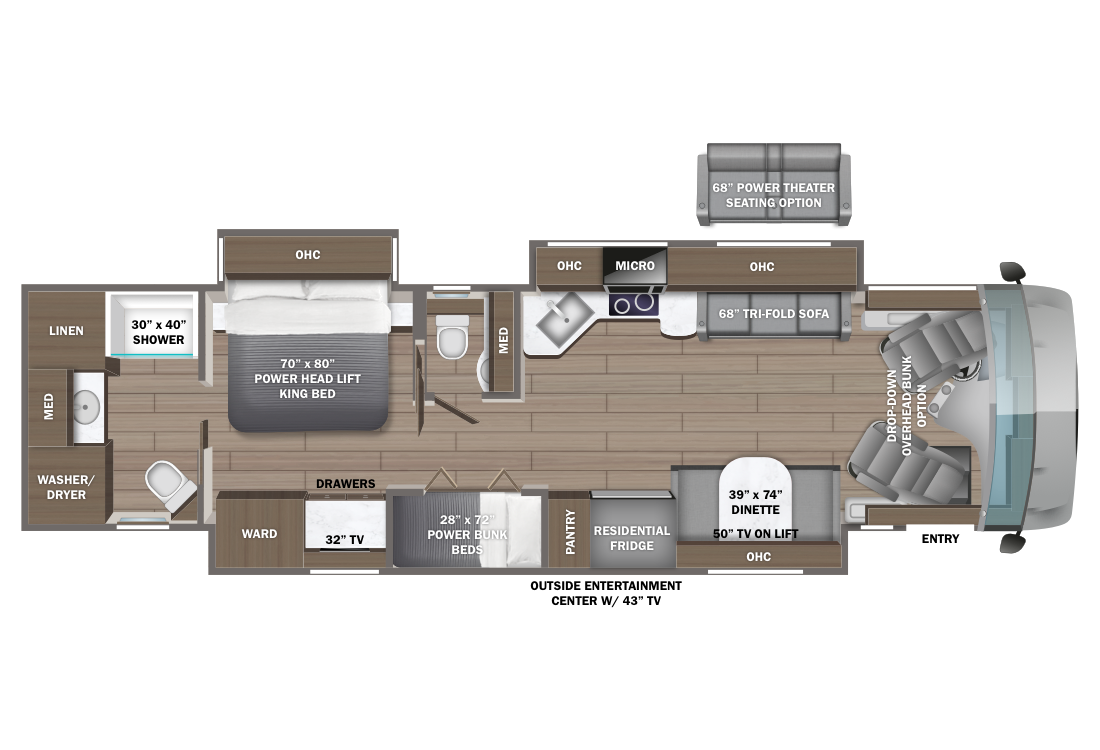

Floorplans

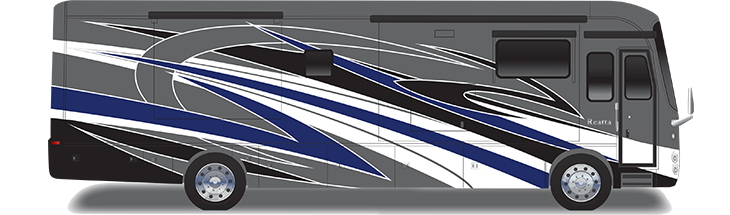

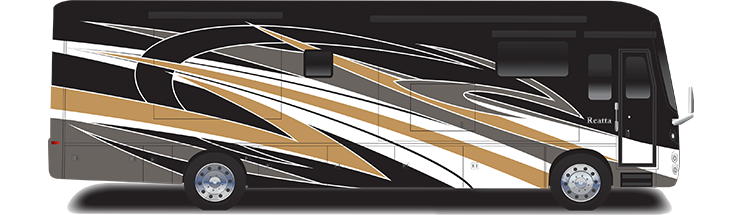

Exterior Graphics
STANDARDS & OPTIONS
Chassis
Spartan® K1 raised-rail chassis
Engine
Cummins® B6.7 turbocharged 360 HP engine with 800 lb.-ft. torque at 1,800 RPM
Transmission
Allison® 3,000 MH 6-speed transmission
Radiator
Rear-mounted radiator
Alternator
170 amp alternator
Engine Block Heater
750W engine block heater
Engine Brake
Variable geometry turbo (VGT) engine brake
Front Suspension
Independent front air suspension (IFS)
Front Axle
Front axle- 14,320 lb.
Rear Axle
Rear axle - 20,000 lb. (37K) 22,000 lb (39BH/39T2)
Rear Axle Ratio
4.88 rear axle ratio
Tires
Michelin® 275/80R 22.5 in. tires
Shocks
Bilstein® 46mm shocks
Tire Pressure Monitoring
Wireless tire pressure monitoring system (TPMS) with temperature monitoring
Leveling System
Equalizer™ hydraulic automatic coach leveling
Air Connection
Remote air connection
Chassis Battery
(2) 12V chassis batteries
Fuel Tank
100 gal. fuel tank
DEF Tank
10 gal. DEF tank
Tow Air Brake System
Spartan® Safehaul tow vehicle air brake system
Hitch
10,000 lb. hitch with 7-pin plug
Décor Options
Glacier
Wood Options
Stonewall Matte Grey Maple
Tile Options
