6
NO. OF FLOORPLANS
THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.

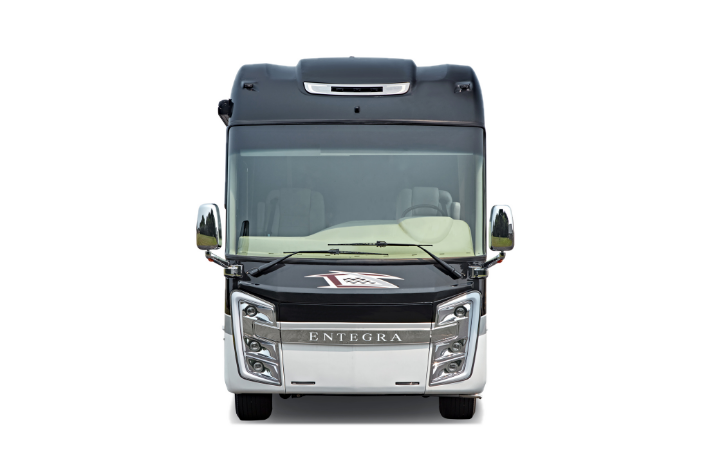

2022 ANTHEM
LENGTH 45' 5" | WIDTH 101" | SLEEPS UP TO 6
AWE AT FIRST SIGHT
Now this is what we call riding in style. The Anthem will have you in awe at first sight—with upgraded Italian leather furniture, the latest in high-end interior design and tech to rival even the most state-of-the-art entertainment systems. In fact, new and improved Bose sound systems, Samsung® QLED TVs with enhanced picture quality and an iGO Primo navigation system with RV attribute routing all make the journey easier and more enjoyable. And with new exterior color schemes, you'll have heads turning everywhere you go.
45' 5"
EXTERIOR LENGTH
6
SLEEPS UP TO

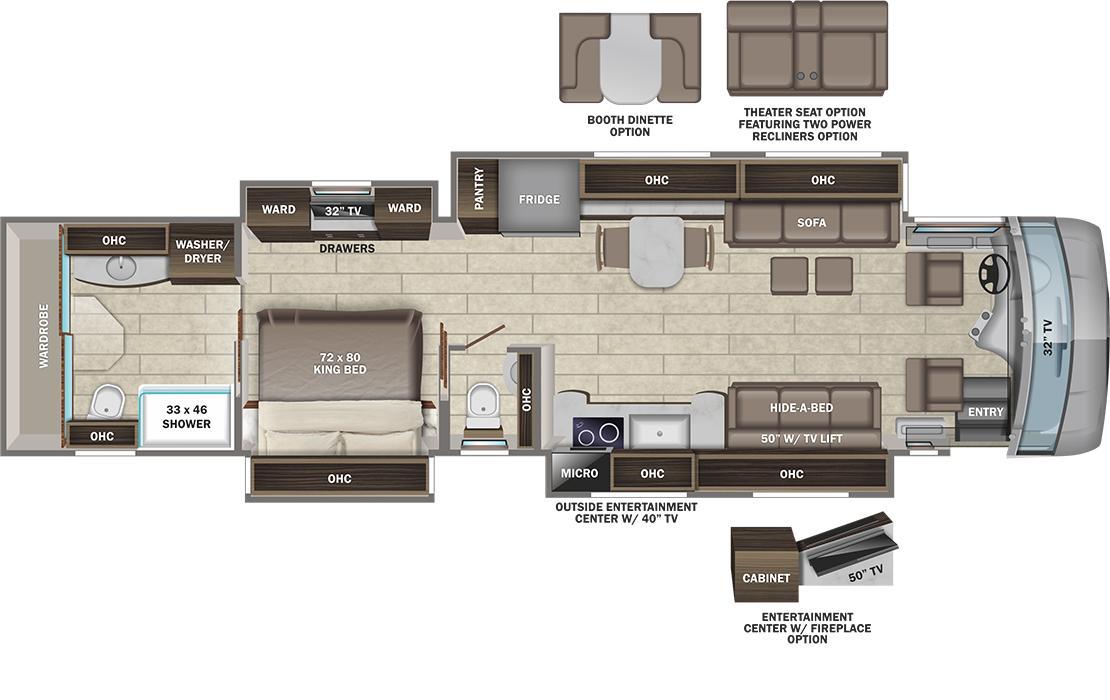

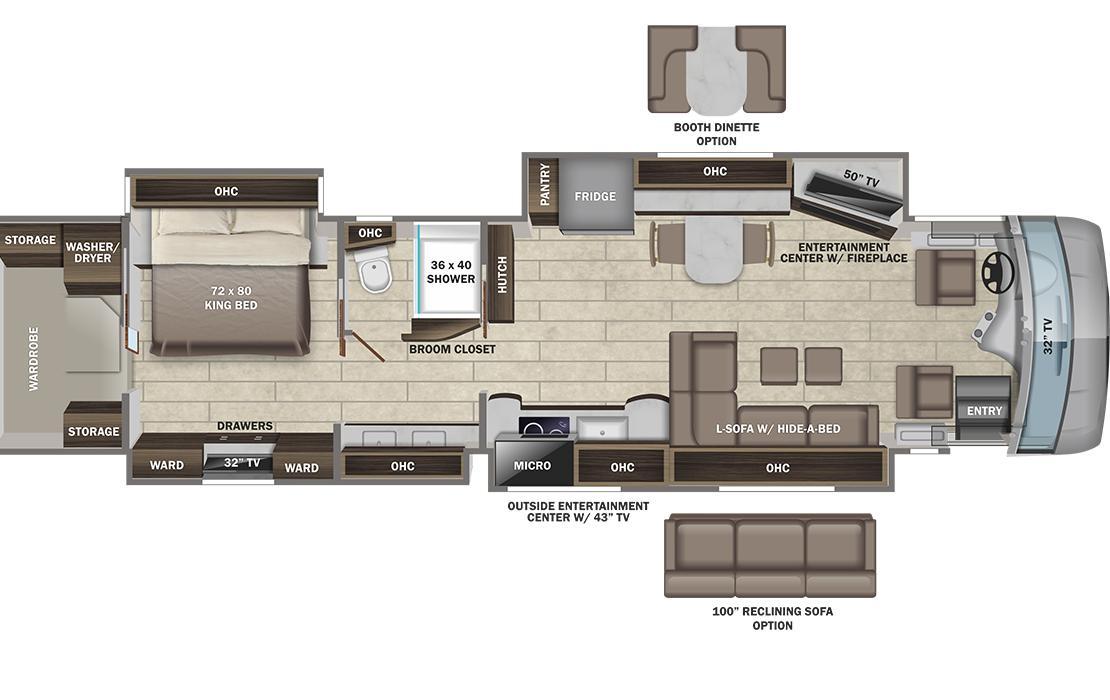

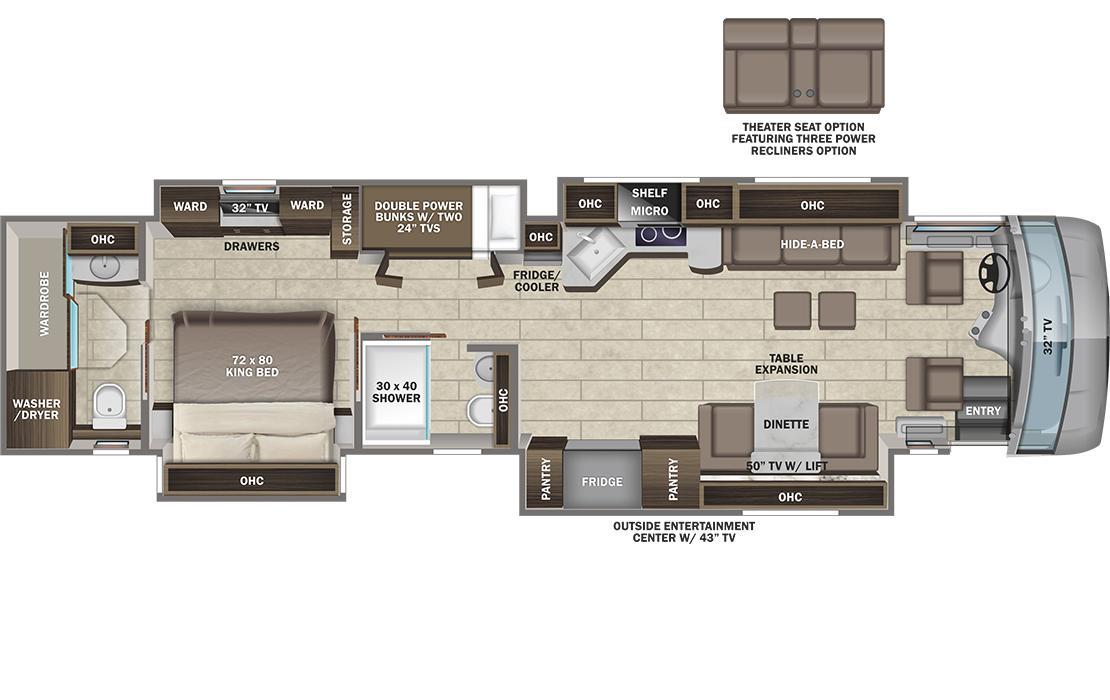

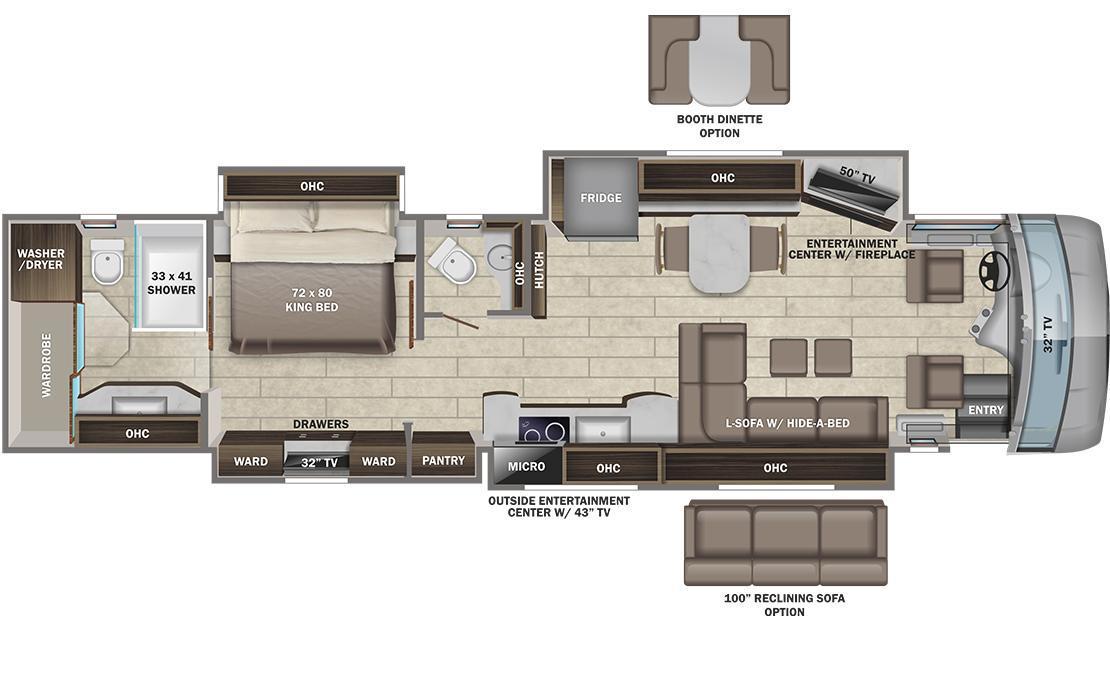

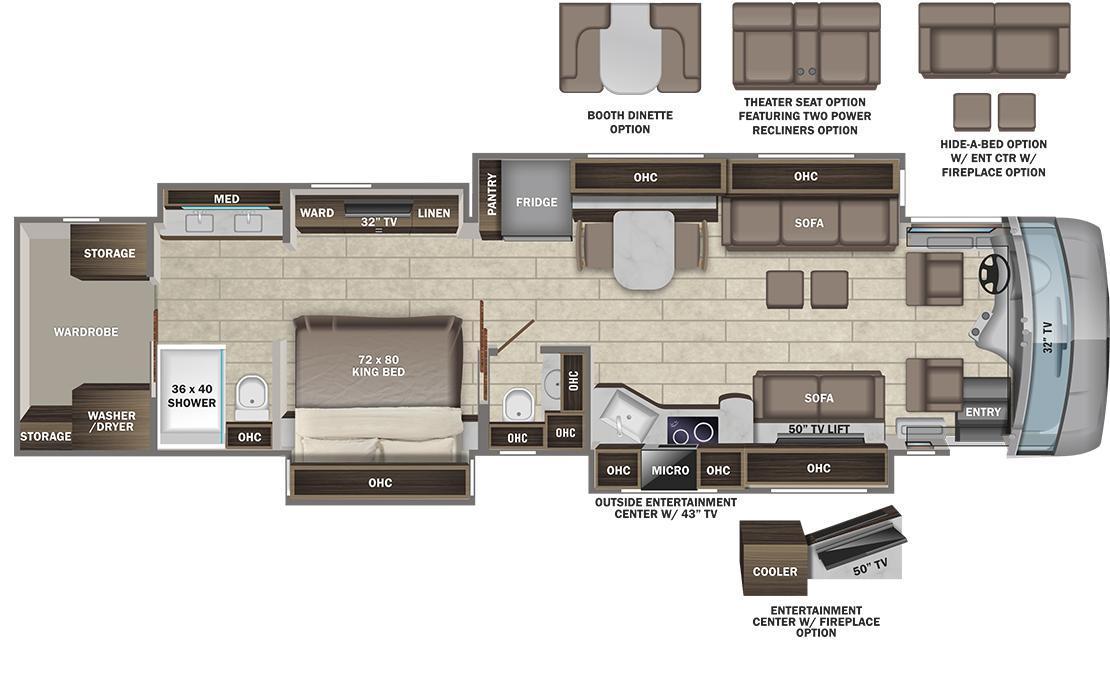

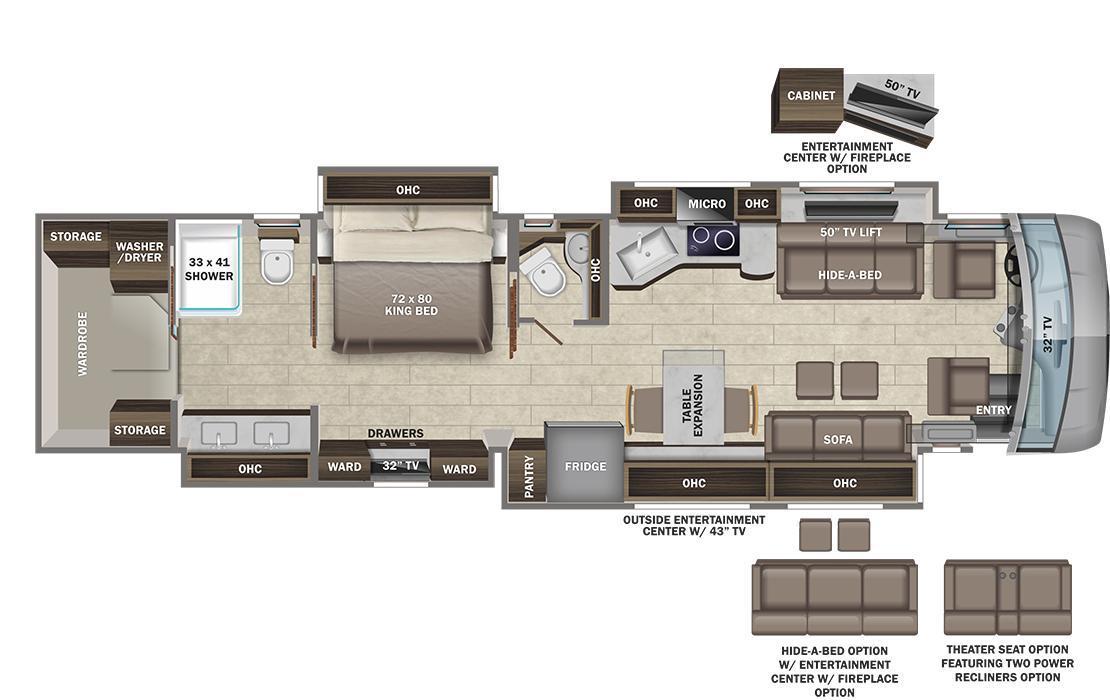

2022 Anthem Floorplans

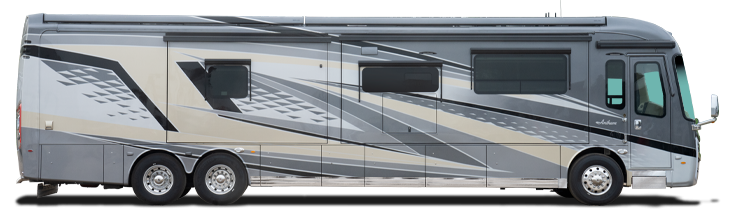

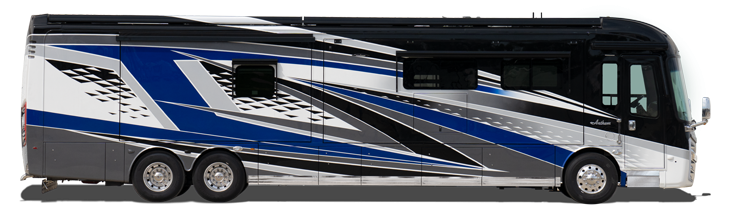

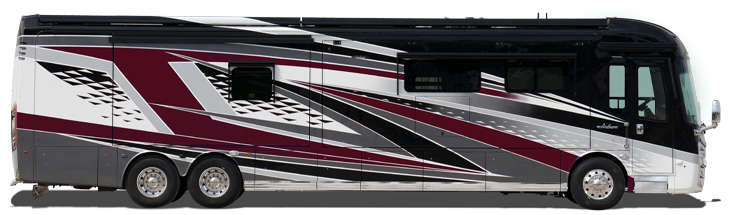

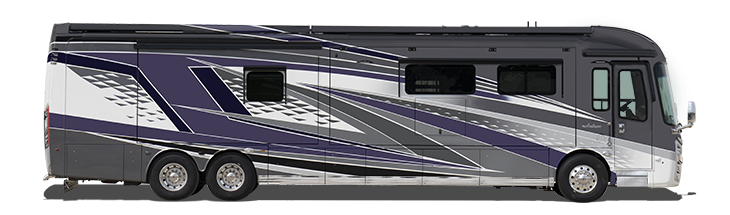

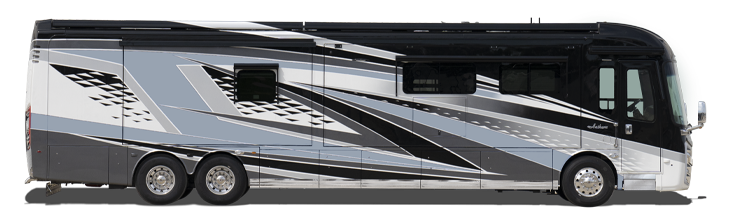

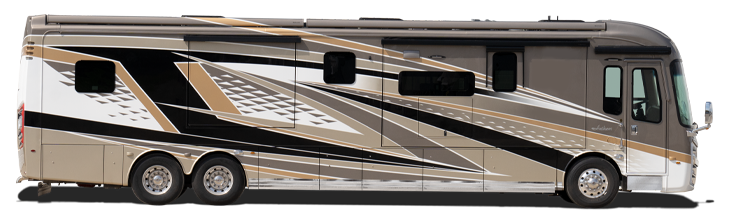

Exterior Graphics
STANDARDS & OPTIONS
Chassis
Spartan® K2 raised-rail chassis
Engine
Cummins® L9 turbocharged 450 HP engine with 1,250-lb. ft. torque at 1,400 RPM
Transmission
Allison® 3,000 MH 6-speed transmission
Radiator
Side-mounted, parallel-airflow radiator
Alternator
170-amp alternator
Engine Block Heater
1,000-watt engine block heater
Engine Brake
Two-stage engine brake
Front Axle
Reyco® Granning® front axle - 20,000 lb. rating
Front Suspension
Independent front air suspension (IFS)
Rear Axle
Meritor rear axle - 20,000 lb. rating
Tag Axle
Tag axle with air dump - 12,000 lb. rating
Braking System
ABS disc brakes on front axle, drum brakes on drive and tag axle
Rear Axle Ratio
4.88 rear axle ratio
Tires
Michelin® XZA 365/70R 22.5" tires (front) and XZA 315/80R 22.5" tires (rear)
Shocks
Bilstein® shocks- 60mm front axle & 46mm rear/tag axles
Tire Pressure Monitoring
Tire pressure monitoring system (TPMS) with temperature monitoring
Traction Control
Automatic traction control
Leveling System
Equalizer™ hydraulic automatic coach leveling
Air Leveling
Valid Truline air leveling system with auxiliary air compressor
Air Connection
Remote air connection
Chassis Battery
(2) 12V chassis batteries
Fuel Tank
150-gal. fuel tank with dual fills
DEF Tank
15-gal. DEF tank with dual fills (single fill on 44D, 44R)
Tow Air Brake System
Spartan® Safehaul tow vehicle air brake system
Hitch
15,000-lb. hitch with 7-pin plug
Décor Options
Bavarian
Wood Options
Almond Glazed Maple
