2024 Esteem XL Class C | Entegra Coach

Luxury meets off-road capability in the Entegra Coach Esteem XL. This brand-new Super Class C motorhome combines the beloved comforts and amenities of the standard Esteem with the power and durability of the Ford F-550 4x4 chassis. The Esteem XL is guaranteed to deliver a powerful, smooth and comfortable journey, no matter the terrain.

FLOORPLANS

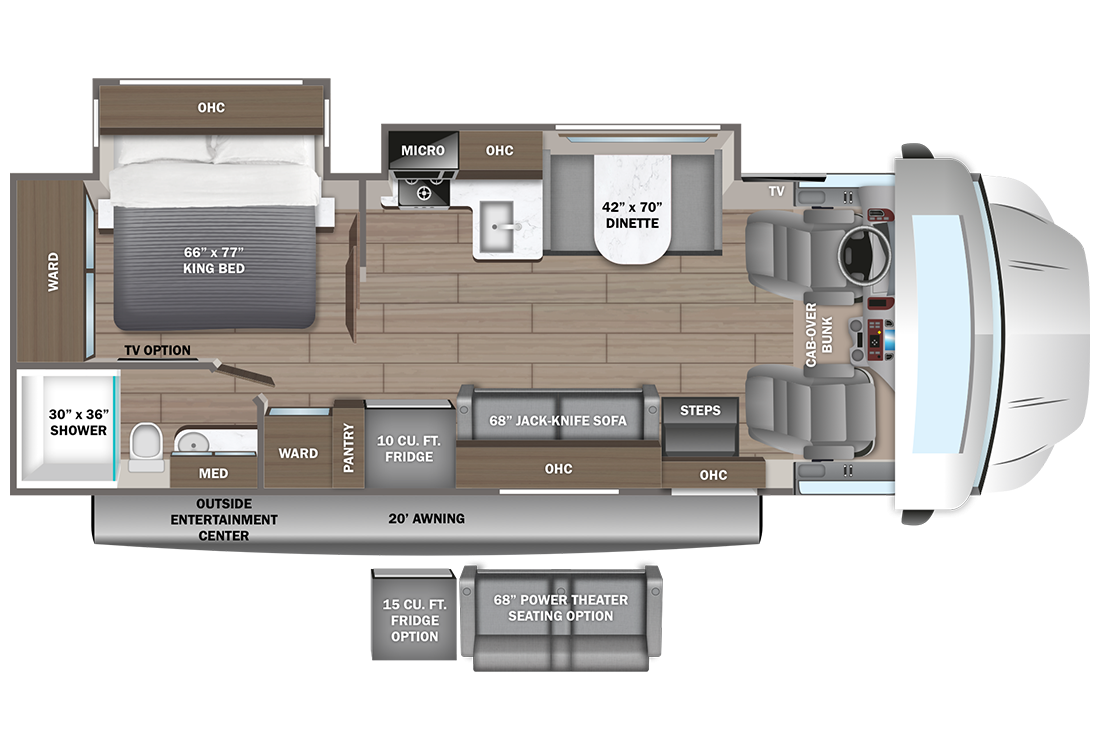

32U

2024 Esteem XL | 32U

32U

2024 Esteem XL | 32U

FLOORPLANS

Exterior Graphics

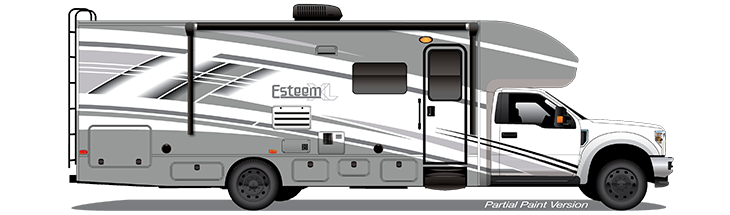

Partial Paint Package

2024 Esteem XL | Partial Paint Package

Partial Paint Package

2024 Esteem XL | Partial Paint Package

EXTERIOR GRAPHICS

STANDARDS & OPTIONS

E-Z Drive®

E-Z Drive™ Elite: Computer-balanced driveshaft, heavy-duty rear stabilizer bar, standard front stabilizer bar, Hellwig® helper springs, rubber isolation mounts

Leveling System

Automatic hydraulic leveling jacks

Chassis

Ford® F550 4X4 chassis

Engine

6.7L Power Stroke V8 Turbo diesel engine with block heater - 330 HP at 2,200 RPM and 950 ft. lb. torque at 1,800 RPM

Transmission

10-speed automatic transmission

Alternator

332-amp alternator

Tires

All-terrain tires - 245/70R19.5; Steel wheels with matte black liners

Hitch

12,000 lb. rear hitch receiver with 7-pin plug

Chassis Battery

Single chassis battery (750 CCA 78 AH)

Fuel Tank

Dual fuel tanks (26.5 gal. and 40 gal.)

Suspension Lift

2 in. rear lift

Décor Options

Stillwater

1/1

2024 Esteem XL - 18 top EZ Drive Elite PNG

Built on the Ford F53 chassis, the Vision XL uses a 7.3L V-8 producing 335 HP and 468 ft.-lb. of torque through a 6-speed TorqShift automatic transmission. E-Z Drive® Elite adds the steering, shock and tire package that helps the coach feel more composed over longer miles.

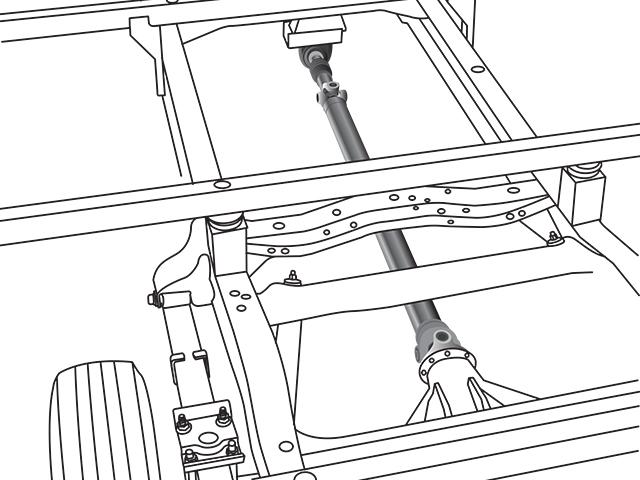

Computer-Balanced Driveshaft

By carefully measuring and adjusting the weight distribution along the driveshaft, a computer-balanced driveshaft reduces vibration and improves overall driveline performance by ensuring smooth and efficient power transfer to the wheels. This leads to a smoother and more comfortable ride, enhanced durability of drivetrain components, and reduced stress on the vehicle's transmission and rear axle.

Computer-Balanced Driveshaft

2024 Esteem XL - 20 Heavy Duty Stabilizer Bar

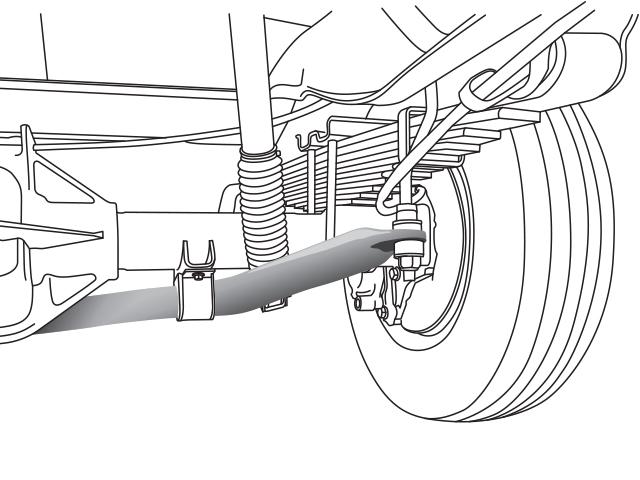

Heavy-Duty Rear Stabilizer Bar and Standard Front Stabilizer Bar

A larger stabilizer bar in the rear, with polyurethane bushings instead of rubber, transfers power faster for extra support, improved durability, reduced body roll, enhanced stability and a more controlled and enjoyable driving experience.

Heavy-Duty Rear Stabilizer Bar and Standard Front Stabilizer Bar

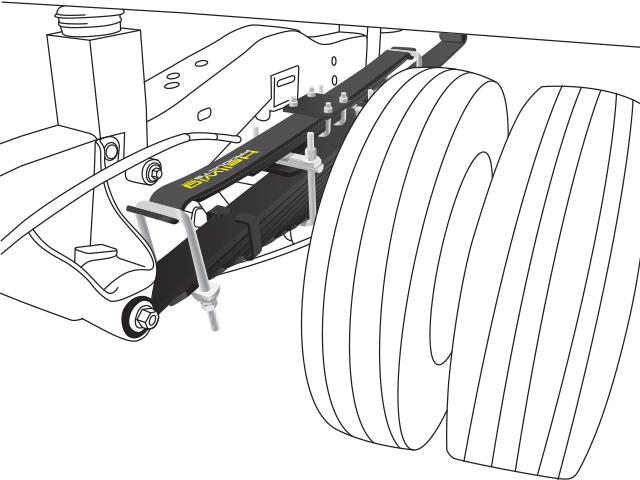

Hellwig® Helper Springs

Hellwig Helper Springs provide additional support to the existing suspension system, improving stability and handling while towing or carrying heavy loads. By reducing sagging and enhancing weight distribution, Hellwig Helper Springs help maintain proper ride height, increase overall safety, and minimize body roll, ensuring a smoother and more controlled driving experience.

Hellwig® Helper Springs

2024 Esteem XL - 22 Rubber Isolation Mounts

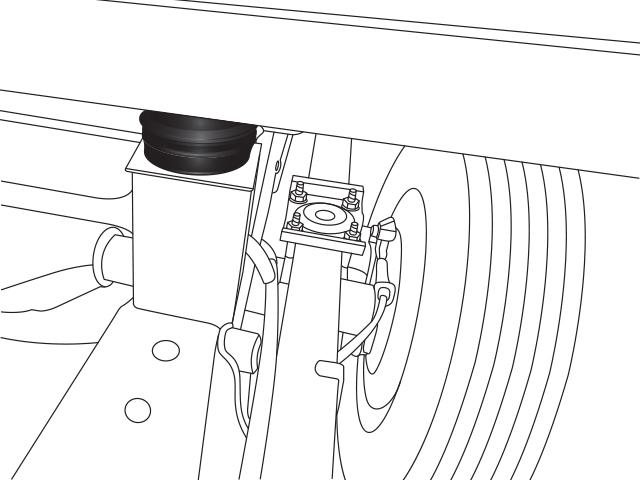

Rubber Isolation Body Mounts

Rubber isolation body mounts effectively reduce vibrations and noise transmission from the chassis to the interior of the vehicle, resulting in a smoother and quieter ride. Secondly, these mounts provide enhanced comfort by absorbing road shocks and impacts, reducing fatigue and improving the overall driving experience for occupants.

Rubber Isolation Body Mounts

E-Z DRIVE® ELITE
