THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.
2022 ASPIRE
LENGTH 45' 5" | WIDTH 101"

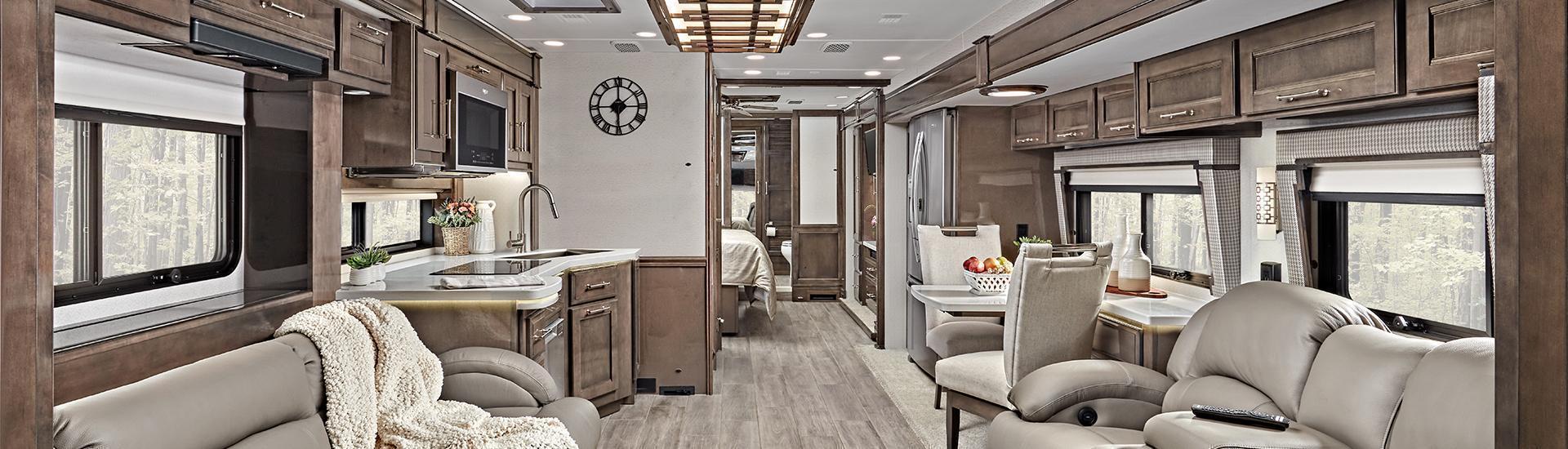

As much a joy to drive as it is to relax in, the new Aspire will have you feeling right at home—anywhere. The 2022 model features upgraded Italian leather furniture—including a 100-inch reclining sofa option and all-new décor, wood and exterior paint choices. A new E-Z Steer™ column drive uses electrically powered steering (EPS), along with the normal belt driven hydraulic power steering pump to help combat driver fatigue and compensate for crosswinds. So sit back and enjoy the view—no matter where the road takes you.

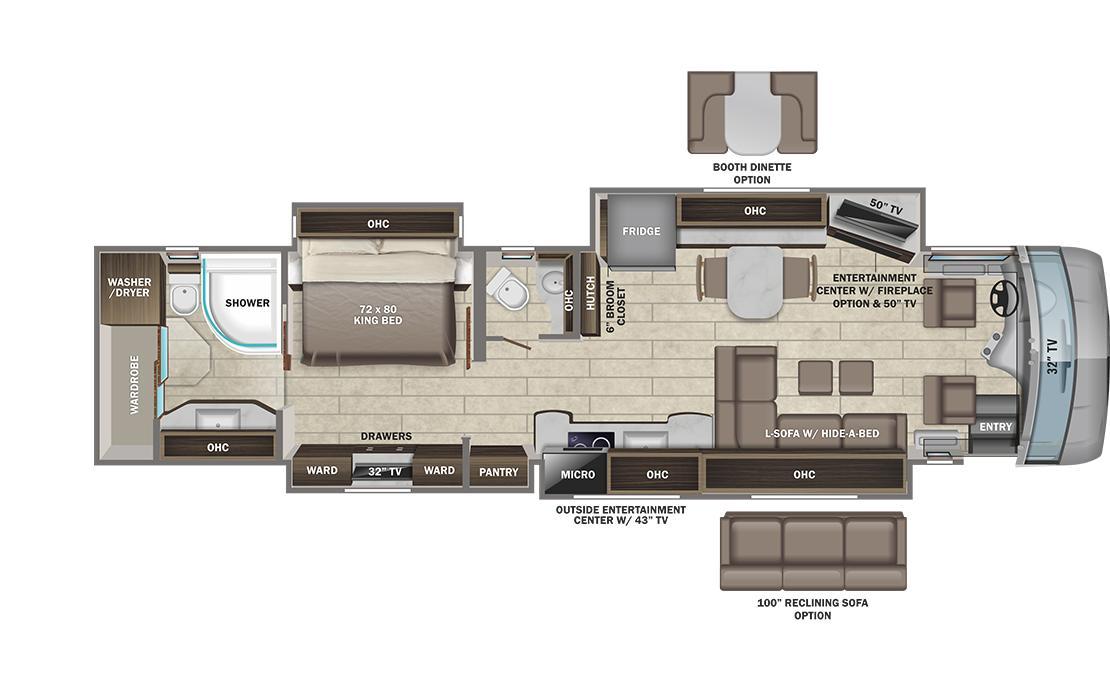

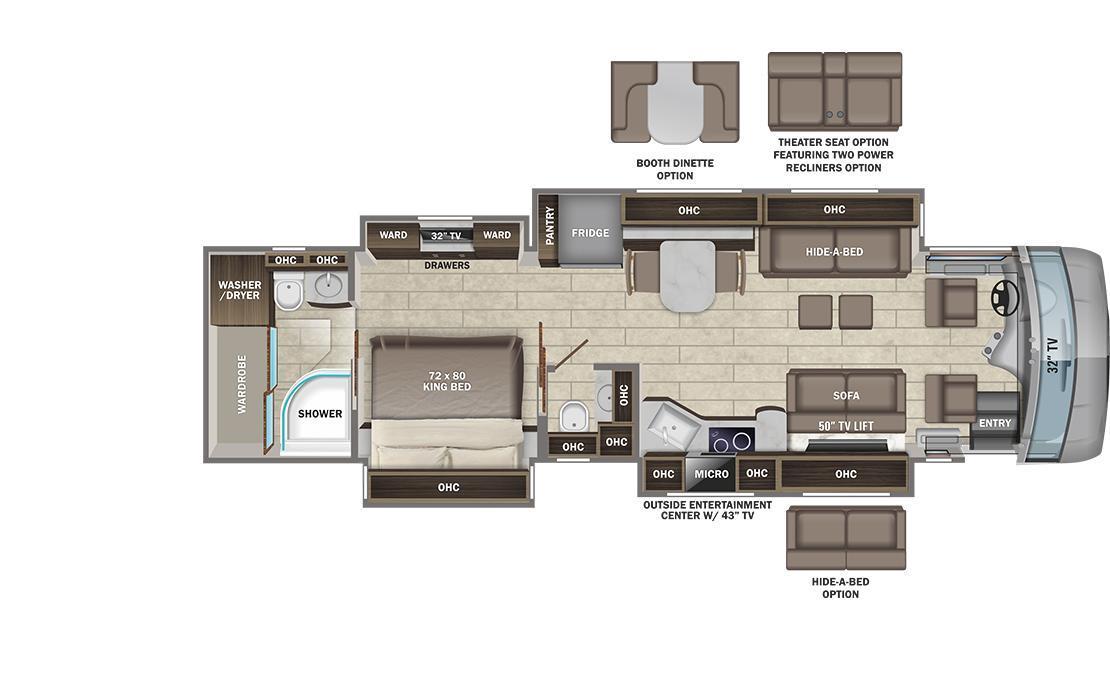

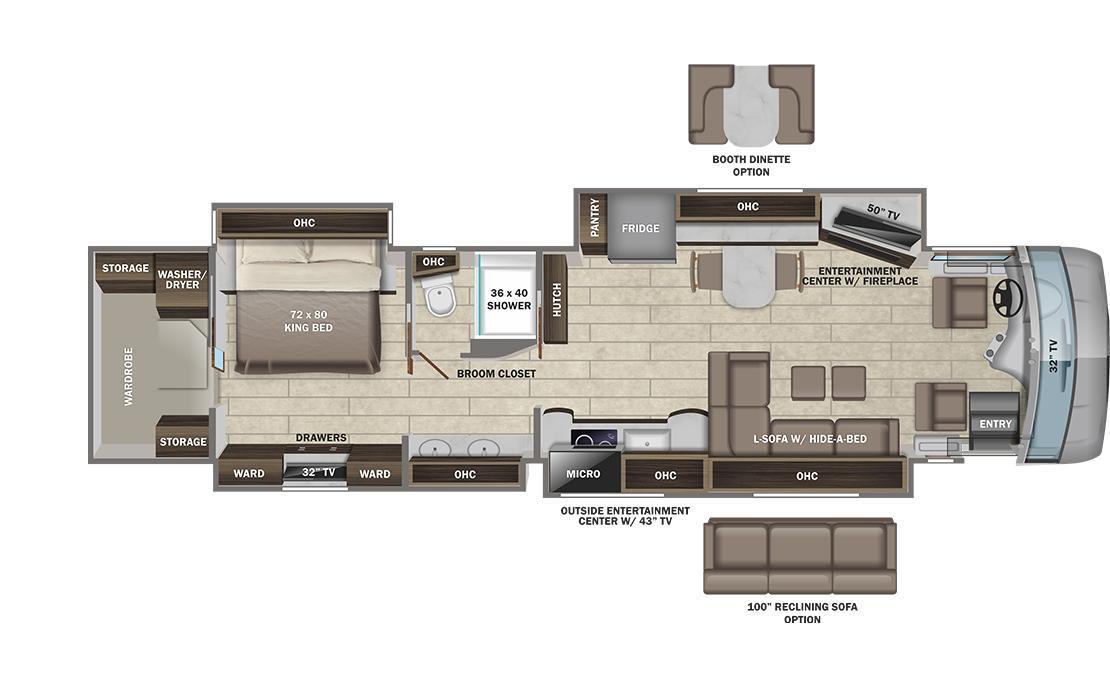

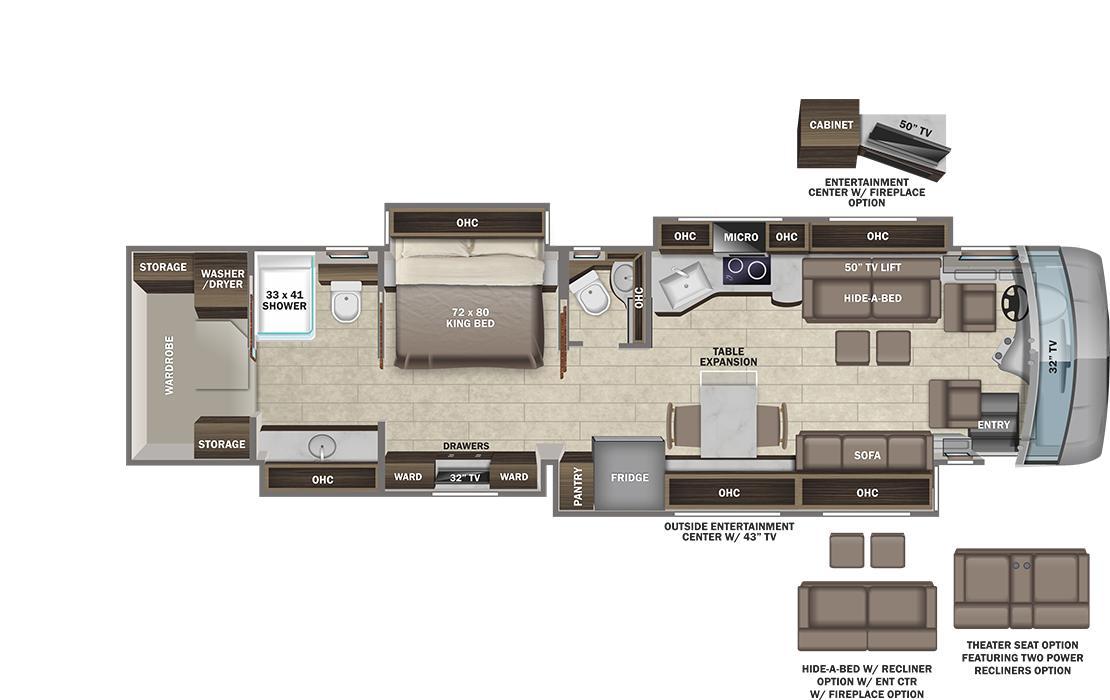

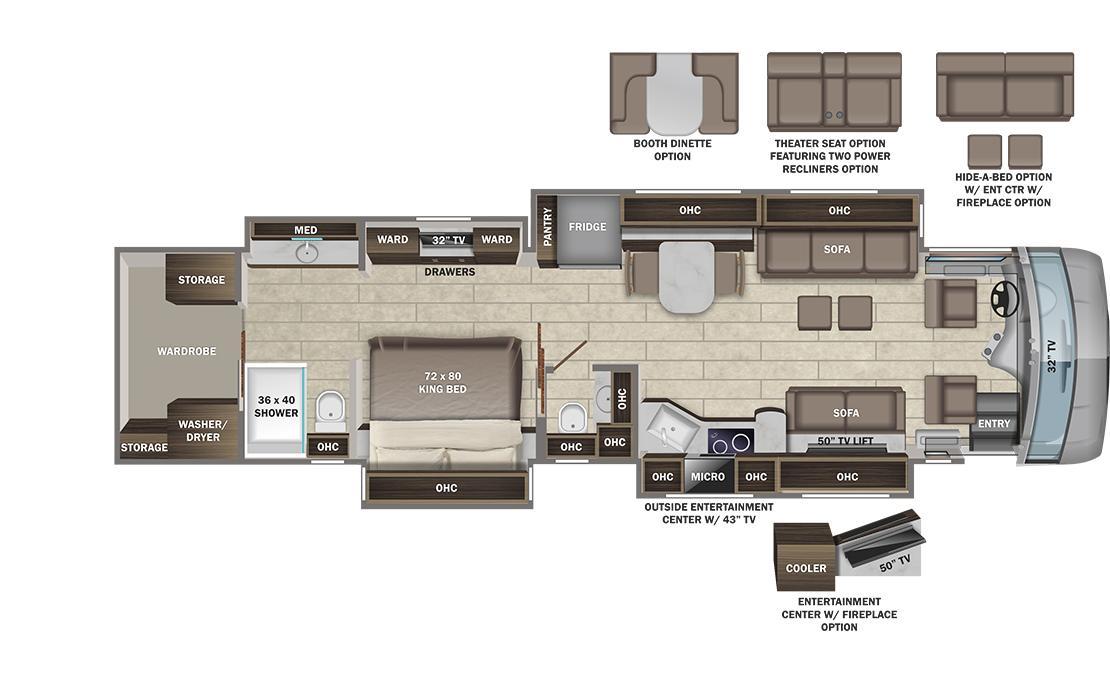

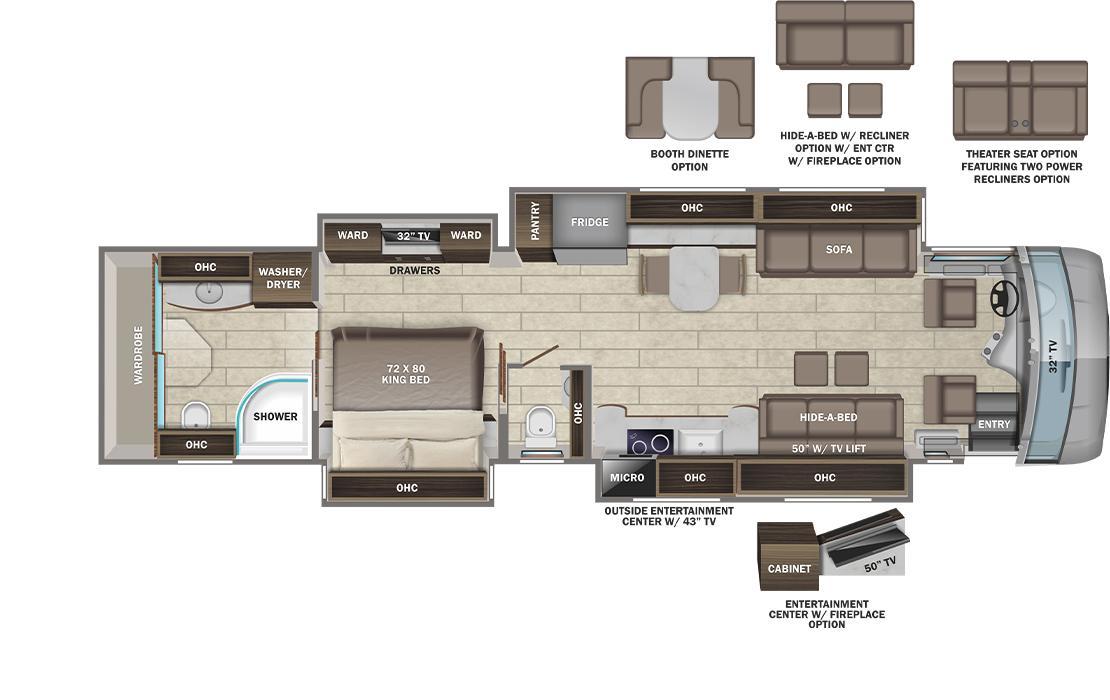

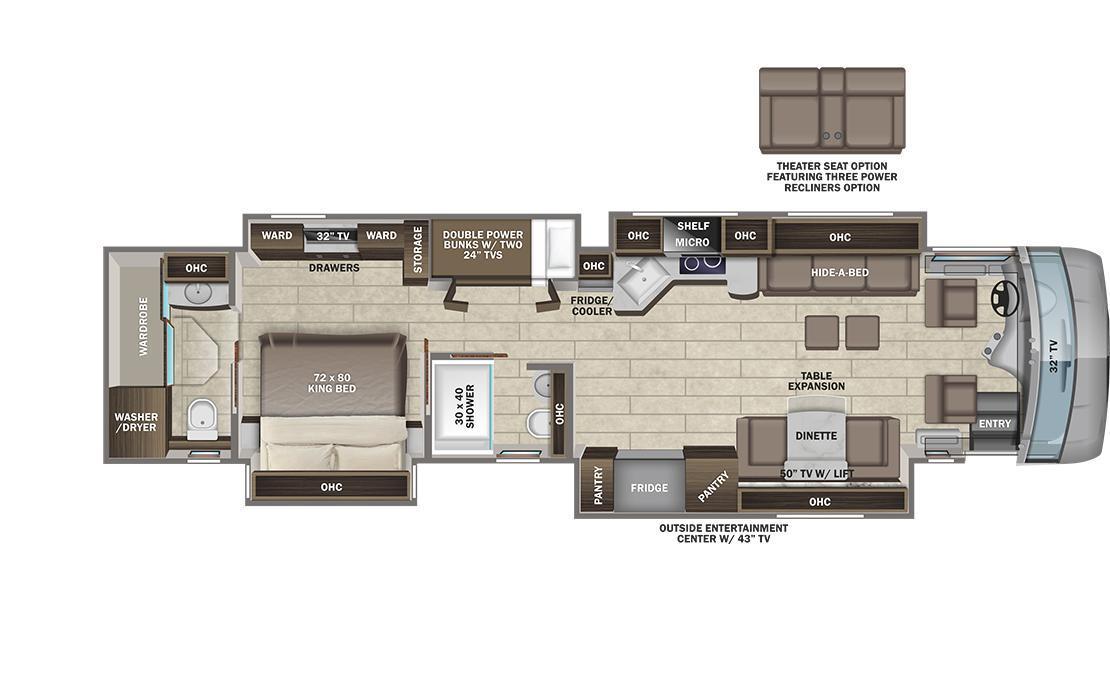

Floorplans

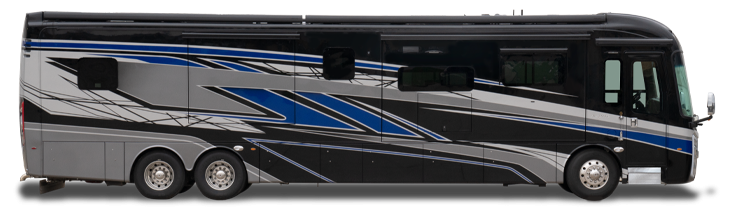

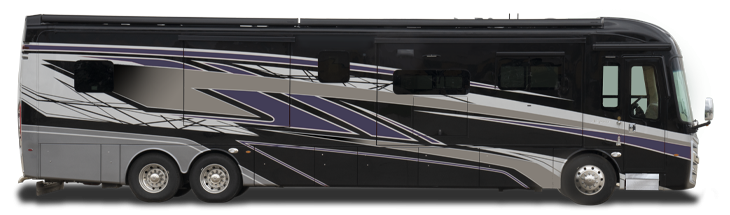

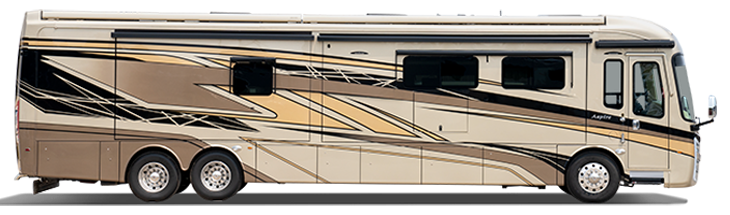

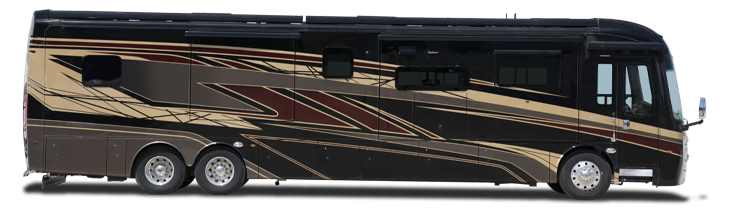

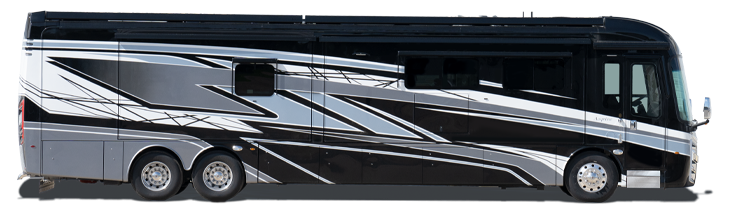

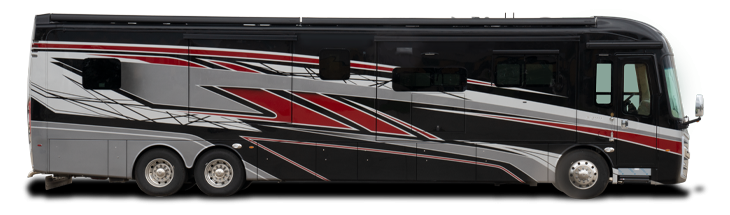

Exterior Graphics
STANDARDS & OPTIONS
Chassis
Spartan® K2 raised-rail chassis
Engine
Cummins® L9 turbocharged 450 HP engine with 1,250-lb. ft. torque at 1,400 RPM
Transmission
Allison® 3,000 MH 6-speed transmission
Radiator
Side-mounted, parallel-airflow radiator
Alternator
170-amp alternator
Engine Block Heater
1,000-watt engine block heater
Engine Brake
Two-stage engine brake
Front Axle
Reyco® Granning® front axle - 17,000 lb. rating
Front Suspension
Independent front air suspension (IFS)
Rear Axle
Meritor rear axle - 20,000 lb. rating (Dana® rear axle- 24,000 lb. rating on 40P)
Tag Axle
Tag axle with air dump - 12,000 lb. rating (N/A 40P)
Braking System
ABS disc brakes on front axle, drum brakes on drive and tag axle
Rear Axle Ratio
4.88 rear axle ratio (4.78 on 40P)
Tires
Michelin® 315/80R 22.5" tires (front) and 295/80R 22.5" tires (rear)
Shocks
Bilstein® 46mm shocks
Tire Pressure Monitoring
Tire pressure monitoring system (TPMS) with temperature monitoring
Leveling System
Equalizer™ hydraulic automatic coach leveling
Air Connection
Remote air connection
Chassis Battery
(2) 12V chassis batteries
Fuel Tank
150-gal. fuel tank with dual fills (100 gal. on 40P)
DEF Tank
15-gal. DEF tank with dual fills (single fill on 40P, 44D, 44R)
Tow Air Brake System
Spartan® Safehaul tow vehicle air brake system
Hitch
15,000-lb. hitch with 7-pin plug (10,000-lb. hitch on 40P)
Décor Options
Lily
Wood Options
