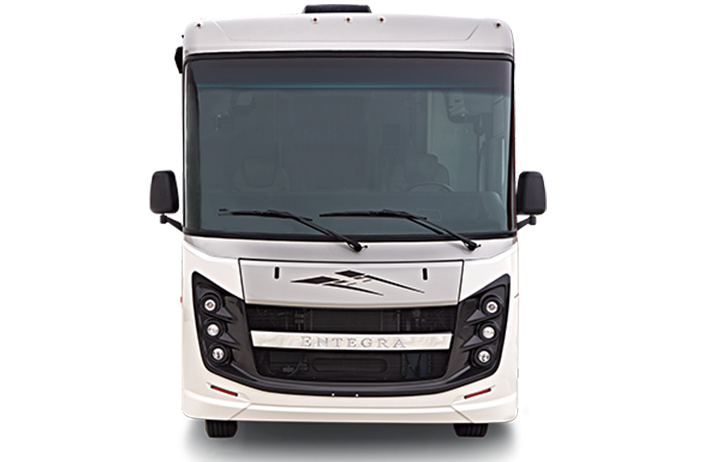

YOUR EASY START TO LUXURY

Explore Class A motorhome ownership with Entegra Coach's gas Vision Class A. The smallest of Entegra Coach's Class A lineup, the Vision has everything you need for a great trip while still paying attention to the details, such as hardwood cabinet doors, drawers and fascia with LED accent lighting. Built on the Ford® F53 chassis and equipped with the E-Z Drive™ ride and handling package, it's smooth sailing from here in your new Class A Vision.

NO. OF FLOORPLANS

32' 2"

EXTERIOR LENGTH

SLEEPS UP TO

2024 Vision Floorplans

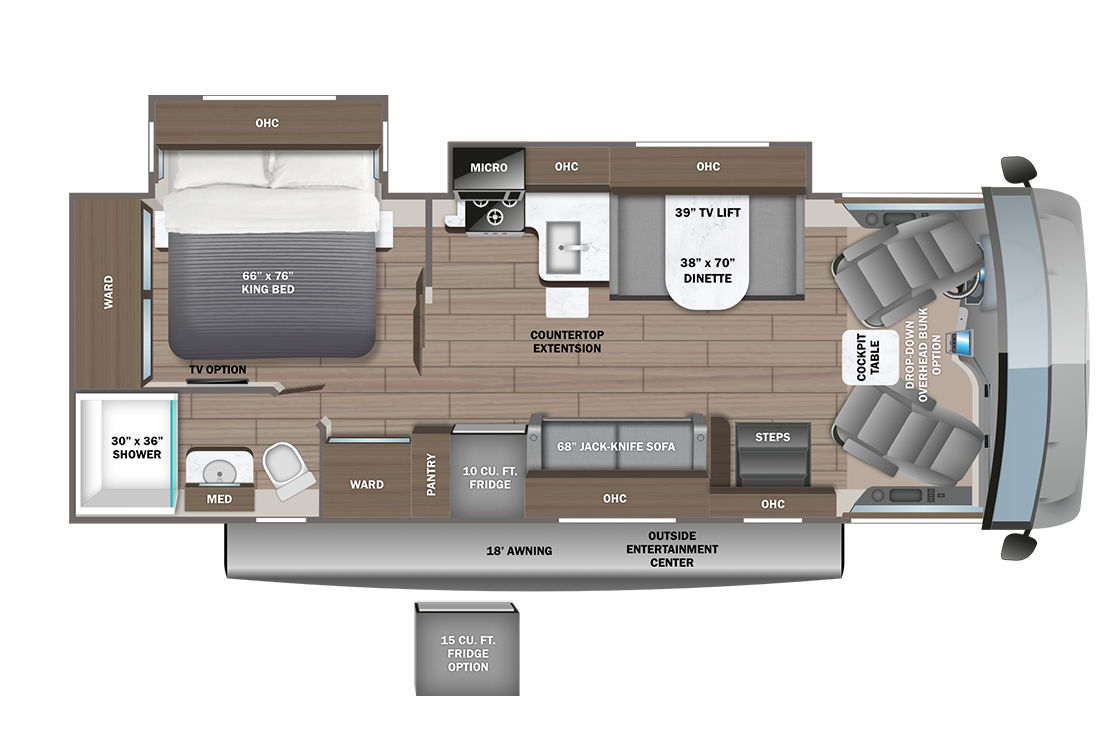

27A

2024 Vision | 27A

27A

2024 Vision | 27A

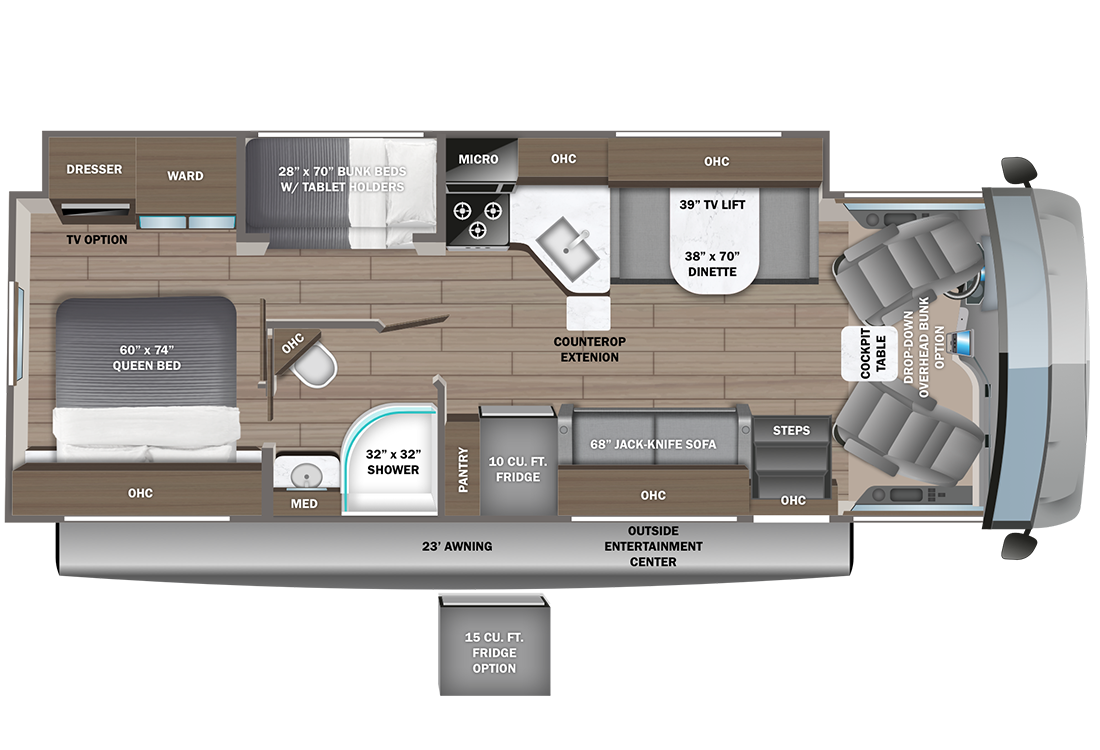

29F

2024 Vision | 29F

29F

2024 Vision | 29F

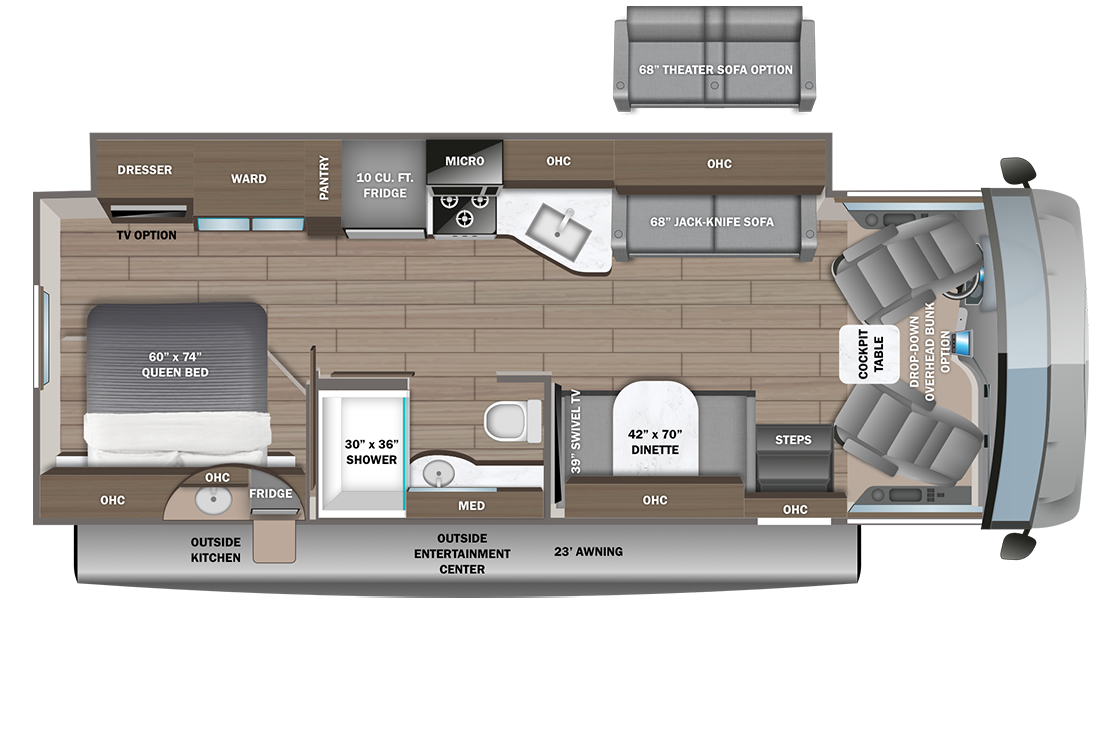

29S

2024 Vision | 29S

29S

2024 Vision | 29S

FLOORPLANS

Exterior Graphics

Standard Graphics

2024 Vision | Standard Graphics

Standard Graphics

2024 Vision | Standard Graphics

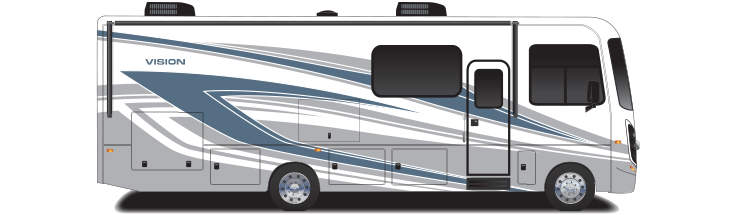

Basanite Full-Body Paint

2024 Vision | Basanite Full-Body Paint

Basanite Full-Body Paint

2024 Vision | Basanite Full-Body Paint

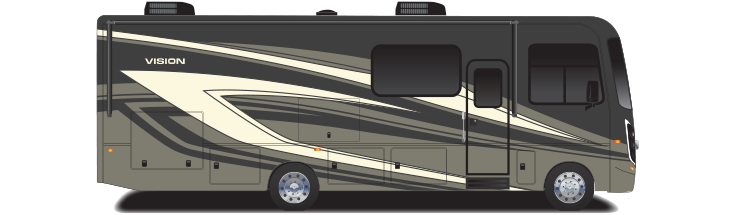

Dolomite Full-Body Paint

2024 Vision | Dolomite Full-Body Paint

Dolomite Full-Body Paint

2024 Vision | Dolomite Full-Body Paint

Tannerite Full-Body Paint

2024 Vision | Tannerite Full-Body Paint

Tannerite Full-Body Paint

2024 Vision | Tannerite Full-Body Paint

EXTERIOR GRAPHICS

STANDARDS & OPTIONS

E-Z Drive

E-Z Drive™: Computer-balanced driveshaft, Bilstein® steering stabilizer, jounce bumpers, heavy-duty front and rear stabilizer bars, SACHS shocks

Chassis

Ford® F53 chassis

Engine

7.3L V-8 335 HP engine with 468 ft.-lb. torque

Transmission

6-speed automatic TorqShift® transmission with overdrive and tow haul mode

Alternator

210-amp alternator

Catalytic Converter Protection

Catalytic converter theft deterrent

Tires

G-rated highway tires-245/70R19.5

Braking System

Front and rear disc, 4-wheel anti-lock brakes

Hitch

5,000 lb. rear hitch receiver with dual connector and 7-pin plug

Chassis Battery

12V chassis battery

Fuel Tank

80 gal. fuel tank

Leveling System

Automatic hydraulic leveling jacks

Built on the Ford F53 chassis, the Vision uses a 7.3L V-8 producing 335 HP and 468 ft.-lb. of torque through a 6-speed TorqShift automatic transmission. E-Z Drive Elite adds the steering, shock and tire package that helps the coach feel more composed over longer miles.

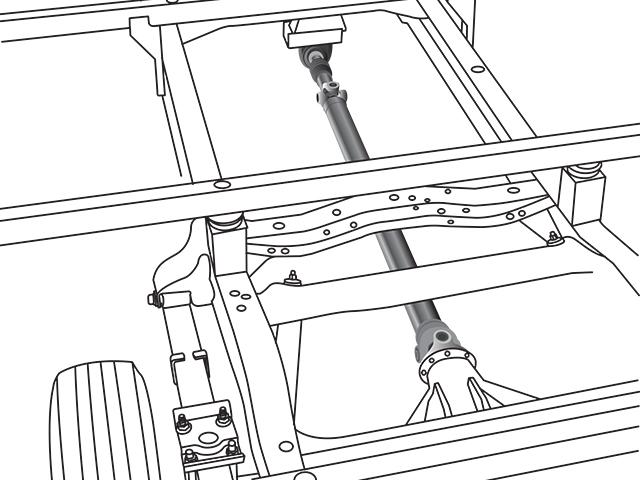

Computer-Balanced Driveshaft

By carefully measuring and adjusting the weight distribution along the driveshaft, a computer-balanced driveshaft reduces vibration and improves overall driveline performance by ensuring smooth and efficient power transfer to the wheels. This leads to a smoother and more comfortable ride, enhanced durability of drivetrain components, and reduced stress on the vehicle's transmission and rear axle.

Computer-Balanced Driveshaft

2024 Vision - 31 Bisteing Steering Stabilizer

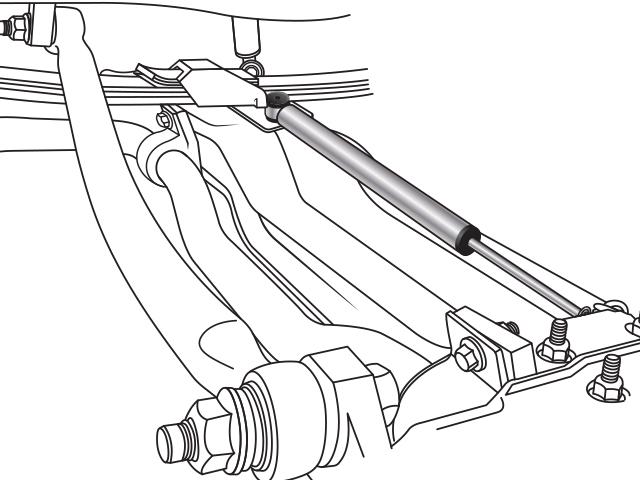

Bilstein® Steering Stabilizer

The Bilstein steering stabilizer enhances steering control by reducing steering play and minimizing steering wheel vibrations caused by road irregularities, resulting in improved handling and stability. Secondly, it helps reduce driver fatigue by providing a more comfortable and controlled steering experience, contributing to a safer and more enjoyable journey.

Bilstein® Steering Stabilizer

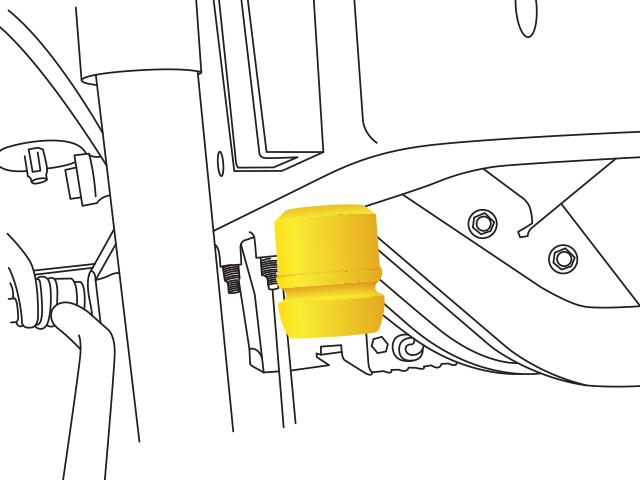

Jounce Bumpers

Jounce bumpers provide additional support and cushioning during sudden bumps or impacts, helping to prevent bottoming out and reducing the risk of damage to the suspension system. Additionally, jounce bumpers improve your ride by absorbing road shocks, vibrations and excess road noise.

Jounce Bumpers

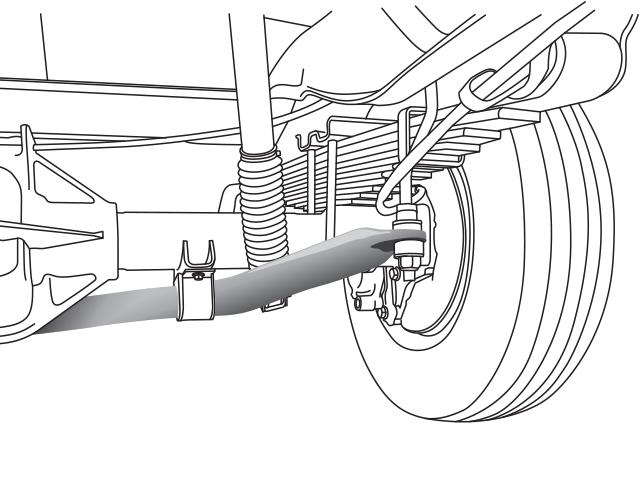

2024 Vision - 38 Heavy Duty Stabilizer Bar

Heavy-Duty Front and Rear Stabilizer Bars

Larger stabilizer bars in the front and rear, with polyurethane bushings instead of rubber, transfer power faster for extra support, improved durability, reduced body roll, enhanced stability and a more controlled and enjoyable driving experience.

Heavy-Duty Front and Rear Stabilizer Bars

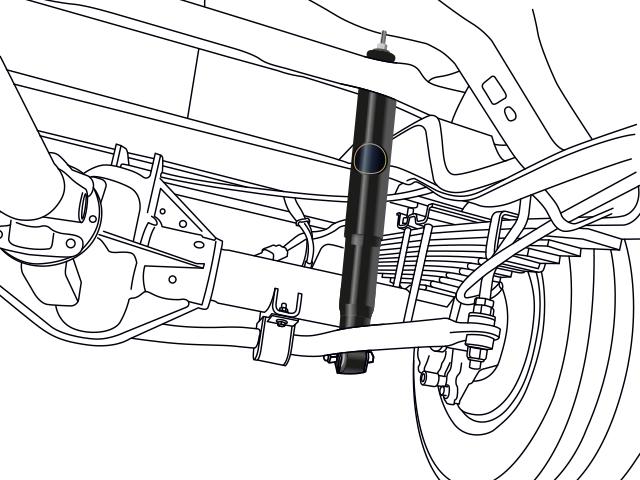

SACHS Shocks

Large-diameter tube design pairs gas and hydraulics to resist heat and pressure, while independently adjusting to changing road conditions. SACHS shocks effectively absorb road vibrations, improve stability and reduce body roll and sway during maneuvers for a smooth, safe and comfortable ride.
