2024 Aspire Walkthrough - Class A Luxury Diesel Motorhome
Detailed walkthrough of the 2024 Aspire luxury diesel Class A, floorplan 44R, presented by a Regional Sales Manager.
THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.

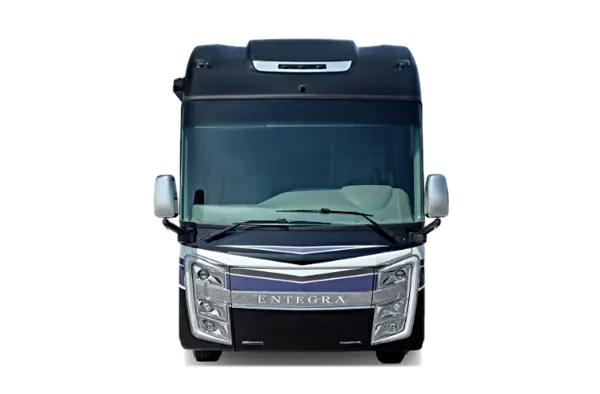

2024 ASPIRE
LENGTH 44' 11" | WIDTH 101" | SLEEPS UP TO 2
Fulfill your aspirations for a luxury travel experience with the Entegra Coach 2024 Aspire Class A Diesel Pusher.

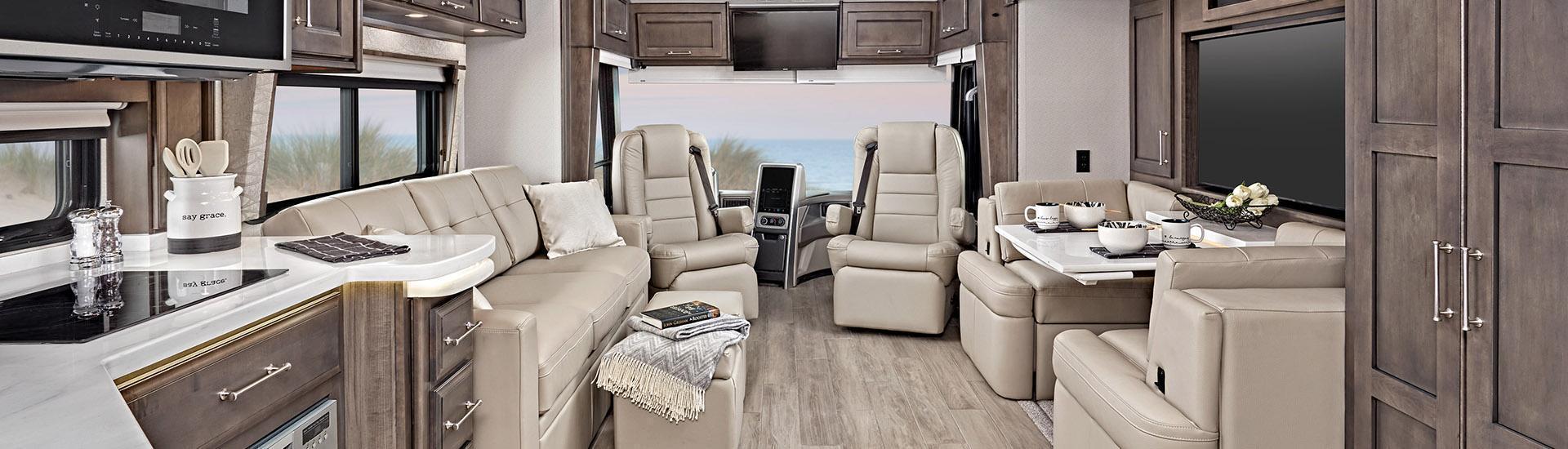

The Aspire features premium leather Crown Compass furniture in the living area, hand-laid porcelain tile, push-button power-unlatching baggage doors with LED indicator lights and a 15-inch digital dash with an integrated 360° camera and tire pressure monitoring system.
All new for the 2024 Aspire is the Valid™ Truline air leveling system with an auxiliary air compressor, guaranteeing a level ride and campsite when you arrive at your destination. Built on the Spartan® K2 chassis with a Cummins® 450HP engine and E-Z Steer™ adjustable power steering assist, the Entegra Coach Aspire checks all the boxes.
Product Videos

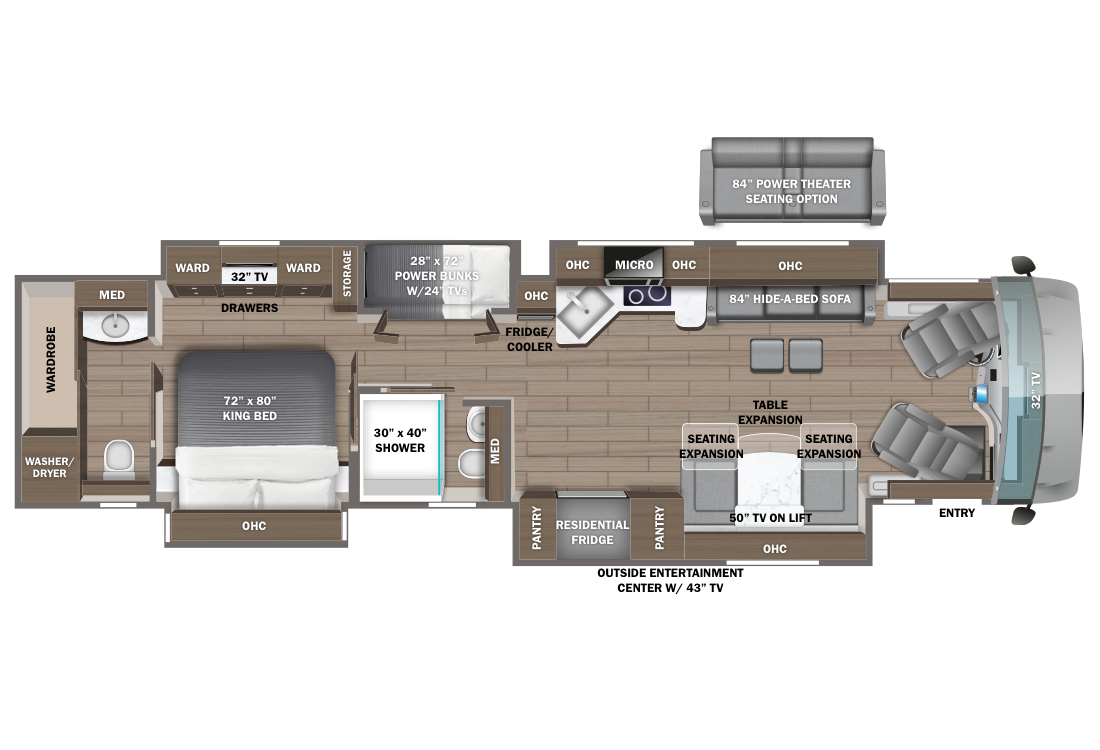

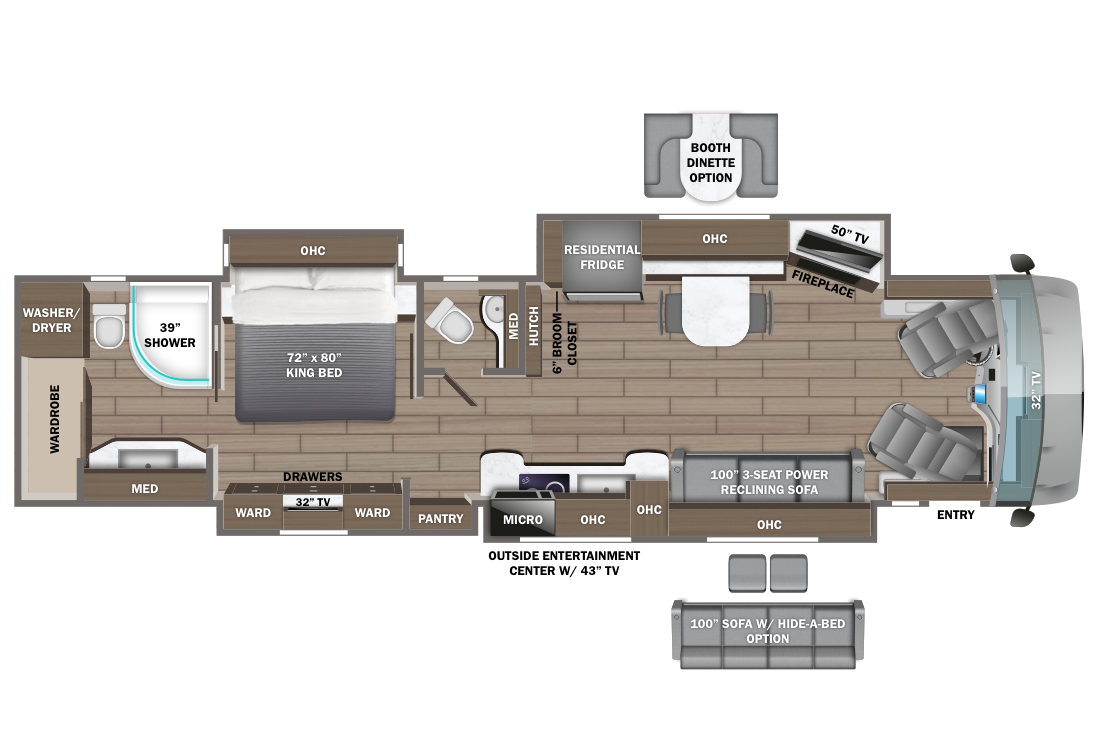

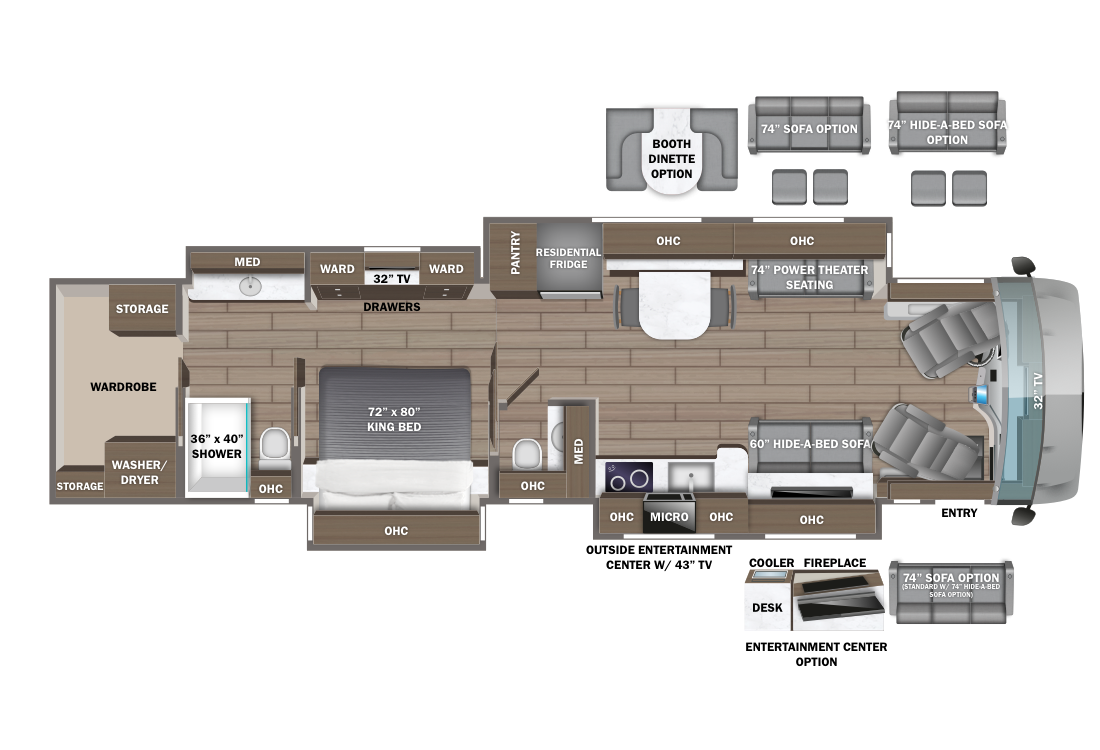

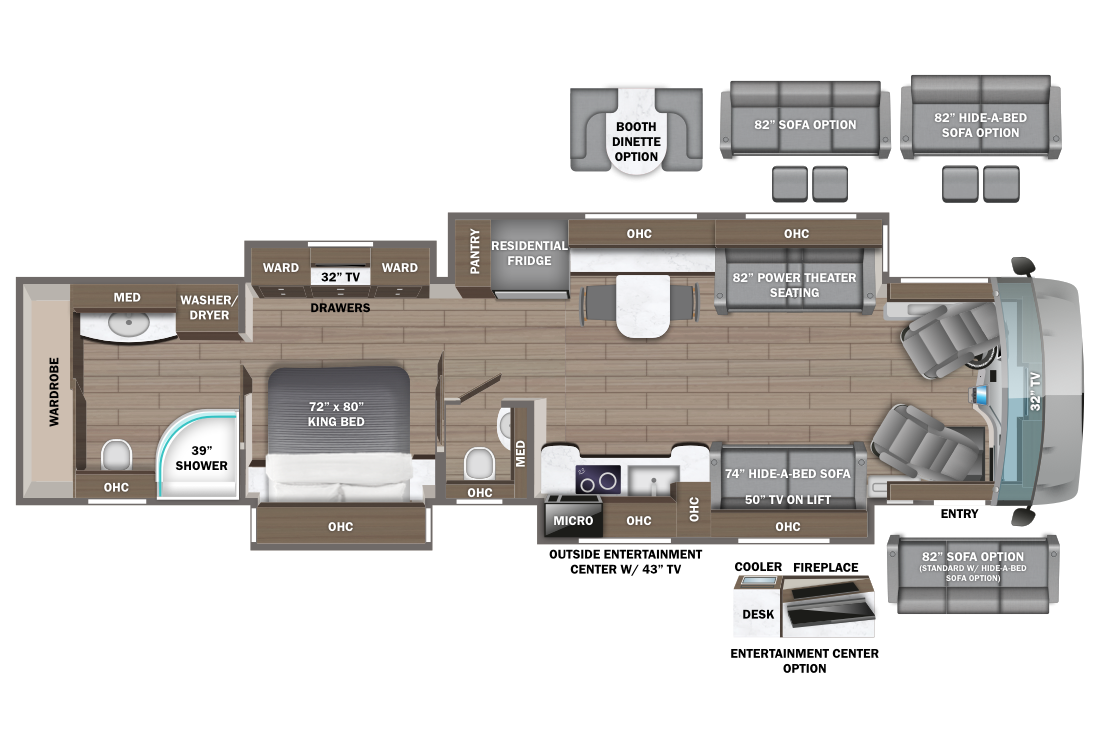

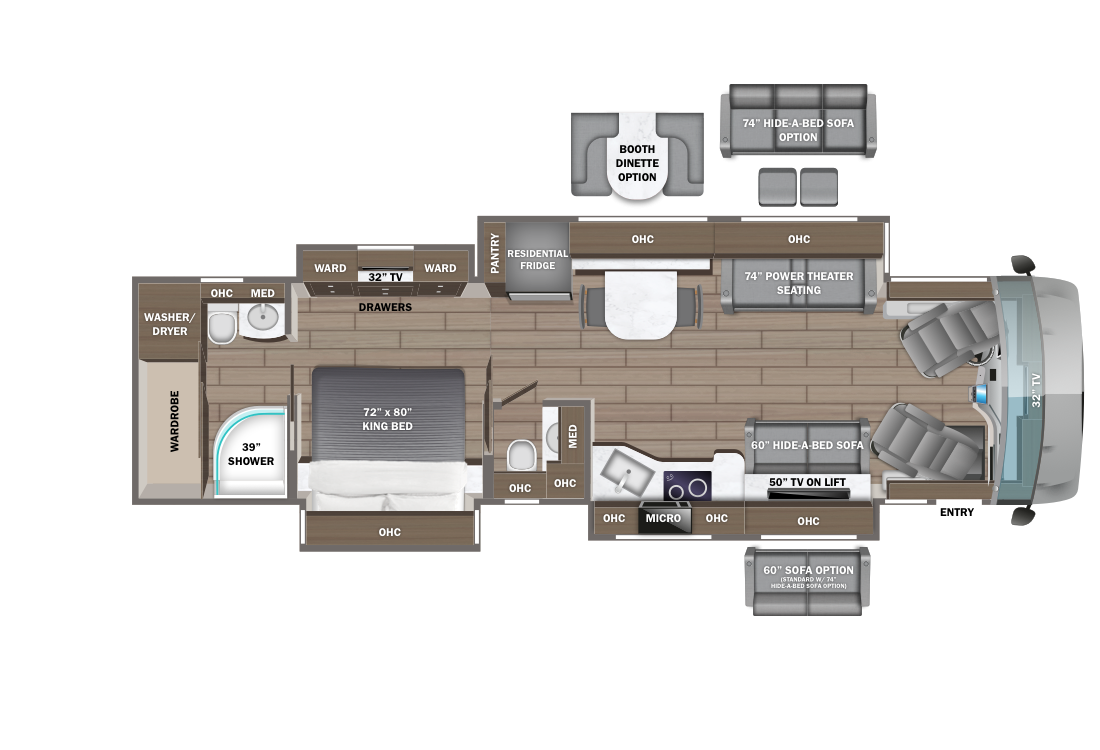

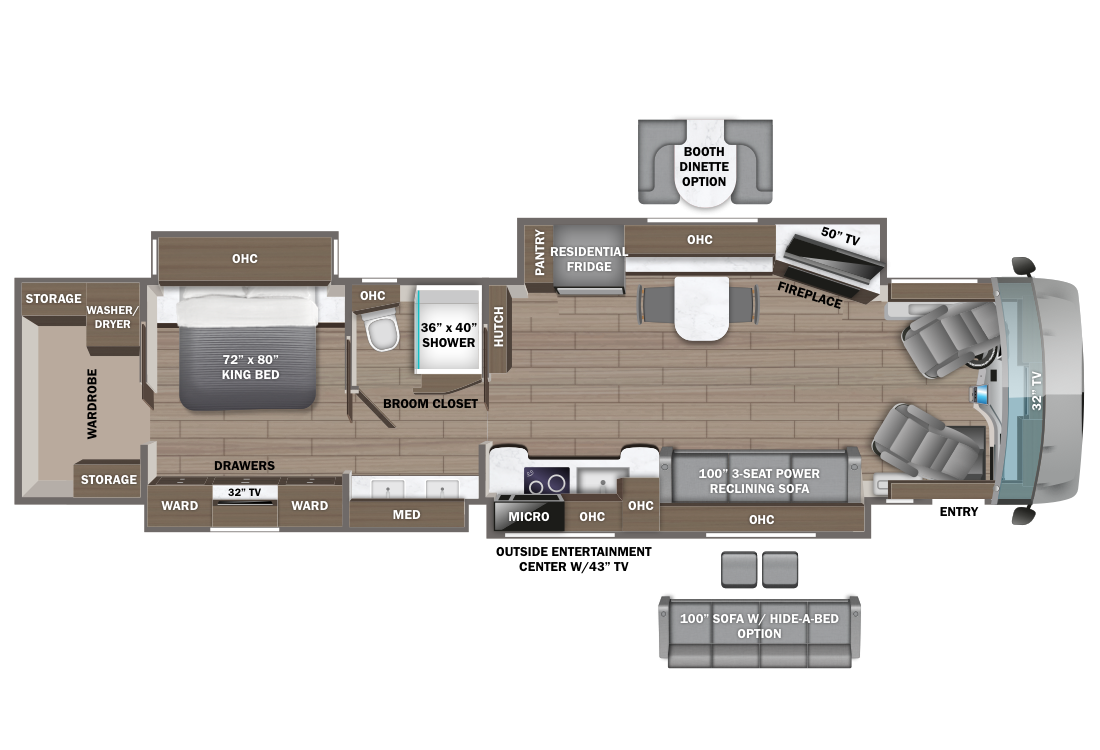

Floorplans

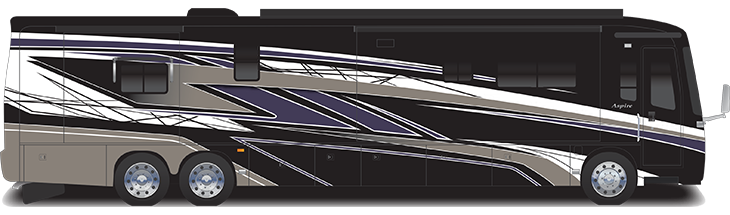

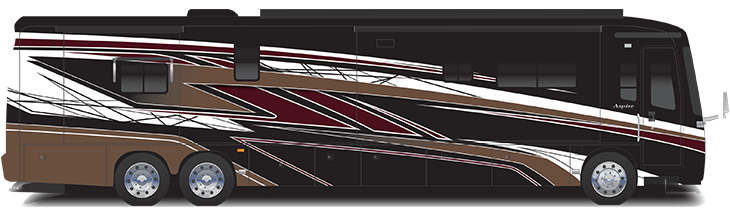

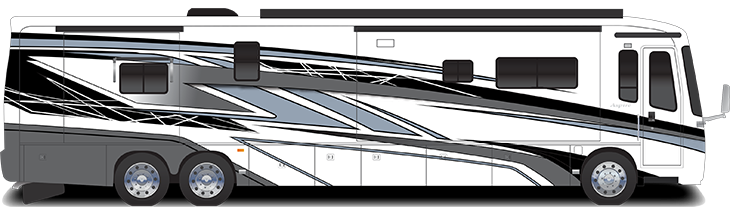

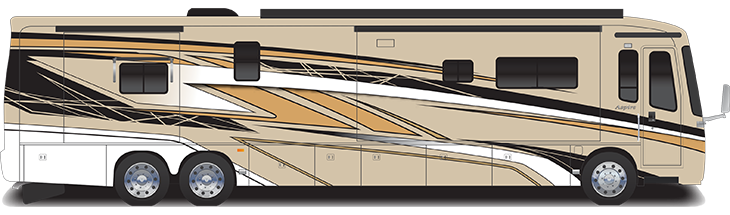

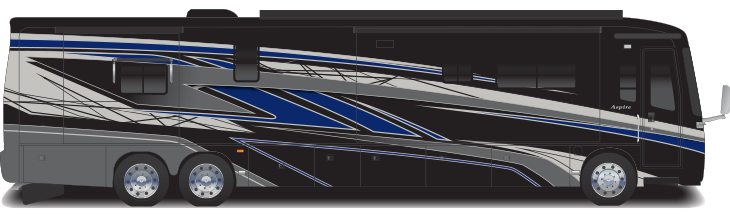

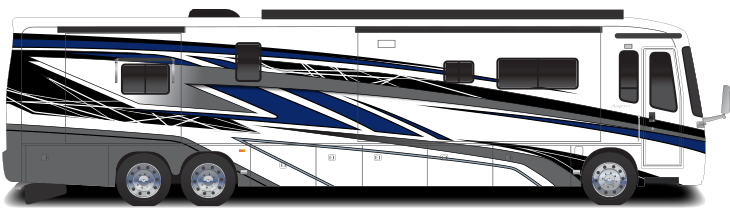

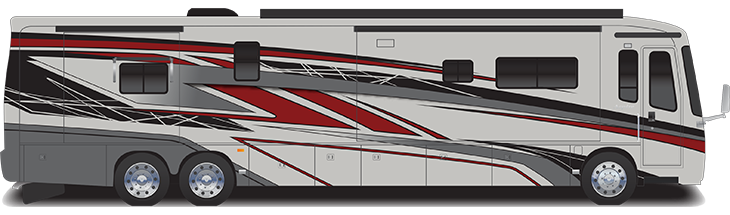

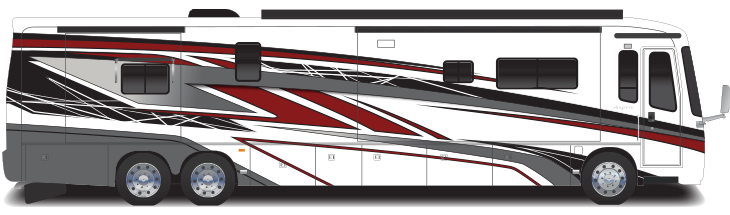

Exterior Graphics
STANDARDS & OPTIONS
Chassis
Spartan® K2 raised-rail chassis
Engine
Cummins® L9 turbocharged 450 HP engine with 1,250 lb.-ft. torque at 1,400 RPM
Transmission
Allison® 3,000 MH 6-speed transmission
Radiator
Side-mounted, parallel-airflow radiator
Alternator
170 amp alternator
Engine Block Heater
1,000W engine block heater
Engine Brake
Three-stage engine brake
Front Axle
Reyco® Granning® front axle with independent front suspension - 17,000 lb. rating
Front Suspension
Independent front suspension (IFS)
Rear Axle
Meritor rear axle - 20,000 lb. rating (Dana® rear axle- 24,000 lb. rating on 40P)
Tag Axle
Tag axle with one-touch manual air dump - 12,000 lb. rating (N/A 40P)
Braking System
ABS disc brakes on front axle, drum brakes on drive and tag axle (ABS disc brakes on front and rear axle on 40P)
Rear Axle Ratio
4.88 rear axle ratio (4.78 on 40P)
Tires
Michelin® X Coach Z tires (315/80R22.5 in front, 295/80R22.5 in rear)
Shocks
Bilstein® 46mm shocks
Tire Pressure Monitoring
Tire pressure monitoring system (TPMS) with temperature monitoring
Leveling System
Equalizer™ hydraulic automatic coach leveling
Air Leveling
Valid™ Truline air leveling system with auxiliary air compressor
Air Connection
Remote air connection
Chassis Battery
(2) 12V chassis batteries
Fuel Tank
150 gal. fuel tank with dual fills (100 gal. on 40P)
DEF Tank
15 gal. DEF tank with dual fills (single fill on 40P, 44D, 44R)
Tow Air Brake System
Spartan® Safehaul tow vehicle air brake system
Hitch
15,000 lb. hitch with 7-pin plug (10,000 lb. hitch on 40P)
Décor Options
Flagstone

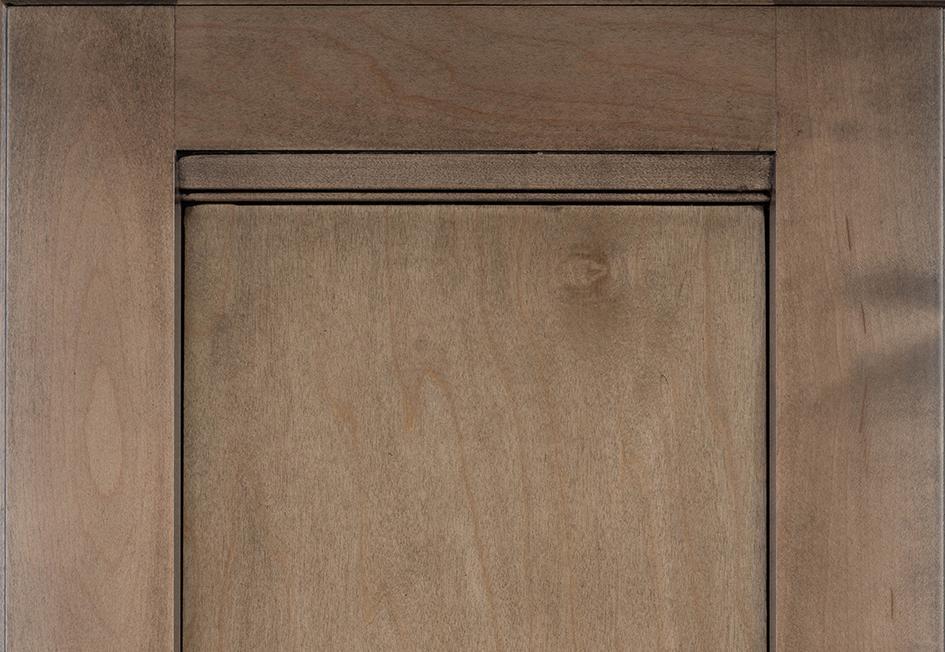

Wood Options
Stonewall Matte Grey Maple
Tile Options
