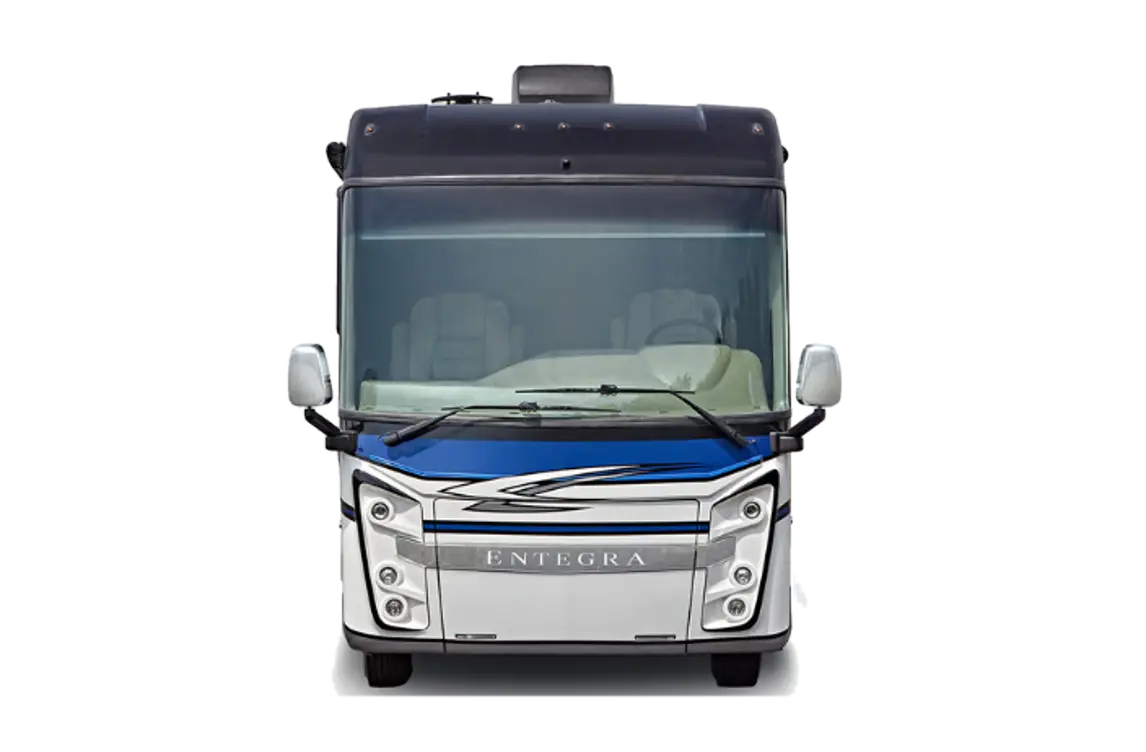

The 2023 Reatta XL offers ease of use alongside superior quality. This Luxury Diesel Coach means business on an impressive Spartan® K2 chassis with a Cummins® 380HP engine and 1150 ft. lbs. of torque. With extra attention to detail, extending from the looks of the beautiful interior styling to the functionality of this model, there is a lot to appreciate. This coach is all-electric, with no LP requirements, and has the best 2-year limited warranty and 3-year structural limited warranty in the Industry. The features and quality craftsmanship can be noted in the modern interior design. Not to mention the technological advancements including the 12.3 inch digital dash with an integrated 360° camera and tire pressure monitoring system, for added peace of mind. This coach's maneuverability and residential touches will have you feeling right at home no matter where you are.

Floorplans

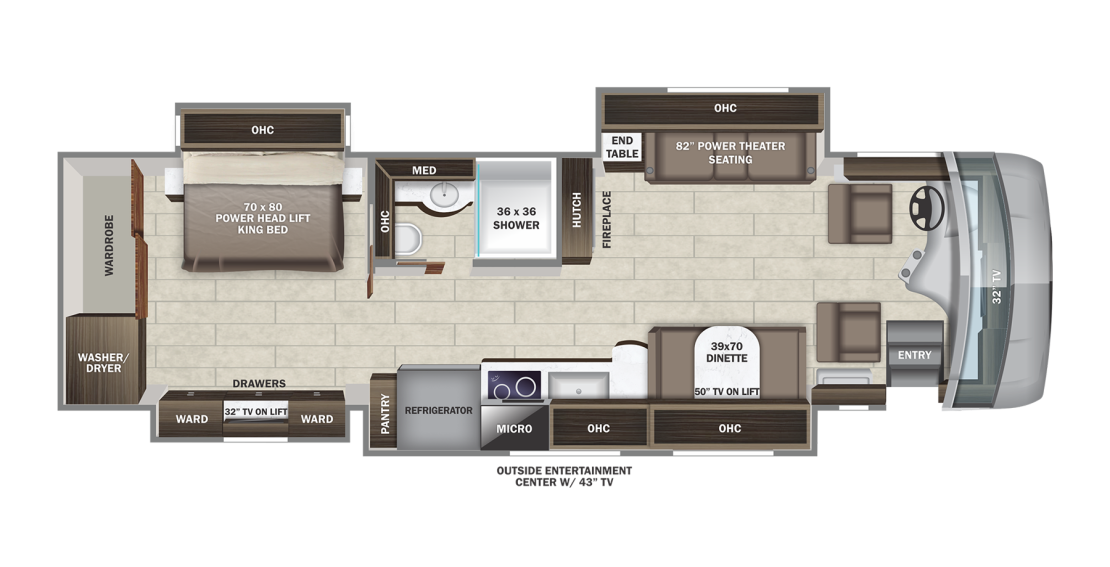

2023 Reatta XL - 37K

37K

2023 Reatta XL | 37K

37K

2023 Reatta XL | 37K

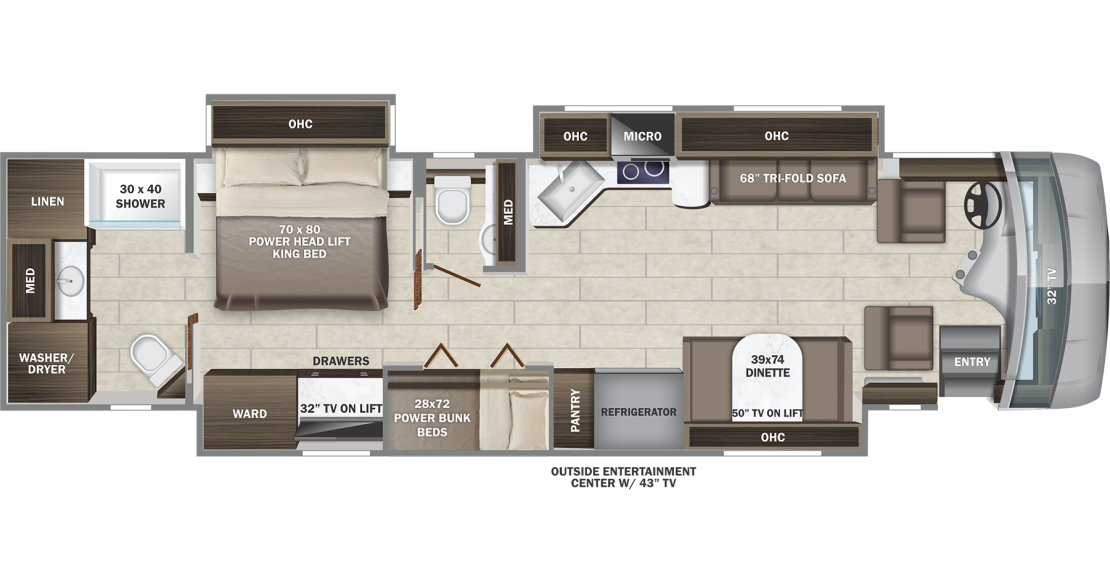

2023 Reatta XL - 39BH

39BH

2023 Reatta XL | 39BH

39BH

2023 Reatta XL | 39BH

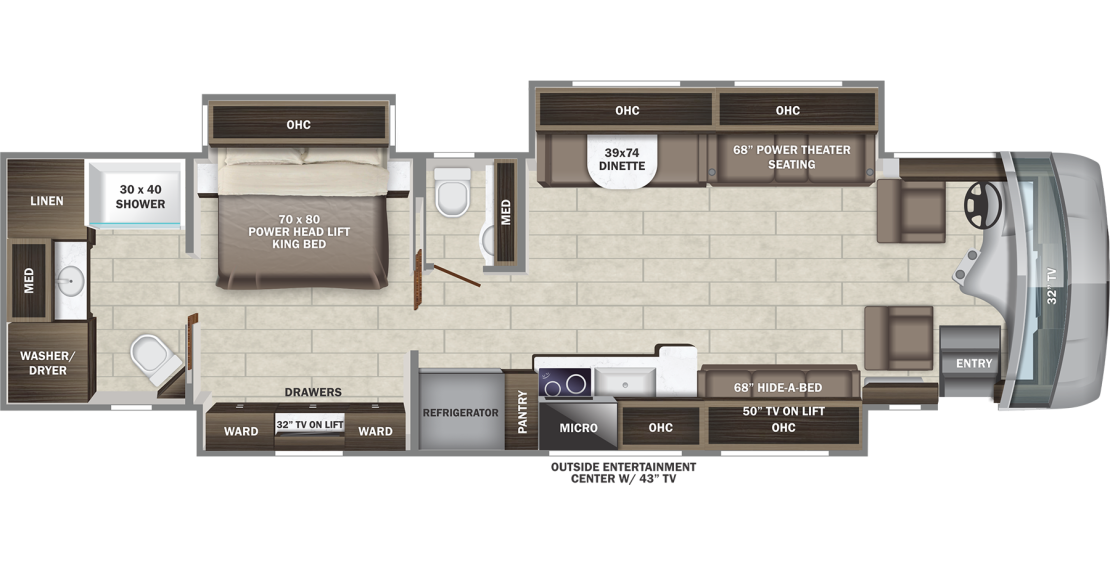

2023 Reatta XL - 39T2

39T2

2023 Reatta XL | 39T2

39T2

2023 Reatta XL | 39T2

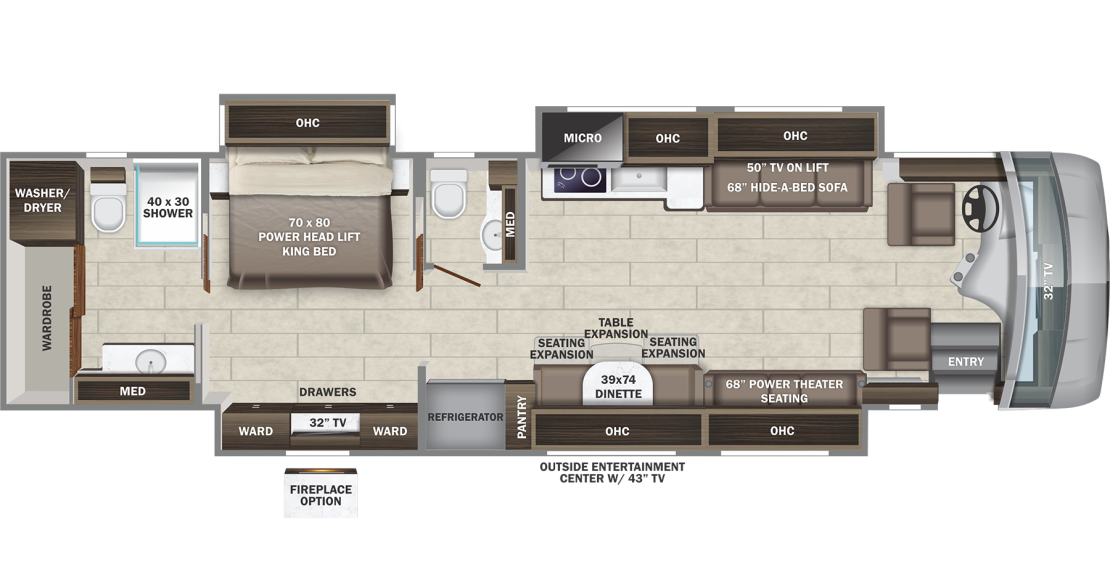

2023 Reatta XL - 40Q2

40Q2

2023 Reatta XL | 40Q2

40Q2

2023 Reatta XL | 40Q2

FLOORPLANS

Exterior Graphics

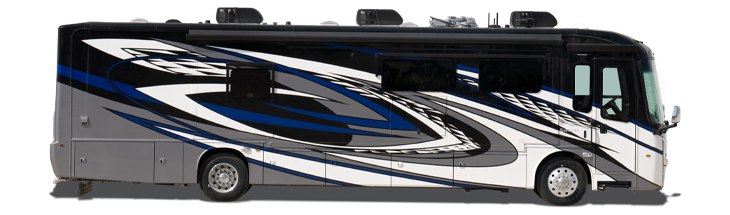

2023 Reatta XL - Blue Pearl

Blue Pearl

2023 Reatta XL | Blue Pearl

Blue Pearl

2023 Reatta XL | Blue Pearl

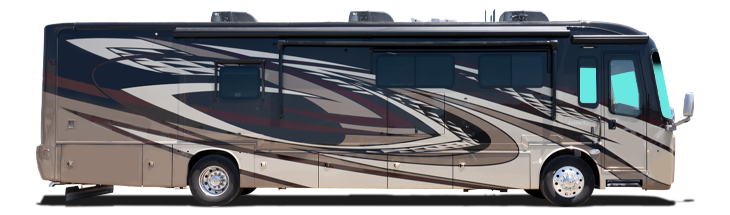

2023 Reatta XL - Brandywine

Brandywine

2023 Reatta XL | Brandywine

Brandywine

2023 Reatta XL | Brandywine

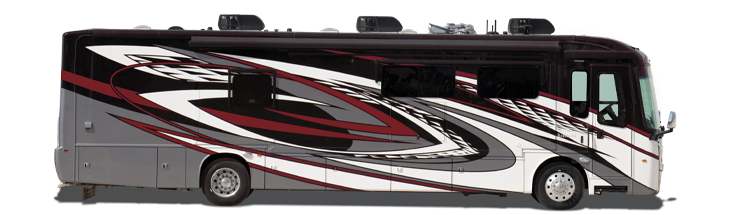

2023 Reatta XL - Rio Red

Rio Red

2023 Reatta XL | Rio Red

Rio Red

2023 Reatta XL | Rio Red

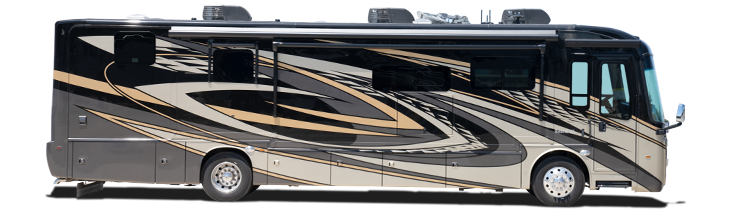

2023 Reatta XL - Sahara Dunes

Sahara Dunes

2023 Reatta XL | Sahara Dunes

Sahara Dunes

2023 Reatta XL | Sahara Dunes

EXTERIOR GRAPHICS

STANDARDS & OPTIONS

Chassis
Spartan® K2 raised-rail chassis
Engine
Cummins® L9 turbocharged 380 HP engine with 1,150 lb.-ft. torque at 1,400 RPM
Transmission
Allison® 3,000 MH 6-speed transmission
Radiator
Rear-mounted radiator
Alternator
170 amp alternator
Engine Block Heater
1,000W engine block heater
Engine Brake
Variable geometry turbo (VGT) engine brake
Front Suspension
Independent front air suspension (IFS)
Front Axle
Front axle -14,320 lb. rating
Rear Axle
Rear axle - 22,000 lb. rating
Rear Axle Ratio
4.88 rear axle ratio
Tires
Michelin® 275/80R 22.5 in. tires
Shocks
Bilstein® 46mm shocks
Tire Pressure Monitoring
Wireless tire pressure monitoring system (TPMS) with temperature monitoring
Leveling System
Equalizer™ hydraulic automatic coach leveling
Air Connection
Remote air connection
Chassis Battery
(2) 12V chassis batteries
Fuel Tank
100 gal. fuel tank
DEF Tank
10 gal. DEF tank
Tow Air Brake System
Spartan® Safe Haul™ tow vehicle air brake system
Hitch
10,000 lb. hitch with 7-pin plug

Décor Options

2023 Reatta XL - Glacier
2023 Reatta XL - Summit
2023 Reatta XL - Valley

Glacier

1/3

Wood Options

2023 Reatta XL - Almond Glazed Maple with Linen Overhead Cabinets with Harvest Wheat Woodgrain Porcelain Tile Floor
2023 Reatta XL - Auburn Glazed Maple with Linen Overhead Cabinets with Harvest Wheat Woodgrain Porcelain Tile Floor
2023 Reatta XL - High-Gloss Stonewall Grey Cabinets with Tacoma Shadow Woodgrain Porcelain Tile Floor
2023 Reatta XL - Linen Glazed Maple Cabinets with Tacoma Shadow Woodgrain Porcelain Tile Floor

Almond Glazed Maple with Linen Overhead Cabinets with Harvest Wheat Woodgrain Porcelain Tile Floor

1/4
