THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.

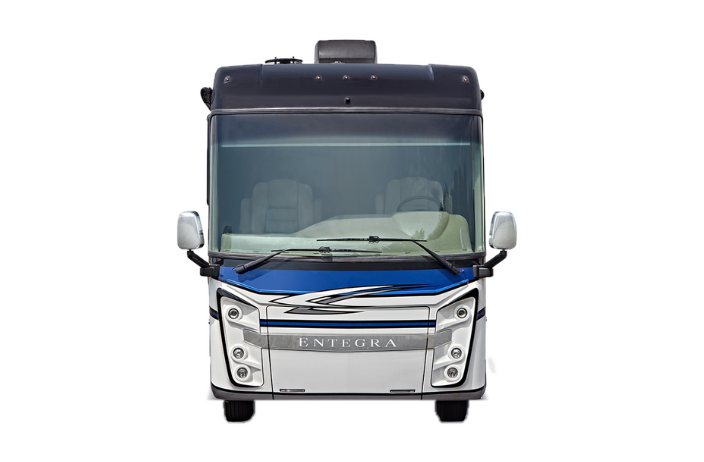

2022 REATTA XL
LENGTH 40' 11" | WIDTH 101"
Luxurious touches pair with ultimate maneuverability in this beautifully designed coach. New to the 2022 model are the latest in interior design trends—from the flooring, backsplashes and cabinetry to the new fabrics and exterior paint selections. It's not all beauty: state-of-the-art technologies like Samsung® Smart TVs, JBL premium Bluetooth speakers and premium drive and handling will make every journey a joy.

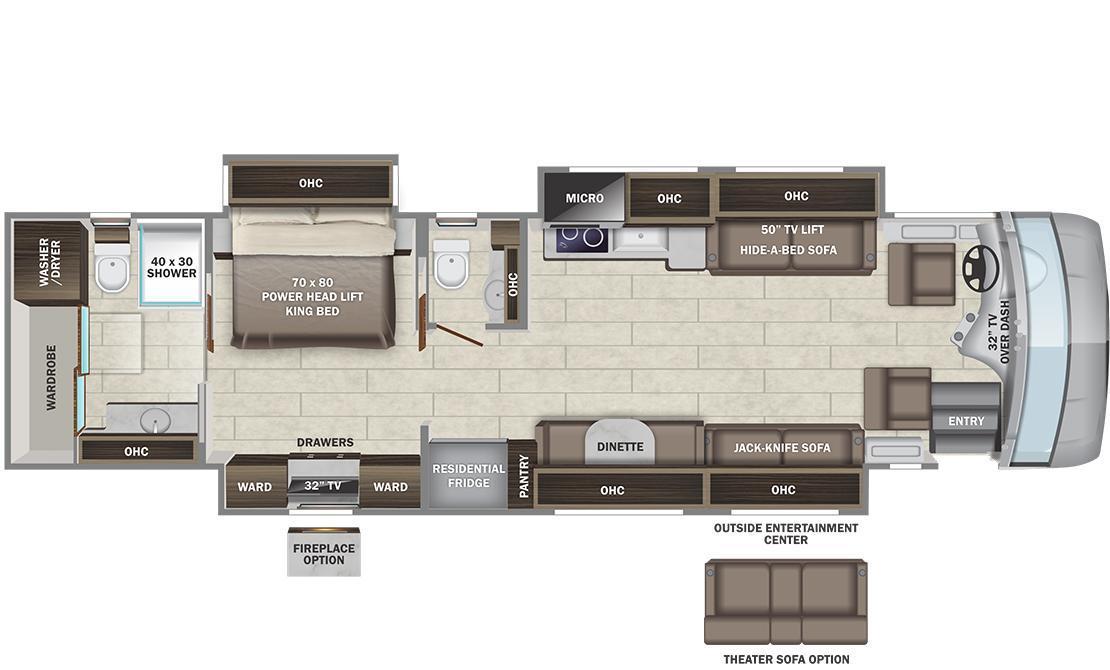

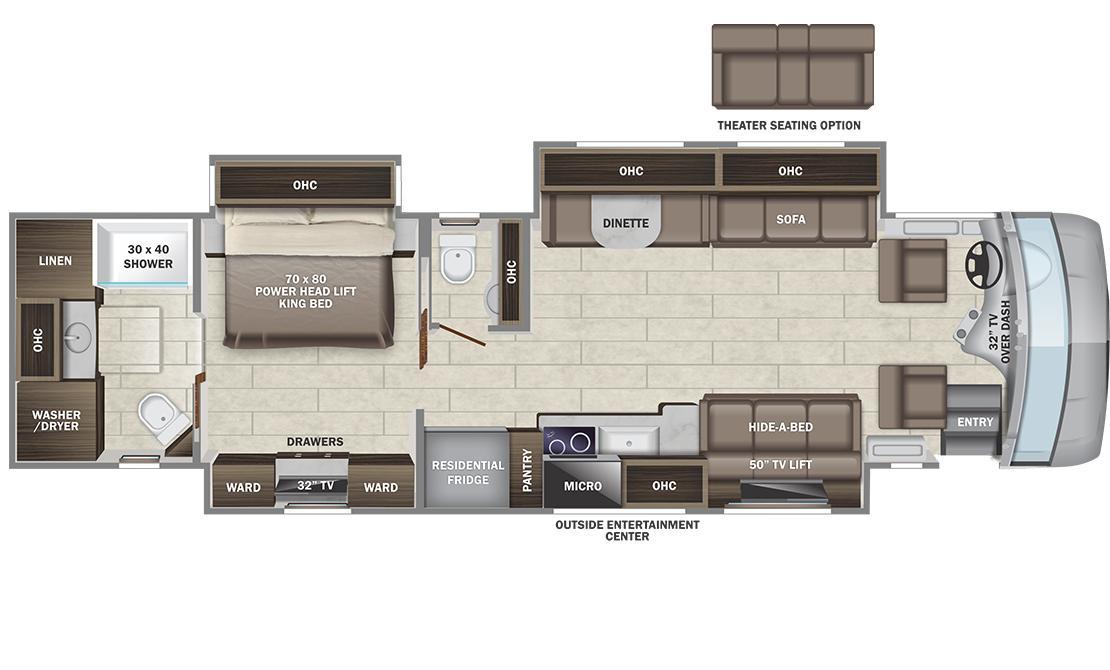

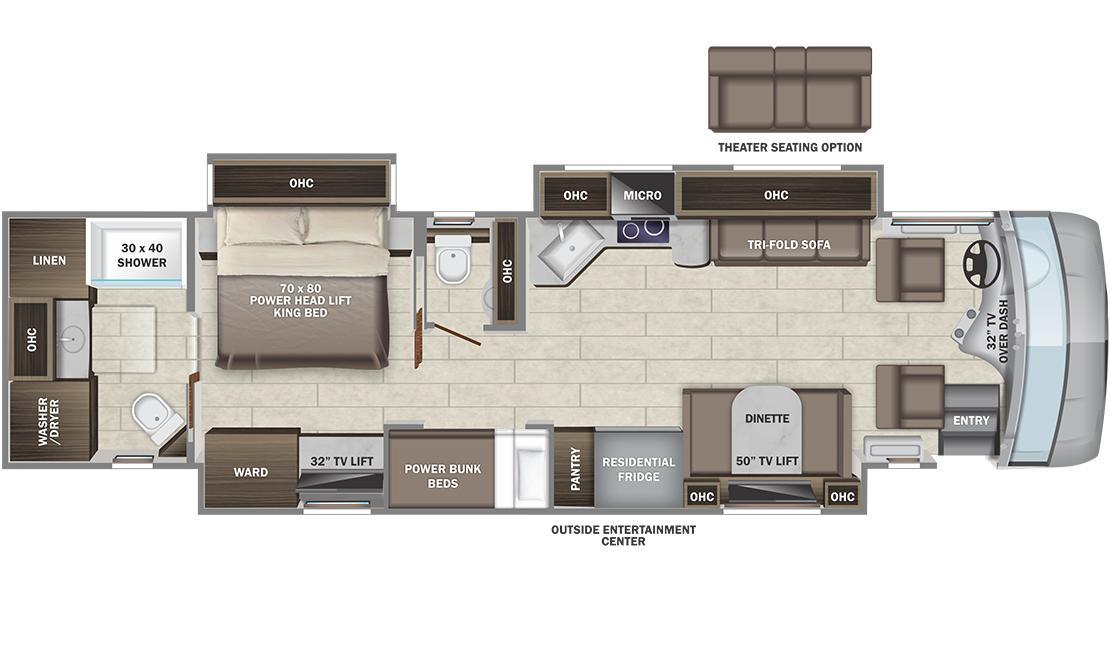

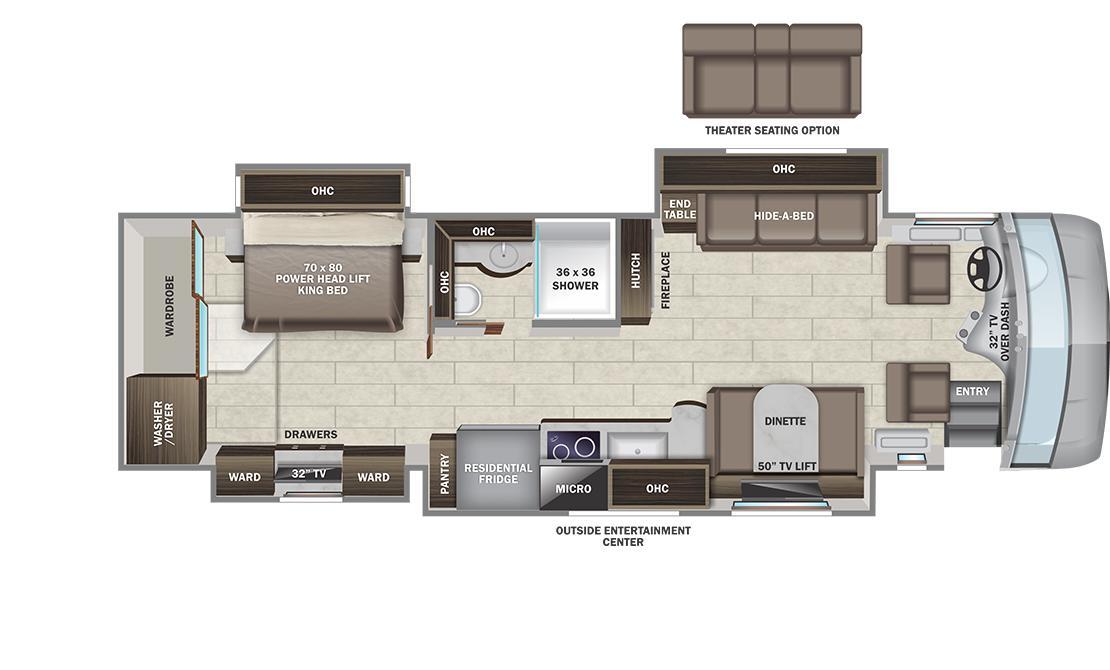

Floorplans

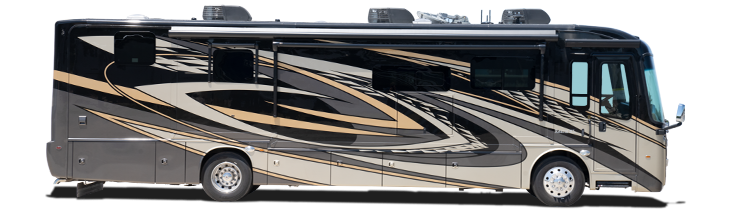

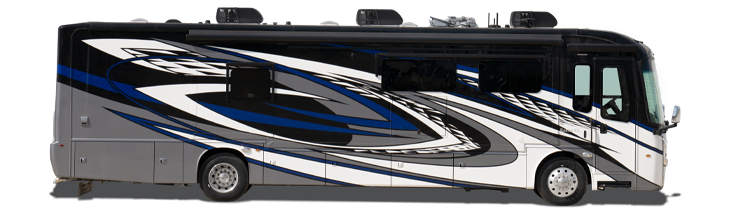

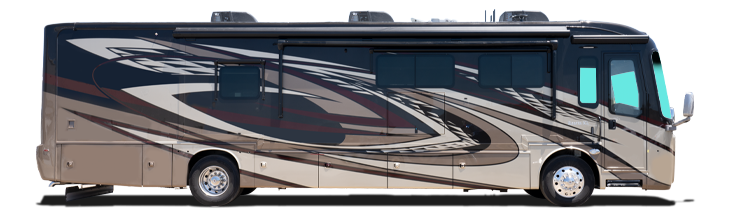

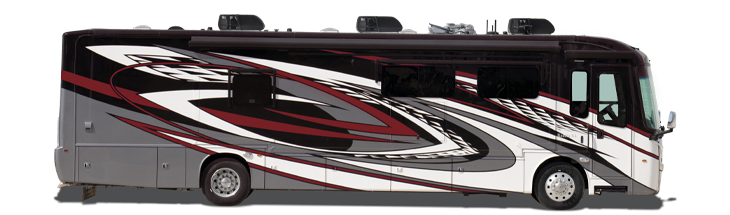

Exterior Graphics
STANDARDS & OPTIONS
Chassis
Spartan® K2 raised-rail chassis
Engine
Cummins® L9 turbocharged 380 HP engine with 1,150-lb. ft. torque at 1,400 RPM
Transmission
Allison® 3,000 MH 6-speed transmission
Radiator
Rear-mounted radiator
Alternator
170-amp alternator
Engine Block Heater
1,000-watt engine block heater
Engine Brake
Variable geometry turbo (VGT) engine brake
Front Axle
Front axle- 14,320 lb. rating
Front Suspension
Independent front air suspension (IFS)
Rear Axle
Rear axle - 22,000 lb. rating
Rear Axle Ratio
4.88 rear axle ratio
Tires
Michelin® 275/80R 22.5" tires
Shocks
Bilstein® 46mm shocks
Tire Pressure Monitoring
Tire pressure monitoring system (TPMS) with temperature monitoring
Leveling System
Equalizer™ hydraulic automatic coach leveling
Air Connection
Remote air connection
Chassis Battery
(2) 12V chassis batteries
Fuel Tank
100-gal. fuel tank
DEF Tank
10-gal. DEF tank
Tow Air Brake System
Spartan® Safehaul tow vehicle air brake system
Hitch
10,000-lb. hitch with 7-pin plug
Braking System
ABS disc brakes on front axle, drum brakes on drive and tag axle
Décor Options
Eggshell
Wood Options
