THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.

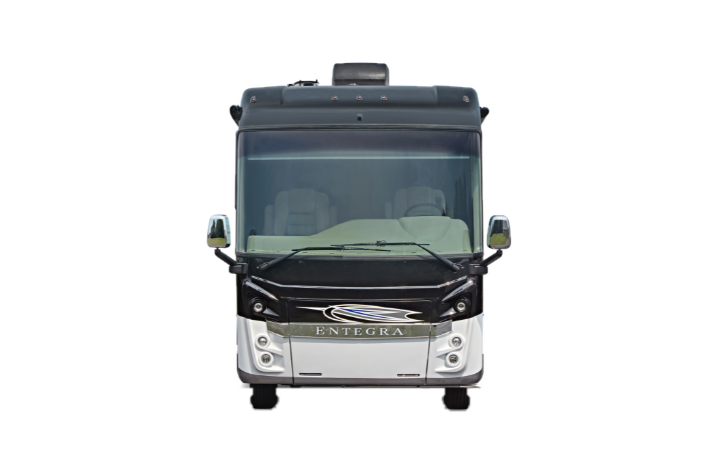

2022 REATTA
LENGTH 39' 11" | WIDTH 101"
The Reatta offers modern luxury in a shorter Class A body with independent front suspension (IFS) and front air disc brakes. You’ll be riding in style thanks to new modern Auburn, Almond and Linen wood colors, plus the popular mainstay, Stonewall Grey. You’ll have all the modern tech you need with Samsung® 4K UHD Smart TVs and sound bar, upgraded JBL premium speakers in the cockpit and exterior A/V system with a Samsung® 1080P HD Smart TV and JBL Bluetooth radio. So, what are you waiting for? Let’s hit the road.

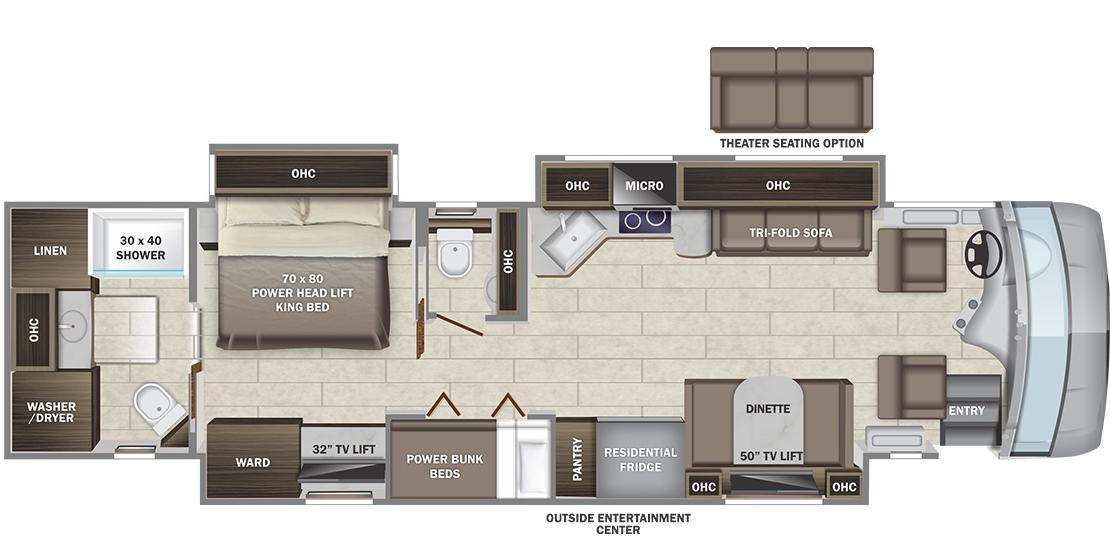

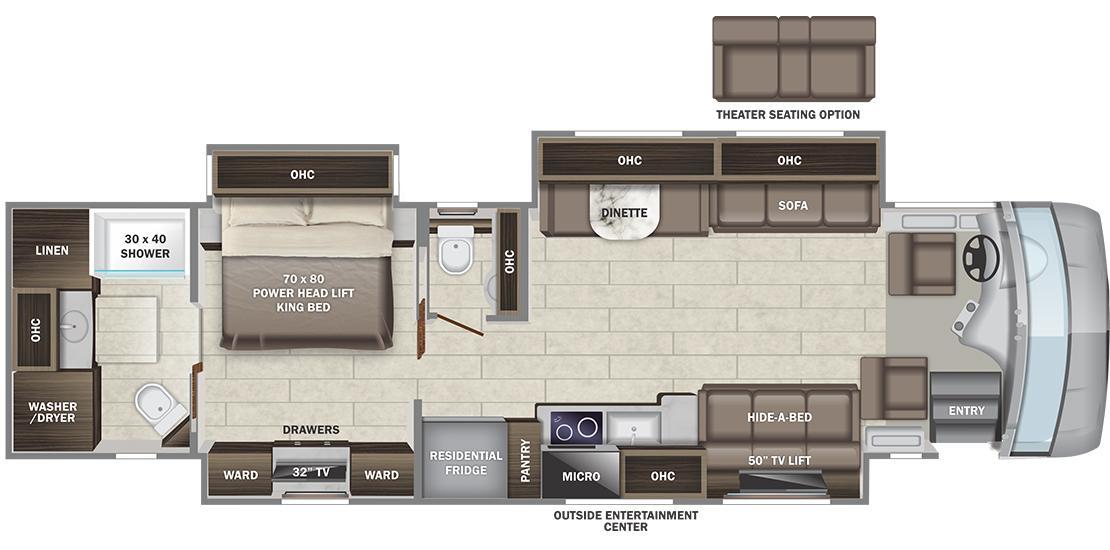

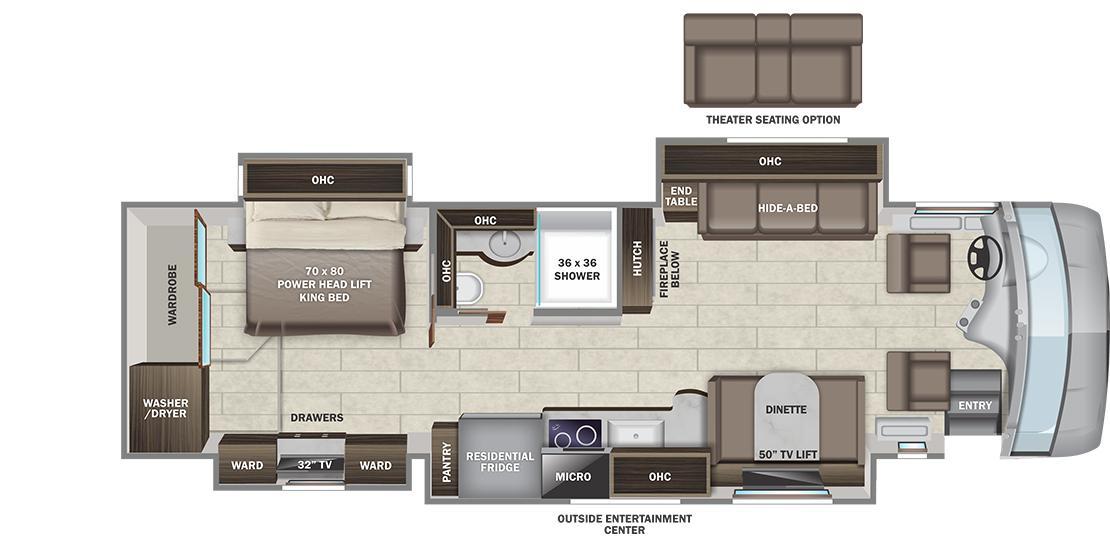

Floorplans

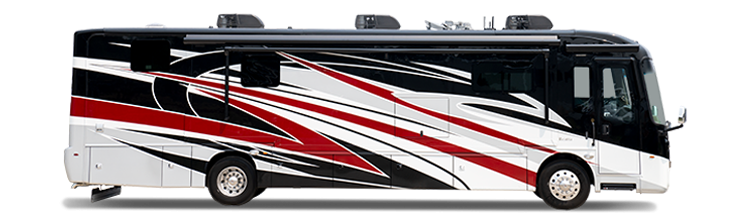

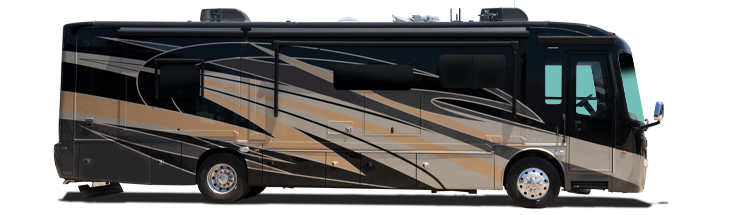

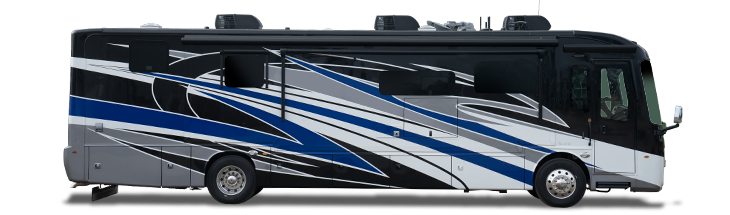

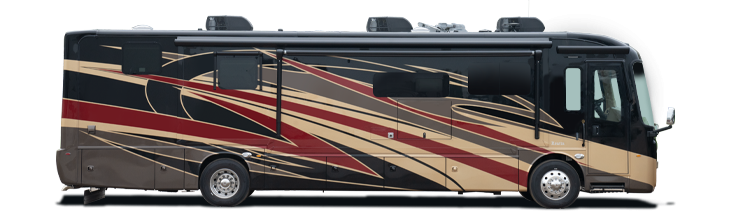

Exterior Graphics
STANDARDS & OPTIONS
Chassis
Spartan® K1 raised-rail chassis
Engine
Cummins® B6.7 turbocharged 360-HP engine with 800-lb. ft. torque at 1,800 RPM
Transmission
Allison® 3,000 MH 6-speed transmission
Radiator
Rear-mounted radiator
Alternator
170-amp alternator
Engine Block Heater
750-watt engine block heater
Engine Brake
Variable geometry turbo (VGT) engine brake
Front Axle
Front axle- 12,600 lb. (37K) 14,320 lb. (39BH/39T2)
Front Suspension
Independent front air suspension (IFS)
Rear Axle
Rear axle - 20,000 lb. (37K) 22,000 lb (39BH/39T2)
Rear Axle Ratio
4.88 rear axle ratio
Tires
Michelin® 275/80R 22.5" tires
Shocks
Bilstein® 46mm shocks
Tire Pressure Monitoring
Tire pressure monitoring system (TPMS) with temperature monitoring
Leveling System
Equalizer™ hydraulic automatic coach leveling
Air Connection
Remote air connection
Chassis Battery
(2) 12V chassis batteries
Fuel Tank
100-gal. fuel tank
DEF Tank
10-gal. DEF tank
Tow Air Brake System
Spartan® Safehaul tow vehicle air brake system
Hitch
10,000-lb. hitch with 7-pin plug
Braking System
ABS disc brakes on front axle, drum brakes on drive and tag axle
Décor Options
Eggshell
Wood Options
