THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.
2019 Odyssey
The Odyssey is a truly unique Class C motorhome for travelers that love the freedom of the road. It features many of the amenities and floorplan designs found on high-end Class C coaches. Frameless windows, a one-piece fiberglass roof and premium ride and handling gear are no longer impossible to find on a Class C coach at around 30 feet and under in length.
Brochure
Floorplans
Ward = wardrobe
Lav = bathroom sink
Med = medicine cabinet
Ohc = overhead cabinets
Fridge = refrigerator
Micro = microwave

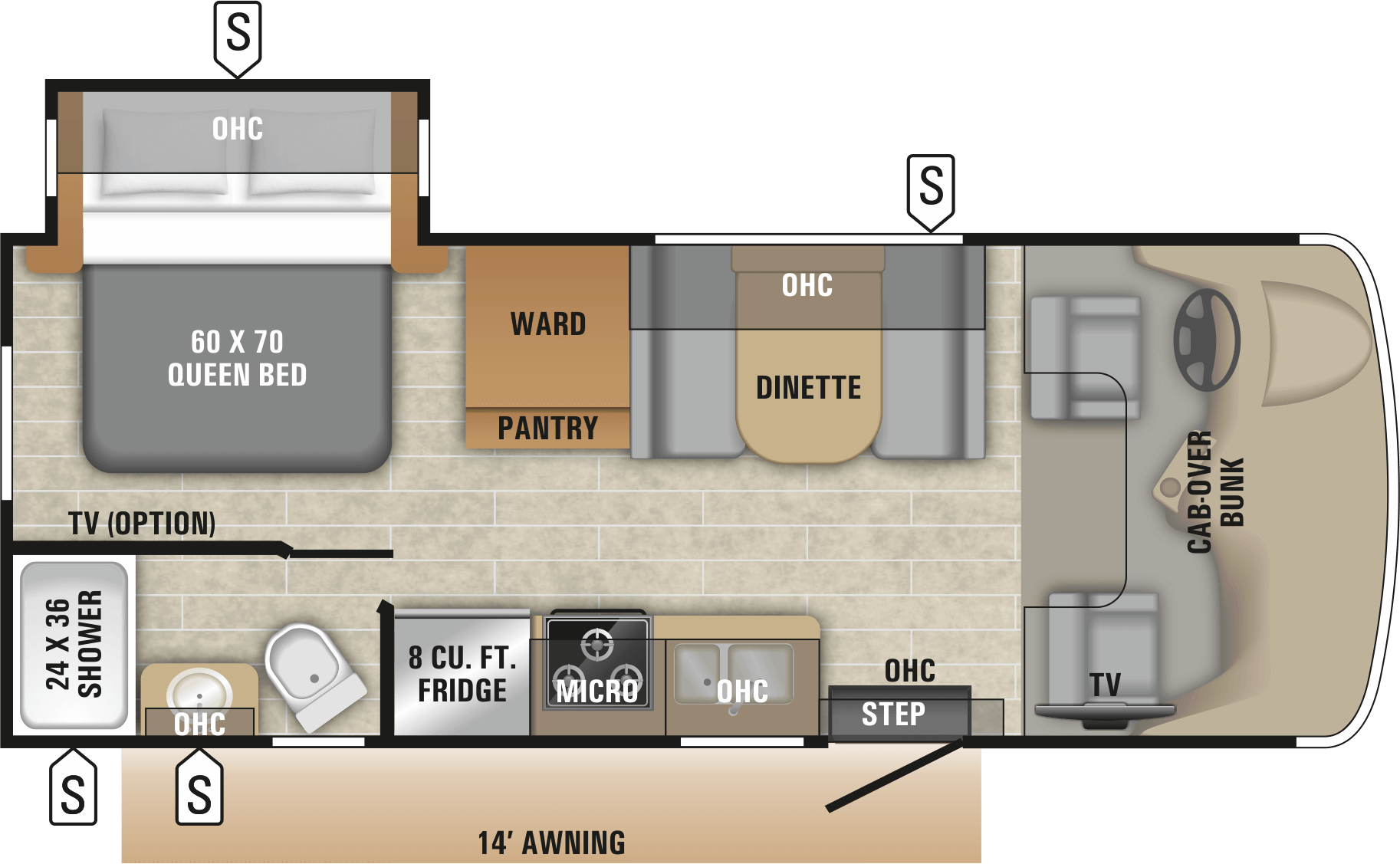

2019 Odyssey|22J
.png)
Specs
| Gross Vehicle Weight Rating (lbs) | 14500 |
| Gross Combined Weight Rating (lbs) | 22000 |
| Exterior Length | 24' 8" |
| Exterior Width | 100 |
| Exterior Height with A/C and Satellite | 11' 8" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 43.50 |
| Grey Waste Water Capacity (gals) | 40.00 |
| Black Waste Water (gals) | 31.00 |
| Fuel Tank Capacity (gals) | 55.00 |
| Furnace (BTU Output) | 30,000 |
| Wheel Base | 158 |
| Front Gross Axle Weight Rating (lbs) | 5000 |
| Rear Gross Axle Weight Rating (lbs) | 9600 |

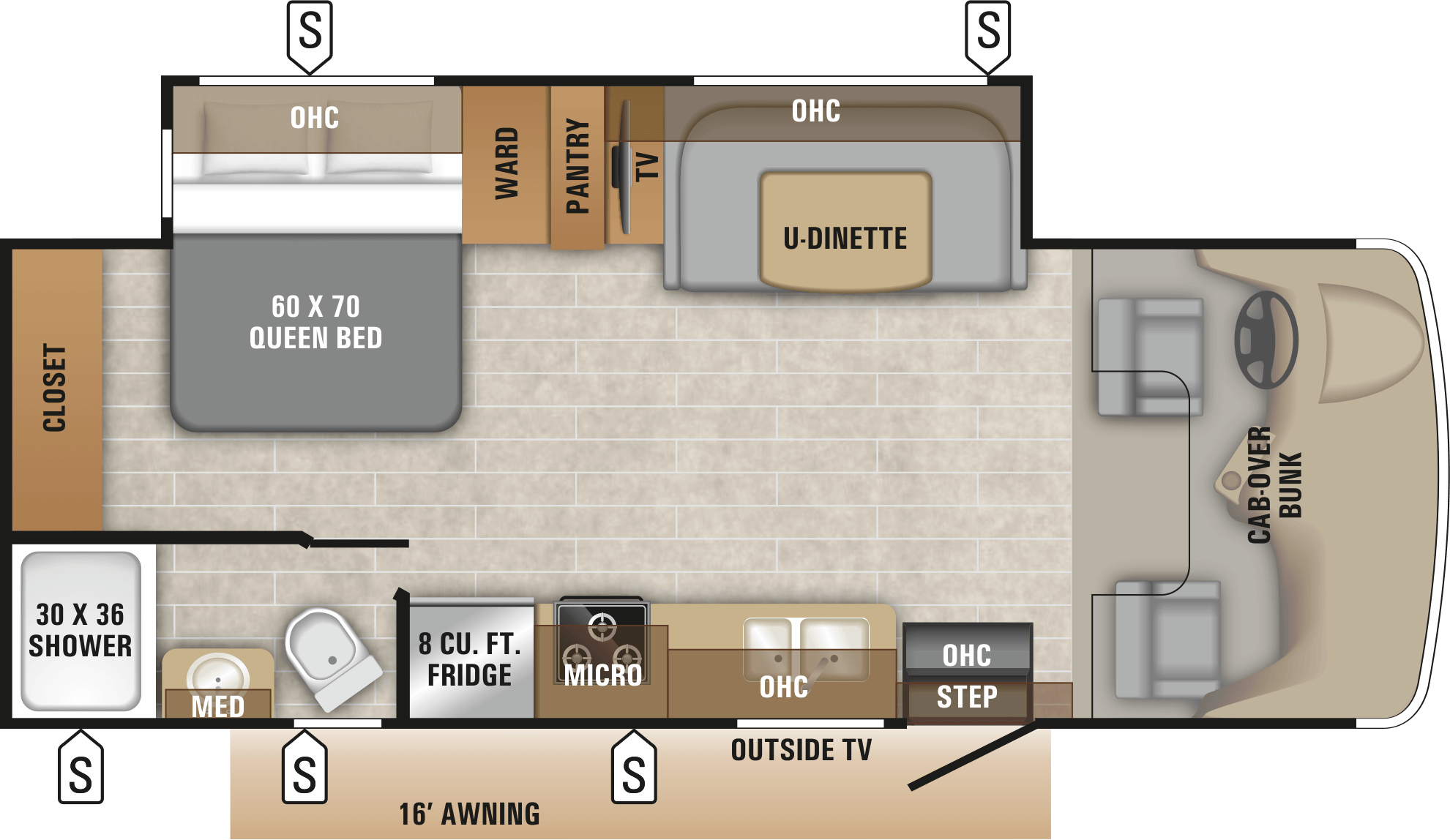

2019 Odyssey|24B
Specs
| Gross Vehicle Weight Rating (lbs) | 14500 |
| Gross Combined Weight Rating (lbs) | 22000 |
| Front Gross Axle Weight Rating (lbs) | 5000 |
| Rear Gross Axle Weight Rating (lbs) | 9600 |
| Exterior Width | 100 |
| Exterior Height with A/C and Satellite | 11' 8" |
| Interior Height | 84 |
| Fresh Water Capacity (gals) | 42.5 |
| Fuel Tank Capacity (gals) | 55 |
| Furnace (BTU Output) | 30000 |
| Exterior Length | 26' 8" |
| Grey Waste Water Capacity (gals) | 40 |
| Black Waste Water (gals) | 31 |
| Wheel Base | 181 |

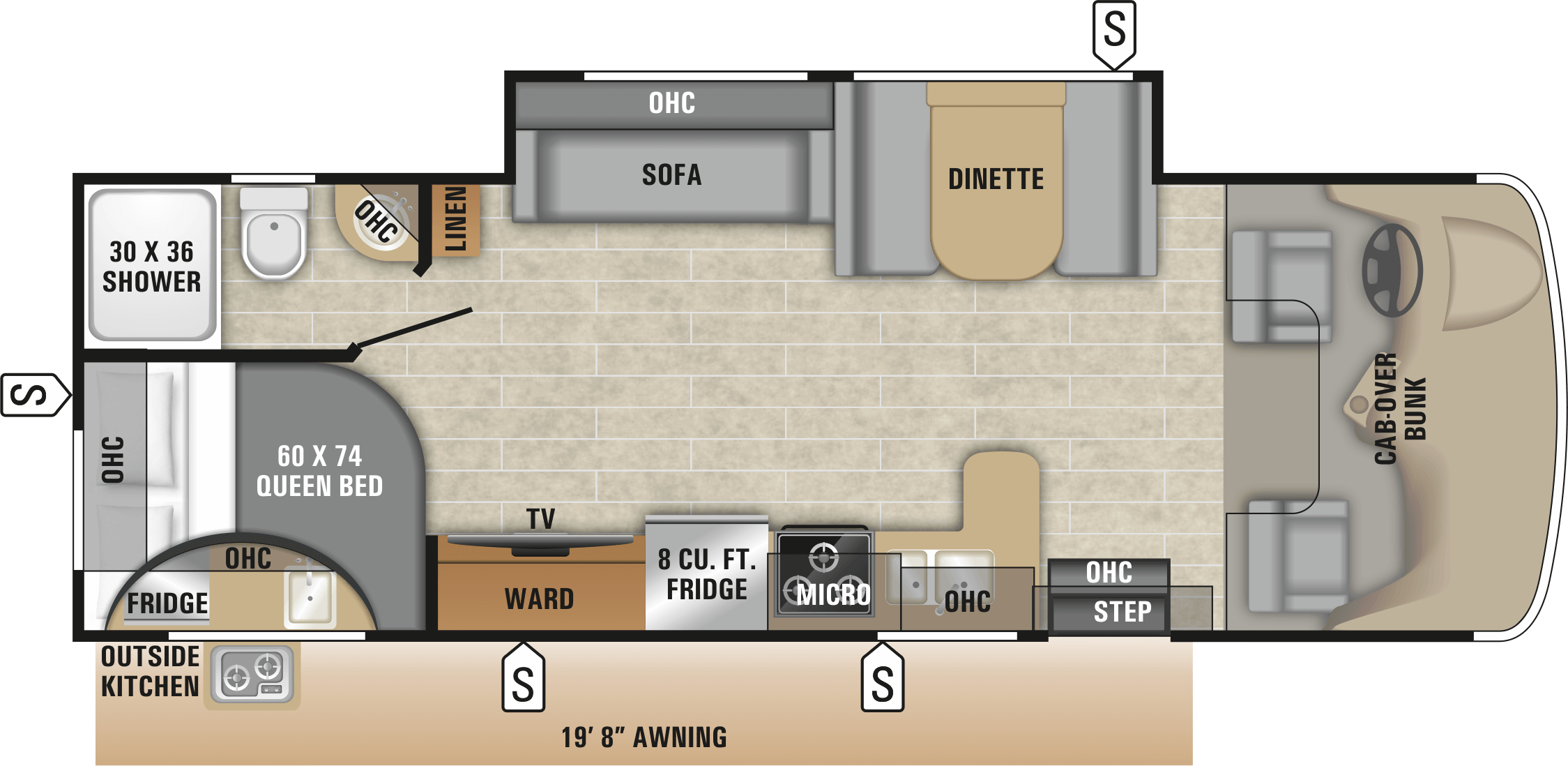

2019 Odyssey|25R
Specs
| Gross Vehicle Weight Rating (lbs) | 14500 |
| Gross Combined Weight Rating (lbs) | 22000 |
| Front Gross Axle Weight Rating (lbs) | 5000 |
| Exterior Length | 28' 8" |
| Exterior Width | 100 |
| Exterior Height with A/C and Satellite | 11' 6" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 47.00 |
| Grey Waste Water Capacity (gals) | 41.00 |
| Black Waste Water (gals) | 32.00 |
| Fuel Tank Capacity (gals) | 55.00 |
| Furnace (BTU Output) | 30,000 |
| Wheel Base | 181 |
| Rear Gross Axle Weight Rating (lbs) | 9600 |

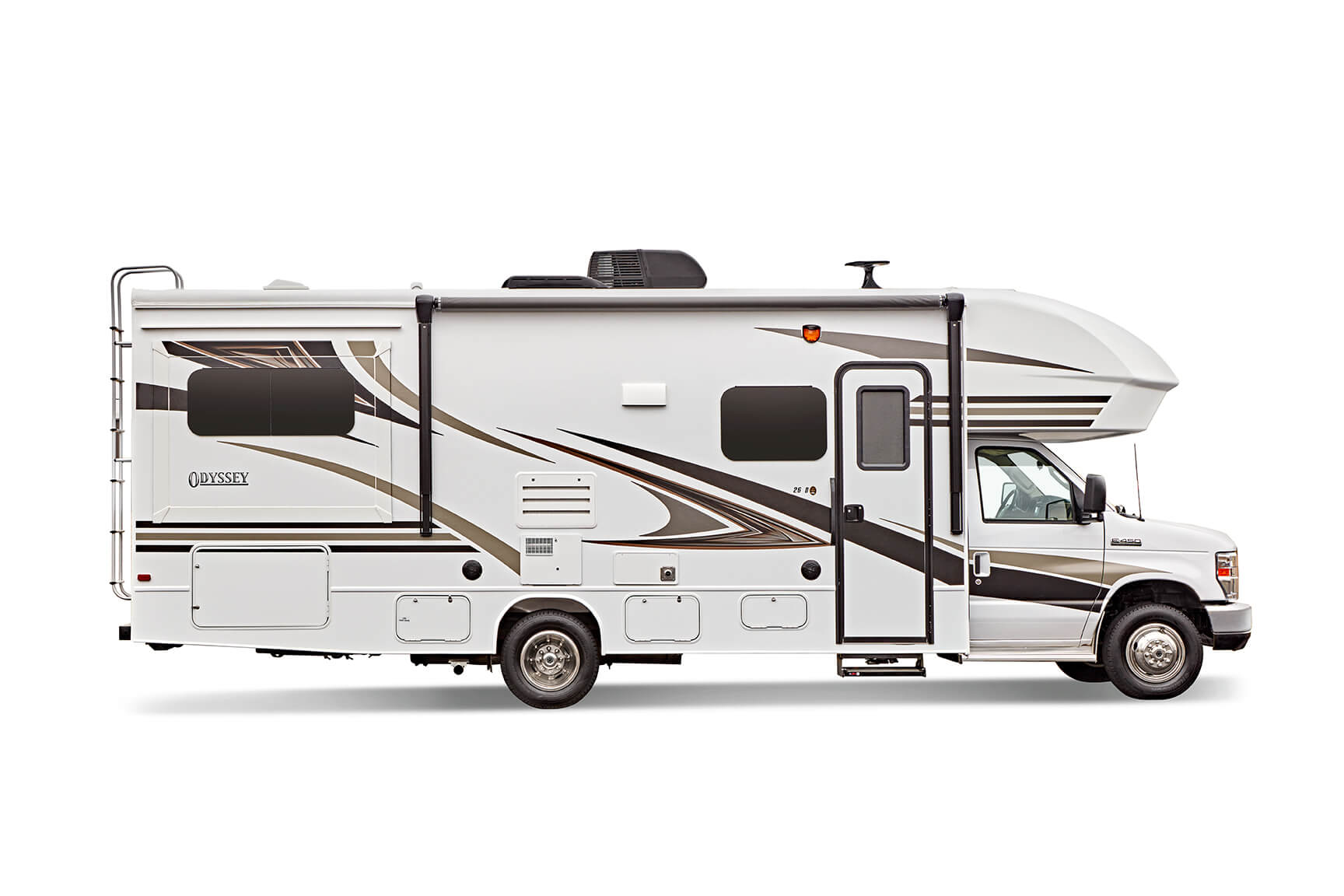

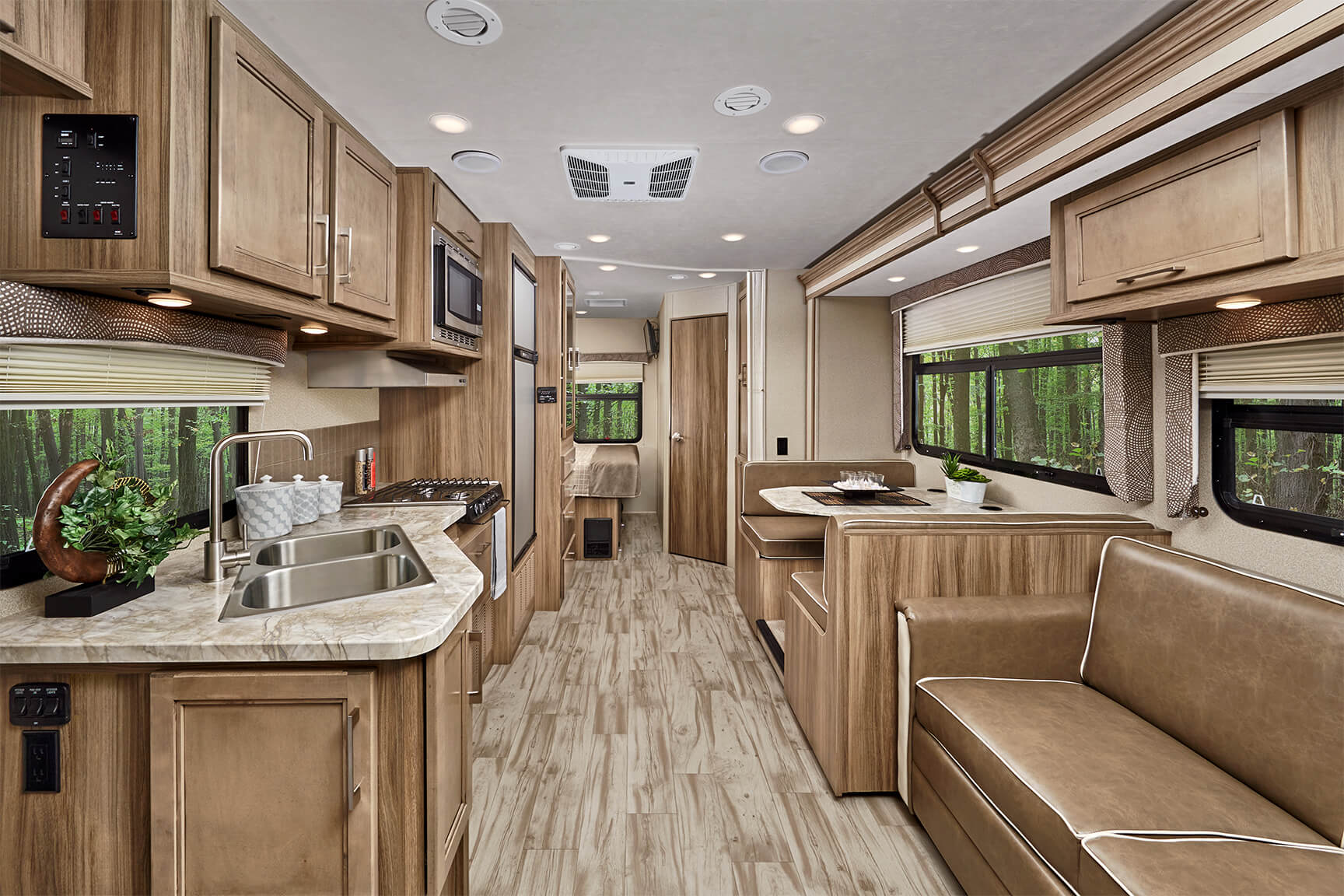

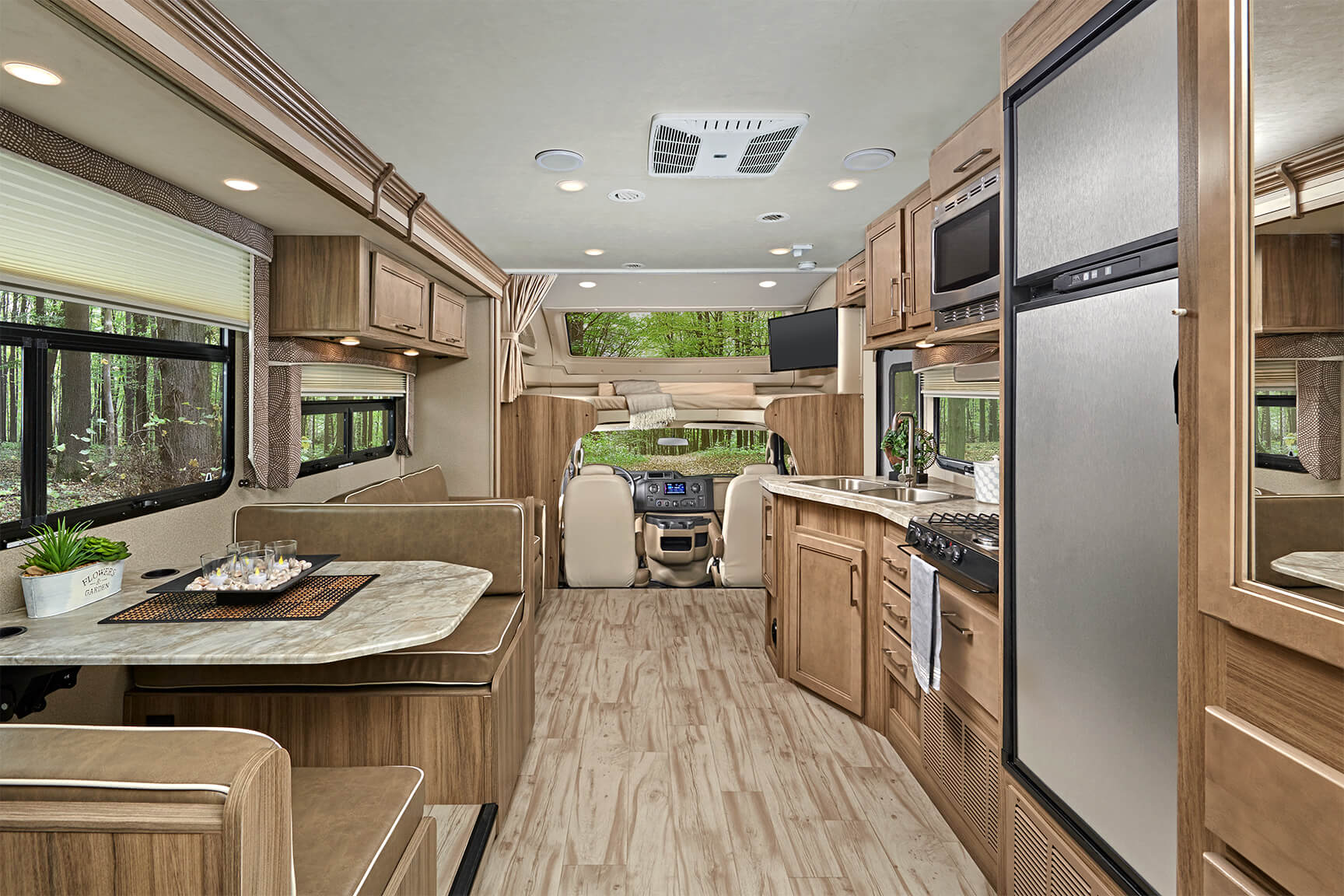

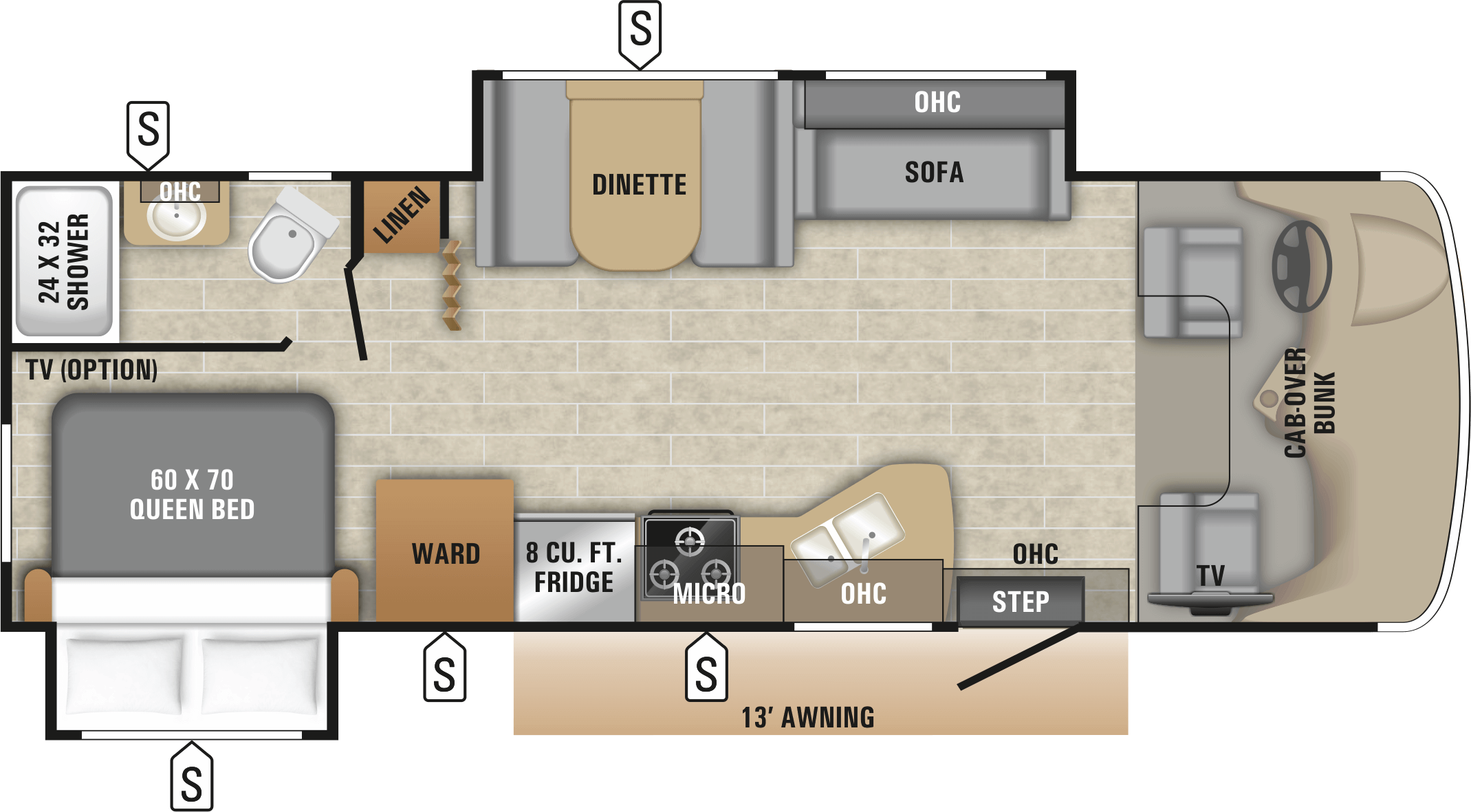

2019 Odyssey|26D
Specs
| Gross Vehicle Weight Rating (lbs) | 14500 |
| Gross Combined Weight Rating (lbs) | 22000 |
| Exterior Length | 28' 8" |
| Exterior Width | 100 |
| Exterior Height with A/C and Satellite | 11' 6" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 42.50 |
| Grey Waste Water Capacity (gals) | 41.00 |
| Black Waste Water (gals) | 32.00 |
| Fuel Tank Capacity (gals) | 55.00 |
| Furnace (BTU Output) | 30,000 |
| Wheel Base | 181 |
| Front Gross Axle Weight Rating (lbs) | 5000 |
| Rear Gross Axle Weight Rating (lbs) | 9600 |

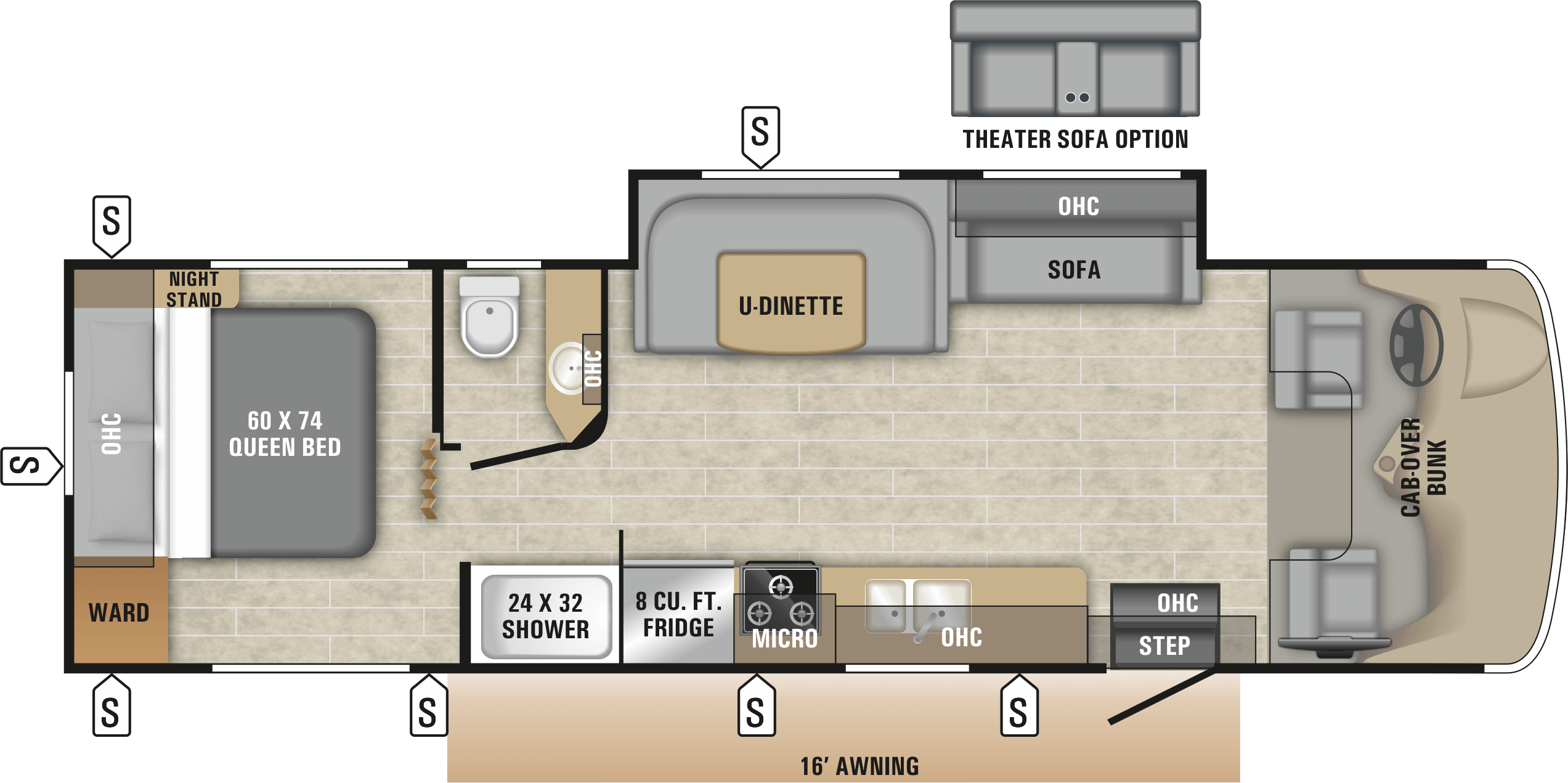

2019 Odyssey|29K
Specs

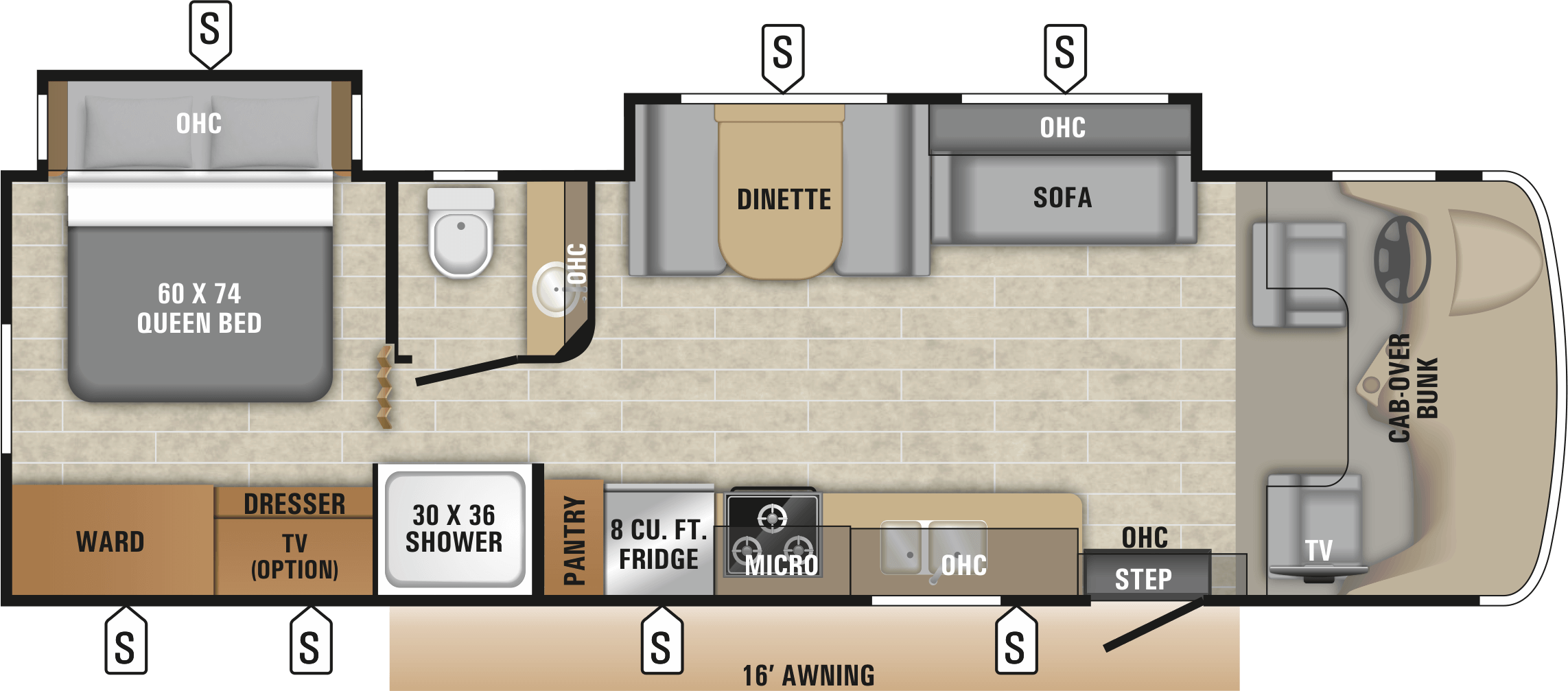

2019 Odyssey|29V
.png)
Specs
| Gross Vehicle Weight Rating (lbs) | 14500 |
| Gross Combined Weight Rating (lbs) | 22000 |
| Exterior Length | 32' 6" |
| Exterior Width | 100 |
| Exterior Height with A/C and Satellite | 11' 6" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 47.00 |
| Grey Waste Water Capacity (gals) | 41.00 |
| Black Waste Water (gals) | 32.00 |
| Fuel Tank Capacity (gals) | 55.00 |
| Furnace (BTU Output) | 30,000 |
| Wheel Base | 223 |
| Front Gross Axle Weight Rating (lbs) | 5000 |
| Rear Gross Axle Weight Rating (lbs) | 9600 |

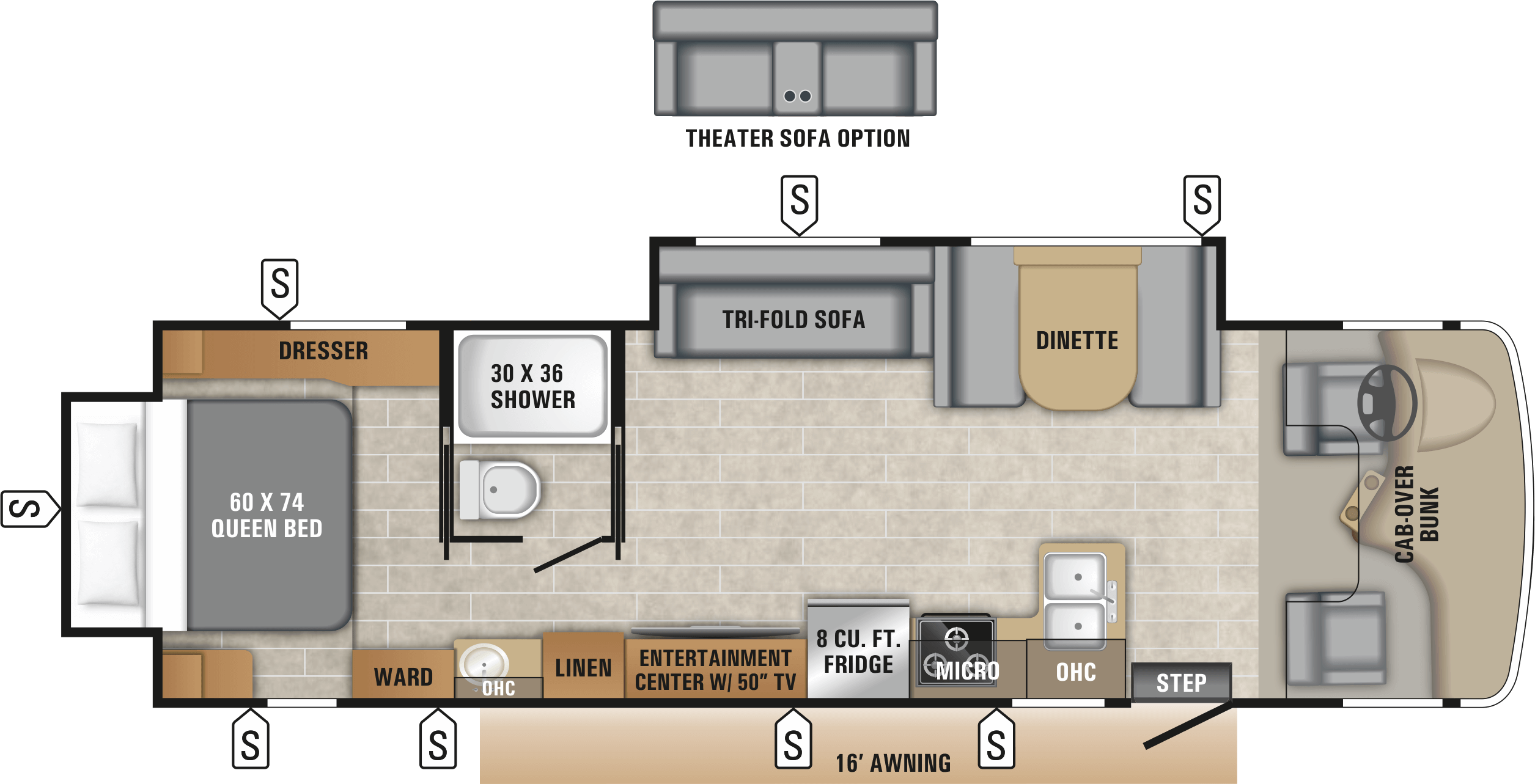

2019 Odyssey|30Z
Specs
| Gross Vehicle Weight Rating (lbs) | 14500 |
| Gross Combined Weight Rating (lbs) | 22000 |
| Front Gross Axle Weight Rating (lbs) | 5000 |
| Rear Gross Axle Weight Rating (lbs) | 9600 |
| Exterior Length | 32' 6" |
| Exterior Width | 100 |
| Exterior Height with A/C and Satellite | 11' 8" |
| Interior Height | 84 |
| Fresh Water Capacity (gals) | 43.5 |
| Grey Waste Water Capacity (gals) | 41 |
| Black Waste Water (gals) | 31 |
| Fuel Tank Capacity (gals) | 55 |
| Furnace (BTU Output) | 30000 |
| Wheel Base | 223 |

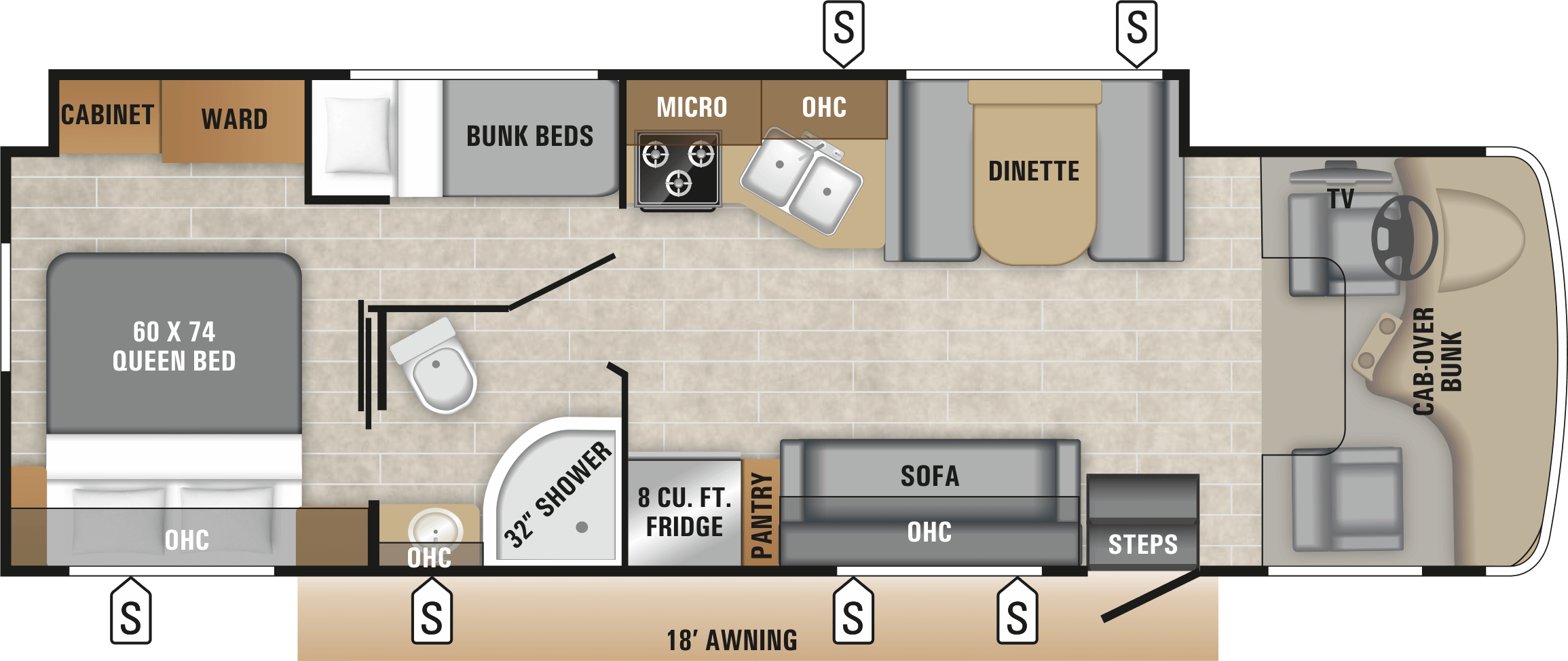

2019 Odyssey|31F
Specs
| Gross Vehicle Weight Rating (lbs) | 14500 |
| Gross Combined Weight Rating (lbs) | 22000 |
| Front Gross Axle Weight Rating (lbs) | 5000 |
| Rear Gross Axle Weight Rating (lbs) | 9600 |
| Exterior Length | 32' 6" |
| Exterior Width | 100 |
| Exterior Height with A/C and Satellite | 11' 8" |
| Interior Height | 84 |
| Fresh Water Capacity (gals) | 47 |
| Grey Waste Water Capacity (gals) | 41 |
| Black Waste Water (gals) | 31 |
| Fuel Tank Capacity (gals) | 55 |
| Furnace (BTU Output) | 30000 |
| Wheel Base | 223 |

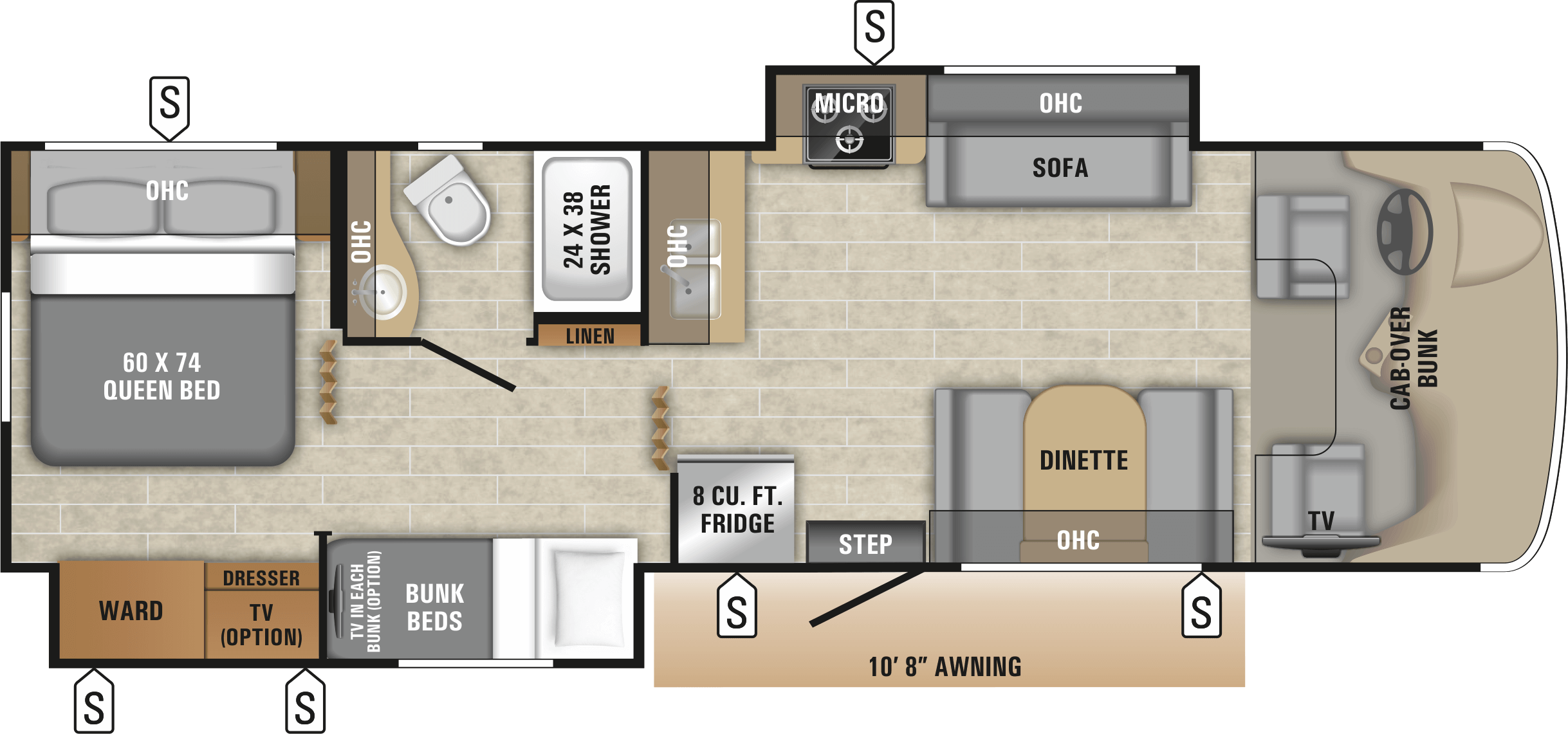

2019 Odyssey|31L|DEALER STOCK ONLY
.png)
Specs
| Gross Vehicle Weight Rating (lbs) | 14500 |
| Gross Combined Weight Rating (lbs) | 22000 |
| Exterior Length | 32' 6" |
| Exterior Width | 100 |
| Exterior Height with A/C and Satellite | 11' 6" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 47.00 |
| Grey Waste Water Capacity (gals) | 41.00 |
| Black Waste Water (gals) | 32.00 |
| Fuel Tank Capacity (gals) | 55.00 |
| Furnace (BTU Output) | 30,000 |
| Wheel Base | 223 |
| Front Gross Axle Weight Rating (lbs) | 5000 |
| Rear Gross Axle Weight Rating (lbs) | 9600 |
All Floorplans
2019 Odyssey | 22J
2019 Odyssey | 24B
2019 Odyssey | 25R
2019 Odyssey | 26D
2019 Odyssey | 29K
2019 Odyssey | 29V
2019 Odyssey | 30Z
2019 Odyssey | 31F
2019 Odyssey | 31L
DEALER STOCK ONLY
360°

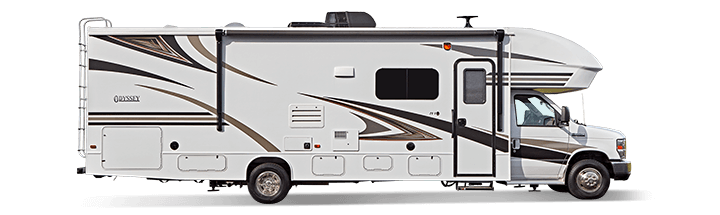

Exterior Graphics
Standards & Options
Chassis
| Chassis | Ford E-450 chassis (14,500-pound GVWR) (22,000-pound GCWR) |
| Engine | Triton 6.8L EFI V-10 305 HP engine with 420 lbs./ft. torque |
| Transmission | 6-speed automatic TorqShift series transmission with overdrive |
| Hitch | Ford Chassis- 7,500-pound hitch with 750-lb tongue capacity and 7-pin plug |
| Alternator | 120-amp alternator |
| Fuel Tank | 55-gallon fuel tank |
| Braking System | Power anti-lock brakes with power steering |
Construction
| Insulation | Bead-foam insulation (R-15 max roof, R-9 max floor, R-5 max walls) |
| Floor | TuffShell™ vacuum-bonded, laminated floor, sidewalls & roof |
| Roof | One-piece seamless fiberglass roof |
Heat, AC, Water & Power
| Water Pump | 12V demand water pump |
| Water Heater | 6 gallon gas/electric DSI auto-ignition water heater |
| Water Filtration | Water filtration system |
| Air Conditioning | 15,000-BTU ducted air conditioner |
| Heating System | 31,000-BTU furnace with wall thermostat with auto-ignition |
| Generator | Onan 4,000-watt MicroQuiet generator |
| Propane | 42-lb. propane tank (12.2 GAL) |
| Electrical Hookup | 120V G.F.C.I.-protected exterior receptacle |
Exterior
| Running Boards | Aluminum running boards |
| Entrance Door | Fiberglass, radius-cornered entrance door with screen door |
| Entrance Steps | Electric-powered entrance step |
| Electrical System | 12V electrical system with 120V, 60-amp power converter |
| Power Cord | 30-amp power cord |
| Outside Shower | Outside shower |
| Mirrors | Remote-controlled, side-view mirrors |
| Windows | Power windows and door locks |

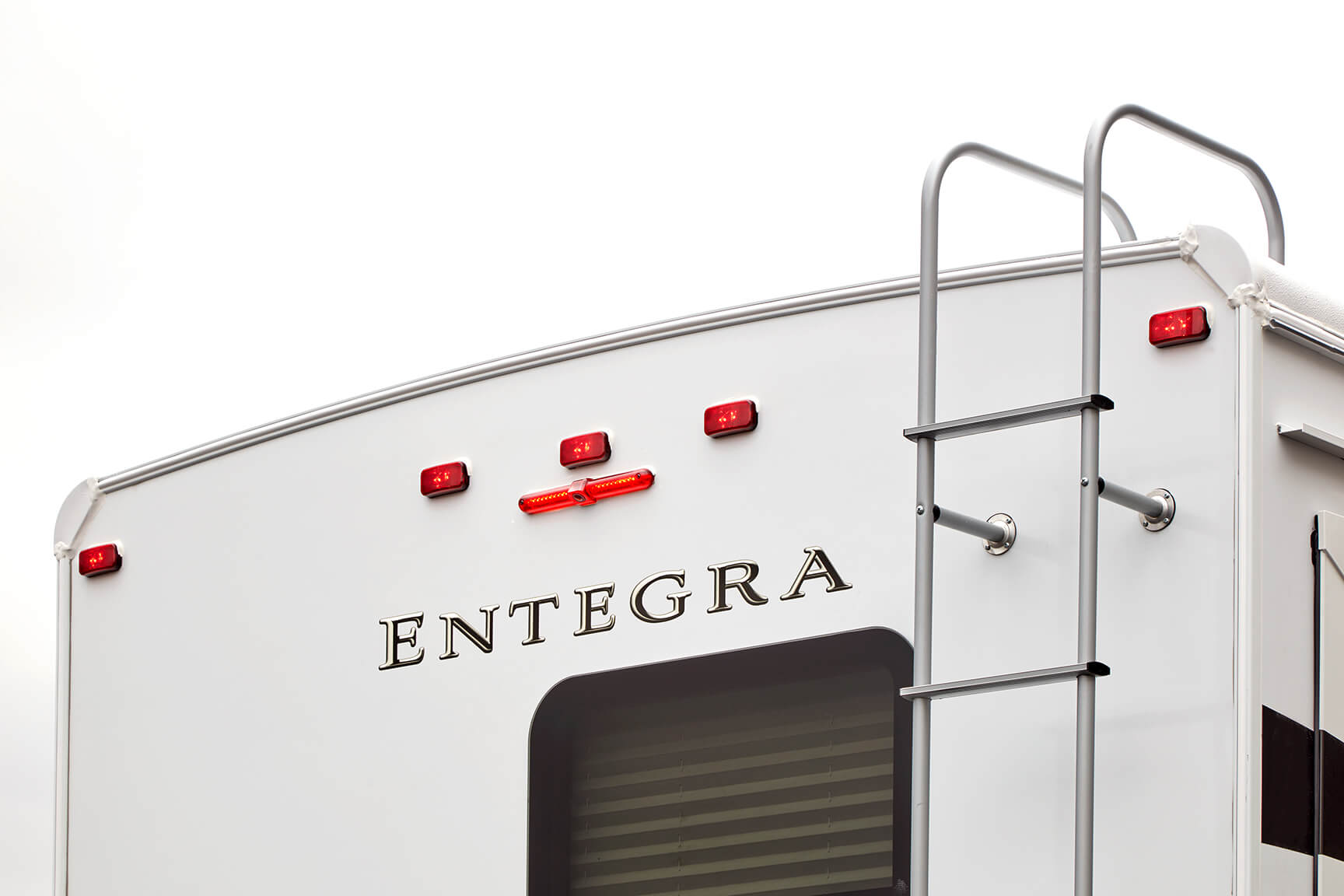

| Third Brake Light | Third brake light |
| Exterior Walls | Vacuum-bonded, laminated sidewalls |
| Cargo Features | 4" bumper-tube sewer hose storage |
| TV Antenna | Digital antenna with signal booster |
| Slideout Awnings | Slideout awning toppers |

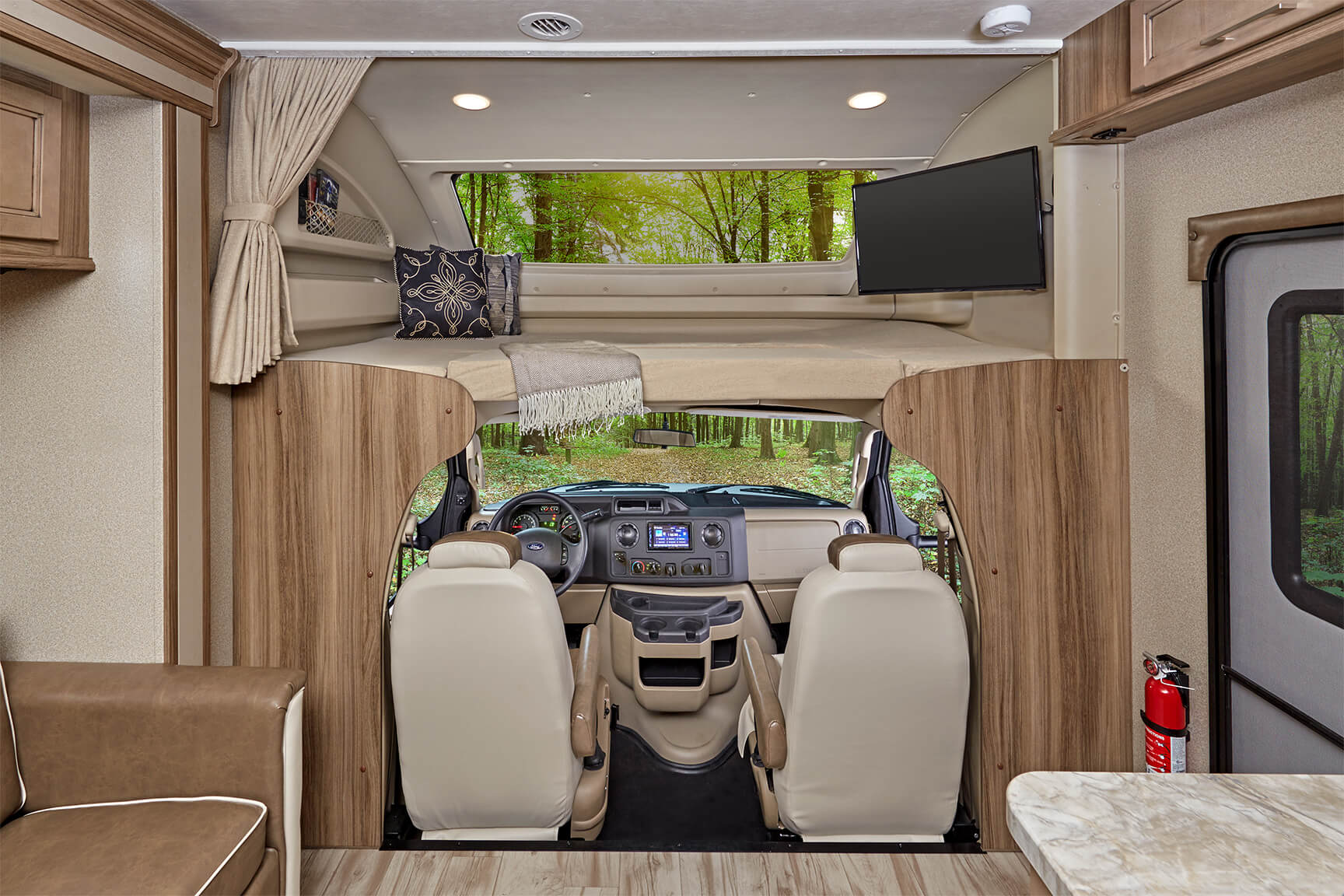

Cockpit
| Leveling System | Automatic hydraulic leveling jacks (optional) |
| Steering Wheel | Tilt steering wheel and cruise control |
| Start | Auxiliary start switch |
Interior
| Flooring | Linoleum flooring |
| Additional Storage | Under-bed storage (select models), Pass-through storage compartment with light (select models) |
| Cab-Over Bunks | Full cab-over bunk with headboard (750-lb. rating) |
| Bunks | Bunk beds (300-lb. rating) (31L) |
| Command Center | Interior command center |
| Television - Living Room | Cable TV hookup with RG-6 coax |

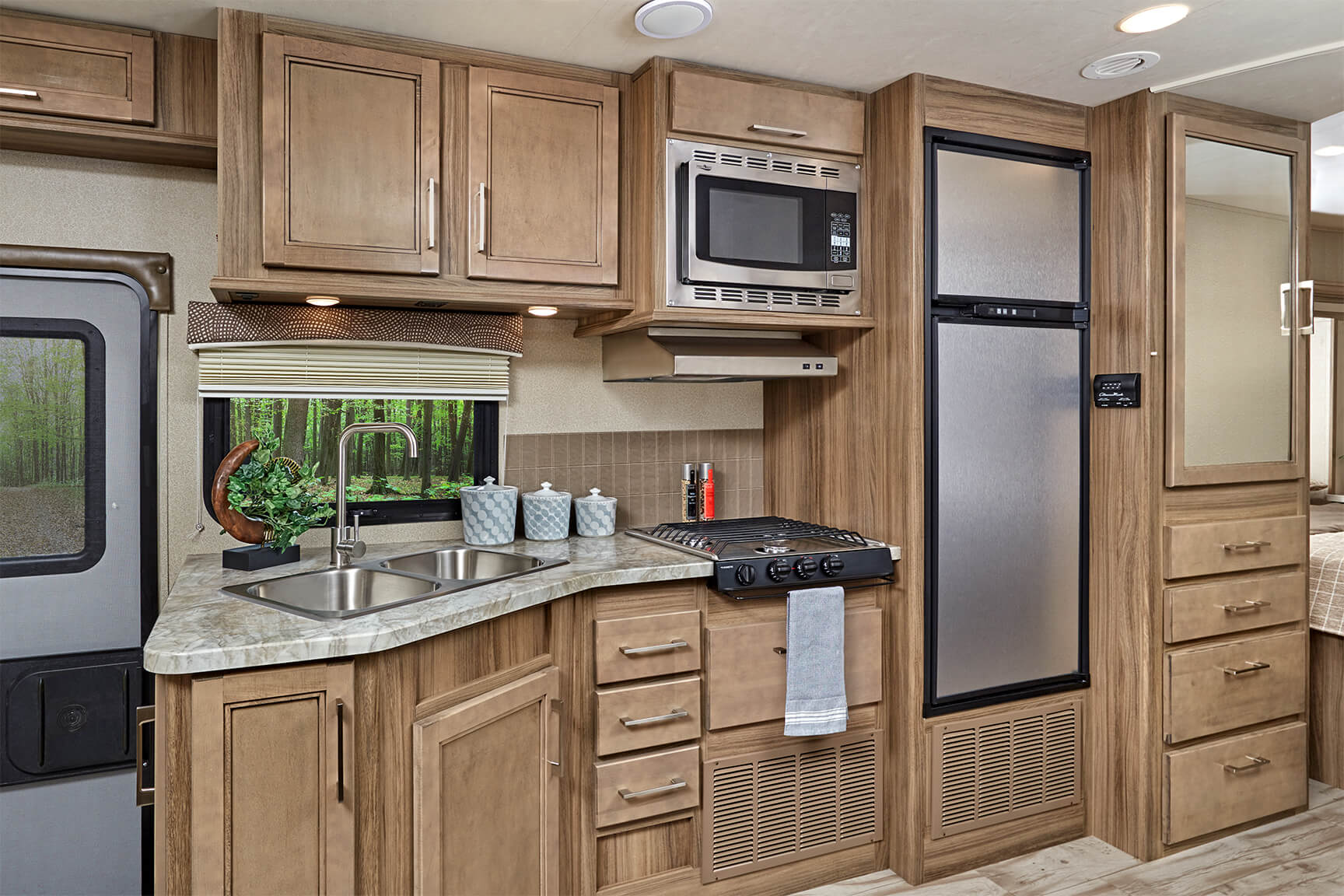

Kitchen
| Drawer Guides | Ball bearing drawer guides |
| Cooktop | 3-burner range with 9,000-BTU SuperBurner and piezo igniter |
| Microwave | Convection microwave oven (N/A 31L) |
| Dinette | Entegra-exclusive easy operation legless dinette table |
Bedroom
| Bed | Queen-sized bed with bedspread |
| Wardrobe | Large wardrobes |
| Television | Cable TV hookup with RG-6 coax |
Bathroom
| Shower | Shower with decorative surround and glass shower door |
| Toilet | Toilet with foot flush |
Safety
| Safety | Lap safety belts on all living area seats, Driver and passenger air bags |
Options
| Customer Value Package (Mandatory) | EZDRIVE; Computer-balanced driveshaft, standard front and rear stabilizer bars, Hellwig helper springs, rubber isolation body mounts, Soundstream Infotainment Dash Radio w/GPS & CD/DVD Player, One-piece seamless fiberglass front cap w/ 30"x82" front windshield, 12V electric patio awning, Black holding tank sprayer, Rear back-up camera and monitor, heated holding tanks (12V pads), 8 cu. ft. flush-mount, double-door refrigerator, 32" LED HDTV |
| Canadian Standards | Canadian Standards |
| Bedroom TV | Bedroom TV |
| Bunk TVs | (2) 24" LED TV's in Bunk Area |
| Automatic Hydraulic Leveling Jacks | Automatic hydraulic leveling jacks |
Décor Options
Entegra Coach peace of mind
2-year warranty
At Entegra Coach, excellence doesn’t end with our stunning interiors and superior craftsmanship. We back each luxury coach with the industry’s highest level of service—including a 2-year warranty.
