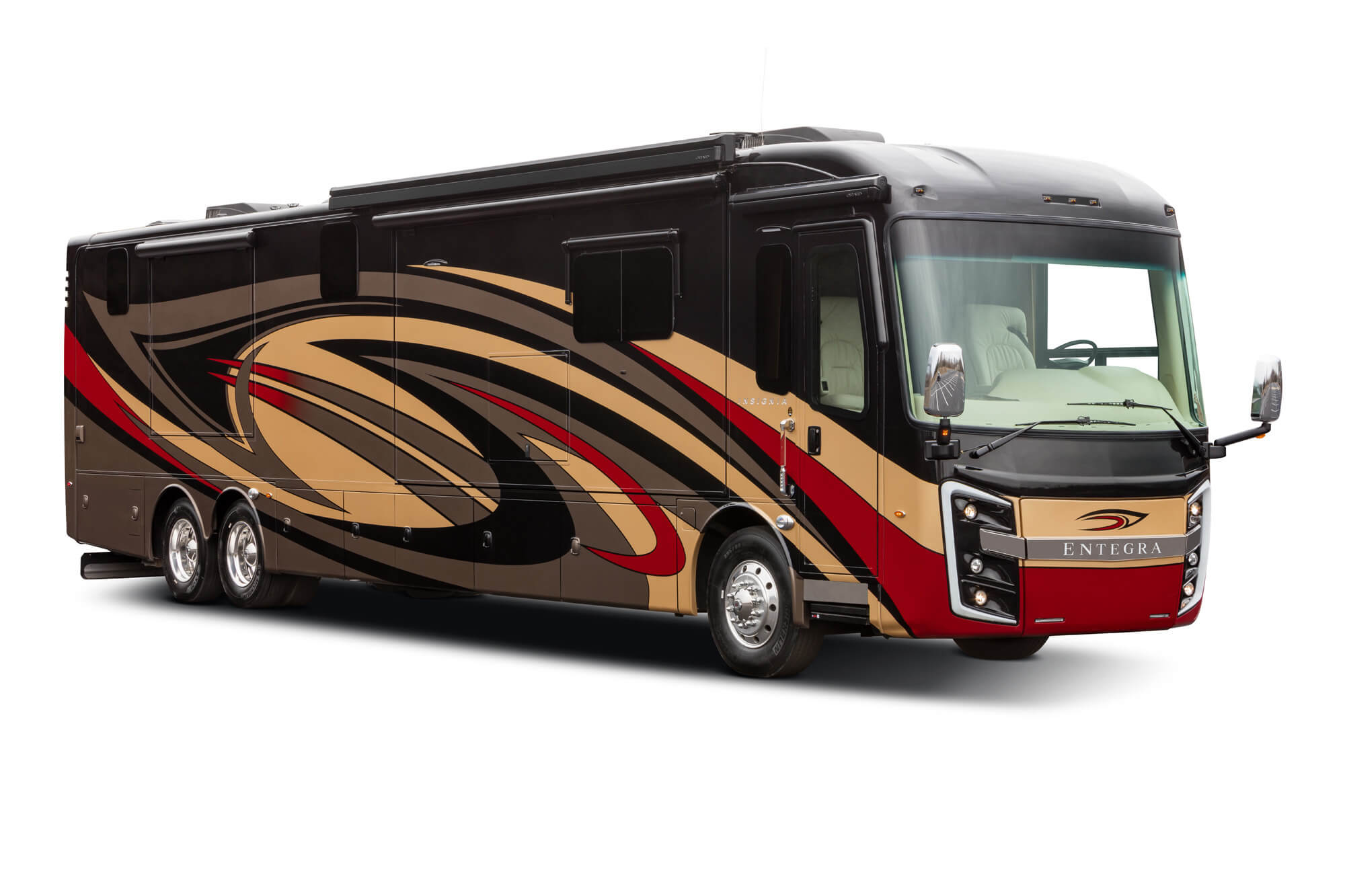

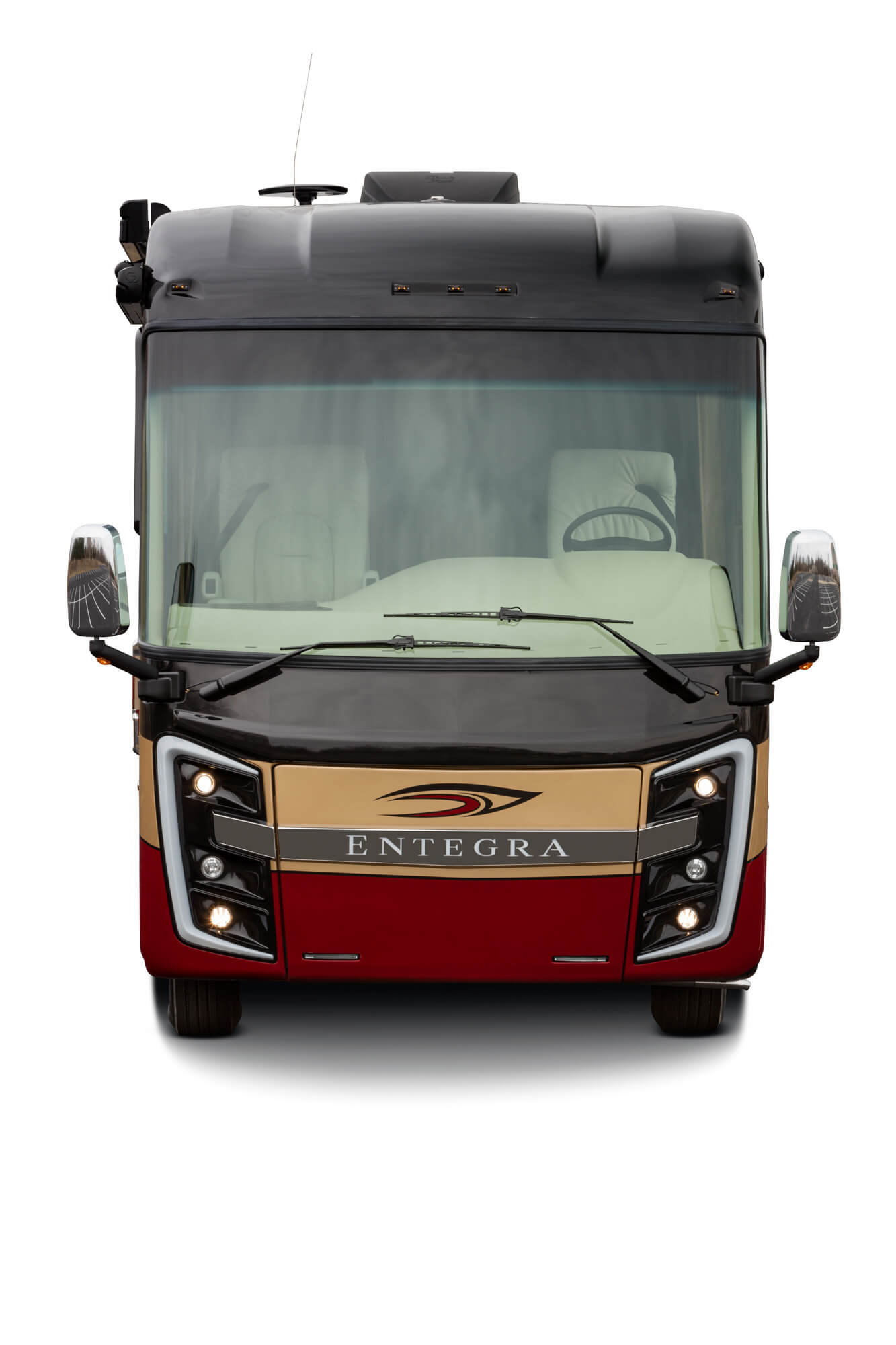

2019 Insignia

With this Class A motorhome, you’ll step your travel experience up to the next level. One of the most comfortable large coaches to drive on the market today, Insignia can make a day on the road as enjoyable as a day at the resort. Discover a kind of freedom only this kind of luxury Class A diesel motorhome can provide.

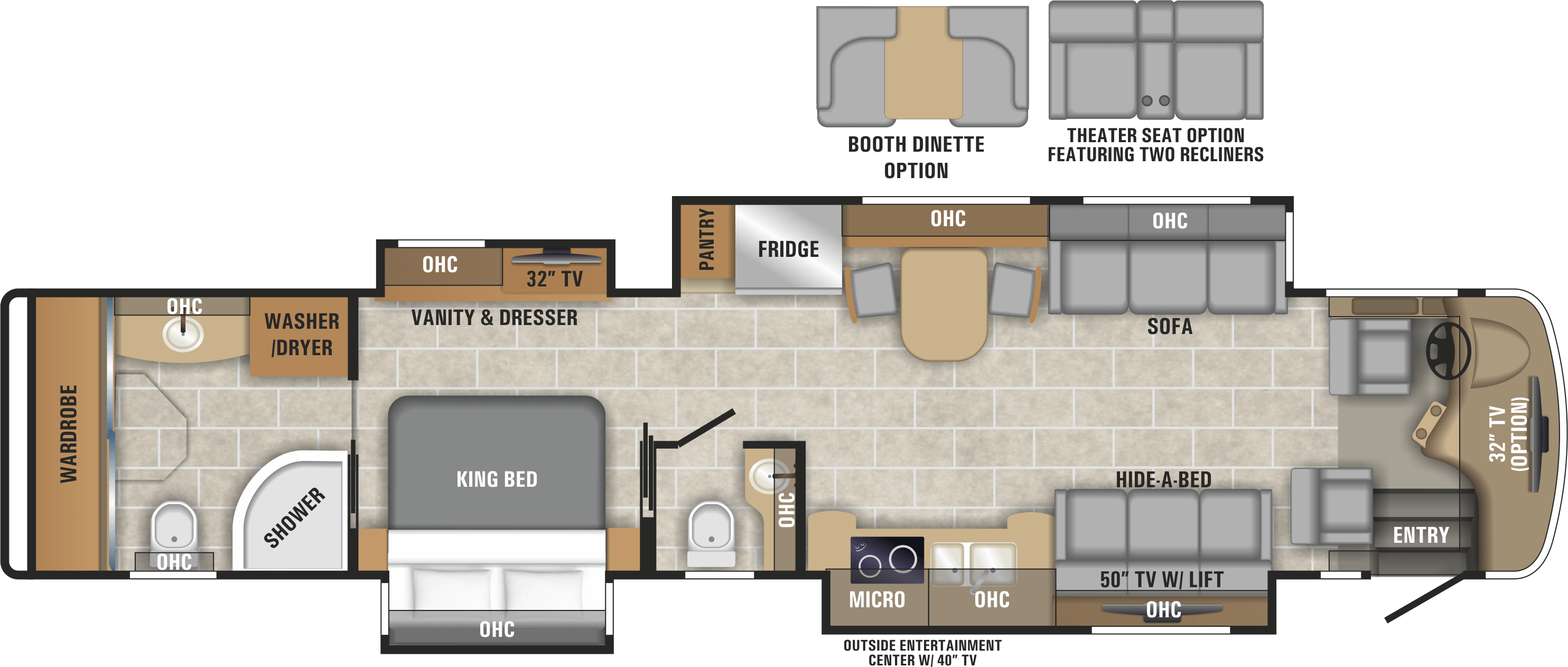

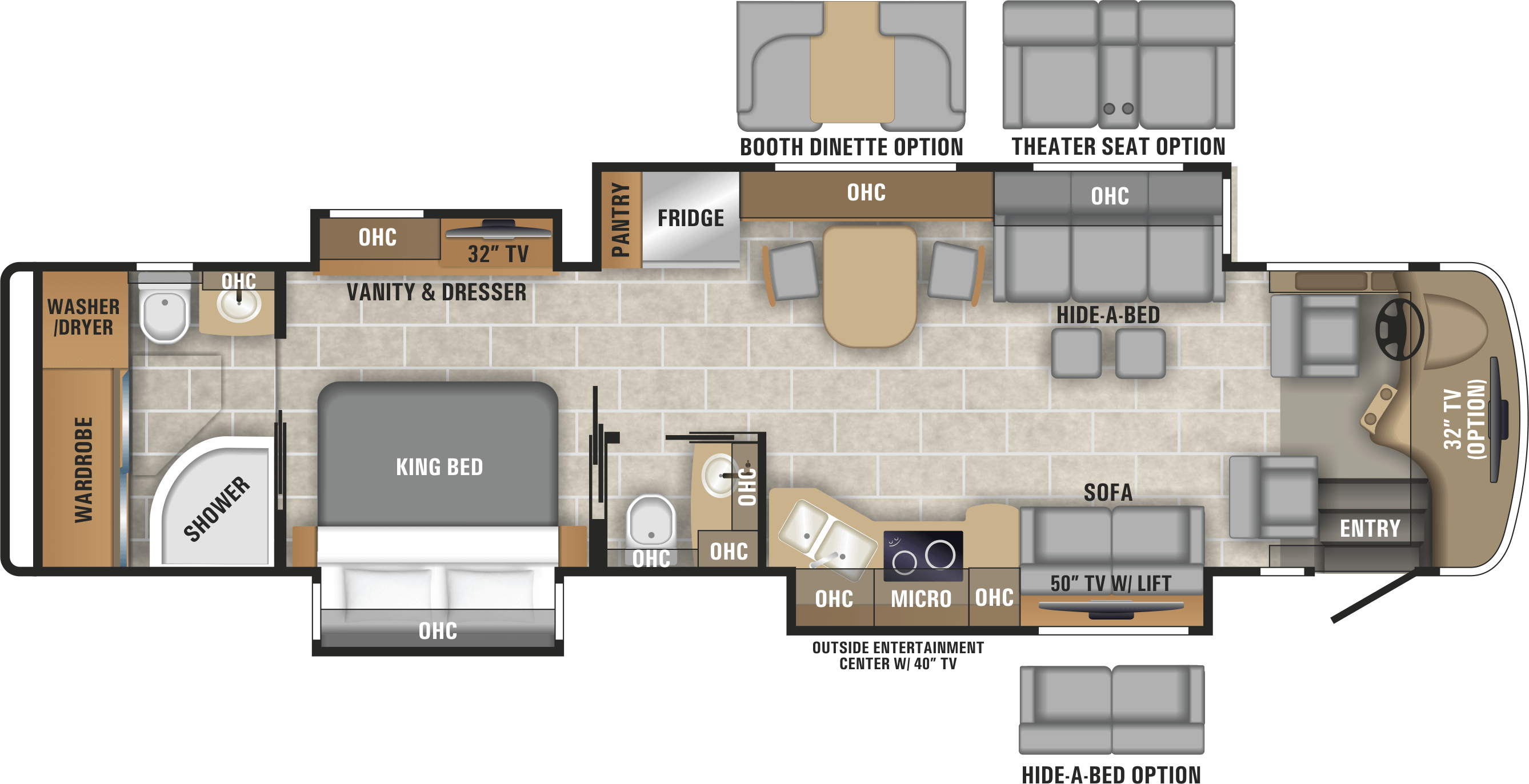

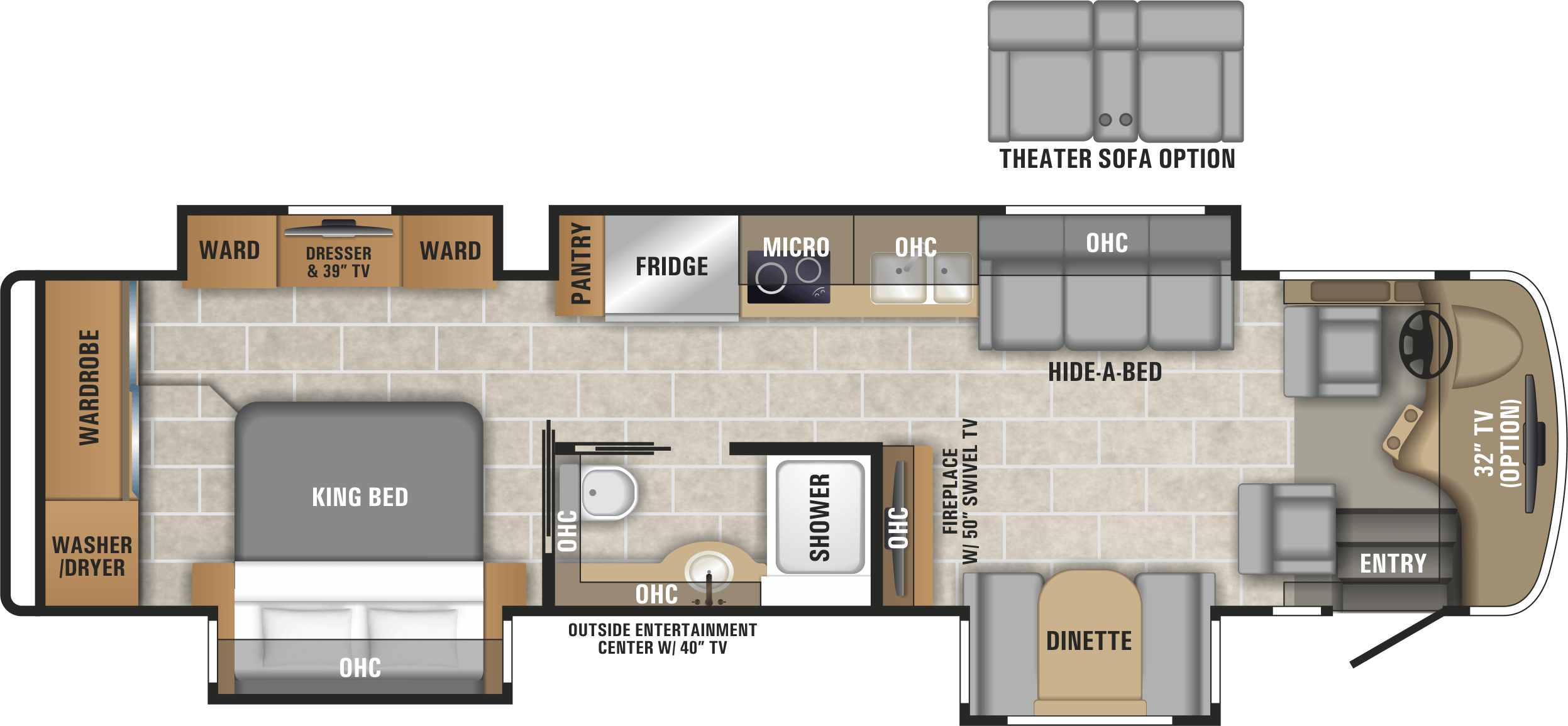

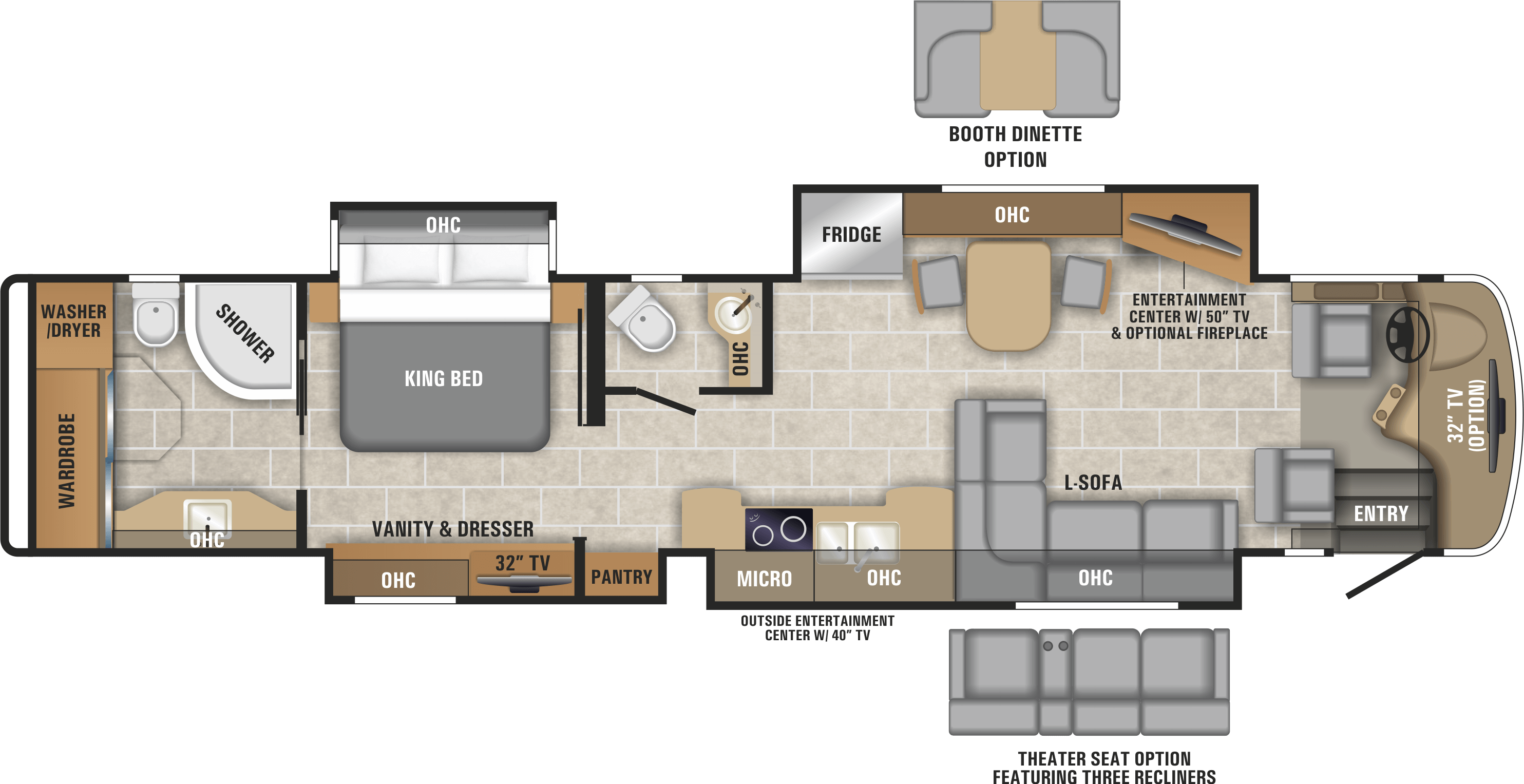

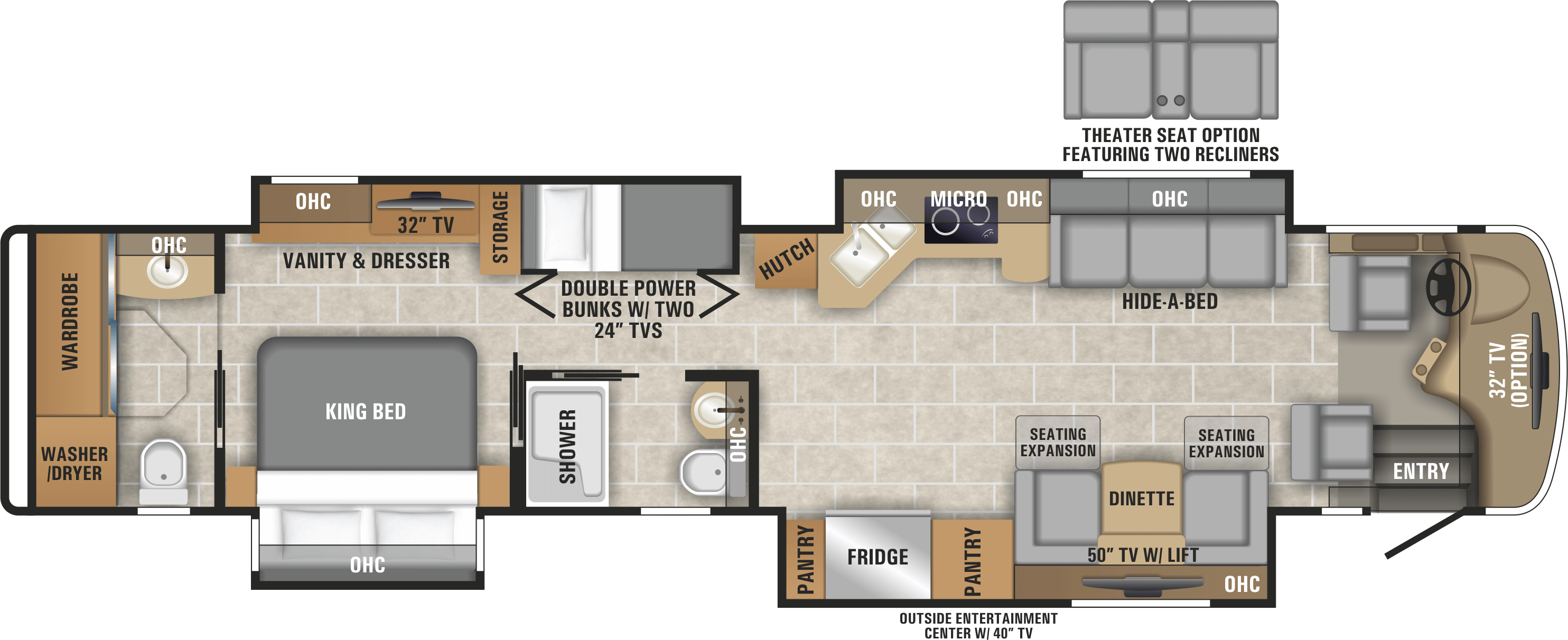

Floorplans

Ward = wardrobe

Lav = bathroom sink

Med = medicine cabinet

Ohc = overhead cabinets

Fridge = refrigerator

Micro = microwave

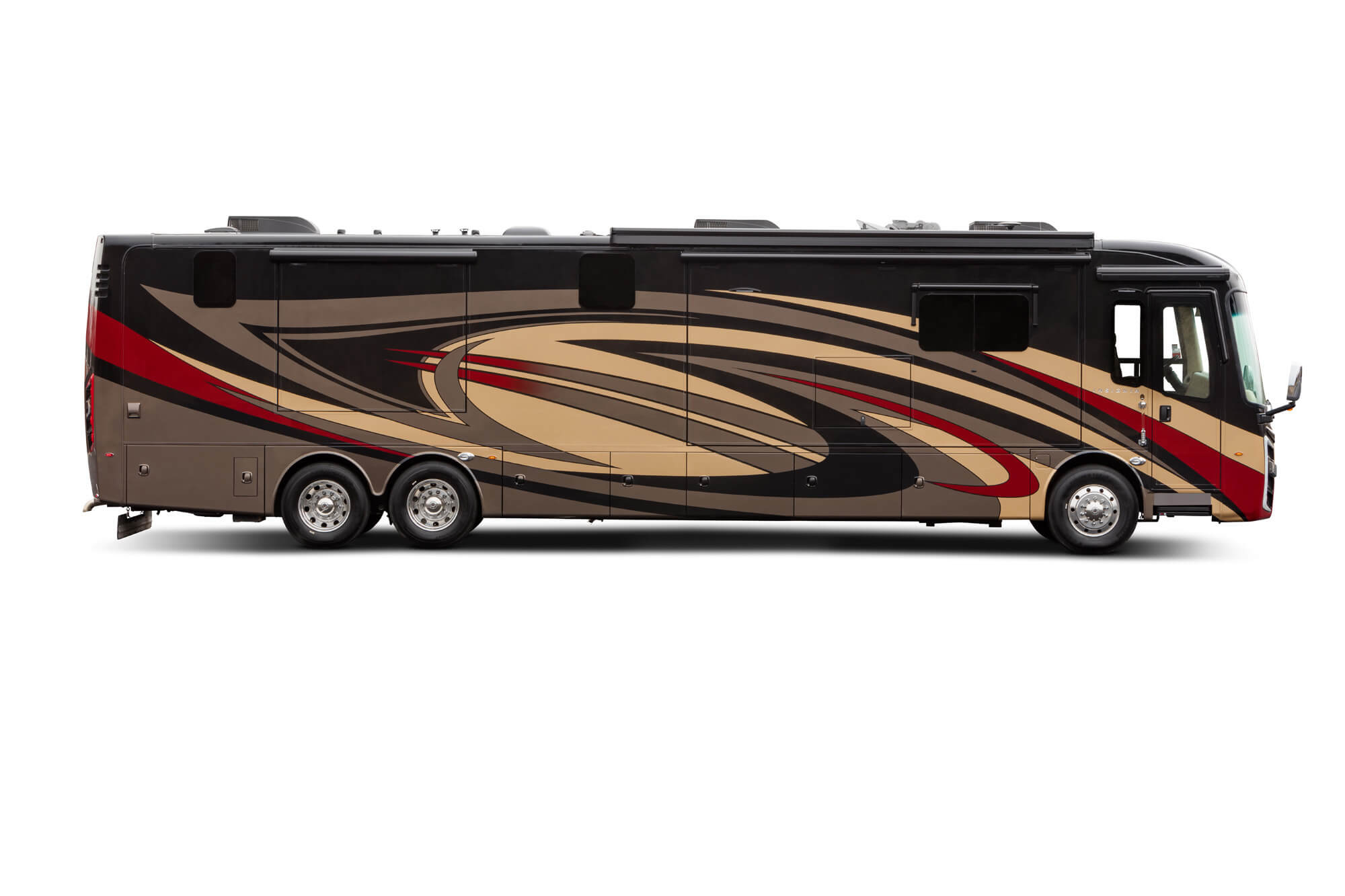

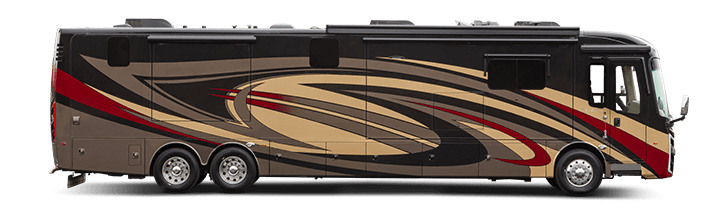

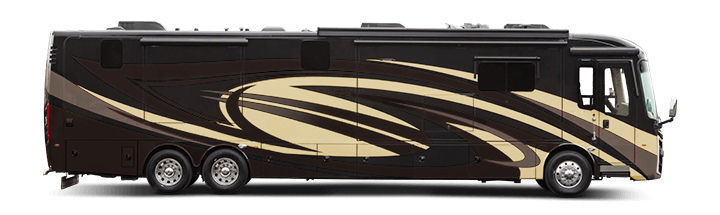

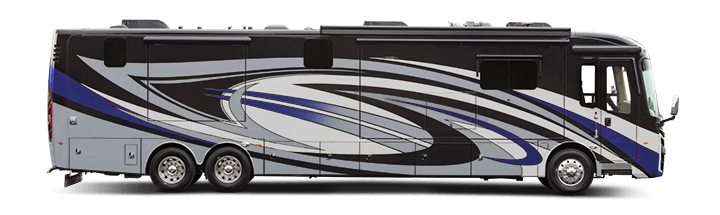

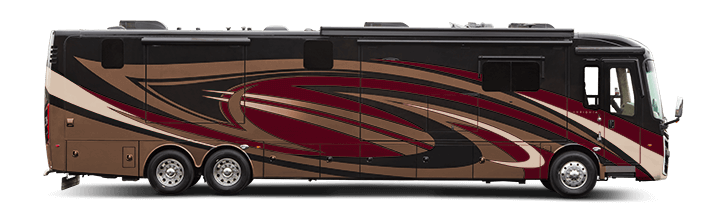

Exterior Graphics

Standards & Options

Chassis

Air Connection Remote air connection
Alternator 170-amp alternator
Bilstein Shocks Bilstein 46mm shocks
Braking System ABS disc brakes on front axle, drum brakes on drive and tag axle (Larger than 40') / ABS disc brakes on front and rear axle (40' and under)
Chassis Spartan K2 raised rail chassis
Chassis Battery Chassis batteries (2) 12 volt
DEF Tank 15 gallon DEF tank (dual fill 44B & 44W) / 15 gallon DEF tank (passenger side fille) (Less than 40')
Engine Cummins® L9 turbocharged 450 HP engine 1,250-lb. ft. torque at 1,400 RPM (Larger than 40') / Cummins® L turbocharged 380 HP engine 1,150-lb. ft. torque at 1,400 RPM (40' and under)
Engine Block Heater 1,000 watt engine block heater
Engine Brake Two-stage engine brake
Front Axle Front axle I-beam 16,000-lb. wide track
Front Suspension Reyco Granning front suspension
Fuel Tank 100-gal. fuel tank (dual fill)
Hitch 15,000-lb. hitch with 7/4-pin plug (Larger than 40') / 10,000-lb. hitch with 7/4-pin plug (40' and under)
Radiator Side-mounted radiator
Rear Axle Rear axle 20,000-lb., tag axle 12,000-lb.(Larger than 40') / Rear axle 24,000-lb. (40' and under)
Rear Axle Ratio 4.88 rear axle ratio(Larger than 40') / 4.78 rear axle ratio (40' and under)
Rear Suspension Reyco Granning rear suspension
Tag Axle Tag axle air dump (Larger than 40')
Tires Michelin 295/80R 22.5" Tires (Front) 275/80 R 22.5" Tires (Rear)
Tow Air Brake System Safehaul tow air brake system
Transmission Allison 3000 MH 6-speed transmission
Turning Radius 52-degree turning radius

Construction

Exterior Walls 2-1/2" exterior wall with welded tubular aluminum construction and high-gloss, gel-coat fiberglass
Floor 2" x 4" floor truss construction
Floor Decking 3/4" 7-ply plywood main floor decking
Frame X-Bridge frames welded into chassis frame
Front Cap Steel-reinforced front cap and windshield frame
Insulation Insulation with reflective Flexfoil floor (R-33), roof (R-24), sidewalls (R-16), front and rear caps (R-22)
Roof One-piece fiberglass roof with 3/8" plywood decking and 4" arched aluminum roof truss
Slideouts Flush-mounted electric-powered slideout rooms with remote control

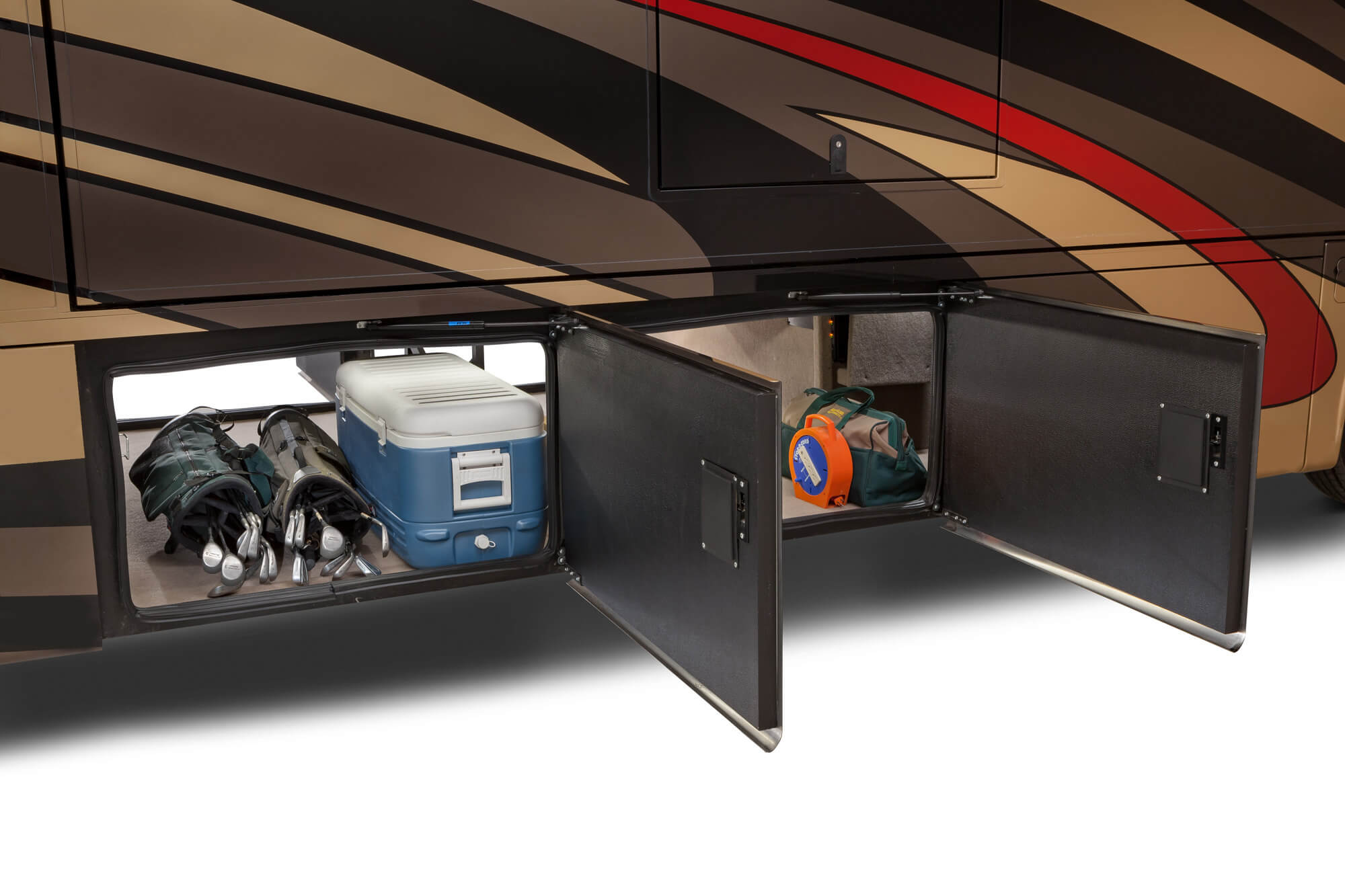

Underbelly Insulated, enclosed, thermostat controlled storage area with heated floor
Walls Aluma-Tru Superstructure construction on 12"-16" centers

Heat, AC, Water & Power

Air Conditioning 15,000 BTU low profile A/Cs with heat pump, digital thermostat, and roof to ground condensation drain system (3 units in coaches over 40' and 2 units in coaches under 40')
Batteries L16 AGM batteries (2), (6v/390 amp hrs. ea.)
Black Holding Tank Sprayer Black holding tank sprayer
Black Tank Management Macerator holding tank dump system with manual gate valves
Electrical Hookup 50-amp power cord with electric reel
Generator Onan 10,000-watt diesel generator with auto gen start on slide-out tray
Heating System Aqua-Hot® 400-LP hydronic water and heating system with in-floor heat throughout (Larger than 40') / Aqua-Hot 250-LP (40' and under)
Inverter 3,000-watt pure sine wave inverter
Power Management Surge protector transfer switch
Propane 50-gal. propane gas tank
Water Filtration City and tank water filtration system
Water Monitoring SeeLevel tank monitoring system
Winterization Drain System Winterizing drain system

Exterior

Accent Lights LED accent lights on underside of slideout rooms - Passenger side
Daytime Running Lights Daytime running lights
Door Awning Girard power entrance door awning with LED lights
Engine Door Manual engine door
Entrance Door Aire-Secure travel locks for all pocket doors
Exterior 3M front protective film mask

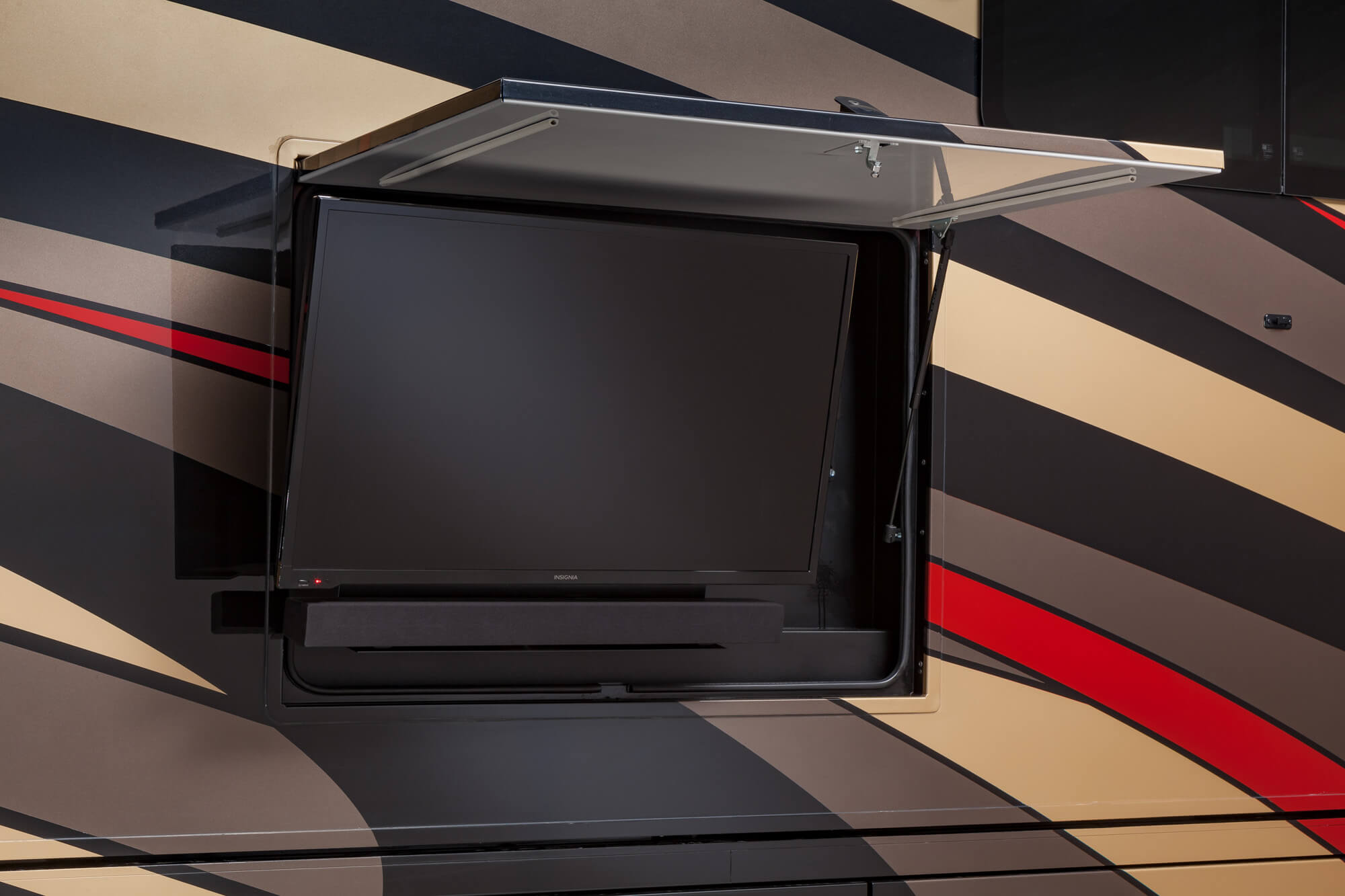

Exterior Entertainment Exterior 39" Insignia LED HDTV and Insignia sound bar on TV bracket with extend, tilt and swivel arm
Headlights Halogen high and low beam headlights
Keypad Handle Lighted grab handle with keypad system
LED Fog Lights Halogen fog lights
LED Lights LED marker lights, turn lights and license plate light
LED Docking Lights LED docking lights
Mirrors Heated, remote control, Ramco side-view mirrors with integrated cameras

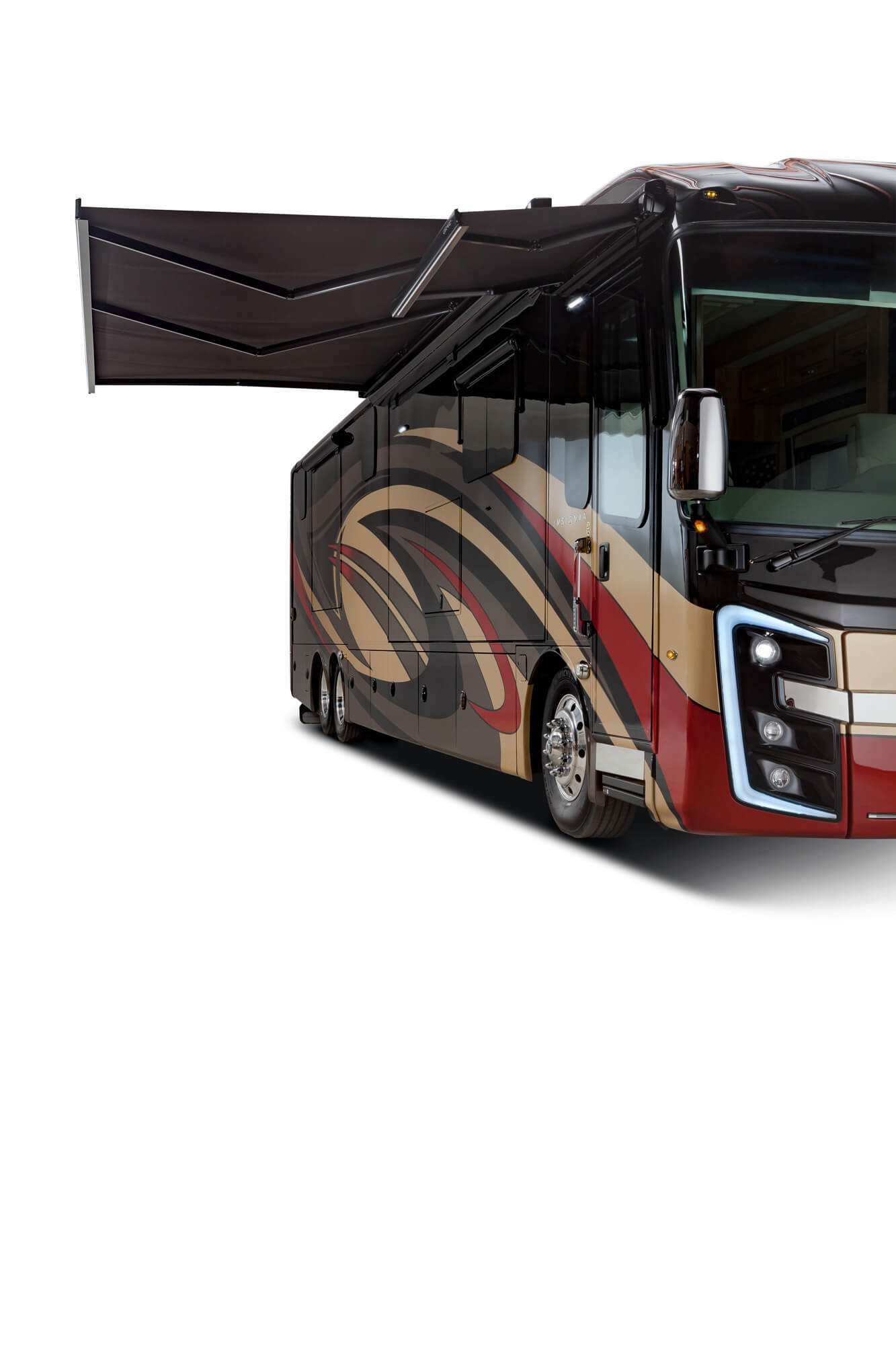

Patio Awnings Girard Ultra power patio awning with LED lights

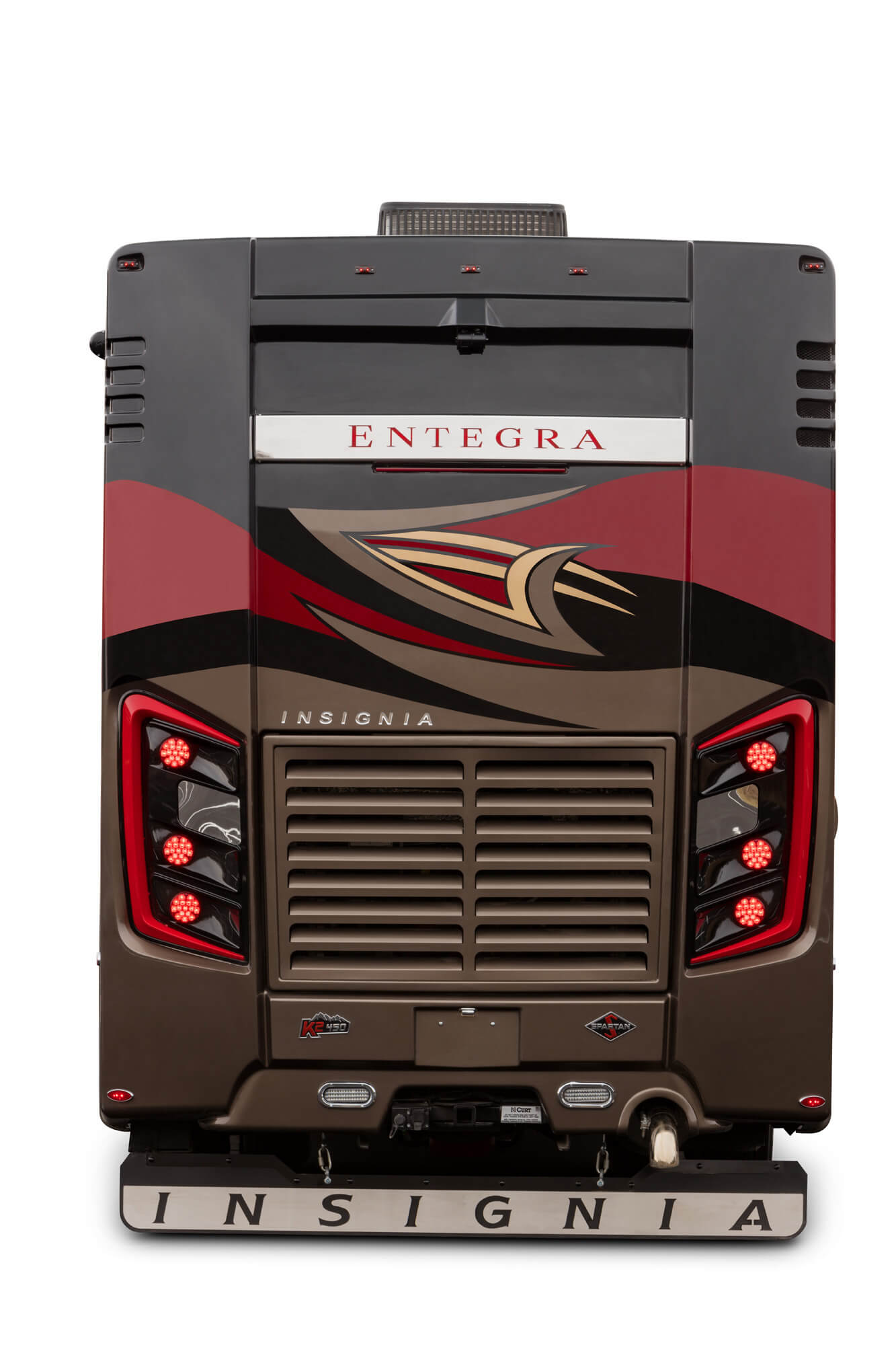

Rear Mudflap Full-width rear mudflap, with chrome "Insignia" nameplate
Satellite Dish Winegard in-motion satellite dome with prep for Trav'ler satellite dish
Utility Center Exterior utility center, heated and enclosed with system monitor panel
Third Brake Light Third brake light
TV Antenna Winegard® In-Motion satellite dome with prep for Trav'ler satellite dish
Windows Frameless, dual-pane, tinted, Hehr safety-glass windows
Window Awnings Carefree window shade and slide-out awnings

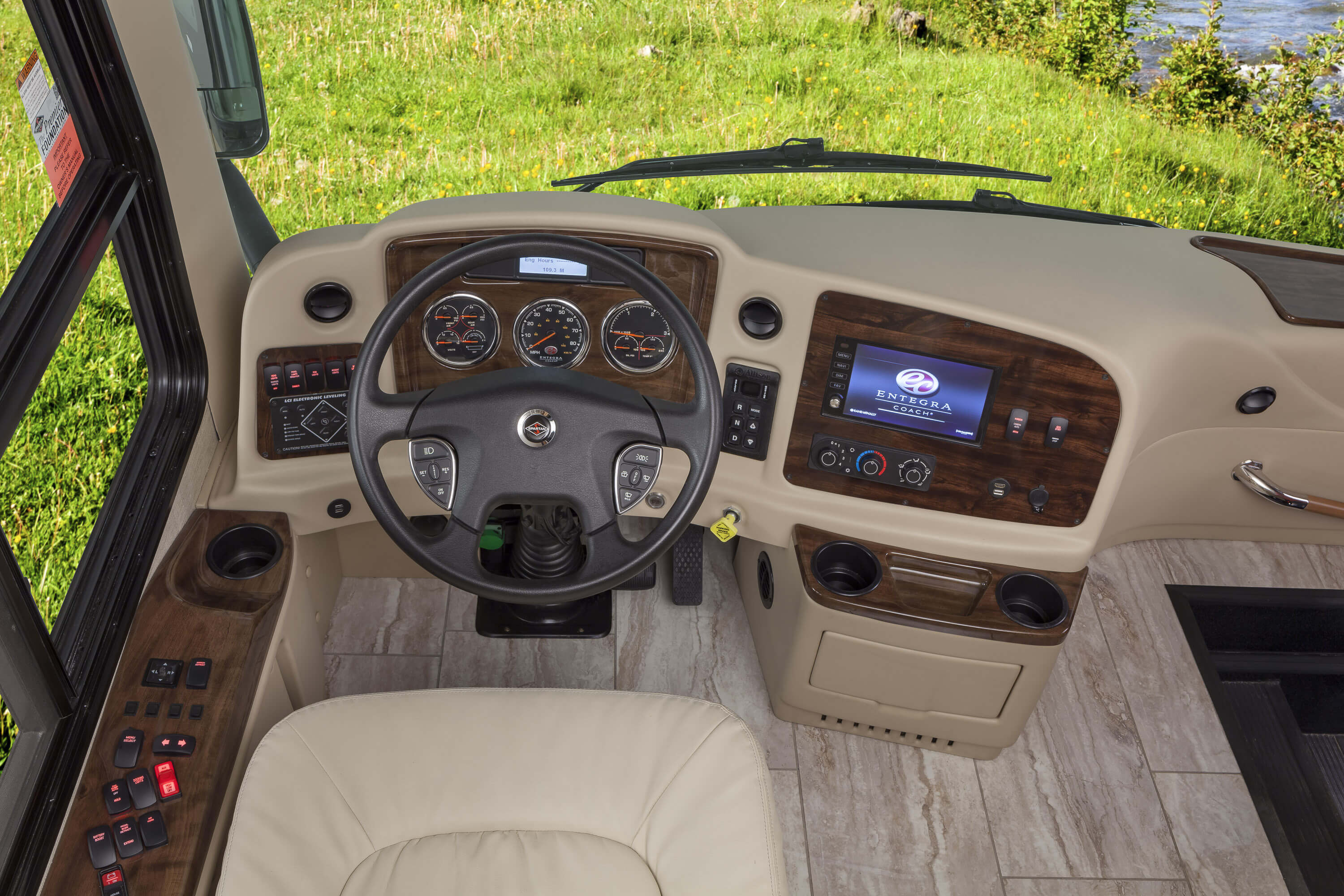

Cockpit

Additional Amenities Two dual USB ports
Cameras Side and rear view cameras
Driver / Passenger Seats Power adjustable driver and passenger seats with integrated 3-point lap and shoulder safety belts
Flooring Powered flush stepwell cover
Infotainment System(s) 9" touchscreen in-dash infotainment center with Rand McNally RV navigation, Bluetooth, Sirius XM, AM/FM tuner, integrated camera control
Leveling System Equalizer Hydraulic automatic leveling
Monitoring System(s) Spartan Message Center with LCD display
Pedals Powered adjustable foot pedals
Power Features Battery boost system
Side Consoles Molded side consoles (Larger than 40')
Start Push button start
Steering / Driving Features Tilt and telescoping steering wheel with integrated controls for cruise and wipers
Sound System JBL premium audio sound system (Larger than 40') / JBL speakers (40' and under)
Visors & Privacy Shade Powered front sun visors and privacy shade
Windshield Ultra-Vision one-piece wrap-around tinted windshield

Interior

DVD Systems Blu-ray player in living area
Flooring Hand laid high gloss 12" x 24" porcelain tile floor
Flooring - Slides Carpet on living area slides
Furniture Ultraleather hide-a-bed sofa(s)
Lighting System Multiplex controlled lighting system
Lighting Dimmable LED recessed 12V lighting
Window Treatments Manual solar day and black out night shades

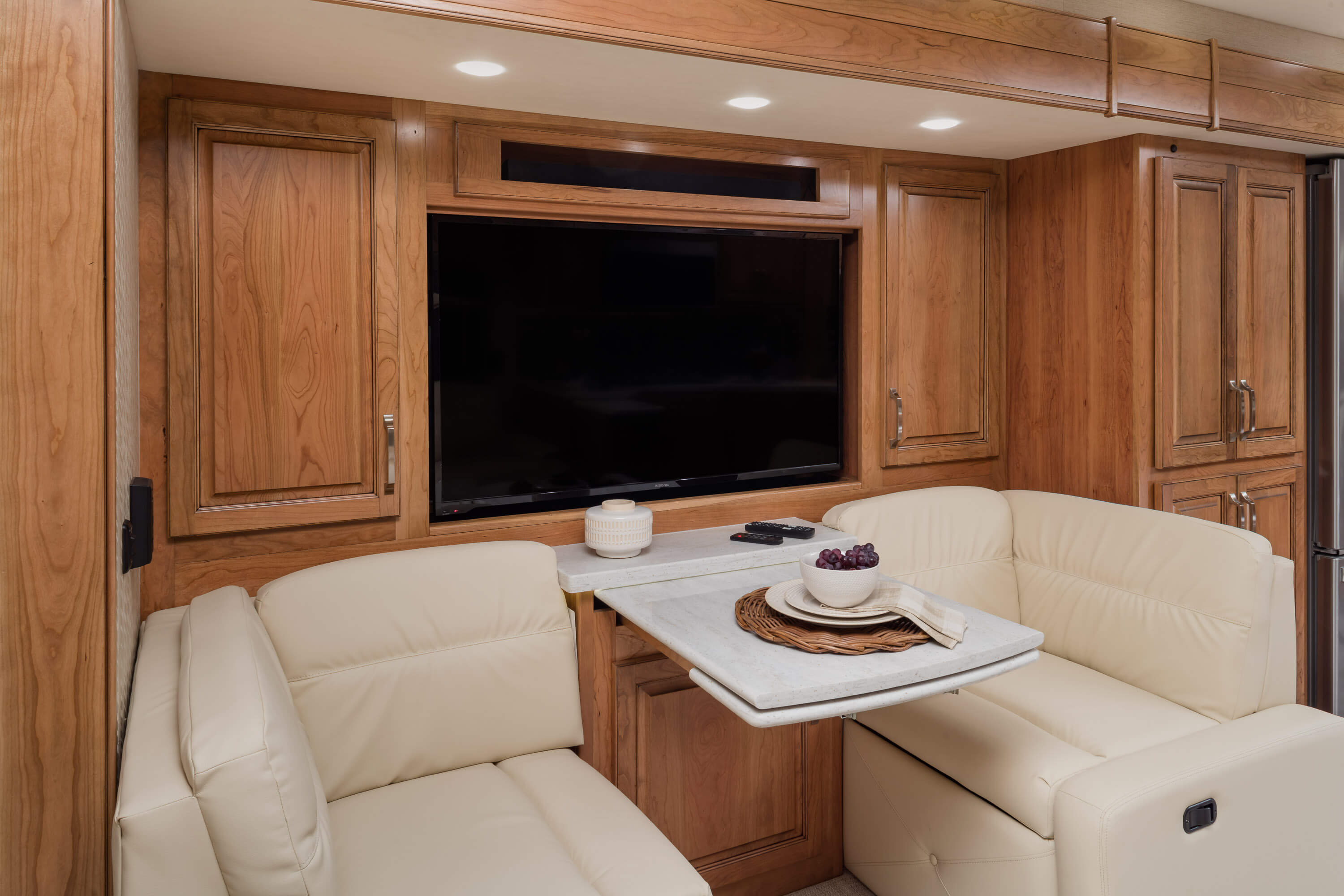

Television - Living Room Insignia 50" LED HDTV
Sound - Living Room Insignia 50" LED HDTV (Larger than 40') / Insignia 50" LED HDTV with extend and swivel bracket (40' and under)
Washer/Dryer Stacked washer and dryer

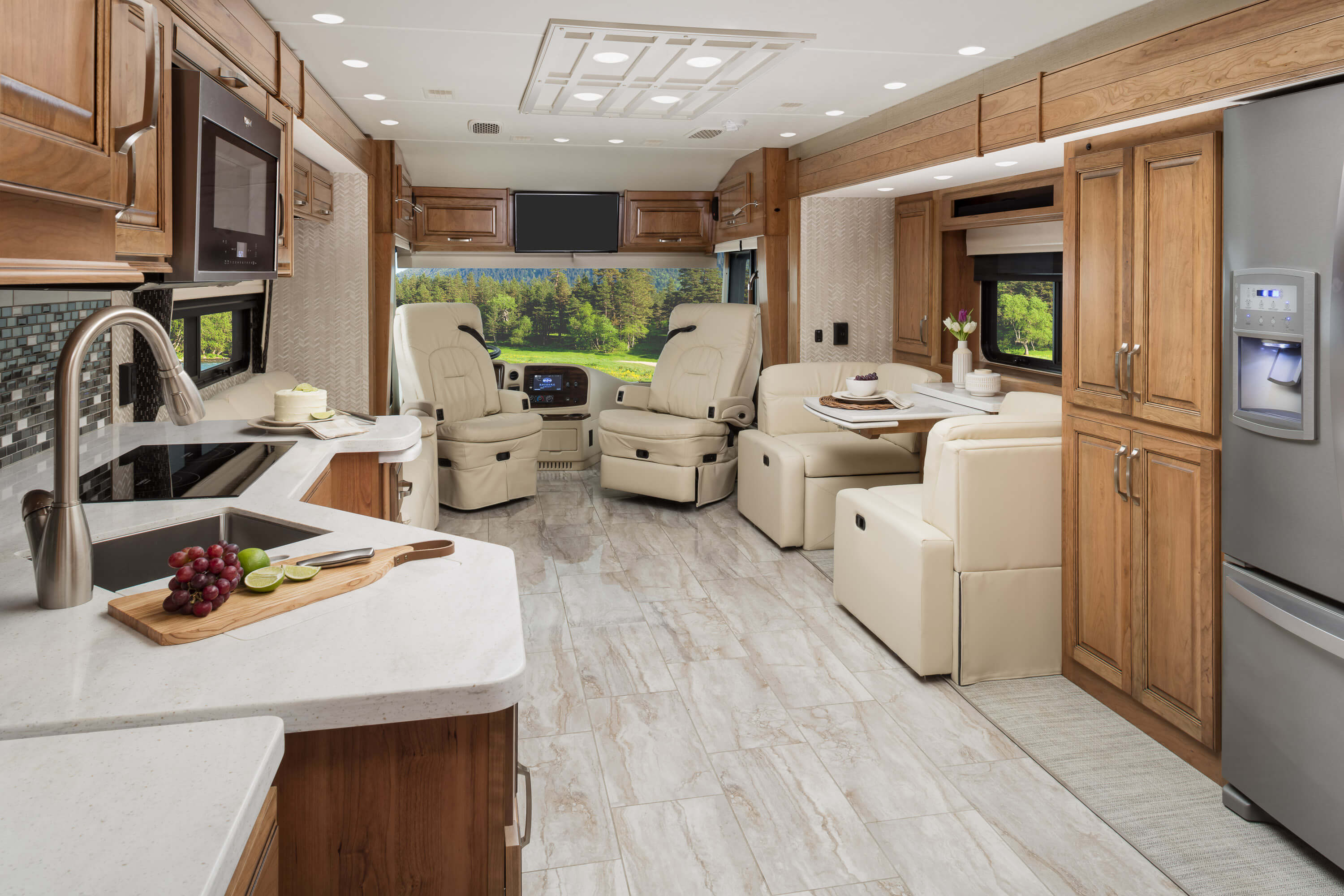

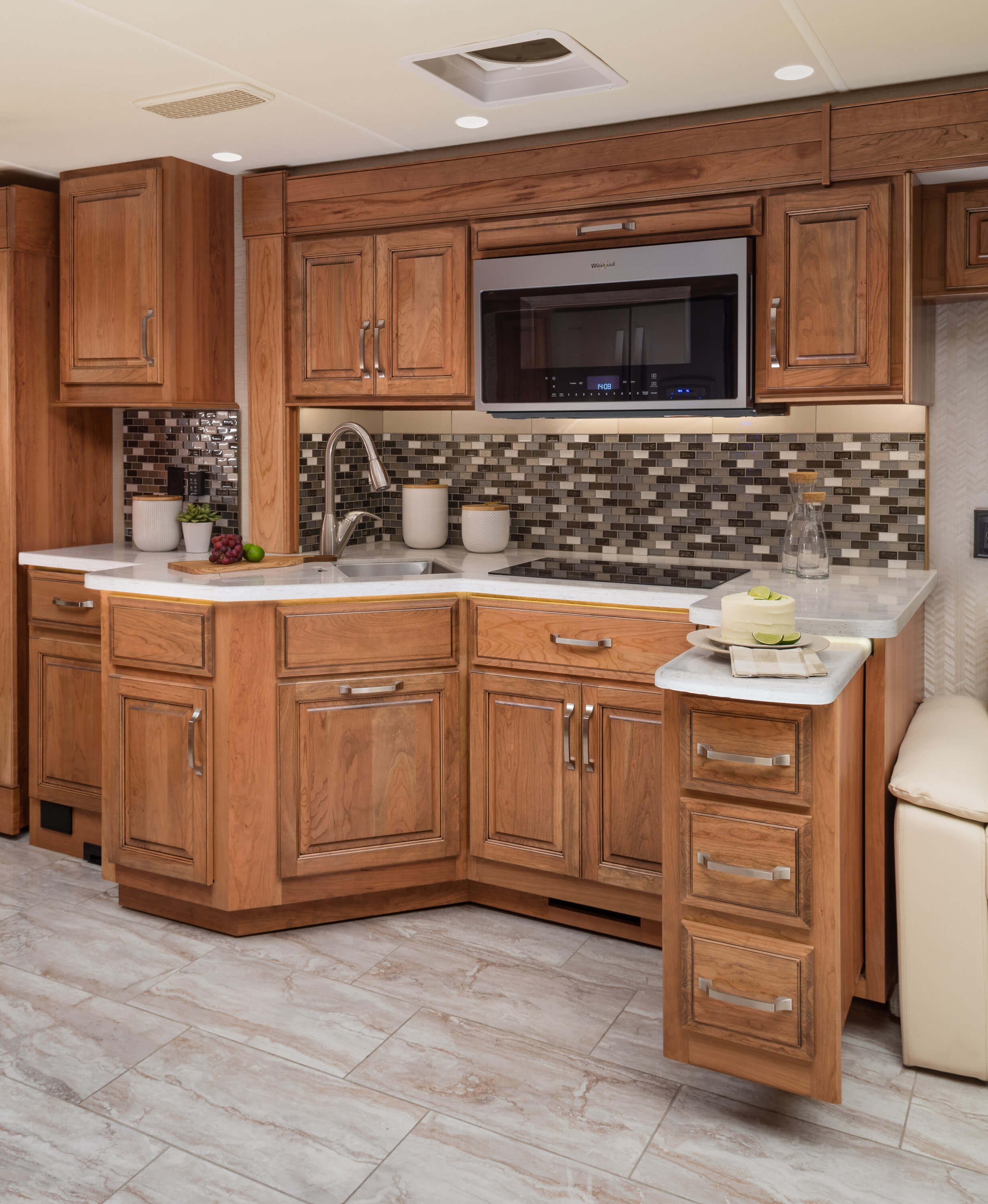

Kitchen

Cooktop Induction cooktop with cover
Kitchen Countertops Solid surface countertops with stainless steel sink and LED accent lighting
Microwave Whirlpool Gold 1.9 cu. ft. convection microwave oven
Refrigerator Whirlpool residential refrigerator with ice maker and water dispenser
Vent Maxxair power vent
Waste Basket Large deep drawer for waste basket with easy access trash chute (Trash chute N/A in 37MB, 40B2, 40BH & 44R)

Bedroom

Bedroom Wardrobe Spacious wardrobe with automatic light(s)
Ceiling Fan Ceiling fan
Nightstands Nightstands with USB ports and solid surface tops
Television Insignia 32" LED HDTV in bedroom, Insignia 39" LED HDTV in bedroom (37MB)

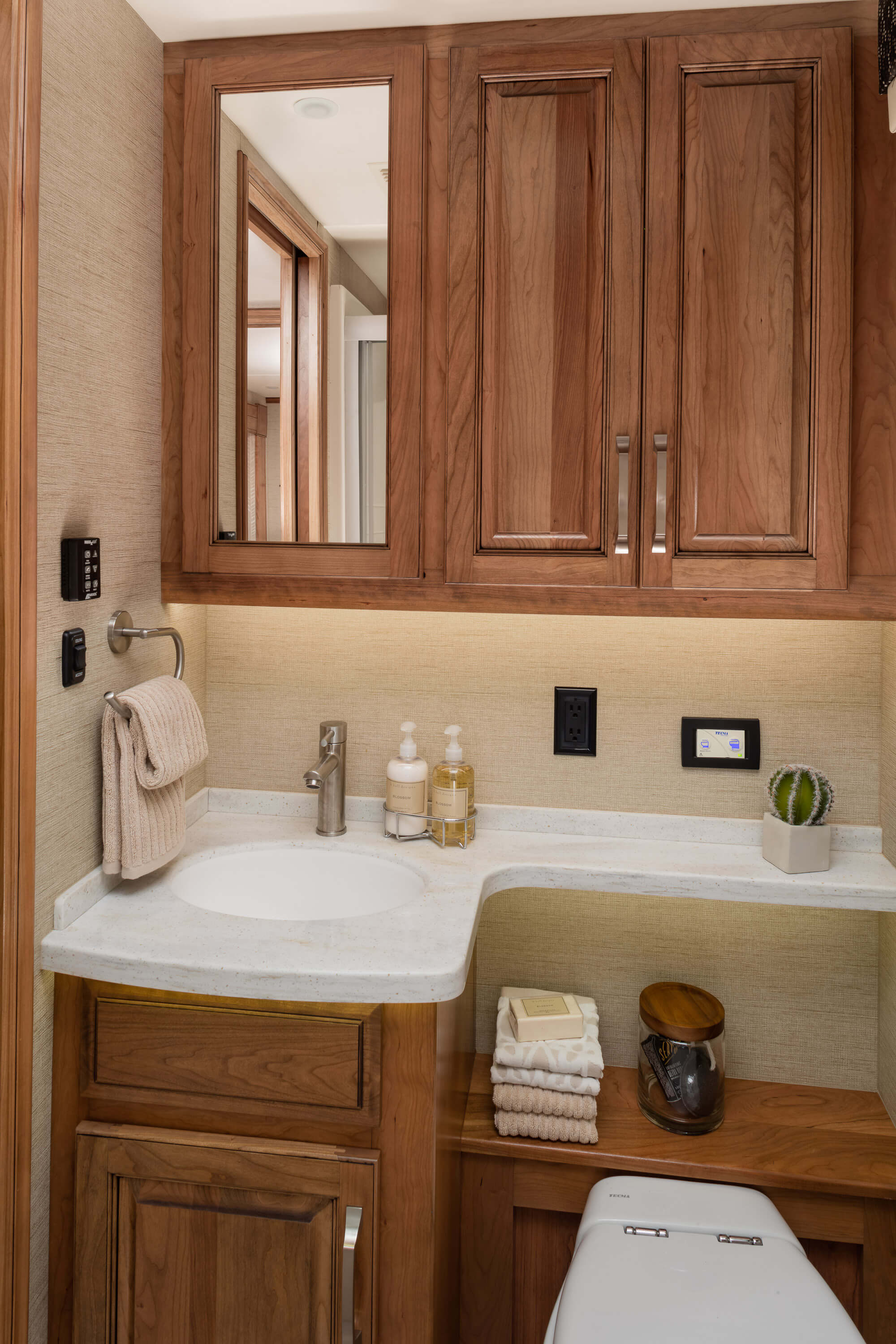

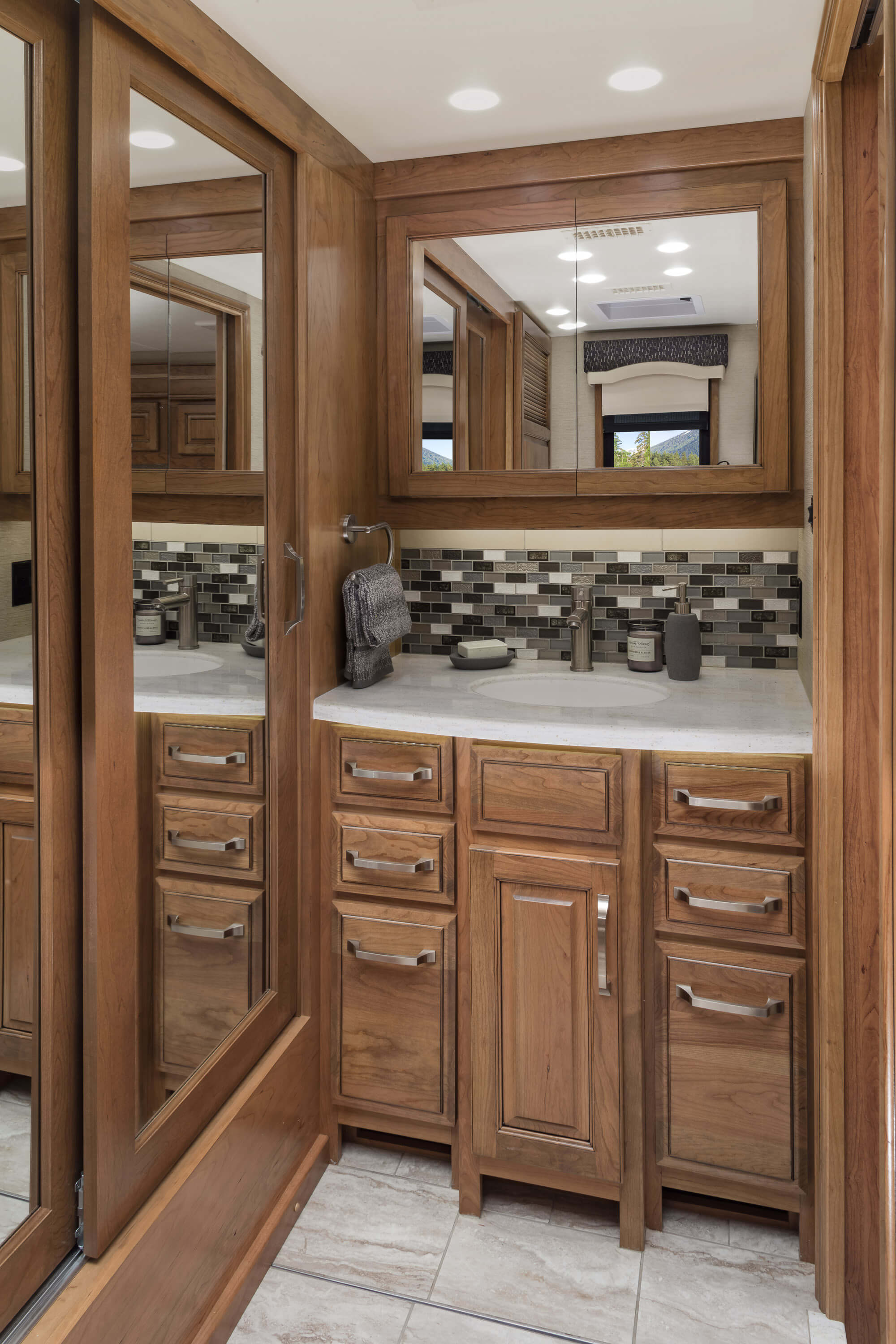

Bathroom

Bathroom Countertop(s) Solid surface countertop(s) with integrated sink and LED accent lighting
Bathroom Shower One-piece fiberglass shower with skylight
Bathroom Ventilation Maxxair Standard power vent
Toilet Thetford Tecma® china toilets (Larger than 40')/Thetford Aqua-Magic® china toilet with foot flush (40' and under)

Safety

Carbon Monoxide Detector Carbon monoxide detector
Lights Porch light and security lights
Propane Alarm Propane alarm
Smoke Alarm Smoke alarm

Options

Additional Batteries Batteries - 2 additional AGM, 4 total (N/A on 40B2)
Canadian Standards Optional
Central Vacuum System Optional
Dinette Option 1 Dinette Booth (40B2, 40BH, 44B & 44W)
Fireplace LED lit fireplace (37MB & 44B)
Freestanding Table Option 1 Theater Seating w/Power Recliners & Fixed Center Console
Front Overhead TV Optional
Satellite Dish - US Winegard Trav'ler satellite dish - DIRECTV
Satellite Dish - CA Winegard Trav'ler satellite dish - Shaw Direct
Slideout Storage Tray Slideout Storage Tray
Theater Seating Option 1 Theater Seating w/ Manual Recliners & Fixed Center Console
WiFi Extender Antenna Optional Winegard WIFI Extender with 4G/LTE

Décor Options
