A Symbol of Comfort

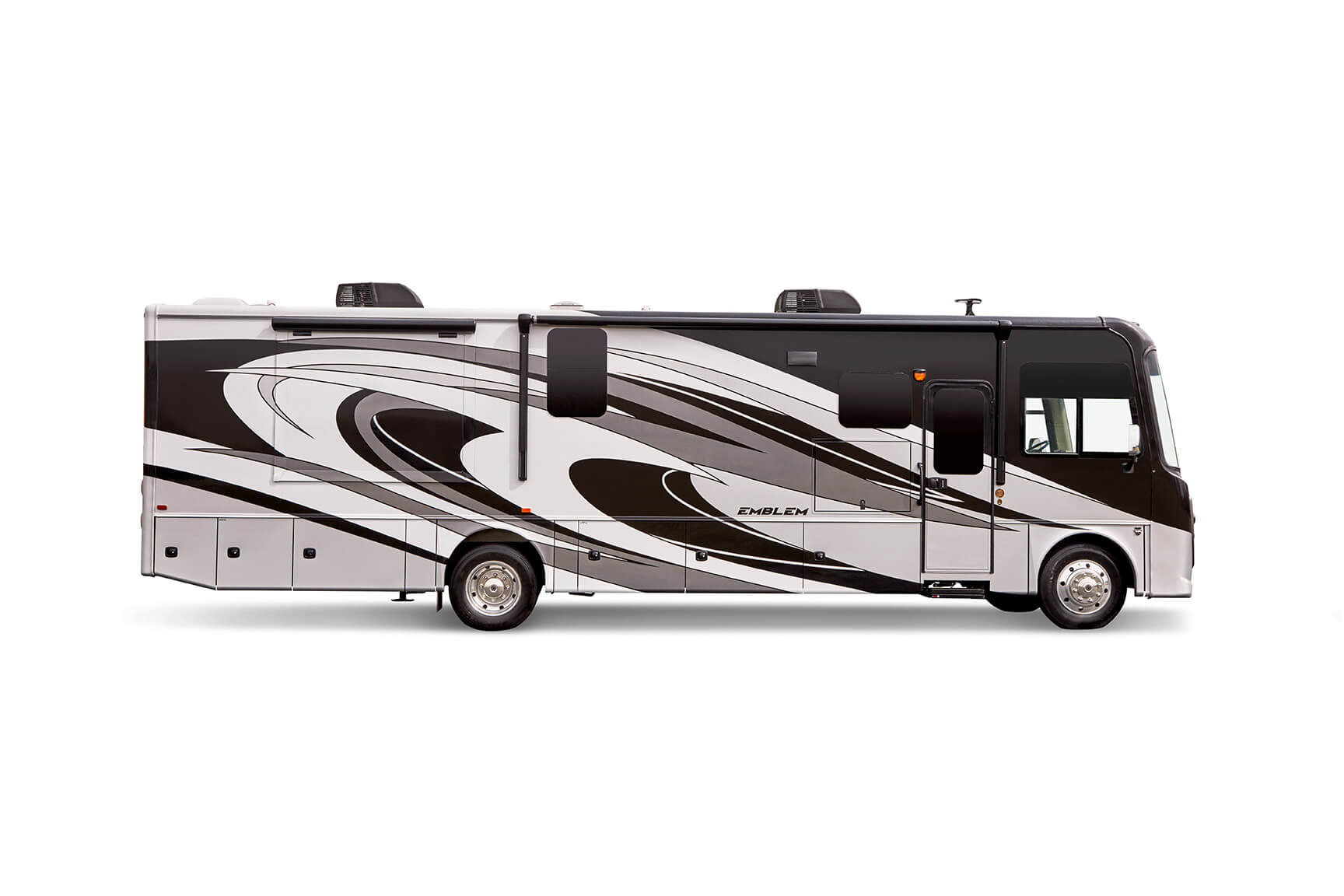

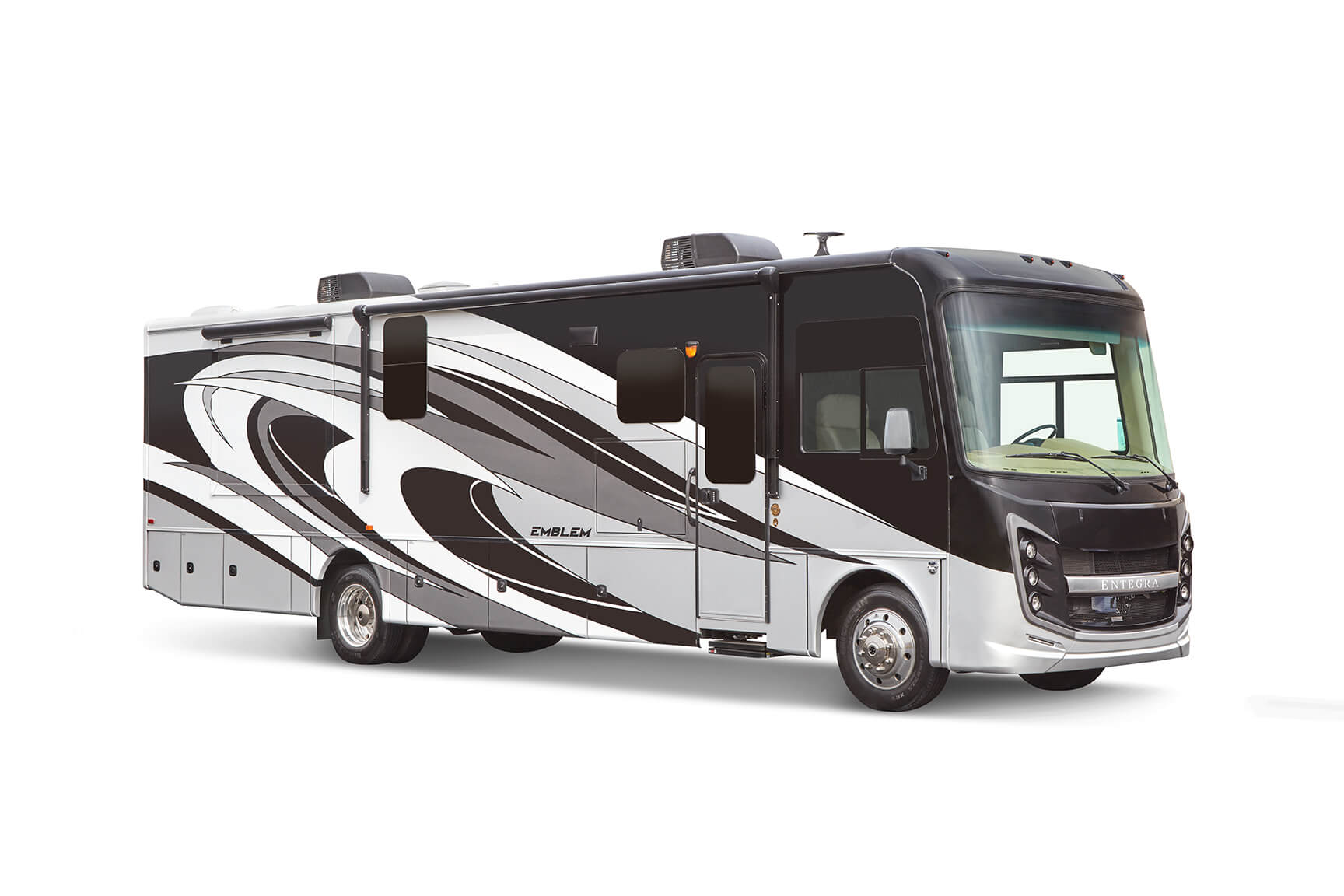

2019 Emblem
One of the newest gas-powered additions to the Entegra Coach lineup, the highly acclaimed and luxurious Emblem is available in lengths of about 36 feet and three lavish paint options. It’s built on a Ford F53 chassis and is equipped with the E-Z Drive Elite ride and handling package and fine interior finishes that make both the journey and the stay a joy.

Brochure
Floorplans

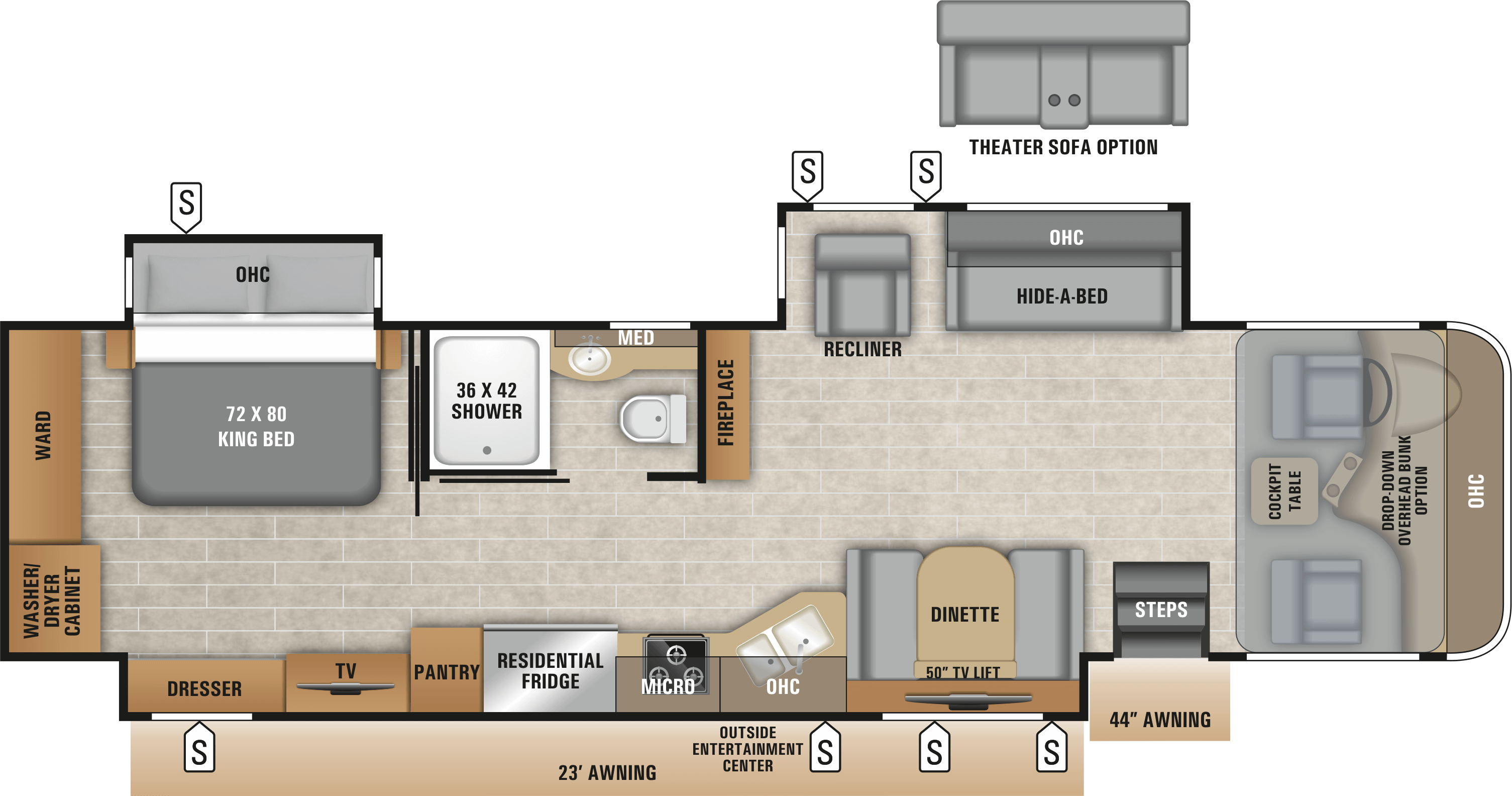

2019 Emblem | 36H

Specs
Gross Vehicle Weight Rating (lbs) | 24,000 |
Gross Combined Weight Rating (lbs) | 30,000 |
Front Gross Axle Weight Rating (lbs) | 9,000 |
Rear Gross Axle Weight Rating (lbs) | 15,500 |
Exterior Length | 38' 8" |
Exterior Width | 101" |
Exterior Height with A/C and Satellite | 12' 7" |
Interior Height | 84" |
Fresh Water Capacity (gals) | 72 |
Grey Waste Water Capacity (gals) | 40 |
Black Waste Water (gals) | 40 |
Fuel Tank Capacity (gals) | 80 |
Furnace (BTU Output) | 35,000 |
Wheel Base | 252 |
2019 Emblem | 36T

Specs
Gross Vehicle Weight Rating (lbs) | 24000 |
Gross Combined Weight Rating (lbs) | 30000 |
Front Gross Axle Weight Rating (lbs) | 9000 |
Rear Gross Axle Weight Rating (lbs) | 15500 |
Exterior Length | 38' 8" |
Exterior Width | 101" |
Exterior Height with A/C and Satellite | 12' 10" |
Interior Height | 84" |
Fresh Water Capacity (gals) | 72 |
Grey Waste Water Capacity (gals) | 50 |
Black Waste Water (gals) | 31 |
Fuel Tank Capacity (gals) | 80 |
Furnace (BTU Output) | 35000 |
Wheel Base | 252 |
2019 Emblem | 36U

Specs
Gross Vehicle Weight Rating (lbs) | 24000 |
Gross Combined Weight Rating (lbs) | 30000 |
Front Gross Axle Weight Rating (lbs) | 9000 |
Rear Gross Axle Weight Rating (lbs) | 15500 |
Exterior Length | 38' 2" |
Exterior Width | 101" |
Exterior Height with A/C and Satellite | 12' 10" |
Interior Height | 84" |
Fresh Water Capacity (gals) | 72 |
Grey Waste Water Capacity (gals) | 50 |
Black Waste Water (gals) | 31 |
Fuel Tank Capacity (gals) | 80 |
Furnace (BTU Output) | 35000 |
Wheel Base | 252 |
Ward = wardrobe
Lav = bathroom sink
Med = medicine cabinet
Ohc = overhead cabinets
Fridge = refrigerator
Micro = microwave
All Floorplans

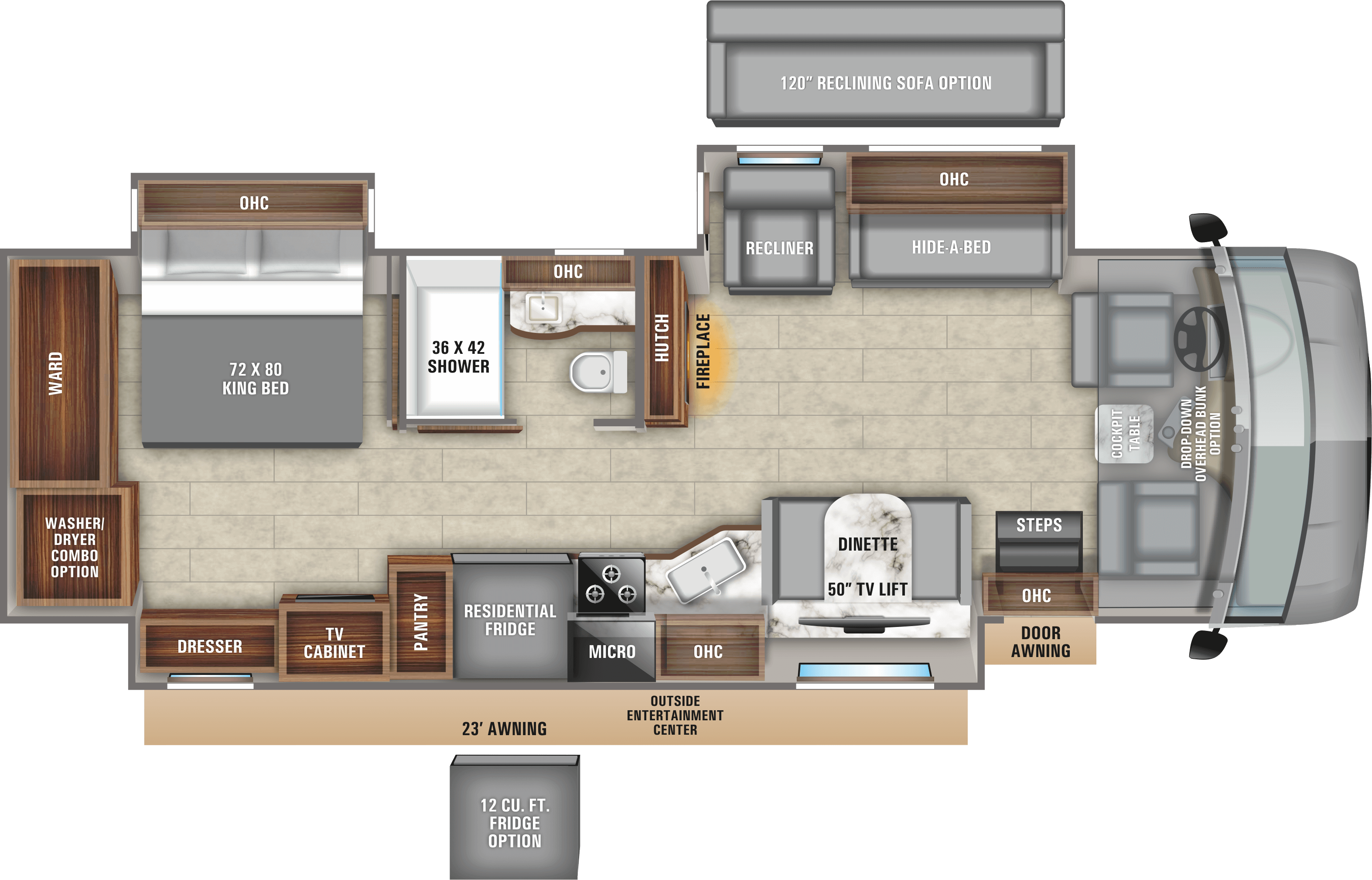

2019 Emblem | 36H

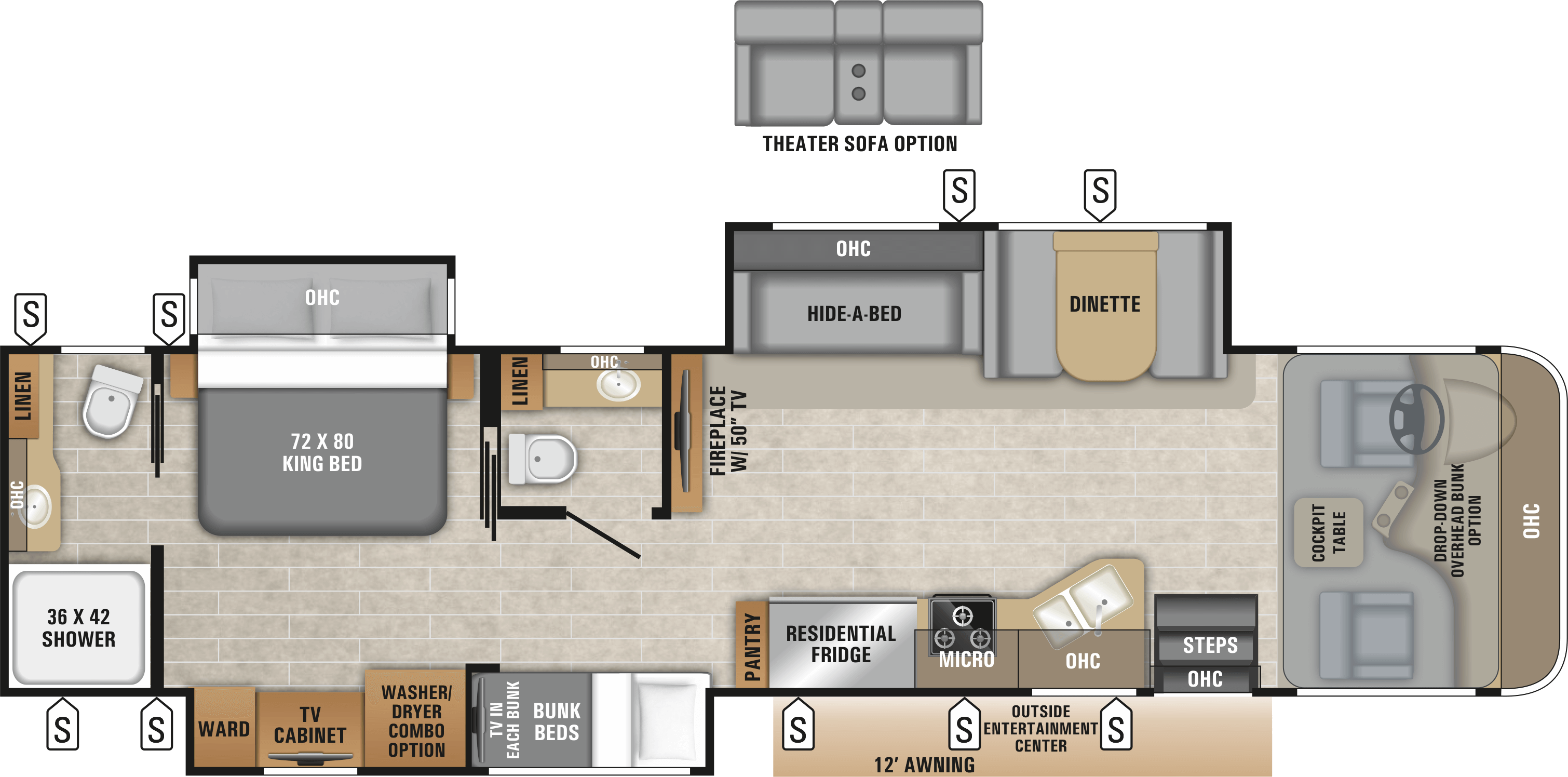

2019 Emblem | 36T

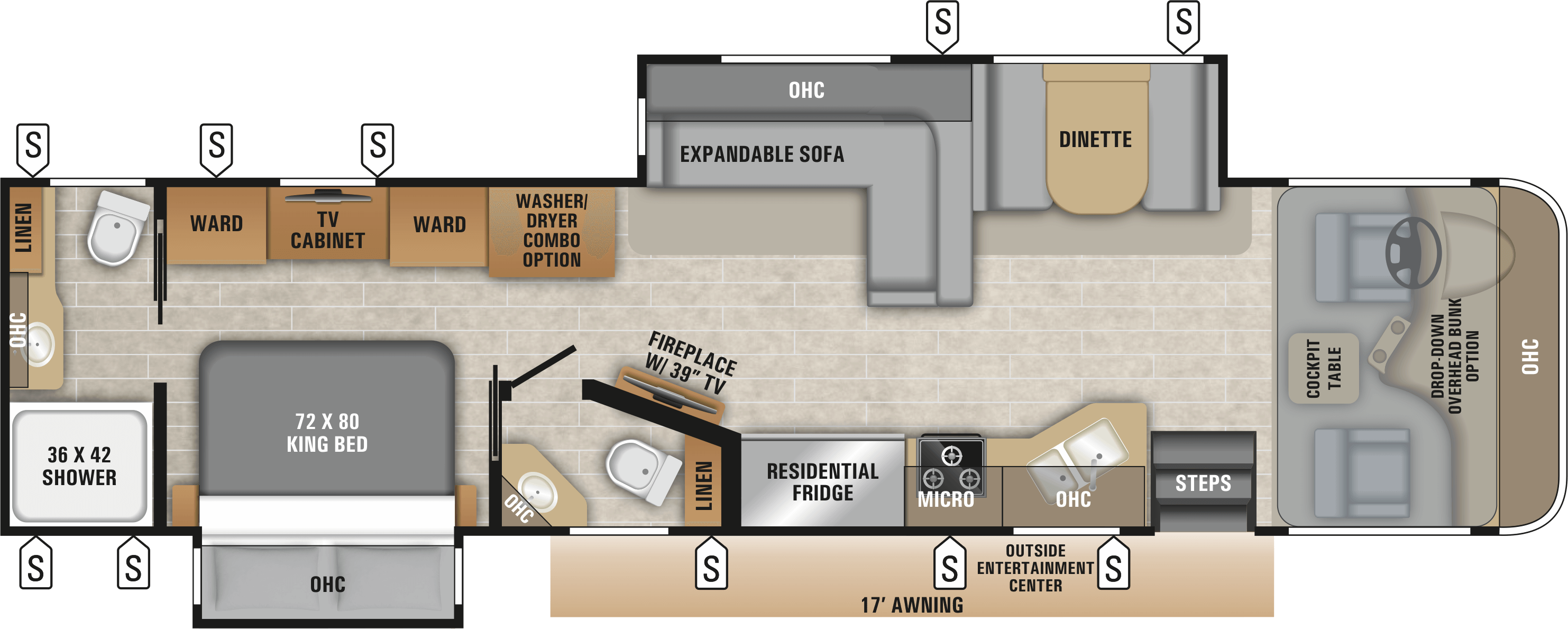

2019 Emblem | 36U
360°

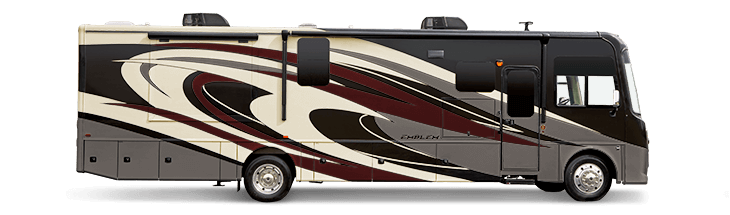

Exterior Graphics
Standards & Options
Chassis
Ride & Handling Package | Heavy-duty front stabilizer bar, rear stabilizer bar, computer-balanced driveshaft, jounce bumpers |
Chassis | Ford® F53 chassis |
Engine | 6.8L Triton® V-10 320 HP gas engine with electronic fuel injection and 460 lb-ft torque |
Transmission | 6-speed automatic TorqShift® transmission with overdrive and tow-haul mode |
Hitch | 5,000-pound rear hitch receiver with dual connector and 7-pin plug |
Braking System | Front and rear disc, 4-wheel anti-lock brakes |
Fuel Tank | 80-gallon fuel tank |
Alternator | 175-amp alternator |
Construction
Insulation | Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls) |
Floor | Vacuum-bonded, laminated floor |
Walls | High-gloss gel coat fiberglass walls |
Roof | Vacuum-bonded, one-piece fiberglass roof |

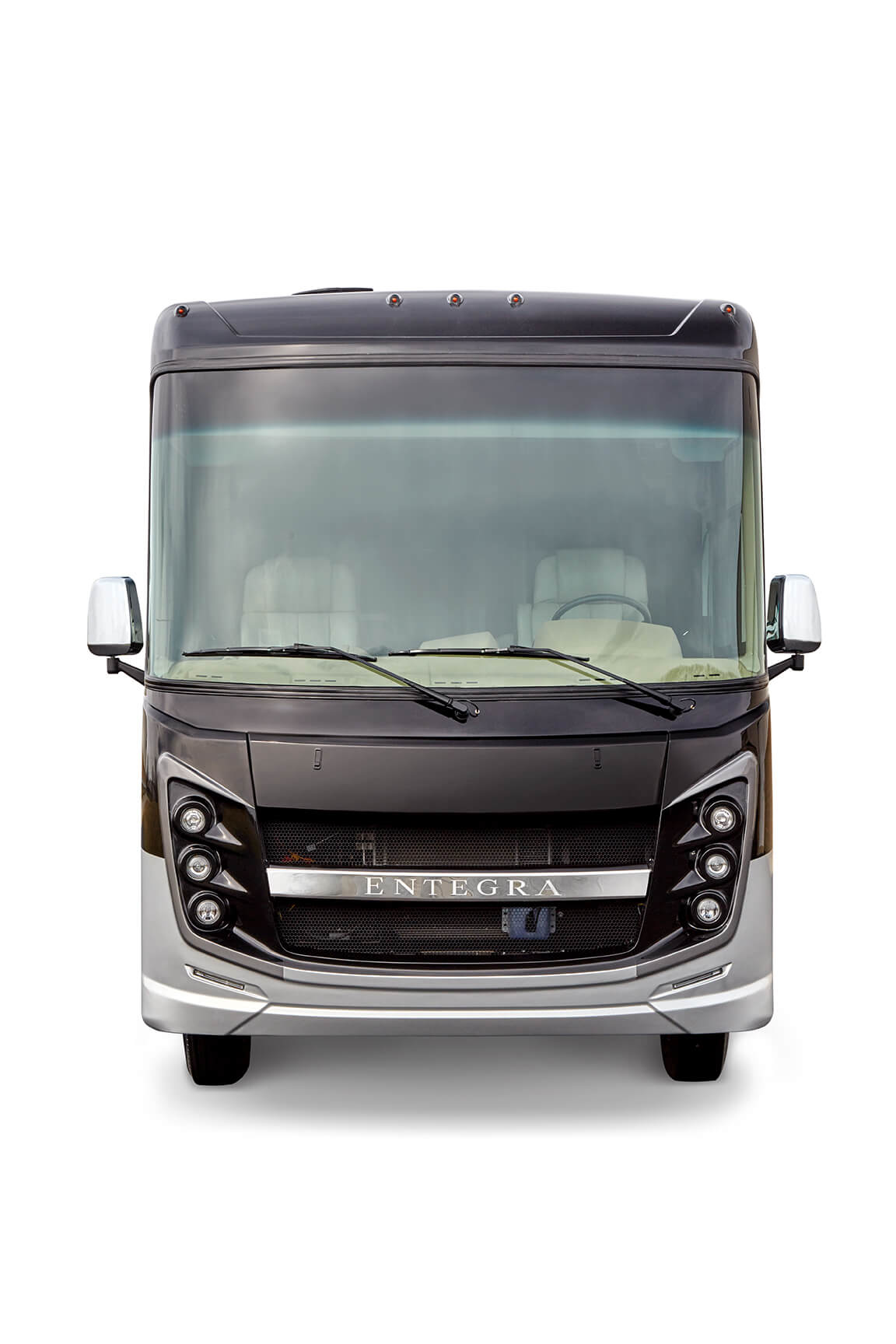

Front Cap | One-piece fiberglass front cap w/ 120" Windshield |
Heat, AC, Water & Power
Propane | 56-pound, 16.5-gallon propane tank |
Heating System | 35,000-BTU auto-ignition ducted furnace |
Air Conditioning | 15,000-BTU A/C w/ Heat Pump & 13,500-BTU A/C |
Generator | Onan® Marquis Gold Genset 5,500-watt generator with auto-gen start |
Inverter | 2,000-watt inverter |
Batteries | (2) 6V AGM Coach batteries |
Black Holding Tank Sprayer | Black holding tank sprayer |
Water Filtration | Water filtration system |
Water Pump | 12V demand water pump |
Water Heater | 10-gallon gas/electric DSI auto-ignition water heater |
Exterior

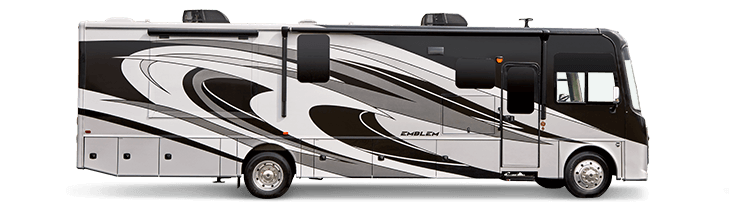

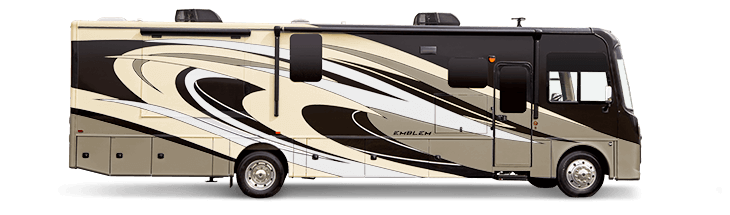

Exterior | Full-Body Paint- 3 premium Sikkens paint packages (Bethpage, Spyglass, or Pebble Beach) |
Third Brake Light | Third brake light |
Taillights | LED taillights |
Entrance Steps | Electric-powered entrance step |
Entrance Door | Entrance door with industry's largest travel view window and shade |
Patio Awnings | Electric patio awning with LED lights |
Slideout Awnings | Slideout awning toppers |
Mirrors | Remote control and heated mirrors |
Windows | Frameless windows |
Exterior Entertainment | Exterior entertainment center with LED TV mounted on swivel bracket and single-disc DVD/FM radio |
Cargo Features | Lockable exterior storage compartments with slam latches |
Satellite Dish | Prep for satellite dish |
TV Antenna | Digital antenna with signal booster |
Electrical System | 12V electrical system w/ 120V, 90-amp power converter |
Power Cord | 50-amp electrical service |
Outside Shower | Outside shower |
Cockpit
Windshield | 120" Panoramic windshield w/ Power Shade |
Driver / Passenger Seats | 6-way power, swivel driver and passenger seats |
Steering Wheel | Tilt steering wheel |
Infotainment System(s) | Sony® Infotainment system |
Leveling System | Automatic hydraulic leveling jacks |
Cameras | Backup and sideview cameras |
Visors & Privacy Shade | Power sun shade on front windshield |

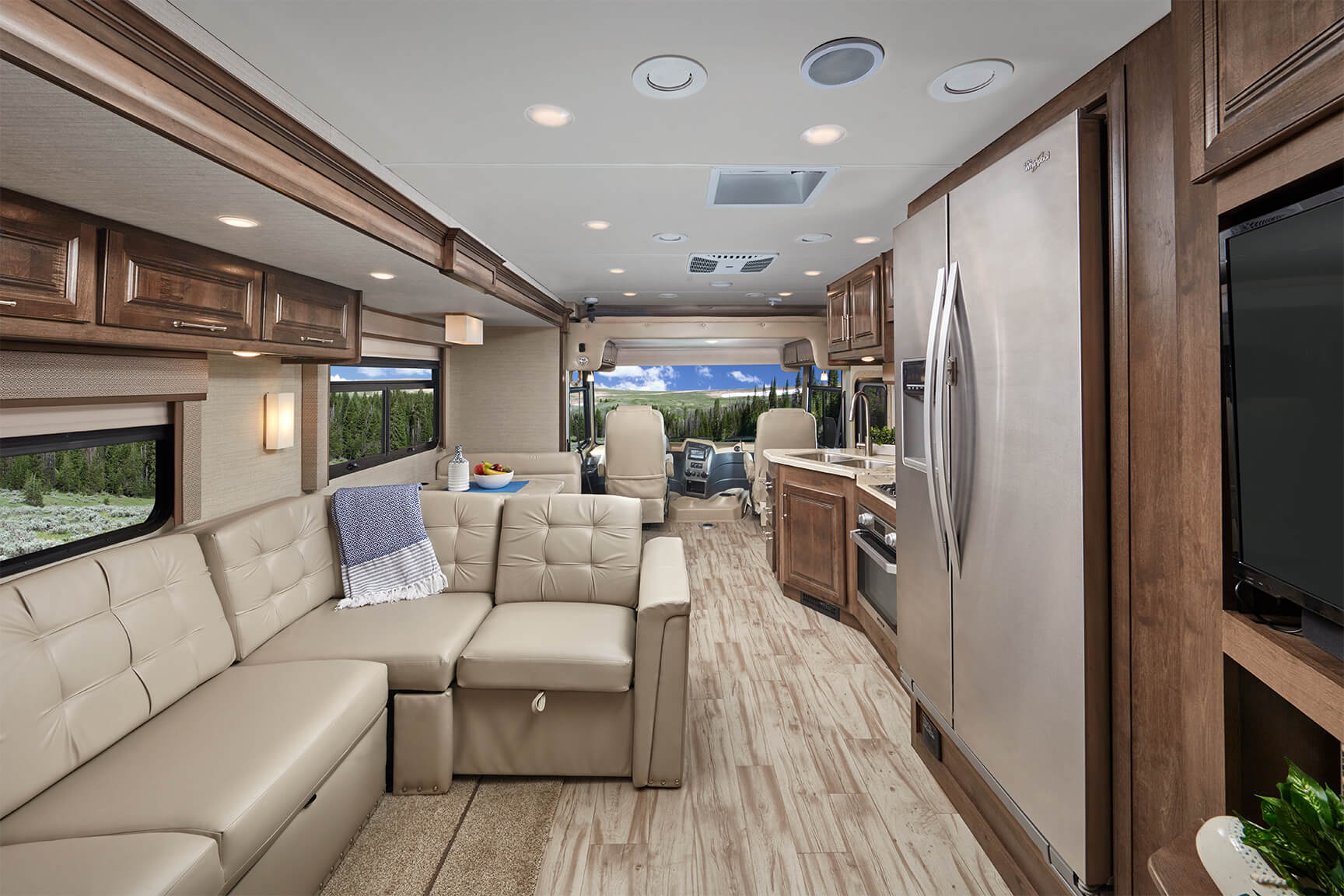

Interior
Lighting | High-intensity, recessed LED ceiling lights |
Flooring | Vinyl Flooring |
Window Treatments | Day/Night Roller Shades |
Television - Living Room | LED living room TV with cable TV hookup with RG-6 coax |
Washer/Dryer | Optional |

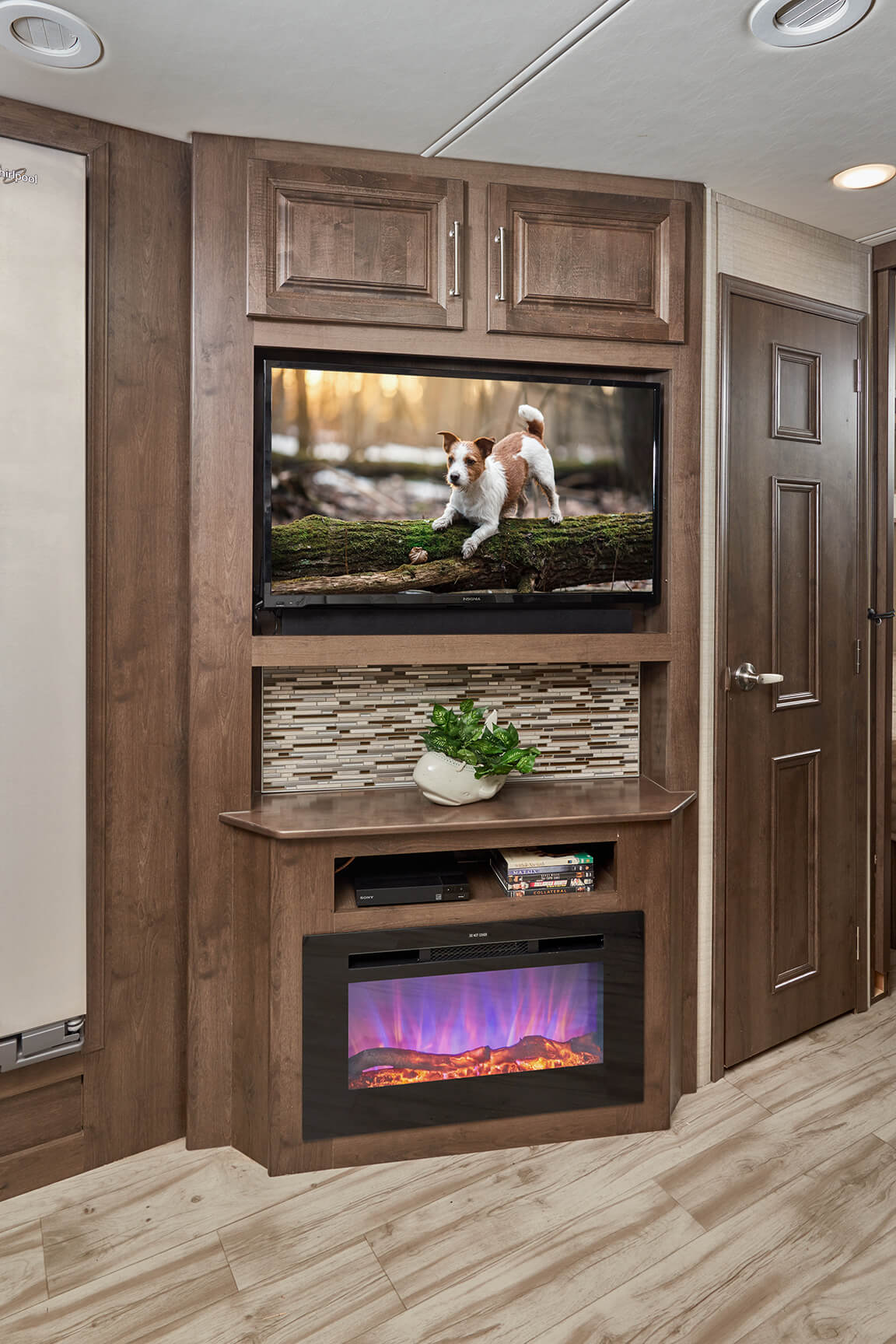

Electric Fireplace | Furrion Electric Fireplace (36U, 36T) |

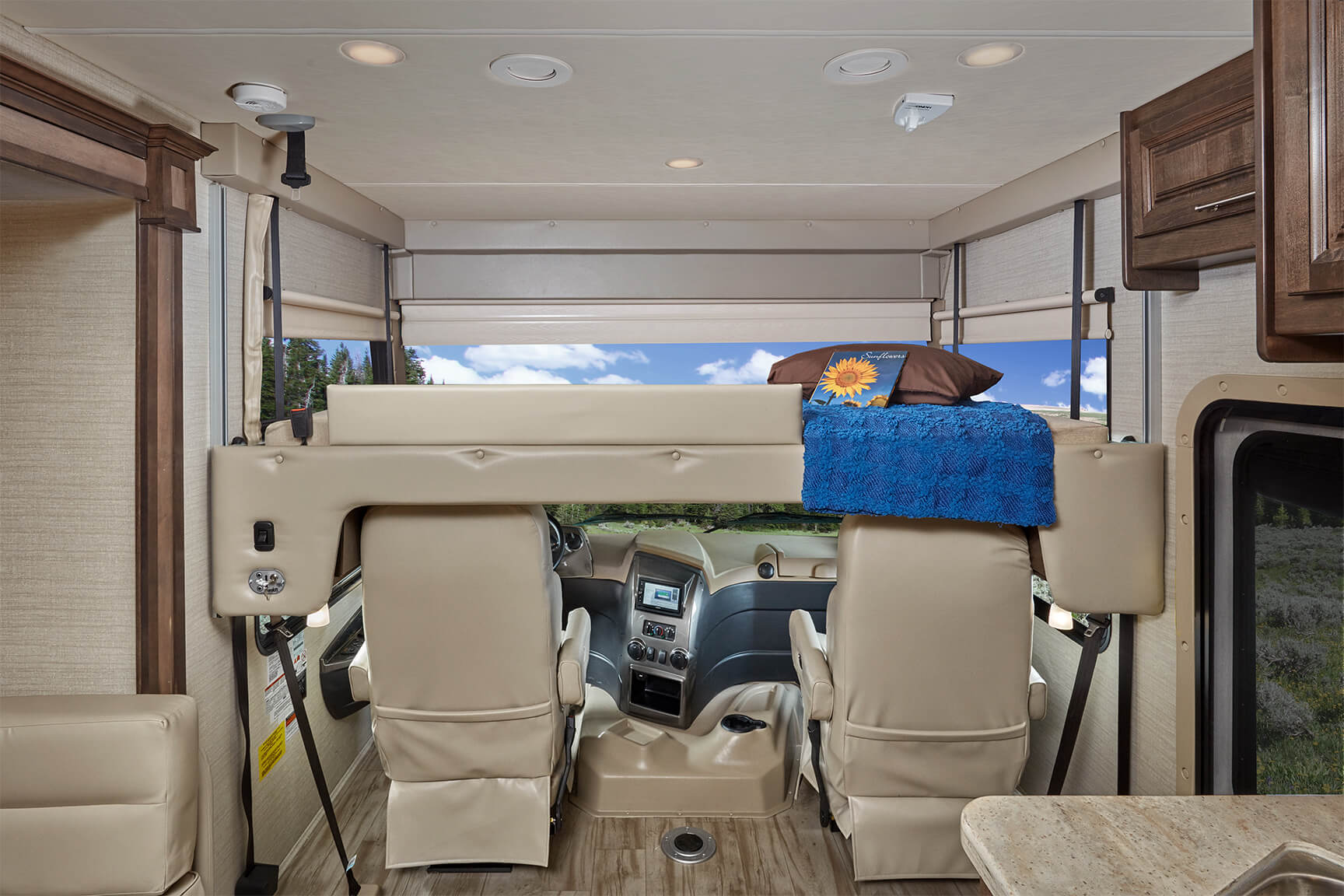

Cab-Over Bunks | Optional Power Front Overhead Bunk (750-pound rating) |
Bunks | Bunk beds (300-lb. rating) (36T) |
DVD Systems | (2) Blu-ray players |

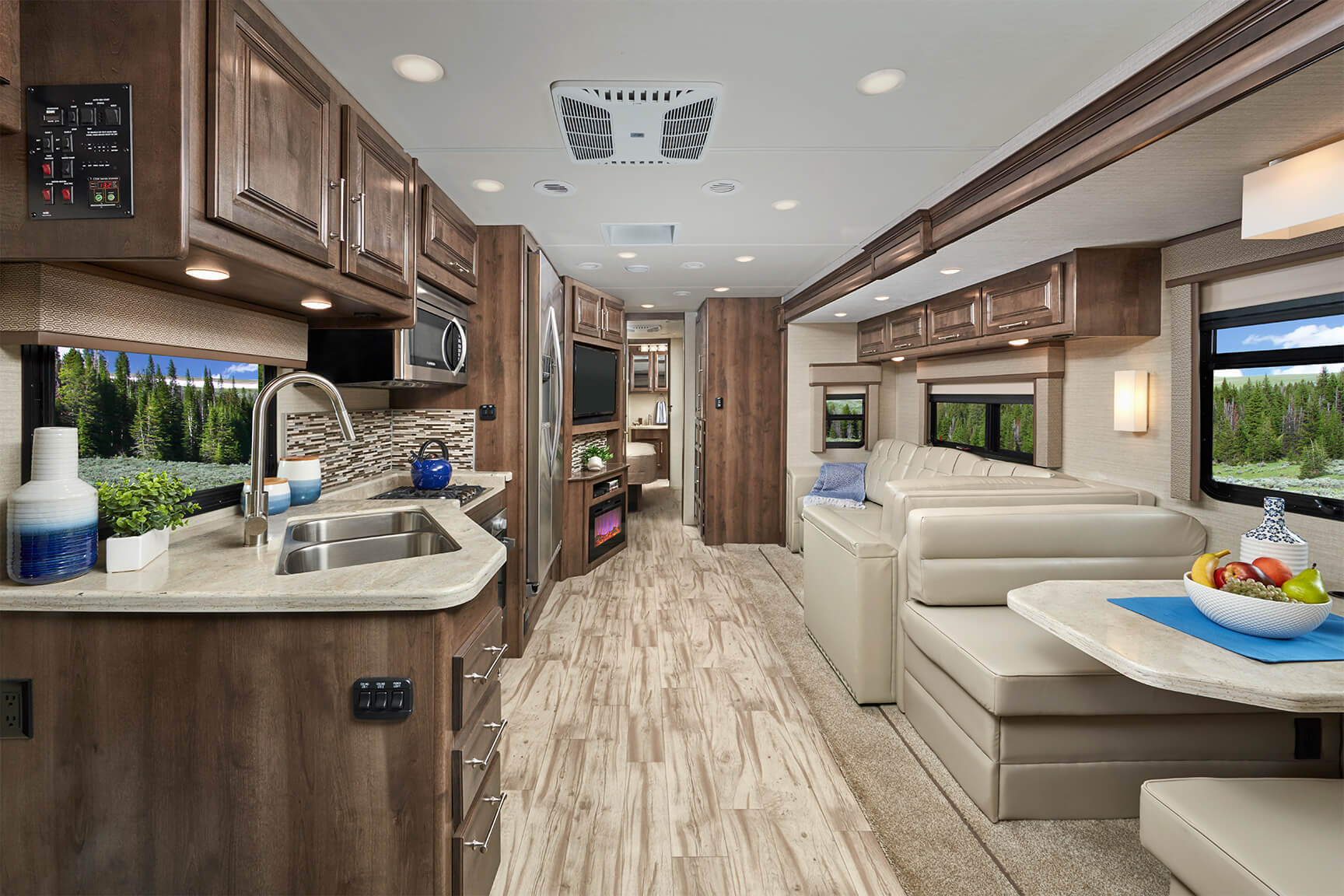

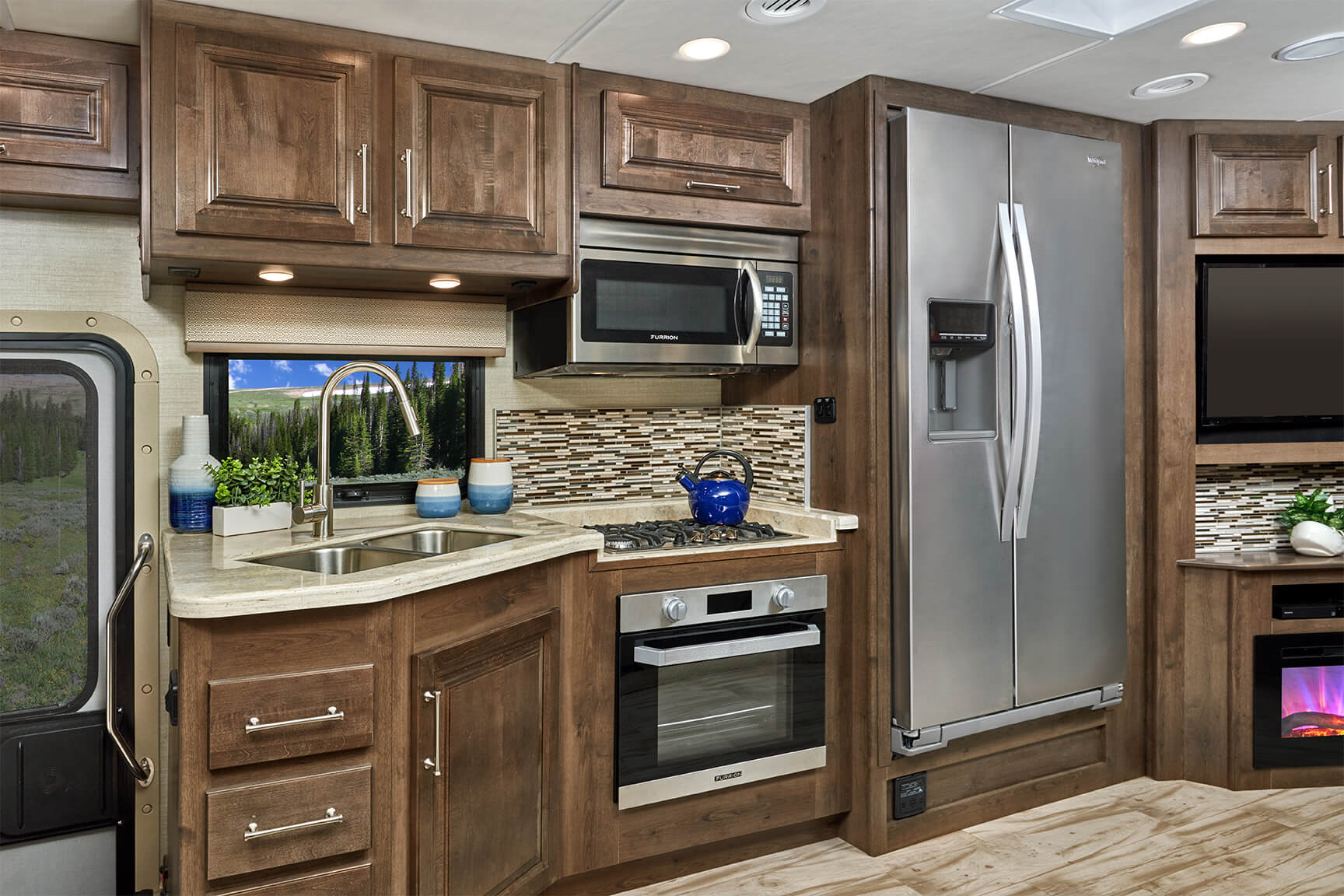

Kitchen
Kitchen Countertops | Solid-surface kitchen countertops with recessed cooktop & covers |
Cooktop | Furrion® gas cooktop with cast iron grill |
Microwave | Furrion convection microwave oven |
Refrigerator | 21 cu.ft. residential refrigerator |
Dinette | Entegra-exclusive easy operation legless dinette table |
Drawer Guides | Ball-bearing drawer guides |
Oven | Optional Residential Style Oven |
Kitchen Backsplash | Decorative tile kitchen backsplash |
Bedroom
Bedroom Mattress / Bedding | King-size bed with bedspread |
Television | 32-inch LED TV |

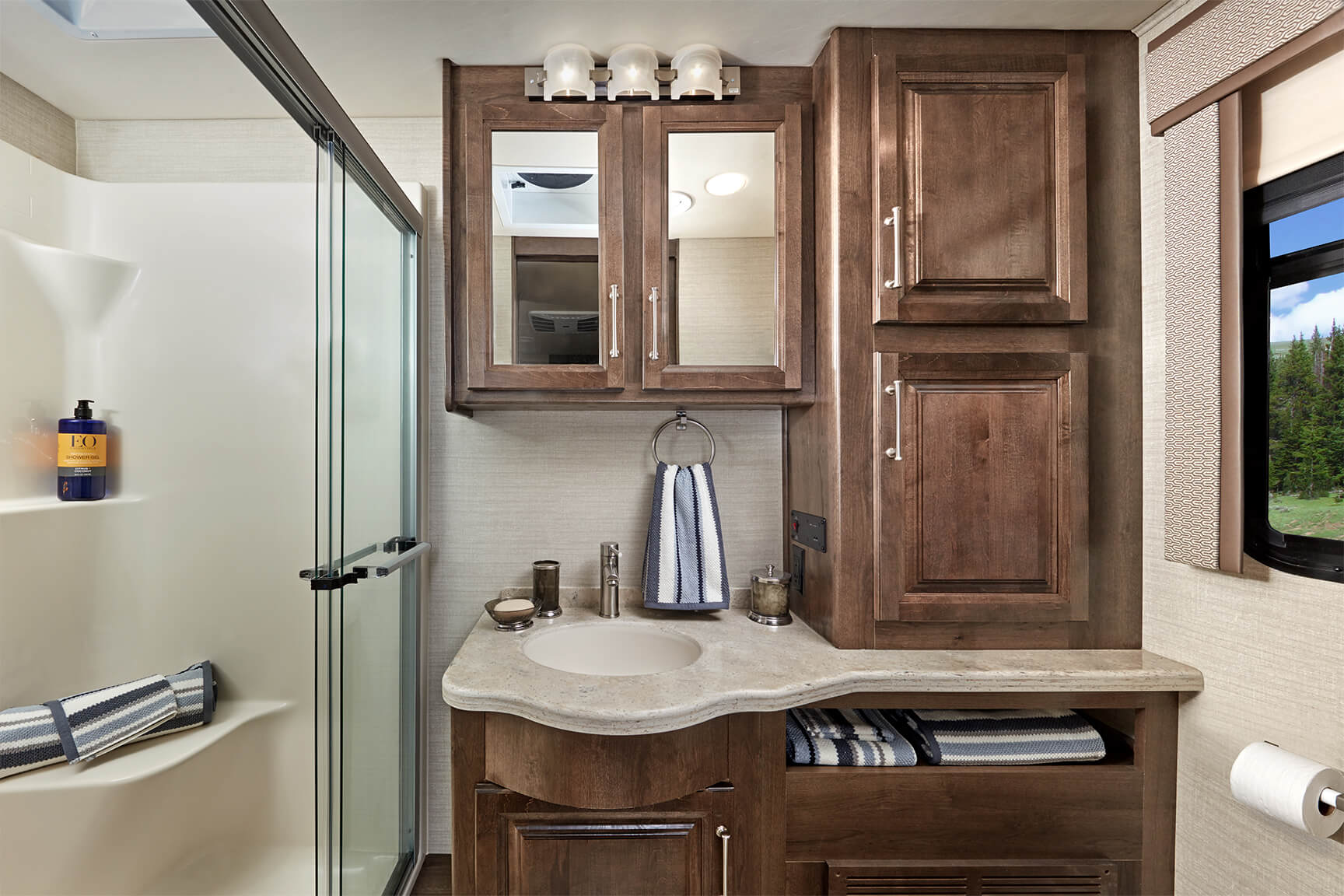

Bathroom
Bathroom Countertop(s) | Solid-Surface Countertop |
Toilet | Porcelain toilet |
Bathroom Shower | Large Fiberglass Shower |
Bathroom Ventilation | Powered roof vent in bathroom with wall switch |
Safety
Options
Canadian Standards | Canadian Standards |
Theater Seating | Power Sofa Theater Seating (36T) |
Customer Value Package (Mandatory) | 5.5KW Generator, 50-Amp Electrical Service, Automatic Hydraulic Leveling Jacks, Backup & Sideview Camera & Monitor, Driver/Passenger Cockpit Table, Electric Awning with LED Lights, Exterior Entertainment Center with LED TV & Single Disc DVD/AM/FM Radio, Frameless Windows, Infotainment System, LED TV in Living Room, Roller Shades, Slideout Topper Awnings, Solid Surface Kitchen Countertops with integrated stainless steel sink covers |
Overhead Bunk | Drop-down overhead bunk in cab area with 750 lb. capacity |
Oven | Stainless Built-In Oven |
Washer/Dryer | Washer/Dryer Combination |
Customer Value Package (Mandatory) Cont. | EZ-Drive Elite: heavy duty front stabilizer bar, rear stabilizer bar, computer-balanced driveshaft, jounce bumpers, SACHS Shocks |
Solar | Solar Prep |
Dinette Option 1 | |
Sofa w/TV Lift | |
Décor Options
Entegra Coach peace of mind

2-year warranty
At Entegra Coach, excellence doesn’t end with our stunning interiors and superior craftsmanship. We back each luxury coach with the industry’s highest level of service—including a 2-year warranty.
ENTEGRA COACH WARRANTY
Our family is proud to stand behind every Entegra Coach we build. Our commitment is to provide the highest level of products and services possible. We invite you to compare our limited warranty with other manufacturers—we think you'll find that your satisfaction is our lifelong passion. The Entegra Coach ("Entegra") limited warranty covers this recreational vehicle ("RV") when used only for its intended purpose of recreational travel and camping and for two (2) years after the first retail owner takes delivery, or the first twenty-four thousand (24,000) miles of use, whichever occurs first. This warranty is transferable to a second owner for Insignia, Aspire, Anthem and Cornerstone only. It covers RVs sold by an authorized dealer and used in the United States, U.S. Territories and Canada, only.
In addition to the limited warranty, Entegra luxury diesel products (Aspire, Anthem, Cornerstone) carry a structural limited warranty for five (5) years after the first retail owner takes delivery. Other Entegra Coach products (Odyssey, Esteem, Qwest, Vision, Vision XL, Emblem, Accolade, Reatta, Reatta XL) carry a structural limited warranty for three (3) years after the first retail owner takes delivery. This warranty covers the structure of the recreational vehicle (defined as only the steel or aluminum frame structure for the sidewalls (excluding slide outs), roof and rear and front walls).
For complete details, contact your nearest Entegra dealer.
