2022 Reatta XL





Luxurious touches pair with ultimate maneuverability in this beautifully designed coach. New to the 2022 model are the latest in interior design trends—from the flooring, backsplashes and cabinetry to the new fabrics and exterior paint selections. It’s not all beauty: state-of-the-art technologies like Samsung® Smart TVs, JBL premium Bluetooth speakers and premium drive and handling will make every journey a joy.

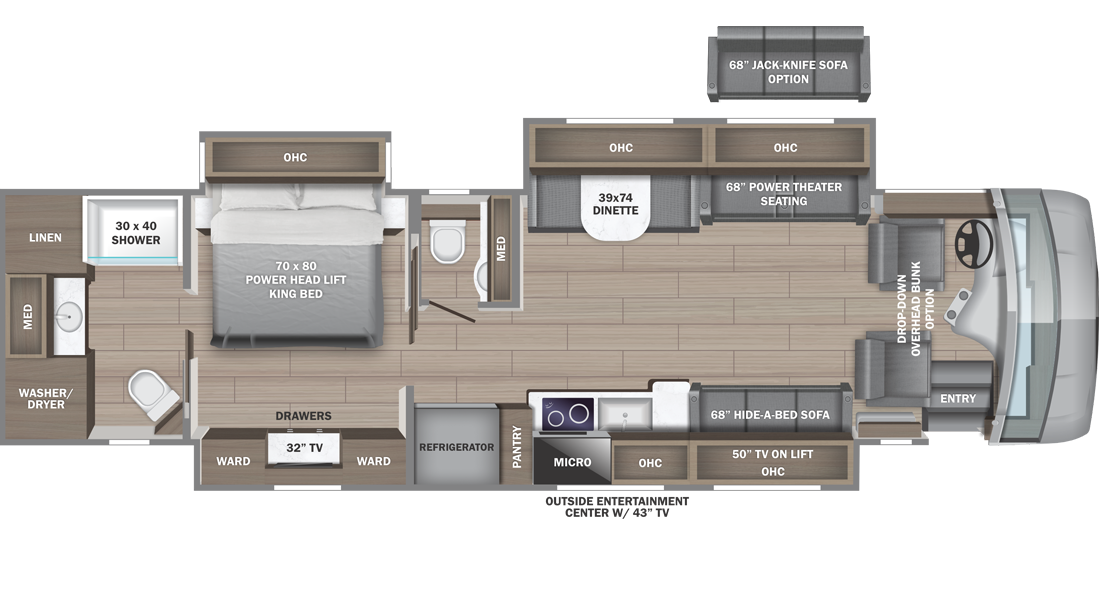

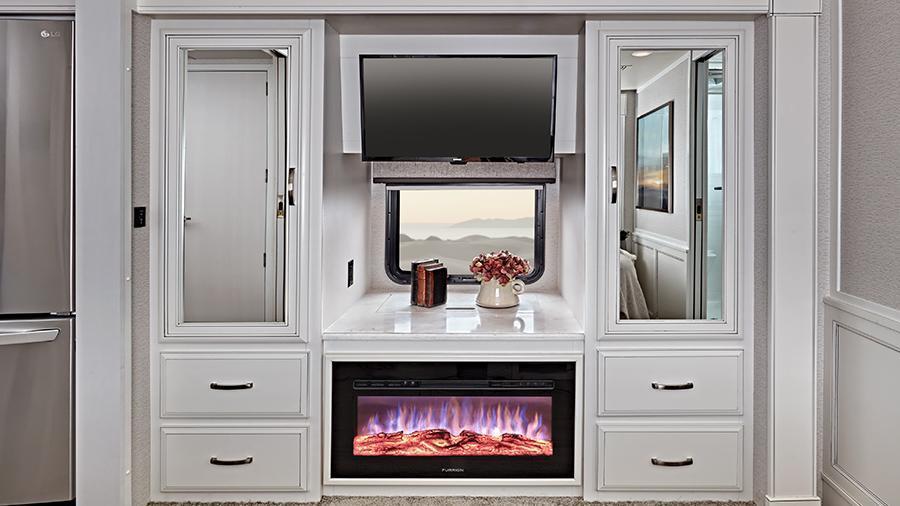

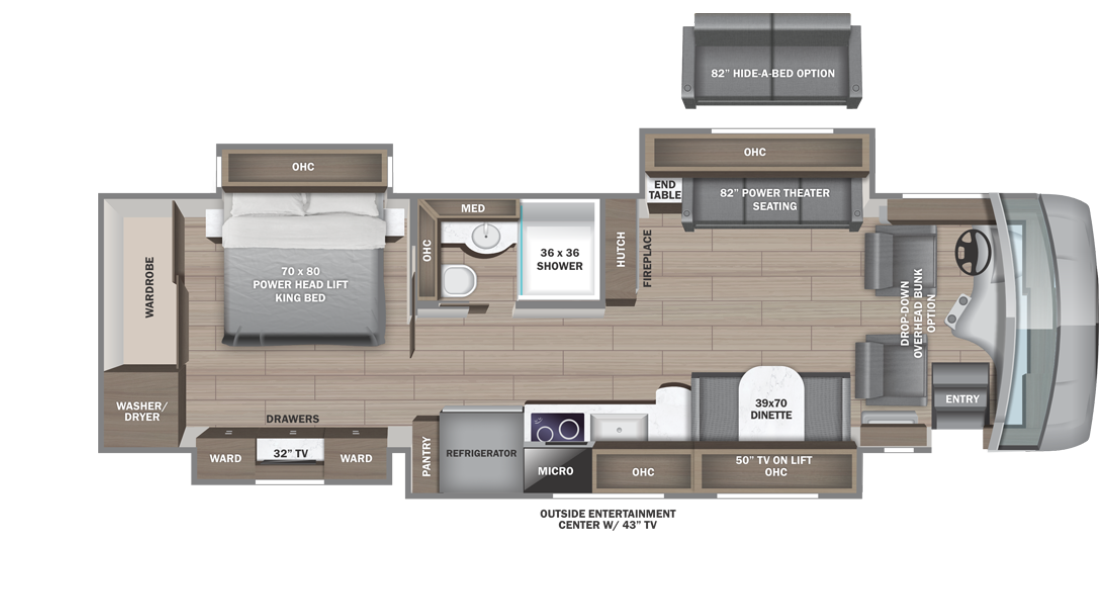

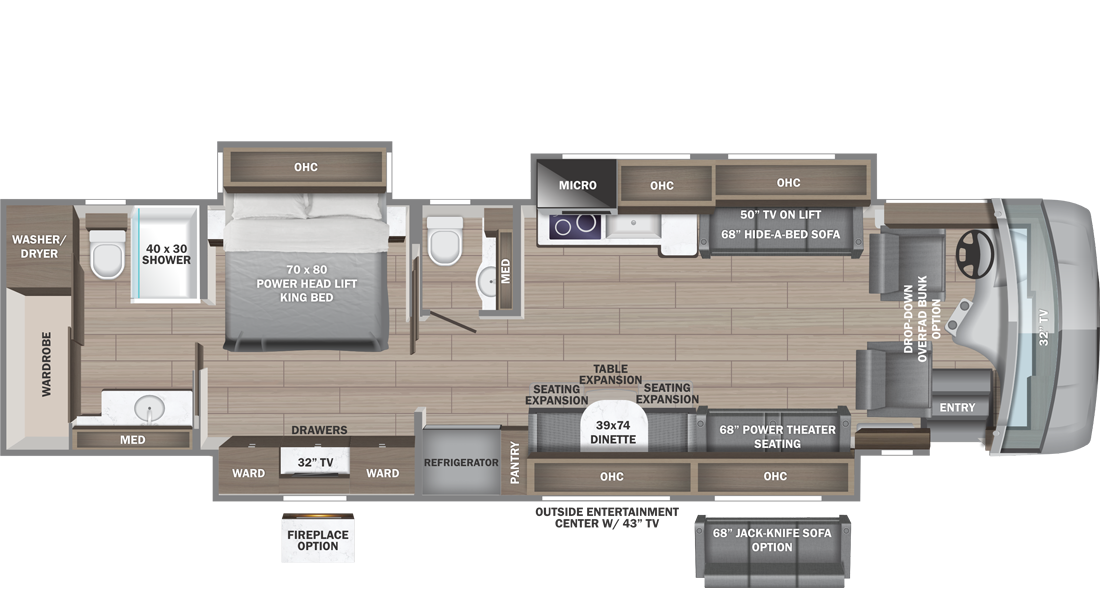

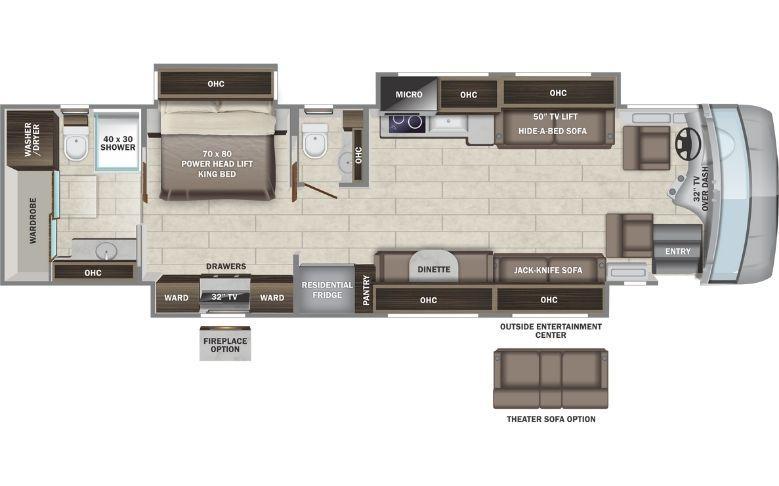

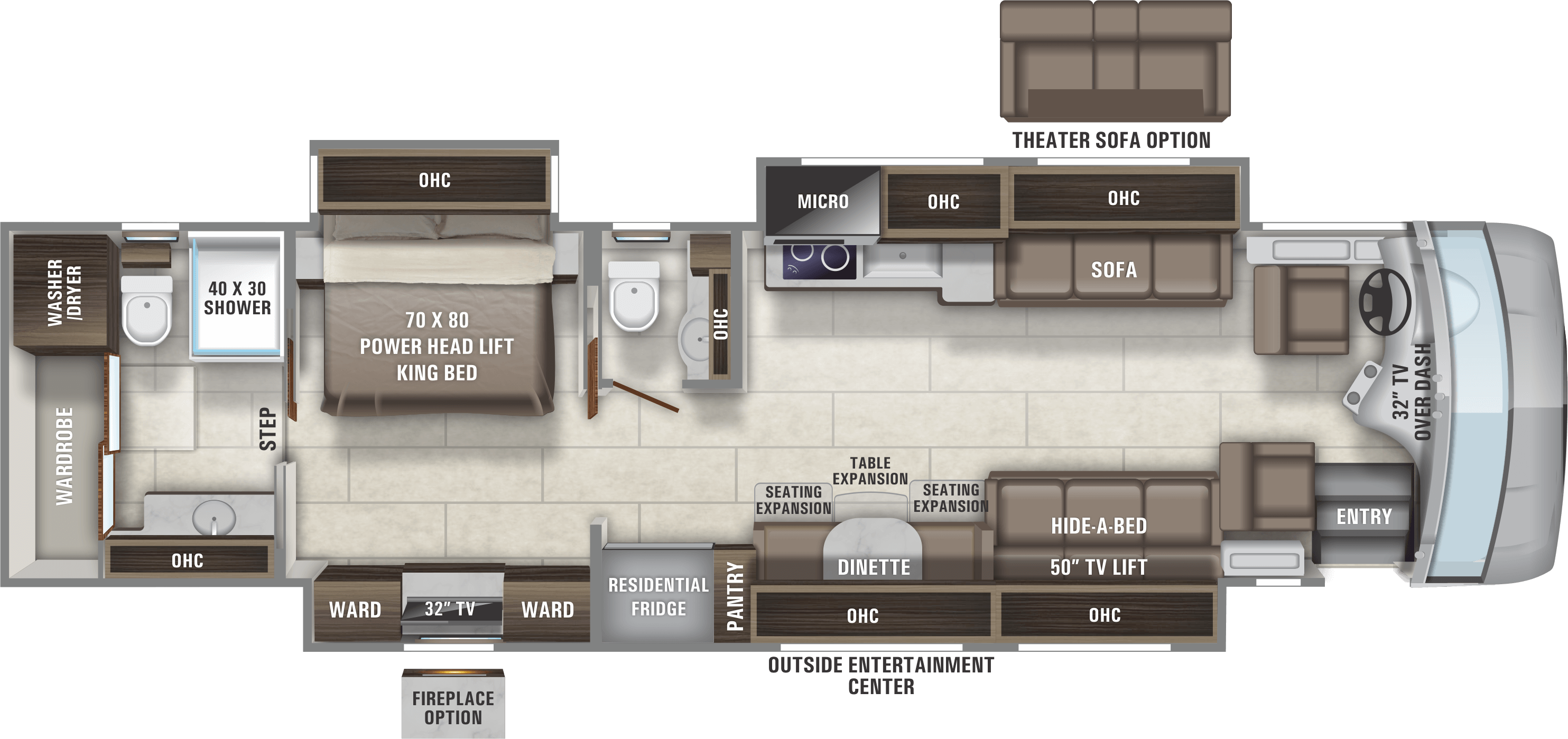

Ward = wardrobe

Lav = bathroom sink

Med = medicine cabinet

Ohc = overhead cabinets

Fridge = refrigerator

Micro = microwave

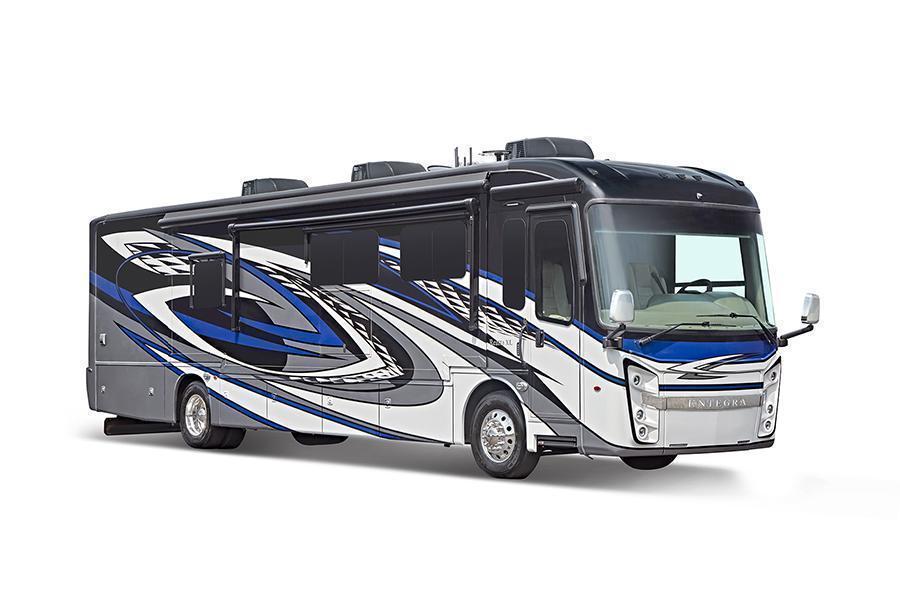

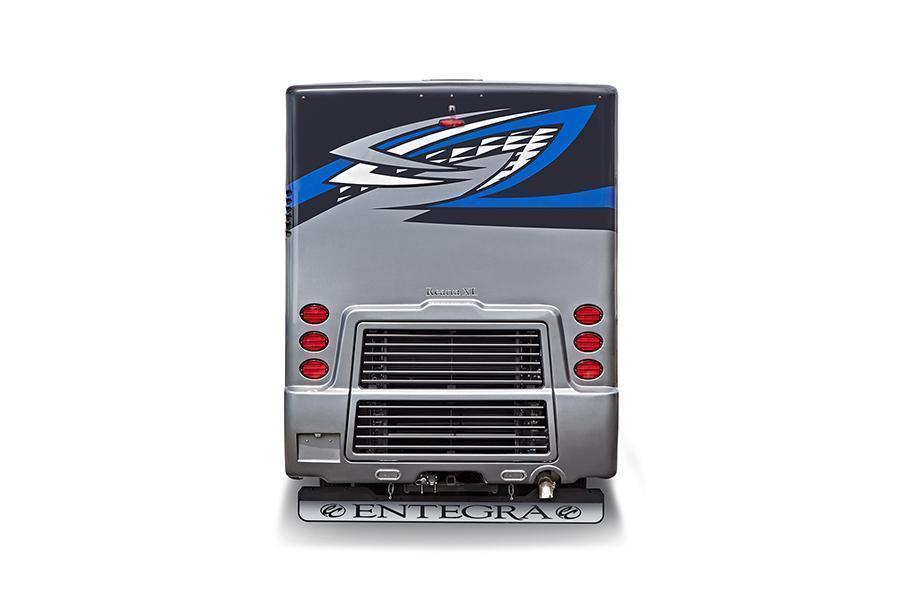

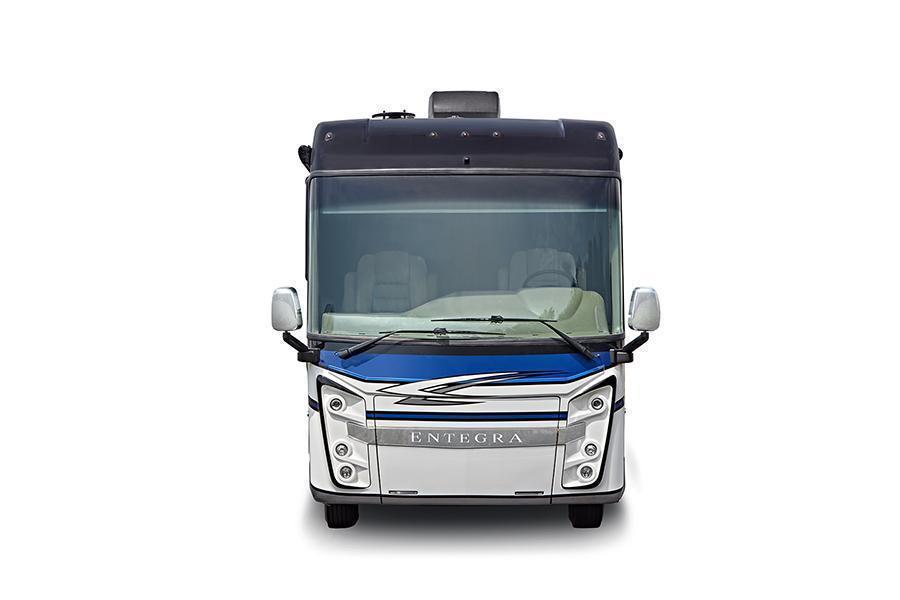

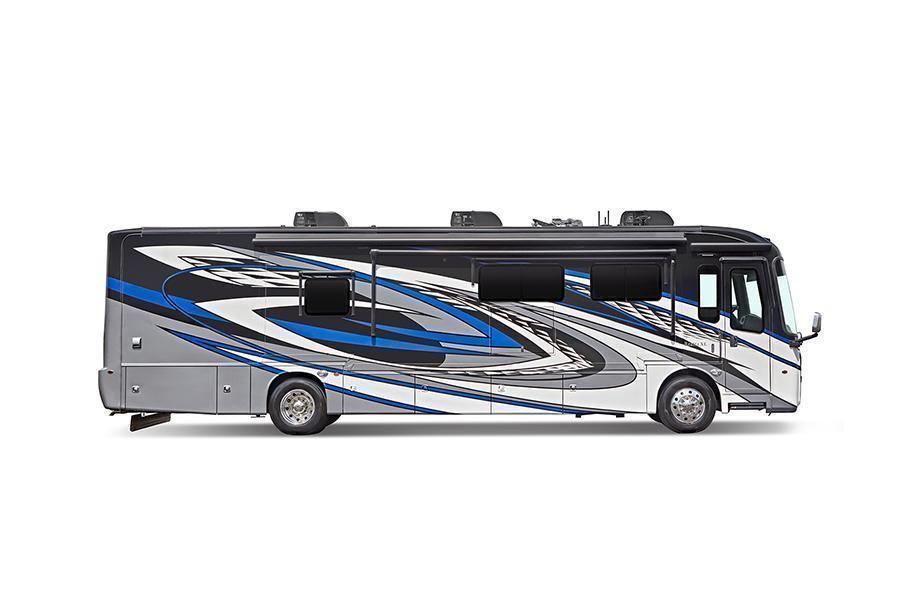

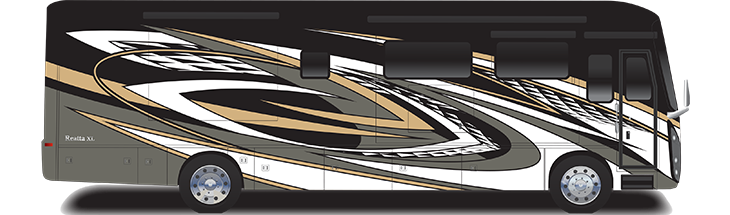

Exterior Graphics

Standards & Options


Chassis Spartan® K2 raised-rail chassis
Engine Cummins® L9 turbocharged 380 HP engine with 1,150-lb. ft. torque at 1,400 RPM
Transmission Allison® 3,000 MH 6-speed transmission
Radiator Rear-mounted radiator
Alternator 170-amp alternator
Engine Block Heater 1,000-watt engine block heater
Engine Brake Variable geometry turbo (VGT) engine brake
Front Axle Front axle- 14,320 lb. rating
Front Suspension Independent front air suspension (IFS)
Rear Axle Rear axle - 22,000 lb. rating
Rear Axle Ratio 4.88 rear axle ratio
Tires Michelin® 275/80R 22.5” tires
Shocks Bilstein® 46mm shocks
Tire Pressure Monitoring Tire pressure monitoring system (TPMS) with temperature monitoring
Leveling System Equalizer™ hydraulic automatic coach leveling
Air Connection Remote air connection
Chassis Battery (2) 12V chassis batteries
Fuel Tank 100-gal. fuel tank
DEF Tank 10-gal. DEF tank
Tow Air Brake System Spartan® Safehaul tow vehicle air brake system
Hitch 10,000-lb. hitch with 7-pin plug
Braking System ABS disc brakes on front axle, drum brakes on drive and tag axle


Floor Vacuum-bonded layers of Darco underbelly, a welded aluminum frame, R-9 bead-foam insulation, 3/8" Structurwood® and 1/4" plywood
Frame X-Bridge™ bracing welded into chassis frame
Front Cap Insulated front and rear caps (R-24) with steel-reinforced front cap and windshield frame
Roof One-piece fiberglass with 3/8" plywood decking, 4" arched aluminum trusses, insulation and reflective Flexfoil® (R-24)
Slideouts Electric-powered slideout rooms
Walls Vacuum-bonded, high-gloss gelcoat with R-8 bead-foam insulation

Heat, AC, Water & Power

Heated Tanks Heated basement storage
Generator Onan® 10,000-watt diesel generator, with automatic start, on slide-out tray
Inverter 2,000-watt pure sine wave inverter with 100-amp battery charger
Batteries (2) L16 AGM batteries (6V/390 amp hrs. ea.)
Electrical Hookup 50-amp power cord on electric powered reel
Power Management Automatic transfer switch with surge protection
Air Conditioning (3) 15,000-BTU A/C units with heat pumps [(2) 15,000-BTU units with heat pumps on 37K]
Heating System Aqua-Hot® 250D hydronic water and heating system
Heated Floors Electric radiant floor heating system
Black Tank Management Sani-Con® Macerator holding tank dump system with manual gate valves, manual backup and metal door
Black Holding Tank Sprayer Black holding tank sprayer
Water Filtration City and tank water filtration system
Winterization Drain System Winterizing drain system


Patio Awnings Carefree® power patio awning with LED lights
Door Awning Carefree® power entrance door awning with LED lights
Slideout Awnings Carefree® slideout awnings
Window Awnings Carefree® window awnings
Windows Frameless, dual-pane, tinted, safety-glass windows
Keypad Handle Grab handle and keypad system for keyless entry
Exterior Entertainment 43” Samsung® 4K UHD Smart TV with tilt, swivel, and extend adjustment; JBL radio and speakers with USB port and receptacle
Mirrors Heated, remote-control, side-view mirrors with integrated cameras
Exterior Diamond Shield™ front protective film mask
Headlights Halogen high and low beam headlights and fog lights
Daytime Running Lights Daytime running lights
LED Lights LED marker lights, turn lights, license plate light, third brake light, accent lights and docking lights
Rear Mudflap Mudflap with chrome “Entegra” nameplate
Satellite Dish - US Winegard® TRAV’LER satellite dish DIRECTV® - standard with USA option
Satellite Dish - CA Winegard® TRAV’LER satellite dish Shaw TV - standard with CSA option
TV Antenna Winegard® Rayzar Z1 TV antenna
WiFI Winegard® WiFi extender with 4G/LTE
Solar Solar power prep
Utility Center Exterior utility center
Cargo Features Slideout basement storage tray
Paint Sikkens custom full-body paint
Entrance Door Removable screen on entry door

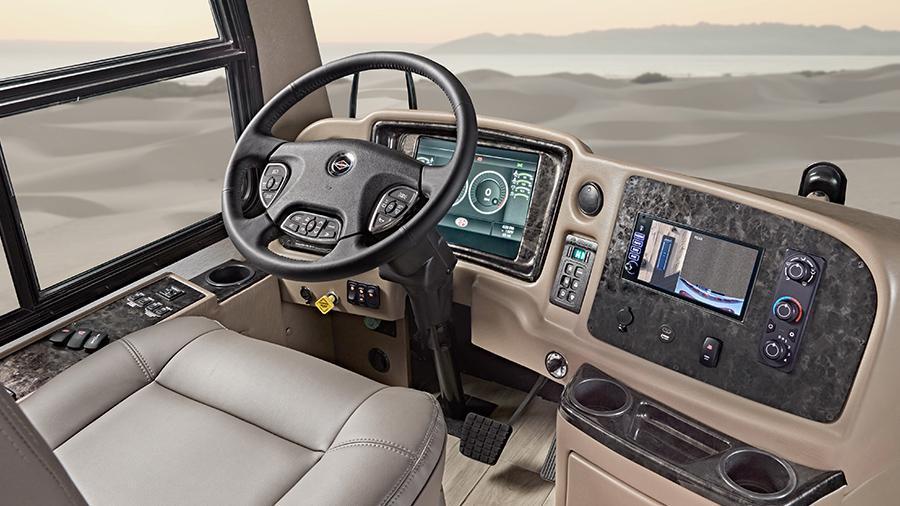

Dash Valid 12.3" digital dash with quad core graphics processor, on-board diagnostics, selector knob and ability to display traditional instument cluster, 360° camera system or GPS navigation
Cameras Xite™ 360° HD digital camera system
Infotainment System(s) Xite™ XSG4 infotainment system with 9" touchscreen, iGO navigation, Bluetooth®, Sirius XM™ and AM/FM tuner, integrated camera control and house mode whole-coach audio distribution
Steering Wheel Steering wheel with integrated controls for cruise, wipers, radio and Bluetooth® phone functionality
Steering Column Manual tilt and telescoping steering column
Windshield Ultra-Vision® one-piece wrap-around tinted windshield
Driver / Passenger Seats Villa® leather driver and passenger seats with powered 6-way adjustment, lumbar and footrest functions
Power Features Powered flush stepwell cover
Pedals Powered adjustable brake and accelerator pedals
Visors & Privacy Shade Powered front sun visors and privacy shades
Additional Amenities (2) dual USB ports and (2) 12V sockets for charging


Electric Fireplace LED-lit fireplace with 5,000-BTU heating element (37K only)
Television - Front Overhead 32" Samsung® LED 1080P Smart TV in front overhead
Command Center Firefly multiplex system with 10” VegaTouch touchscreen for complete integration of coach controls (mobile app available)

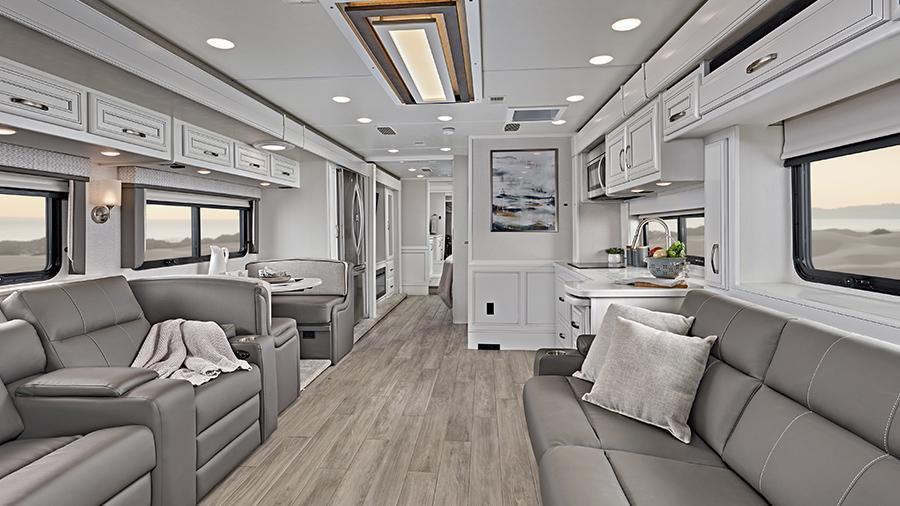

Television - Living Room 50” Samsung® 4K UHD Smart TV
Sound - Living Room Samsung® sound bar with subwoofer
DVD Systems Sony® Blu-ray™ player
Furniture Premium furniture
Flooring Hand-laid porcelain tiled floors
Lighting LED interior lighting
Ceiling Decorative ceiling feature with integrated accent lighting
Window Treatments Manual solar day shades and blackout night shades
Central Vacuuming System Central vacuum system
Washer/Dryer Whirlpool® stacked washer and dryer


Refrigerator Whirlpool® stainless-steel residential refrigerator with ice maker and water dispenser

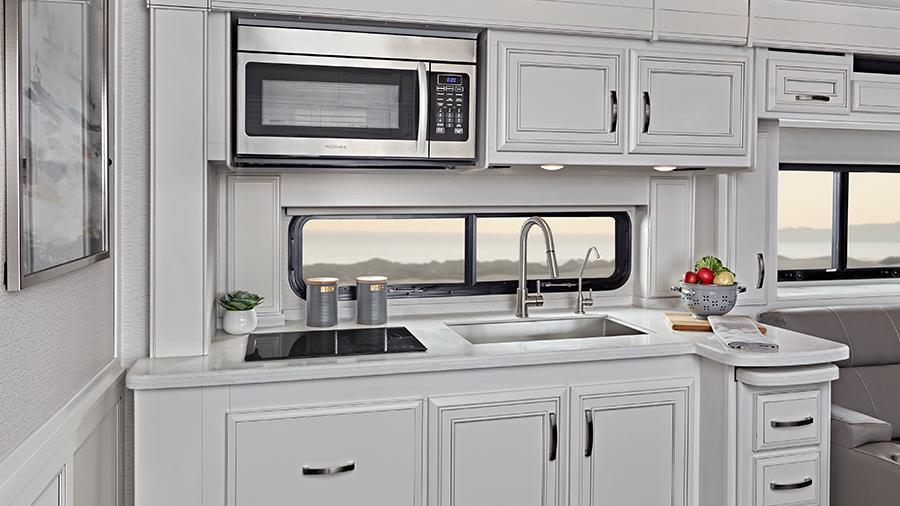

Cooktop Induction cooktop
Microwave 1.5-cu. ft. convection microwave oven
Kitchen Countertops Solid-surface countertops
Sink Stainless steel sink
Vent Fan-Tastic power exhaust fan with intake
Storage Slide-out storage tray(s) in overhead cabinet

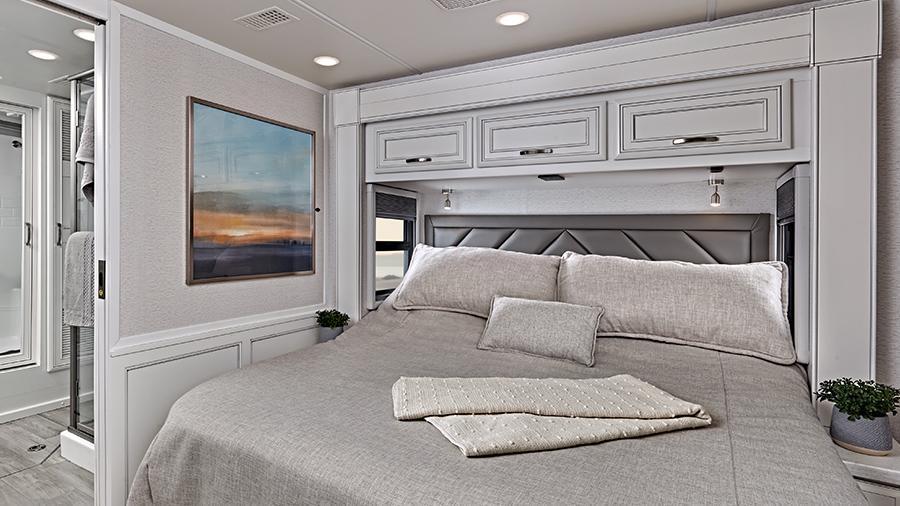

Bedroom Mattress / Bedding King-size pillow-top mattress on tilt bed
Television 32" Samsung® LED 1080P Smart TV
Sound Sony® Blu-ray™ player

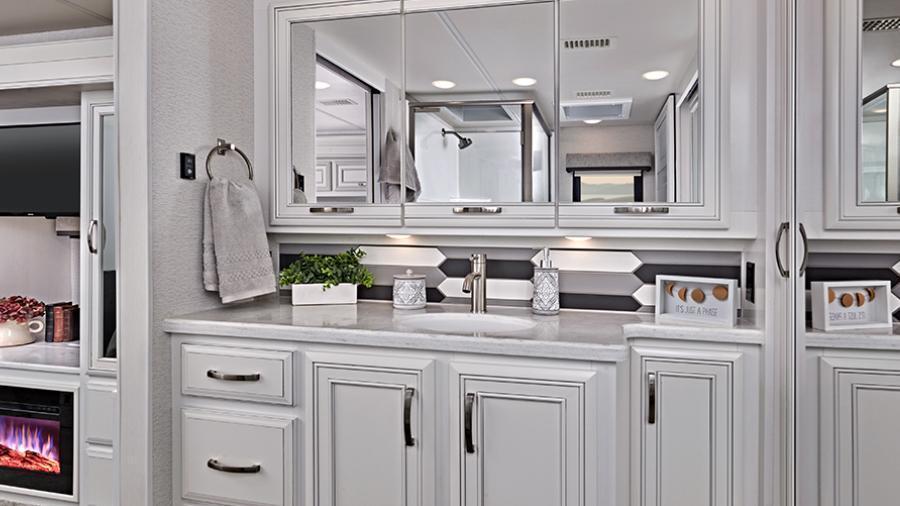

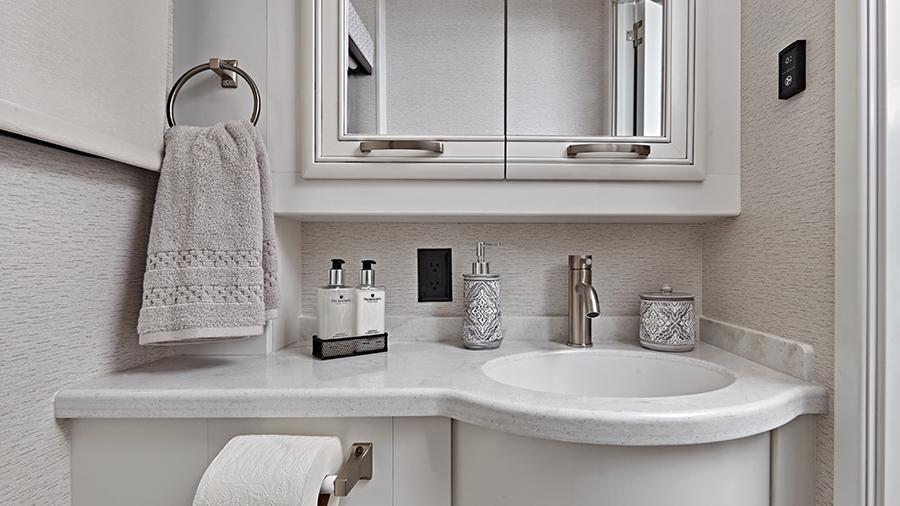

Bathroom Countertop(s) Solid-surface countertops
Sink Integrated sink
Bathroom Shower One-piece fiberglass shower with skylight
Water Saving System Aqua View SHOWERMI$ER™ water saving system
Toilet Thetford® Aqua Magic toilet with foot flush
Bathroom Ventilation Fan-Tastic power exhaust fan with intake


Lights Porch light
Carbon Monoxide Detector Carbon monoxide detector
Smoke Alarm Smoke alarm
Security Safe Security safe


Canadian Standards Canadian Standards- CSA
Customer Value Package (Mandatory) Customer Value Package (Mandatory) - 10kw diesel generator, 2K-watt inverter, (2)15K-BTU air conditioners with heat pumps, automatic leveling jacks, backup and sideview cameras, power awning with LED lights, exterior entertainment center with LED TV, solar shades
Fireplace 34" bedroom fireplace
Theater Seating Theater seating with power recliners
Satellite Dish Winegard In-Motion satellite dome
Satellite Dish - US Winegard TRAV'LER Dish Network

Décor Options

Entegra Coach peace of mind

2 years

2-year warranty

At Entegra Coach, excellence doesn’t end with our stunning interiors and superior craftsmanship. We back each luxury coach with the industry’s highest level of service—including a 2-year warranty.
