Chart your own course
Compare models
Scroll left and right to view specs

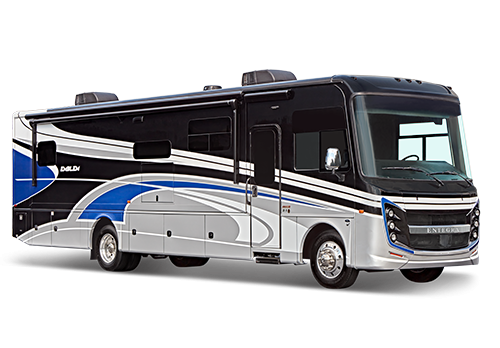

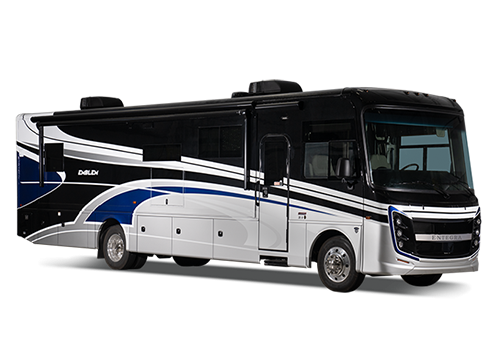

2024 Emblem |

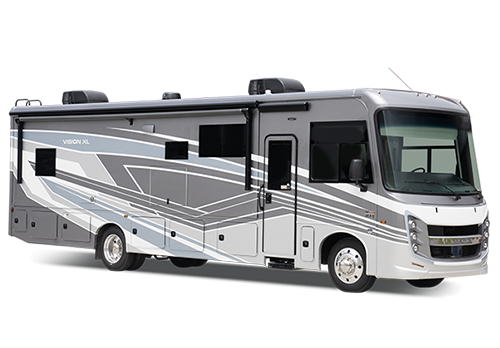

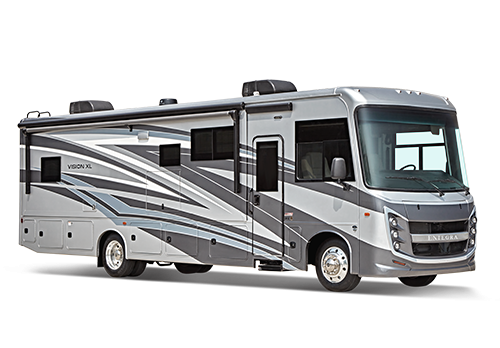

2024 Vision XL |

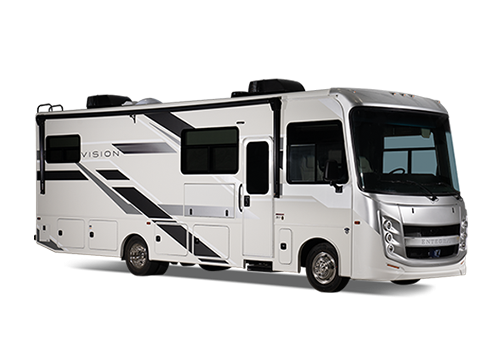

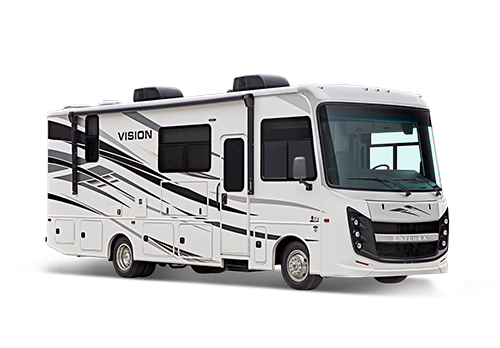

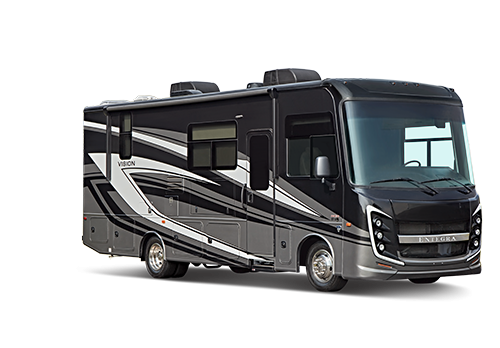

2024 Vision |
|
---|---|---|---|
E-Z Drive | E-Z Drive™ Elite: Computer-balanced driveshaft, Bilstein® steering stabilizer, Koni® shocks, variable-rate front and rear jounce bumpers, heavy-duty front and rear stabilizer bars, 22.5 in. Michelin® tires | E-Z Drive™ Elite: Computer-balanced driveshaft, Bilstein® steering stabilizer, Koni® shocks, variable-rate front and rear jounce bumpers, heavy-duty front and rear stabilizer bars, 22.5 in. Michelin® tires | E-Z Drive™: Computer-balanced driveshaft, Bilstein® steering stabilizer, jounce bumpers, heavy-duty front and rear stabilizer bars, SACHS shocks |
E-Z Drive Elite | |||
E-Z Drive Premier | |||
Air Connection | |||
Air Leveling | |||
Alternator | 210-amp alternator | 210-amp alternator | 210-amp alternator |
Auto Engine Start | |||
Braking System | Front and rear disc, 4-wheel anti-lock brakes | Front and rear disc, 4-wheel anti-lock brakes | Front and rear disc, 4-wheel anti-lock brakes |
Catalytic Converter Protection | Catalytic converter theft deterrent | Catalytic converter theft deterrent | Catalytic converter theft deterrent |
Chassis | Ford® F53 chassis | Ford® F53 chassis | Ford® F53 chassis |
Chassis Battery | 12V chassis battery | 12V chassis battery | 12V chassis battery |
DEF Tank | |||
Engine | 7.3L V-8 335 HP engine with 468 ft.-lb. torque | 7.3L V-8 335 HP engine with 468 ft.-lb. torque | 7.3L V-8 335 HP engine with 468 ft.-lb. torque |
Engine Block Heater | |||
Engine Brake | |||
Front Axle | |||
Front Suspension | |||
Fuel Tank | 80 gal. fuel tank | 80 gal. fuel tank | 80 gal. fuel tank |
Hitch | 5,000 lb. rear hitch receiver with dual connector and 7-pin plug | 5,000 lb. rear hitch receiver with dual connector and 7-pin plug | 5,000 lb. rear hitch receiver with dual connector and 7-pin plug |
Leveling System | Automatic hydraulic leveling jacks | Automatic hydraulic leveling jacks | Automatic hydraulic leveling jacks |
Radiator | |||
Rear Axle | |||
Rear Axle Ratio | |||
Rear Suspension | |||
Ride & Handling Package | |||
Shocks | |||
Suspension Lift | |||
Tag Axle | |||
Tires | G-rated highway tires - 255/80R22.5 | G-rated highway tires - 235/80R22.5 (34B, 34G), 255/80R22.5 (36A, 36C) | G-rated highway tires-245/70R19.5 |
Tire Pressure Monitoring | |||
Tow Air Brake System | |||
Traction Control | |||
Transmission | 6-speed automatic TorqShift® transmission with overdrive and tow haul mode | 6-speed automatic TorqShift® transmission with overdrive and tow haul mode | 6-speed automatic TorqShift® transmission with overdrive and tow haul mode |
Turning Radius | |||
Floor | TuffShell™ vacuum-bond laminated floor | TuffShell™ vacuum-bond laminated floor | TuffShell™ vacuum-bond laminated floor |
Floor Decking | |||
Frame | |||
Insulation | Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls) | Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls) | Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls) |
Roof | One-piece, seamless, crowned fiberglass roof; TuffShell™ vacuum-bond laminated roof | One-piece, seamless, crowned fiberglass roof; TuffShell™ vacuum-bond laminated roof | One-piece, seamless, crowned fiberglass roof; TuffShell™ vacuum-bond laminated roof |
Slideouts | |||
Underbelly | |||
Walls | TuffShell™ vacuum-bond laminated sidewalls | TuffShell™ vacuum-bond laminated sidewalls | TuffShell™ vacuum-bond laminated sidewalls |
Air Conditioning | 15,000 BTU A/C unit with heat pump and second 13,500 BTU A/C unit | 15,000 BTU A/C unit with heat pump and second 13,500 BTU A/C unit | 15,000 BTU A/C unit with heat pump and second 13,500 BTU A/C unit |
Batteries | (2) 6V AGM (220Ah) house batteries on slideout tray | (2) 6V AGM (220Ah) house batteries on slideout tray | (2) 6V AGM (220ah) house batteries on slideout tray |
Black Tank Management | Thetford® Sani-Con® Turbo macerator system | ||
Electrical Hookup | 50-amp electrical service | 50-amp electrical service | 50-amp electrical service |
Generator | 5,500W generator with auto-gen start | 5,500W generator with auto-gen start | 5,500W generator |
Gravity Fill | |||
Water Heater | 10 gal. gas/electric water heater | 10 gal. gas/electric water heater | 6 gal. gas/electric DSI auto-ignition water heater |
Heating System | 30,000 BTU auto-ignition ducted furnace | 30,000 BTU auto-ignition ducted furnace (34B, 34G, 36C); (2) 30,000 BTU auto-ignition ducted furnaces (36A) | Auto-ignition ducted furnace - 30,000 BTU |
Heated Floors | |||
Heated Tanks | Heated holding tanks (12V pads) | Heated holding tanks (12V pads) | |
Inverter | 2,000W inverter | 1,200W inverter | 1,000W inverter |
Power Management | |||
Propane | 24.5 gal. propane tank (83 lb.) with LP quick-connect hookup | 16.5 gal. propane tank (56-lb.) with LP quick-connect hookup | 16.5 gal. propane tank (56 lb.) with LP quick-connect hookup |
Solar | 200W solar panel with dual controller | 200W solar panel with dual controller | 200W solar panel with dual controller |
Transfer Switch | Transfer switch with reverse polarity protection | Transfer switch with reverse polarity protection | Transfer switch with reverse polarity protection |
Tank Assist | |||
Tank Flush | Black tank flush | Black tank flush | Black tank flush |
Tank Vents | |||
Water Hose w/ Electric Reel | |||
Water Filtration | Water filtration system | Water filtration system | Water filtration system |
Water Hook-Up | |||
Water Monitoring | |||
Water Pump | 12V demand water pump | 12V demand water pump | 12V demand water pump |
Water Softner | |||
Winterization Drain System | Winterization drain system | Winterization drain system | Winterization drain system |
Accent Lights | |||
Antenna | |||
Baggage Doors | |||
Bike rack | |||
Bumper | 4 in. tube bumper with sewer hose storage | ||
Cargo Features | Lockable pass-through storage compartments with slam latches | Lockable pass-through storage compartments with metal slam latches | Lockable pass-through storage compartments with metal slam latches |
Chrome Accents | |||
Clearance Accent | |||
Daytime Running Lights | |||
Docking Lights | |||
Door Awning | |||
Electrical System | |||
Engine Door | |||
Entertainment | Exterior entertainment center with outside speakers and LED HD Smart TV mounted on swivel bracket | Exterior entertainment center with outside speakers and LED HD Smart TV mounted on swivel bracket | Exterior entertainment center with outside speakers and LED HD Smart TV mounted on swivel bracket |
Entrance Door | Entrance door with industry’s largest travel-view window | Entrance door with industry’s largest travel-view window | Entrance door with industry’s largest travel-view window |
Entrance Steps | Electric-powered entrance steps | Electric-powered entrance steps | Electric-powered entrance steps |
Exterior | |||
Exterior Walls | Premium Sikkens full-body paint | Fiberglass exterior walls with vinyl graphics | Fiberglass exterior walls with vinyl graphics |
Fog Lights | |||
Freezer | |||
Front/Rear Cap | One-piece, seamless fiberglass front and rear caps | One-piece, seamless fiberglass front cap with partial paint; One-piece, seamless fiberglass rear cap | One-piece, seamless fiberglass front cap with partial paint |
Headlights | |||
Keyless Fob | |||
Keypad | |||
Ladder | Roof ladder | Roof ladder | Roof ladder |
LED Lights | |||
Lights | |||
Mirrors | |||
Outlet | |||
Outside Shower | Outside shower | Outside shower | Outside shower |
Paint | |||
Patio Awnings | Electric patio awning with LED lights | Electric patio awning with LED lights | Electric patio awning with LED lights |
Power Cord | |||
Rear Door | |||
Rear Mudflap | |||
Roof rack | |||
Running Boards | |||
Satellite Dish | Prep for satellite dish | Prep for satellite dish | Prep for satellite dish |
Satellite Dish - US | |||
Satellite Dish - CA | |||
Satellite Internet | |||
Slideout Awnings | Slideout cover awnings | Slideout cover awnings | Slideout cover awnings |
Stainless Steel Accents | |||
Table | |||
Taillights | |||
Third Brake Light | Third brake light | Third brake light | Third brake light |
TV Antenna | |||
Utility Center | Exterior utility center | Exterior utility center | Exterior utility center |
Wi-Fi | Winegard 2.0 Wi-Fi/4G antenna | Winegard 2.0 Wi-Fi/4G antenna | Winegard 2.0 Wi-Fi/4G antenna |
Wind deflectors | |||
Windows | Frameless windows | Frameless windows | Frameless windows |
Window Awnings | |||
Additional Amenities | Cruise control; Hill start assist; Electronic stability control; Traction control | Cruise control; Hill start assist; Electronic stability control; Traction control | Cruise control; Hill start assist; Electronic stability control; Traction control |
Blind Spot Monitoring | |||
Antenna | |||
Cameras | Backup and side-view cameras | Backup and side-view cameras | Backup and side-view cameras |
Collision Mitigation | |||
Dash | Soft-touch, vinyl-wrapped automotive dash | Soft-touch, vinyl-wrapped automotive dash | Soft-touch, vinyl-wrapped automotive dash |
Driver / Passenger Seats | 6-way power and swivel driver/passenger seats | 6-way power and swivel driver/passenger seats | Swivel driver and passenger seats; 6-way power driver seat |
Driving Features | |||
Flooring | |||
Infotainment System(s) | Pioneer® 8 in. infotainment center with Apple CarPlay® and Android Auto™ | Sony® infotainment center with Apple CarPlay® and Android Auto™ | Sony® infotainment center with Apple CarPlay® and Android Auto™ |
Leveling System | |||
Monitoring System(s) | |||
Park assist system | |||
Pedals | |||
Power Features | |||
Side Consoles | |||
Start | Auxiliary start | Auxiliary start | Auxiliary start |
Steering Column | |||
Steering Wheel | Tilt steering wheel | Tilt steering wheel | Tilt steering wheel |
Sound System | |||
Table | Removable driver/passenger cockpit table | Removable driver/passenger cockpit table | Removable driver/passenger cockpit table |
Trip Management System | |||
Visors & Privacy Shade | Power front privacy shade with manual side privacy shades | Power front privacy shade with manual side privacy shades | Power front privacy shade with manual side privacy shades |
Windshield | 120 in. panoramic windshield | 120 in. panoramic windshield | 120 in. panoramic windshield |
Additional Storage | |||
Bar | |||
Bunks | Bunks with industry-exclusive, 300 lb. capacity each (36T); Wall-mounted tablet holder in each bunk (36T) | Bunks with industry-exclusive, 300 lb. capacity each (36A); Wall-mounted tablet holder in each bunk (36A) | Bunks with industry-exclusive 300 lb. capacity each (29F); Wall-mounted tablet holder in each bunk (29F) |
Cabinetry | Hardwood cabinet doors and drawer fronts; Deluxe hidden cabinet hinges | Hardwood cabinet doors and drawer fronts | Hardwood cabinet doors and drawer fronts |
Cable hookup | Cable TV hookup with RG-6 coax | Cable TV hookup with RG-6 coax | Cable TV hookup with RG-6 coax |
Cab-Over Bunks | |||
Ceiling | 84 in. interior ceiling height with padded vinyl ceiling | 84 in. interior ceiling height with padded vinyl ceiling | 84 in. interior ceiling height |
Central Vacuuming System | |||
Command Center | Firefly Multiplex system - wall-mounted touchscreen and mobile app for total coach control | Firefly Multiplex system - wall-mounted touchscreen and mobile app for total coach control | |
DVD Systems | |||
Electric Fireplace | Electric fireplace | Electric fireplace (34B, 34G , 36C) | |
Fascia | LED-lit hardwood fascia | LED-lit hardwood fascia | LED-lit hardwood fascia |
Flooring | Vinyl plank flooring | ||
Flooring - Slides | |||
Furniture | |||
Interior Doors | |||
Lighting | High-intensity recessed LED ceiling lights | High-intensity recessed LED ceiling lights | High-intensity recessed LED ceiling lights |
Lighting System | |||
Outlets | |||
Privacy shades | |||
Sound - Living Room | |||
Switches | |||
Table | |||
Television - Living Room | LED HD Smart TV in living area | LED HD Smart TV in living area | LED HD Smart TV in living area |
Television - Front Overhead | |||
Vent | |||
Washer/Dryer | |||
Window Treatments | Day/night roller shades in living area | Integrated day/night cassette shades | Blackout night roller shades |
Backsplash | Decorative kitchen backsplash | Decorative kitchen backsplash | |
Cabinet Extension | |||
Charging Station | Pop-up charging station in kitchen with 120V outlets and USB ports | ||
Cooktop | 2-burner induction cooktop | Furrion® all-in-one cooktop and oven | Furrion® all-in-one cooktop and oven |
Countertops | LED-lit, solid-surface kitchen countertops | LED-lit, solid-surface kitchen countertops | LED-lit pressed countertops; Flip-up countertop extension (select models) |
Cutting Board | |||
Dinette | Entegra-exclusive, easy-operation legless dinette table; Car seat tethers (select floorplans) | Entegra-exclusive, easy-operation legless dinette table; Car seat tethers (select floorplans) | Entegra-exclusive, easy-operation legless dinette table; Car seat tethers (select floorplans) |
Dishwasher | |||
Drawer Guides | Ball-bearing drawer guides | Ball-bearing drawer guides | Ball-bearing drawer guides |
Microwave | Residential-size convection microwave oven | Residential-size microwave | Residential-size microwave |
Oven | |||
Refrigerator | Residential refrigerator | Residential refrigerator | 10 cu. ft. 12V refrigerator |
Sink | Recessed stainless steel sink and sink covers | Recessed stainless steel sink with sink covers | Large, recessed, stainless steel kitchen sink with cover |
Silverware Drawer | |||
Storage | |||
Vent | |||
Waste Basket | |||
Water Dispenser | |||
Window | Wood-framed kitchen window with spice cabinets | ||
Bed | Walk-around, king-size bed with bedspread and nightstands | Walk-around, king-size bed with bedspread and nightstands | Walk-around, queen-size bed with bedspread and nightstands (king size in 27A) |
Ceiling Fan | |||
DVD Systems | |||
Nightstands | USB port and wireless charging in nightstands | USB port and wireless charging in nightstands | USB port and wireless charging in nightstands |
Sound | |||
Television | LED HD Smart TV in bedroom | LED HD Smart TV in bedroom | Bedroom TV prep |
Under-bed Storage | Under-bed storage (select models) | Under-bed storage (select models) | Under-bed storage (select models) |
Wardrobe | Large wardrobes | Large wardrobes | Large wardrobes |
Countertop(s) | |||
Storage | |||
Shower | Shower with decorative surround, glass door, skylight and light | Shower with decorative surround, glass door, skylight and light | Shower with decorative surround, glass door, skylight and light |
Shower Door | |||
Shower Head | |||
Shower Seat | |||
Sink | Recessed, LED-lit, stainless steel bathroom sink | Recessed stainless steel bathroom sink | Recessed stainless steel bathroom sink |
Toilet | Porcelain toilet with foot flush | Porcelain toilet with foot flush | Porcelain toilet with foot flush |
Vent | Powered roof vent in bathroom with wall switch | Powered roof vent in bathroom with wall switch | Powered roof vent in bathroom with wall switch |
Wardrobe | |||
Water Saving System | |||
Carbon Monoxide Detector | Carbon monoxide detector | Carbon monoxide detector | Carbon monoxide detector |
Propane Alarm | |||
Safety | Fire extinguisher | Fire extinguisher | Fire extinguisher |
Seat Belts | 2-point lap safety belts in all designated seating locations | 2-point lap safety belts in all designated seating locations | 2-point lap safety belts in all designated seating locations |
Security Safe | |||
Security System | |||
Smoke Alarm | Smoke alarm | Smoke alarm | Smoke alarm |
Gross Vehicle Weight Rating (lbs) |
36H: 24,000 36T: 24,000 36U: 24,000 |
31UL: 22,000 34B: 22,000 34G: 22,000 36A: 24,000 36C: 24,000 |
27A: 18,000 29F: 18,000 29S: 18,000 |
Gross Combined Weight Rating (lbs) |
36H: 30,000 36T: 30,000 36U: 30,000 |
31UL: 26,000 34B: 26,000 34G: 26,000 36A: 30,000 36C: 30,000 |
27A: 23,000 29F: 23,000 29S: 23,000 |
Front Gross Axle Weight Rating (lbs) |
36H: 9,000 36T: 9,000 36U: 9,000 |
31UL: 8,000 34B: 8,000 34G: 8,000 36A: 9,000 36C: 9,000 |
27A: 7,000 29F: 7,000 29S: 7,000 |
Rear Gross Axle Weight Rating (lbs) |
36H: 15,500 36T: 15,500 36U: 15,500 |
31UL: 15,000 34B: 15,000 34G: 15,000 36A: 15,500 36C: 15,500 |
27A: 12,000 29F: 12,000 29S: 12,000 |
Tag Axle Gross Weight Rating (lbs) |
36A: 0 |
||
Exterior Length |
36H: 38' 8" 36T: 38' 8" 36U: 38' 2" |
31UL: 33' 34B: 36' 11" 34G: 36' 6" 36A: 38' 10" 36C: 38' 10" |
27A: 29' 11" 29F: 32' 2" 29S: 31' 4" |
Exterior Width |
36H: 101" 36T: 101" 36U: 101" |
31UL: 8' 5" 34B: 101" 34G: 101" 36A: 101" 36C: 101" |
27A: 101" 29F: 101" 29S: 101" |
Exterior Height with A/C and Satellite |
36H: 12' 7" 36T: 12' 10" 36U: 12' 10" |
31UL: 12' 10" 34B: 12' 10" 34G: 12' 10" 36A: 12' 10" 36C: 12' 10" |
27A: 12' 5" 29F: 12' 5" 29S: 12' 5" |
Interior Height |
36H: 84" 36T: 84" 36U: 84" |
31UL: 84" 34B: 84" 34G: 84" 36A: 84" 36C: 84" |
27A: 84" 29F: 84" 29S: 84" |
Fresh Water Capacity (gals) |
36H: 72 36T: 72 36U: 72 |
31UL: 72 34B: 72 34G: 72 36A: 72 36C: 72 |
27A: 72 29F: 72 29S: 72 |
Grey Waste Water Capacity (gals) |
36H: 40 36T: 50 36U: 50 |
31UL: 40 34B: 40 34G: 40 36A: 40/40 36C: 40/32 |
27A: 50 29F: 40 29S: 40 |
Black Waste Water (gals) |
36H: 40 36T: 31 36U: 31 |
31UL: 50 34B: 40 34G: 50 36A: 51/51 36C: 40/32 |
27A: 49 29F: 49 29S: 50 |
Fuel Tank Capacity (gals) |
36H: 80 36T: 80 36U: 80 |
31UL: 80 34B: 80 34G: 80 36A: 80 36C: 80 |
27A: 80 29F: 80 29S: 80 |
Furnace (BTU Output) |
36H: 30,000-BTU auto-ignition furnace 36T: 30,000 BTU auto-ignition furnace 36U: 30,000 BTU auto-ignition furnace |
31UL: 30,000 BTU auto-ignition furnace 34B: 30,000 BTU auto-ignition furnace 34G: 30,000 BTU auto-ignition furnace 36A: 30,000 BTU auto-ignition furnace 36C: 30,000 BTU auto-ignition furnace |
27A: 30,000 BTU auto-ignition furnace 29F: 30,000 BTU auto-ignition furnace 29S: 30,000 BTU auto-ignition furnace |
Wheel Base |
36H: 252" 36T: 252" 36U: 252" |
31UL: 228" 34B: 228" 34G: 238" 36A: 252" 36C: 252" |
27A: 190" 29F: 190" 29S: 190" |
Air Conditioning | |||
Area Rug | |||
Automatic Hydraulic Leveling Jacks | |||
Baggage Doors | |||
Batteries | |||
Bedroom TV | LED HD Smart TV in bedroom | ||
Bunk TVs | |||
Canadian Standards | Canadian standards | Canadian standards | Canadian standards |
Central Vacuum System | |||
Chasis | |||
Chassis Upgrade | |||
CSA Chassis Upcharge | |||
Customer Value Package (Mandatory) | E-Z Drive™ Elite; Automatic hydraulic leveling jacks; Frameless windows;15,000 BTU A/C unit with heat pump; 13,500 BTU A/C unit; Exterior entertainment center; Electric patio awning; Slideout awnings; Onan® 5,500W generator; 2,000W inverter; 50-amp electrical service; 10 gal. gas/electric water heater; Pioneer® 8 in. infotainment center; Backup and side-view cameras; Removable driver/passenger cockpit table; Solid-surface kitchen countertops; LED HD Smart TV in LR, Day/night roller shades in LR | E-Z Drive™ Elite; 15,000 BTU A/C unit with heat pump and second 13,500 BTU A/C unit; Exterior entertainment center; Electric patio awning with LED lights; Slideout cover awnings; Onan® 5,500W generator; 1,200W inverter; 50-amp electrical service; 10 gal. gas/electric water heater; Sony® infotainment center; Backup and side-view cameras; Removable driver/passenger cockpit table; LED-lit solid-surface countertops, LED HD Smart TV in living area; Integrated day/night cassette shades | E-Z Drive™; Exterior entertainment center with outside speakers and LED HD Smart TV mounted on swivel bracket; Electric patio awning with LED lights; Slideout cover awnings; 1,000W inverter; Sony® infotainment center with Apple CarPlay® and Android Auto™; Backup and side-view cameras; Removable driver/passenger cockpit table; LED HD Smart TV in living area; Blackout night roller shades |
Customer Value Package (Mandatory) Cont. | |||
Desk | |||
Dinette | |||
Dinette Option 2 | |||
Dishwasher Drawer | |||
Exterior Color | |||
Fireplace | |||
Fireplace/TV/entertainment center and work station ILO sofa | |||
Freestanding Table | Freestanding table with 4 chairs (36U) | ||
Freestanding Table Option 2 | |||
Freezer | |||
Front Cap | |||
Front Overhead TV | |||
Generator | |||
Headboard | |||
Hide-a-Bed Sofa | |||
Hide-a-Bed Sofa 2 | |||
Hydraulic Leveling Jacks | |||
Lithium Package | |||
Mattress | |||
Oven | |||
Overhead Bunk | Drop-down overhead bunk in cab area with 750 lb. capacity | Drop-down overhead bunk in cab area with 750 lb. capacity | Drop-down overhead bunk in cab area with 750 lb. capacity |
Reclining Sofa | 120 in. straight reclining sofa (36H) | ||
Reclining Sofa | |||
Refrigerator | 15 cu.ft. 12V refigerator | 15 cu. ft. 12V refrigerator | 15 cu. ft. 12V refrigerator (27A, 29F) |
Rims | |||
Satellite Dish | |||
Satellite Dish - US | |||
Satellite Dish - CA | |||
Satellite Internet | |||
Second Girard Patio Awning | |||
Shade | |||
Slideout Storage Tray | |||
Sofa | |||
Solar | |||
Theater Seating | Power theater seating (36H, 36T) | Power theater seating (36A) (STD 34G, 36C) | Theater seating (29S) |
Theater Seating Option 2 | |||
Theater Seating Option 3 | |||
Theater Seating Option 4 | |||
WiFi Extender Antenna | |||
Washer/Dryer | Combination washer/dryer (36T, 36U) | Combination washer/dryer (34B, 34G, 36A) | |
Washer/Dryer Stackable | Stackable washer/dryer (36H) | Stackable washer/dryer (36C) | |
Outside Kitchen | |||
Patio Awning | |||
Rear awning | |||
TV |
