A beautiful journey
THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.
2022 Aspire
As much a joy to drive as it is to relax in, the new Aspire will have you feeling right at home—anywhere. The 2022 model features upgraded Italian leather furniture—including a 100-inch reclining sofa option and all-new décor, wood and exterior paint choices. A new E-Z Steer™ column drive uses electrically powered steering (EPS), along with the normal belt driven hydraulic power steering pump to help combat driver fatigue and compensate for crosswinds. So sit back and enjoy the view—no matter where the road takes you.
Brochure
Floorplans

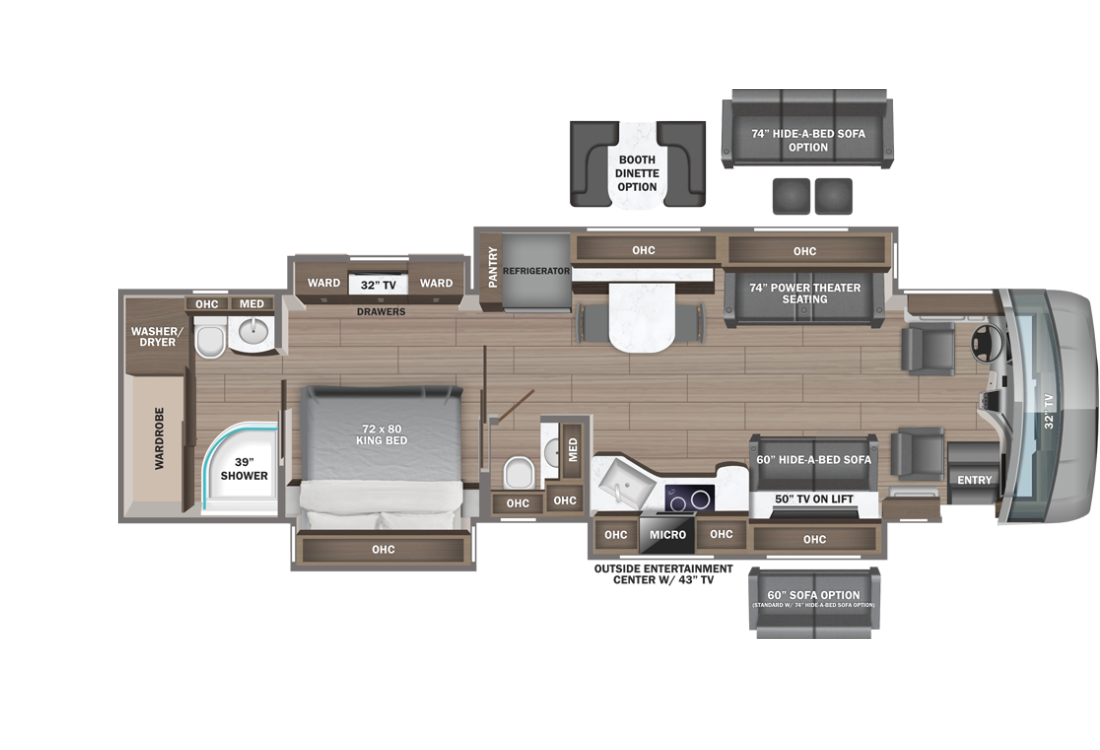

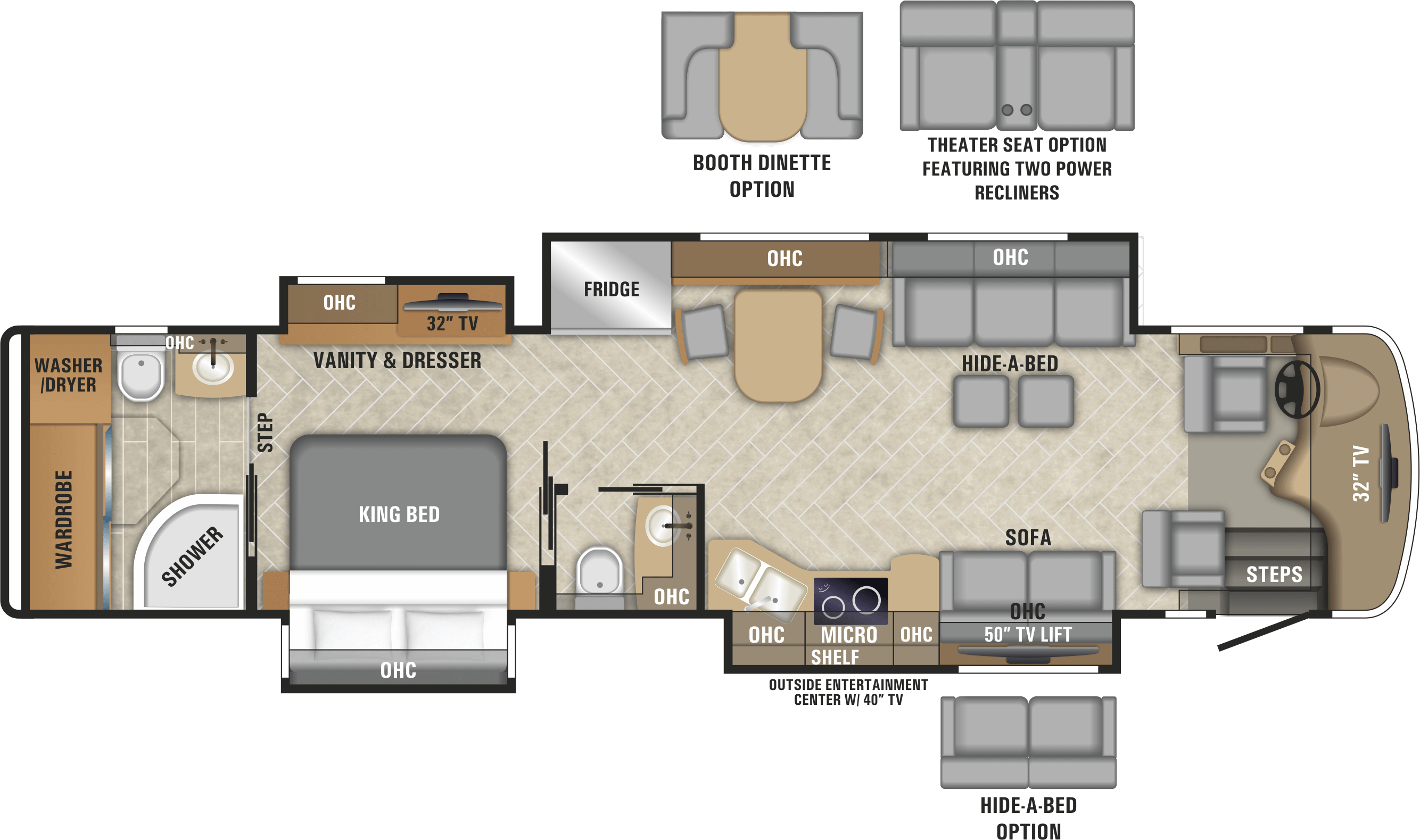

2022 Aspire | 40P
.png)
Specs
| Gross Vehicle Weight Rating (lbs) | 41,000 |
| Gross Combined Weight Rating (lbs) | 51,000 |
| Front Gross Axle Weight Rating (lbs) | 17,000 |
| Rear Gross Axle Weight Rating (lbs) | 24,000 |
| Tag Axle Gross Weight Rating (lbs) | N/A |
| Exterior Length | 40' 11" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 11" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 100 |
| Grey Waste Water Capacity (gals) | 62 |
| Black Waste Water (gals) | 41 |
| Fuel Tank Capacity (gals) | 100 |
| Furnace (BTU Output) | 65,600 Aqua-Hot |
| Wheel Base | 261" |

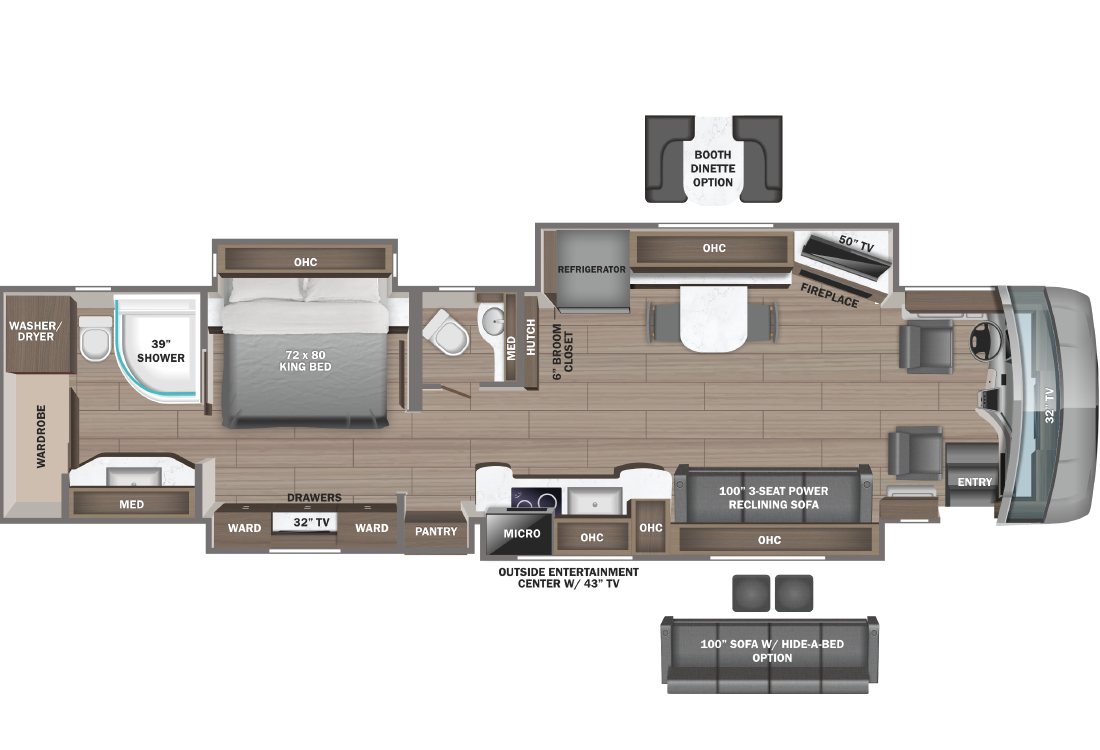

2022 Aspire | 44B
Specs
| Gross Vehicle Weight Rating (lbs) | 49,000 |
| Gross Combined Weight Rating (lbs) | 64,000 |
| Front Gross Axle Weight Rating (lbs) | 17,000 |
| Rear Gross Axle Weight Rating (lbs) | 20,000 |
| Tag Axle Gross Weight Rating (lbs) | 12,000 |
| Exterior Length | 44' 11" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 11" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 100 |
| Grey Waste Water Capacity (gals) | 62 |
| Black Waste Water (gals) | 41 |
| Fuel Tank Capacity (gals) | 150 |
| Furnace (BTU Output) | 65,600 Aqua-Hot |
| Wheel Base | 320" |
2022 Aspire | 44F
.png)
Specs
| Gross Vehicle Weight Rating (lbs) | 49,000 |
| Gross Combined Weight Rating (lbs) | 64,000 |
| Front Gross Axle Weight Rating (lbs) | 17,000 |
| Rear Gross Axle Weight Rating (lbs) | 20,000 |
| Tag Axle Gross Weight Rating (lbs) | 12,000 |
| Exterior Length | 44' 11" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 11" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 100 |
| Grey Waste Water Capacity (gals) | 62 |
| Black Waste Water (gals) | 41 |
| Fuel Tank Capacity (gals) | 150 |
| Furnace (BTU Output) | 65,600 Aqua-Hot |
| Wheel Base | 320" |

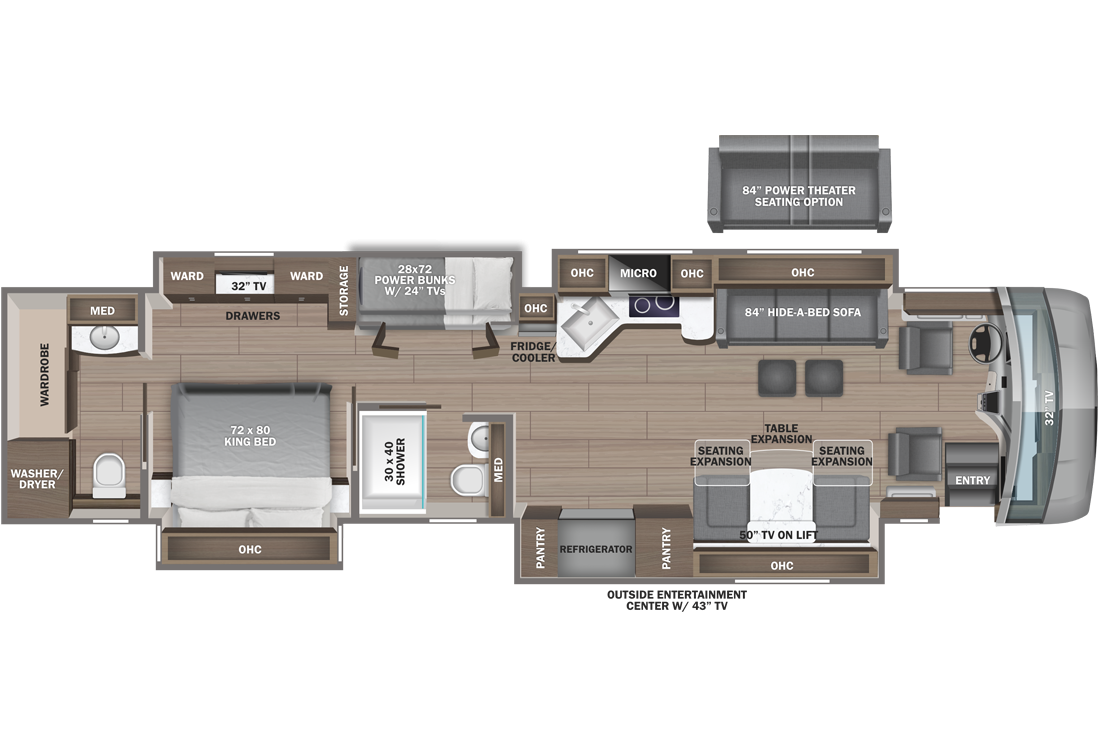

2022 Aspire | 44R
.png)
Specs
| Gross Vehicle Weight Rating (lbs) | 49,000 |
| Gross Combined Weight Rating (lbs) | 64,000 |
| Front Gross Axle Weight Rating (lbs) | 17,000 |
| Rear Gross Axle Weight Rating (lbs) | 20,000 |
| Tag Axle Gross Weight Rating (lbs) | 12,000 |
| Exterior Length | 44' 11" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 11" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 100 |
| Grey Waste Water Capacity (gals) | 62 |
| Black Waste Water (gals) | 41 |
| Fuel Tank Capacity (gals) | 150 |
| Furnace (BTU Output) | 65,600 Aqua-Hot |
| Wheel Base | 320" |

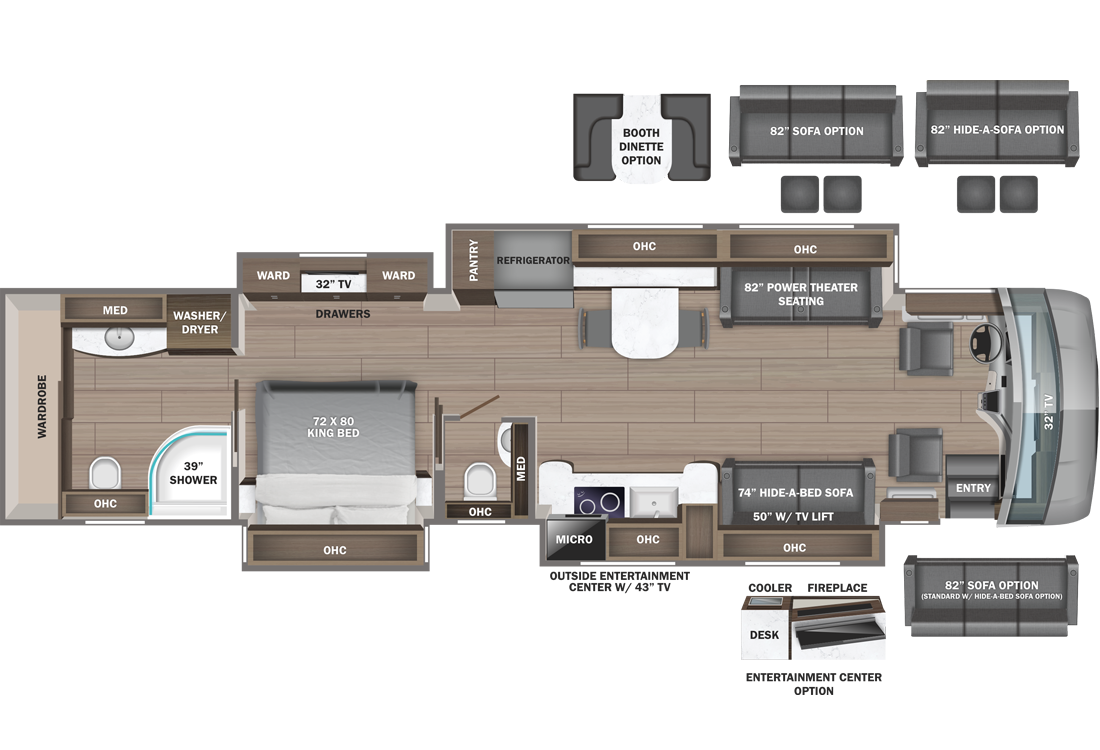

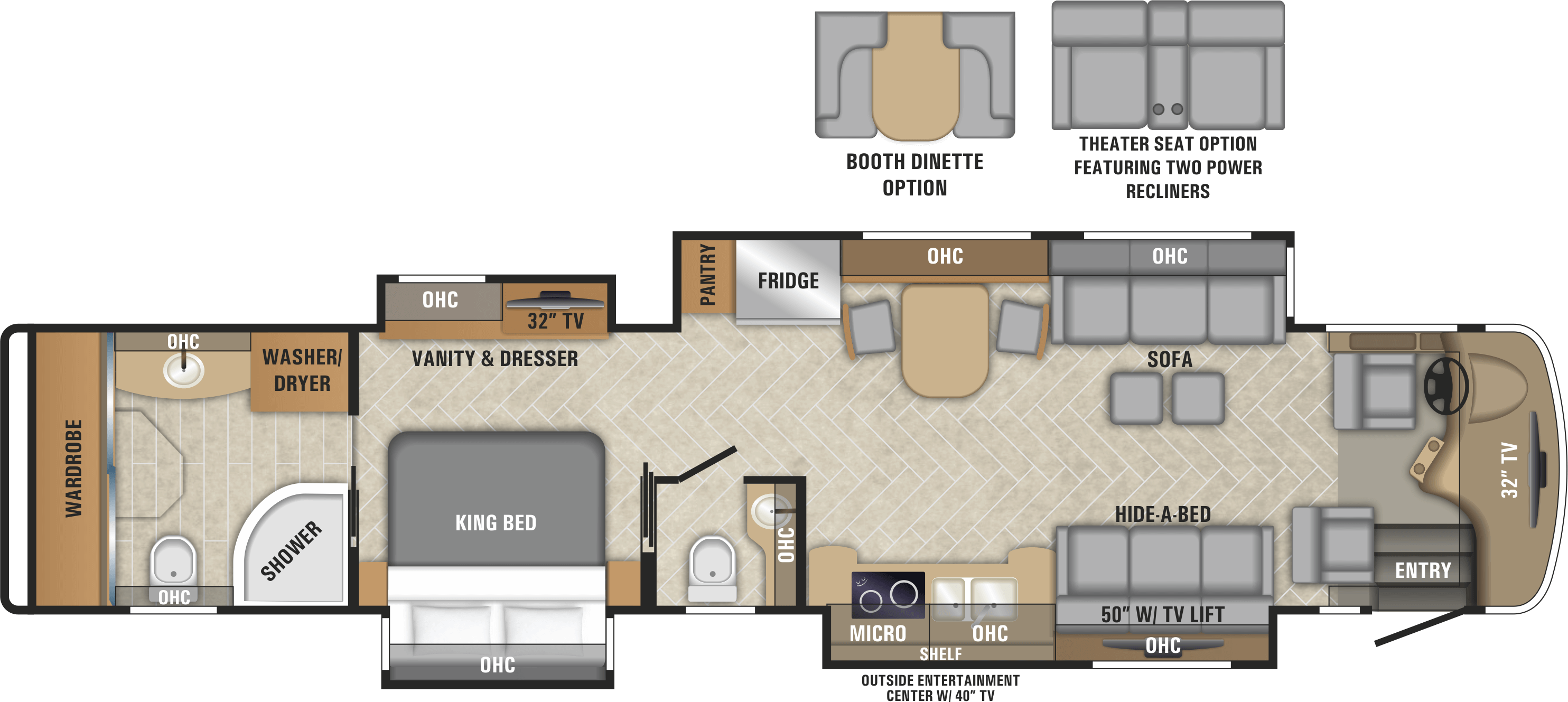

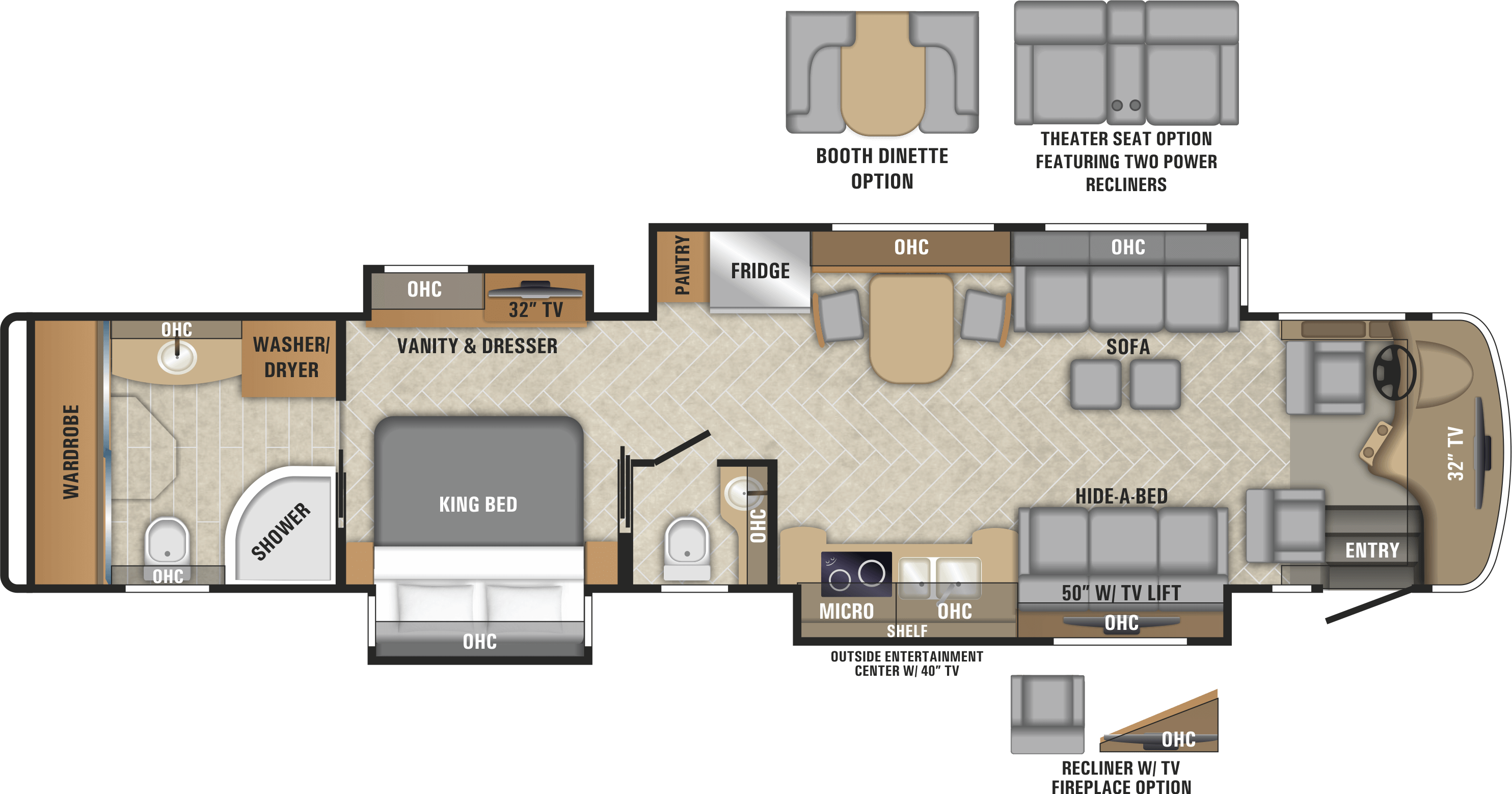

2022 Aspire | 44W
Specs
| Gross Vehicle Weight Rating (lbs) | 49,000 |
| Gross Combined Weight Rating (lbs) | 64,000 |
| Front Gross Axle Weight Rating (lbs) | 17,000 |
| Rear Gross Axle Weight Rating (lbs) | 20,000 |
| Tag Axle Gross Weight Rating (lbs) | 12,000 |
| Exterior Length | 44' 11" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 11" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 100 |
| Grey Waste Water Capacity (gals) | 62 |
| Black Waste Water (gals) | 41 |
| Fuel Tank Capacity (gals) | 150 |
| Furnace (BTU Output) | 65,600 Aqua-Hot |
| Wheel Base | 320" |

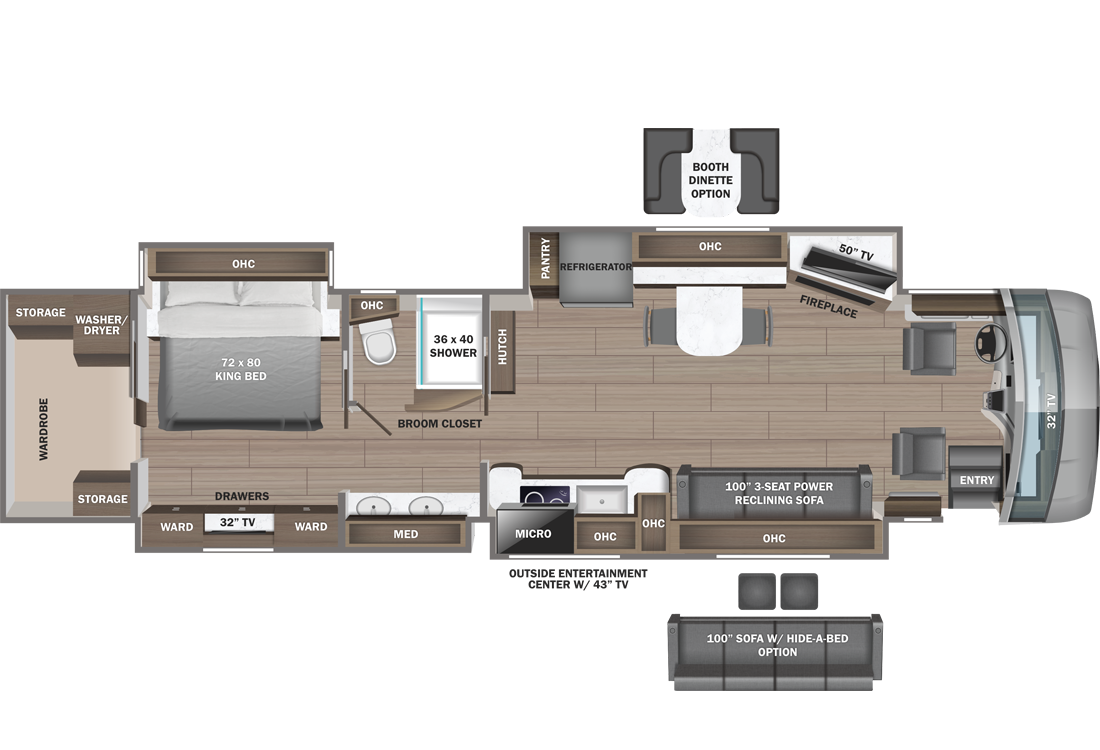

2022 Aspire | 44Z
.png)
Specs
| Gross Vehicle Weight Rating (lbs) | 49,000 |
| Gross Combined Weight Rating (lbs) | 64,000 |
| Front Gross Axle Weight Rating (lbs) | 17,000 |
| Rear Gross Axle Weight Rating (lbs) | 20,000 |
| Tag Axle Gross Weight Rating (lbs) | 12,000 |
| Exterior Length | 44' 11" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 11" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 100 |
| Grey Waste Water Capacity (gals) | 62 |
| Black Waste Water (gals) | 41 |
| Fuel Tank Capacity (gals) | 150 |
| Furnace (BTU Output) | 65,600 Aqua-Hot |
| Wheel Base | 320" |
Ward = wardrobe
Lav = bathroom sink
Med = medicine cabinet
Ohc = overhead cabinets
Fridge = refrigerator
Micro = microwave
All Floorplans
2022 Aspire | 40P
2022 Aspire | 44B
2022 Aspire | 44F
2022 Aspire | 44R
2022 Aspire | 44W
2022 Aspire | 44Z
360°

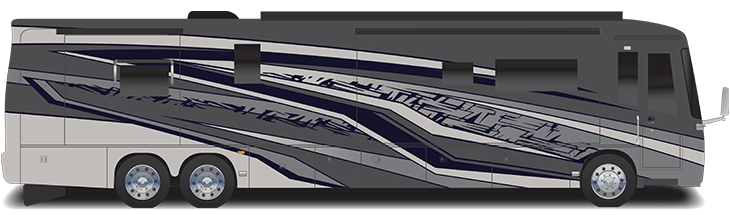

Exterior Graphics
.png)
Standards & Options
Chassis
| Chassis | Spartan® K2 raised-rail chassis |
| Engine | Cummins® L9 turbocharged 450 HP engine with 1,250-lb. ft. torque at 1,400 RPM |
| Transmission | Allison® 3,000 MH 6-speed transmission |
| Radiator | Side-mounted, parallel-airflow radiator |
| Alternator | 170-amp alternator |
| Engine Block Heater | 1,000-watt engine block heater |
| Engine Brake | Two-stage engine brake |
| Front Axle | Reyco® Granning® front axle - 17,000 lb. rating |
| Front Suspension | Independent front air suspension (IFS) |
| Rear Axle | Meritor rear axle - 20,000 lb. rating (Dana® rear axle- 24,000 lb. rating on 40P) |
| Tag Axle | Tag axle with air dump - 12,000 lb. rating (N/A 40P) |
| Braking System | ABS disc brakes on front axle, drum brakes on drive and tag axle |
| Rear Axle Ratio | 4.88 rear axle ratio (4.78 on 40P) |
| Tires | Michelin® 315/80R 22.5” tires (front) and 295/80R 22.5” tires (rear) |
| Shocks | Bilstein® 46mm shocks |
| Tire Pressure Monitoring | Tire pressure monitoring system (TPMS) with temperature monitoring |
| Leveling System | Equalizer™ hydraulic automatic coach leveling |
| Air Connection | Remote air connection |
| Chassis Battery | (2) 12V chassis batteries |
| Fuel Tank | 150-gal. fuel tank with dual fills (100 gal. on 40P) |
| DEF Tank | 15-gal. DEF tank with dual fills (single fill on 40P, 44R) |
| Tow Air Brake System | Spartan® Safehaul tow vehicle air brake system |
| Hitch | 15,000-lb. hitch with 7-pin plug (10,000-lb. hitch on 40P) |
Construction
| Floor | 2" x 4" wood trusses on 16" centers or less filled with bat and Flexfoil insulation then topped with 3/4" 7-ply plywood decking (R-33) |
| Frame | X-Bridge™ bracing welded into chassis frame |
| Front Cap | Insulated front and rear caps (R-24) with steel-reinforced front cap and windshield frame |
| Roof | 4" arched aluminum trusses filled with bat insulation and reflective Flexfoil® topped with 3/8" plywood decking then one-piece fiberglass |
| Slideouts | Entegra-exclusive Relia-Torque flush-mounted 12V slideout system with VegaTouch and rocker switch controls |
| Walls | 2-1/2" exterior walls with Aluma-Tru™ welded tubular aluminum studs on 16" centers or less filled with bat and Flexfoil insulation then covered with high-gloss gelcoat |
Heat, AC, Water & Power
| Heated Tanks | Aqua-Hot® heated basement storage |
| Generator | Onan® 10,000-watt diesel generator, with automatic start, on slide-out tray |
| Inverter | 3,000-watt pure sine wave inverter |
| Batteries | (2) L16 AGM batteries (6V/390 amp hrs. ea.) |
| Electrical Hookup | 50-amp power cord on electric powered reel |
| Power Management | Smart automatic transfer switch with surge protection |
| Air Conditioning | (3) 15,000-BTU A/C units with heat pumps and condensation drain system |
| Heating System | Aqua-Hot® 400D hydronic water and heating system with in-floor heat throughout |
| Black Tank Management | Sani-Con® Macerator holding tank dump system with manual gate valves, manual backup and metal door |
| Black Holding Tank Sprayer | Black holding tank sprayer |
| Water Filtration | City and tank water filtration system |
| Winterization Drain System | Winterizing drain system |
| Water Monitoring | Trutank™ ultrasonic tank monitoring system displayed on VegaTouch screen |
| Water Hose w/ Electric Reel | Water hose with electric reel |
Exterior
| Engine Door | Power rear engine door with manual override |
| Patio Awnings | Dual roof-mounted Girard® Vision dual-pitched patio awnings with LED lights |
| Door Awning | Girard® power entrance door awning with LED lights |
| Slideout Awnings | Girard® Ultra slideout awnings |
| Window Awnings | Girard® window awnings |
| Windows | Frameless, dual-pane, tinted, safety-glass windows |
| Keypad Handle | Lit grab handle with doorbell and keypad system for keyless entry |

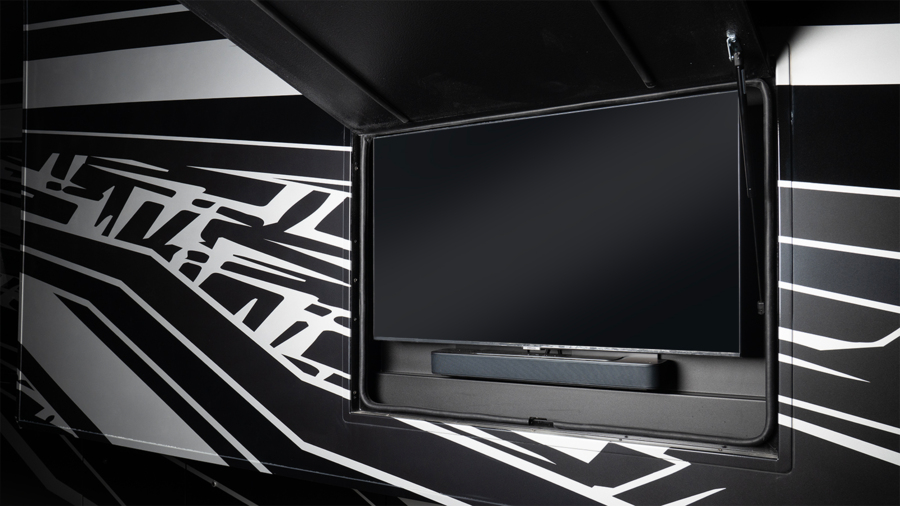

| Exterior Entertainment | 43” Samsung® 4K UHD Smart TV with tilt, swivel, and extend adjustment; JBL radio and speakers with USB port and receptacle |
| Mirrors | Chrome, heated, remote-control, side-view mirrors with integrated cameras |
| Exterior | Diamond Shield™ front protective film mask |
| Headlights | LED low beam headlights, halogen high beam headlights and fog lights |
| Daytime Running Lights | Daytime running lights |
| LED Lights | LED marker lights, turn lights, license plate light, third brake light, accent lights and docking lights |
| Accent Lights | LED accent lights under passenger slideout rooms |
| Rear Mudflap | Mudflap with chrome “Aspire” nameplate |
| Satellite Dish - US | Winegard® TRAV’LER satellite dish DIRECTV® - standard with USA option |
| Satellite Dish - CA | Winegard® TRAV’LER satellite dish Shaw TV - standard with CSA option |
| TV Antenna | Winegard® Rayzar Z1 TV antenna |
| WiFI | Winegard® WiFi extender with 4G/LTE |
| Utility Center | Heated exterior utility center with 5” LED Firefly® tank monitoring panel |
| Cargo Features | Slideout basement storage tray; Push-button power-unlatching baggage doors with LED indicator light |
| Paint | Sikkens custom full-body paint |
| Entrance Door | Removable screen on entry door |

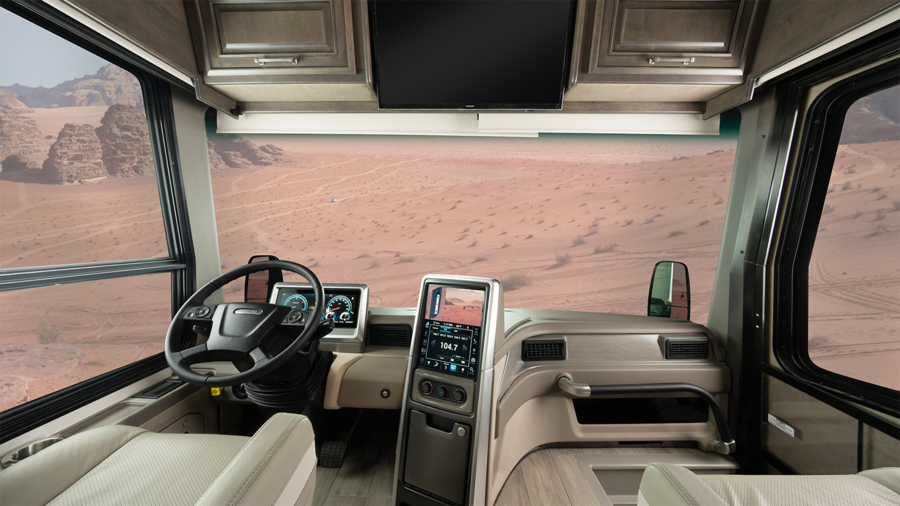

Cockpit

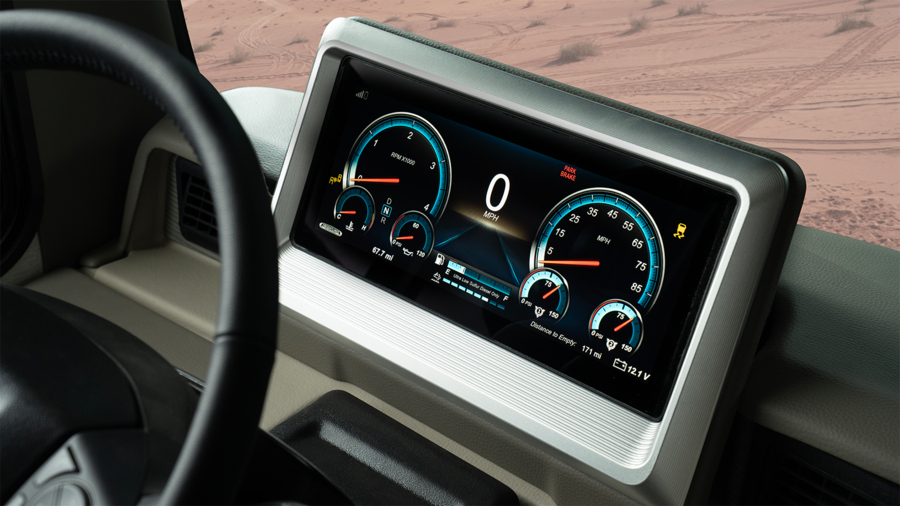

| Dash | Valid 12.3" digital dash with quad core graphics processor, on-board diagnostics, selector knob and ability to display traditional instrument cluster, 360° camera system or GPS navigation |
| Cameras | Xite™ 360° HD digital camera system |
| Infotainment System(s) | Xite™ XSG4 infotainment system with 9" touchscreen, iGO navigation, Bluetooth®, Sirius XM™ and AM/FM tuner, integrated camera control and house mode whole-coach audio distribution |
| Driving Features | E-Z Steer™ adjustable power steering assist |
| Steering Wheel | Steering wheel with integrated controls for cruise, wipers, radio and Bluetooth® phone functionality |
| Steering Column | Manual tilt and telescoping steering column |
| Sound System | JBL® premium audio 5-speaker sound system with amplifier, speakers and DVC subwoofer |
| Windshield | Ultra-Vision® one-piece wrap-around tinted windshield |
| Driver / Passenger Seats | Villa® leather driver and passenger seats with powered 6-way adjustment, lumbar and footrest functions |
| Power Features | Powered flush stepwell cover |
| Pedals | Powered adjustable brake and accelerator pedals |
| Visors & Privacy Shade | Powered front sun visors and privacy shades |
| Additional Amenities | (2) dual USB ports and (2) 12V sockets for charging |
Interior
| Television - Front Overhead | 32" Samsung® LED 1080P Smart TV in front overhead |
| Command Center | Firefly multiplex system with 10” VegaTouch touchscreen for complete integration of coach controls (mobile app available) |
| Television - Living Room | 50” Samsung® 4K UHD Smart TV |
| Sound - Living Room | Bose® sound bar with subwoofer and universal remote control |
| DVD Systems | Sony® Blu-ray™ player |
| Furniture | Premium leather Villa® furniture |
| Flooring | Hand-laid porcelain tiled floors |
| Lighting | LED interior lighting |
| Ceiling | Decorative ceiling feature with integrated accent lighting |
| Window Treatments | Manual solar day shades and blackout night shades |
| Central Vacuuming System | Central vacuum system |
| Interior Doors | Aire-Secure™ travel locks for all pocket doors |
| Bar | Bar area with beverage chiller and rain glass upper cabinet door with LED accent lighting (44R only) |

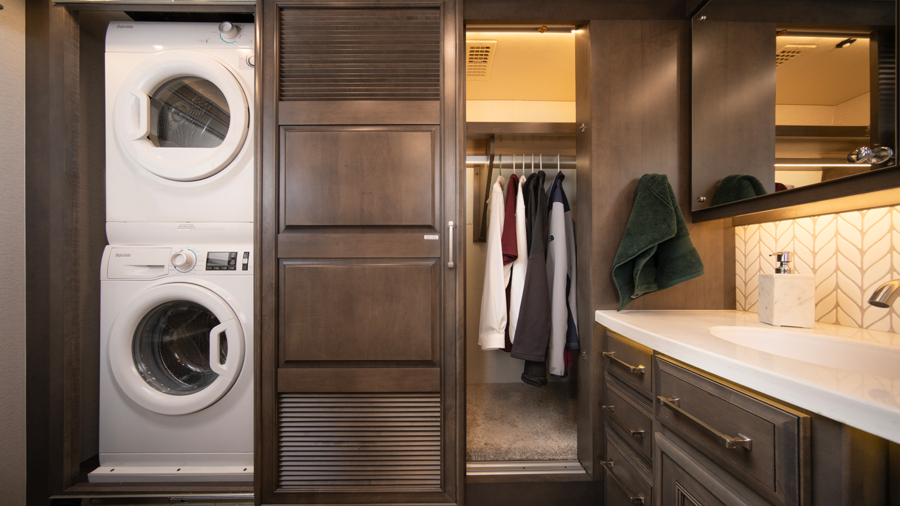

| Washer/Dryer | Whirlpool® stacked washer and dryer |

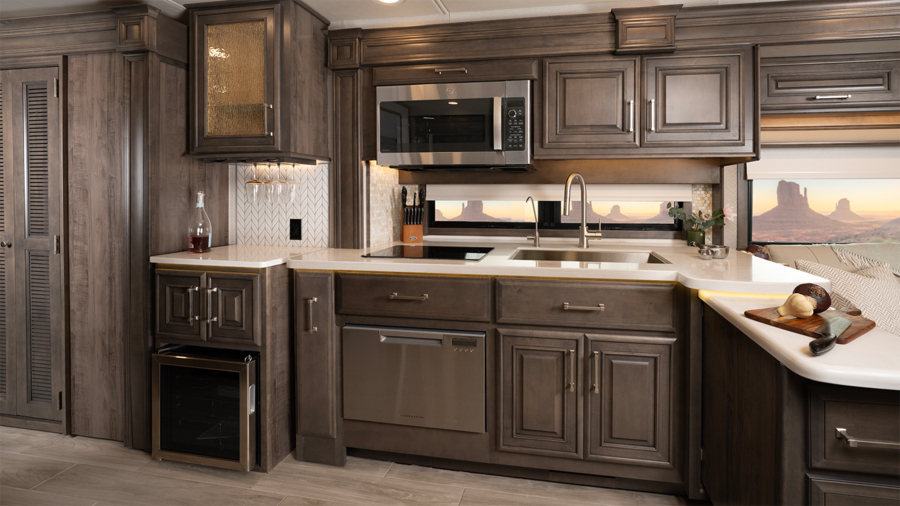

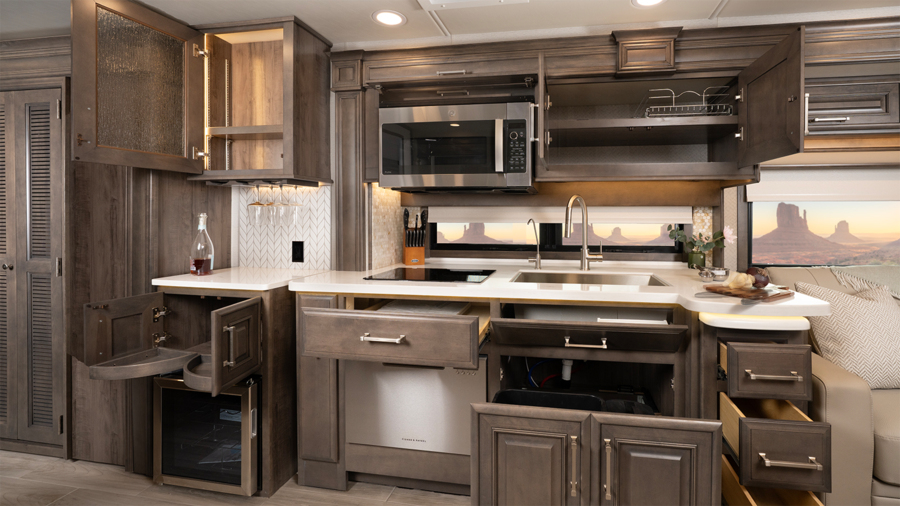

Kitchen

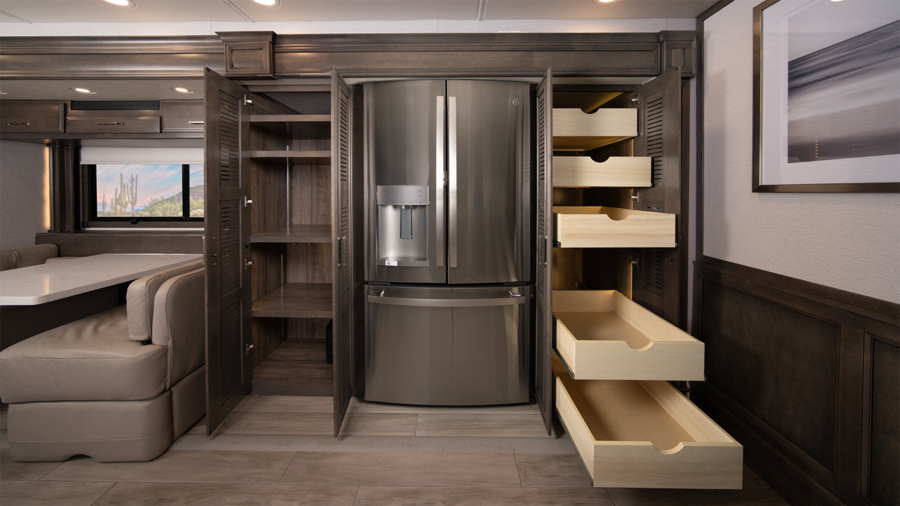

| Refrigerator | Whirlpool® stainless-steel residential refrigerator with ice maker and water dispenser |
| Cooktop | Induction cooktop with matching wood cover |
| Microwave | Whirlpool® 1.9-cu. ft. convection microwave oven |

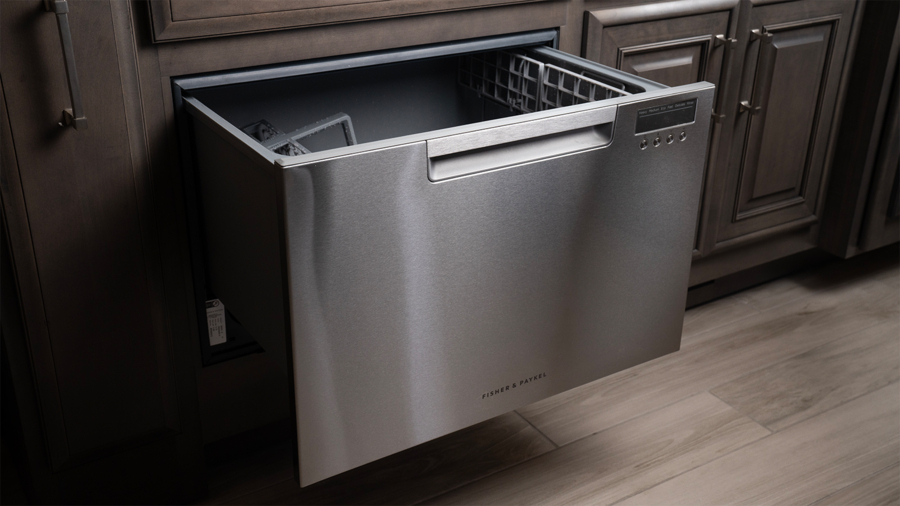

| Dishwasher | Fisher & Paykel dishwasher |
| Kitchen Countertops | Solid-surface countertops with dimmable LED accent lighting |
| Sink | Stainless steel sink |
| Vent | Maxxair® power vent exhaust fan with intake and touch screen control |
| Waste Basket | Large, deep drawer for waste basket with easy access trash chute (trash chute not available on 40P, 44F and 44R) |
| Storage | Slide-out storage tray(s) in overhead cabinet |

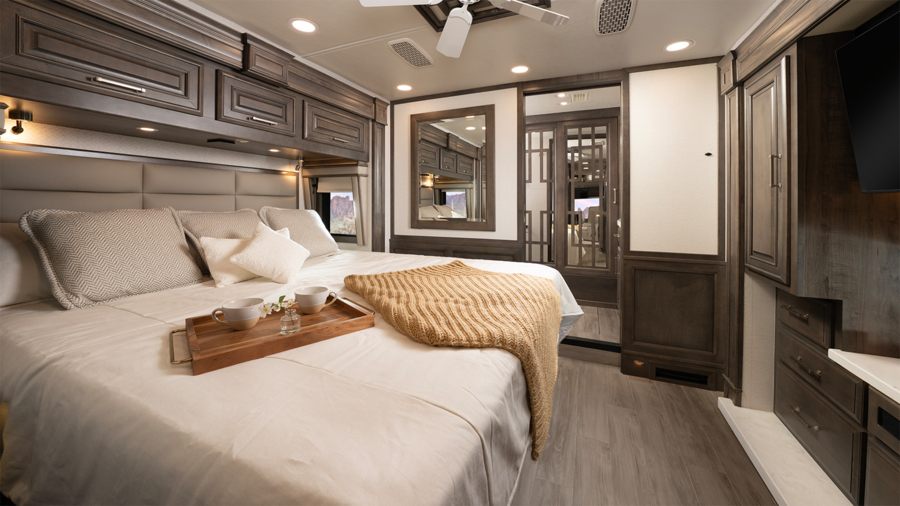

Bedroom
| Bedroom Mattress / Bedding | King-size gel memory-foam mattress |
| Television | 32" Samsung® LED 1080P Smart TV |
| Sound | Bose® sound bar with universal remote control |
| DVD Systems | Sony® Blu-ray™ player |
| Ceiling Fan | Ceiling fan |
| Nightstands | Nightstands with solid-surface tops |

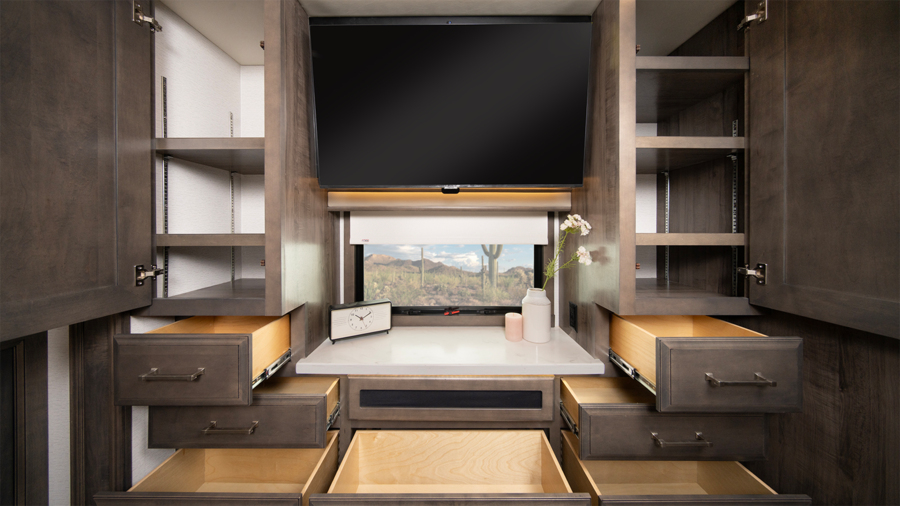

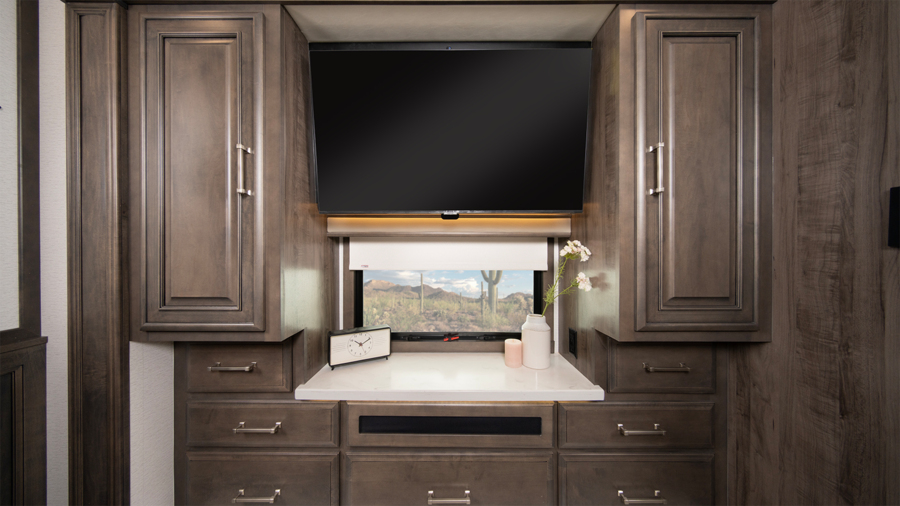

| Bedroom Wardrobe | Large cedar-lined wardrobe |

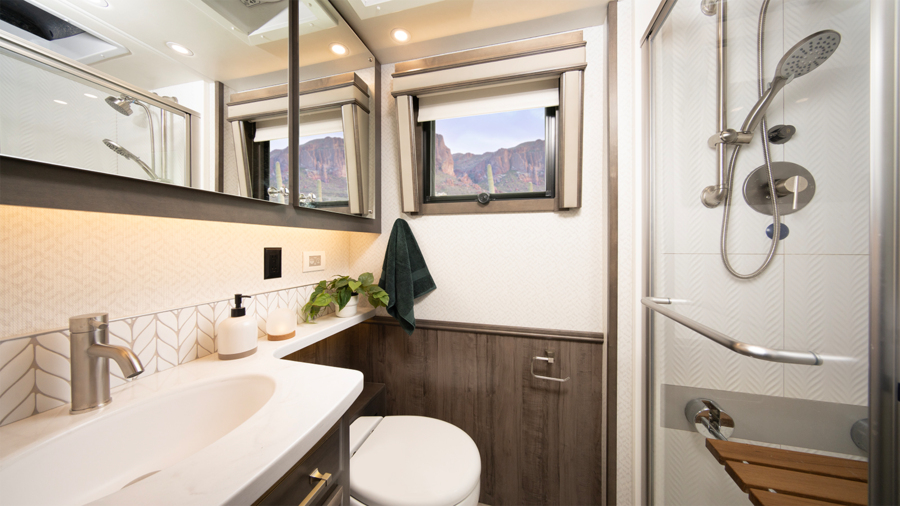

Bathroom
| Bathroom Countertop(s) | Solid-surface countertops with dimmable LED accent lighting |
| Sink | Integrated sink |

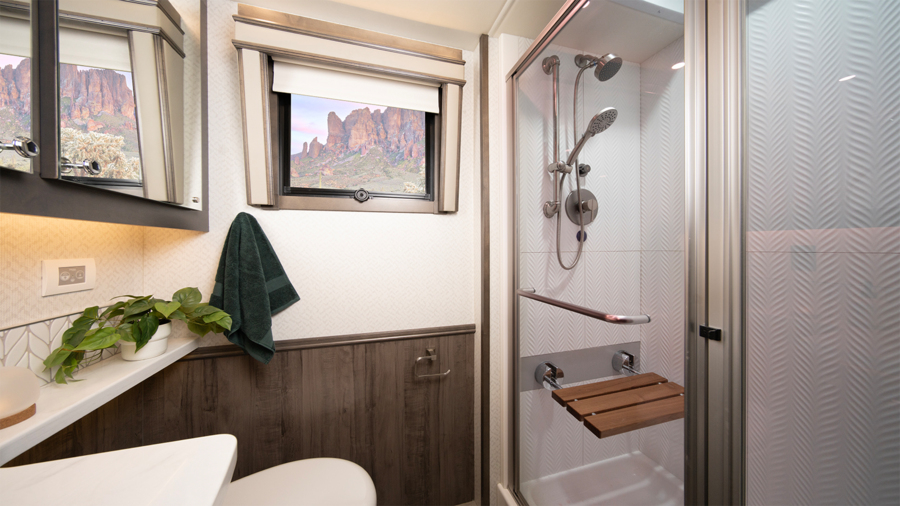

| Bathroom Shower | Textured porcelain tile shower with skylight and clear glass shower door |
| Shower Seat | Teakwood shower seat (N/A 44F) |
| Shower Head | Fixed shower head and separate hand-held spray wand |
| Water Saving System | Aqua View SHOWERMI$ER™ water saving system |
| Toilet | Thetford® macerator toilet in main bath (N/A 44Z) |
| Bathroom Ventilation | Maxxair® power exhaust fan with intake |
Safety
| Lights | Porch light and motion sensor security lights |
| Carbon Monoxide Detector | Carbon monoxide detector |
| Security System | Security system with glass shatter sensors |
| Smoke Alarm | Smoke alarm |
| Security Safe | Security safe |
Options
| Canadian Standards | Canadian Standards- CSA |
| Fireplace | Fireplace |
| Theater Seating | Theater seating with power recliners and hide-a-bed |
| Theater Seating Option 2 | Theater seating with power recliners and fixed console |
| Reclining Sofa | 100" power reclining sofa |
| Fireplace/TV/entertainment center and work station ILO sofa | Fireplace/TV/entertainment center and work station ILO sofa |
| Satellite Dish | Winegard In-Motion satellite dome |
| Satellite Dish - US | Winegard TRAV'LER Dish Network |
| Solar | Solar panels (dual 100-watt) |
| Additional Batteries | (2) additional AGM batteries (4 total) |
| Dinette | Dinette booth |
Décor Options
.jpg)
.jpg)
.jpg)
Entegra Coach peace of mind
2-year warranty and 3-year roadside assistance
At Entegra Coach, excellence doesn’t end with our stunning interiors and superior craftsmanship. We back each luxury coach with the industry’s highest level of service—including a 2-year warranty and 3-year roadside assistance.
