2020 Emblem

Balance and symmetry are the ruling characteristics of the formal design of the Emblem. Built on the Ford F53 chassis, the Emblem features the E-Z drive Elite ride and handling package. This standard package includes heavy-duty front and rear stabilizer bars, a computer-balanced driveshaft, jounce bumpers and SACHS shocks for an exceptional ride, even on rugged terrain. In 2020, LED lighting throughout the coach illuminates the exquisite finishes, bringing light to your journey and comfort always ahead.

Product Video

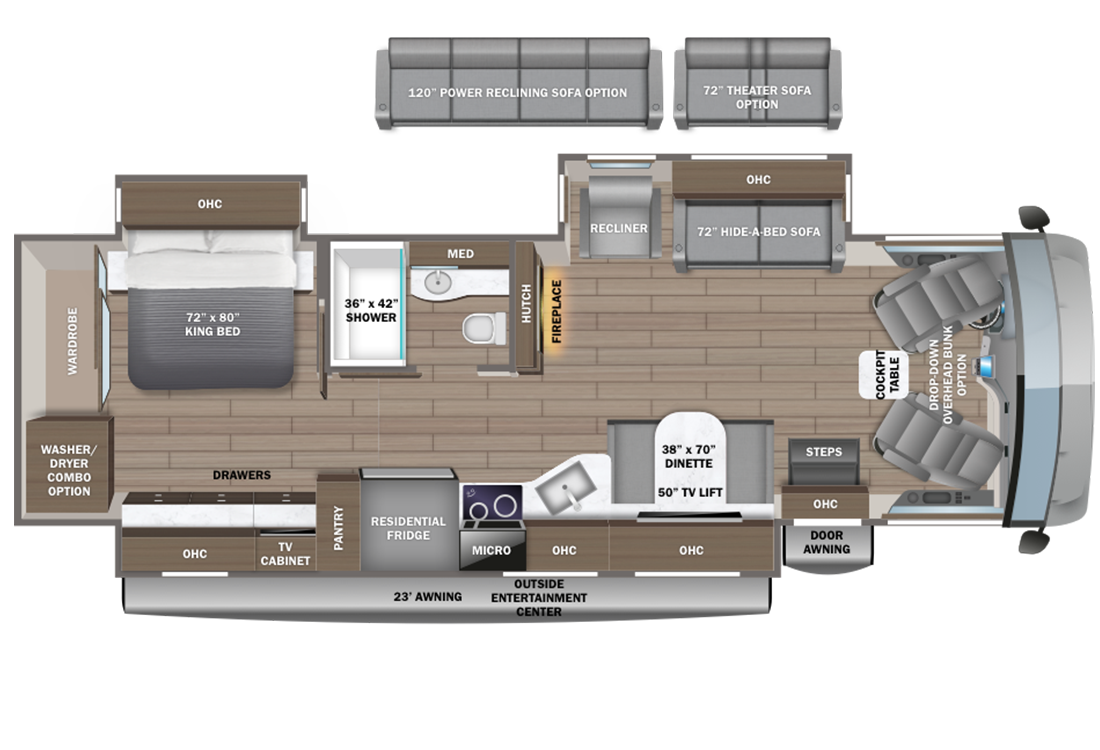

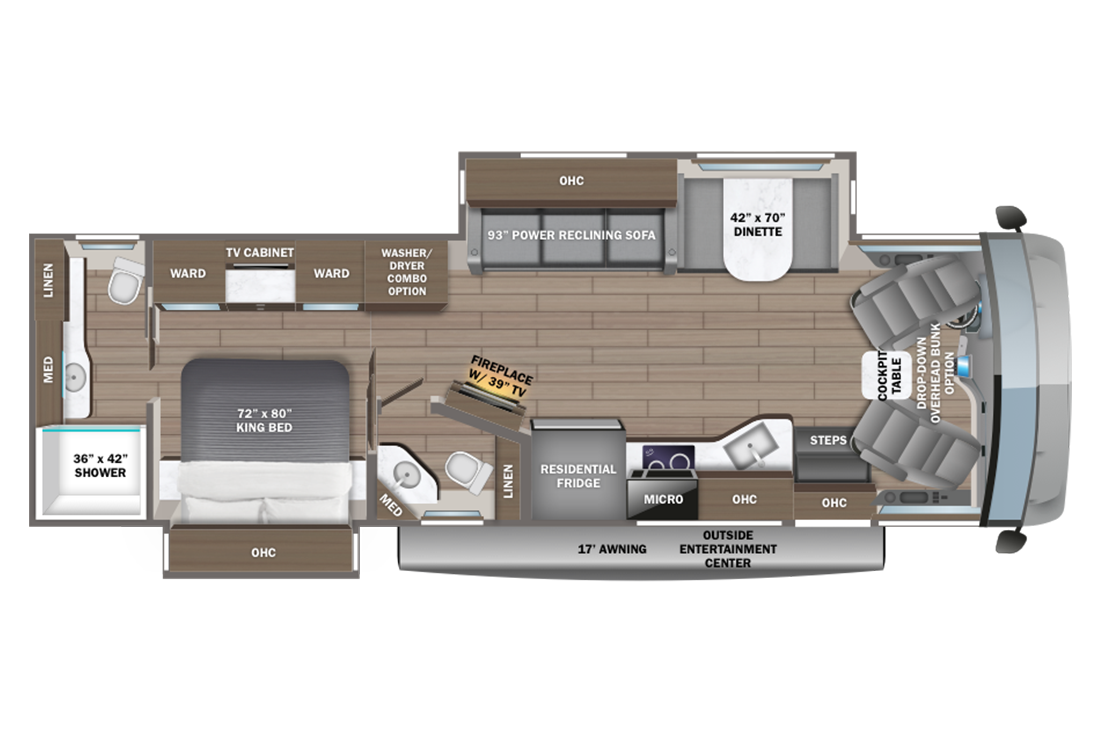

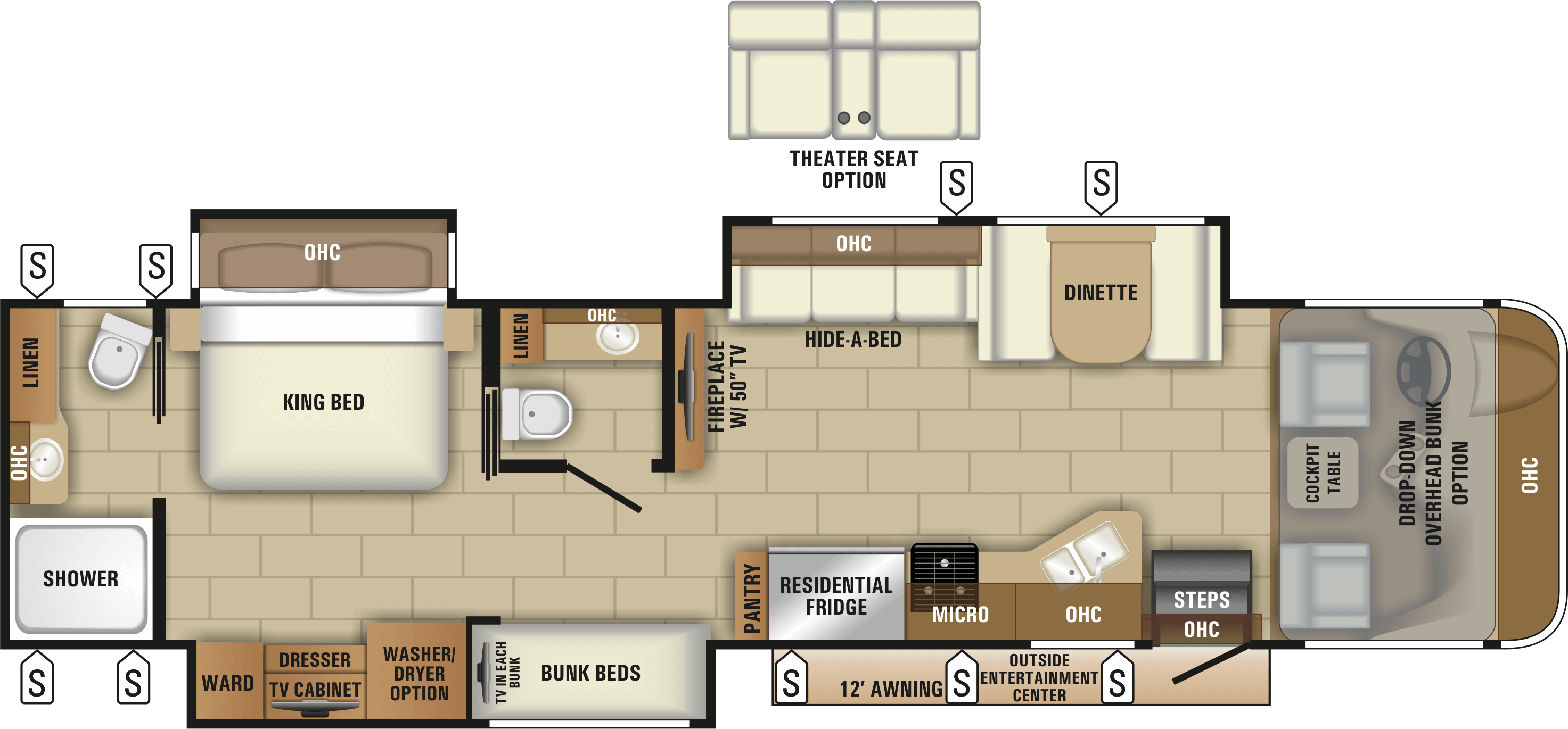

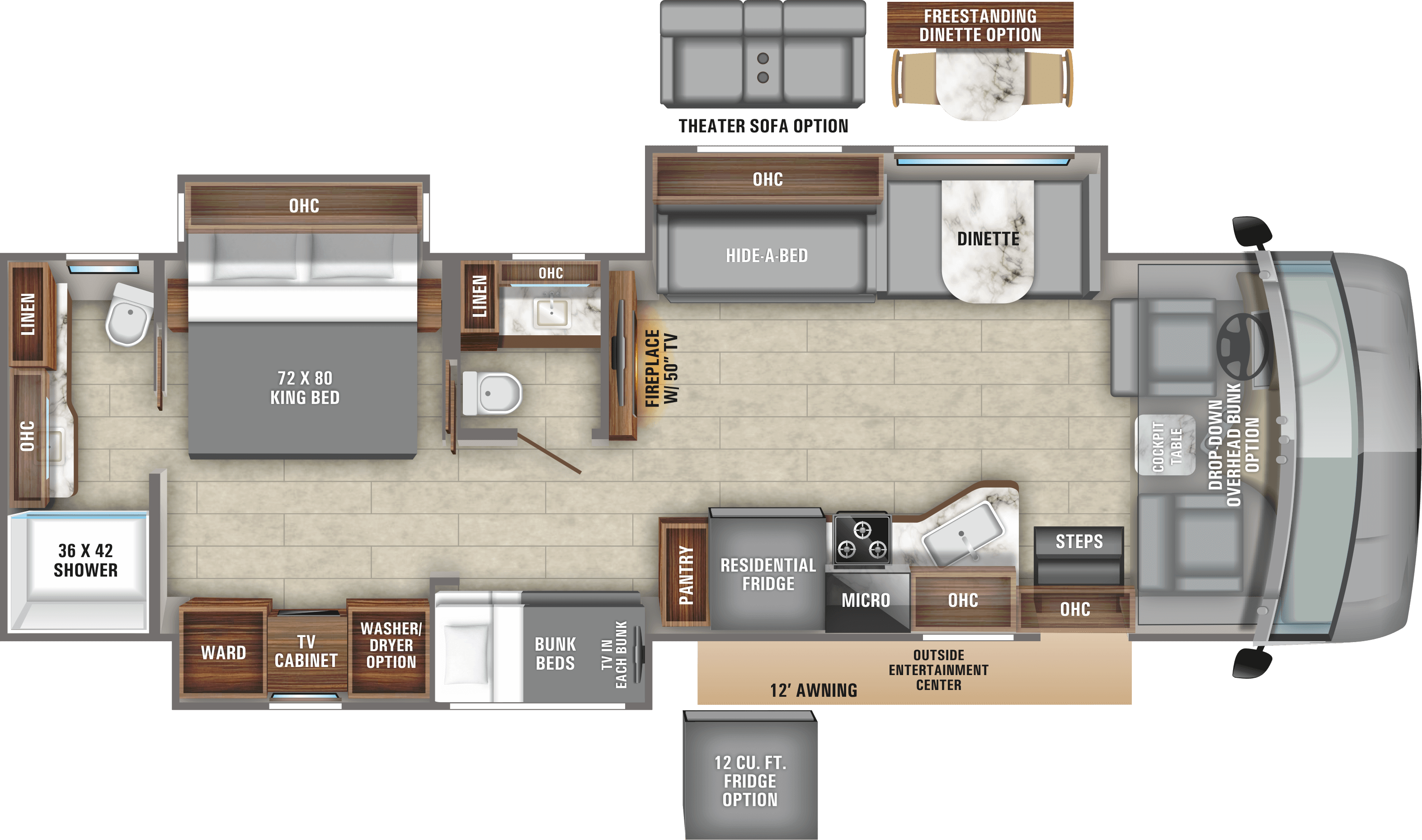

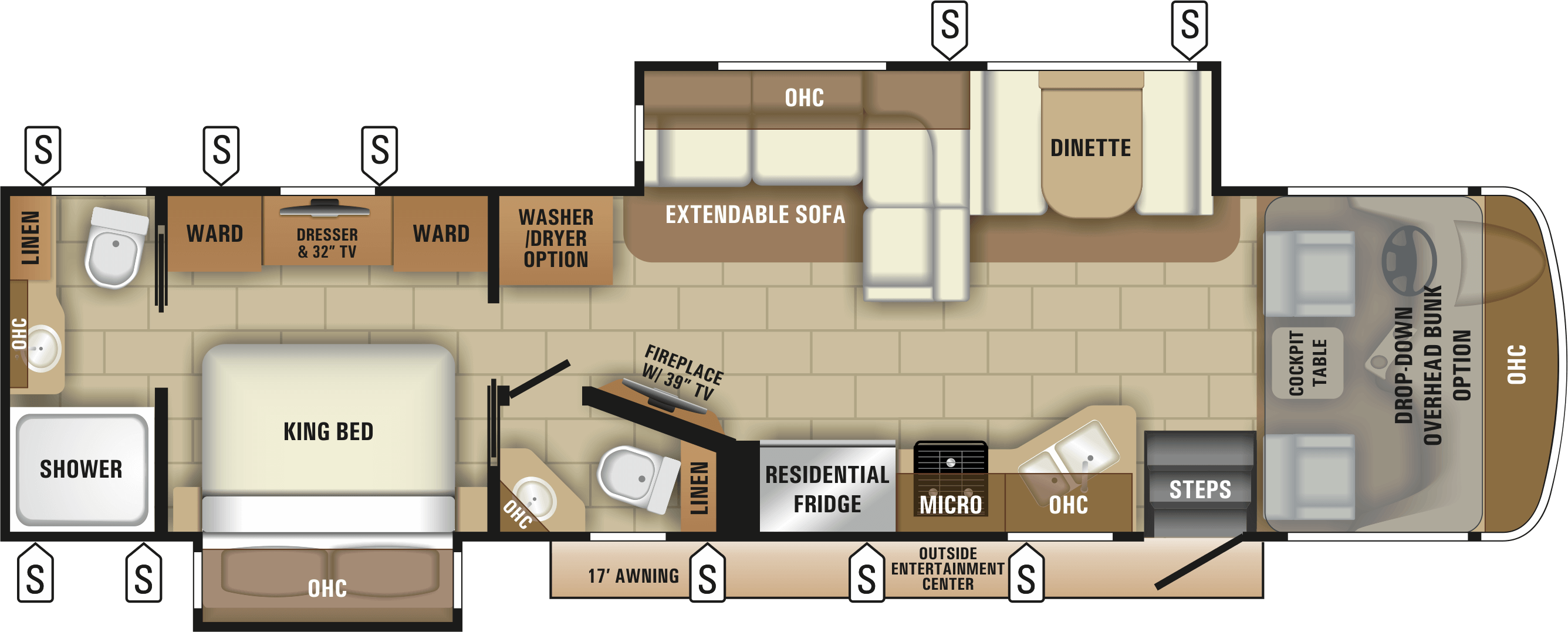

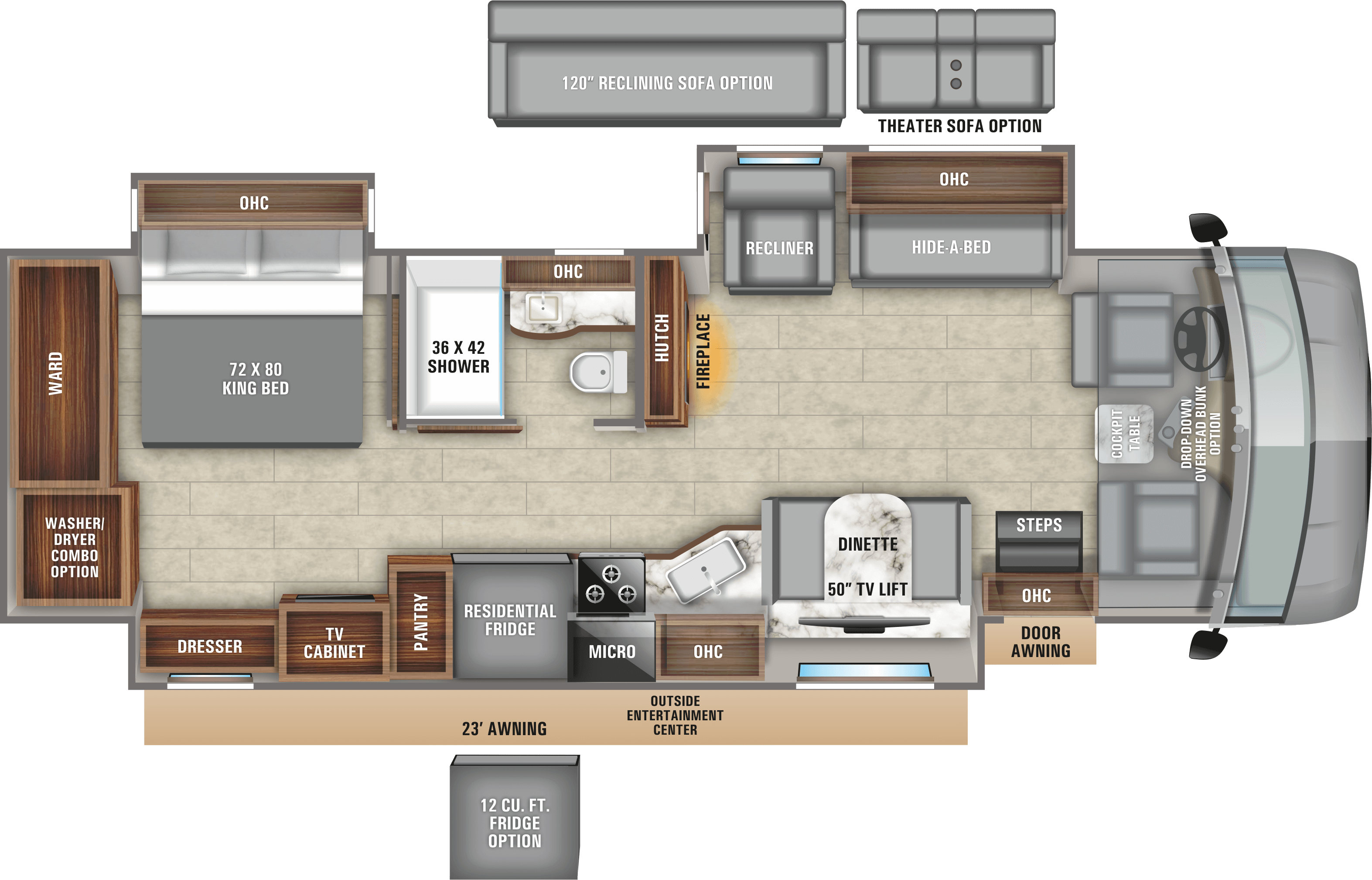

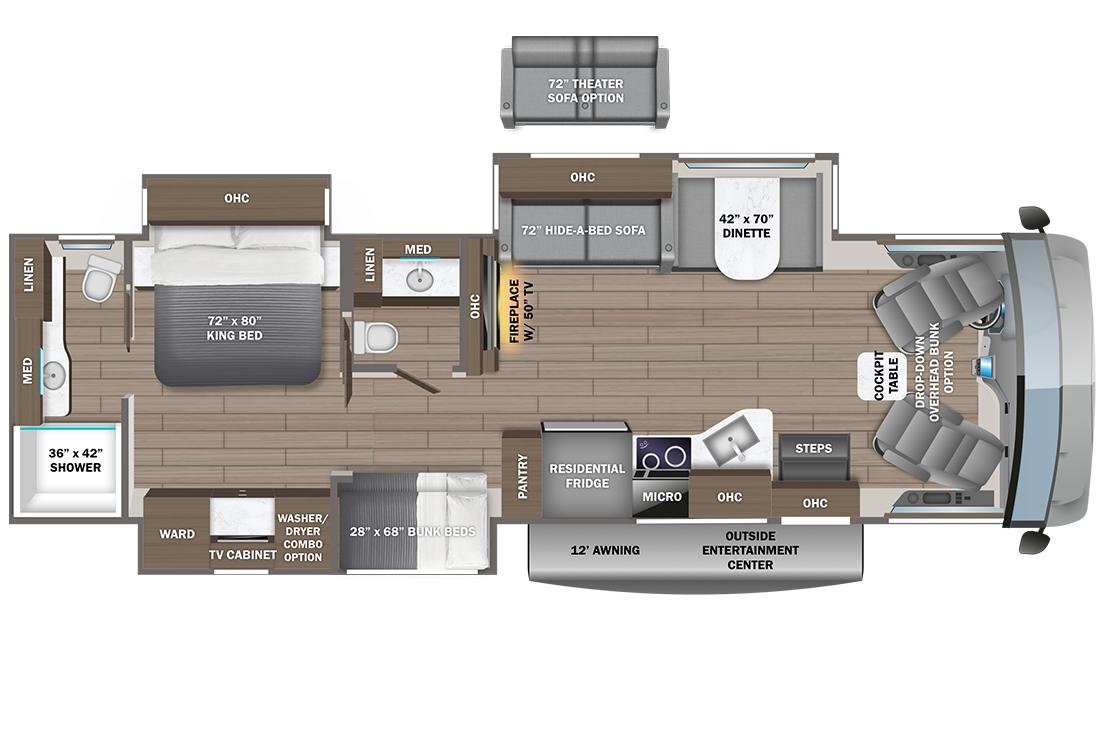

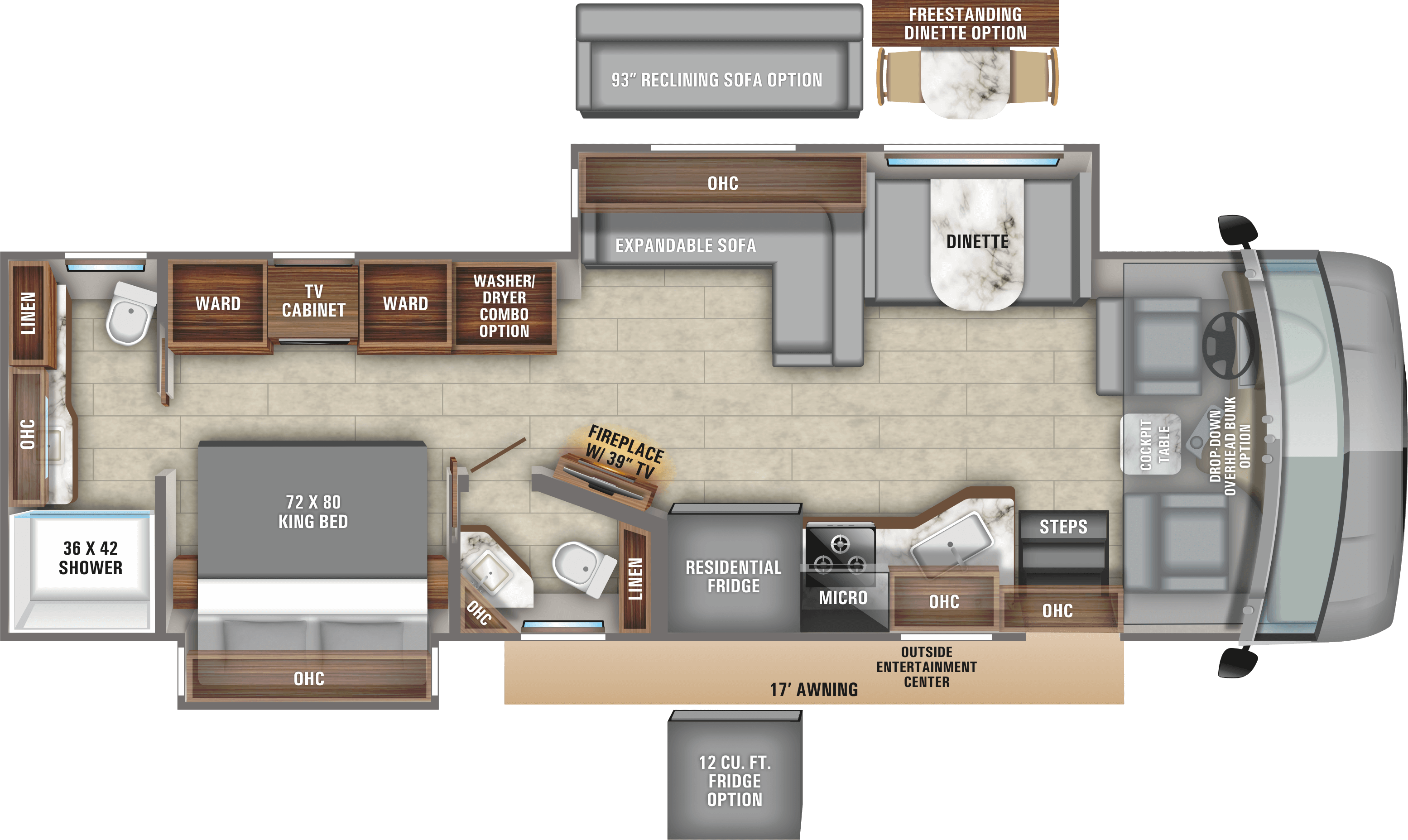

Floorplans

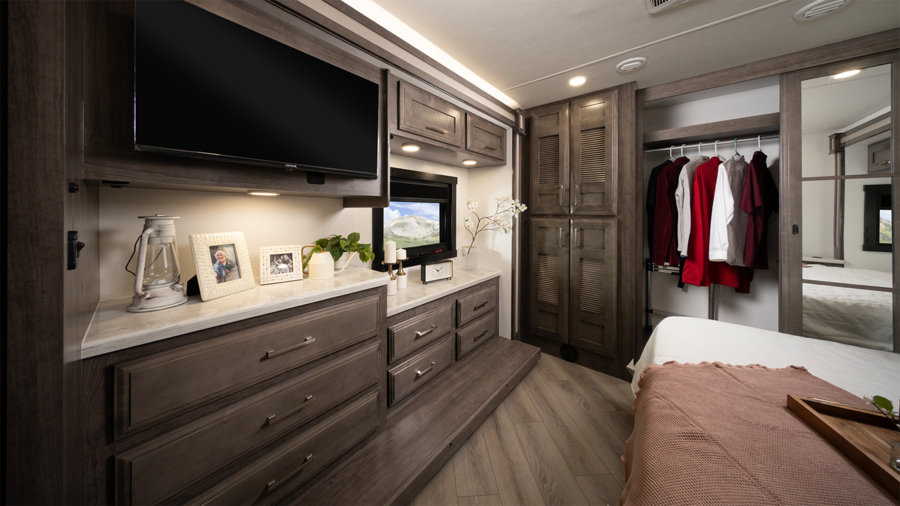

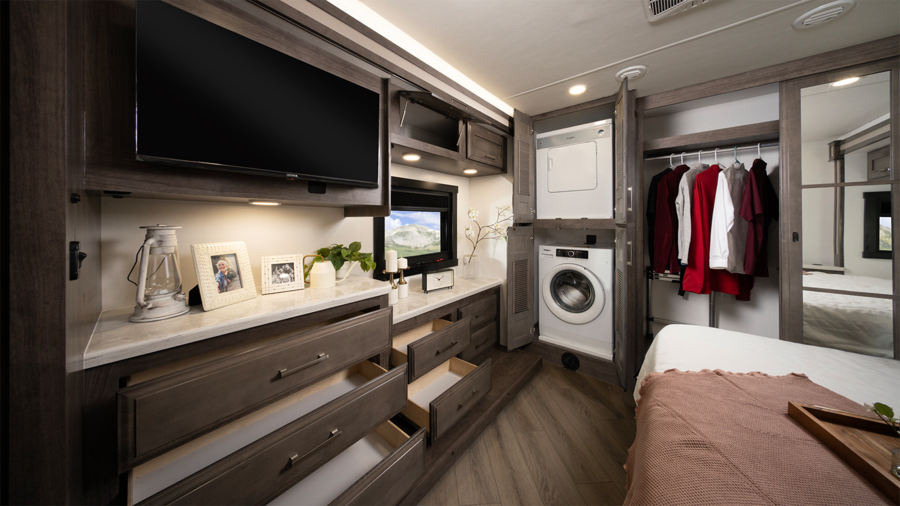

Ward = wardrobe

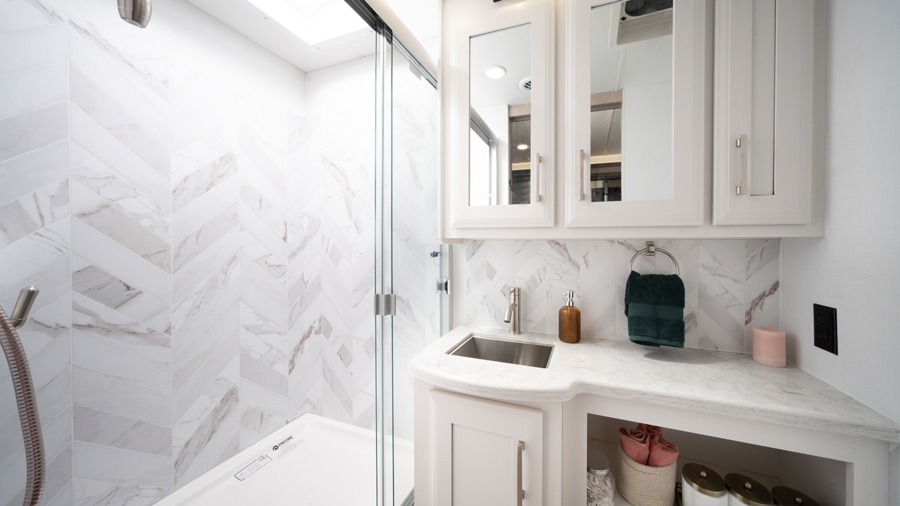

Lav = bathroom sink

Med = medicine cabinet

Ohc = overhead cabinets

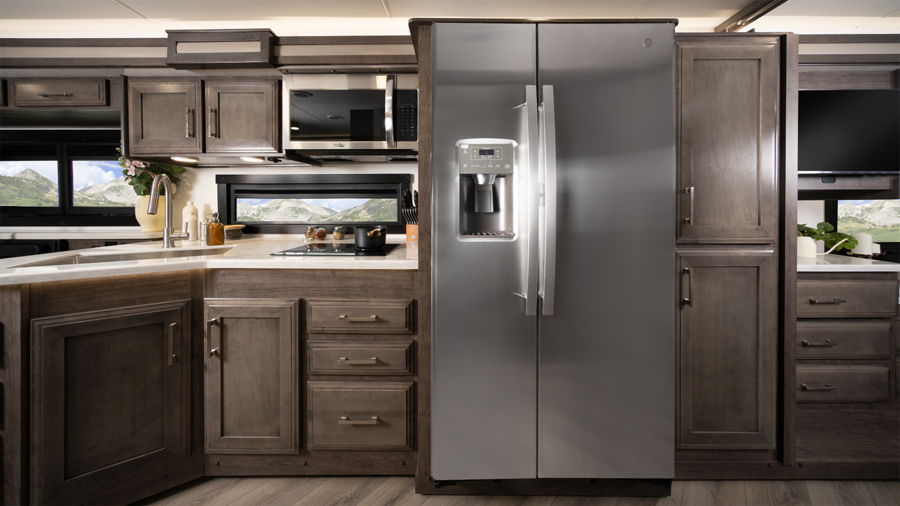

Fridge = refrigerator

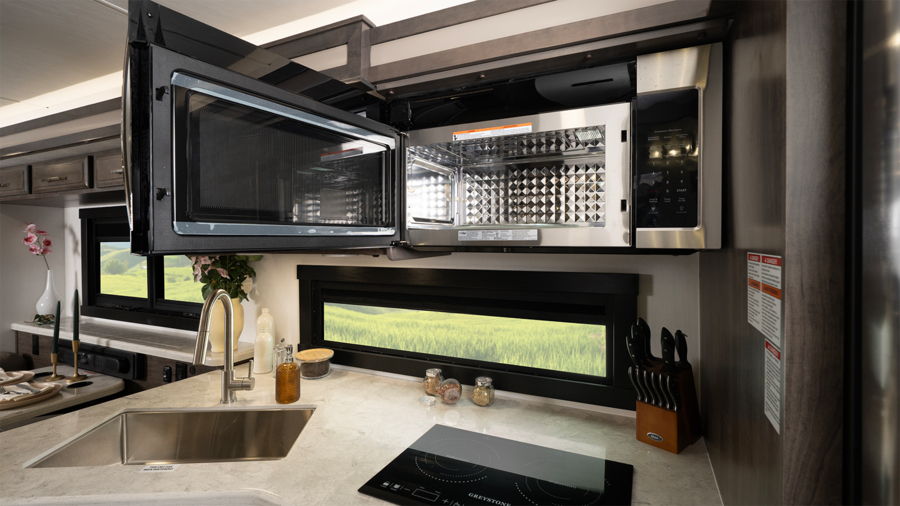

Micro = microwave

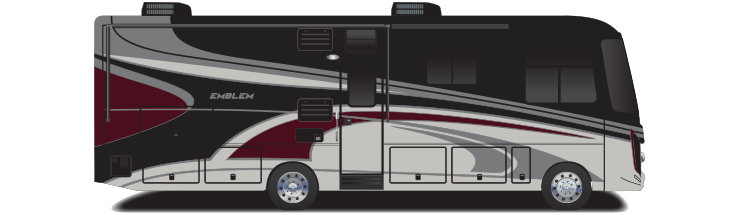

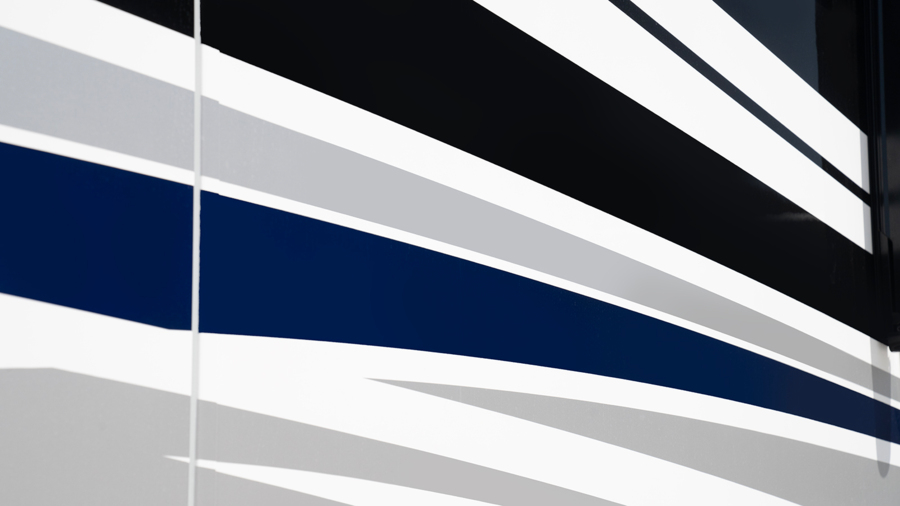

Exterior Graphics

Standards & Options

Chassis

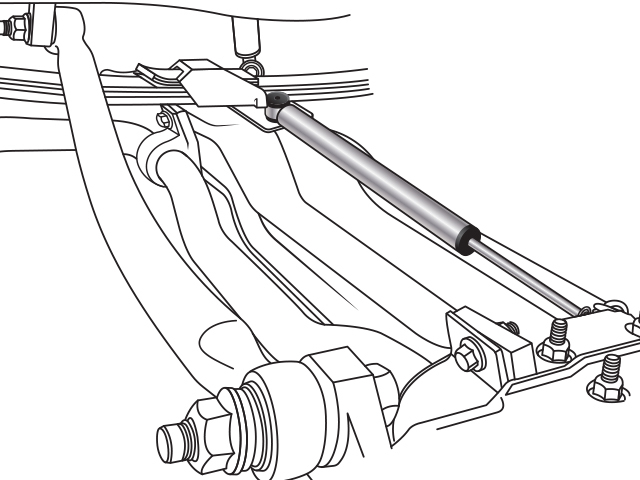

E-Z Drive Elite Heavy duty front and rear stabilizer bars, computer-balanced driveshaft, jounce bumpers, SACHS Shocks
Alternator 2019 chassis- 175 amp alternator; 2020 chassis- 210 amp alternator
Braking System Front and rear disc, 4-wheel anti-lock brakes
Chassis Ford F53 chassis
Chassis Battery 12V chassis battery
Engine 2019 chassis- 6.8L Triton V-10 320 HP gas engine with electronic fuel injection and 460 ft.-lb torque; 2020 chassis- 7.3L V-8 350HP engine with 468 ft.-lb torque
Hitch 5,000-pound rear hitch receiver with dual connector and 7-pin plug
Transmission 6-speed automatic TorqShift® transmission with overdrive and tow-haul mode

Construction

Exterior Walls High-gloss gel coat fiberglass walls
Front Cap One-piece fiberglass front and rear cap
Insulation Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls)
Roof Seamless, crowned fiberglass roof

Heat, AC, Water & Power

Air Conditioning 15,000-BTU A/C with heat pump & 13,500-BTU A/C
Batteries (2) 6V AGM Coach batteries
Generator Onan® Marquis Gold Genset 5,500-watt generator with auto-gen start
Heating System 35,000-BTU auto-ignition ducted furnace
Inverter 2000W Pure sine wave inverter
Propane 56-pound, 16.5-gallon propane tank
Water Filtration Water filtration system
Water Heater 10 gal gas/electric water heater
Water Pump 12V demand water pump

Exterior

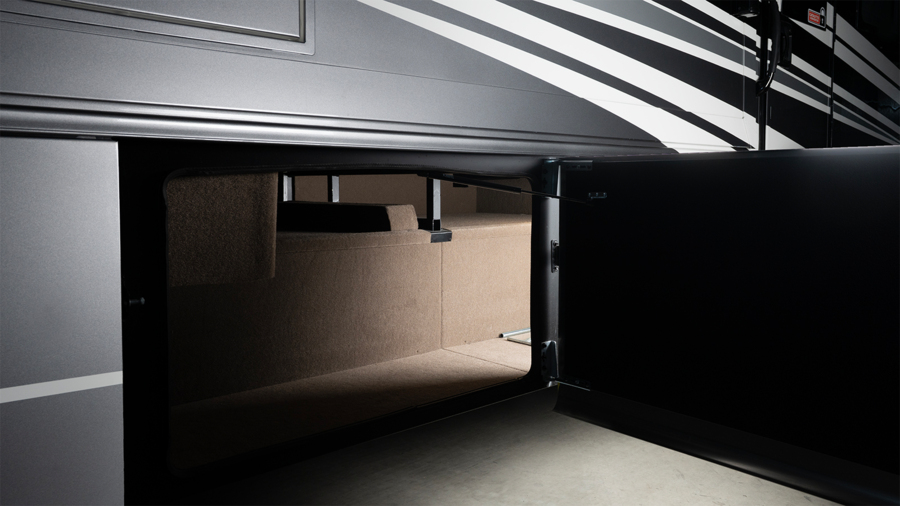

Cargo Features Lockable pass-through storage compartments with slam latches

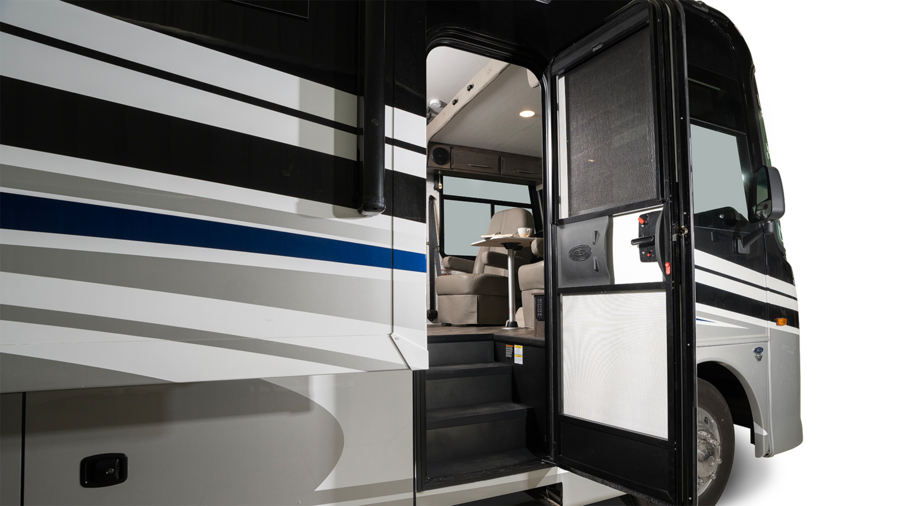

Entrance Door Entrance door with industry’s largest travel view window and shade/ Entrance door with large frameless window and keyless entry
Entrance Steps Electric-powered entrance step

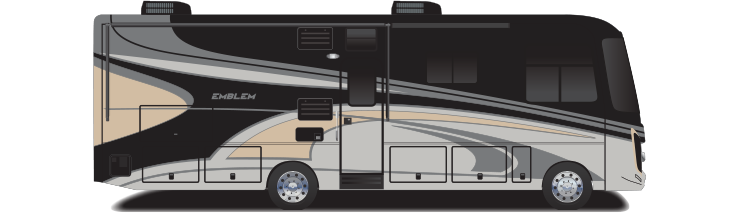

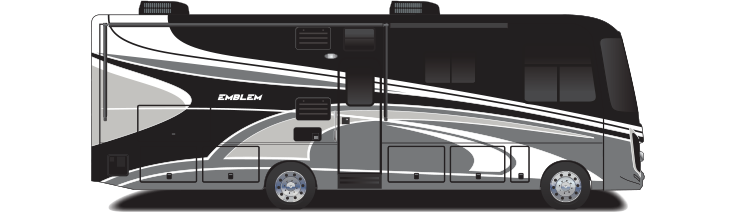

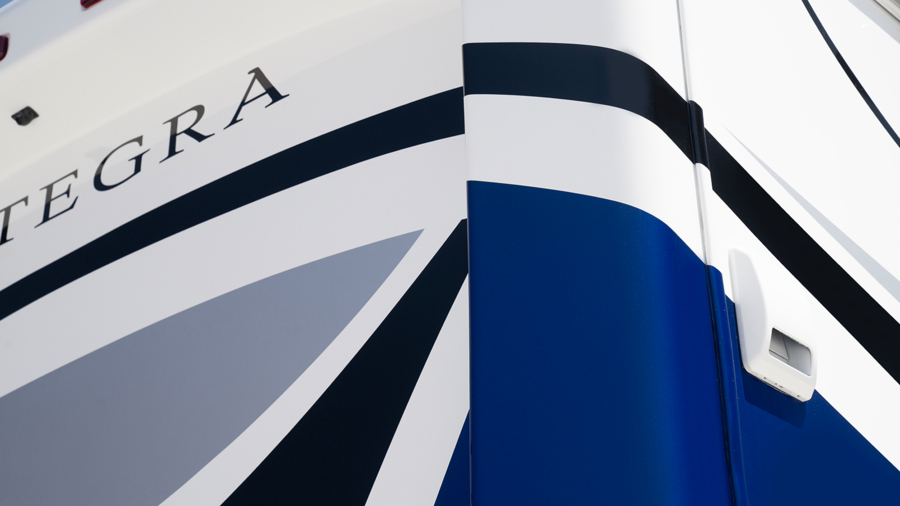

Exterior Full-body paint
Exterior Entertainment Exterior entertainment center with LED TV mounted on swivel bracket and single-disc DVD/FM radio
LED Lights LED marker lightss
Outside Shower Outside shower
Patio Awnings Electric patio awning with LED lights
Power Cord 50-amp electrical service
Satellite Dish Prep for satellite dish
Slideout Awnings Slideout topper awnings
Third Brake Light Third brake light
TV Antenna Digital antenna with signal booster
Windows Frameless windows

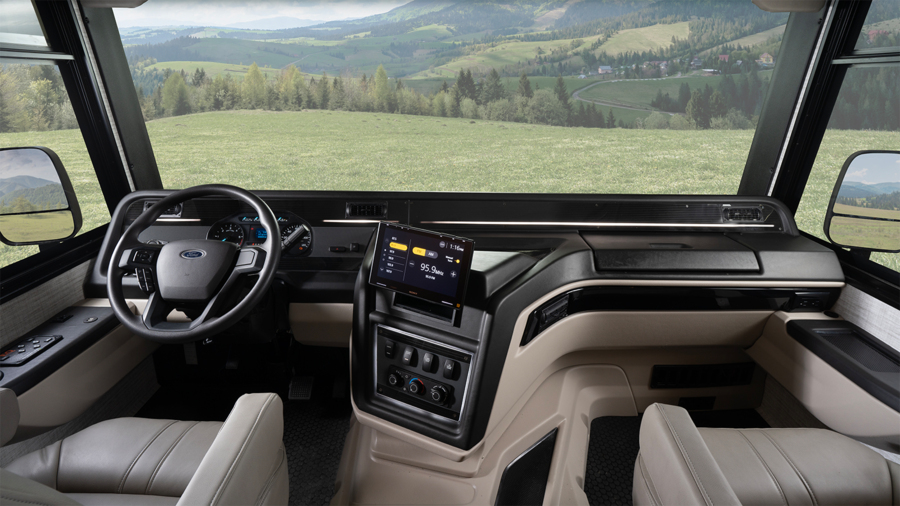

Cockpit

Cameras Backup and side-view cameras with monitor
Dash Soft-touch vinyl dash
Driver / Passenger Seats 6-way power, swivel driver and passenger seats
Flooring Linoleum flooring
Infotainment System(s) Sony in-dash radio w/GPS
Leveling System Automatic hydraulic leveling jacks
Side Consoles Driver/Passenger cockpit table
Visors & Privacy Shade Power sun shade on front windshield
Windshield 120" Panoramic windshield

Interior

Bunks Bunks—300-pound rating (36T)
Cabinetry Raised-panel hardwood cabinet doors
Ceiling 84-inch interior ceiling height with padded vinyl ceiling
DVD Systems
