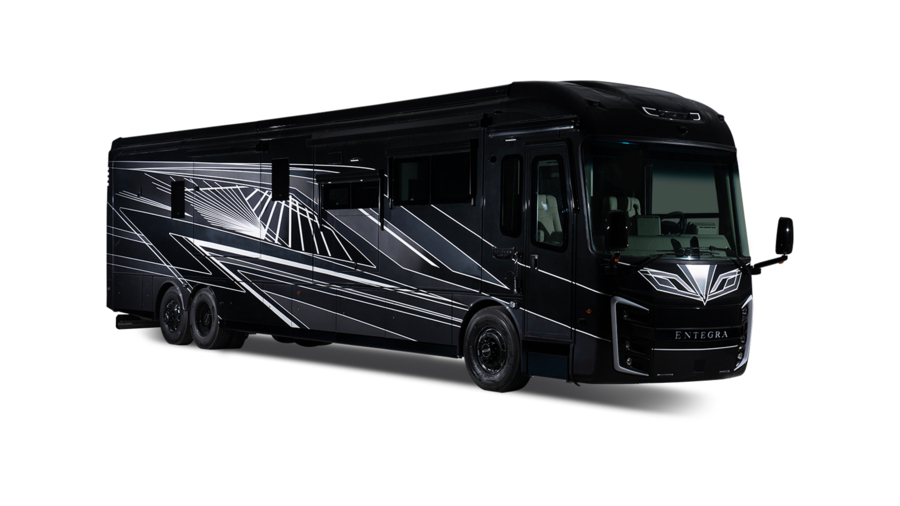

2022 Anthem







Now this is what we call riding in style. The Anthem will have you in awe at first sight—with upgraded Italian leather furniture, the latest in high-end interior design and tech to rival even the most state-of-the-art entertainment systems. In fact, new and improved Bose sound systems, Samsung® QLED TVs with enhanced picture quality and an iGO Primo navigation system with RV attribute routing all make the journey easier and more enjoyable. And with new exterior color schemes, you’ll have heads turning everywhere you go.

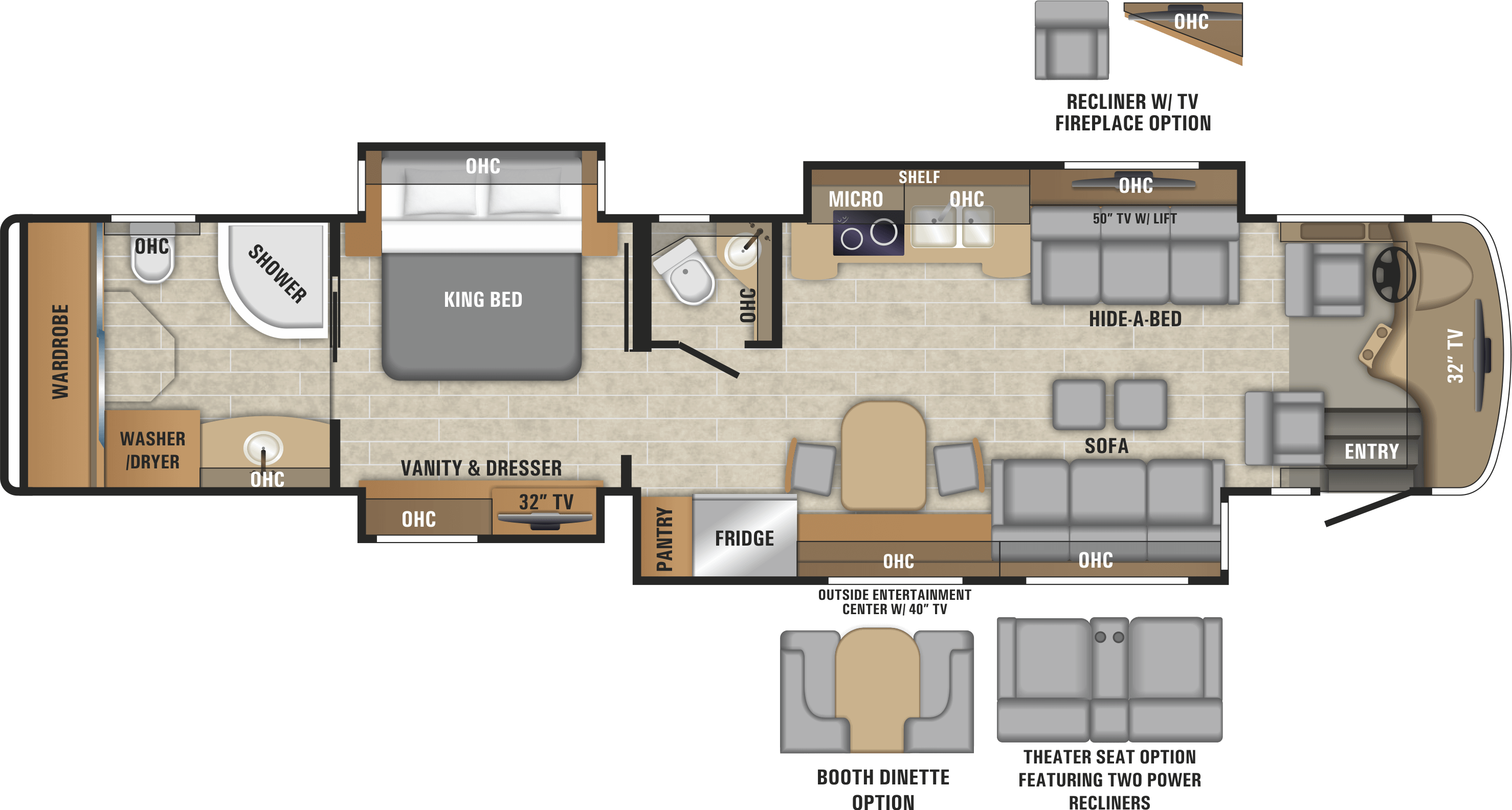

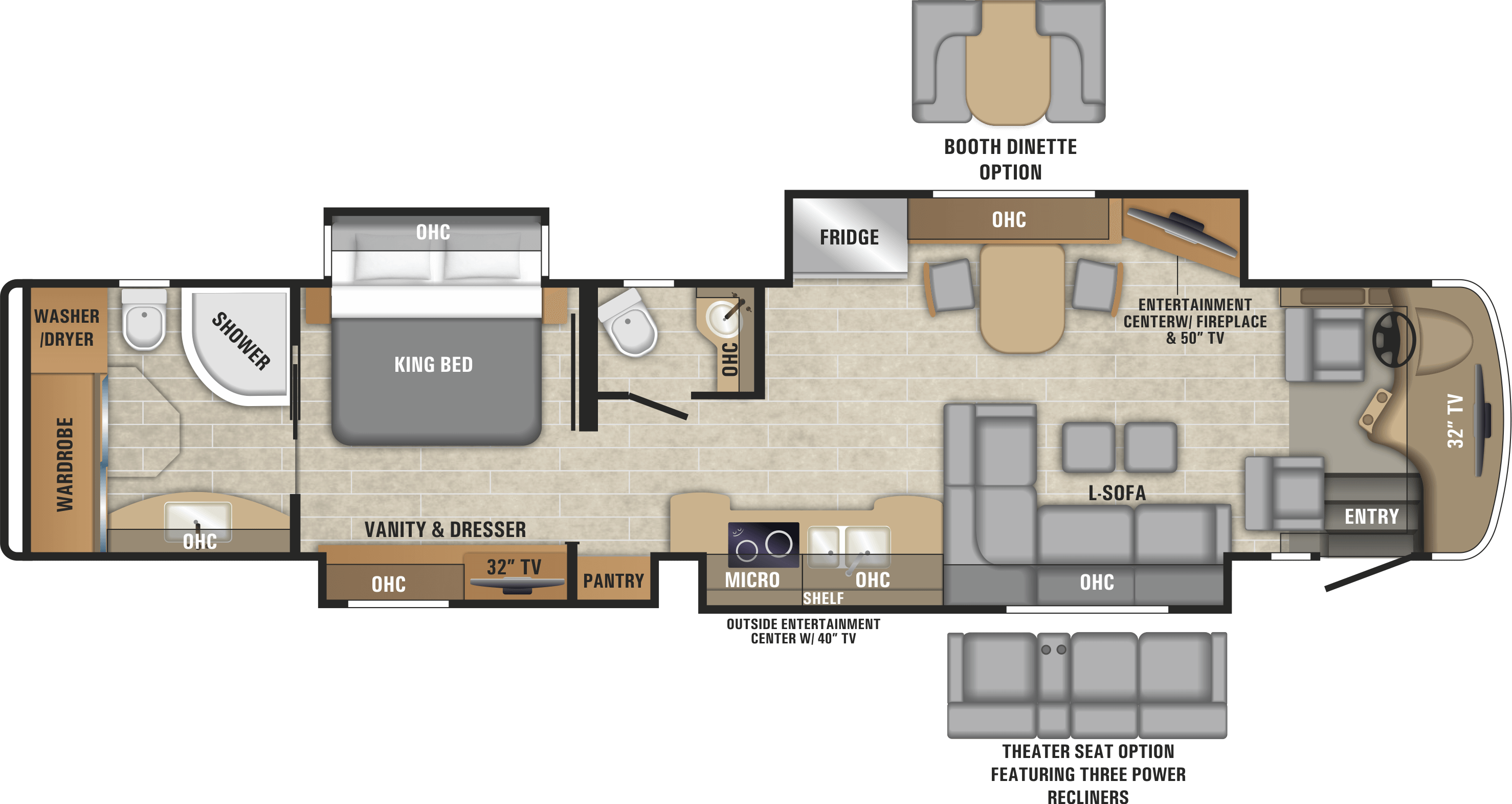

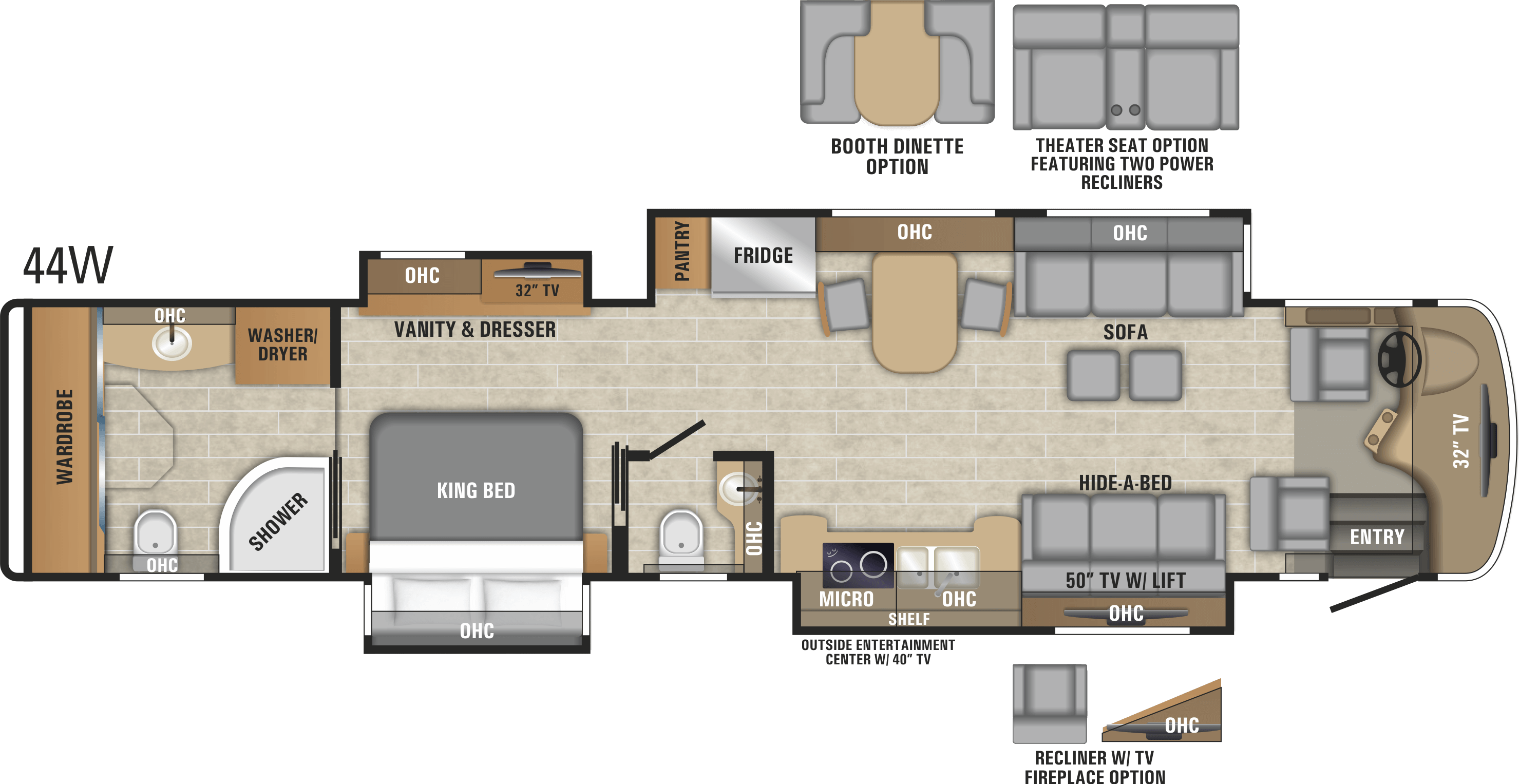

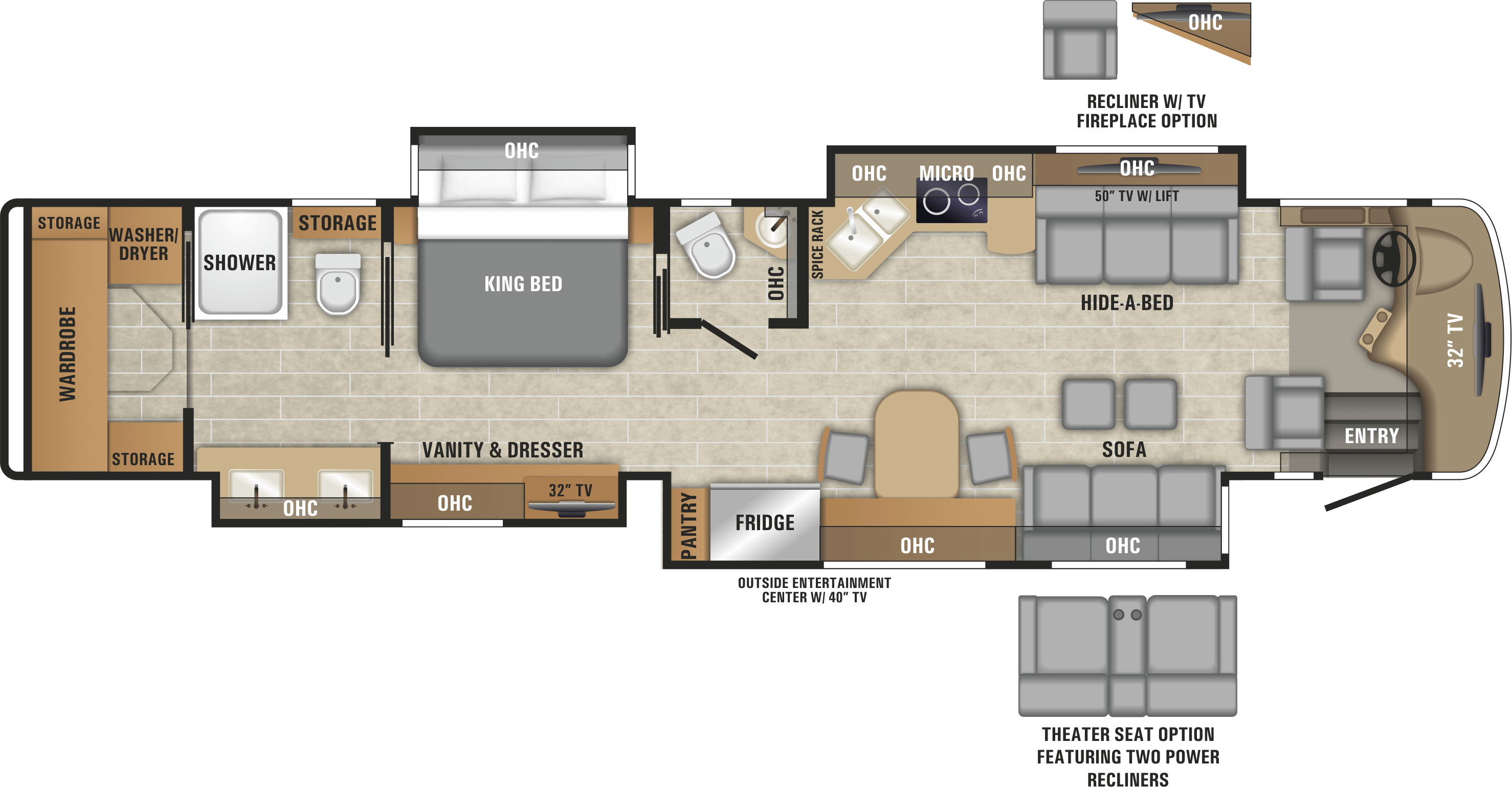

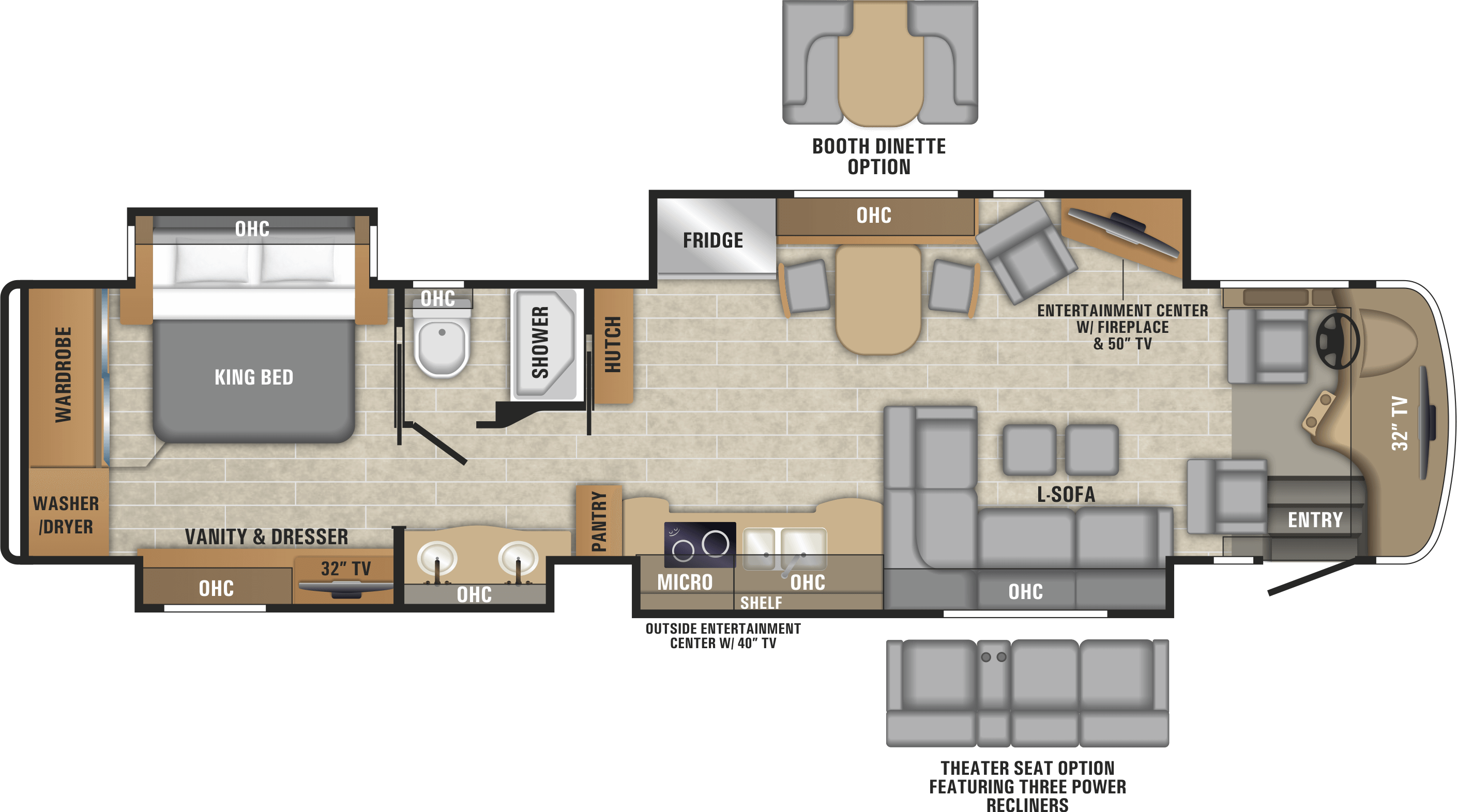

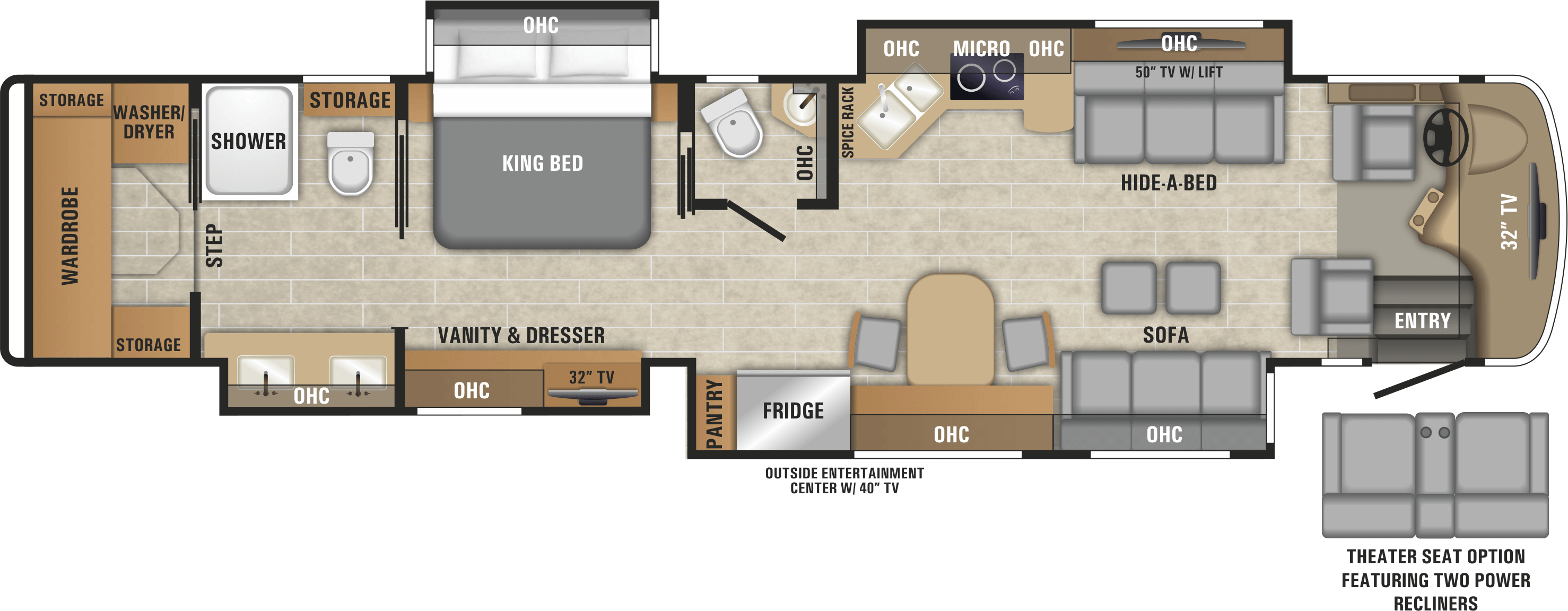

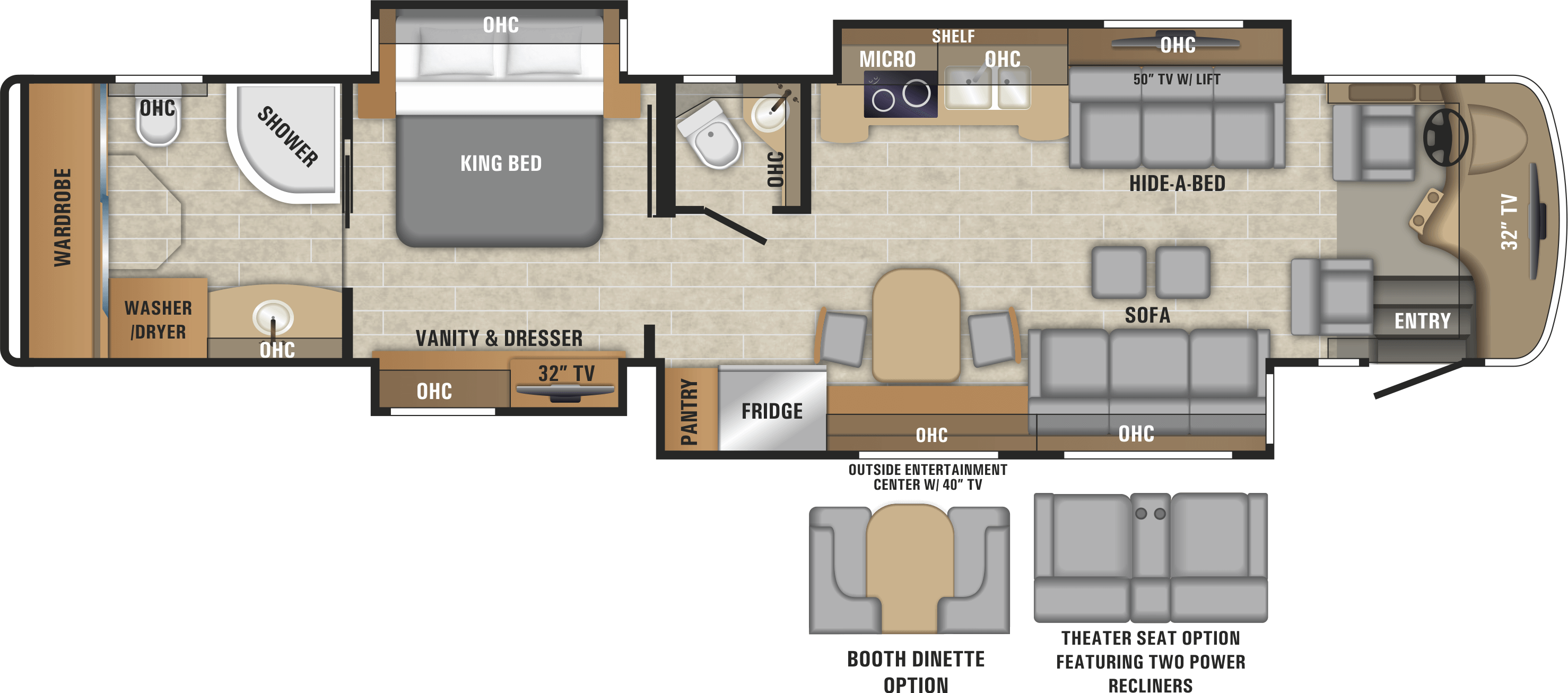

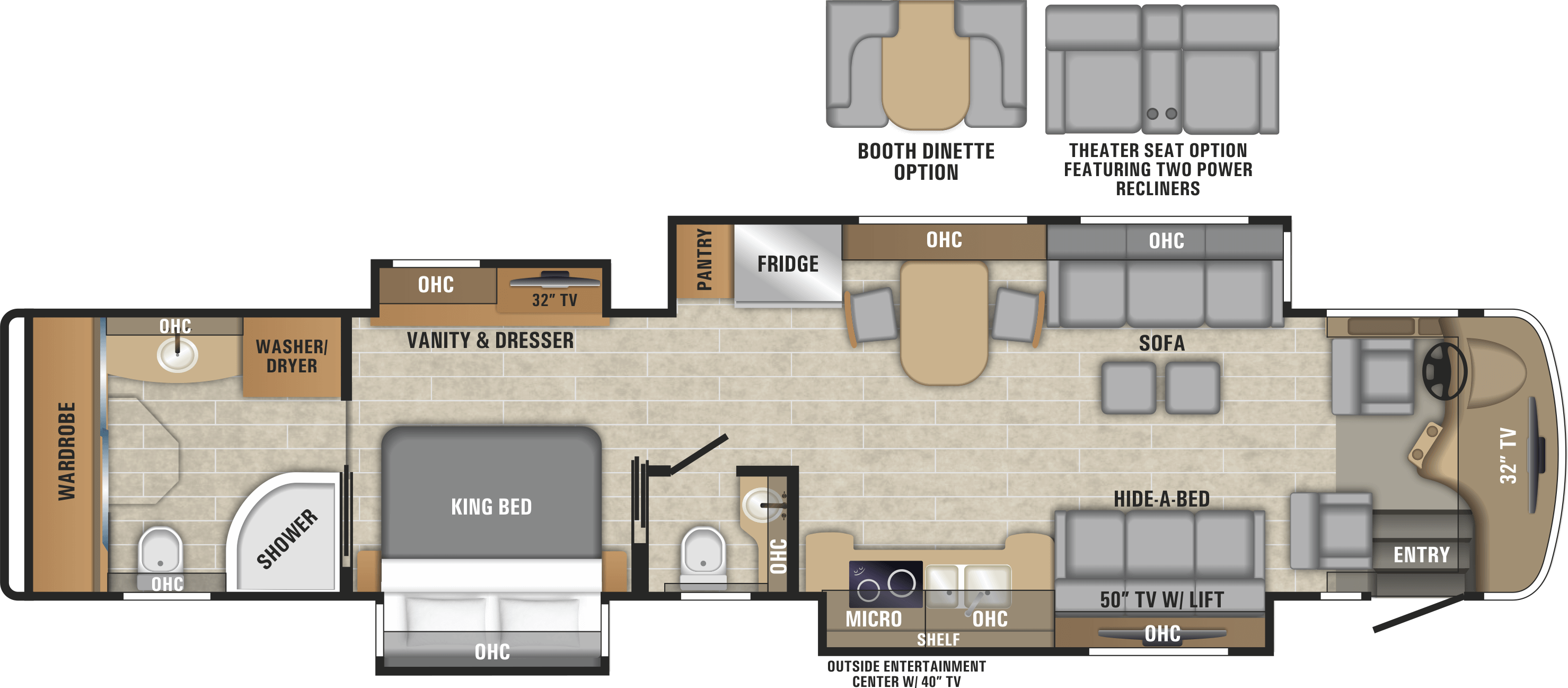

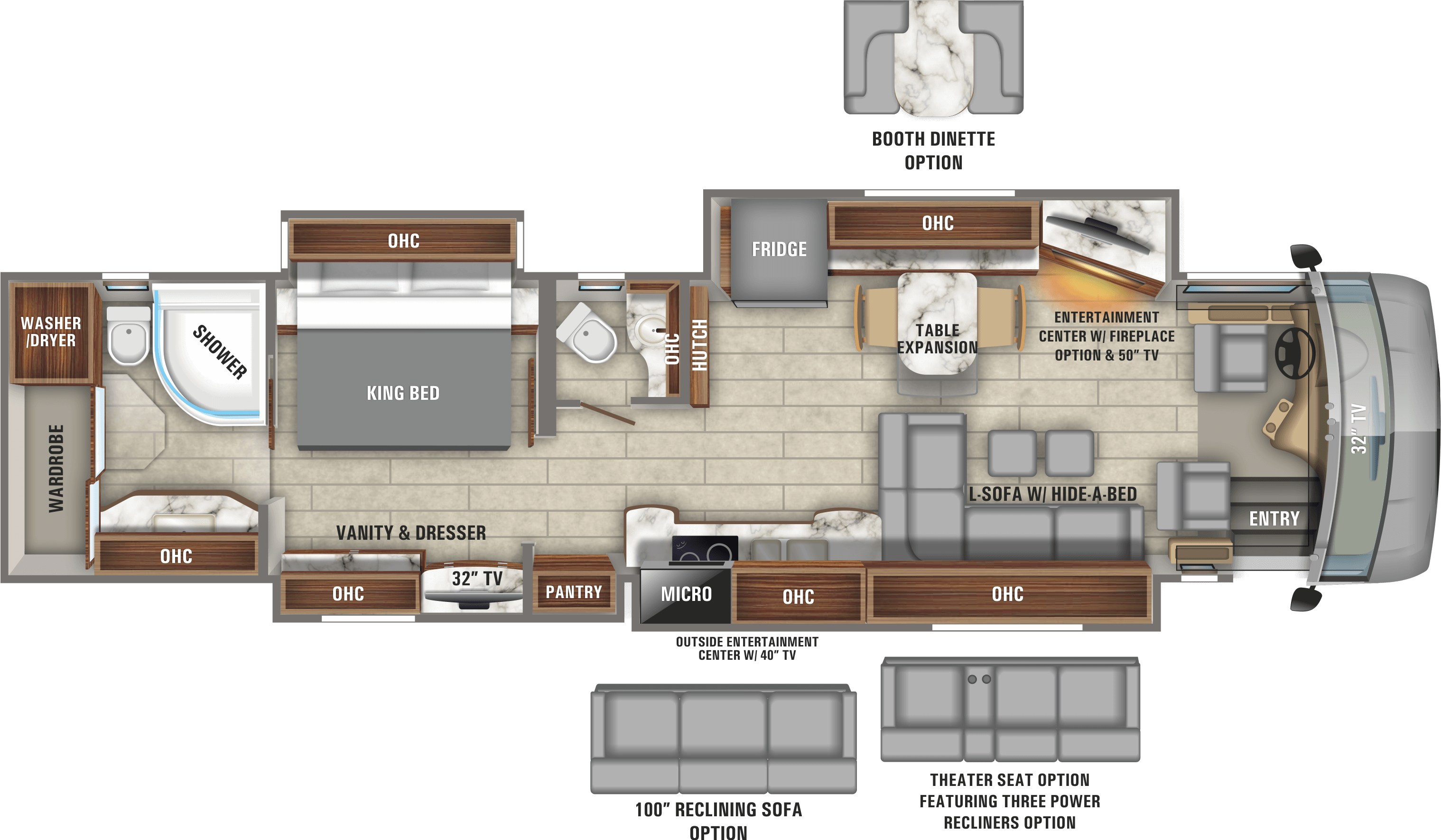

Floorplans

Ward = wardrobe

Lav = bathroom sink

Med = medicine cabinet

Ohc = overhead cabinets

Fridge = refrigerator

Micro = microwave

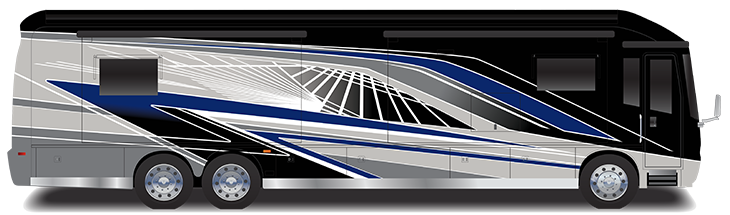

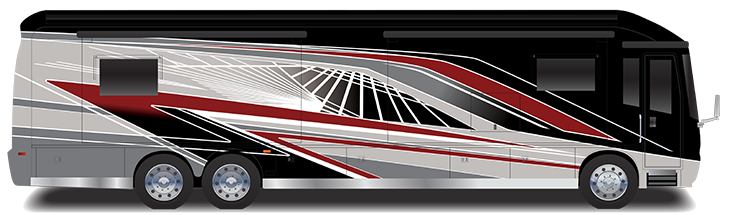

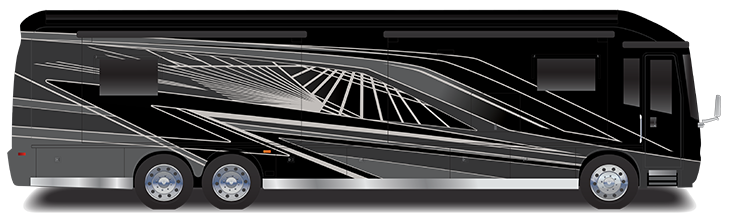

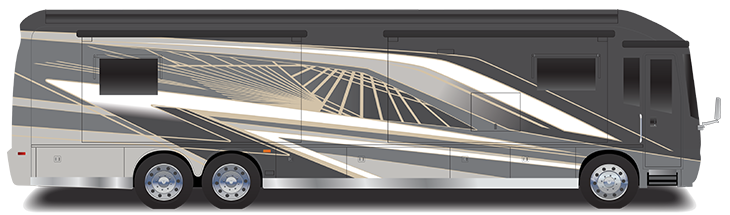

Exterior Graphics

Standards & Options

Chassis

Chassis Spartan® K2 raised-rail chassis

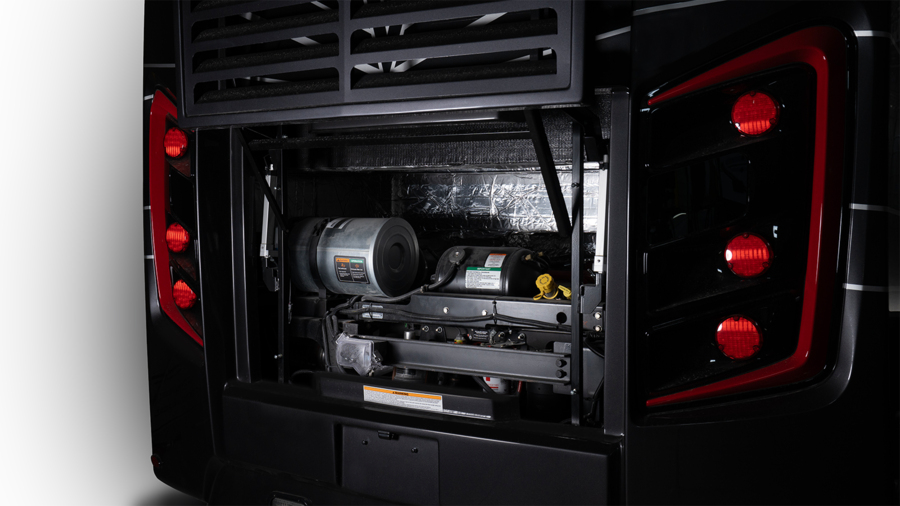

Engine Cummins® L9 turbocharged 450 HP engine with 1,250-lb. ft. torque at 1,400 RPM
Transmission Allison® 3,000 MH 6-speed transmission
Radiator Side-mounted, parallel-airflow radiator
Alternator 170-amp alternator
Engine Block Heater 1,000-watt engine block heater
Engine Brake Two-stage engine brake
Front Axle Reyco® Granning® front axle - 20,000 lb. rating
Front Suspension Independent front air suspension (IFS)
Rear Axle Meritor rear axle - 20,000 lb. rating
Tag Axle Tag axle with air dump - 12,000 lb. rating
Braking System ABS disc brakes on front axle, drum brakes on drive and tag axle
Rear Axle Ratio 4.88 rear axle ratio
Tires Michelin® XZA 365/70R 22.5” tires (front) and XZA 315/80R 22.5” tires (rear)
Shocks Bilstein® shocks- 60mm front axle & 46mm rear/tag axles
Tire Pressure Monitoring Tire pressure monitoring system (TPMS) with temperature monitoring
Traction Control Automatic traction control
Leveling System Equalizer™ hydraulic automatic coach leveling
Air Leveling Valid Truline air leveling system with auxiliary air compressor
Air Connection Remote air connection
Chassis Battery (2) 12V chassis batteries
Fuel Tank 150-gal. fuel tank with dual fills
DEF Tank 15-gal. DEF tank with dual fills (single fill on 44R)
Tow Air Brake System Spartan® Safehaul tow vehicle air brake system
Hitch 15,000-lb. hitch with 7-pin plug

Construction

Floor 2" x 4" wood trusses on 16" centers or less filled with bat and Flexfoil insulation then topped with 3/4" 7-ply plywood decking (R-33)
Frame X-Bridge™ bracing welded into chassis frame
Front Cap Insulated front and rear caps (R-24) with steel-reinforced front cap and windshield frame
Roof 4" arched aluminum trusses filled with bat insulation and reflective Flexfoil® topped with 3/8" plywood decking then one-piece fiberglass
Slideouts Entegra-exclusive Relia-Torque flush-mounted 12V slideout system with VegaTouch and rocker switch controls
Walls 2-1/2" exterior walls with Aluma-Tru™ welded tubular aluminum studs on 16" centers or less filled with bat and Flexfoil insulation then covered with high-gloss gelcoat

Heat, AC, Water & Power

Heated Tanks Aqua-Hot® heated basement storage
Generator Onan® 12,500-watt diesel generator, with automatic start, on powered slide-out tray
Batteries (4) L16 AGM batteries (6V/390 amp hrs. ea.)
Electrical Hookup 50-amp power cord on electric powered reel
Power Management Smart automatic transfer switch with surge protection
Air Conditioning (3) 15,000-BTU A/C units with heat pumps and condensation drain system
Heating System Aqua-Hot® 450D hydronic water and heating system with in-floor heat throughout and engine preheat
Black Tank Management Sani-Con® Macerator holding tank dump system with manual gate valves, manual backup and metal door
Black Holding Tank Sprayer Black holding tank sprayer
Water Filtration City and tank water filtration system
Winterization Drain System Winterizing drain system
Water Monitoring Trutank™ ultrasonic tank monitoring system displayed on VegaTouch screen
Water Hose w/ Electric Reel Water hose with electric reel
Inverter 3,000-watt pure sine wave inverter

Exterior

Stainless Steel Accents Premier Bus Armor 8” stainless-steel trim
Engine Door Power rear engine door with manual override

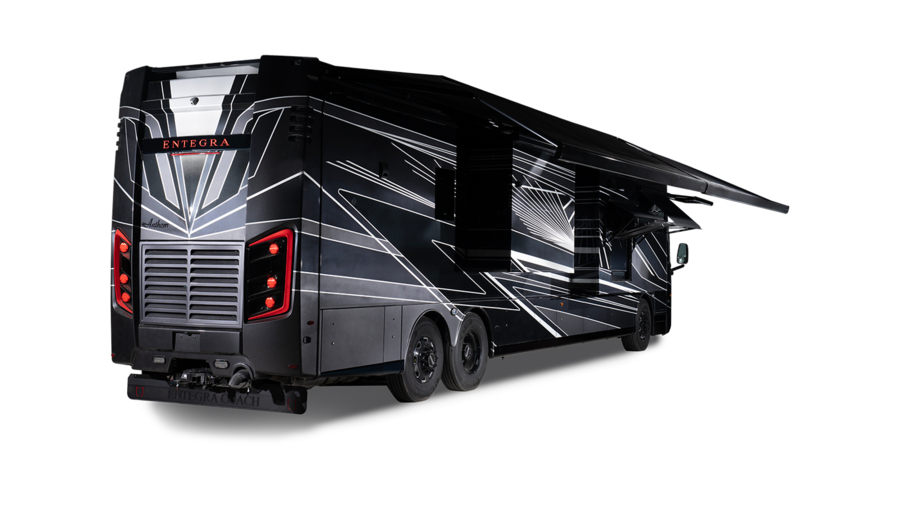

Patio Awnings Dual roof-mounted Girard® Vision dual-pitched patio awnings with LED lights
Door Awning Girard® power entrance door awning with LED lights
Slideout Awnings Girard® Ultra slideout awnings
Window Awnings Girard® Ultra power window awnings
Windows Frameless, dual-pane, tinted, safety-glass windows
Keypad Handle Lit grab handle with doorbell and keypad system for keyless entry
Exterior Entertainment 43” Samsung® QLED 4K UHD Smart TV with tilt, swivel, and extend adjustment; JBL radio and speakers with USB port and receptacle
Mirrors Chrome, heated, remote-control, side-view mirrors with integrated cameras and blind-spot indicators
Exterior Diamond Shield™ front protective film mask
Headlights LED high and low beam headlights and fog lights
Daytime Running Lights Daytime running lights
LED Lights LED marker lights, turn lights, license plate light, third brake light, accent lights and docking lights
Accent Lights LED accent lights under passenger slideout rooms
Clearance Accent LED-lit chrome clearance accent light
Rear Mudflap Mudflap with chrome “Anthem” nameplate
Satellite Dish - US Winegard® TRAV’LER satellite dish DIRECTV® - standard with USA option
Satellite Dish - CA Winegard® TRAV’LER satellite dish Shaw TV - standard with CSA option
TV Antenna Winegard® Rayzar Automatic powered TV antenna
WiFI Winegard® WiFi extender with 4G/LTE
Utility Center Heated exterior utility center with 5” LED Firefly® tank monitoring panel
Cargo Features Power slideout basement storage tray; Push-button power-unlatching baggage doors with LED indicator light
Paint Sikkens custom full-body paint
Entrance Door Removable screen on entry door

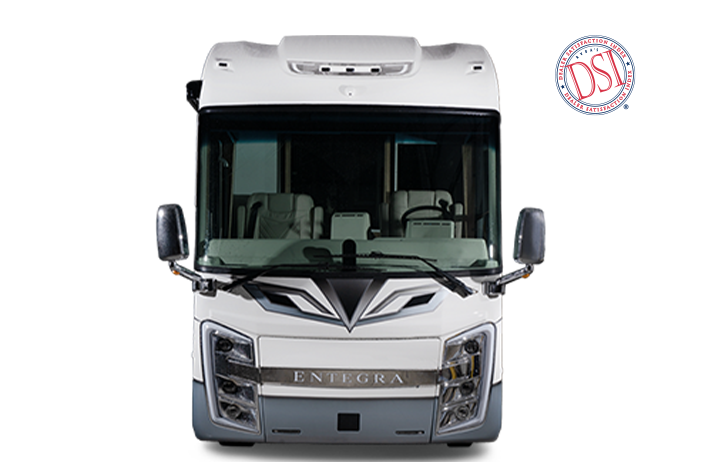

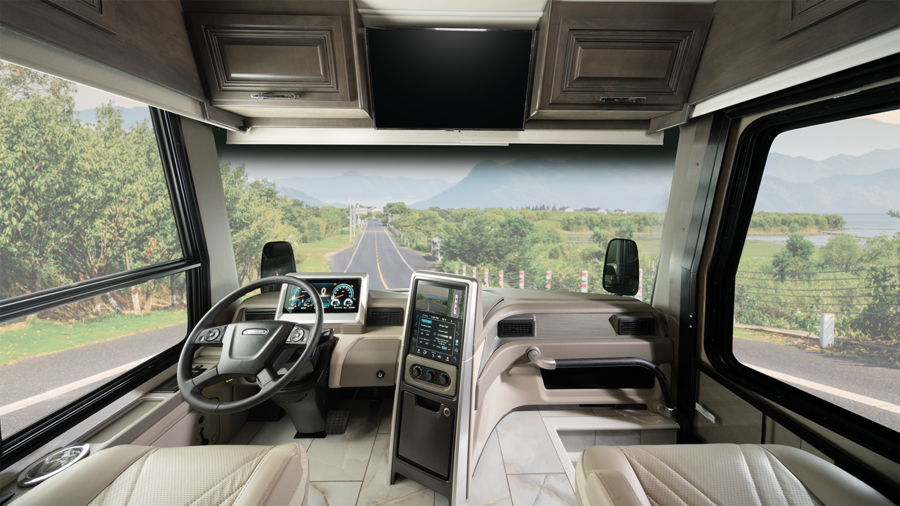

Cockpit

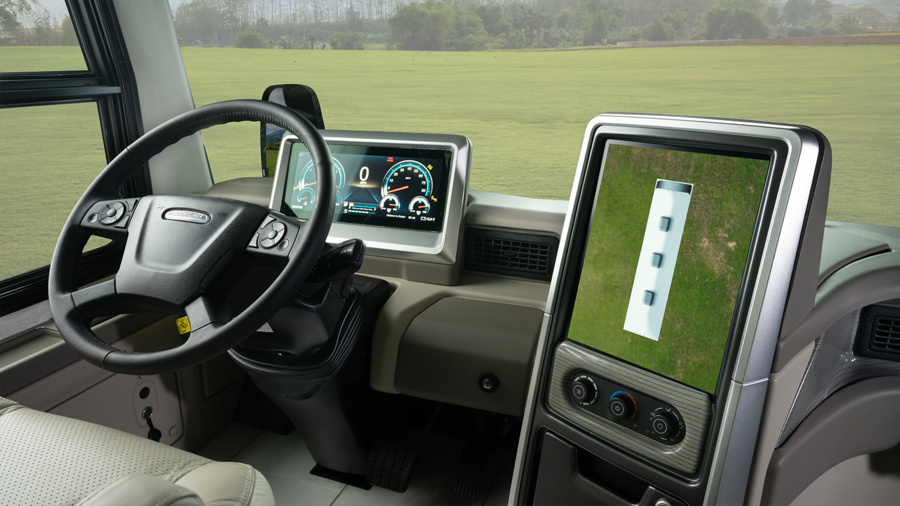

Dash Valid 15" digital dash with quad core graphics processor, on-board diagnostics, selector knob and ability to display traditional instument cluster, 360° camera system or GPS navigation
Cameras Xite™ 360° HD digital camera system
Infotainment System(s) Xite™ XSG4 infotainment system with dual 9" touchscreens, iGO navigation, Bluetooth®, Sirius XM™ and AM/FM tuner, integrated camera control, house mode whole-coach audio distribution and integrated VegaTouch coach control
Driving Features E-Z Steer™ adjustable power steering assist
Steering Wheel Steering wheel with integrated controls for cruise, wipers, radio and Bluetooth® phone functionality
Steering Column Power tilt and telescoping steering column
Sound System JBL® premium audio 11-speaker sound system with amplifier, speakers and DVC subwoofer
Windshield Ultra-Vision® one-piece wrap-around tinted windshield
Driver / Passenger Seats Villa® heated leather driver and passenger seats with powered 6-way adjustment, lumbar, recline and footrest functions
Power Features Powered flush stepwell cover
Pedals Powered adjustable brake and accelerator pedals
Visors & Privacy Shade Powered front sun visors and privacy shades
Additional Amenities (2) dual USB ports and (2) 12V sockets for charging

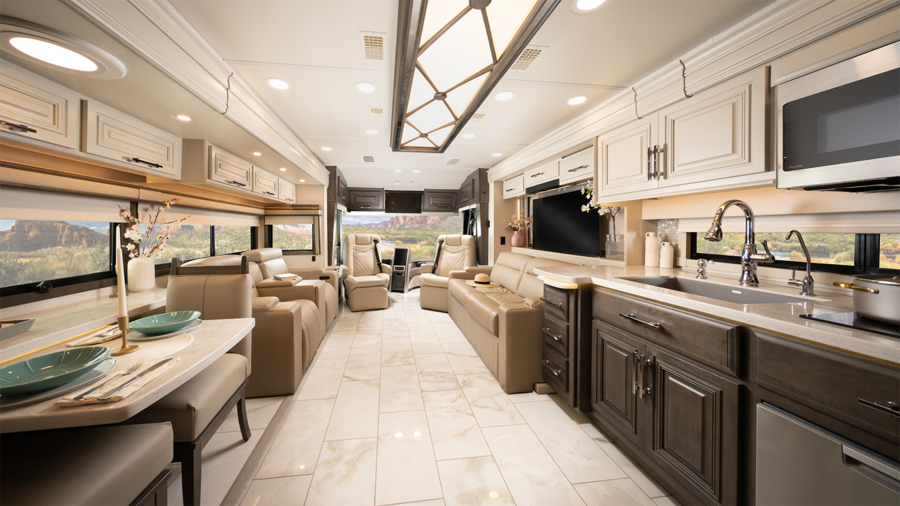

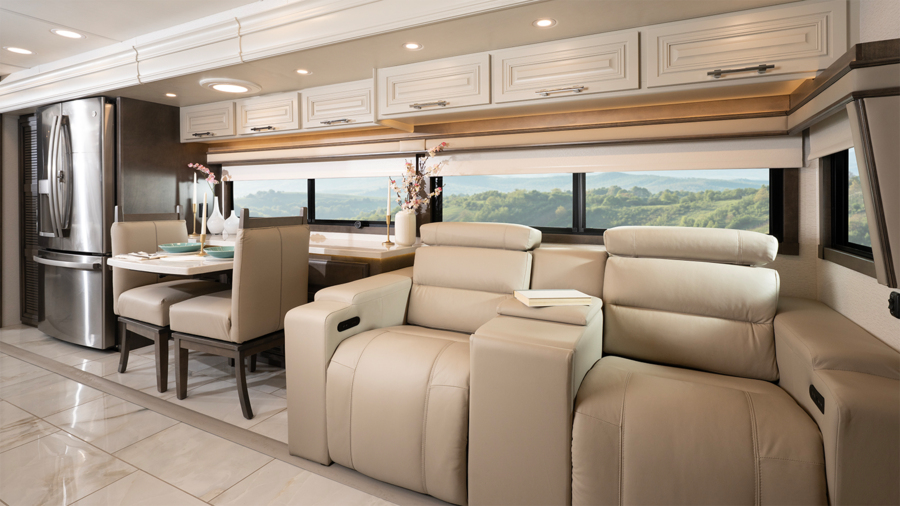

Interior

Electric Fireplace LED-lit fireplace with 5,000-BTU heating element (44B, 44Z)
Television - Front Overhead 32" Samsung® QLED 4K UHD Smart TV in front overhead

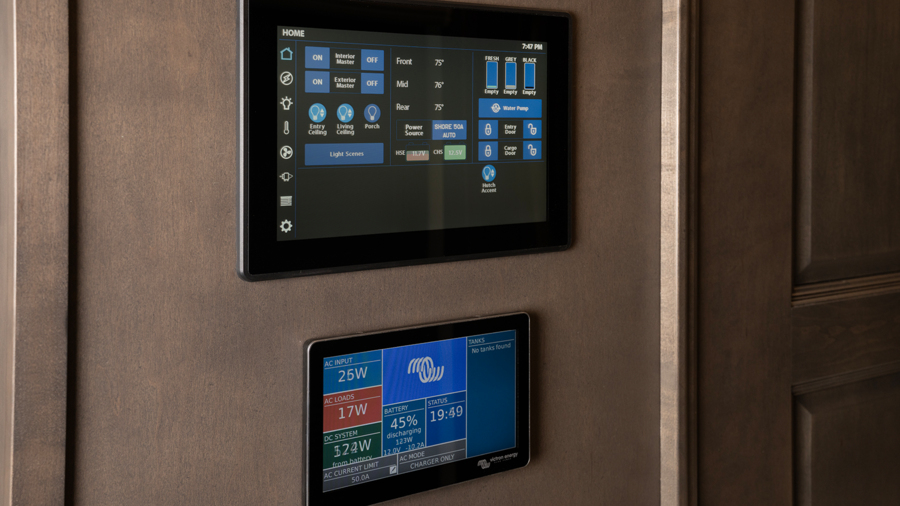

Command Center Firefly multiplex system with 10” VegaTouch touchscreen for complete integration of coach controls, with remote monitoring and control (mobile app available)
Television - Living Room 50” Samsung® QLED 4K UHD Smart TV
Sound - Living Room Bose® sound bar with subwoofer and universal remote control
DVD Systems Sony® Blu-ray™ player
Furniture Premium leather Villa® furniture
Flooring Hand-laid porcelain tiled floors
Lighting LED interior lighting
Ceiling Decorative ceiling feature with integrated accent lighting
Window Treatments Powered solar day and blackout night shades
Central Vacuuming System Central vacuum system
Interior Doors Aire-Secure™ travel locks for all pocket doors
Bar Bar area with beverage chiller and rain glass upper cabinet door with LED accent lighting (44R only)
Washer/Dryer Whirlpool® stacked washer and dryer

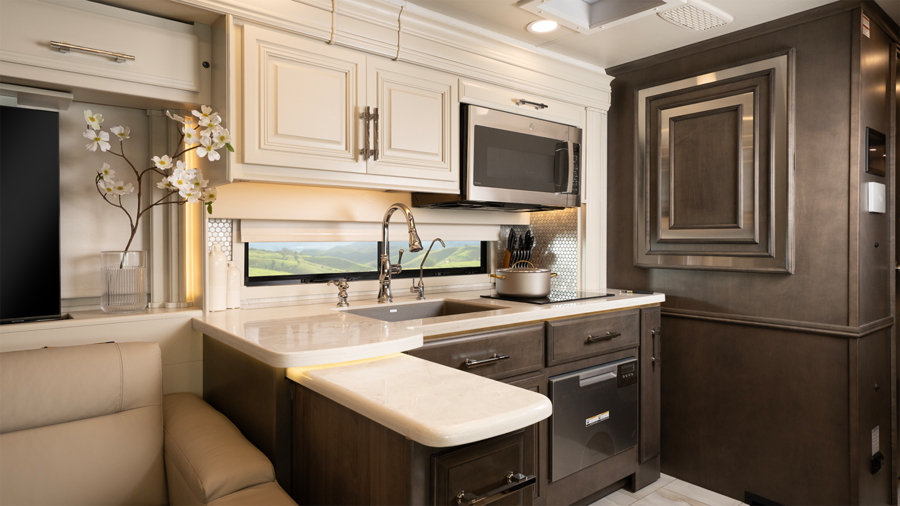

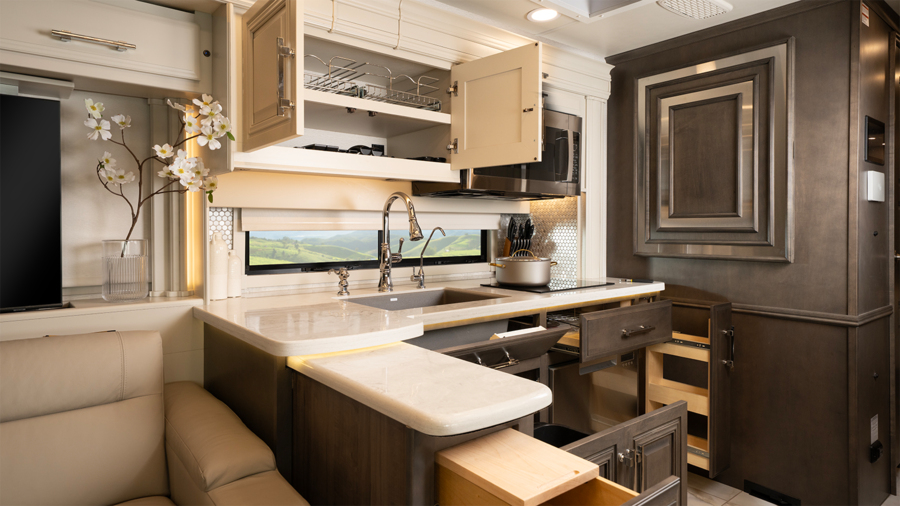

Kitchen

Refrigerator Whirlpool® stainless-steel residential refrigerator with ice maker and water dispenser
Cooktop Induction cooktop with matching wood cover
Microwave Whirlpool® 1.9-cu. ft. convection microwave oven

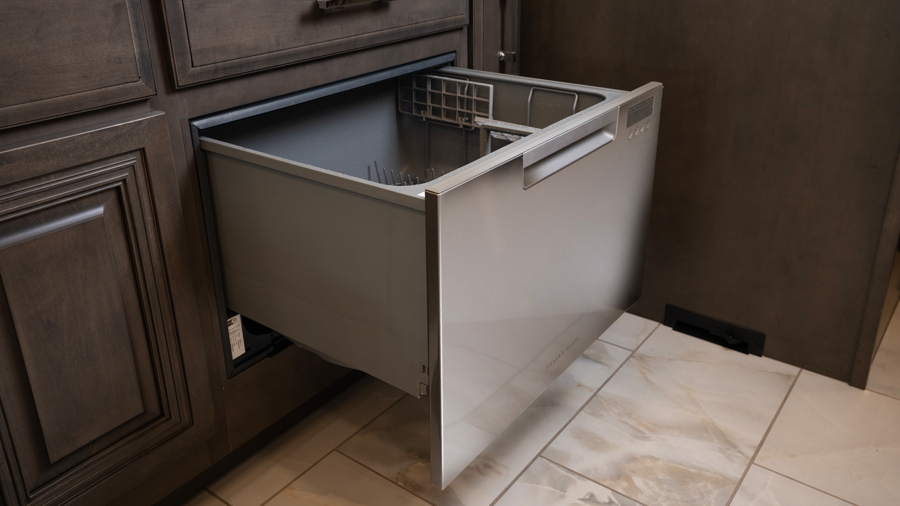

Dishwasher Fisher & Paykel dishwasher
Kitchen Backsplash Porcelain tile backsplash
Kitchen Countertops Solid-surface countertops with dimmable LED accent lighting
Sink Blanco single-bowl granite sink
Vent Maxxair® power vent exhaust fan with intake and touch screen control
Waste Basket Large, deep drawer for waste basket with easy access trash chute (trash chute not available in 44F, 44R)
Storage Slide-out storage tray(s) in overhead cabinet

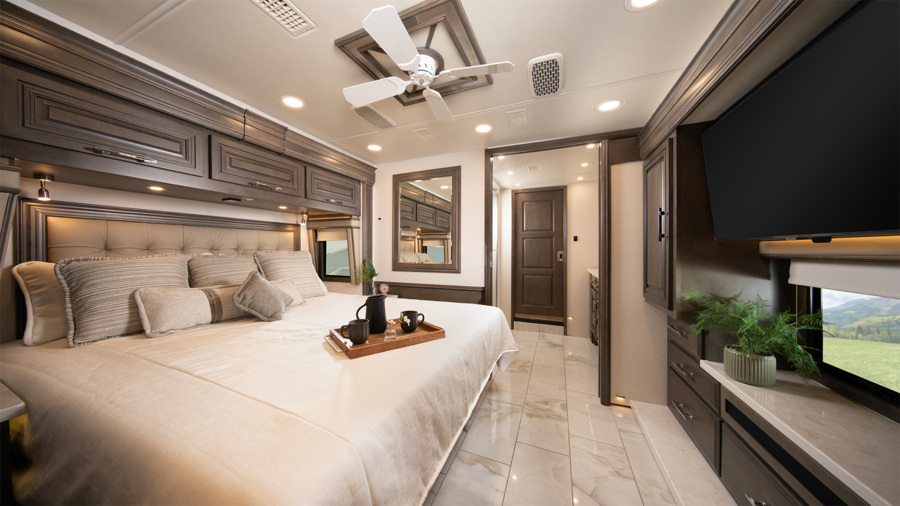

Bedroom

Bedroom Mattress / Bedding Select Comfort® Sleep Number® King-size mattress
Television 32" Samsung® QLED 4K UHD Smart TV
Sound Bose® sound bar with universal remote control
DVD Systems Sony® Blu-ray™ player
Ceiling Fan Ceiling fan
Nightstands Nightstands with solid-surface tops

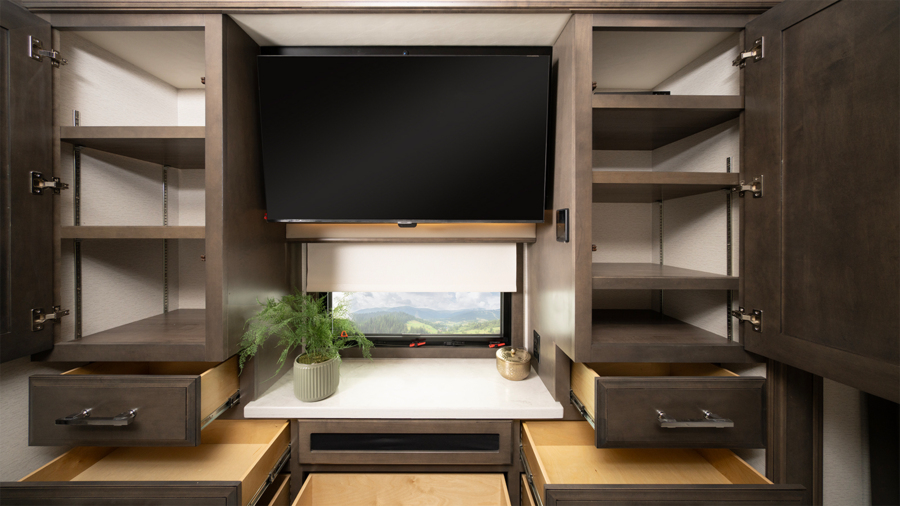

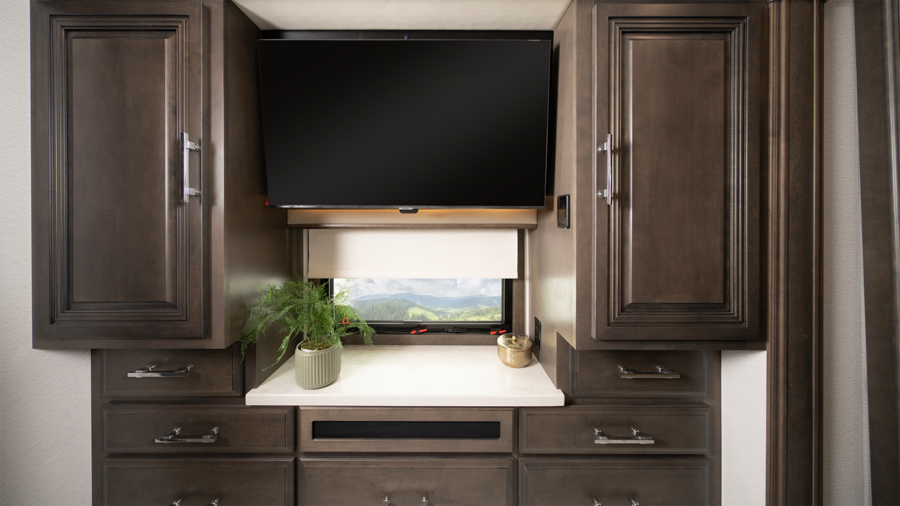

Bedroom Wardrobe Large cedar-lined wardrobe

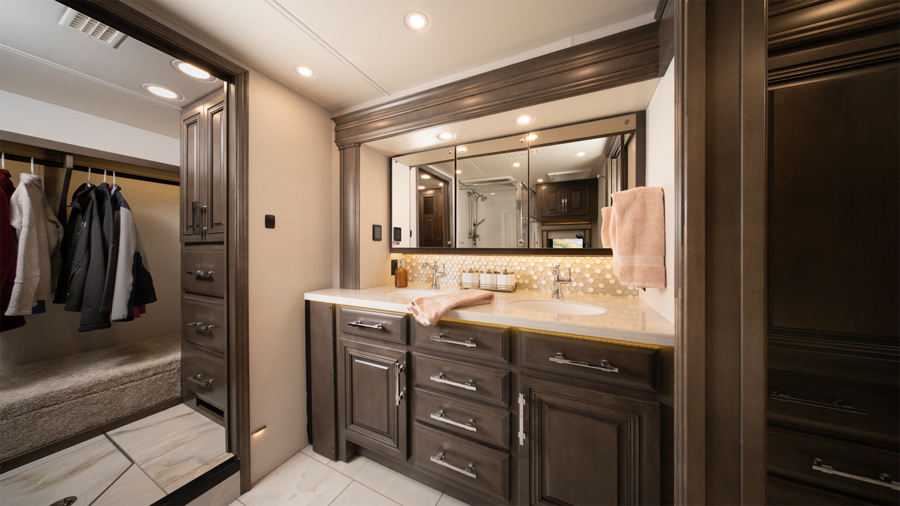

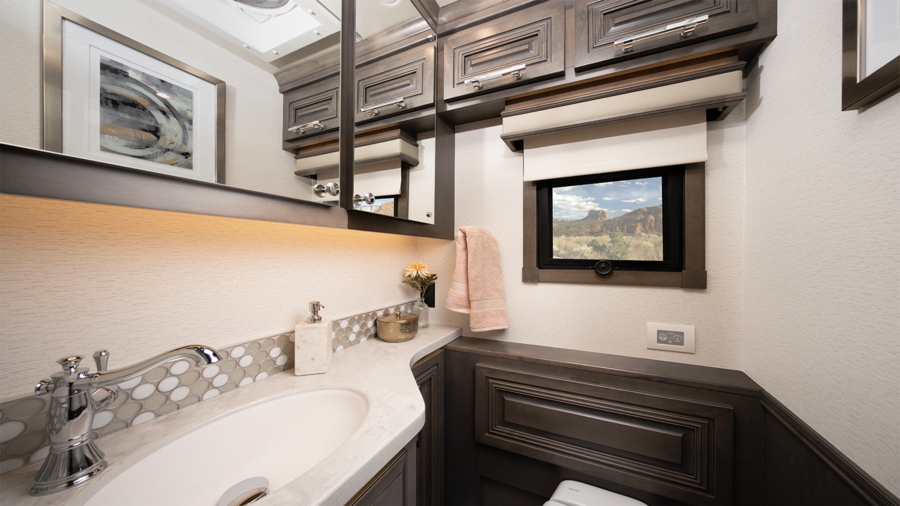

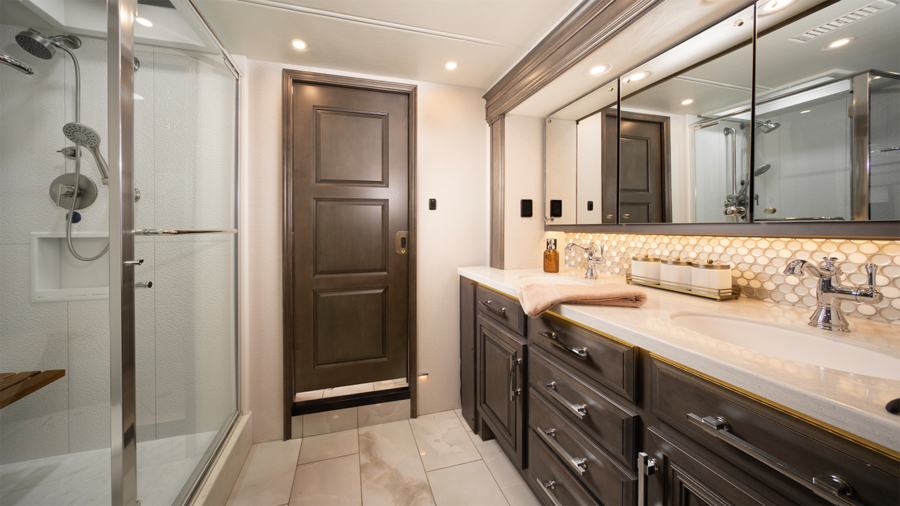

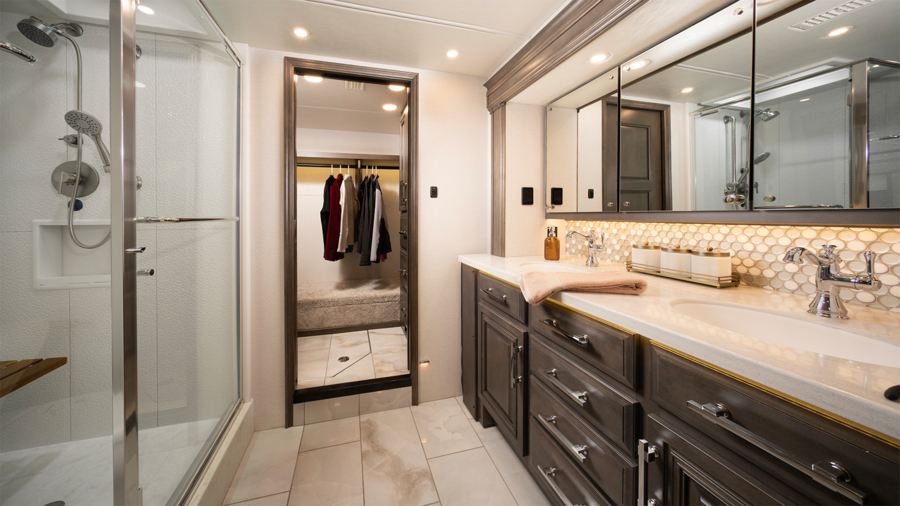

Bathroom

Bathroom Countertop(s) Solid-surface countertops with dimmable LED accent lighting
Sink Integrated glass sink

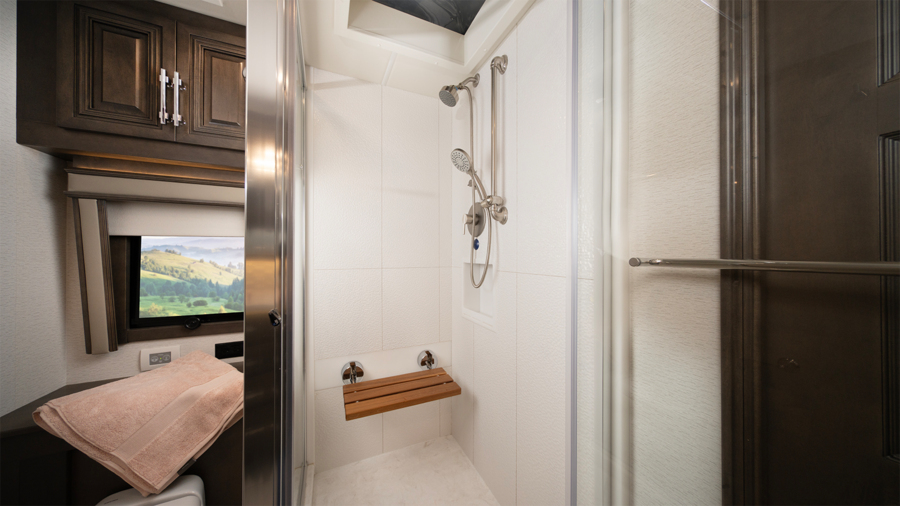

Bathroom Shower Porcelain tile shower with skylight and clear glass shower door
Shower Seat Teakwood shower seat (N/A 44F)
Shower Head Fixed shower head and separate hand-held spray wand
Water Saving System Aqua View SHOWERMI$ER™ water saving system
Toilet Thetford® macerator toilet in main bath (N/A 44Z)
Bathroom Ventilation Maxxair® Deluxe power exhaust vent fan with intake

Safety

Lights Porch light and motion sensor security lights
Blind Spot Monitoring Blind spot monitoring system displayed on digital dash screen
Carbon Monoxide Detector Carbon monoxide detector
Security System Security system with glass shatter sensors
Smoke Alarm Smoke alarm
Security Safe Security safe

Options

Canadian Standards Canadian standards
Theater Seating Theater seating with power recliners and fixed console
Reclining Sofa Option 1 100" power reclining sofa
Fireplace/TV/entertainment center and work station ILO sofa Fireplace/TV/entertainment center and work station ILO sofa
Satellite Dish Winegard In-Motion satellite dome
Satellite Dish - US Winegard TRAV'LER Dish Network
Solar Solar panels (dual 100-watt)
Dinette Option 1 Dinette booth
