2020 Aspire



Beauty, style, and superior handling. This coach keeps you uplifted in ultimate comfort, while preserving the image of exceptional design. With Entegra Coach's signature C-lights and stunning décor selections, this luxury diesel motorcoach gives you that luxury resort feeling, while taking you on life’s journey.



Product Video

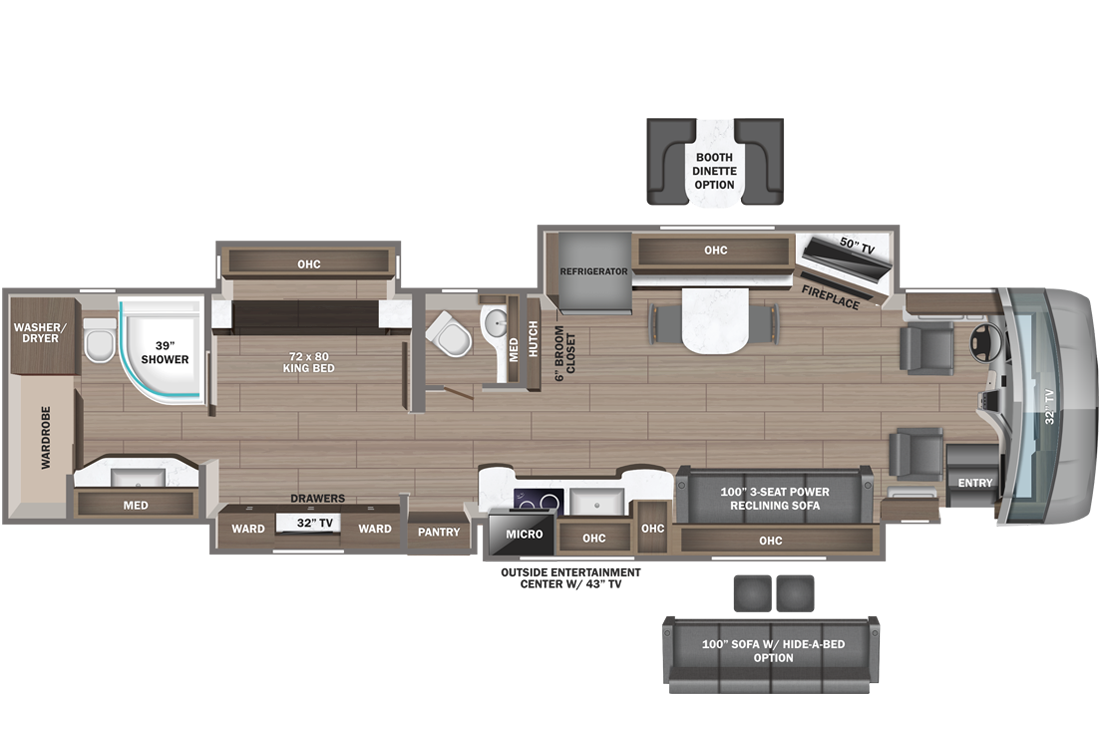

Ward = wardrobe

Lav = bathroom sink

Med = medicine cabinet

Ohc = overhead cabinets

Fridge = refrigerator

Micro = microwave

Exterior Graphics

Standards & Options


Air Connection Remote air connection
Air Leveling Equalizer hydraulic automatic leveling
Alternator 170-amp alternator
Braking System ABS disc brakes on front axle, drum brakes on drive and tag axle (ABS disc brakes on front and rear axle on 38M and 40P)
Chassis Spartan K2 raised rail chassis
Chassis Battery Chassis batteries 2-12 volt
DEF Tank 15 gallon DEF tank (dual fill except on 38M, 40P, 44R)
Engine Cummins L9 turbocharged 450 HP engine 1,250-lb. ft. torque at 1,400 RPM
Engine Block Heater 1,000 watt engine block heater
Engine Brake Two-stage engine brake
Front Axle Reyco Granning independent 17,000-lb. front axle with air suspension
Front Suspension Reyco Granning IFS independent front air suspension
Fuel Tank 150-gal. fuel tank (100-gal. fuel tank on 38M and 40P) dual fill
Hitch 15,000-lb. hitch with 7/4-pin plug, (10,000-lb hitch on 38M and 40P)
Radiator Side-mounted radiator
Rear Axle Dana rear axle 20,000-lb., tag axle 12,000-lb. (Rear axle 24,000-lb. and no tag on 38M and 40P)
Rear Axle Ratio 4.88 rear axle ratio
Rear Suspension Dana rear suspension
Shocks Bilstein 46mm shocks
Tag Axle Tag axle air dump (Not available on 38M and 40P)
Tires Michelin 315/80R 22.5" tires (front) and 295/80R 22.5" tires (rear)
Tow Air Brake System Safehaul tow air brake system
Transmission Allison 3000 MH 6-speed transmission
Turning Radius 55-degree turning radius


Exterior Walls 2- 1/2" exterior wall with welded tubular aluminum construction and high-gloss, gel-coat fiberglass
Floor 2" x 4" floor truss construction
Floor Decking 3/4" 7-ply plywood main floor decking
Frame X-bridge frames welded into chassis frame
Front Cap Steel-reinforced front cap and windshield frame
Insulation Insulation with reflective Flexfoil floor (R-33), roof (R-24), sidewalls (R-16), front and rear caps (R-22)
Roof One-piece fiberglass roof with 3/8" plywood decking and 4" arched aluminum roof truss
Slideouts Flush-mounted electric-powered slideout rooms with with both VegaTouch and separate rocker switch controls
Underbelly Heated basement storage area
Walls Aluma-Tru superstructure construction on 12"-16" centers

Heat, AC, Water & Power

Air Conditioning 15,000-BTU low profile A/Cs (3) with heat pumps and condensation drain system
Batteries L16 AGM batteries (2),(6V/390 amp hrs. each)
Black Holding Tank Sprayer Black holding tank sprayer
Black Tank Management Macerator holding tank dump system with manual gate valves
Electrical Hookup 50-amp power cord with electric reel
Generator Onan 10,000-watt diesel generator with auto gen start on slide-out tray
Heating System Aqua-Hot 400 diesel hydronic water and heating system with in-floor heat throughout
Inverter 3,000 watt pure sine wave inverter
Power Management Premium surge protector with smart transfer switch
Water Hose w/ Electric Reel Water hose with electric reel
Water Filtration City and tank water filtration system
Water Monitoring Trutank ultrasonic tank monitoring system
Winterization Drain System Winterizing drain system


Cargo Features Slideout storage tray
Daytime Running Lights Daytime running lights
Door Awning Girard power entrance door awning with LED lights
Engine Door Power rear engine door with manual override
Exterior 3M front protective film mask
Exterior Entertainment Samsung 40" 4K UHD Smart tv w/ JBL Bar Studio sound bar on TV bracket with extend, tilt and swivel arm
Headlights LED low beam headlights, Halogen high beam headlights
Keypad Handle Lighted grab handle with keypad system
LED Fog Lights Halogen fog lights
LED Lights LED marker lights, turn lights, accent lights and license plate light
LED Docking Lights LED docking lights
Mirrors Chrome, heated, remote control, Ramco side-view mirrors with integrated cameras
Patio Awnings Roof mounted Girard Vision dual pitched patio awnings with LED lights
Rear Mudflap Full-width rear mudflap, with chrome "Aspire" nameplate
Satellite Dish - US Winegard Trav'ler satellite dish DIRECTV - standard w/ USA option
Satellite Dish - CA Winegard Trav'ler satellite dish Shaw TV - standard w/ CSA option
Utility Center Exterior heated utility center with 5" Firefly system monitor panel
TV Antenna Winegard Rayzar Z1 TV antenna
Windows Hehr frameless, dual-pane, tinted safety-glass windows
Window Awnings Girard window shade awnings


Additional Amenities Two dual USB ports and 12v socket for charging
Cameras Camera system with two side cameras and digital rear camera
Driver / Passenger Seats 6-way power, lumbar, Ultra-leather driver and passenger seats with integrated 3-point belt
Flooring Powered flush stepwell cover
Infotainment System(s) Dual 9" touchscreen in-dash infotainment center with Rand McNally RV navigation, Bluetooth, Sirius XM, AM/FM tuner, integrated camera control
Monitoring System(s) Spartan Message Center with LCD display featuring: odometer, tachometer, fuel economy, fuel remaining, outside air temp., coolant temp., engine oil temp. and pressure, transmission temp., turbo boost pressure, air pressure, trip meter, speed and voltage
Pedals Power adjustable brake and accelerator pedals
Side Consoles Wrapped dash with molded side consoles
Start Push button start
Steering / Driving Features VIP, tilt and telescoping steering wheel with integrated controls for cruise and wipers
Sound System JBL premium audio sound system with speakers, amplifier and DVC sub-woofer
Visors & Privacy Shade Powered front sun visors and privacy shade
Windshield Ultra-Vision one-piece wrap-around tinted windshield


Bar Bar area with beverage chiller, rain glass door on upper cabinet w/ LED accent lighting (44R)
Central Vacuuming System Central vacuum system
Command Center 10" VegaTouch touch screen coach systems control panel
DVD Systems Samsung HD Blu-ray player in living area
Flooring Hand laid high gloss 8" x 48" porcelain tile floor
Furniture Flexsteel furniture
Interior Doors Aire-Secure travel locks for all pocket doors
Lighting Premium recessed LED 12V lighting
Window Treatments Manual solar day and blackout night shades
Television - Living Room Samsung 50" 4K UHD Smart TV
Television - Front Overhead Samsung 32" LED Slim 1080P Smart TV in front overhead
Sound - Living Room Samsung HW-M360 sound bar with sub-woofer in living area
Washer/Dryer Whirlpool stacked washer and dryer


Cooktop Induction cooktop with matching wood cover
Dishwasher Dishwasher drawer with wood raised panel drawer front
Kitchen Countertops Solid surface countertops with stainless steel sink and dimable LED accent lighting
Microwave Whirlpool 1.9 cu. ft. convection microwave oven
Refrigerator Whirlpool stainless steel residential refrigerator with ice maker and water dispenser
Vent Maxxair power vent exhaust fan
Waste Basket Large deep drawer for waste basket with easy access trash chute (trash chute not available on 40P and 44R)


Bedroom Mattress / Bedding King size gel memory foam mattress
Bedroom Wardrobe Motion activated LED light in wardrobe
Ceiling Fan Ceiling fan
DVD Systems Samsung Blu-ray player
Nightstands Nightstands with USB ports and solid surface tops
Sound JBL Studio sound bar
Television Samsung 32" LED Slim 1080P Smart TV


Bathroom Countertop(s) Solid surface countertops with integrated sink and dimmable LED accent lighting
Bathroom Shower Marble patterned shower with skylight and clear glass shower door
Bathroom Ventilation Maxxair power exhaust fan with intake


Carbon Monoxide Detector Combination carbon monoxide detector and gas alarm
Lights Porch light and motion sensor security lights
Security System Security system with glass shatter sensors
Smoke Alarm Smoke alarm


Additional Batteries Batteries- 2 additional AGM, 4 total (N/A on 38M and 40P)
Baggage Doors Power Locking Baggage Doors
Canadian Standards CSA Optional
Dinette Option 1 Booth dinette driver side (44B, 42DEQ, 40P and 44W)
Fireplace LED lit fireplace with 1500w heating element (38M, 44B and 42DEQ)
Reclining Sofa Option 1 100" reclining sofa passenger side (44B and 42DEQ)
Satellite Dish Winegard in-motion dome, roof mounted satellite dish
Solar Solar panels (Dual-100 watt) with Morningstar Sunsaver Duo solar panel charge controller
Theater Seating Option 1 100" reclining theater seat & fixed console passenger side (44B and 42DEQ)
Theater Seating Option 2 82" reclining theater seat & fixed consolde driver side (38M, 44R and 44W)
Theater Seating Option 3 74" reclining theater seating, driver side and 60" hide a bed, passenger side (40P)
WiFi Extender Antenna Winegard WIFI extender with 4G/LTE

Décor Options

Entegra Coach peace of mind

2-year warranty and 3-year roadside assistance

At Entegra Coach, excellence doesn’t end with our stunning interiors and superior craftsmanship. We back each luxury coach with the industry’s highest level of service—including a 2-year warranty and 3-year roadside assistance.

2-year warranty details

3-year roadside assistance details
