2022 Aspire




As much a joy to drive as it is to relax in, the new Aspire will have you feeling right at home—anywhere. The 2022 model features upgraded Italian leather furniture—including a 100-inch reclining sofa option and all-new décor, wood and exterior paint choices. A new E-Z Steer™ column drive uses electrically powered steering (EPS), along with the normal belt driven hydraulic power steering pump to help combat driver fatigue and compensate for crosswinds. So sit back and enjoy the view—no matter where the road takes you.


Ward = wardrobe

Lav = bathroom sink

Med = medicine cabinet

Ohc = overhead cabinets

Fridge = refrigerator

Micro = microwave

Exterior Graphics

Standards & Options


Chassis Spartan® K2 raised-rail chassis
Engine Cummins® L9 turbocharged 450 HP engine with 1,250-lb. ft. torque at 1,400 RPM
Transmission Allison® 3,000 MH 6-speed transmission
Radiator Side-mounted, parallel-airflow radiator
Alternator 170-amp alternator
Engine Block Heater 1,000-watt engine block heater
Engine Brake Two-stage engine brake
Front Axle Reyco® Granning® front axle - 17,000 lb. rating
Front Suspension Independent front air suspension (IFS)
Rear Axle Meritor rear axle - 20,000 lb. rating (Dana® rear axle- 24,000 lb. rating on 40P)
Tag Axle Tag axle with air dump - 12,000 lb. rating (N/A 40P)
Braking System ABS disc brakes on front axle, drum brakes on drive and tag axle
Rear Axle Ratio 4.88 rear axle ratio (4.78 on 40P)
Tires Michelin® 315/80R 22.5” tires (front) and 295/80R 22.5” tires (rear)
Shocks Bilstein® 46mm shocks
Tire Pressure Monitoring Tire pressure monitoring system (TPMS) with temperature monitoring
Leveling System Equalizer™ hydraulic automatic coach leveling
Air Connection Remote air connection
Chassis Battery (2) 12V chassis batteries
Fuel Tank 150-gal. fuel tank with dual fills (100 gal. on 40P)
DEF Tank 15-gal. DEF tank with dual fills (single fill on 40P, 44R)
Tow Air Brake System Spartan® Safehaul tow vehicle air brake system
Hitch 15,000-lb. hitch with 7-pin plug (10,000-lb. hitch on 40P)


Floor 2" x 4" wood trusses on 16" centers or less filled with bat and Flexfoil insulation then topped with 3/4" 7-ply plywood decking (R-33)
Frame X-Bridge™ bracing welded into chassis frame
Front Cap Insulated front and rear caps (R-24) with steel-reinforced front cap and windshield frame
Roof 4" arched aluminum trusses filled with bat insulation and reflective Flexfoil® topped with 3/8" plywood decking then one-piece fiberglass
Slideouts Entegra-exclusive Relia-Torque flush-mounted 12V slideout system with VegaTouch and rocker switch controls
Walls 2-1/2" exterior walls with Aluma-Tru™ welded tubular aluminum studs on 16" centers or less filled with bat and Flexfoil insulation then covered with high-gloss gelcoat

Heat, AC, Water & Power

Heated Tanks Aqua-Hot® heated basement storage
Generator Onan® 10,000-watt diesel generator, with automatic start, on slide-out tray
Inverter 3,000-watt pure sine wave inverter
Batteries (2) L16 AGM batteries (6V/390 amp hrs. ea.)
Electrical Hookup 50-amp power cord on electric powered reel
Power Management Smart automatic transfer switch with surge protection
Air Conditioning (3) 15,000-BTU A/C units with heat pumps and condensation drain system
Heating System Aqua-Hot® 400D hydronic water and heating system with in-floor heat throughout
Black Tank Management Sani-Con® Macerator holding tank dump system with manual gate valves, manual backup and metal door
Black Holding Tank Sprayer Black holding tank sprayer
Water Filtration City and tank water filtration system
Winterization Drain System Winterizing drain system
Water Monitoring Trutank™ ultrasonic tank monitoring system displayed on VegaTouch screen
Water Hose w/ Electric Reel Water hose with electric reel


Engine Door Power rear engine door with manual override
Patio Awnings Dual roof-mounted Girard® Vision dual-pitched patio awnings with LED lights
Door Awning Girard® power entrance door awning with LED lights
Slideout Awnings Girard® Ultra slideout awnings
Window Awnings Girard® window awnings
Windows Frameless, dual-pane, tinted, safety-glass windows
Keypad Handle Lit grab handle with doorbell and keypad system for keyless entry
Exterior Entertainment 43” Samsung® 4K UHD Smart TV with tilt, swivel, and extend adjustment; JBL radio and speakers with USB port and receptacle
Mirrors Chrome, heated, remote-control, side-view mirrors with integrated cameras
Exterior Diamond Shield™ front protective film mask
Headlights LED low beam headlights, halogen high beam headlights and fog lights
Daytime Running Lights Daytime running lights
LED Lights LED marker lights, turn lights, license plate light, third brake light, accent lights and docking lights
Accent Lights LED accent lights under passenger slideout rooms
Rear Mudflap Mudflap with chrome “Aspire” nameplate
Satellite Dish - US Winegard® TRAV’LER satellite dish DIRECTV® - standard with USA option
Satellite Dish - CA Winegard® TRAV’LER satellite dish Shaw TV - standard with CSA option
TV Antenna Winegard® Rayzar Z1 TV antenna
WiFI Winegard® WiFi extender with 4G/LTE
Utility Center Heated exterior utility center with 5” LED Firefly® tank monitoring panel
Cargo Features Slideout basement storage tray; Push-button power-unlatching baggage doors with LED indicator light
Paint Sikkens custom full-body paint
Entrance Door Removable screen on entry door

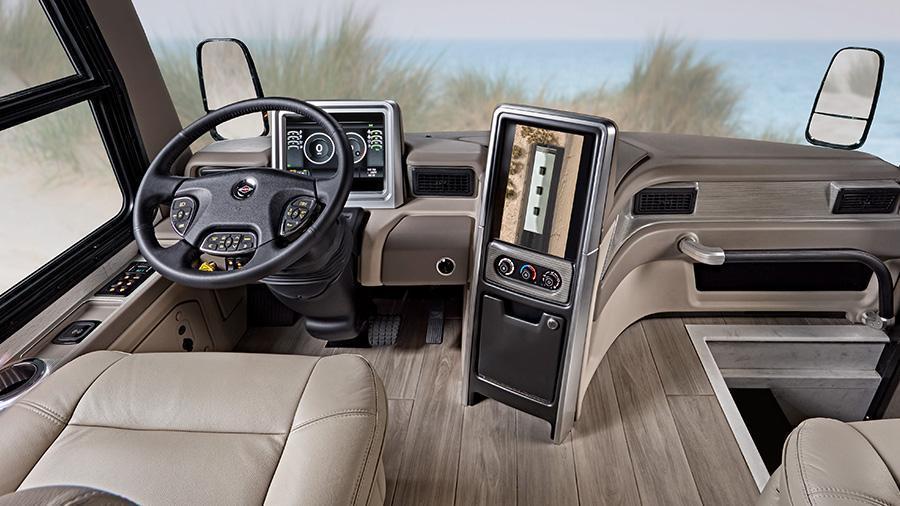

Dash Valid 12.3" digital dash with quad core graphics processor, on-board diagnostics, selector knob and ability to display traditional instrument cluster, 360° camera system or GPS navigation
Cameras Xite™ 360° HD digital camera system
Infotainment System(s) Xite™ XSG4 infotainment system with 9" touchscreen, iGO navigation, Bluetooth®, Sirius XM™ and AM/FM tuner, integrated camera control and house mode whole-coach audio distribution
Driving Features E-Z Steer™ adjustable power steering assist
Steering Wheel Steering wheel with integrated controls for cruise, wipers, radio and Bluetooth® phone functionality
Steering Column Manual tilt and telescoping steering column
Sound System JBL® premium audio 5-speaker sound system with amplifier, speakers and DVC subwoofer
Windshield Ultra-Vision® one-piece wrap-around tinted windshield
Driver / Passenger Seats Villa® leather driver and passenger seats with powered 6-way adjustment, lumbar and footrest functions
Power Features Powered flush stepwell cover
Pedals Powered adjustable brake and accelerator pedals
Visors & Privacy Shade Powered front sun visors and privacy shades
Additional Amenities (2) dual USB ports and (2) 12V sockets for charging


Television - Front Overhead 32" Samsung® LED 1080P Smart TV in front overhead
Command Center Firefly multiplex system with 10” VegaTouch touchscreen for complete integration of coach controls (mobile app available)
Television - Living Room 50” Samsung® 4K UHD Smart TV
Sound - Living Room Bose® sound bar with subwoofer and universal remote control
DVD Systems Sony® Blu-ray™ player

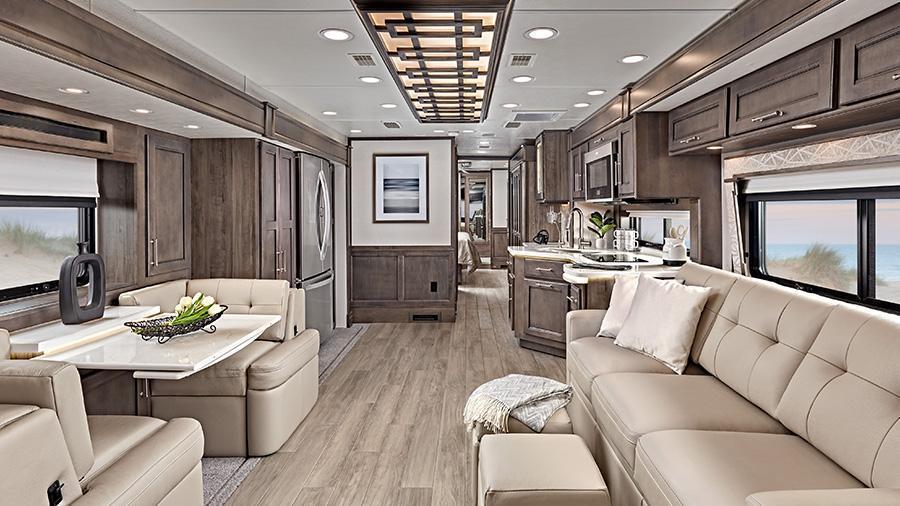

Furniture Premium leather Villa® furniture
Flooring Hand-laid porcelain tiled floors
Lighting LED interior lighting
Ceiling Decorative ceiling feature with integrated accent lighting
Window Treatments Manual solar day shades and blackout night shades
Central Vacuuming System Central vacuum system
Interior Doors Aire-Secure™ travel locks for all pocket doors
Bar Bar area with beverage chiller and rain glass upper cabinet door with LED accent lighting (44R only)

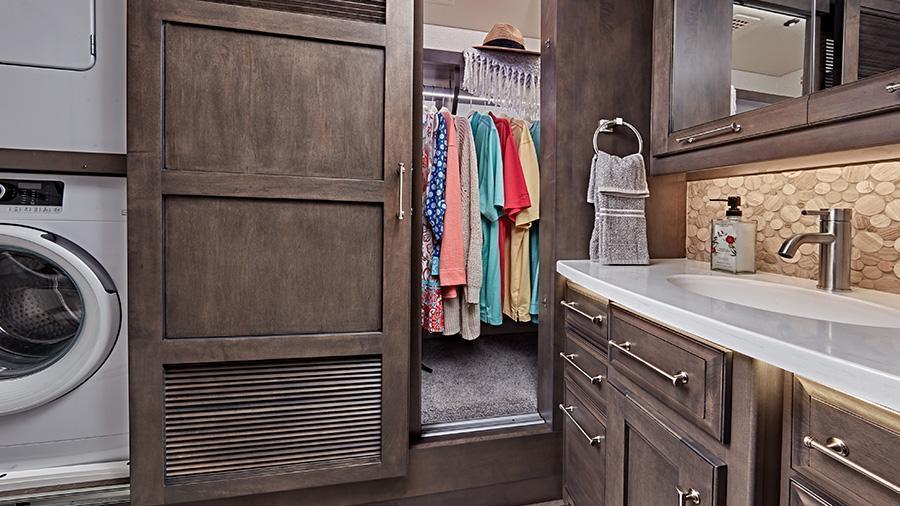

Washer/Dryer Whirlpool® stacked washer and dryer

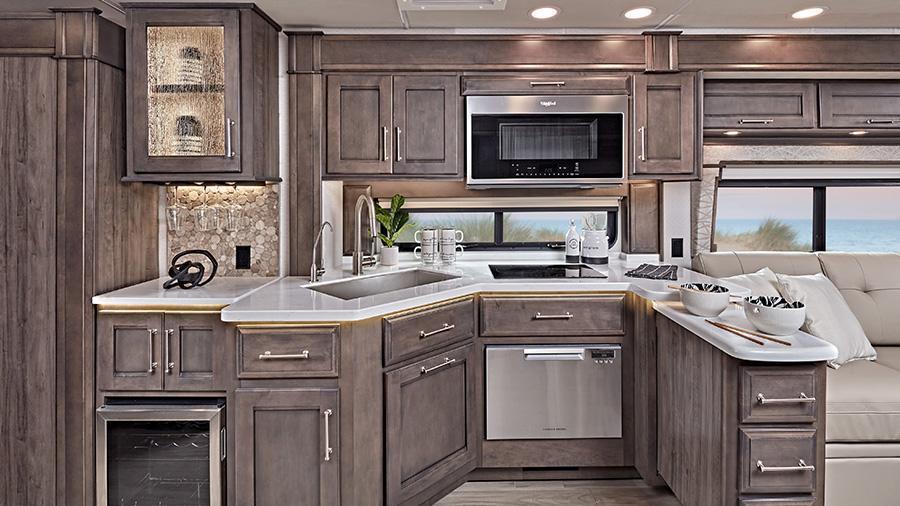

Refrigerator Whirlpool® stainless-steel residential refrigerator with ice maker and water dispenser
Cooktop Induction cooktop with matching wood cover
Microwave Whirlpool® 1.9-cu. ft. convection microwave oven
Dishwasher Fisher & Paykel dishwasher
Kitchen Countertops Solid-surface countertops with dimmable LED accent lighting
Sink Stainless steel sink
Vent Maxxair® power vent exhaust fan with intake and touch screen control
Waste Basket Large, deep drawer for waste basket with easy access trash chute (trash chute not available on 40P, 44F and 44R)
Storage Slide-out storage tray(s) in overhead cabinet

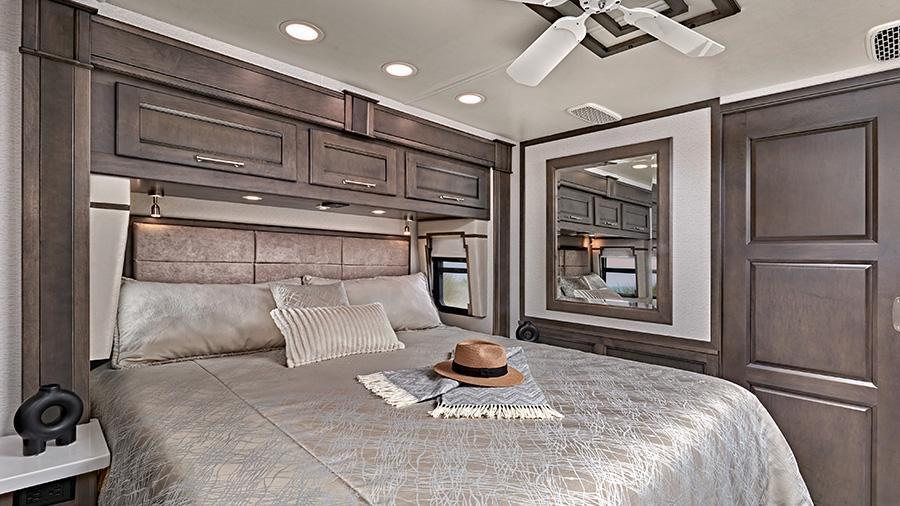

Bedroom Mattress / Bedding King-size gel memory-foam mattress
Television 32" Samsung® LED 1080P Smart TV
Sound Bose® sound bar with universal remote control
DVD Systems Sony® Blu-ray™ player
Ceiling Fan Ceiling fan
Nightstands Nightstands with solid-surface tops

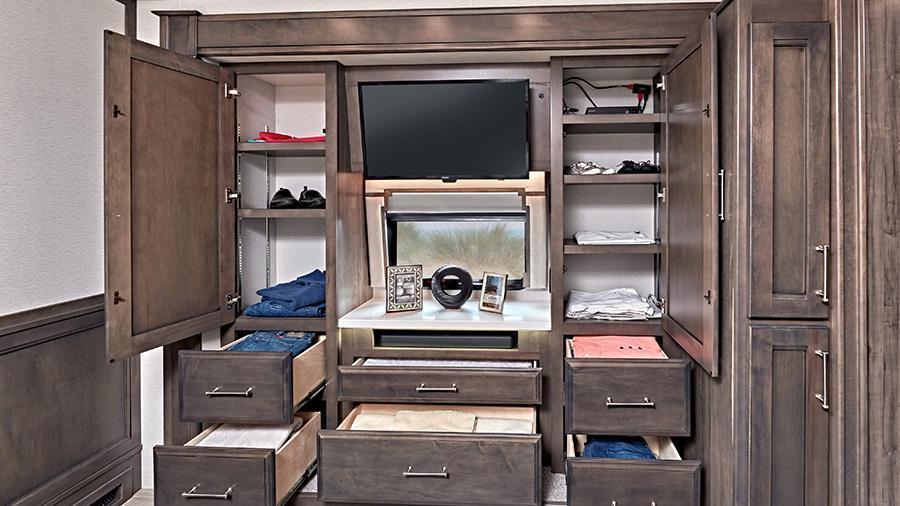

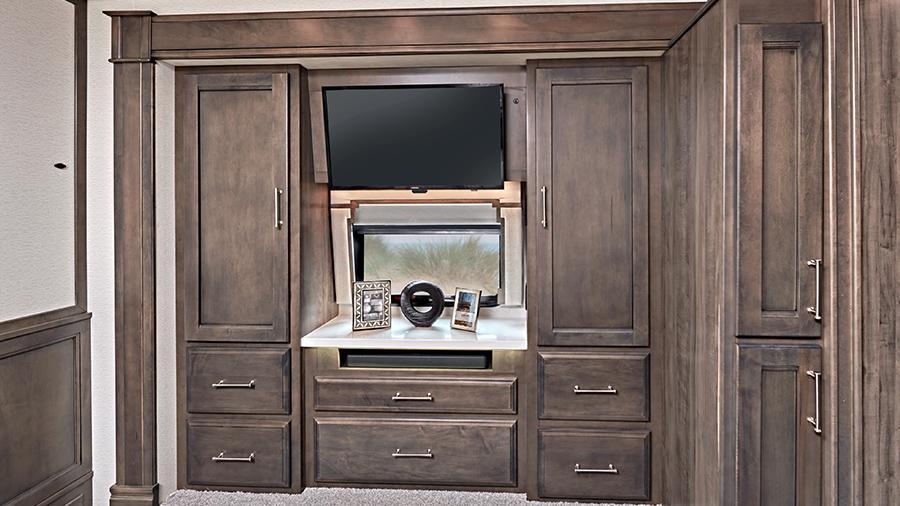

Bedroom Wardrobe Large cedar-lined wardrobe

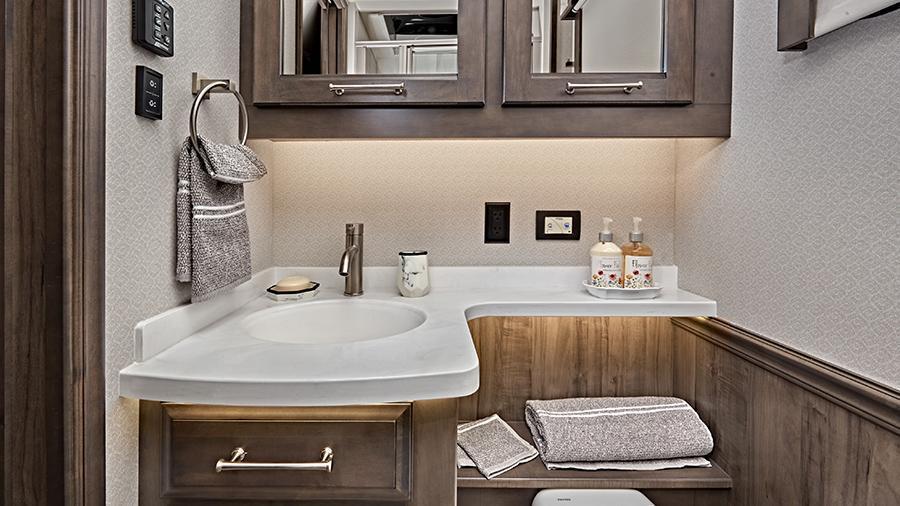

Bathroom Countertop(s) Solid-surface countertops with dimmable LED accent lighting
Sink Integrated sink

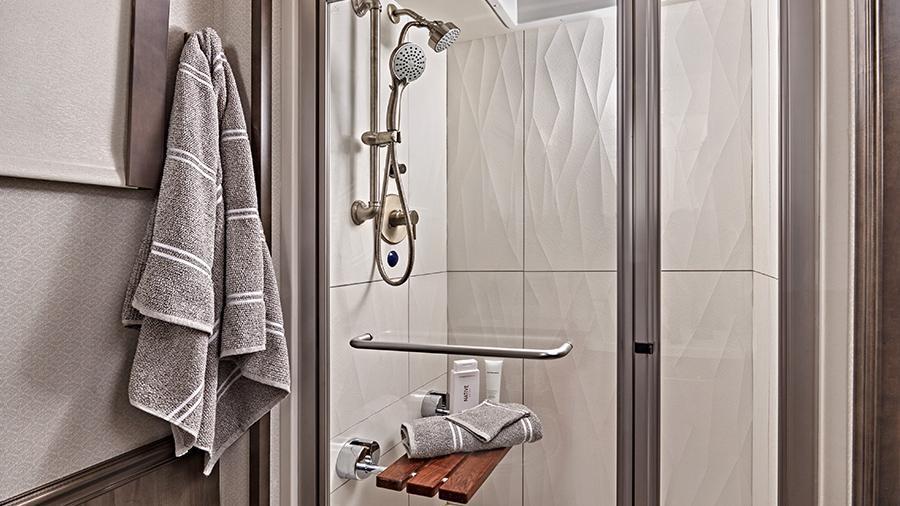

Bathroom Shower Textured porcelain tile shower with skylight and clear glass shower door
Shower Seat Teakwood shower seat (N/A 44F)
Shower Head Fixed shower head and separate hand-held spray wand
Water Saving System Aqua View SHOWERMI$ER™ water saving system
Toilet Thetford® macerator toilet in main bath (N/A 44Z)
Bathroom Ventilation Maxxair® power exhaust fan with intake


Lights Porch light and motion sensor security lights
Carbon Monoxide Detector Carbon monoxide detector
Security System Security system with glass shatter sensors
Smoke Alarm Smoke alarm
Security Safe Security safe


Canadian Standards Canadian Standards- CSA
Fireplace Fireplace
Theater Seating Theater seating with power recliners and hide-a-bed
Theater Seating Option 2 Theater seating with power recliners and fixed console
Reclining Sofa 100" power reclining sofa
Fireplace/TV/entertainment center and work station ILO sofa Fireplace/TV/entertainment center and work station ILO sofa
Satellite Dish Winegard In-Motion satellite dome
Satellite Dish - US Winegard TRAV'LER Dish Network

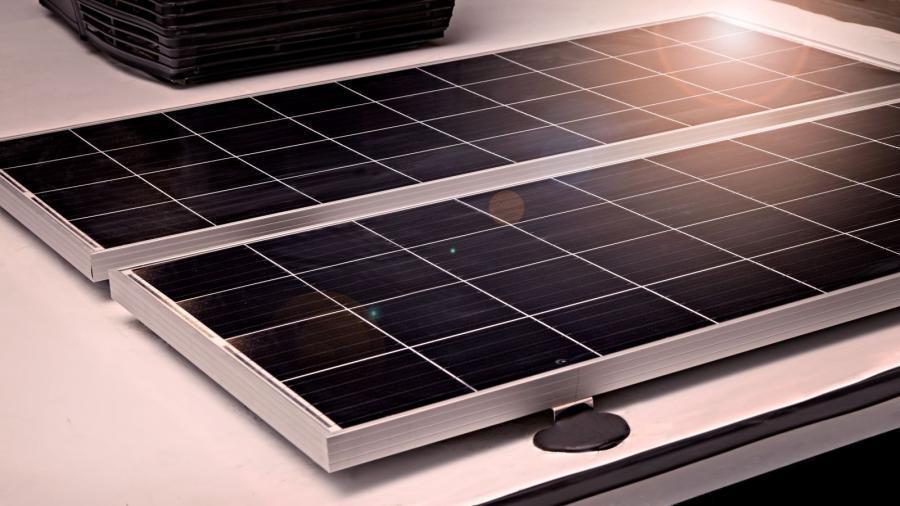

Solar Solar panels (dual 100-watt)
Additional Batteries (2) additional AGM batteries (4 total)

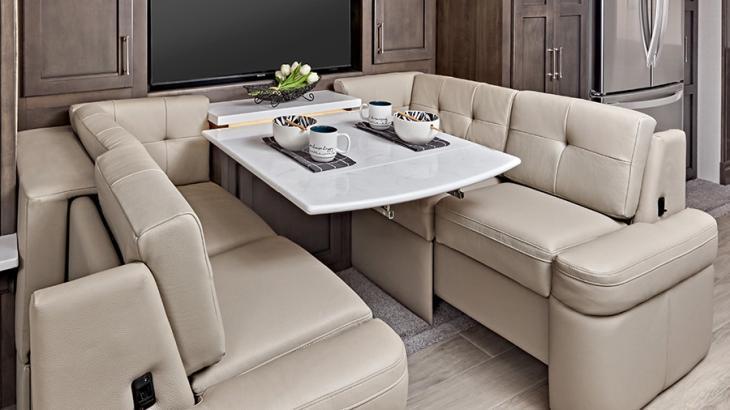

Dinette Dinette booth
