2024 Aspire

Fulfill your aspirations for a luxury travel experience with the Entegra Coach 2024 Aspire Class A Diesel Pusher.

The Aspire features premium leather Crown Compass furniture in the living area, hand-laid porcelain tile, push-button power-unlatching baggage doors with LED indicator lights and a 15-inch digital dash with an integrated 360° camera and tire pressure monitoring system.

All new for the 2024 Aspire is the Valid Truline air leveling system with an auxiliary air compressor, guaranteeing a level ride and campsite when you arrive at your destination. Built on the Spartan® K2 chassis with a Cummins® 450HP engine and E-Z Steer™ adjustable power steering assist, the Entegra Coach Aspire checks all the boxes.

2024 Aspire

Product Video

Floorplans

2024 Aspire|40P

40P

360   View specs

2024 Aspire|44B

44B

360   View specs

2024 Aspire|44D

44D

360   View specs

2024 Aspire|44R

44R

360   View specs

2024 Aspire|44W

44W

360   View specs

2024 Aspire|44Z

44Z

360   View specs

Ward = wardrobe

Lav = bathroom sink

Med = medicine cabinet

Ohc = overhead cabinets

Fridge = refrigerator

Micro = microwave

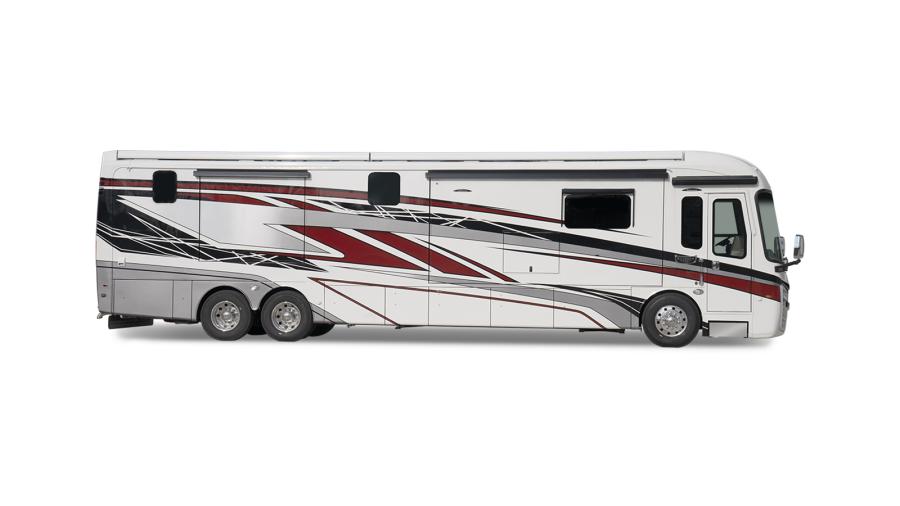

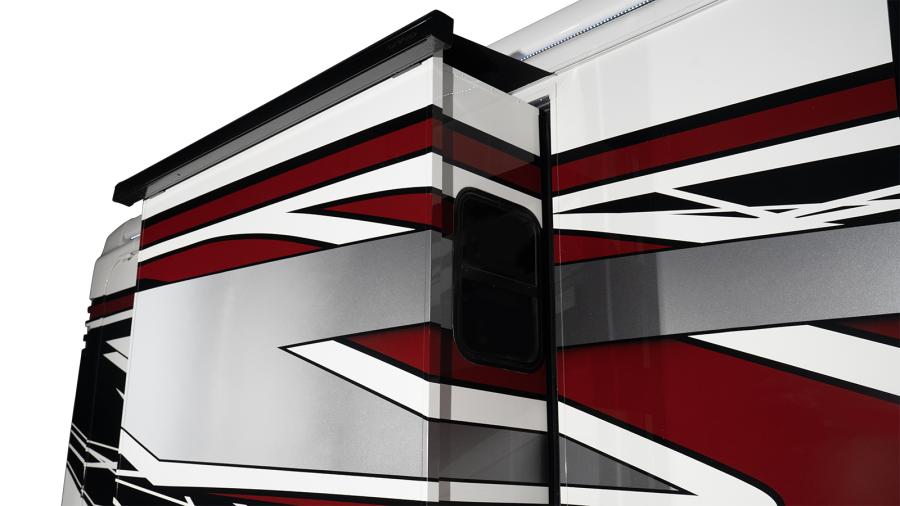

Exterior Graphics

Standards & Options

Chassis

Chassis Spartan® K2 raised-rail chassis
Engine Cummins® L9 turbocharged 450 HP engine with 1,250 lb.-ft. torque at 1,400 RPM
Transmission Allison® 3,000 MH 6-speed transmission
Radiator Side-mounted, parallel-airflow radiator
Alternator 170 amp alternator
Engine Block Heater 1,000W engine block heater
Engine Brake Three-stage engine brake
Front Axle Reyco® Granning® front axle with independent front suspension - 17,000 lb. rating
Front Suspension Independent front suspension (IFS)
Rear Axle Meritor rear axle - 20,000 lb. rating (Dana® rear axle- 24,000 lb. rating on 40P)
Tag Axle Tag axle with one-touch manual air dump - 12,000 lb. rating (N/A 40P)
Braking System ABS disc brakes on front axle, drum brakes on drive and tag axle (ABS disc brakes on front and rear axle on 40P)
Rear Axle Ratio 4.88 rear axle ratio (4.78 on 40P)
Tires Michelin® X Coach Z tires (315/80R22.5 in front, 295/80R22.5 in rear)
Shocks Bilstein® 46mm shocks
Tire Pressure Monitoring Tire pressure monitoring system (TPMS) with temperature monitoring
Leveling System Equalizer™ hydraulic automatic coach leveling
Air Leveling Valid™ Truline air leveling system with auxiliary air compressor
Air Connection Remote air connection
Chassis Battery (2) 12V chassis batteries
Fuel Tank 150 gal. fuel tank with dual fills (100 gal. on 40P)
DEF Tank 15 gal. DEF tank with dual fills (single fill on 40P, 44D, 44R)
Tow Air Brake System Spartan® Safehaul tow vehicle air brake system
Hitch 15,000 lb. hitch with 7-pin plug (10,000 lb. hitch on 40P)

Construction

Roof 4 in. arched aluminum trusses filled with batt insulation and reflective Flexfoil® topped with 3/8 in. plywood decking then one-piece fiberglass
Walls 2-1/2 in. exterior walls with Aluma-Tru™ welded tubular aluminum studs on 16 in. centers or less, filled with batt and Flexfoil® insulation, then covered with high-gloss gelcoat fiberglass (R-16)
Floor 2 in. x 4 in. wood trusses on 16 in. centers or less filled with batt and Flexfoil® insulation then topped with 3/4 in. 7-ply plywood decking (R-33)
Frame X-Bridge™ bracing welded into chassis frame
Slideouts Entegra-exclusive Relia-Torque flush-mounted 12V slideout system

Heat, AC, Water & Power

Heated Tanks Aqua-Hot® heated basement storage
Generator Onan® 10,000W diesel generator, with automatic start, on slide-out tray
Inverter 3,000W pure sine wave inverter
Batteries (2) L16 AGM batteries (6V/390 amp hrs. ea.)
Solar (2) 200W solar panels
Electrical Hookup 50 amp power cord on electric powered reel
Transfer Switch Smart automatic transfer switch with surge protection
Air Conditioning (3) 15,000 BTU A/C units with heat pumps and condensation drain system
Heating System Aqua-Hot® 400D hydronic water and heating system with in-floor heat throughout
Black Tank Management Sani-Con® macerator holding tank dump system with manual gate valves and manual backup
Tank Flush Black tank flush; Grey tank flush
Tank Assist Tilt tank dump
Water Filtration City and tank water filtration system
Water Hook-Up Hot and cold water hook-up in front cap area with 30 ft. quick-disconnect hose
Water Hose w/ Electric Reel Water hose with electric reel

Exterior

Front/Rear Cap Insulated front and rear caps (R-24)
Engine Door Power rear engine door with manual override
Patio Awnings Dual roof-mounted Girard® Vision dual-pitched patio awnings with LED lights
Door Awning Girard® power entrance door awning with LED lights
Slideout Awnings Girard® Ultra slideout awnings
Window Awnings Girard® window awnings
Windows Frameless, dual-pane, tinted, safety-glass windows
Keypad Lit grab handle with doorbell and keypad system for keyless entry

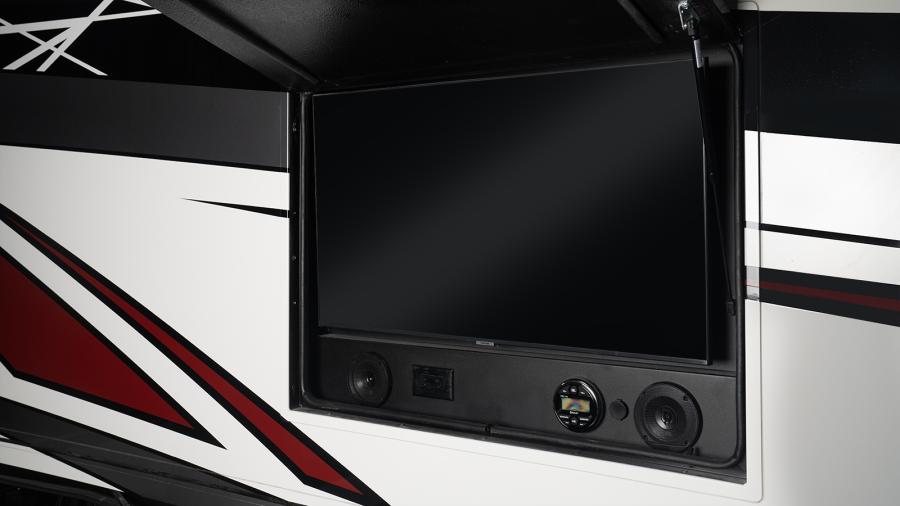

Entertainment 43 in. Samsung® 4K UHD Smart TV with tilt, swivel, and extend adjustment; JBL® radio and speakers with USB port and receptacle
Mirrors Chrome, heated, remote-control, side-view mirrors with two-position memory settings
Exterior Diamond Shield™ front protective film mask
Headlights Automatic LED low beam headlights, halogen high beam headlights
Fog Lights Halogen fog lights
Daytime Running Lights Automatic daytime running lights
LED Lights LED marker lights, turn lights, license plate light, third brake light, accent lights and docking lights
Accent Lights LED accent lights under all slideout rooms
Lights Porch light and motion sensor security lights

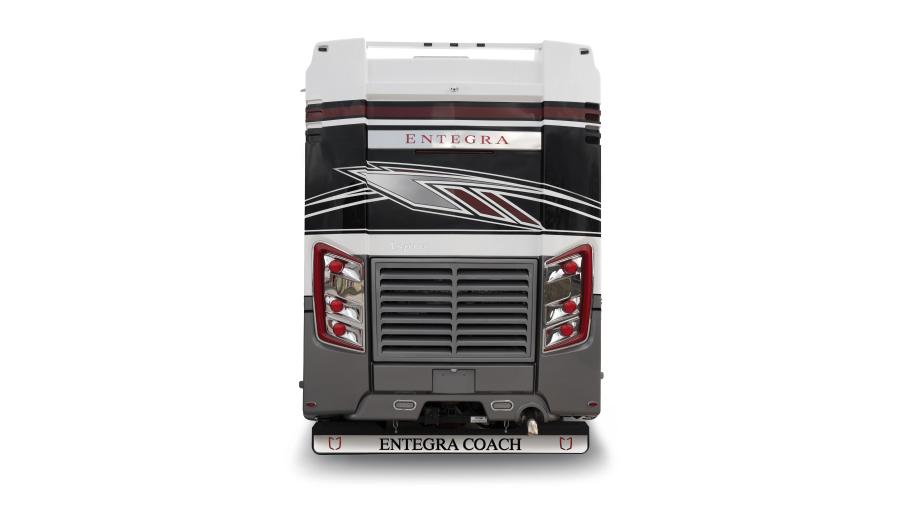

Rear Mudflap Mudflap with chrome “Entegra” nameplate
Satellite Internet Starlink satellite internet system
Satellite Dish - US Winegard® TRAV’LER satellite dish DIRECTV® - standard with USA option
Satellite Dish - CA Winegard® TRAV’LER Pro satellite dish Shaw TV - standard with CSA option
Antenna Winegard® Rayzar Z1 TV antenna
Wi-Fi Winegard® WiFiRanger™ Wi-Fi extender
Utility Center Heated exterior utility center with 5 in. LED SeeLeveL™ tank monitoring panel
Cargo Features Slideout basement storage tray
Baggage Doors Push-button, power-unlatching baggage doors with LED indicator light
Exterior Walls Sikkens custom full-body paint
Entrance Door Removable screen on entry door

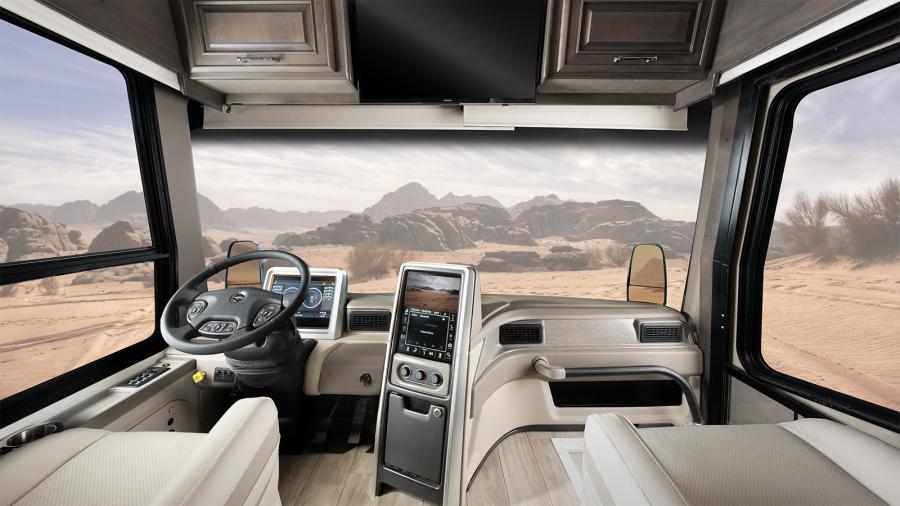

Cockpit

Additional Amenities Bergstrom dual-zone HVAC system; Dual USB port and one 12V socket for charging
Dash Valid™ 15 in. digital dash with quad core graphics processor, on-board diagnostics and ability to display traditional instrument cluster, 360° camera system or GPS navigation
Cameras Ramco 360° HD digital camera system
Infotainment System(s) Valid™ infotainment system with 15 in. touchscreen, Sygic navigation, Bluetooth®, Sirius XM™ and AM/FM tuner, integrated camera control and house mode whole-coach audio distribution
Side Consoles 4.3 in. infotainment control touchscreen in passenger console
Driving Features E-Z Steer™ adjustable power steering assist
Steering Wheel Leather steering wheel with integrated controls for screen selection, instrument cluster navigation, media source selection, cruise, wipers and Bluetooth® phone functionality
Steering Column Manual tilt and telescoping steering column
Sound System JBL® premium audio 5-speaker sound system with amplifier, speakers and DVC subwoofer
Antenna All-in-one automotive antenna for AM/FM/Sirius/GPS dash radio system
Windshield Ultra-Vision® one-piece wrap-around tinted windshield; Rain-sensing windshield wipers
Driver / Passenger Seats Leather driver and passenger seats with powered 6-way adjustment, lumbar and footrest functions
Power Features Powered flush stepwell cover
Pedals Powered adjustable brake and accelerator pedals
Visors & Privacy Shade Powered front sun visors and privacy shades

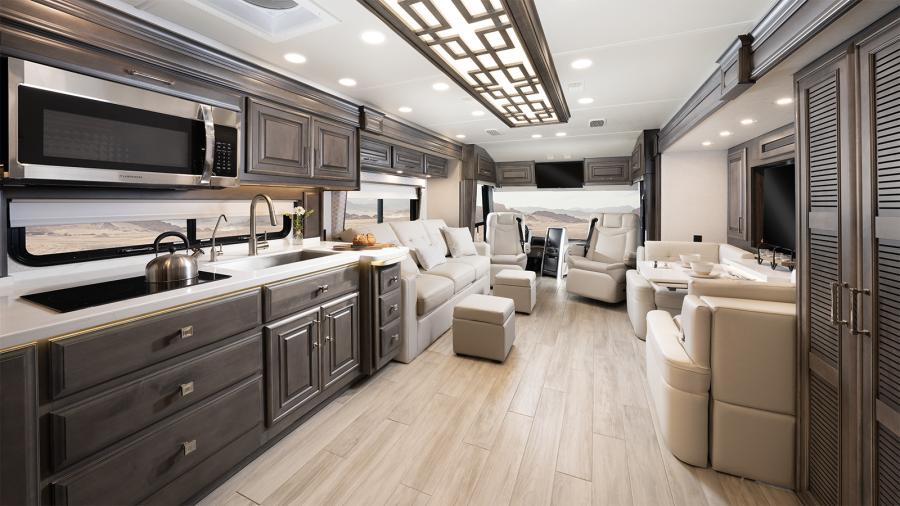

Interior

Television - Front Overhead 32 in. Samsung® LED 1080P Smart TV in front overhead
Command Center Firefly multiplex system with 10 in. VegaTouch touchscreen for complete integration of coach controls (mobile app available)
Television - Living Room 50 in. Samsung® 4K UHD Smart TV
Sound - Living Room Bose® sound bar with subwoofer and universal remote control
DVD Systems Sony® Blu-ray™ player
Furniture Premium leather Crown Compass furniture
Flooring Hand-laid porcelain tiled floors
Lighting LED interior lighting
Ceiling Decorative ceiling feature with integrated accent lighting
Window Treatments Manual solar day shades and blackout night shades
Central Vacuuming System Central vacuum system
Interior Doors Aire-Secure™ travel locks for all pocket doors
Bar Bar area with beverage chiller and rain glass upper cabinet door with LED accent lighting (44R only)

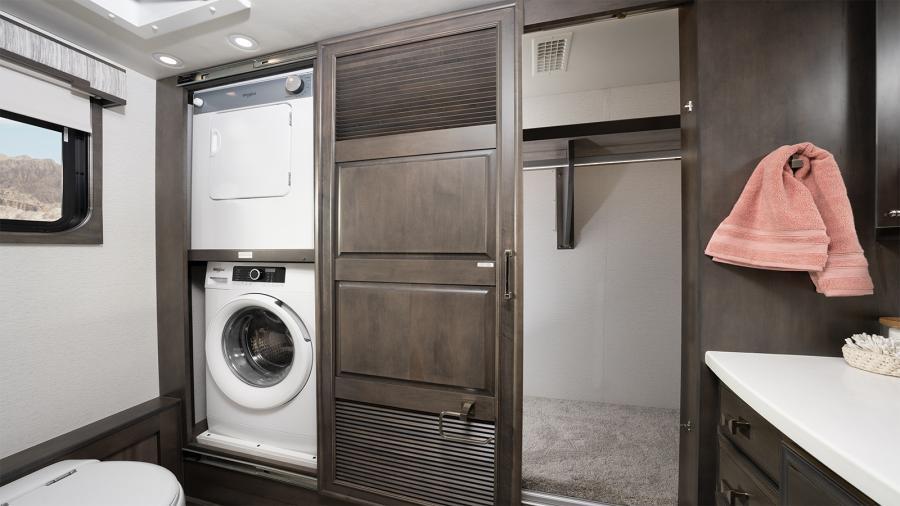

Washer/Dryer Separate washer and dryer

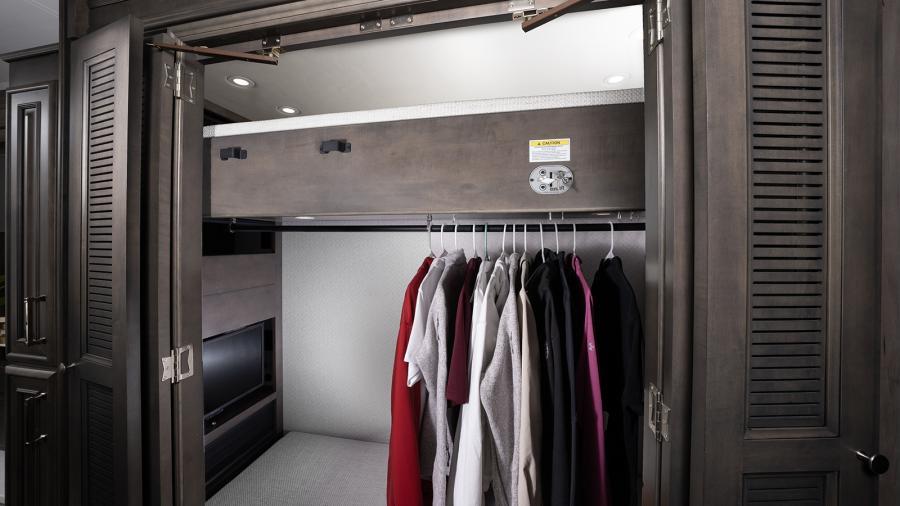

Bunks Bunks with industry-exclusive 300 lb. capacity each (44R)

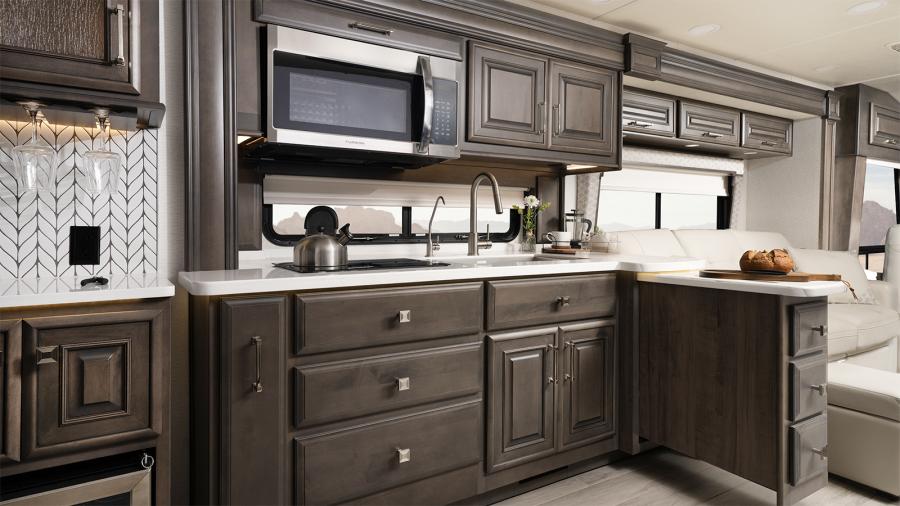

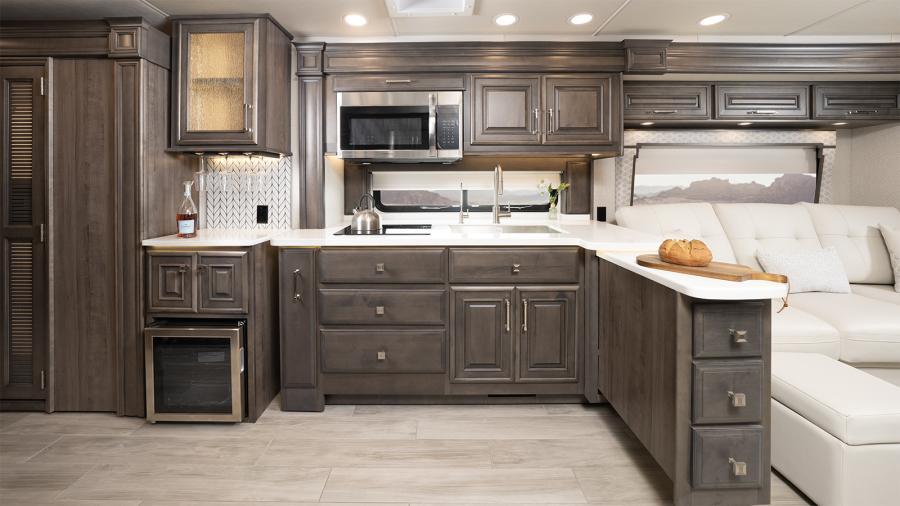

Kitchen

Window Window with push out lever operation and screen
Refrigerator Stainless steel residential refrigerator
Cooktop Induction cooktop with matching wood cover
Microwave 1.9 cu. ft. convection microwave oven
Dishwasher Fisher & Paykel dishwasher
Countertops Solid-surface countertops with dimmable LED accent lighting
Sink Stainless steel sink
Water Dispenser Filtered water dispenser at kitchen sink
Vent Maxxair® power vent exhaust fan with intake and touch screen control

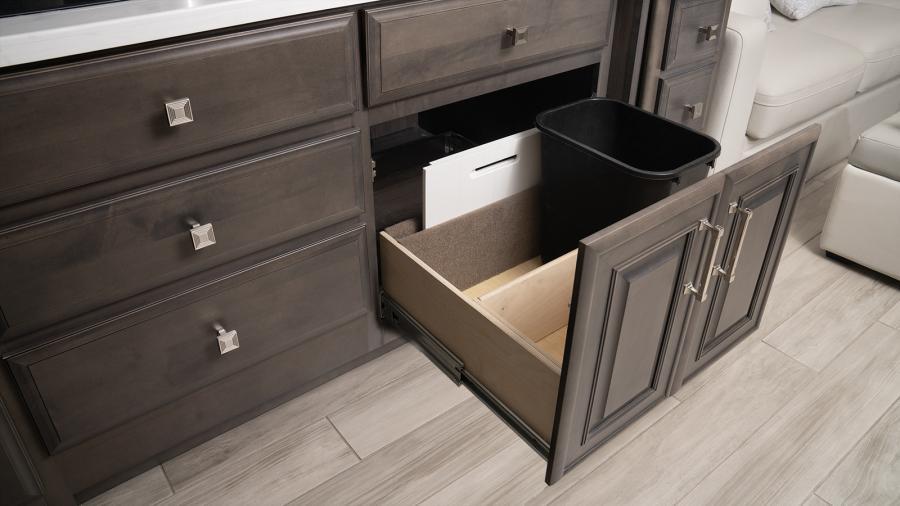

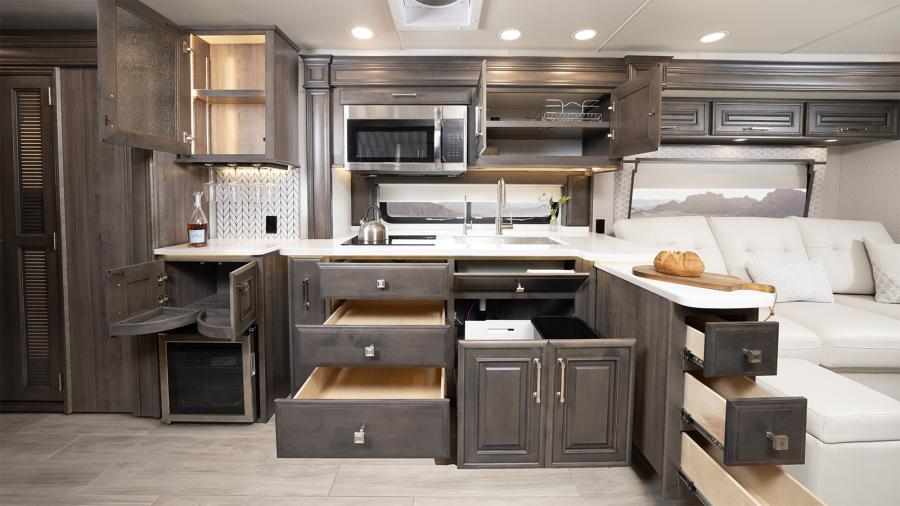

Waste Basket Large, deep drawer for waste basket with easy access trash chute (trash chute not available on 40P, 44D, 44R)
Storage Pantry with pull-out shelves; Slide-out storage tray(s) in overhead cabinet

Bedroom

Bed King-size gel memory-foam mattress
Television 32 in. Samsung® LED 1080P Smart TV
Sound Bose® sound bar with universal remote control
DVD Systems Sony® Blu-ray™ player
Ceiling Fan Ceiling fan
Nightstands Nightstands with solid-surface tops

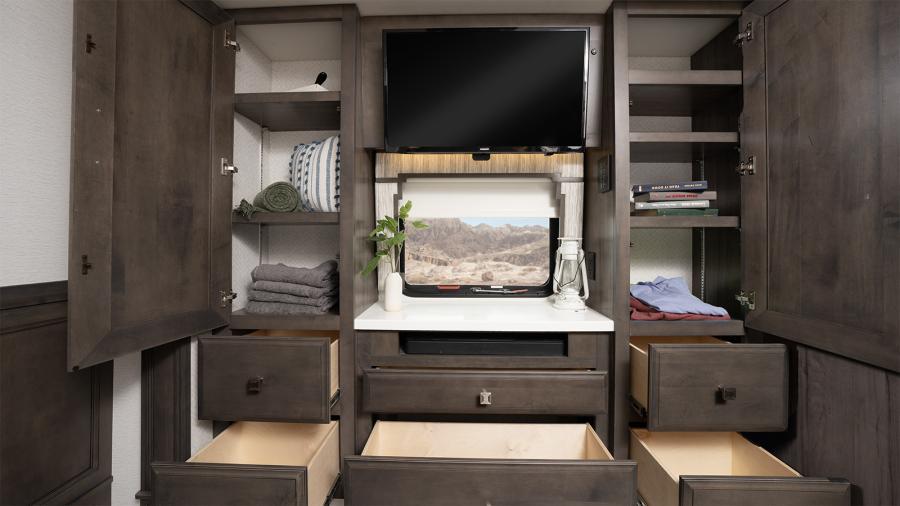

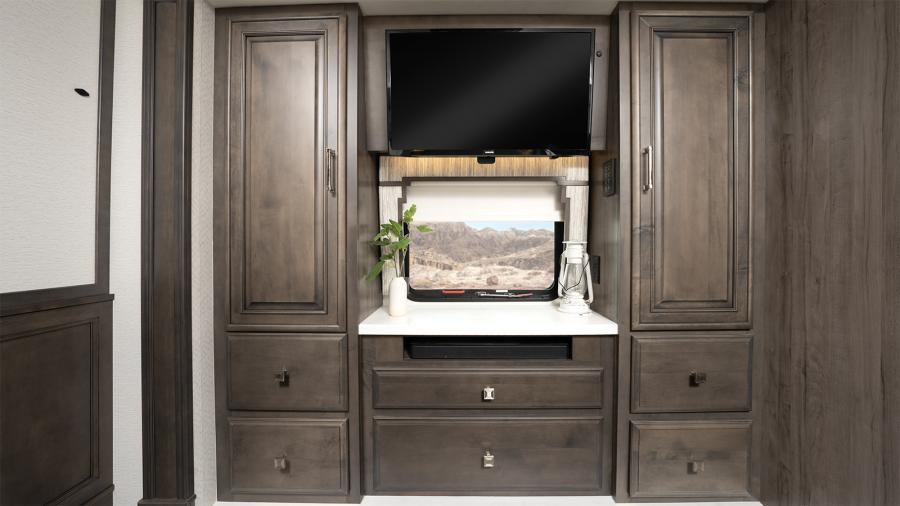

Wardrobe Automatic light in rear closet

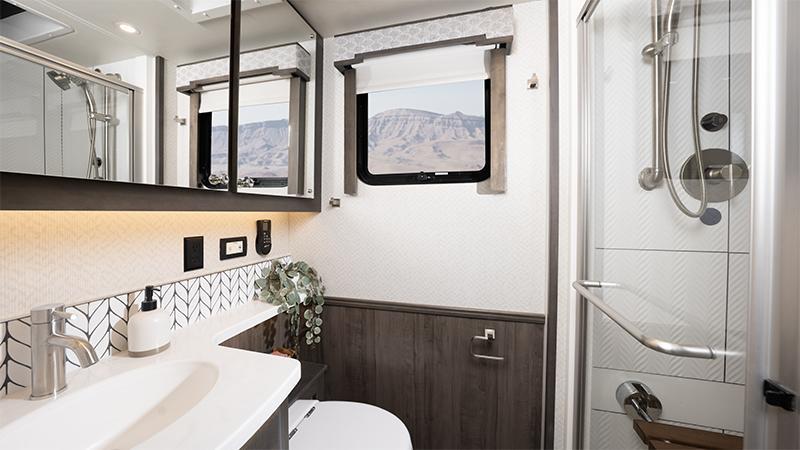

Bathroom

Countertop(s) Solid-surface countertops with dimmable LED accent lighting
Sink Integrated sink
Shower Textured porcelain tile shower with skylight and clear glass shower door

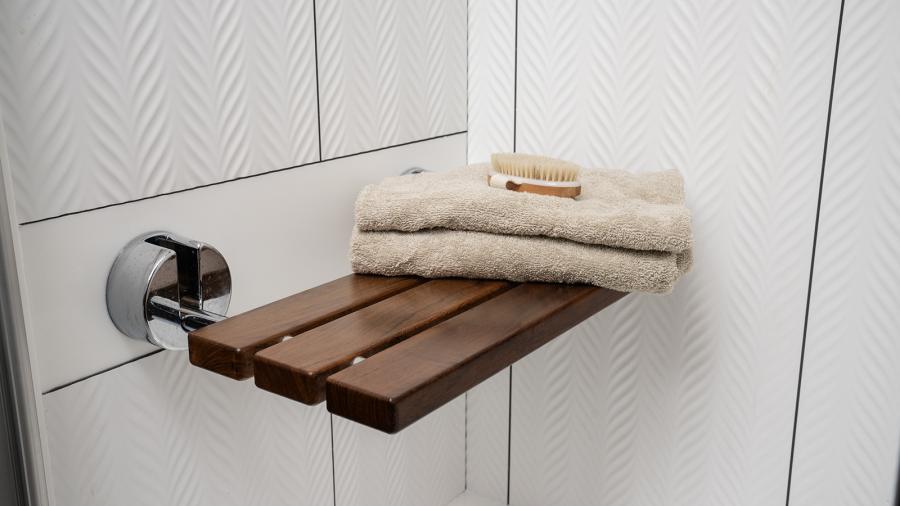

Shower Seat Teakwood shower seat

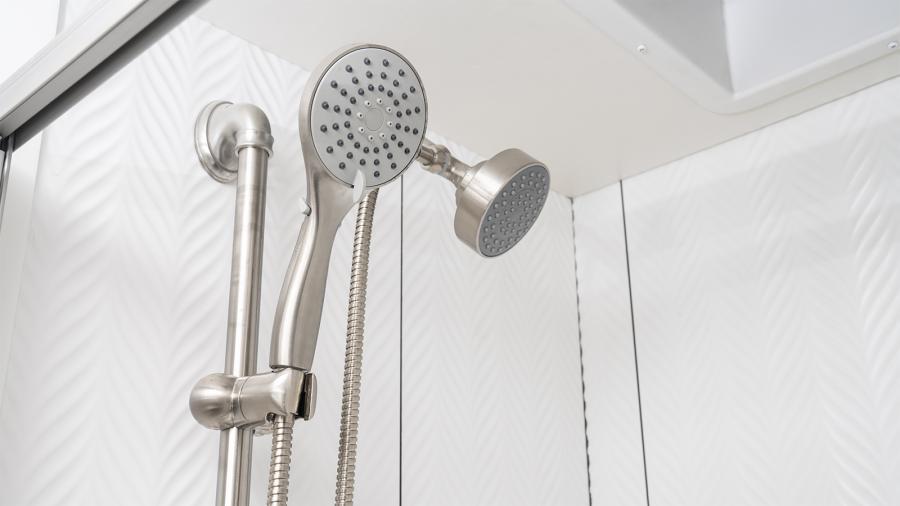

Shower Head Fixed shower head and separate hand-held spray wand
Water Saving System Aqua View SHOWERMI$ER™ water saving system
Toilet Thetford® macerator toilet in main bath; Thetford® macerator toilet in mid bath (44D, 44R, 44W); Thetford® Aria china toilet in mid bath (40P, 44B)
Vent Maxxair® power exhaust fan with intake

Safety

Carbon Monoxide Detector Carbon monoxide detector
Smoke Alarm Smoke alarm
Security Safe Storage safe

Options

Dinette Dinette booth ILO freestanding table and chairs
Sofa Sofa ILO power theater seating (44D, 44W only)
Theater Seating Theater seating with power recline and fixed center console ILO hide-a-bed (44R only)
Hide-a-Bed Sofa 100 in. hide-a-bed sofa ILO 100 in. sofa with power recline (44B and 44Z only)
Fireplace/TV/entertainment center and work station ILO sofa Fireplace/entertainment center/work station ILO sofa (44D, 44W only)
Batteries (2) additional AGM batteries (N/A 40P)
Satellite Dish Winegard® In-motion satellite dome ILO TRAV'LER
Satellite Dish - US Winegard TRAV'LER satellite dish- Dish Network ILO DIRECTV
Canadian Standards Canadian standards (includes Canadian Shaw satellite)
