THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.
2023 Vision
Ease into Class A gas luxury living with Entegra Coach’s Vision. With floorplans ranging from 28-32 feet in length, you’ll find Vision easier to maneuver whether on the road or in a campground. Built on the popular Ford® F53 chassis and combined with the exclusive E-Z Drive™ ride and handling package, Vision is a dream to drive. See for yourself why owning your own Class A is easier than you think in Vision from Entegra Coach.
Brochure
Product Video
.jpg)
2023 Vision Walkthrough Video
Floorplans
Ward = wardrobe
Lav = bathroom sink
Med = medicine cabinet
Ohc = overhead cabinets
Fridge = refrigerator
Micro = microwave
2023 Vision|27A
.png)
Specs
| Gross Vehicle Weight Rating (lbs) | 18,000 |
| Gross Combined Weight Rating (lbs) | 23,000 |
| Front Gross Axle Weight Rating (lbs) | 7,000 |
| Rear Gross Axle Weight Rating (lbs) | 12,000 |
| Exterior Length | 29' 11" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 5" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 72 |
| Grey Waste Water Capacity (gals) | 50 |
| Black Waste Water (gals) | 49 |
| Fuel Tank Capacity (gals) | 80 |
| Furnace (BTU Output) | 30,000 BTU auto-ignition furnace |
| Wheel Base | 190" |
2023 Vision|29F
.png)
Specs
| Gross Vehicle Weight Rating (lbs) | 18,000 |
| Gross Combined Weight Rating (lbs) | 23,000 |
| Front Gross Axle Weight Rating (lbs) | 7,000 |
| Rear Gross Axle Weight Rating (lbs) | 12,000 |
| Exterior Length | 32' 2" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 5" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 72 |
| Grey Waste Water Capacity (gals) | 40 |
| Black Waste Water (gals) | 49 |
| Fuel Tank Capacity (gals) | 80 |
| Furnace (BTU Output) | 30,000 BTU auto-ignition furnace |
| Wheel Base | 190" |
2023 Vision|29S
.png)
Specs
| Gross Vehicle Weight Rating (lbs) | 18,000 |
| Gross Combined Weight Rating (lbs) | 23,000 |
| Front Gross Axle Weight Rating (lbs) | 7,000 |
| Rear Gross Axle Weight Rating (lbs) | 12,000 |
| Exterior Length | 31' 4" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 5" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 72 |
| Grey Waste Water Capacity (gals) | 40 |
| Black Waste Water (gals) | 50 |
| Fuel Tank Capacity (gals) | 80 |
| Furnace (BTU Output) | 30,000 BTU auto-ignition furnace |
| Wheel Base | 190" |
All Floorplans
2023 Vision | 27A
2023 Vision | 29F
2023 Vision | 29S
360°

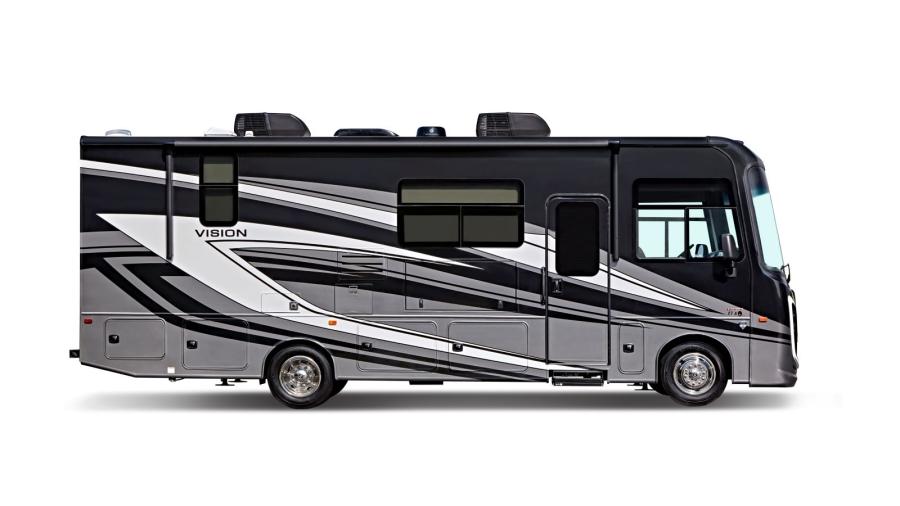

Exterior Graphics
Standards & Options
Chassis
| E-Z Drive | E-Z DRIVE™: Computer-balanced driveshaft, Bilstein® steering stabilizer, jounce bumpers, heavy-duty front and rear stabilizer bars, SACHS shocks |
| Chassis | Ford® F53 chassis |
| Engine | 7.3L V-8 335 HP engine with 468 ft.-lb. torque |
| Transmission | 6-speed automatic TorqShift® transmission with overdrive and tow haul mode |
| Alternator | 210 amp alternator |
| Tires | G-rated highway tires-245/70R19.5 |
| Braking System | Front and rear disc, 4-wheel anti-lock brakes |
| Hitch | 5,000 lb. rear hitch receiver with dual connector and 7-pin plug |
| Chassis Battery | 12V chassis battery |
| Fuel Tank | 80 gal. fuel tank |
| Leveling System | Automatic hydraulic leveling jacks |
Construction
| Roof | One-piece, seamless, crowned fiberglass roof |
| Floor | TuffShell™ vacuum-bond laminated floor |
| Insulation | Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls) |
| Walls | TuffShell™ vacuum-bond laminated sidewalls |
Heat, AC, Water & Power
| Inverter | 1,000W inverter |
| Generator | Onan® Marquis Gold Genset 5,500W generator |
| Transfer Switch | Transfer switch with reverse polarity protection |
| Electrical Hookup | 50 amp electrical service |
| Batteries | (2) 6V AGM (220ah) house batteries on slideout tray |
| Solar | 200W solar panel with dual controller |
| Heated Tanks | Heated holding tanks (12V pads) |
| Air Conditioning | 15,000 BTU A/C unit with heat pump and second 13,500 BTU A/C unit |
| Heating System | Auto-ignition ducted furnace - 30,000 BTU |
| Water Heater | 6 gal. gas/electric DSI auto-ignition water heater |
| Propane | 16.5 gal. propane tank (56 lb.) with LP quick-connect hookup |
| Winterization Drain System | Winterization drain system |
| Tank Flush | Black tank flush |
| Water Pump | 12V demand water pump |
| Water Filtration | Water filtration system |
Exterior
| Entertainment | Exterior entertainment center with outside speakers and LED HD Smart TV mounted on swivel bracket |
| Patio Awnings | Electric patio awning with LED lights |
| Slideout Awnings | Slideout awning(s) |
| Utility Center | Exterior utility center |
| Outside Shower | Outside shower |
| Exterior Walls | Fiberglass exterior walls with vinyl graphics |
| Front/Rear Cap | One-piece, seamless, fiberglass front cap |
| Windows | Frameless windows |
| Entrance Door | Entrance door with industry’s largest travel-view window |
| Entrance Steps | Electric-powered entrance steps |
| Cargo Features | Lockable pass-through storage compartments with metal slam latches |
| Bumper | 4 in. tube bumper with sewer hose storage |
| Ladder | Roof ladder |
| Third Brake Light | Third brake light |
| Satellite Dish | Prep for satellite dish |
| Antenna | Winegard 2.0 Wi-Fi/4G antenna |

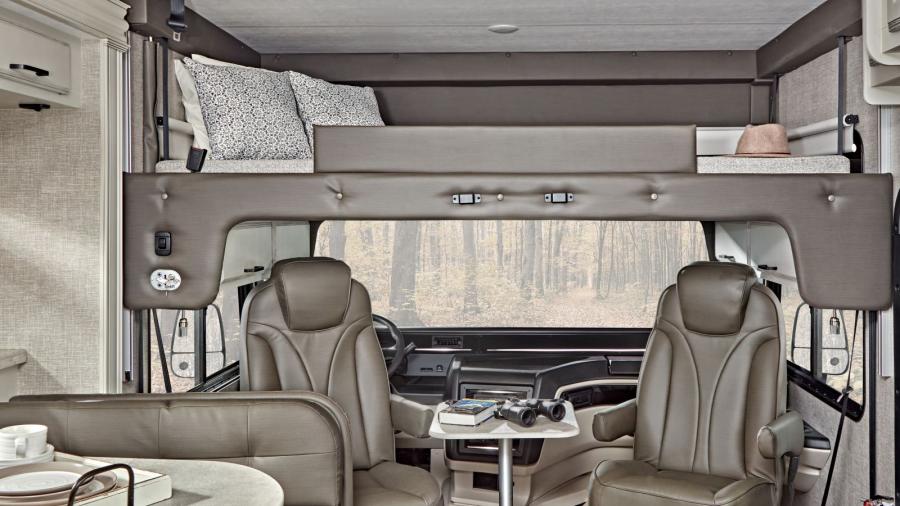

Cockpit
| Infotainment System(s) | Sony® infotainment center with Apple CarPlay® and Android Auto™ |
| Cameras | Backup and side-view cameras |
| Additional Amenities | Removable driver/passenger cockpit table; A/C and cruise control |
| Visors & Privacy Shade | Power front privacy shade with manual side privacy shades |
| Windshield | 120 in. panoramic windshield |
| Driver / Passenger Seats | 6-way power driver seat; Swivel driver and passenger seats |
| Dash | Soft-touch, vinyl-wrapped automotive dash |
| Steering Wheel | Tilt steering wheel |
| Start | Auxiliary start |

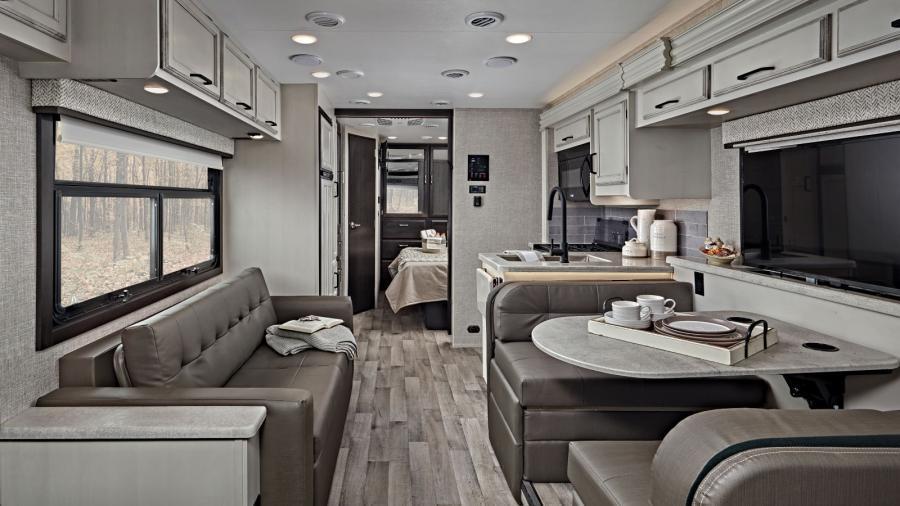

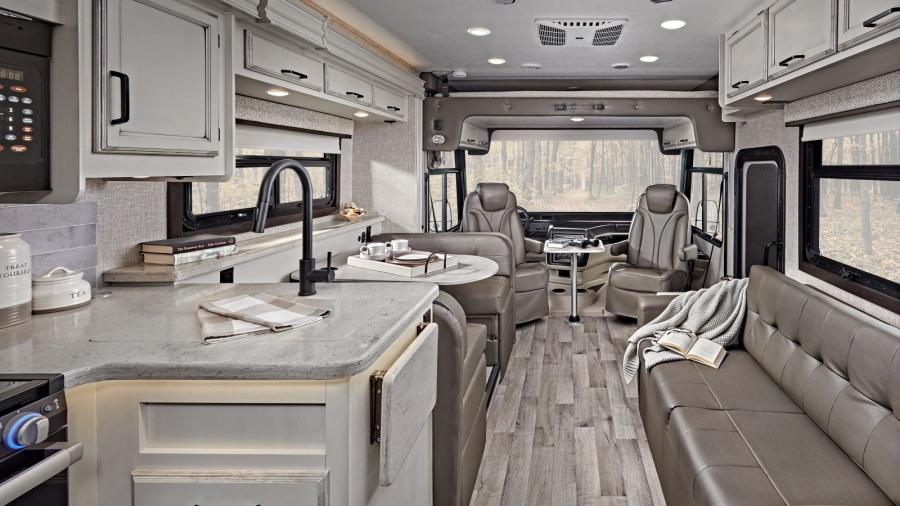

Interior
| Television - Living Room | LED HD Smart TV in living area |
| Window Treatments | Blackout night roller shades |
| Ceiling | 84 in. interior ceiling height |
| Lighting | High-intensity recessed LED ceiling lights |
| Fascia | LED-lit hardwood fascia |
| Cabinetry | Hardwood cabinet doors and drawer front |
| Cable hookup | Cable TV hookup with RG-6 coax |
| Bunks | Bunks with industry-exclusive 300 lb. capacity and wall-mounted tablet holder in each (29F) |

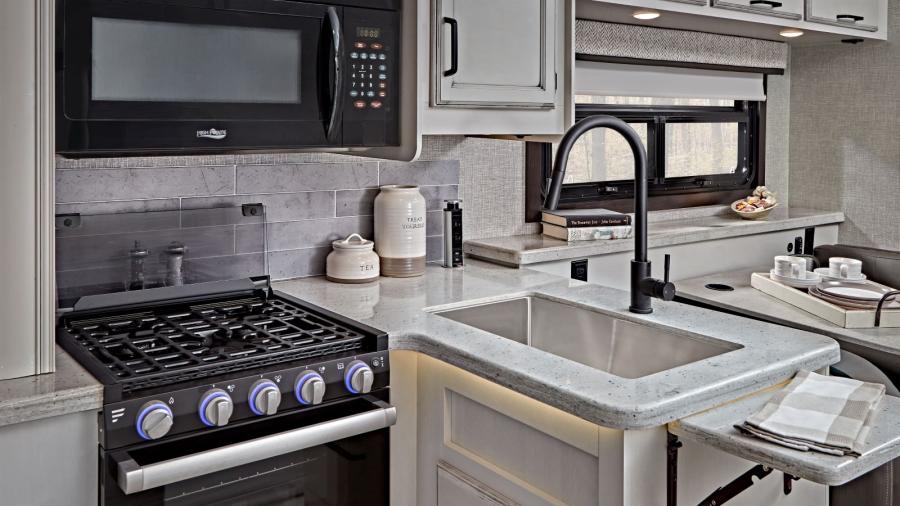

Kitchen
| Drawer Guides | Ball-bearing drawer guides |
| Dinette | Entegra-exclusive, easy-operation legless dinette table |
| Cooktop | Furrion® all-in-one cooktop and oven |
| Microwave | Residential-size microwave |
| Sink | Large, recessed, stainless steel kitchen sink with cover |
| Countertops | LED-lit countertops with flip-up extension (select models) |
| Backsplash | Decorative kitchen backsplash |
| Charging Station | Pop-up charging station in kitchen with 110V outlets and USB ports |

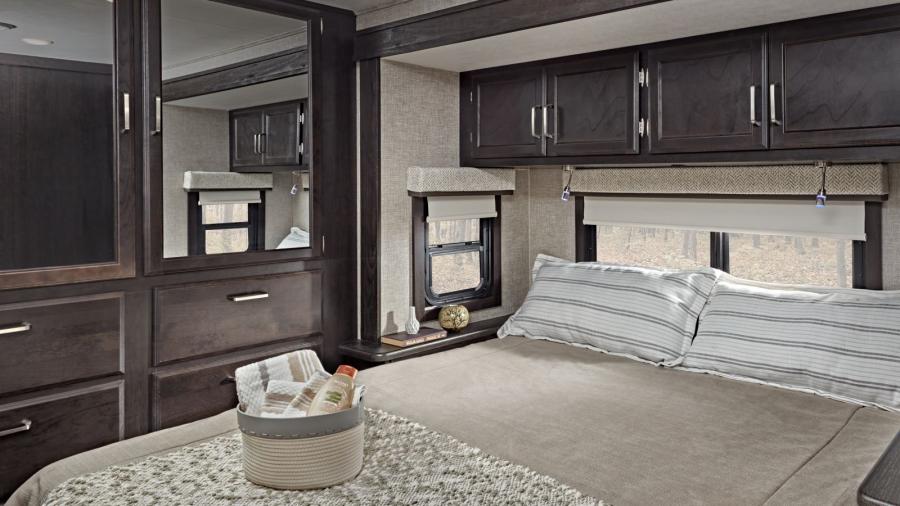

Bedroom
| Bed | Walk-around, queen-size bed with bedspread and nightstands (king size in 27A) |
| Nightstands | USB port and wireless charging in nightstands |
| Under-bed Storage | Under-bed storage (select models) |
| Television | Bedroom TV prep |
| Wardrobe | Large wardrobes |
Bathroom
| Shower Seat | Shower with decorative surround, glass door, skylight and light |
| Sink | Recessed stainless steel bathroom sink |
| Toilet | Porcelain toilet with foot flush |
| Vent | Powered roof vent in bathroom with wall switch |
Safety
| Seat Belts | 2-point lap safety belts in all designated seating locations |
| Smoke Alarm | Smoke alarm |
| Carbon Monoxide Detector | Carbon monoxide detector |
Options
| Customer Value Package (Mandatory) | E-Z DRIVE, one-piece seamless crowned fiberglass roof, exterior entertainment center, electric patio awning with LED lights, slideout awnings, 1,000K inverter, Sony infotainment center, backup and side-view cameras, removable driver/passenger cockpit table, LED HD Smart TV in living room, blackout night roller shades |
| Canadian Standards | Canadian standards |
| Overhead Bunk | Drop-down overhead bunk in cab area with 750 lb. capacity |
| Refrigerator | 15 cu. ft. 12V refrigerator (N/A 29S) |
| Theater Seating | Theater seating (29S only) |
| Bedroom TV | LED HD Smart TV in bedroom |
Décor Options
.jpg)
.jpg)
Entegra Coach peace of mind
At Entegra Coach, excellence doesn't end with our stunning interiors and superior craftsmanship. We back each luxury coach with the industry's highest level of service.
Entegra Coach's industry leading 2-year limited warranty is double that of any other manufacturer and offers more coverage. On top of this 2 year warranty, Entegra Coach supports our customers with a 3-year limited structural warranty for areas like the roof, walls and floors. This warranty comes directly from us, because we believe in the products we build and care for all owners as members of our Entegra Coach family. Ask your local Entegra Coach dealer for full warranty details.
