THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.
2020 Vision XL
Introducing, all-new for 2020, our Vision XL. This new addition to our gas Class A family is built on the Ford F53 chassis, and offers 320 horsepower, with electronic fuel injection and 460 lb.-ft. of torque. This coach is full of passion, craftsmanship, dynamics and elegance. With ultimate refinement, the Vision XL is a step above and features backup and side-view cameras with monitor, huge frameless windows, exterior entertainment center with LED TV mounted on a swivel bracket and single-disc DVD/FM and radio. The E-Z Drive Elite package on the Vision XL includes a computer-balanced driveshaft, variable-rate front and rear jounce bumpers, heavy-duty front and rear stabilizer bars, SACHS shocks and 22.5" Michelin tires for precise handling and renowned stability. Vision XL was created for those seeking new landscapes and is everything you would expect, and more, from a Class A Motorhome, created by Entegra Coach.
Brochure
Floorplans
Ward = wardrobe
Lav = bathroom sink
Med = medicine cabinet
Ohc = overhead cabinets
Fridge = refrigerator
Micro = microwave
2020 Vision XL|34B
Specs
| Wheel Base | 228" |
| Exterior Length | 36' 11" |
| Exterior Height with A/C and Satellite | 12' 10" |
| Exterior Width | 101" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 72 |
| Grey Waste Water Capacity (gals) | 40 |
| Black Waste Water (gals) | 40 |
| Gross Vehicle Weight Rating (lbs) | 22,000 |
| Gross Combined Weight Rating (lbs) | 26,000 |
| Front Gross Axle Weight Rating (lbs) | 8,000 |
| Rear Gross Axle Weight Rating (lbs) | 15,000 |
| Tag Axle Gross Weight Rating (lbs) | N/A |
| Fuel Tank Capacity (gals) | 80 |
| Furnace (BTU Output) | 35,000 |
2020 Vision XL|34G
Specs
| Furnace (BTU Output) | 35,000 |
| Black Waste Water (gals) | 50 |
| Grey Waste Water Capacity (gals) | 40 |
| Fresh Water Capacity (gals) | 72 |
| Fuel Tank Capacity (gals) | 80 |
| Wheel Base | 238" |
| Interior Height | 84" |
| Gross Vehicle Weight Rating (lbs) | 22,000 |
| Gross Combined Weight Rating (lbs) | 26,000 |
| Front Gross Axle Weight Rating (lbs) | 8,000 |
| Rear Gross Axle Weight Rating (lbs) | 15,000 |
| Tag Axle Gross Weight Rating (lbs) | N/A |
| Exterior Length | 36' 6" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 10" |
2020 Vision XL|36A
Specs
| Gross Vehicle Weight Rating (lbs) | 24,000 |
| Gross Combined Weight Rating (lbs) | 30,000 |
| Front Gross Axle Weight Rating (lbs) | 9,000 |
| Rear Gross Axle Weight Rating (lbs) | 15,500 |
| Tag Axle Gross Weight Rating (lbs) | N/A |
| Exterior Length | 38' 10" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 10" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 72 |
| Grey Waste Water Capacity (gals) | 40/40 |
| Black Waste Water (gals) | 51/51 |
| Fuel Tank Capacity (gals) | 80 |
| Furnace (BTU Output) | (2) 30,000 |
| Wheel Base | 252" |
All Floorplans

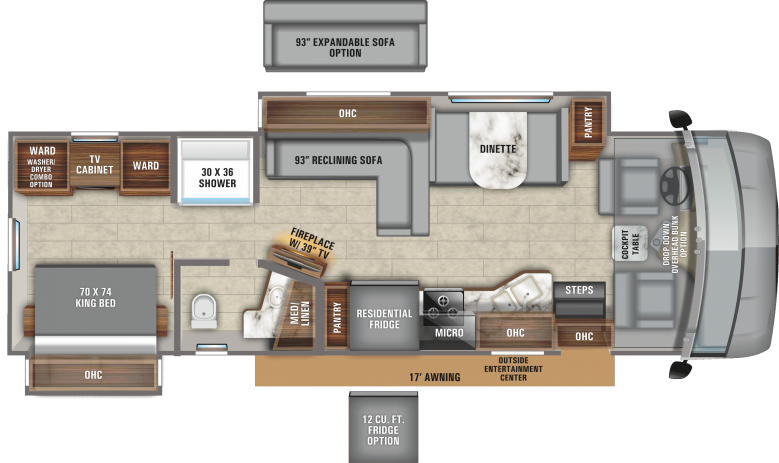

2020 Vision XL | 34B

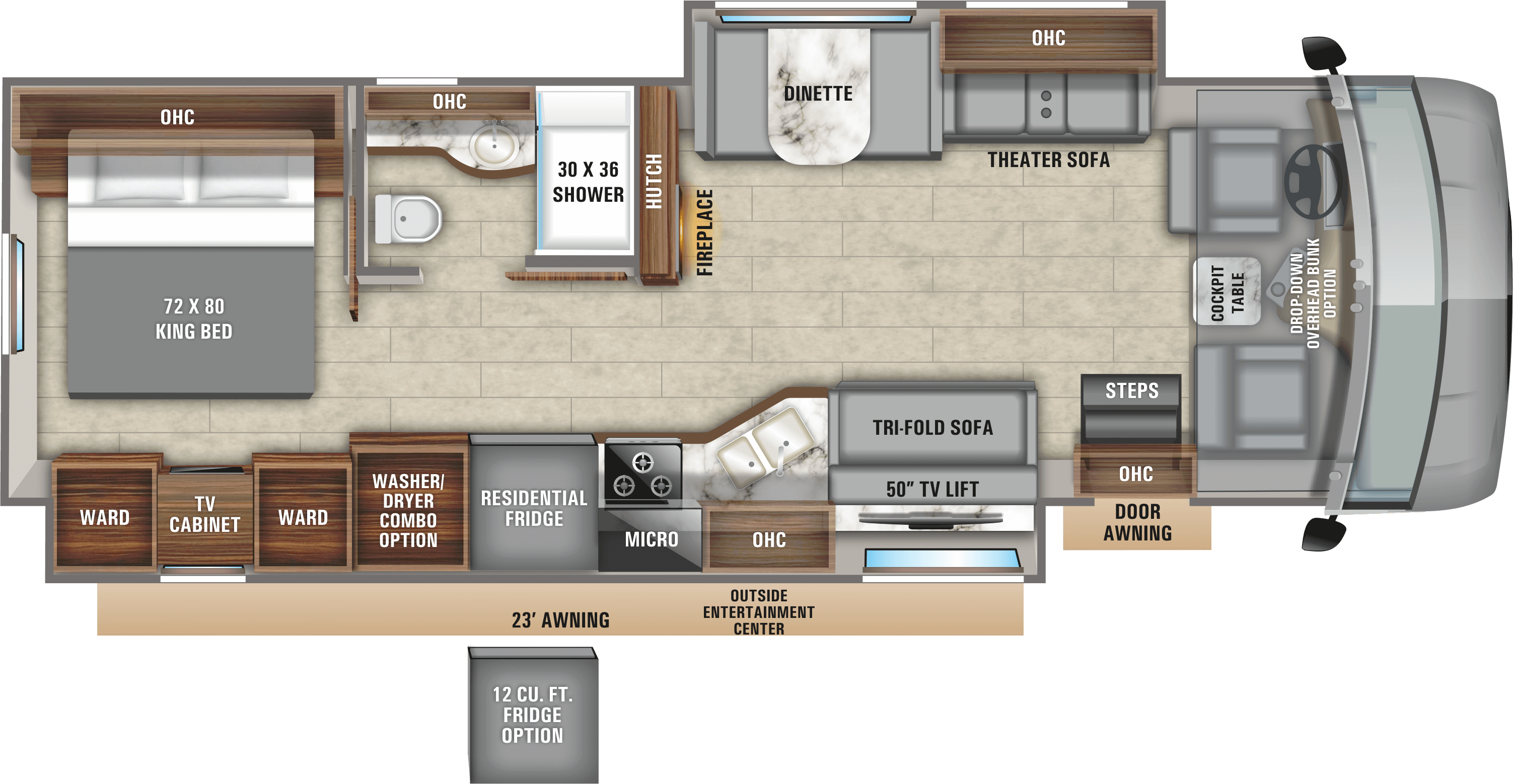

2020 Vision XL | 34G

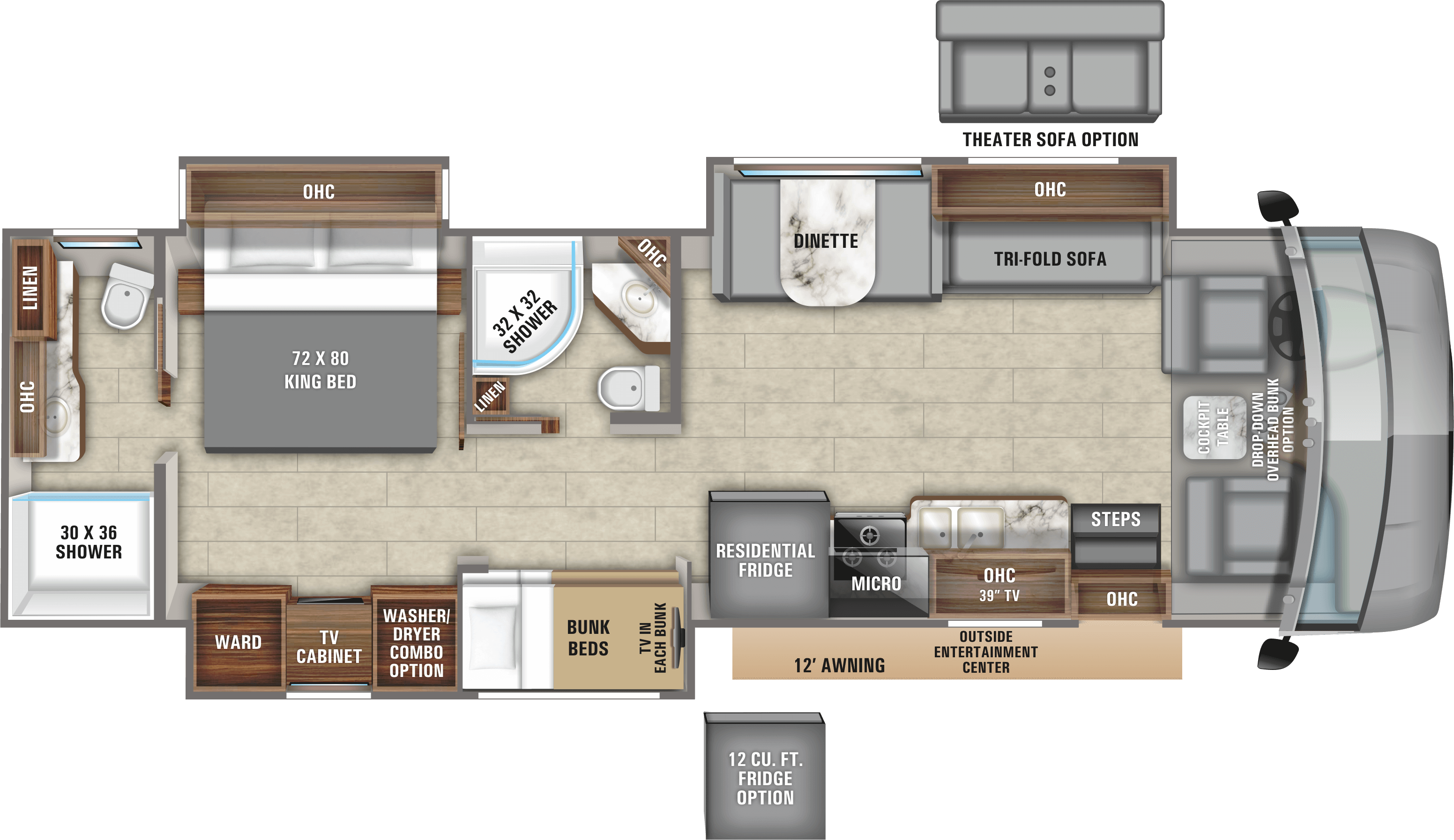

2020 Vision XL | 36A
360°

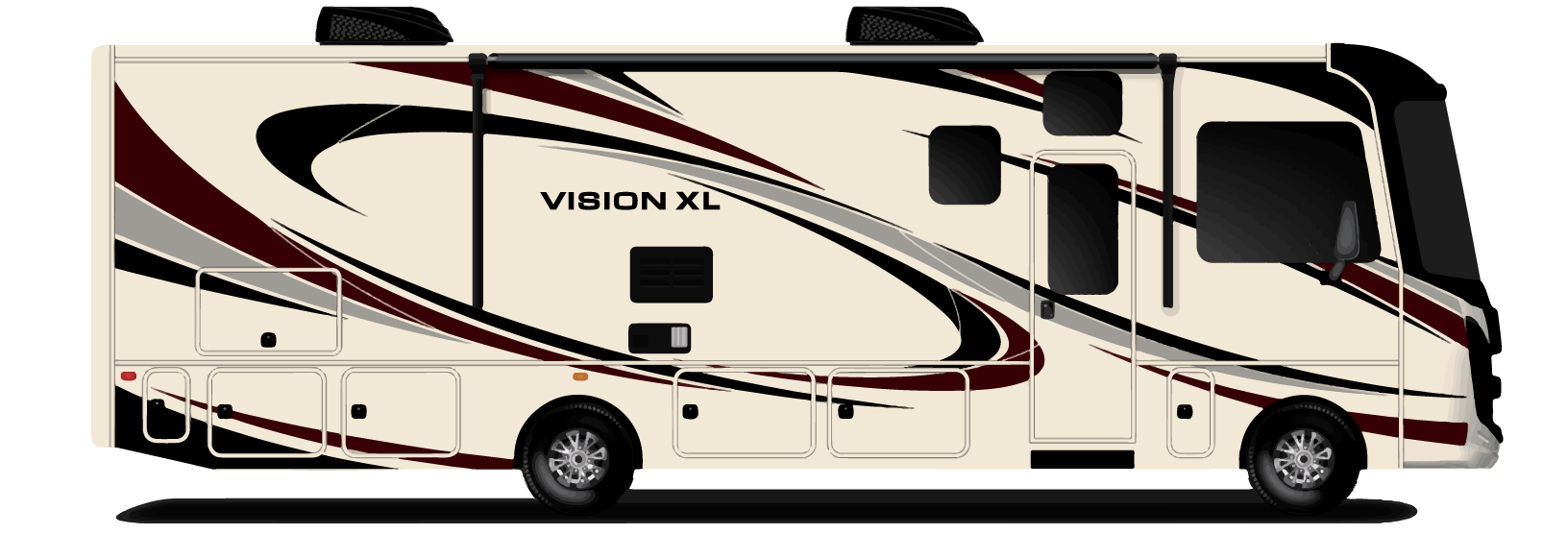

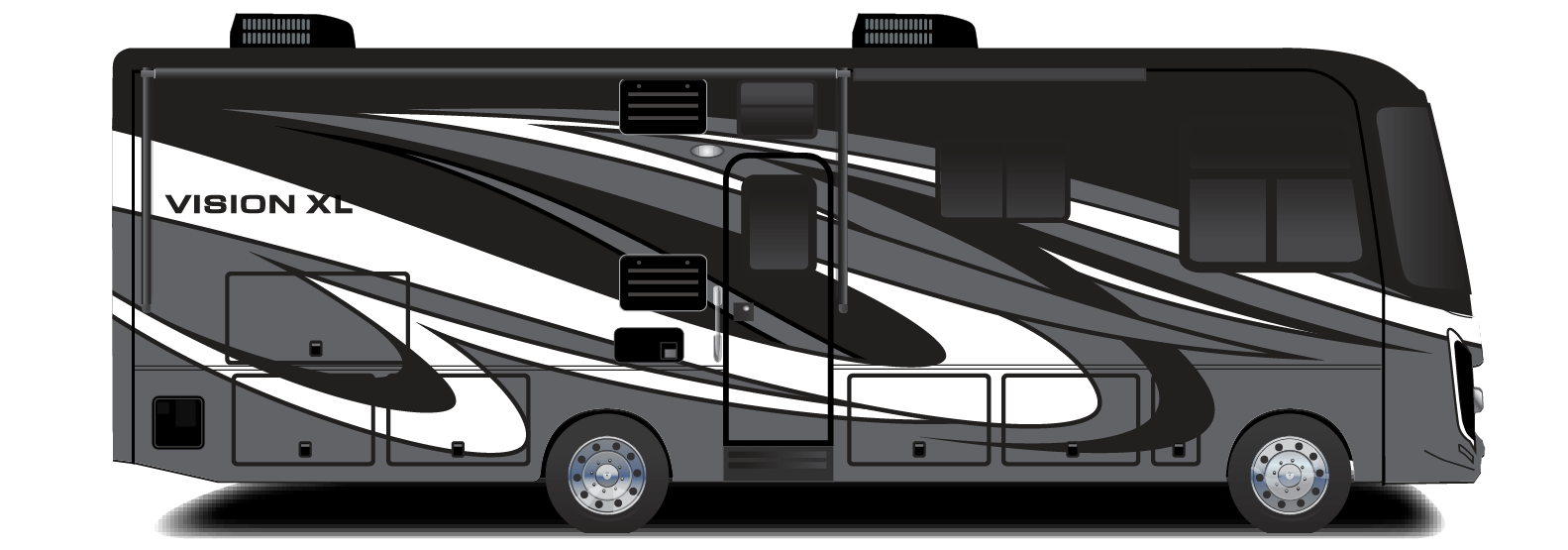

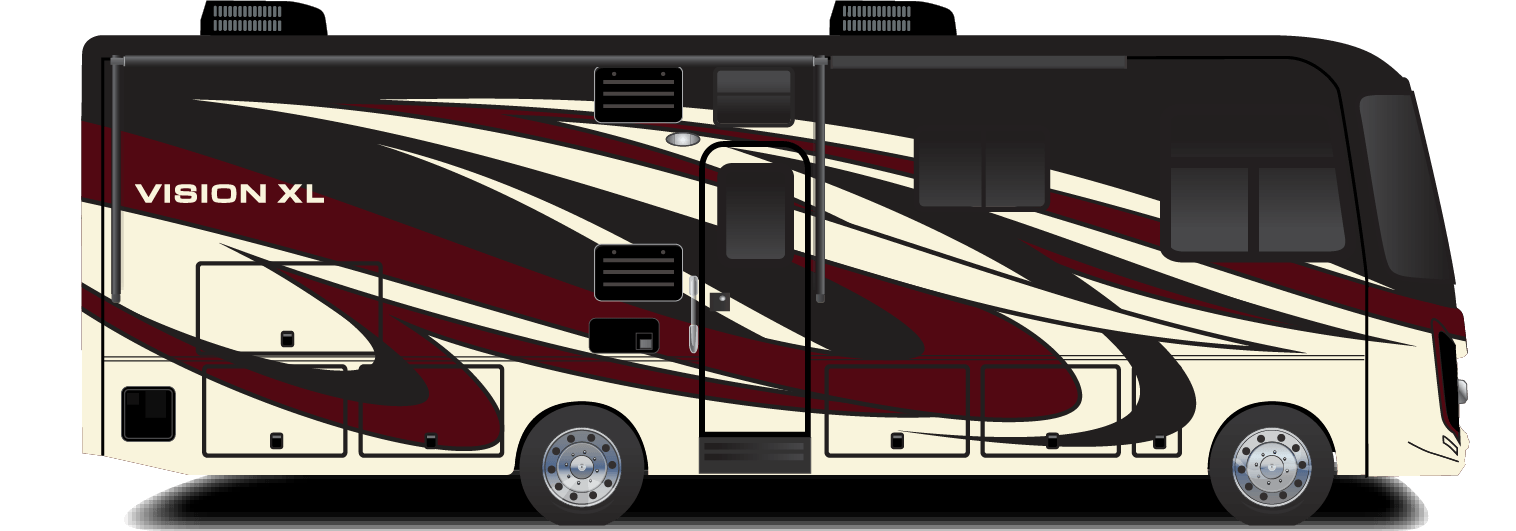

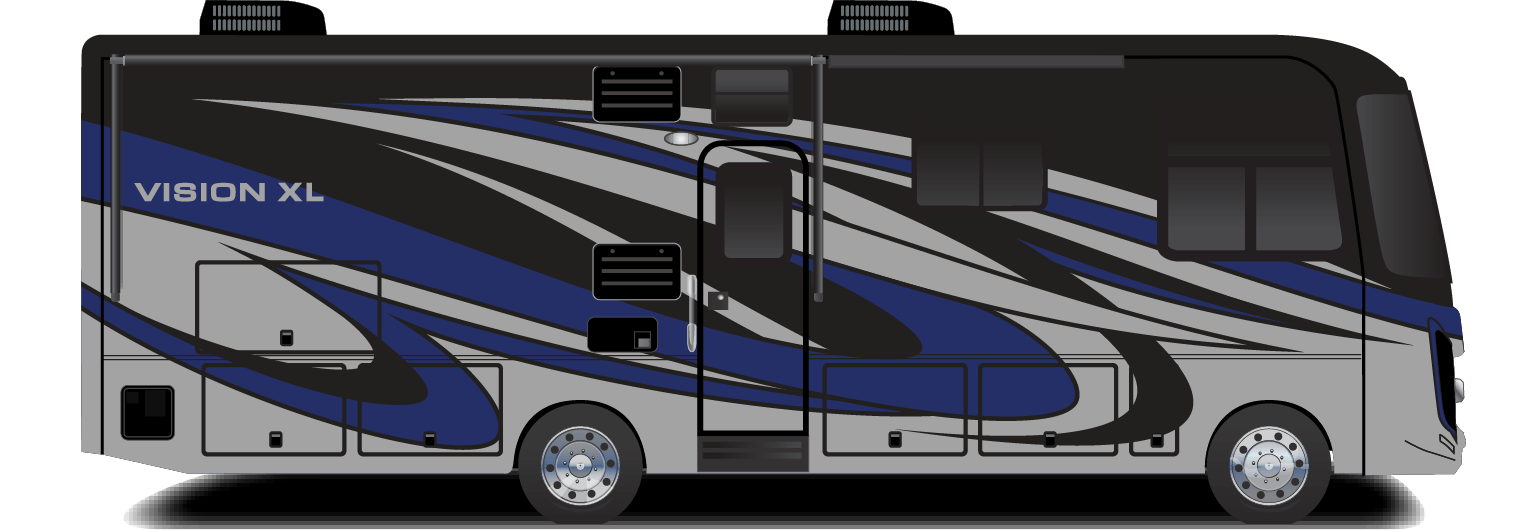

Exterior Graphics
.png)
Standards & Options
Chassis
| Alternator | 2019 chassis- 175 amp alternator; 2020 chassis- 210 amp alternator |
| Braking System | Front and rear disc, four-wheel anti-lock brakes |
| Chassis | Ford F53 22,000-lb (34B, 34G)/ 24,000-lb (36A) GVWR chassis |
| Chassis Battery | 12V chassis battery |
| Engine | 2019 chassis- 6.8L Triton V-10 320 HP gas engine with electronic fuel injection and 460 ft.-lb torque; 2020 chassis- 7.3L V-8 350HP engine with 468 ft.-lb torque |
| Hitch | 5,000-lb. rear hitch receiver with dual connector and Seven-pin plug |
| Tires | 22.5-inch Michelin radial tires |
| Transmission | 6-speed automatic TorqShift transmission with overdrive and tow haul mode |
| E-Z Drive Elite | Computer-balanced driveshaft, Variable rate front and rear jounce bumpers, heavy-duty front and rear stabilizer bars, SACHS shocks, 22.5" Michelin tires |
Construction
| Insulation | Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls) |
| Roof | Seamless crowned fiberglass roof |
Heat, AC, Water & Power
| Air Conditioning | 15,000-BTU A/C with heat pump & 13,500-BTU A/C |
| Batteries | (2) 6V AGM (220Ah) house batteries on slideout tray |
| Heating System | Auto-ignition, 31,000-BTU ducted furnace |
| Inverter | 1,200-watt inverter |
| Propane | 56-lb., 16.5-gallon propane tank |
| Water Filtration | Water filtration system |
| Water Pump | 12V demand water pump |
| Generator | Onan® Marquis Gold Genset 5,500-watt generator with auto-gen start |
Exterior
| Exterior Walls | Cream, high-gloss gel coat fiberglass walls |
| Front/Rear Cap | Seamless, one-piece fiberglass front and rear caps |
| Cargo Features | Lockable pass-through storage compartments with side hinged slam-latch doors |
| Entrance Door | Entrance door with industry’s largest travel view window and shade |
| Entrance Steps | Electric-powered, double-step entry |
| Exterior | Vinyl graphics |
| Entertainment | Exterior entertainment center w/LED TV mounted on swivel bracket & DVD/AM/FM radio & speakers |
| LED Lights | LED marker lights |
| Outside Shower | Outside shower |
| Patio Awnings | Electric patio awning with LED lights |
| Power Cord | 50-amp electrical service cord |
| Satellite Dish | Prep for satellite dish |
| Slideout Awnings | Slideout topper awnings |
| Third Brake Light | Third brake light |
| Windows | Frameless windows |
Cockpit
| Cameras | Backup and side-view cameras with monitor |
| Driver / Passenger Seats | Six-way power driver and passenger seats |
| Flooring | Linoleum flooring |
| Infotainment System(s) | Sony Infotainment Dash Radio w/GPS |
| Leveling System | Automatic hydraulic leveling jacks |
| Side Consoles | Driver/passenger cockpit table |
| Visors & Privacy Shade | Power sun shade on front windshield |
| Windshield | 120" Panoramic windshield |
Interior
| Lighting System | High-intensity recessed LED ceiling lights |
| Window Treatments | Day/night roller shades and decorative window valance |
| Television - Living Room | LED living room TV |
| Cabinetry | Raised-panel hardwood cabinet doors |
| Ceiling | 84-inch interior ceiling height with padded vinyl ceiling |
| Bunks | Bunks—300-pound rating (36A) |
| Fascia | LED lit hardwood fascia |
| Electric Fireplace | Furrion electric fireplace |
Kitchen
| Cooktop | Furrion all-in-one cooktop and oven |
| Dinette | Entegra-exclusive easy operation legless dinette table |
| Drawer Guides | Ball-bearing drawer guides |
| Countertops | Solid-surface kitchen countertops |
| Microwave | Residential size convection microwave |
| Refrigerator | 21 cu. ft. residential refrigerator |
| Backsplash | Decorative tile kitchen backsplash |
Bedroom
| Bed | King- sized bed with bedspread |
| Television | Bedroom 32" LED TV |
Bathroom
| Shower | Shower with glass door, skylight and light |
| Vent | Bathroom powered roof vent with wall switch |
| Toilet | Toilet with foot flush |
Safety
| Seat Belts | Seat belts in every designated seating position |
Options
| Canadian Standards | Canadian Standards- CSA |
| Theater Seating | Power sofa theater seating |
| Reclining Sofa | 93" straight reclining sofa |
| Refrigerator | 12 cu. ft., 4-door gas/electric refrigerator |
| Overhead Bunk | Front Overhead Bunk |
| Customer Value Package (Mandatory) | 5.5 KW generator, 50 amp electrical service, 1,200 watt inverter, Automatic hydraulic leveling jacks, Backup and sideview camera, Driver/passenger cockpit table, Electric awning with LED lights, Exterior entertainment center with LED TV and single disc DVD/FM radio, Frameless windows, Infotainment system, JRide plus package, LED TV in living room, Roller shades, Slideout cover awnings, Solid-surface kitchen countertops |
| Washer/Dryer | Washer/ Dryer combination |
Décor Options
Entegra Coach peace of mind
At Entegra Coach, excellence doesn't end with our stunning interiors and superior craftsmanship. We back each luxury coach with the industry's highest level of service.
Entegra Coach's industry leading 2-year limited warranty is double that of any other manufacturer and offers more coverage. On top of this 2 year warranty, Entegra Coach supports our customers with a 3-year limited structural warranty for areas like the roof, walls and floors. This warranty comes directly from us, because we believe in the products we build and care for all owners as members of our Entegra Coach family. Ask your local Entegra Coach dealer for full warranty details.
