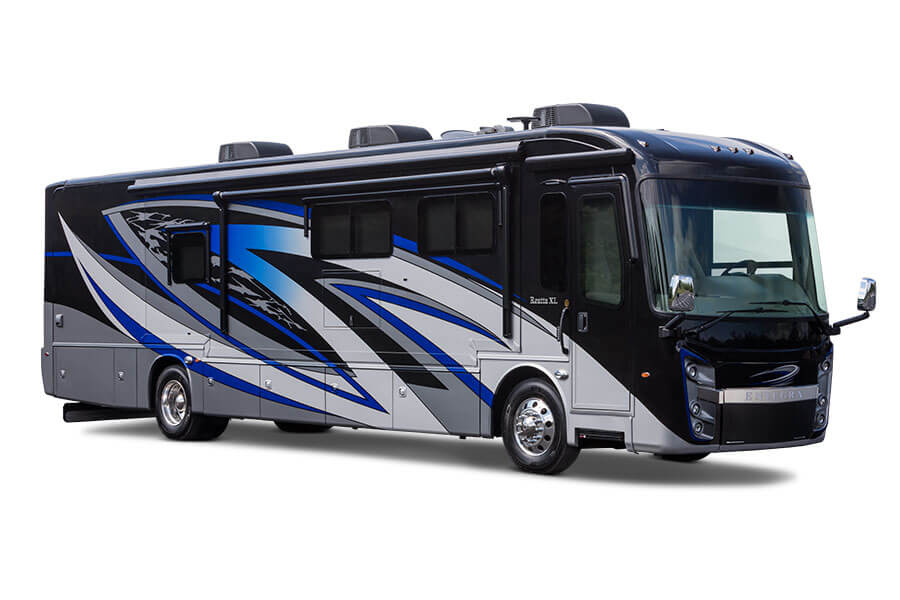

2020 Reatta XL

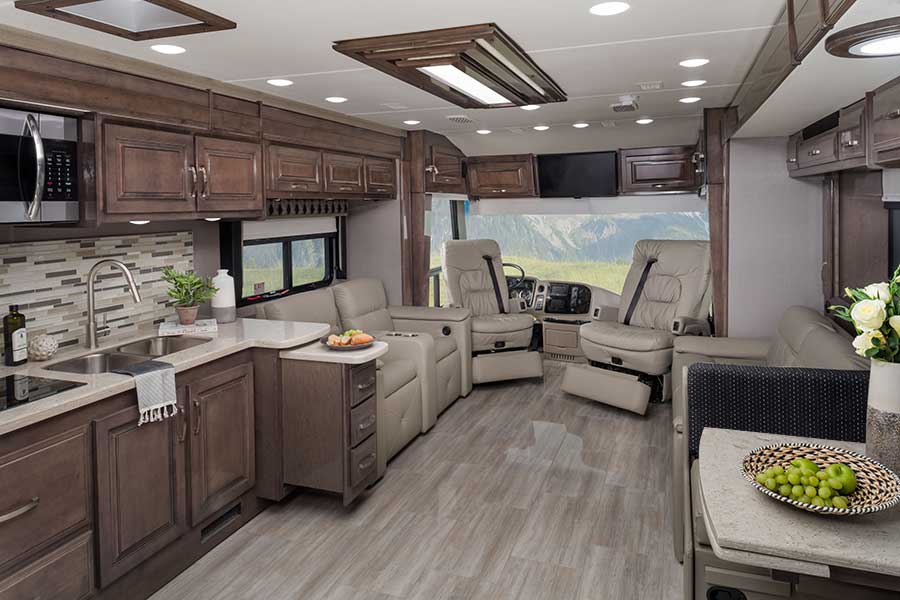

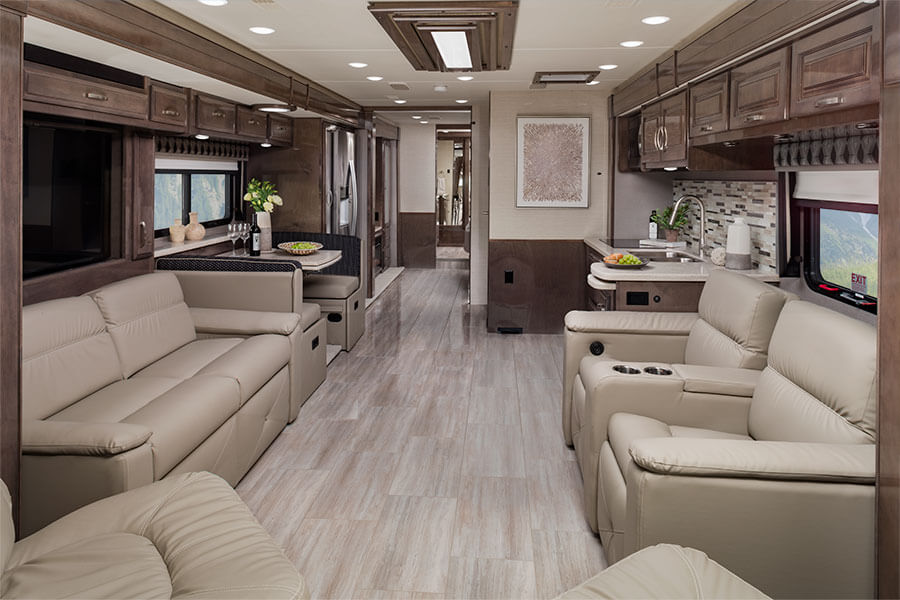

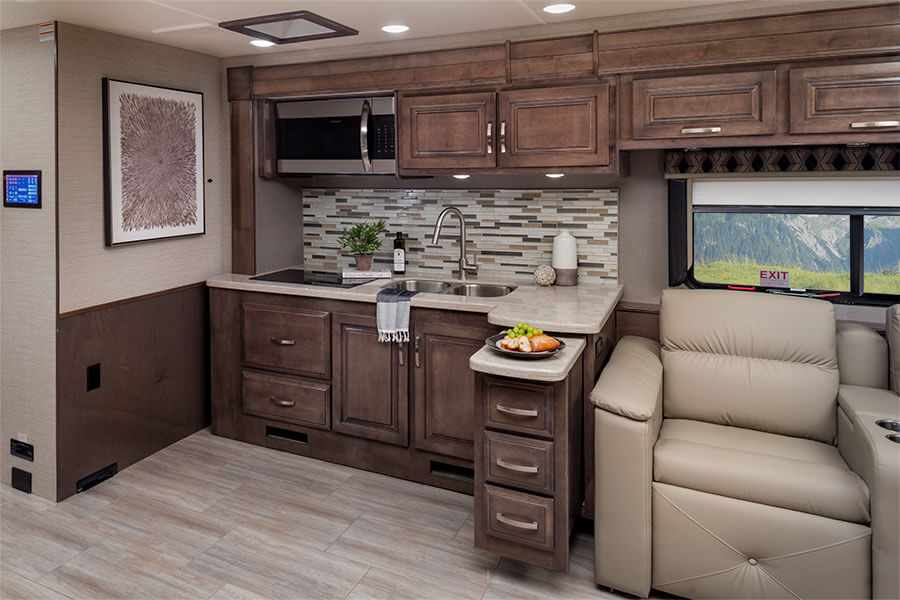

Introducing the all-new for 2020, Reatta XL. This new addition to our compact luxury diesel family is built on the Spartan K2 Chassis and features exlusive indpendent front suspension. Exceptional handling and drivability match leisure and elegance in this luxury coach. Hand laid, heated tile floors offer the feel of a luxury spa. Fresh styling cues accent solid surface countertops, LED recessed lighting and residential style appliances. If you are looking for everything luxury in a compact diesel, this coach is worth the look.

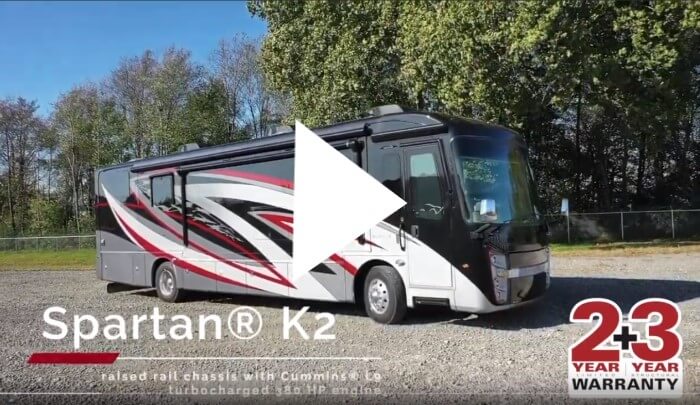

Product Video

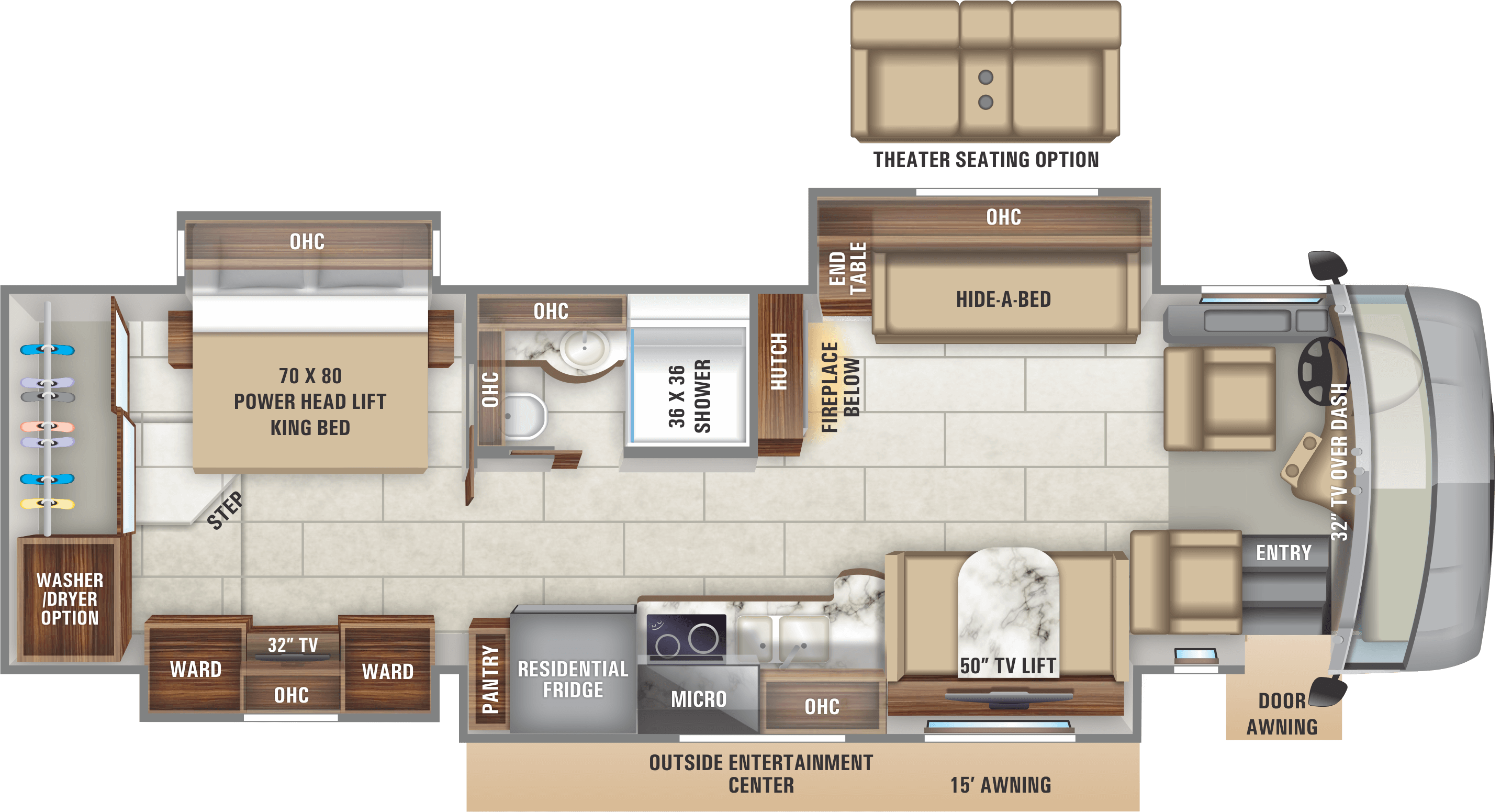

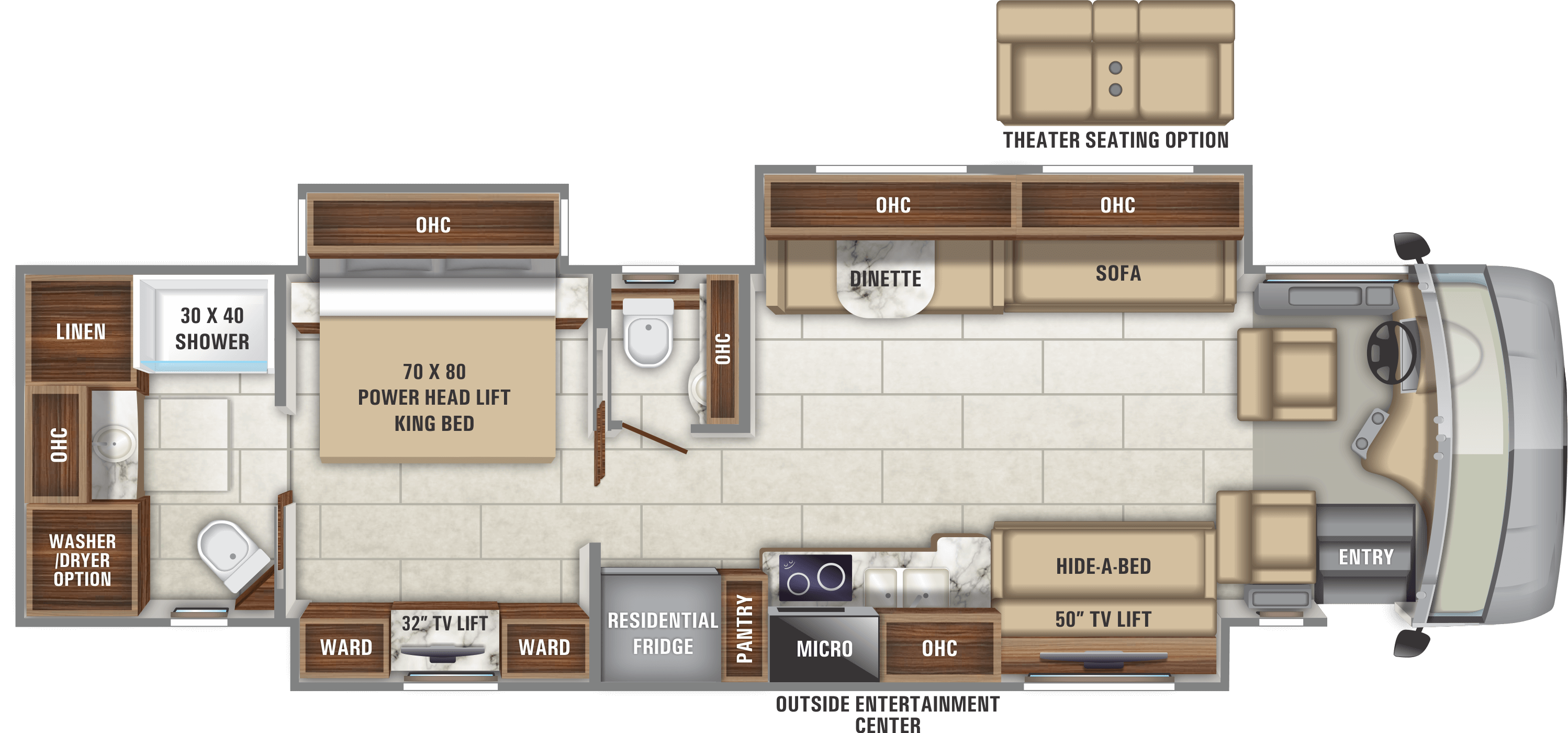

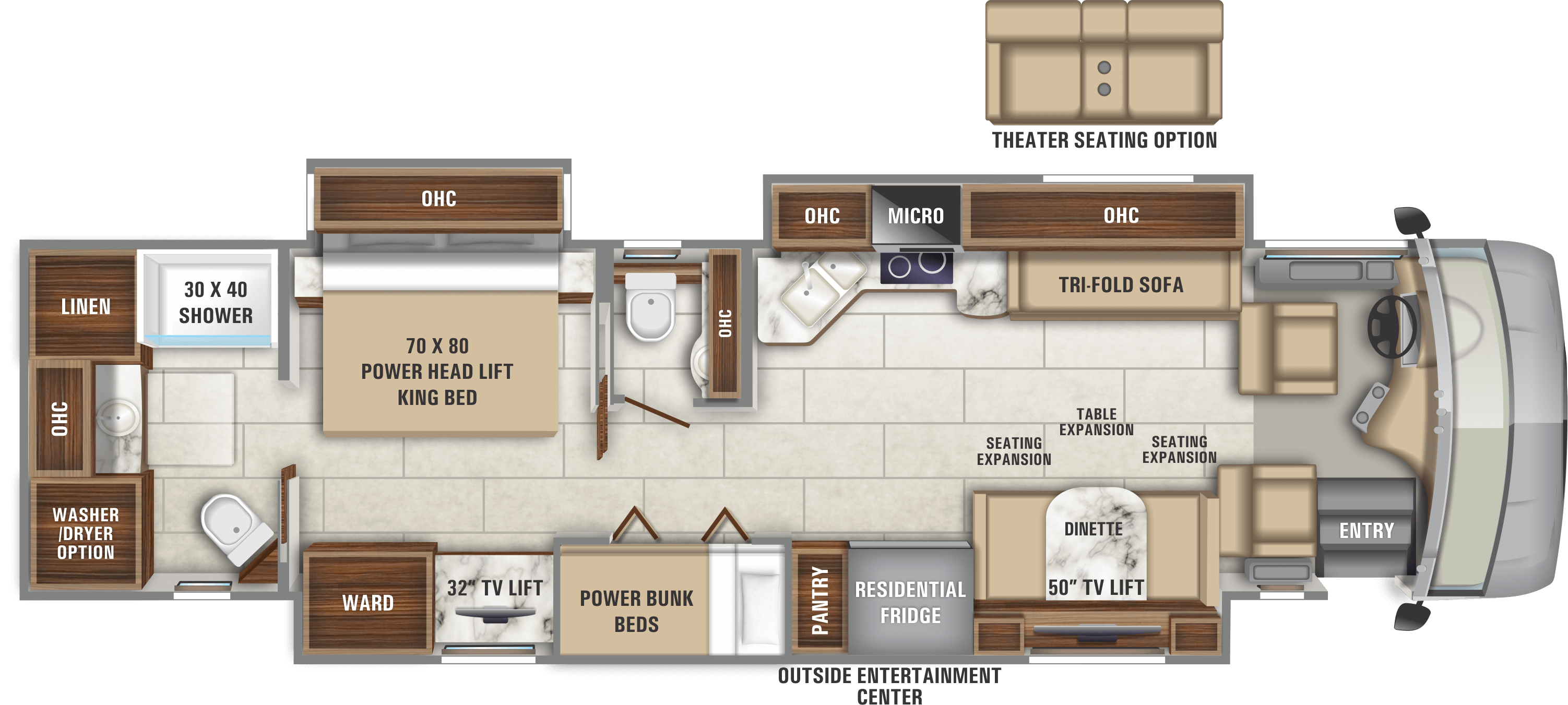

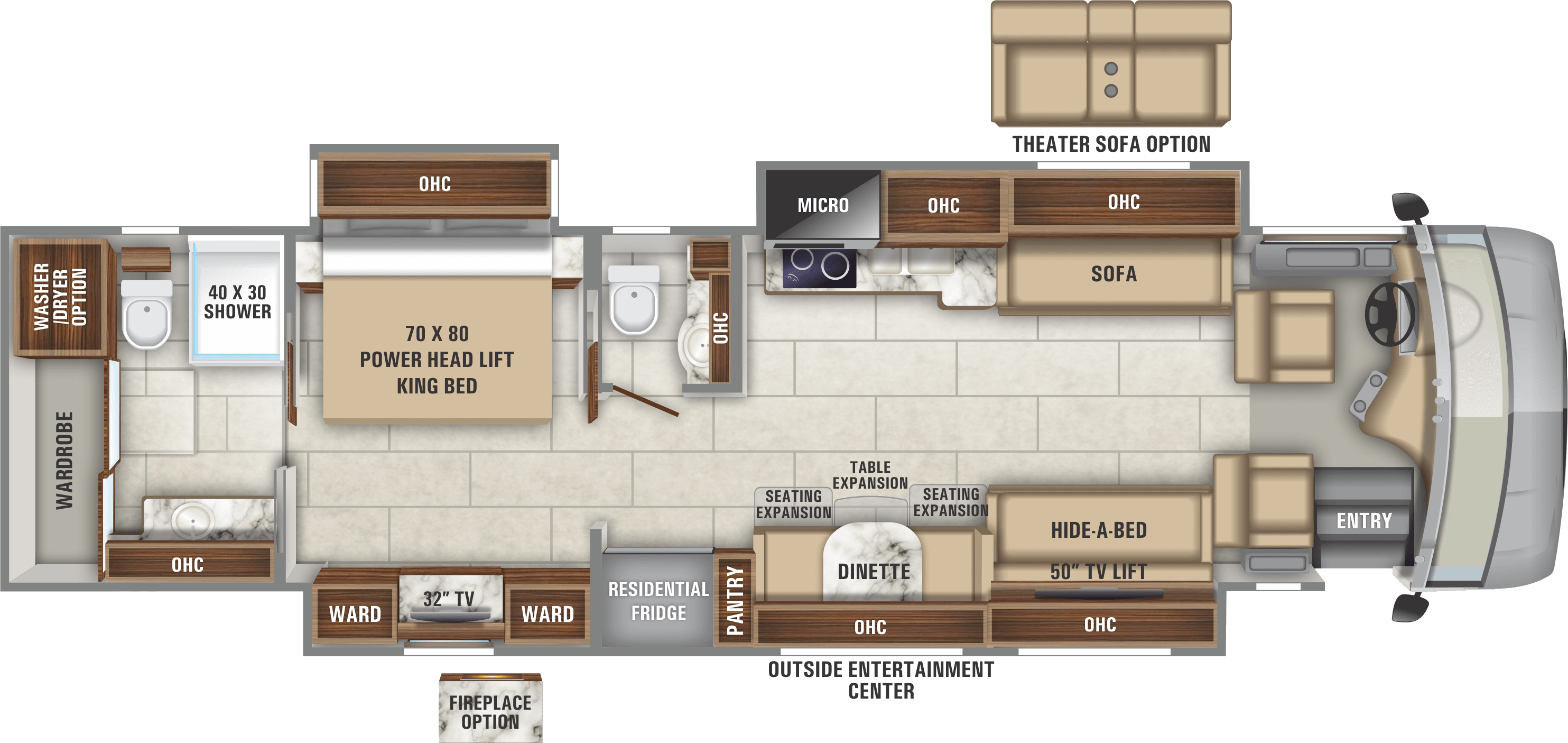

Floorplans

Ward = wardrobe

Lav = bathroom sink

Med = medicine cabinet

Ohc = overhead cabinets

Fridge = refrigerator

Micro = microwave

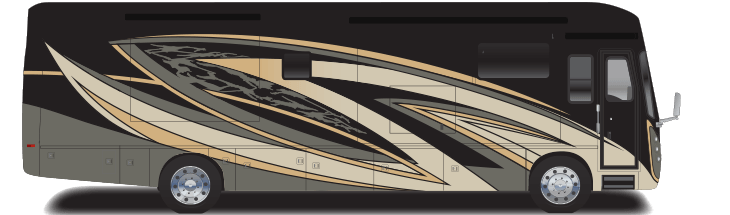

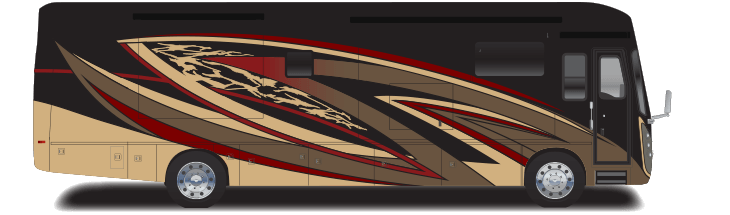

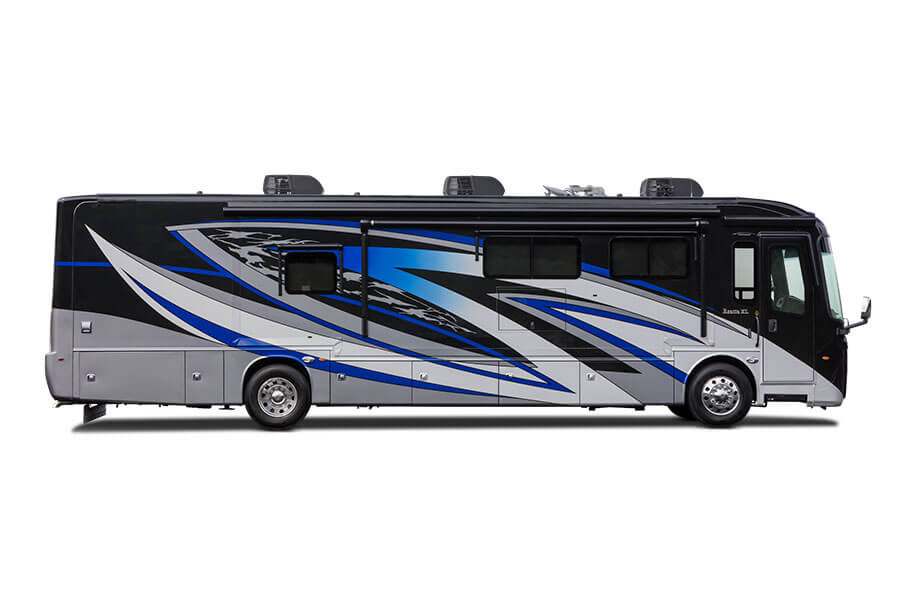

Exterior Graphics

Standards & Options

Chassis

Air Connection Remote air connection
Alternator 170-amp alternator
Braking System ABS drum brakes on front and rear
Chassis Spartan K2 raised rail chassis
Chassis Battery Chassis batteries (2) 12 volt
DEF Tank 10-gal. DEF tank (driver side fill)
Engine Cummins L9 turbocharged 380 HP engine 1150 lb. ft. torque
Engine Block Heater 1,000 watt engine block heater
Front Axle IFS independent 14,320-lb. front axle
Fuel Tank 100-gal. fuel tank (driver side fill)
Hitch 10,000-lb. hitch with 7/4-pin plug
Leveling System Equalizer hydraulic automatic leveling
Radiator Rear-mounted radiator
Rear Axle Dana rear axle 22,000-lb.
Rear Axle Ratio 4.88 rear axle ratio
Shocks Bilstein 46mm shocks
Tires Michelin 275/80R 22.5” tires
Tow Air Brake System Safe Haul Tow Brake air system
Transmission Allison 3000 MH 6-speed transmission

Construction

Floor Floor with vacuum bonded layers of Darco underbelly, a welded aluminum frame, R-9 bead-foam insulation and 5/8" Structurwood
Frame X-Bridge frames welded into chassis frame
Front Cap Steel-reinforced front cap and windshield frame
Insulation Insulation with reflective Flexfoil roof (R-24), front and rear caps (R-22)
Roof One-piece fiberglass roof w/ 3/8" plywood decking and 4" arched aluminum roof truss
Slideouts Electric-powered slideout rooms
Walls Sidewalls High Gloss gelcoat vacuum bonded laminated w/R-8 bead-foam insulation

Heat, AC, Water & Power

Air Conditioning 15,000-BTU A/Cs (2) with heat pumps
Batteries L16 AGM batteries (2), (6v/390 amp hrs. ea.)
Black Holding Tank Sprayer Black holding tank sprayer
Black Tank Management Macerator holding tank dump system w/ manual gate valves
Electrical Hookup 50-amp power cord on electric powered reel
Generator Onan 10,000-watt diesel generator with auto gen start on slide-out tray
Heating System Aqua-Hot 250 hydronic water and heating system. Electric radiant floor heating system
Inverter 2,000-watt pure sine wave inverter with 100 amp battery charger
Power Management Surge protector transfer switch
Water Filtration City and tank water filtration system
