2020 Odyssey
The Odyssey is a truly unique Class C motorhome for travelers that love the freedom of the road. It features many of the amenities and floorplan designs found on high-end Class C coaches. The 2020 Odyssey will feature an updated graphics package with partial paint option that will adorn your coach with style and sophistication. This coach features a one-piece seamless fiberglass front cap, rear back-up camera and monitor, and an interior command center. Built on the E-450 chassis, you will have higher carrying capacity in the Odyssey. When paired with the E-Z Drive system consisting of a computer balanced driveshaft, standard front and rear stabilizer bars, Hellwig helper springs and rubber isolation body mounts, the Odyssey delivers performance and drivability one would expect from an Entegra Coach luxury coach.

Brochure

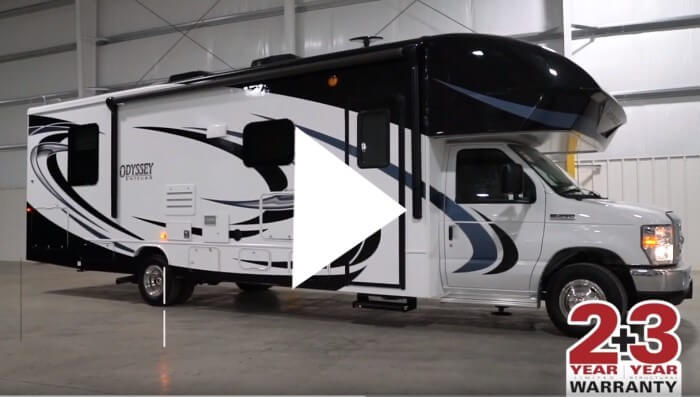

Product Video
2020 Odyssey
Floorplans
2020 Odyssey | 24B

Specs
Gross Vehicle Weight Rating (lbs) | 14,500 |
Gross Combined Weight Rating (lbs) | 22,000 |
Front Gross Axle Weight Rating (lbs) | 5,000 |
Rear Gross Axle Weight Rating (lbs) | 9,600 |
Tag Axle Gross Weight Rating (lbs) | N/a |
Exterior Length | 26' 8" |
Exterior Width | 100" |
Exterior Height with A/C and Satellite | 11' 8" |
Interior Height | 84" |
Fresh Water Capacity (gals) | 42.50 |
Grey Waste Water Capacity (gals) | 40 |
Black Waste Water (gals) | 31 |
Fuel Tank Capacity (gals) | 55 |
Furnace (BTU Output) | 30,000 |
Wheel Base | 158" |

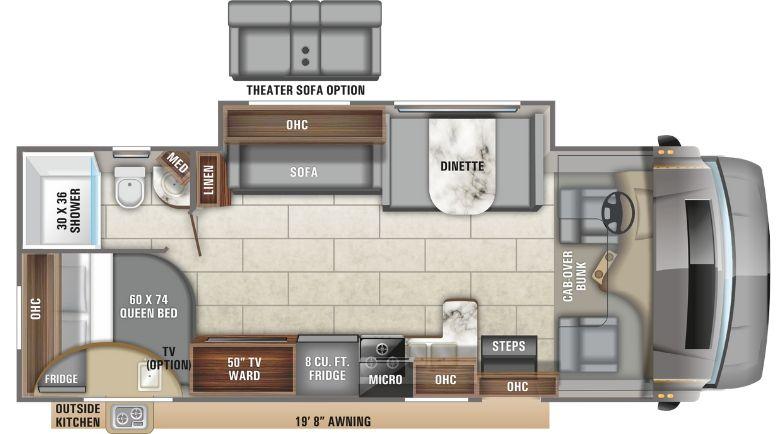

2020 Odyssey | 25R

Specs
Gross Vehicle Weight Rating (lbs) | 14,500 |
Gross Combined Weight Rating (lbs) | 22,000 |
Front Gross Axle Weight Rating (lbs) | 5,000 |
Rear Gross Axle Weight Rating (lbs) | 9,600 |
Tag Axle Gross Weight Rating (lbs) | N/a |
Exterior Length | 28' 8" |
Exterior Width | 100" |
Exterior Height with A/C and Satellite | 11' 8" |
Interior Height | 84" |
Fresh Water Capacity (gals) | 47 |
Grey Waste Water Capacity (gals) | 41 |
Black Waste Water (gals) | 32 |
Fuel Tank Capacity (gals) | 55 |
Furnace (BTU Output) | 30,000 |
Wheel Base | 158" |

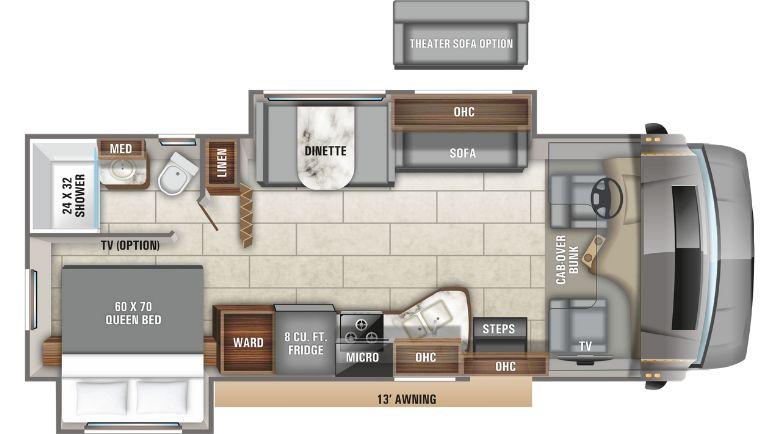

2020 Odyssey | 26D
.jpg)
Specs
Gross Vehicle Weight Rating (lbs) | 14,500 |
Gross Combined Weight Rating (lbs) | 22,000 |
Front Gross Axle Weight Rating (lbs) | 5,000 |
Rear Gross Axle Weight Rating (lbs) | 9,600 |
Tag Axle Gross Weight Rating (lbs) | N/a |
Exterior Length | 28' 8" |
Exterior Width | 100" |
Exterior Height with A/C and Satellite | 11' 8" |
Interior Height | 84" |
Fresh Water Capacity (gals) | 42.50 |
Grey Waste Water Capacity (gals) | 41 |
Black Waste Water (gals) | 32 |
Fuel Tank Capacity (gals) | 55 |
Furnace (BTU Output) | 30,000 |
Wheel Base | 158" |

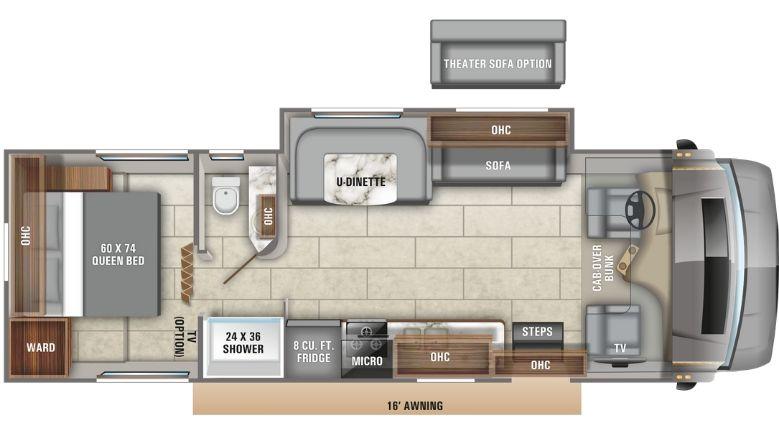

2020 Odyssey | 29K

Specs
Gross Vehicle Weight Rating (lbs) | 14,500 |
Gross Combined Weight Rating (lbs) | 22,000 |
Front Gross Axle Weight Rating (lbs) | 5,000 |
Rear Gross Axle Weight Rating (lbs) | 9,600 |
Tag Axle Gross Weight Rating (lbs) | N/a |
Exterior Length | 32' 6" |
Exterior Width | 100" |
Exterior Height with A/C and Satellite | 11' 8" |
Interior Height | 84" |
Fresh Water Capacity (gals) | 43.50 |
Grey Waste Water Capacity (gals) | 41 |
Black Waste Water (gals) | 32 |
Fuel Tank Capacity (gals) | 55 |
Furnace (BTU Output) | 30,000 |
Wheel Base | 158" |

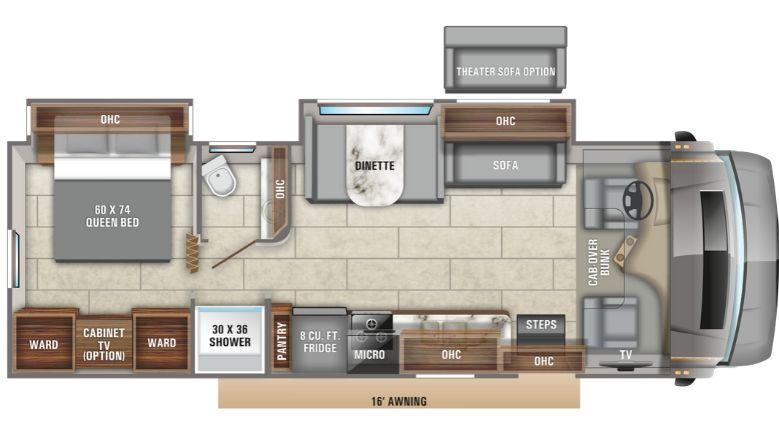

2020 Odyssey | 29V
.jpg)
Specs
Gross Vehicle Weight Rating (lbs) | 14,500 |
Gross Combined Weight Rating (lbs) | 22,000 |
Front Gross Axle Weight Rating (lbs) | 5,000 |
Rear Gross Axle Weight Rating (lbs) | 9,600 |
Tag Axle Gross Weight Rating (lbs) | N/a |
Exterior Length | 32' 6" |
Exterior Width | 100" |
Exterior Height with A/C and Satellite | 11' 8" |
Interior Height | 84" |
Fresh Water Capacity (gals) | 47 |
Grey Waste Water Capacity (gals) | 41 |
Black Waste Water (gals) | 32 |
Fuel Tank Capacity (gals) | 55 |
Furnace (BTU Output) | 30,000 |
Wheel Base | 158" |

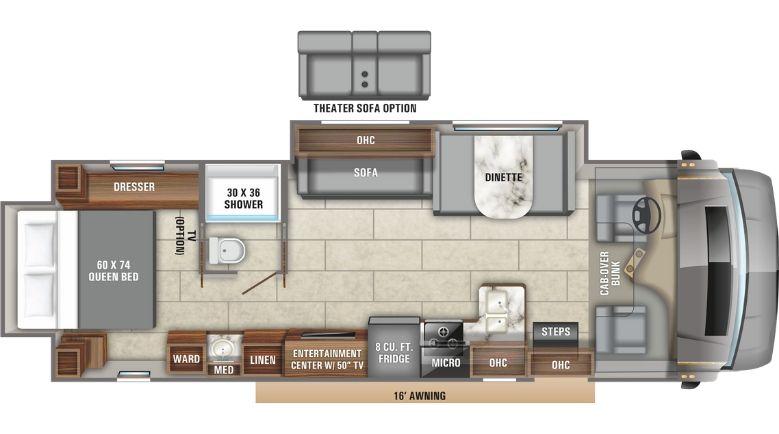

2020 Odyssey | 30Z

Specs
Gross Vehicle Weight Rating (lbs) | 14,500 |
Gross Combined Weight Rating (lbs) | 22,000 |
Front Gross Axle Weight Rating (lbs) | 5,000 |
Rear Gross Axle Weight Rating (lbs) | 9,600 |
Tag Axle Gross Weight Rating (lbs) | N/a |
Exterior Length | 32' 6" |
Exterior Width | 100" |
Exterior Height with A/C and Satellite | 11' 8" |
Interior Height | 84" |
Fresh Water Capacity (gals) | 43.50 |
Grey Waste Water Capacity (gals) | 41 |
Black Waste Water (gals) | 31 |
Fuel Tank Capacity (gals) | 55 |
Furnace (BTU Output) | 30,000 |
Wheel Base | 158" |

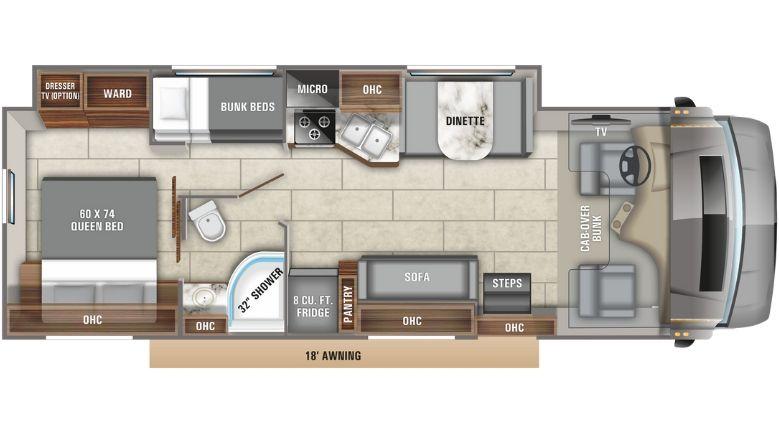

2020 Odyssey | 31F
.jpg)
Specs
Gross Vehicle Weight Rating (lbs) | 14,500 |
Gross Combined Weight Rating (lbs) | 22,000 |
Front Gross Axle Weight Rating (lbs) | 5,000 |
Rear Gross Axle Weight Rating (lbs) | 9,600 |
Tag Axle Gross Weight Rating (lbs) | N/a |
Exterior Length | 32' 6" |
Exterior Width | 100" |
Exterior Height with A/C and Satellite | 11' 8" |
Interior Height | 84" |
Fresh Water Capacity (gals) | 47 |
Grey Waste Water Capacity (gals) | 41 |
Black Waste Water (gals) | 31 |
Fuel Tank Capacity (gals) | 55 |
Furnace (BTU Output) | 30,000 |
Wheel Base | 158" |
Ward = wardrobe
Lav = bathroom sink
Med = medicine cabinet
Ohc = overhead cabinets
Fridge = refrigerator
Micro = microwave
All Floorplans

2020 Odyssey | 24B

2020 Odyssey | 25R
.jpg)
2020 Odyssey | 26D

2020 Odyssey | 29K
.jpg)
2020 Odyssey | 29V

2020 Odyssey | 30Z
.jpg)
2020 Odyssey | 31F
360°
Exterior Graphics
Standards & Options
Chassis
Alternator | 2019 chassis- 120 amp alternator; 2021 chassis- 210 amp alternator |
Braking System | Power anti-lock brakes with power steering |
Chassis | Ford E-450 chassis |
Engine | 2019 chassis-Triton 6.8L EFI V-10 305 HP engine with 420 lbs./ft. torque; 2021 chassis- 7.3L V-8 350HP engine with 468 ft.-lb torque |
Fuel Tank | 55-gallon fuel tank |
Transmission | 6-speed automatic TorqShift series transmission with overdrive |
Hitch | 7,500-pound hitch with 750-lb tongue capacity & 7-pin plug |
E-Z Drive | Computer-balanced driveshaft, standard front and rear stabilizer bars, Hellwig helper springs, rubber isolation body mounts |
Construction
Floor | TuffShell™ vacuum-bonded, laminated floor |

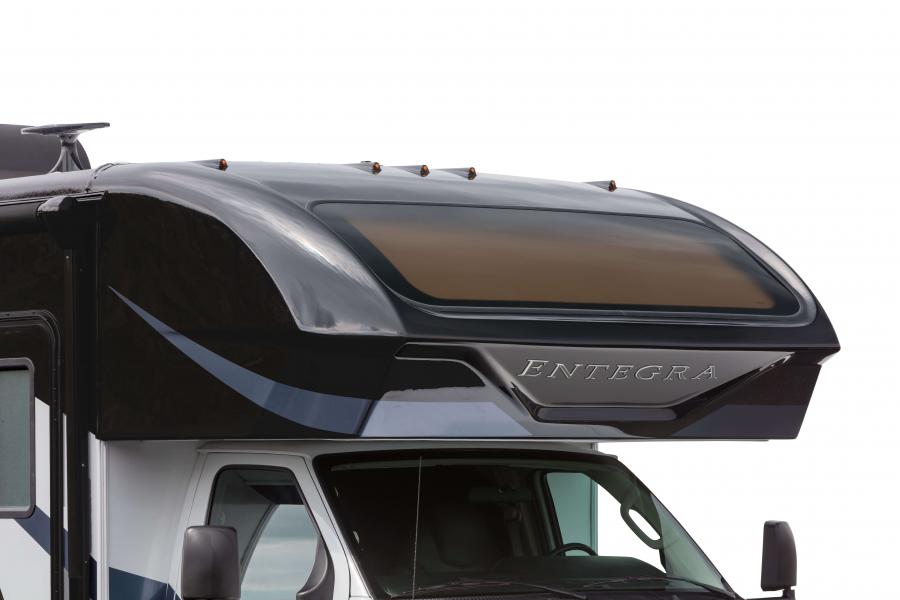

Front Cap | One-piece seamless fiberglass front cap with panoramic automotive-bonded windshield |
Insulation | Bead-foam insulation (R-15 max roof, R-9 max floor, R-5 max walls) |
Roof | One-piece seamless fiberglass roof |
Walls | TuffShell™ vacuum-bonded, laminated walls |
Exterior Walls | White fiberglass exterior with vinyl graphics |
Heat, AC, Water & Power
Air Conditioning | 15,000-BTU ducted air conditioner |
Black Holding Tank Sprayer | Black holding tank sprayer |
Electrical Hookup | 120V G.F.C.I.-protected exterior receptacle |
Heating System | 30,000-BTU furnace with wall thermostat with auto-ignition |
Power Management | 30-amp power cord |
Propane | 42-lb. propane tank (12.2 GAL) |
Water Filtration | Water filtration system |
Water Heater | 6 gallon gas/electric DSI auto-ignition water heater |
Water Pump | 12V demand water pump |
Exterior
Cargo Features | Pass-through storage compartment with light (select models) & 4" bumper-tube sewer hose storage |
Electrical System | 12V electrical system with 120V, 60-amp power converter |
Entrance Door | Fiberglass, radius-cornered entrance door with screen door and interior entrance grab handle |
Entrance Steps | Electric-powered entrance step w/integrated house battery compartment |
Exterior Entertainment | High-output marine-grade exterior speakers (2) |
Mirrors | Remote-controlled, side-view mirrors |
Outside Shower | Outside shower |
Patio Awnings | 12V LED lit electric patio awning |
Running Boards | Aluminum running boards |
Third Brake Light | Third brake light |
Windows | Power windows and door locks |
Cockpit
Cameras | Rear back-up camera and monitor |
Infotainment System(s) | Soundstream infotainment dash radio w/GPS & CD/DVD player |
Leveling System | Leveling jack prep |
Start | Auxiliary start switch |
Steering Wheel | Tilt steering wheel and cruise control |
Interior
Ceiling | 84" ceiling height |
Command Center | Interior command center |
Flooring | Linoleum flooring |
Television - Living Room | 32” LED HDTV & cable TV hookup with RG-6 coax |
Kitchen

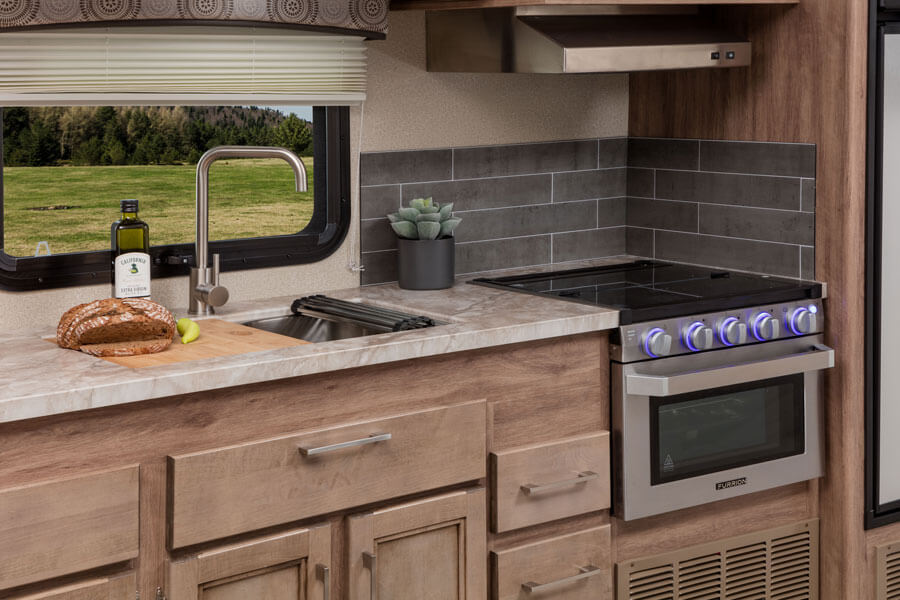

Cooktop | Furrion all-in-one cooktop and oven |
Charging Station | Pop-up charging station with 110 outlets and USB ports |
Dinette | Entegra-exclusive easy operation legless dinette table |
Drawer Guides | Ball bearing drawer guides |
Microwave | Residential microwave |
Refrigerator | 8 cu. ft. flush-mount, double-door refrigerator |
Sink | Under mount kitchen sink w/cutting board sink cover |
Bedroom

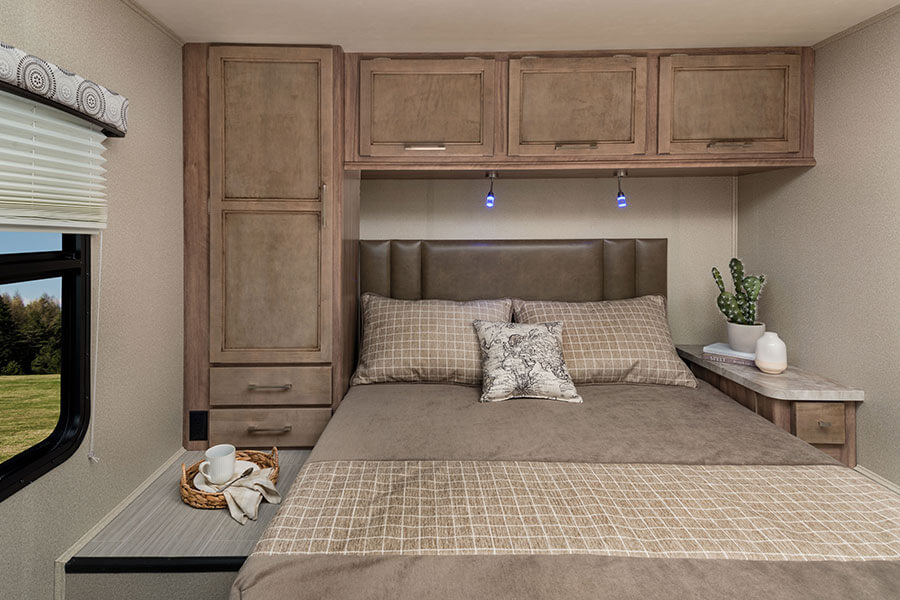

Bedroom Mattress / Bedding | Queen-sized bed with bedspread & under-bed storage (select models) |
Bedroom Wardrobe | Large wardrobes |
Bathroom

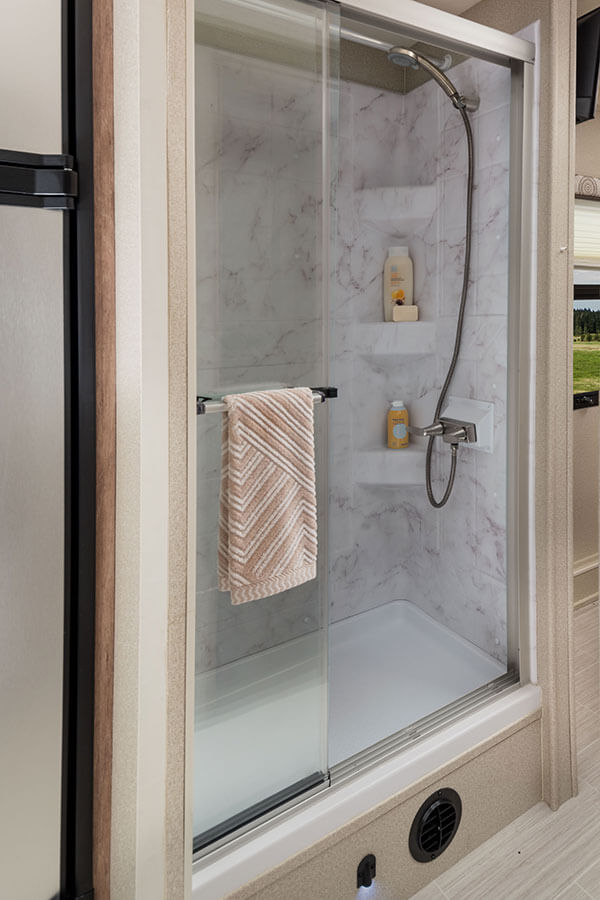

Bathroom Shower | Shower with decorative surround and glass shower door. Removable clothing rod in shower and skylight in shower |
Toilet | Porcelain toilet with foot flush |
Safety
Seat Belts | Lap safety belts on all living area seats |
Options
Canadian Standards | Canadian Standards |
Customer Value Package (Mandatory) | 8 cu. ft. Refrigerator, 32" LED TV, Back-up Camera & Monitor, Electric Awning w/ LED Lights, Frame-less Windows, Front Fiberglass Cap, Hellwig Helper Springs, Infotainment System, Tank Heating Pads |
Overhead Bunk | |
Bunk TVs | (2) 24" LED TV's in Bunk Area |
Theater Seating | Sofa Theater Seating |
Bedroom TV | Bedroom TV |
Automatic Hydraulic Leveling Jacks | Automatic Hydraulic Leveling Jacks |
Décor Options
Entegra Coach peace of mind

At Entegra Coach, excellence doesn't end with our stunning interiors and superior craftsmanship. We back each luxury coach with the industry's highest level of service.
Entegra Coach's industry leading 2-year limited warranty is double that of any other manufacturer and offers more coverage. On top of this 2 year warranty, Entegra Coach supports our customers with a 3-year limited structural warranty for areas like the roof, walls and floors. This warranty comes directly from us, because we believe in the products we build and care for all owners as members of our Entegra Coach family. Ask your local Entegra Coach dealer for full warranty details.
ENTEGRA COACH WARRANTY
Our family is proud to stand behind every Entegra Coach we build. Our commitment is to provide the highest level of products and services possible. We invite you to compare our limited warranty with other manufacturers—we think you'll find that your satisfaction is our lifelong passion. The Entegra Coach ("Entegra") limited warranty covers this recreational vehicle ("RV") when used only for its intended purpose of recreational travel and camping and for two (2) years after the first retail owner takes delivery, or the first twenty-four thousand (24,000) miles of use, whichever occurs first. This warranty is transferable to a second owner for Insignia, Aspire, Anthem and Cornerstone only. It covers RVs sold by an authorized dealer and used in the United States, U.S. Territories and Canada, only.
In addition to the limited warranty, Entegra luxury diesel products (Aspire, Anthem, Cornerstone) carry a structural limited warranty for five (5) years after the first retail owner takes delivery. Other Entegra Coach products (Odyssey, Esteem, Qwest, Vision, Vision XL, Emblem, Accolade, Reatta, Reatta XL) carry a structural limited warranty for three (3) years after the first retail owner takes delivery. This warranty covers the structure of the recreational vehicle (defined as only the steel or aluminum frame structure for the sidewalls (excluding slide outs), roof and rear and front walls).
For complete details, contact your nearest Entegra dealer.
