THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.
2020 Esteem

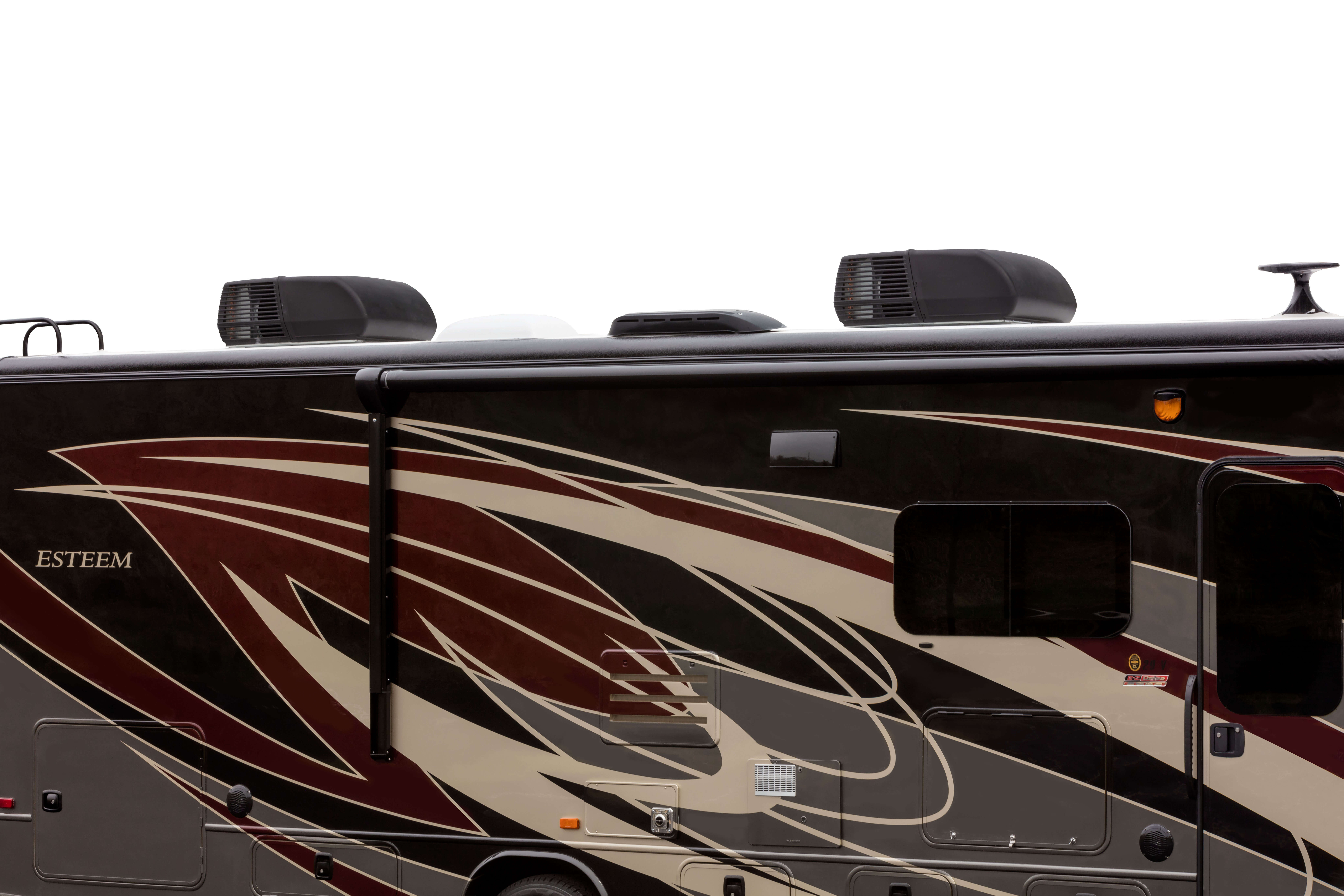

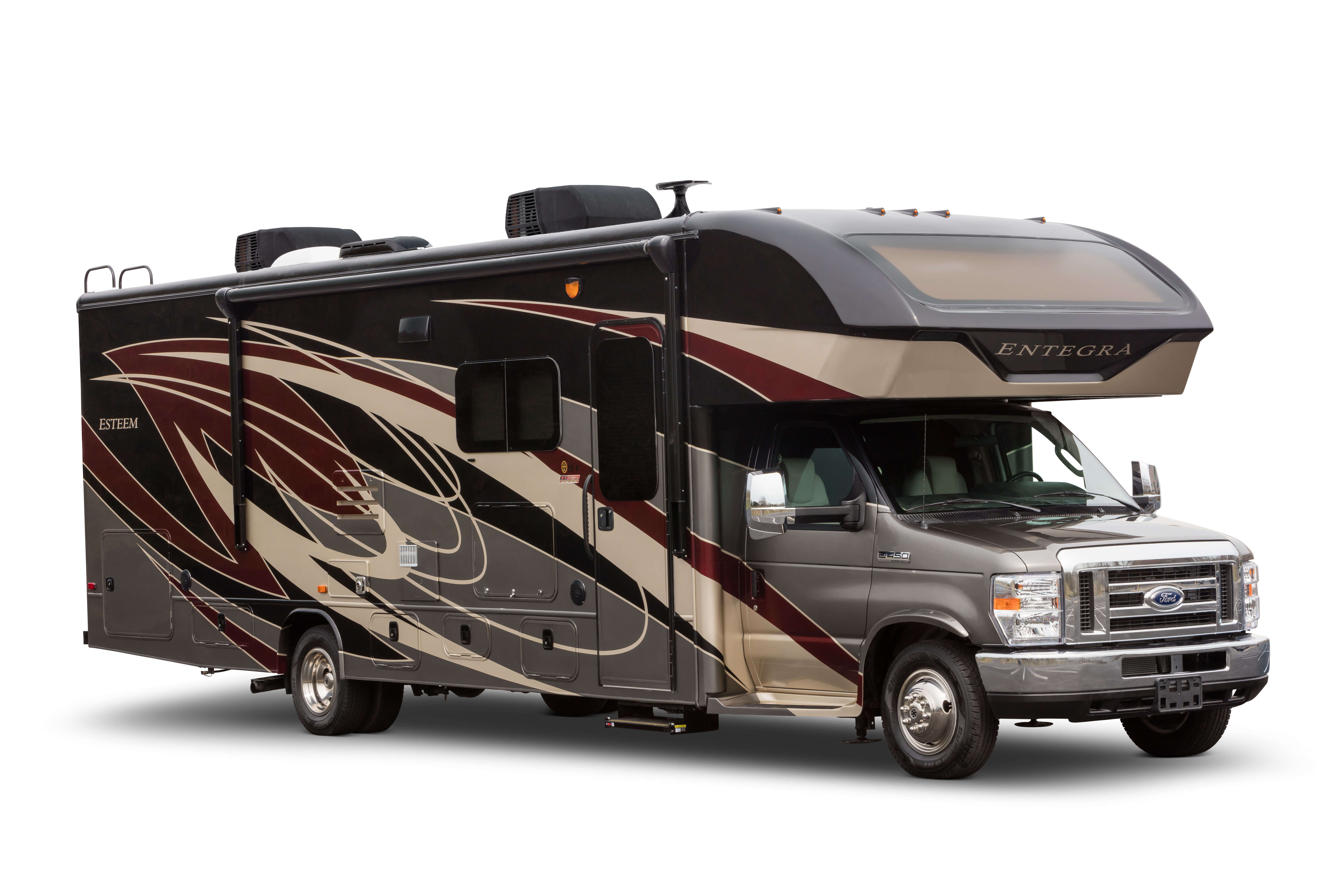

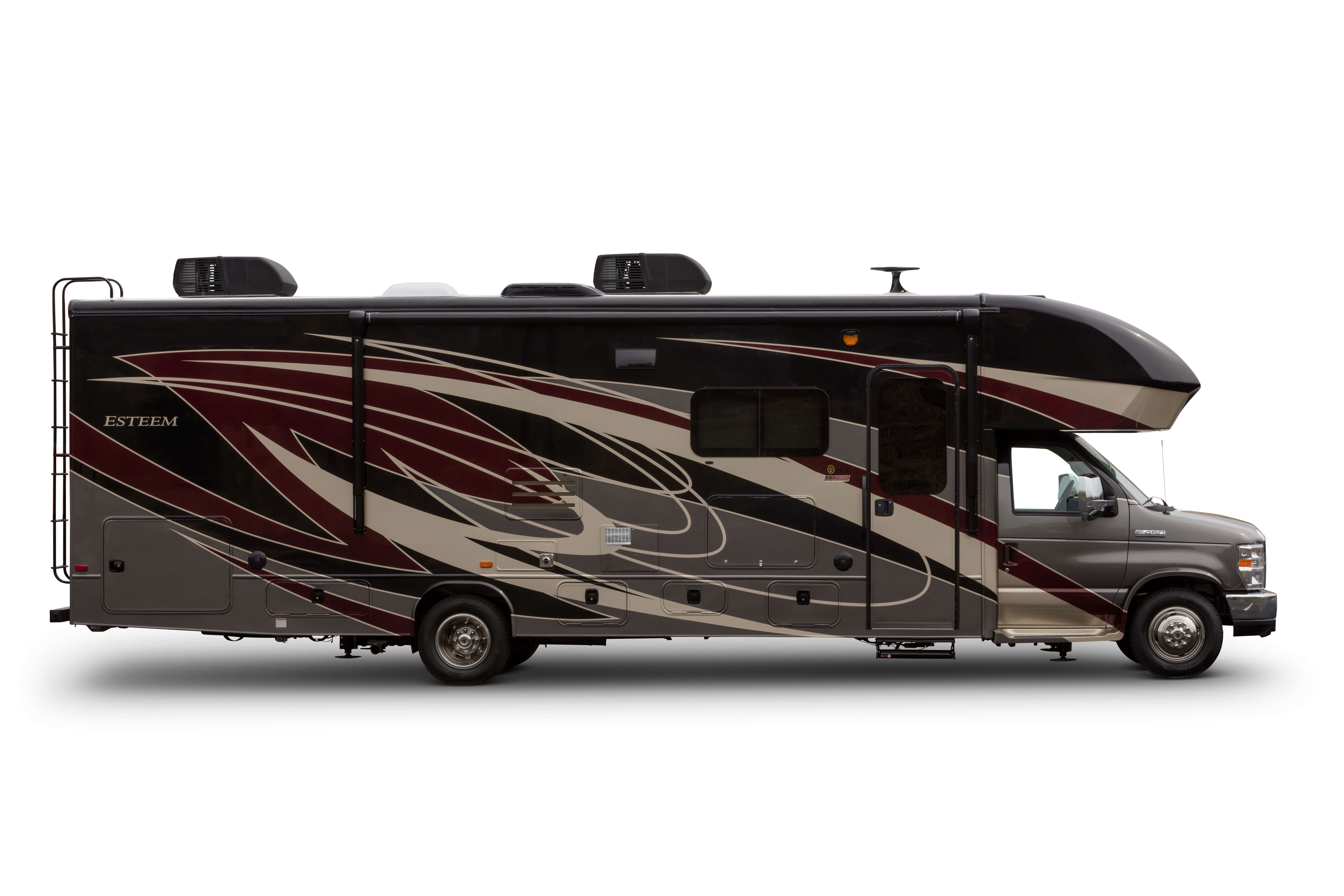

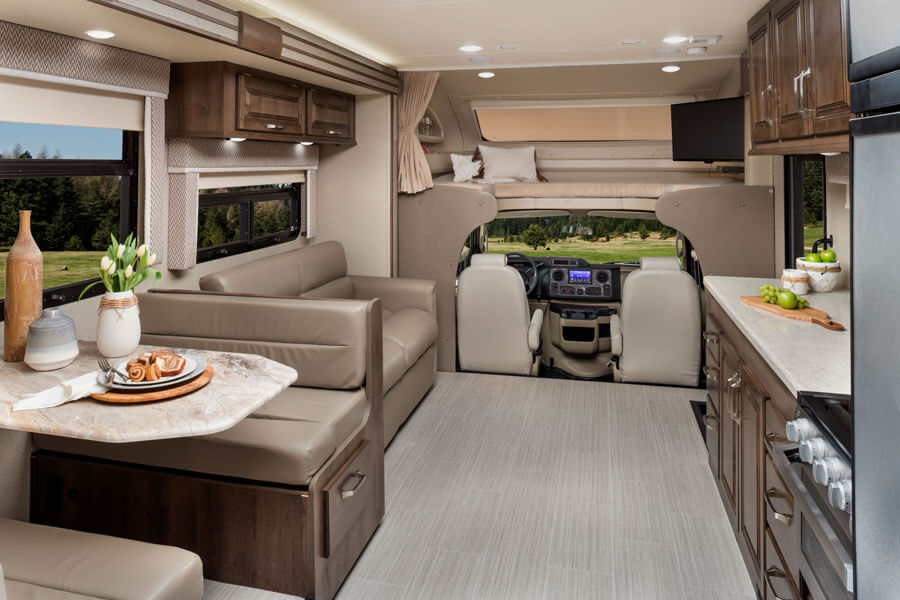

Entegra Coach entered the gas-powered, Class C market just last year and popularity of this refined, model is attracting more travelers to the lifestyle than ever. New in 2020, partial paint will highlight the exterior of this coach, while new stainless steel appliances and LED lighting under the solid surface kitchen countertops brighten the feel of this already cozy interior. A fully ABS-molded cab-over area with an automotive-bonded front windshield, a residential kitchen and an option for two A/Cs on a 30-amp coach are just a few of the features that make the Esteem so admired.The E-Z Drive Elite package on the Esteem includes a computer-balanced driveshaft, Koni FSD shocks, heavy-duty rear stabilizer bar, standard front stabilizer bar, Hellwig helper springs and rubber isolation mounts for precise handling and renowned stability.
.jpg)
Brochure
Floorplans
Ward = wardrobe
Lav = bathroom sink
Med = medicine cabinet
Ohc = overhead cabinets
Fridge = refrigerator
Micro = microwave

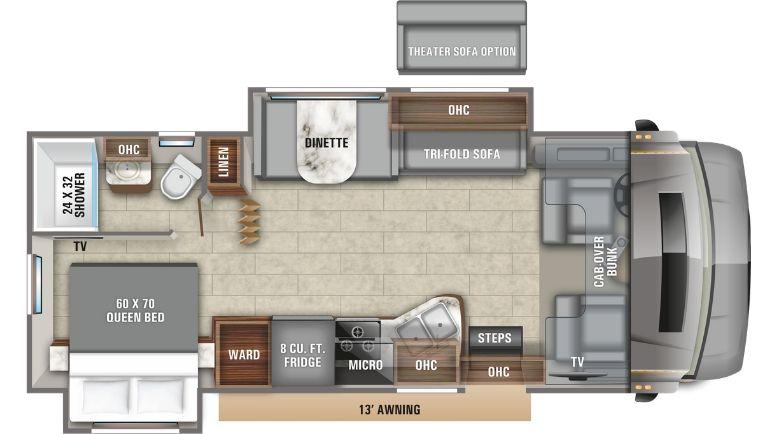

2020 Esteem|26D|DEALER STOCK ONLY
Specs
| Gross Vehicle Weight Rating (lbs) | 14,500 |
| Gross Combined Weight Rating (lbs) | 22,000 |
| Front Gross Axle Weight Rating (lbs) | 5,000 |
| Rear Gross Axle Weight Rating (lbs) | 9,600 |
| Tag Axle Gross Weight Rating (lbs) | N/a |
| Exterior Length | 28' 8" |
| Exterior Width | 100" |
| Exterior Height with A/C and Satellite | 11' 8" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 47 |
| Grey Waste Water Capacity (gals) | 41 |
| Black Waste Water (gals) | 32 |
| Fuel Tank Capacity (gals) | 55 |
| Furnace (BTU Output) | 30,000 |
| Wheel Base | 158" |

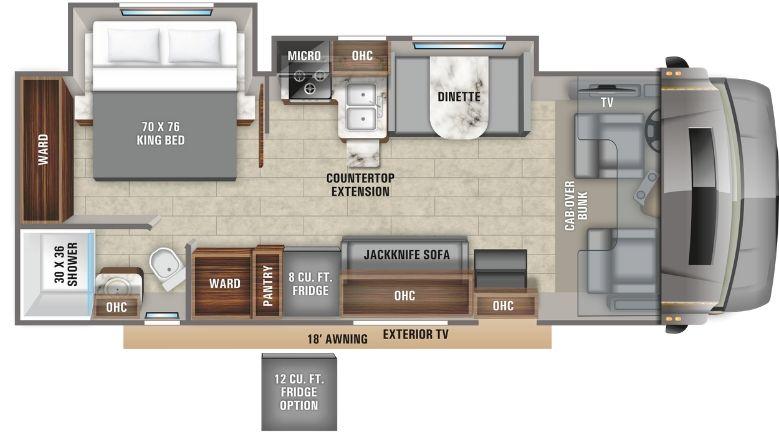

2020 Esteem|27U
Specs
| Gross Vehicle Weight Rating (lbs) | 14,500 |
| Gross Combined Weight Rating (lbs) | 22,000 |
| Front Gross Axle Weight Rating (lbs) | 5,000 |
| Rear Gross Axle Weight Rating (lbs) | 9,600 |
| Tag Axle Gross Weight Rating (lbs) | N/A |
| Exterior Length | 29' 11" |
| Exterior Width | 100" |
| Exterior Height with A/C and Satellite | 11' 8" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 42.5 |
| Grey Waste Water Capacity (gals) | 41 |
| Black Waste Water (gals) | 31 |
| Fuel Tank Capacity (gals) | 55 |
| Furnace (BTU Output) | 30,000 |
| Wheel Base | 195" |

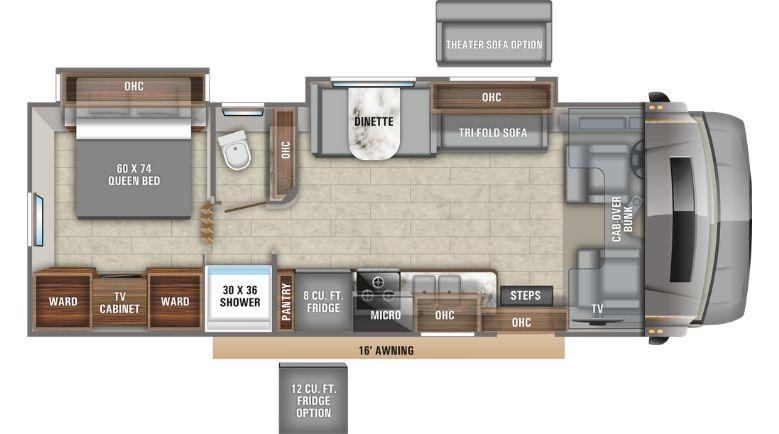

2020 Esteem|29V
Specs
| Gross Vehicle Weight Rating (lbs) | 14,500 |
| Gross Combined Weight Rating (lbs) | 22,000 |
| Front Gross Axle Weight Rating (lbs) | 5,000 |
| Rear Gross Axle Weight Rating (lbs) | 9,600 |
| Tag Axle Gross Weight Rating (lbs) | N/a |
| Exterior Length | 32' 6" |
| Exterior Width | 100" |
| Exterior Height with A/C and Satellite | 11' 8" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 47 |
| Grey Waste Water Capacity (gals) | 41 |
| Black Waste Water (gals) | 32 |
| Fuel Tank Capacity (gals) | 55 |
| Furnace (BTU Output) | 30,000 |
| Wheel Base | 158" |

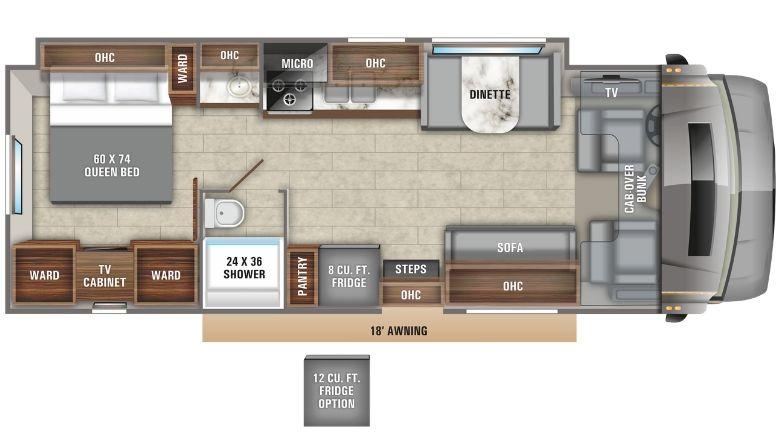

2020 Esteem|30X
Specs
| Gross Vehicle Weight Rating (lbs) | 14,500 |
| Gross Combined Weight Rating (lbs) | 22,000 |
| Front Gross Axle Weight Rating (lbs) | 5,000 |
| Rear Gross Axle Weight Rating (lbs) | 9,600 |
| Tag Axle Gross Weight Rating (lbs) | N/a |
| Exterior Length | 32' 6" |
| Exterior Width | 100" |
| Exterior Height with A/C and Satellite | 11' 8" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 47 |
| Grey Waste Water Capacity (gals) | 41 |
| Black Waste Water (gals) | 31 |
| Fuel Tank Capacity (gals) | 55 |
| Furnace (BTU Output) | 30,000 |
| Wheel Base | 158" |

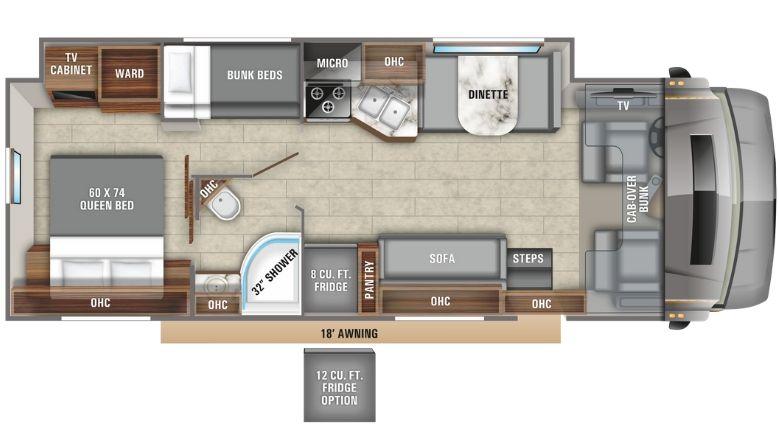

2020 Esteem|31F
Specs
| Gross Vehicle Weight Rating (lbs) | 14,500 |
| Gross Combined Weight Rating (lbs) | 22,000 |
| Front Gross Axle Weight Rating (lbs) | 5,000 |
| Rear Gross Axle Weight Rating (lbs) | 9,600 |
| Tag Axle Gross Weight Rating (lbs) | N/a |
| Exterior Length | 32' 6" |
| Exterior Width | 100" |
| Exterior Height with A/C and Satellite | 11' 8" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 47 |
| Grey Waste Water Capacity (gals) | 41 |
| Black Waste Water (gals) | 31 |
| Fuel Tank Capacity (gals) | 55 |
| Furnace (BTU Output) | 30,000 |
| Wheel Base | 158" |
All Floorplans
2020 Esteem | 26D
DEALER STOCK ONLY
2020 Esteem | 27U
2020 Esteem | 29V
2020 Esteem | 30X
2020 Esteem | 31F
360°

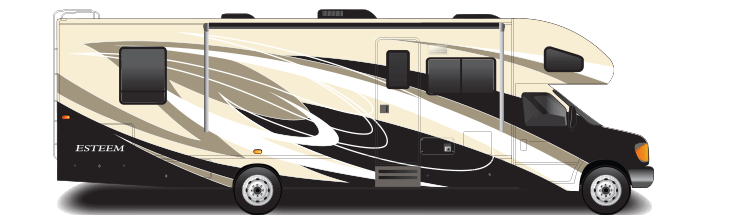

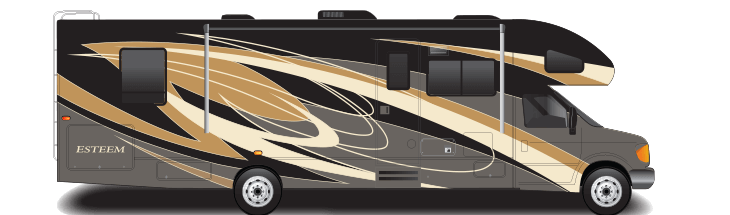

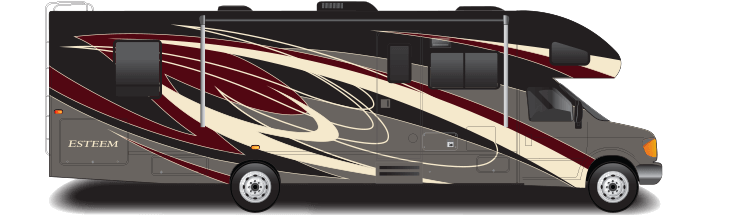

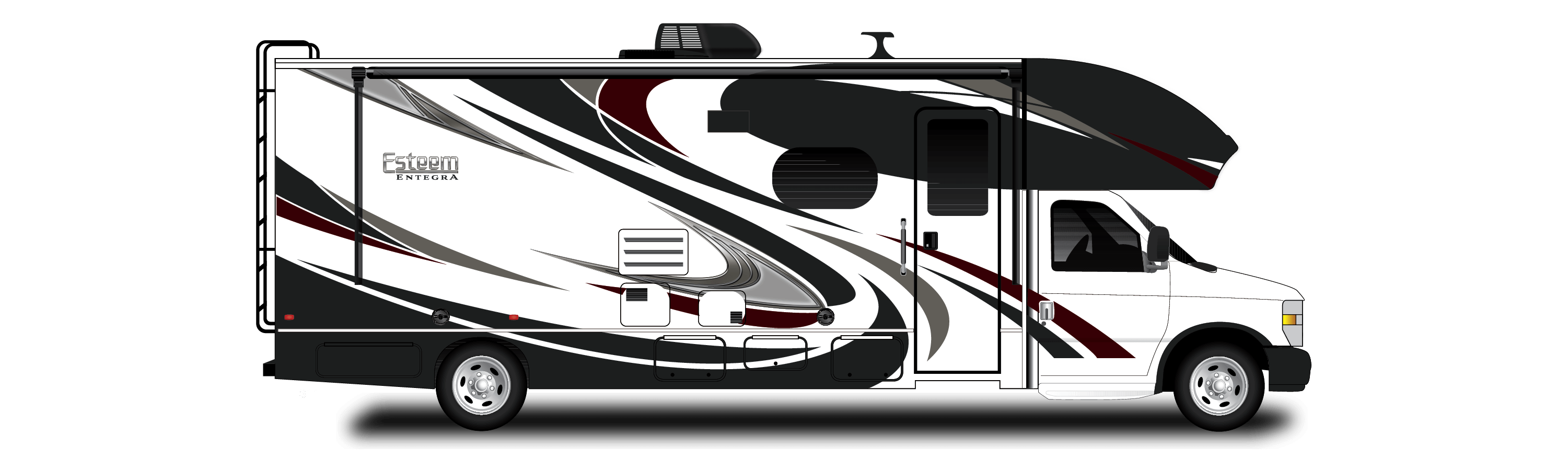

Exterior Graphics
Standards & Options
Chassis
| Alternator | 2019 chassis- 120 amp alternator; 2021 chassis- 210 amp alternator |
| Braking System | Power anti-lock brakes with power steering |
| Chassis | Ford® E-450 chassis |
| Chassis Battery | 12V house battery |
| Engine | 2019 chassis-Triton 6.8L EFI V-10 305 HP engine with 420 lbs./ft. torque; 2021 chassis- 7.3L V-8 350HP engine with 468 ft.-lb torque |
| Fuel Tank | 55-gallon fuel tank |
| Hitch | 7,500-pound hitch with 750-lb tongue capacity & 7-pin plug |
| Transmission | 6-speed automatic TorqShift series transmission with overdrive |
| E-Z Drive Elite | Computer-balanced driveshaft, Koni FSD shocks, heavy-duty rear stabilizer bar, standard front stabilizer bar, Hellwig helper springs, rubber isolation mounts |
Construction
| Insulation | Bead-foam insulation (R-24 max roof, R-9 max floor, R-5 max walls) |
| Roof | One-piece seamless fiberglass roof |
| Walls | TuffShell™ vacuum-bonded, laminated sidewalls |
| Floor | TuffShell™ vacuum-bonded, laminated floor |
Heat, AC, Water & Power
| Air Conditioning | 15,000-BTU A/C with heat pump |
| Batteries | Illuminated battery disconnect switch |
| Tank Flush | Black tank sprayer |
| Electrical Hookup | 120V GFCI-protected exterior receptacle |
| Heating System | 31,000-BTU auto-ignition furnace with wall thermostat |
| Heated Tanks | Heated holding tanks (12V pads) |
| Inverter | 1000-watt inverter |
| Power Management | 30-amp power cord |
| Propane | 56-pound propane tank (16.5 GAL) |
| Water Filtration | Water filtration system |
| Water Heater | 6 gallon gas/electric DSI auto-ignition water heater |
| Water Pump | 12V demand water pump |
Exterior
| Exterior Walls | White fiberglass exterior with partial paint and vinyl graphics |
| Cargo Features | Locking exterior storage compartments & 4-inch bumper-tube with sewer hose storage |
| Electrical System | 12V electrical system with 120V, 60-amp power converter |
| Entrance Door | Fiberglass, radius-cornered entrance door with large window |
| Entrance Steps | Electric-powered entrance step |

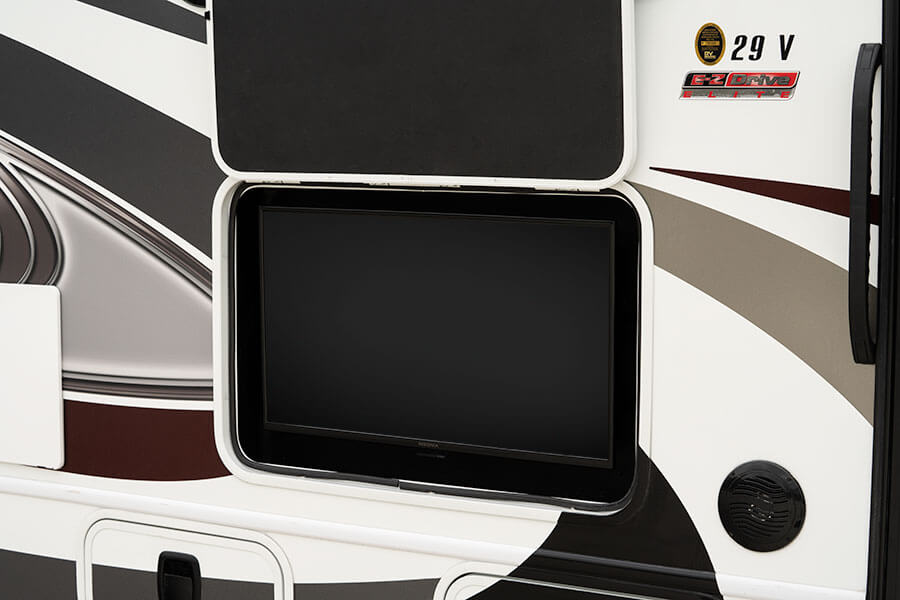

| Entertainment | Exterior 32" LED TV & high-output, marine grade exterior speakers (2) |
| Mirrors | Chrome, remote-controlled & heated mirrors |
| Outside Shower | Outside shower |
| Patio Awnings | Electric awning with LED lights |
| Running Boards | Fiberglass running boards and transition wings |
| Taillights | LED taillights |
| Third Brake Light | Third brake light |
| Windows | Frameless windows |

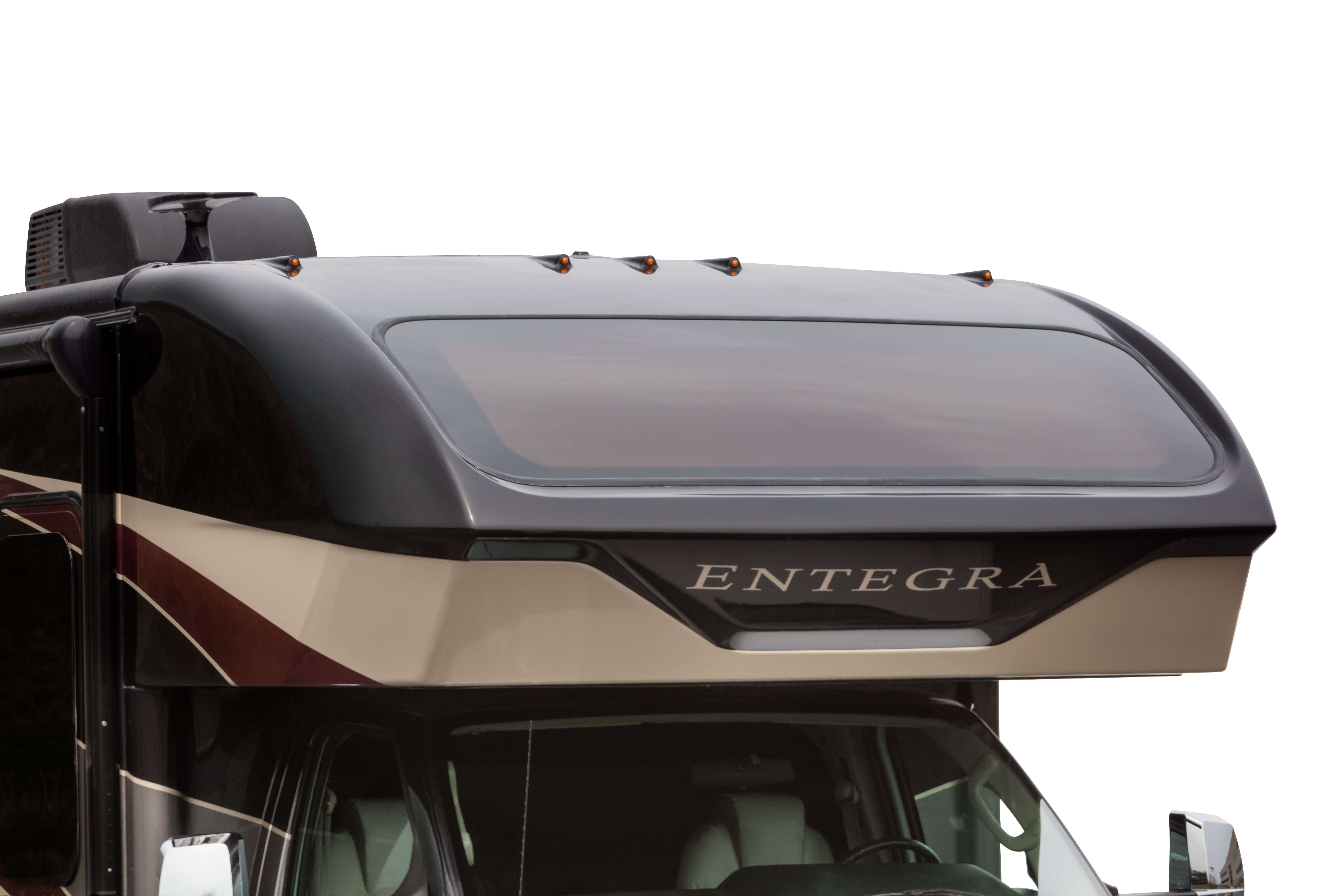

| Front/Rear Cap | One-piece seamless fiberglass front cap with panoramic automotive-bonded windshield |

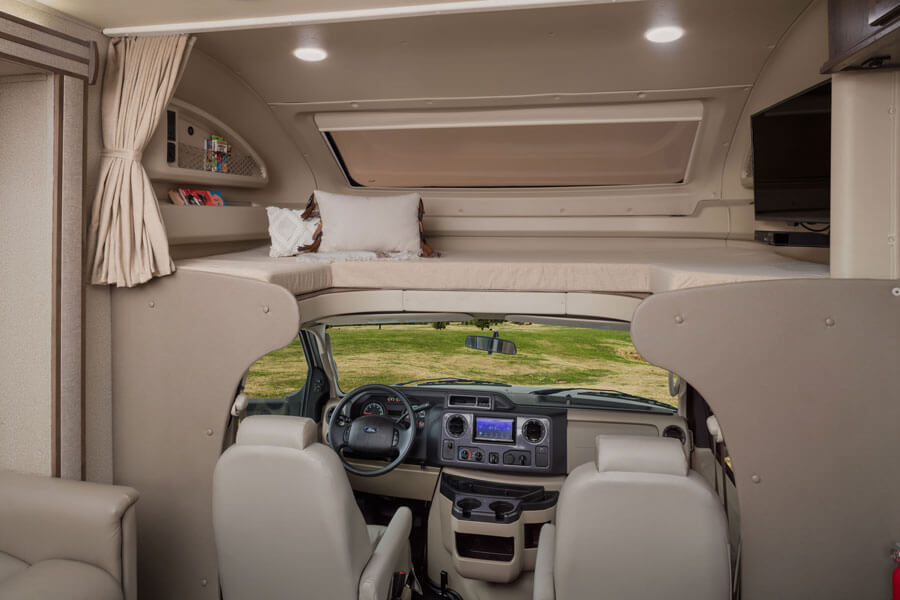

Cockpit
| Cameras | Backup & sideview cameras |
| Dash | Custom dash applique |
| Infotainment System(s) | Sony infotainment dash radio w/GPS |
| Leveling System | Automatic hydraulic leveling jacks |
| Power Features | Power windows and door locks |
| Start | Auxiliary start switch |
| Steering Wheel | Tilt steering wheel and cruise control |

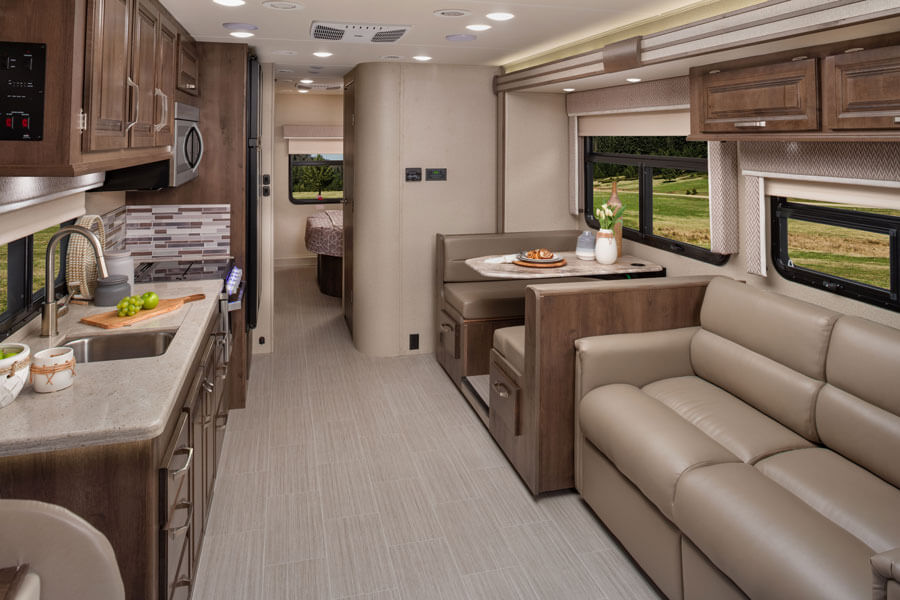

Interior
| Cabinetry | Raised panel cabinetry |
| Command Center | Interior command center |

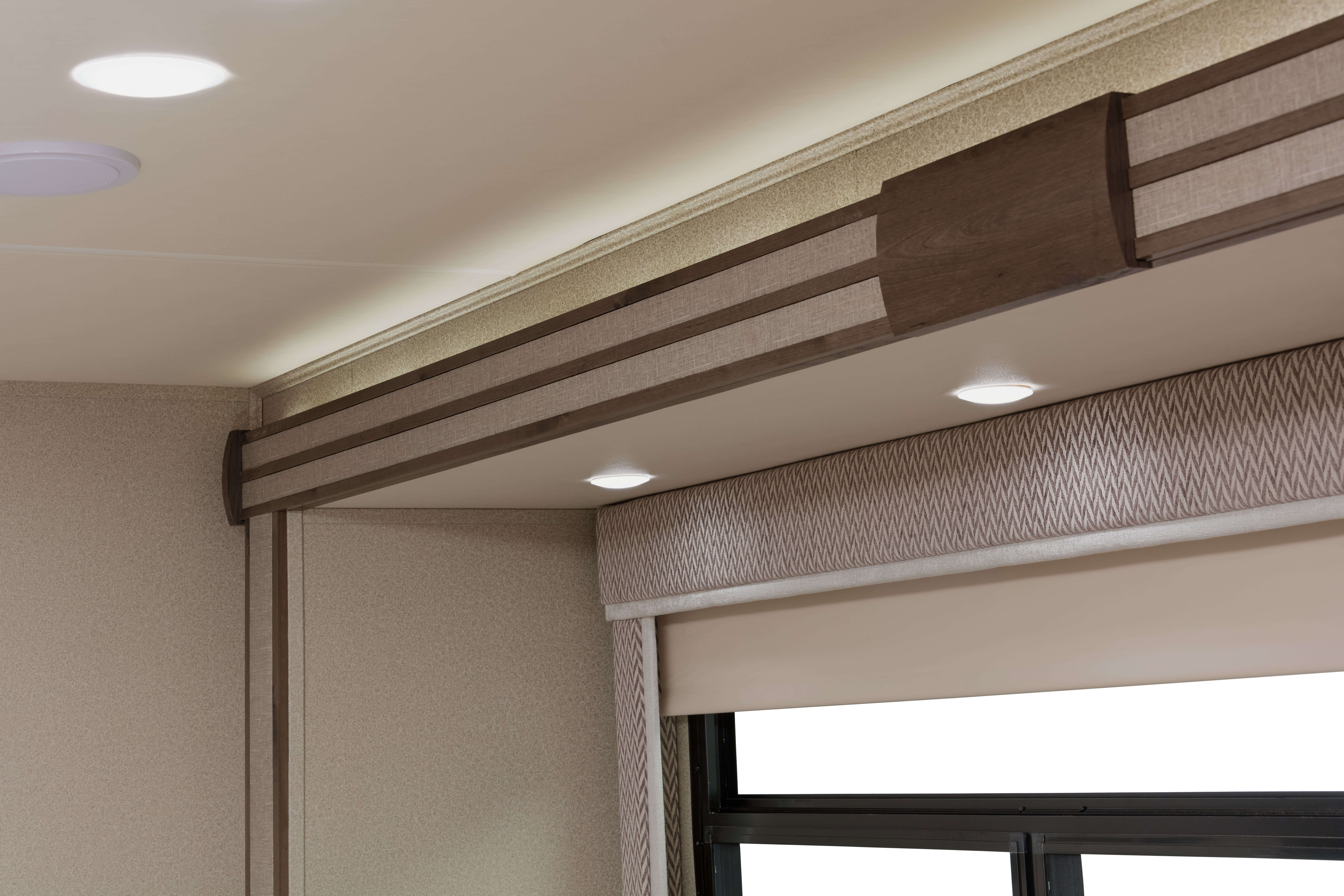

| Fascia | LED lit fascia w/decorative accent |
| Flooring | Vinyl flooring throughout |
| Lighting | High-intensity, recessed LED ceiling lights |
| Window Treatments | Black out night roller shades |
| Television - Living Room | 32-inch digital LED HDTV & cable TV hookup with RG-6 coax |

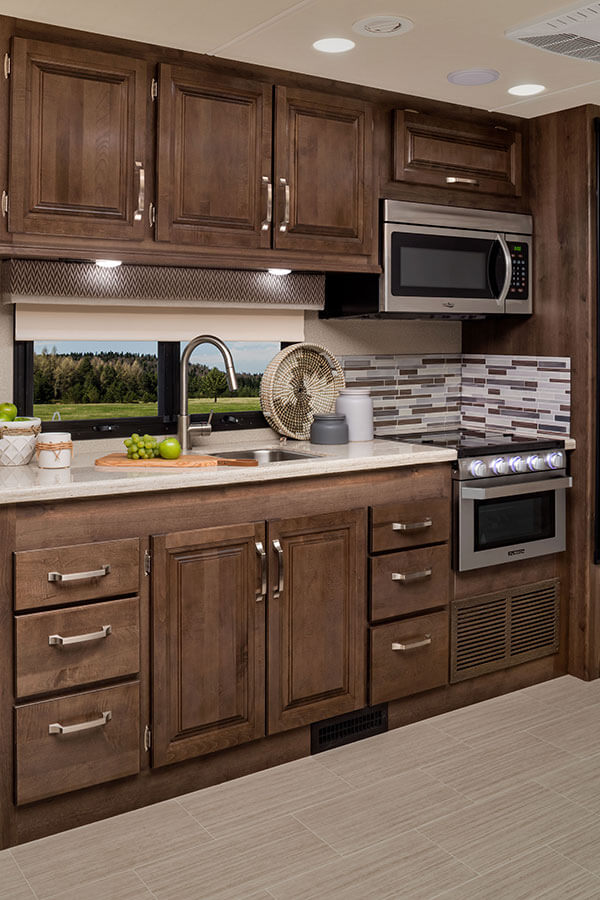

Kitchen
| Cooktop | Furrion all-in-one stainless cooktop and oven |
| Dinette | Entegra-exclusive easy operation legless dinette table |
| Charging Station | Pop up charging station w/110 outlets and USB ports |
| Countertops | LED lit solid-surface kitchen counter tops with sink covers |
| Refrigerator | 8-cubic-foot, flush-mount, double door refrigerator |
| Sink | Stainless steel sink in kitchen w/solid surface sink covers |

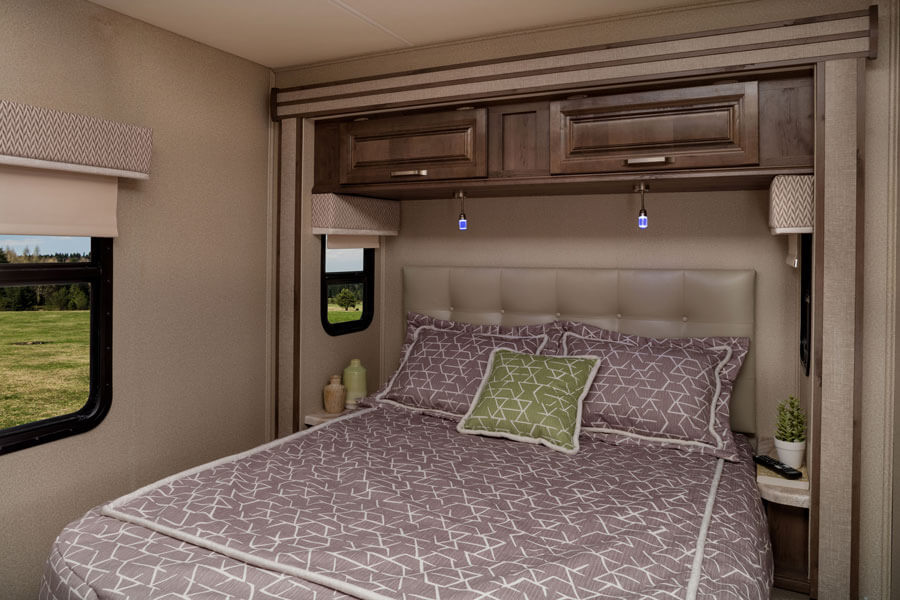

Bedroom
| Bed | Queen-sized bed with bedspread & under-bed storage (select models) |
| Ceiling Fan | Fan-Tastic Fan in bedroom |

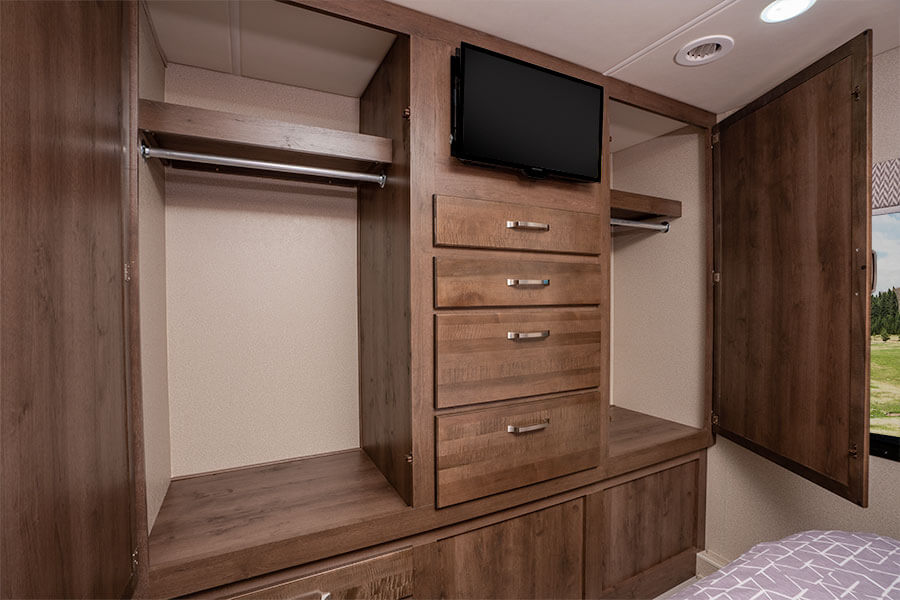

| Television | 24" LED TV in bedroom |

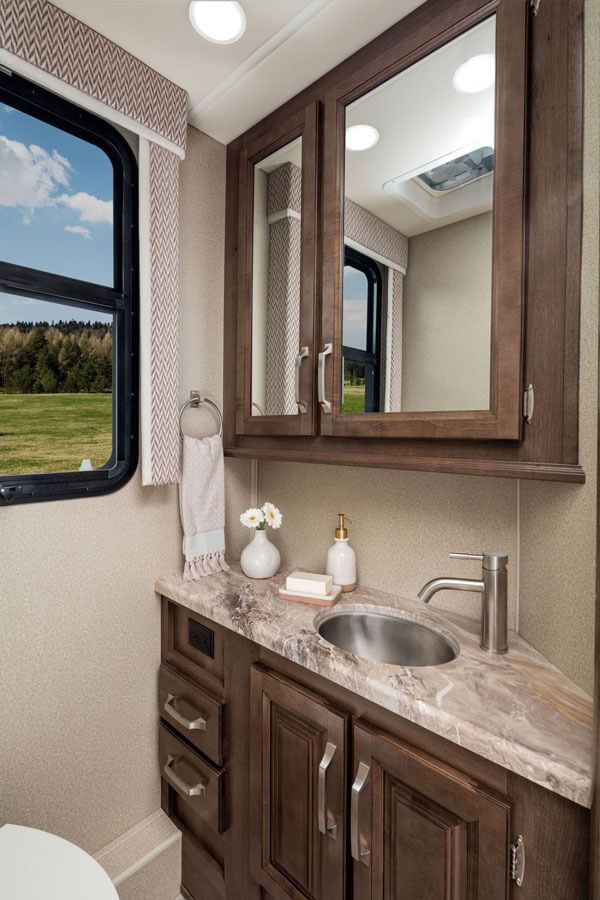

Bathroom
| Shower | Shower with decorative surround, glass shower door and skylight |
| Sink | Stainless steel sink in bathroom |
| Toilet | Porcelain toilet with foot flush |
Safety
| Safety | Driver & passenger air bags |
Options
| Canadian Standards | Canadian Standards |
| Customer Value Package (Mandatory) | 24" LED TV in Bedroom, 1,000 Watt Inverter, Automatic Hydraulic Leveling Jacks, Backup & Sideview Camera & Monitor, Electric Awning w/LED TV, Frame-less Windows, Front Fiberglass Cap w/ Automotive Windshield, Infotainment System, Remote Control & Heated Mirrors, Solid-Surface Kitchen Countertops |
| Bunk TVs | (2) 24" LED TV's in Bunk Area |
| Theater Seating | Sofa Theater Seating |
| Refrigerator | 12 Cu. Ft. Refrigerator |
| Air Conditioning | 11,000 BTU A/C |
| Rims | Aluminum Rims |
Décor Options
Entegra Coach peace of mind
At Entegra Coach, excellence doesn't end with our stunning interiors and superior craftsmanship. We back each luxury coach with the industry's highest level of service.
Entegra Coach's industry leading 2-year limited warranty is double that of any other manufacturer and offers more coverage. On top of this 2 year warranty, Entegra Coach supports our customers with a 3-year limited structural warranty for areas like the roof, walls and floors. This warranty comes directly from us, because we believe in the products we build and care for all owners as members of our Entegra Coach family. Ask your local Entegra Coach dealer for full warranty details.
