2020 Anthem





Once you drive this coach, featuring E-Z Steer technology, you will never give another coach a second thought. The Anthem is engineered for the future and boasts a digital dash that gives you effortless control through beautiful composition. Nothing can keep you from exploring, and this vehicle connects you to the world outside and beyond with innovative technology.

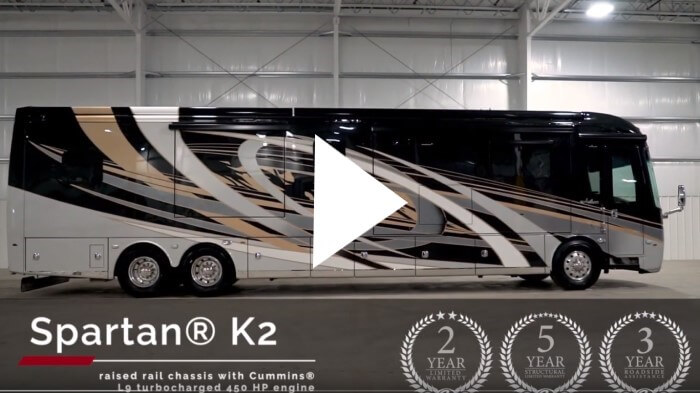

Product Video

Floorplans

Ward = wardrobe

Lav = bathroom sink

Med = medicine cabinet

Ohc = overhead cabinets

Fridge = refrigerator

Micro = microwave

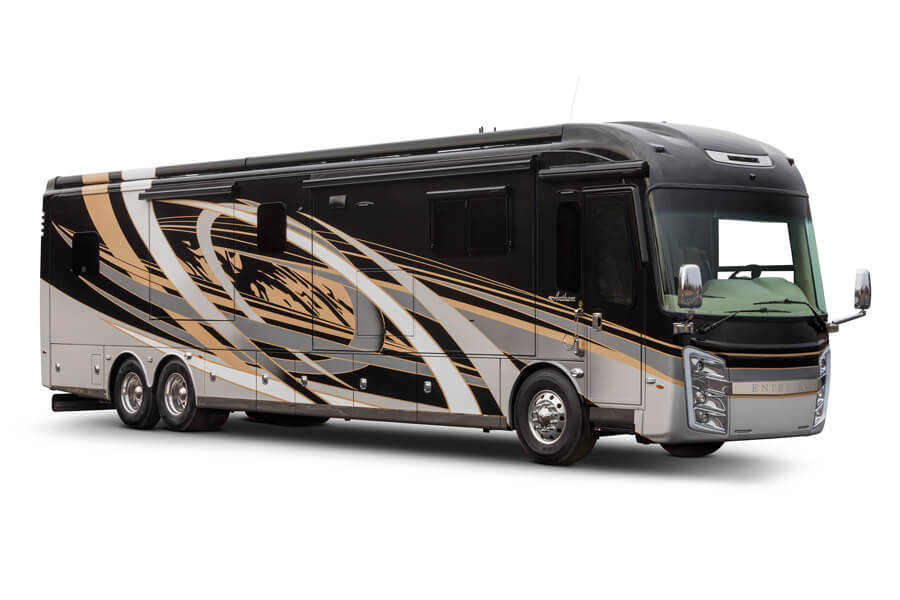

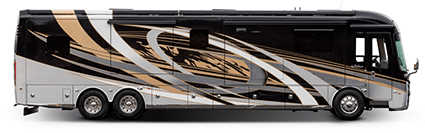

Exterior Graphics

Standards & Options

Chassis

Chassis Spartan K2 raised rail chassis
Engine Cummins L9 turbocharged 450 HP engine 1,250-lb. ft. torque at 1,400 RPM
Transmission Allison 3000 MH 6-speed transmission
Engine Block Heater 1,000 watt engine block heater
Front Suspension Reyco Granning IFS independent front air suspension
Rear Suspension Dana rear suspension
Front Axle Reyco Granning independent 20,000-lb. front axle with air suspension
Rear Axle Dana rear axle 20,000-lb., tag axle 12,000-lb.
Rear Axle Ratio 4.88 rear axle ratio
Hitch 15,000-lb. hitch with 7/4-pin plug
Tag Axle Tag axle air dump
Leveling System Valid air leveling system with auxiliary air compressor
Radiator Side-mounted radiator
Braking System ABS disc brakes on front axle, drum brakes on drive and tag axle
Engine Brake Two- stage engine brake
Traction Control Automatic traction control
Shocks Bilstein shocks- 60MM front & 46MM rear/tag
Fuel Tank 150-gal. fuel tank (dual fill)
DEF Tank 15 gallon DEF tank (dual fill)
Tires Michelin XZA 1 365/80R 22.5" tires (front) and XZA 2 315/80R 22.5" tires (rear)
Turning Radius 55-degree turning radius
Chassis Battery Chassis batteries 2-12 volt
Alternator 170-amp alternator
Air Connection Remote air connection
Tow Air Brake System Safehaul tow air brake system
Tire Pressure Monitoring Tire pressure monitor system

Construction

Frame X-bridge frames welded into chassis frame
Underbelly Heated basement storage area
Insulation Insulation with reflective Flexfoil floor (R-33), roof (R-24), sidewalls (R-16), front and rear caps (R-22)
Floor 2" x 4" floor truss construction
Floor Decking 3/4" 7-ply plywood main floor decking
Walls Aluma-Tru superstructure construction on 12"-16" centers
Exterior Walls 2- 1/2" exterior wall with welded tubular aluminum construction and high-gloss, gel-coat fiberglass
Slideouts Flush-mounted electric-powered slideout rooms both with VegaTouch and separate rocker switch controls
Roof One-piece fiberglass roof with 3/8" plywood decking and 4" arched aluminum roof truss
Front Cap Steel-reinforced front cap and windshield frame

Heat, AC, Water & Power

Heating System Aqua-Hot 450 diesel hydronic water and heating system with in-floor heat throughout
Air Conditioning 15,000-BTU low profile A/Cs (3) with heat pumps and condensation drain system
Electrical Hookup 50-amp power cord with electric reel
Generator Onan 12,500-watt diesel generator with auto gen start, on powered slide-out tray
Inverter 3,000 watt pure sine wave inverters (2)
Batteries L16 AGM batteries (4)
Power Management Premium surge protector transfer switch
Water Hose w/ Electric Reel Water hose with electric powered reel
Black Holding Tank Sprayer Black holding tank sprayer
Black Tank Management Macerator holding tank dump system with manual gate valves
Water Monitoring Trutank ultra sonic tank monitoring system displayed on VegaTouch screen
Water Filtration City and tank water filtration system
Winterization Drain System Winterizing drain system

Exterior

Cargo Features Manual slideout cargo tray; 2.8 cu.ft. exterior Dometic refrigerator/freezer on slide out tray
Stainless Steel Accents Premier Bus Armor 8" stainless steel trim
Clearance Accent LED lit chrome clearance accent light
Exterior 3M front protective film mask
Headlights LED high and low beam headlights
LED Fog Lights LED fog lights
Daytime Running Lights Daytime running lights
LED Lights LED marker lights, turn lights and license plate light
LED Docking Lights LED docking lights
Accent Lights LED accent lights on underside of slideout rooms passenger side
Third Brake Light Third brake light
Keypad Handle Lighted grab handle with keypad system
Door Awning Girard power entrance door awning with LED lights
Window Awnings Girard Ultra window shade awnings

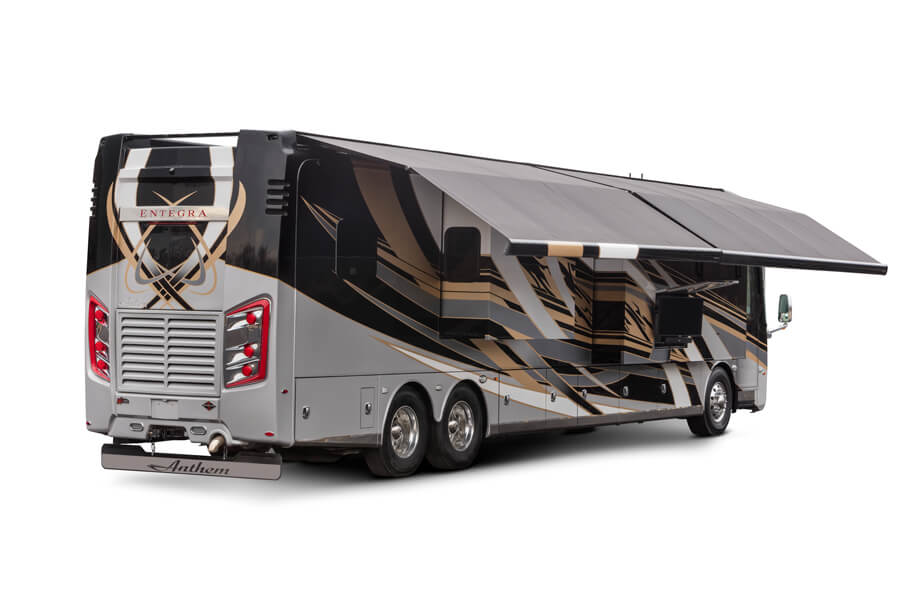

Patio Awnings Roof mounted Girard Vision dual pitched patio awnings with LED lights
Slideout Awnings Girard Ultra slide-out awnings
Mirrors Chrome, heated, remote control, Ramco side-view mirrors with blind-spot indicators
Windows Hehr frameless, tinted, dual-pane, safety-glass windows
Exterior Entertainment 40" Samsung 4K UHD Slim, Smart TV and Bose Solo 5 sound bar on TV bracket with extend, tilt and swivel arm
Utility Center Exterior heated utility center with 5' Firefly system monitor panel
TV Antenna Winegard Razar automatic powered TV antenna
Engine Door Power engine door with manual override
Rear Mudflap Full-width rear mudflap, with chrome "Anthem" nameplate
Satellite Dish - CA Winegard Trav'ler satellite dish Shaw TV - standard w/ CSA option
Satellite Dish - US Winegard Trav'ler satellite dish DIRECTV - standard w/ USA option

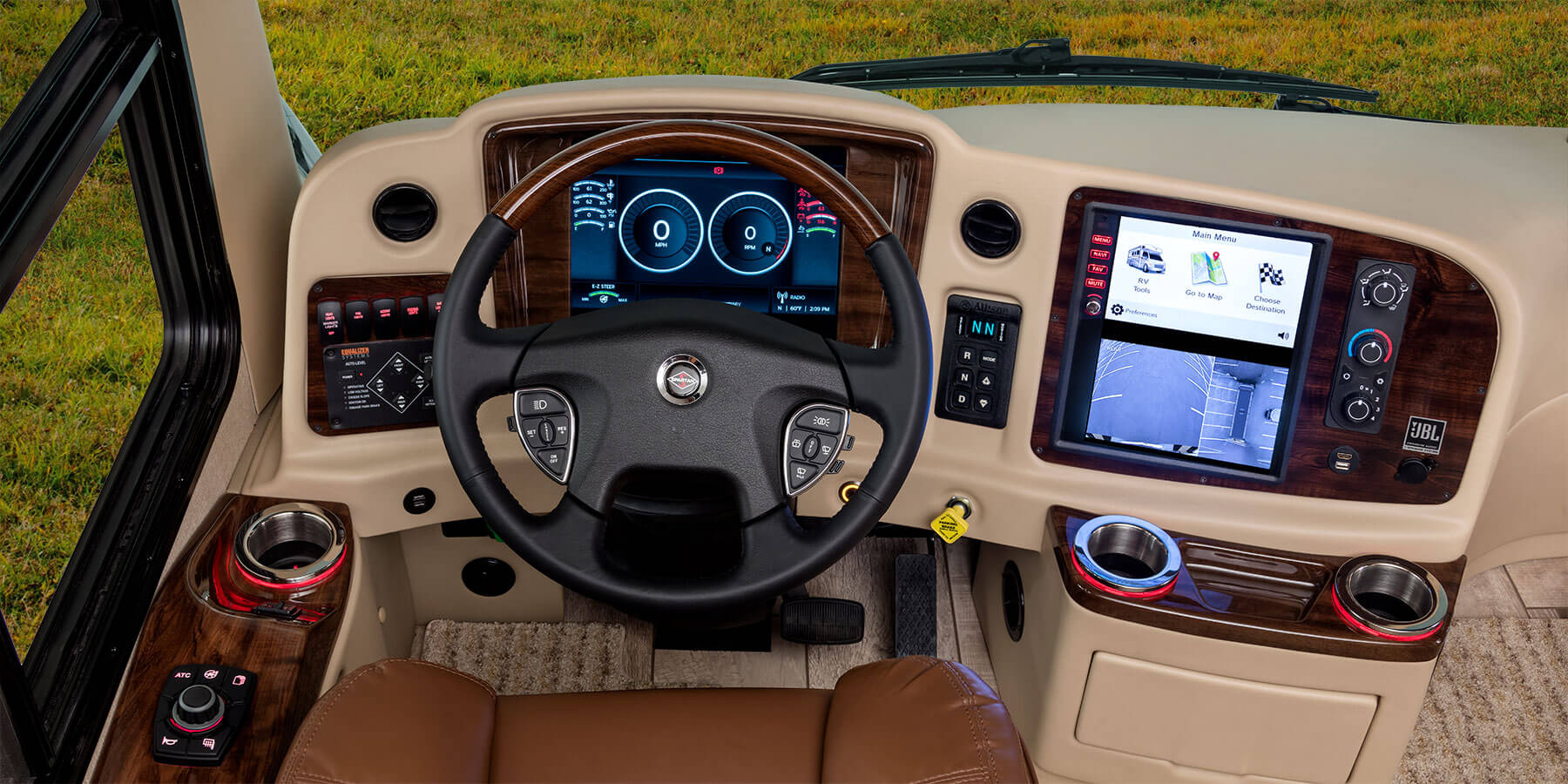

Cockpit

Flooring Powered flush stepwell cover
Visors & Privacy Shade Powered front sun visors and privacy shade
Windshield Ultra-Vision one-piece wrap-around tinted windshield
Driver / Passenger Seats Villa 6-way power, lumbar, Ultraleather driver and passenger seats with integrated 3-point seatbelt
Start Push button start
Steering Wheel E-Z Steer electric, adjustable power steering assist; VIP wood-grain, leather-wrapped, tilt and telescoping steering wheel with integrated controls for radio, cruise, and wipers
Dash Valid 15" digital dash with selector knob and three selection main screens
Monitoring System(s) Blind spot monitoring system displayed on digital dash screen

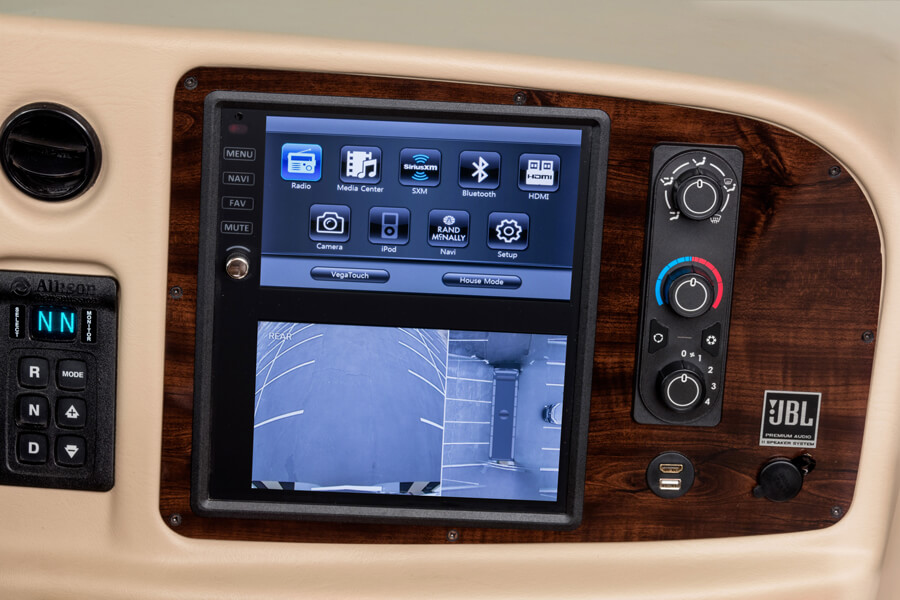

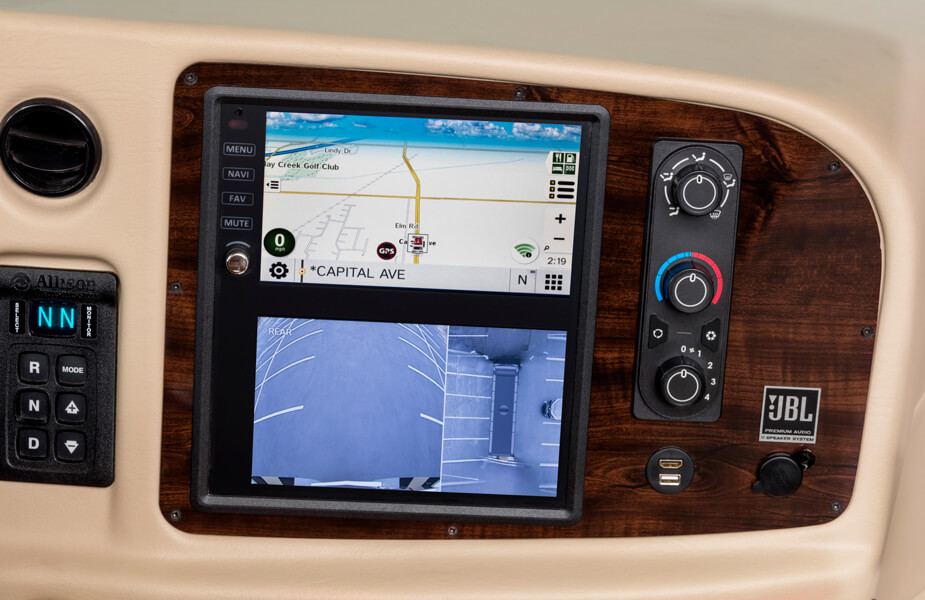

Infotainment System(s) Glass panel, dual 9" touchscreen in-dash infotainment center with Rand McNally RV navigation, Bluetooth, Sirius XM, AM/FM tuner, integrated camera control, house mode whole coach audio distribution, and integrated VegaTouch coach control
Sound System JBL® premium audio sound system with amplifier, speakers and DVC subwoofer
Leveling System Equalizer hydraulic automatic leveling
Pedals Powered adjustable brake and accelerator pedals
Cameras Xite 360 camera system that displays on digital dash screen
Additional Amenities Two dual USB ports

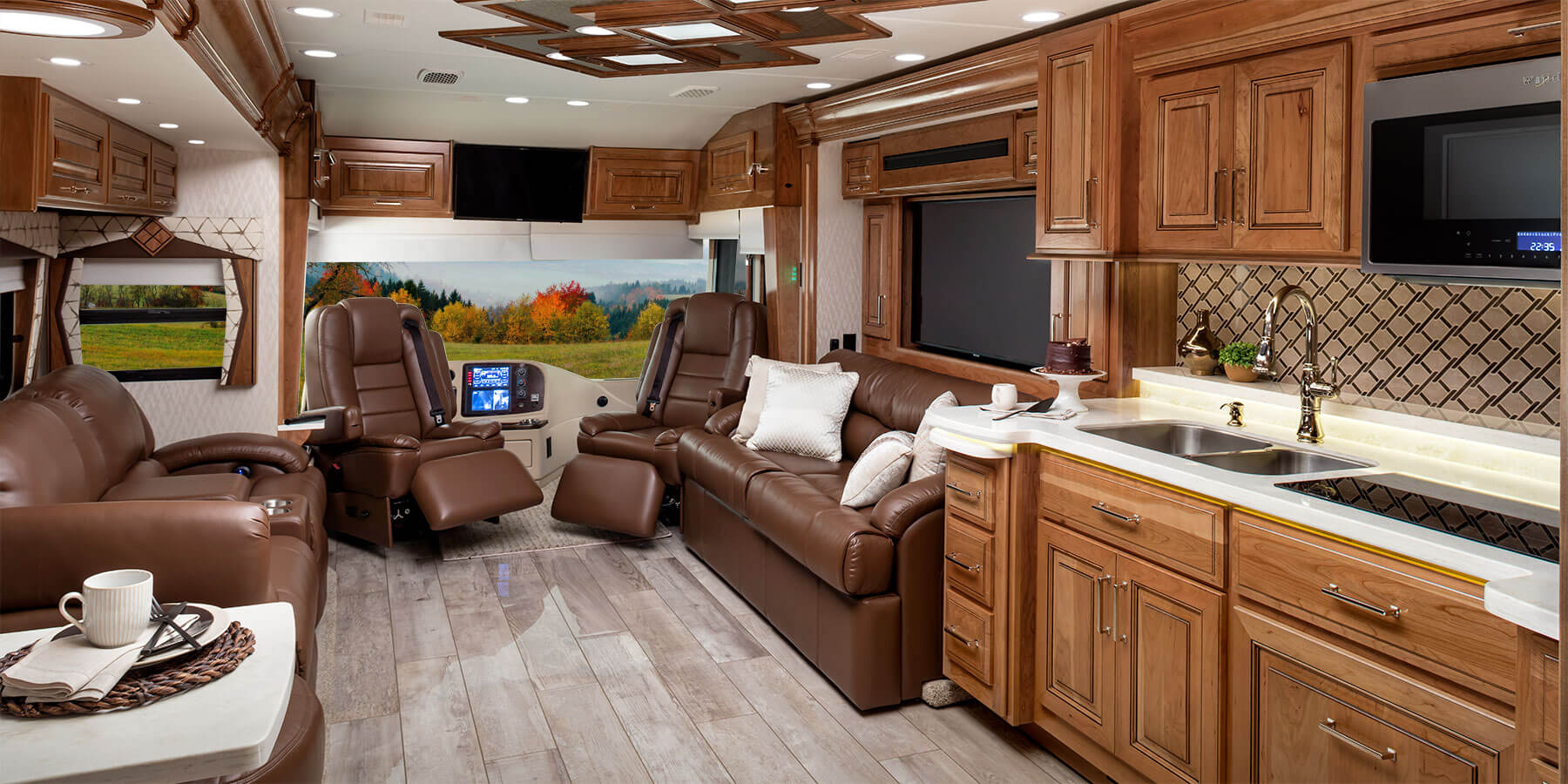

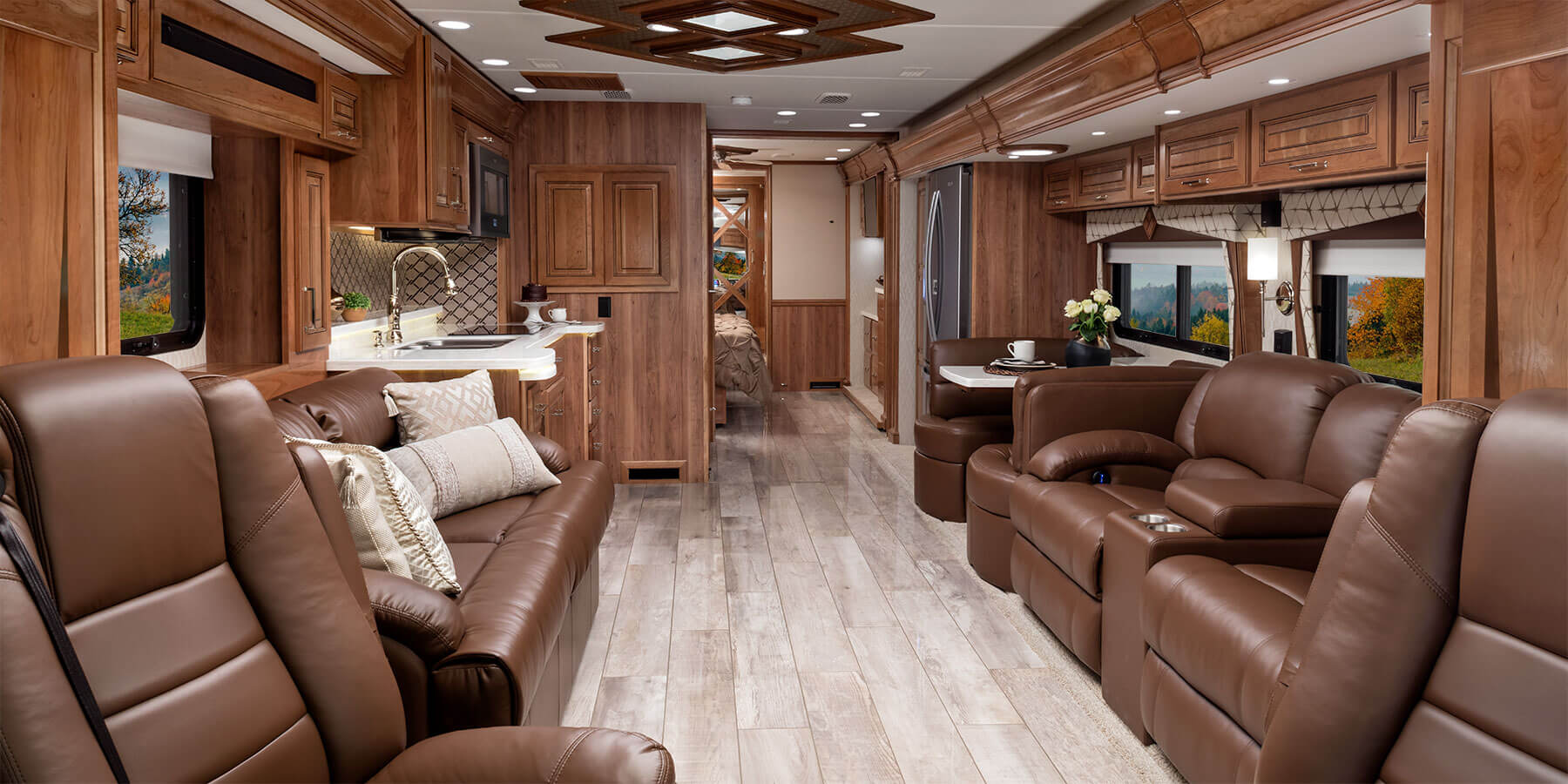

Interior

Lighting System 10" VegaTouch touchpad system, for complete integration of coach controls/mobile app control also
Lighting Premium LED 12V recessed ceiling lighting
Flooring Hand laid high-gloss 8" x 48" porcelain tile floor
Window Treatments Powered solar day and black out night shades
Television - Living Room Samsung 50" 4K UHD Smart TV
Television - Front Overhead Samsung 32" LED Slim 1080P Smart TV in front overhead
Sound - Living Room Bose SoundTouch 300 sound system
DVD Systems Samsung HD Blu-ray player
Furniture Villa italian ultra-leather furniture
Washer/Dryer Whirlpool stacked washer and dryer
Central Vacuuming System Central vacuum system
Electric Fireplace LED lit fireplace with 1500w heating element (44B, 42DEQ)
Interior Doors Aire-Secure travel locks for all pocket doors

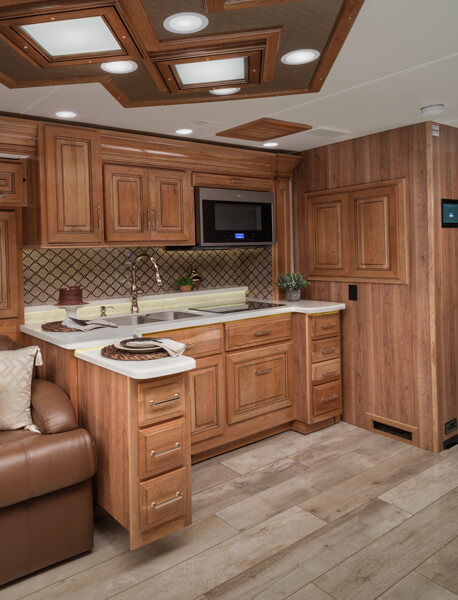

Kitchen

Kitchen Countertops Solid surface countertops with stainless steel sink and dimable LED accent lighting
Kitchen Backsplash Porcelain tile backsplash
Waste Basket Large deep drawer for waste basket with easy access trash chute (trash chute not available in 44F)
Dishwasher Dishwasher with wood raised panel door front
Cooktop Induction cooktop
Microwave Whirlpool Gold 1.9 cu. ft. convection microwave oven

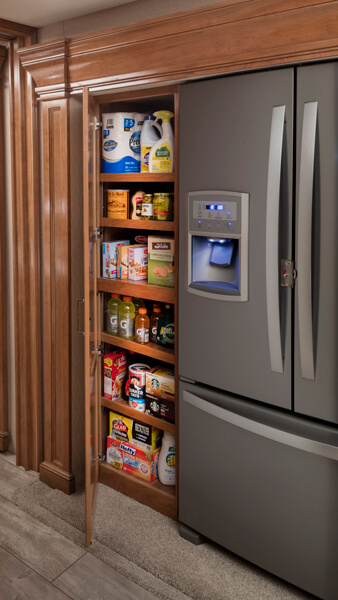

Refrigerator Whirlpool residential refrigerator with ice maker and water dispenser
Vent Maxxair power vent

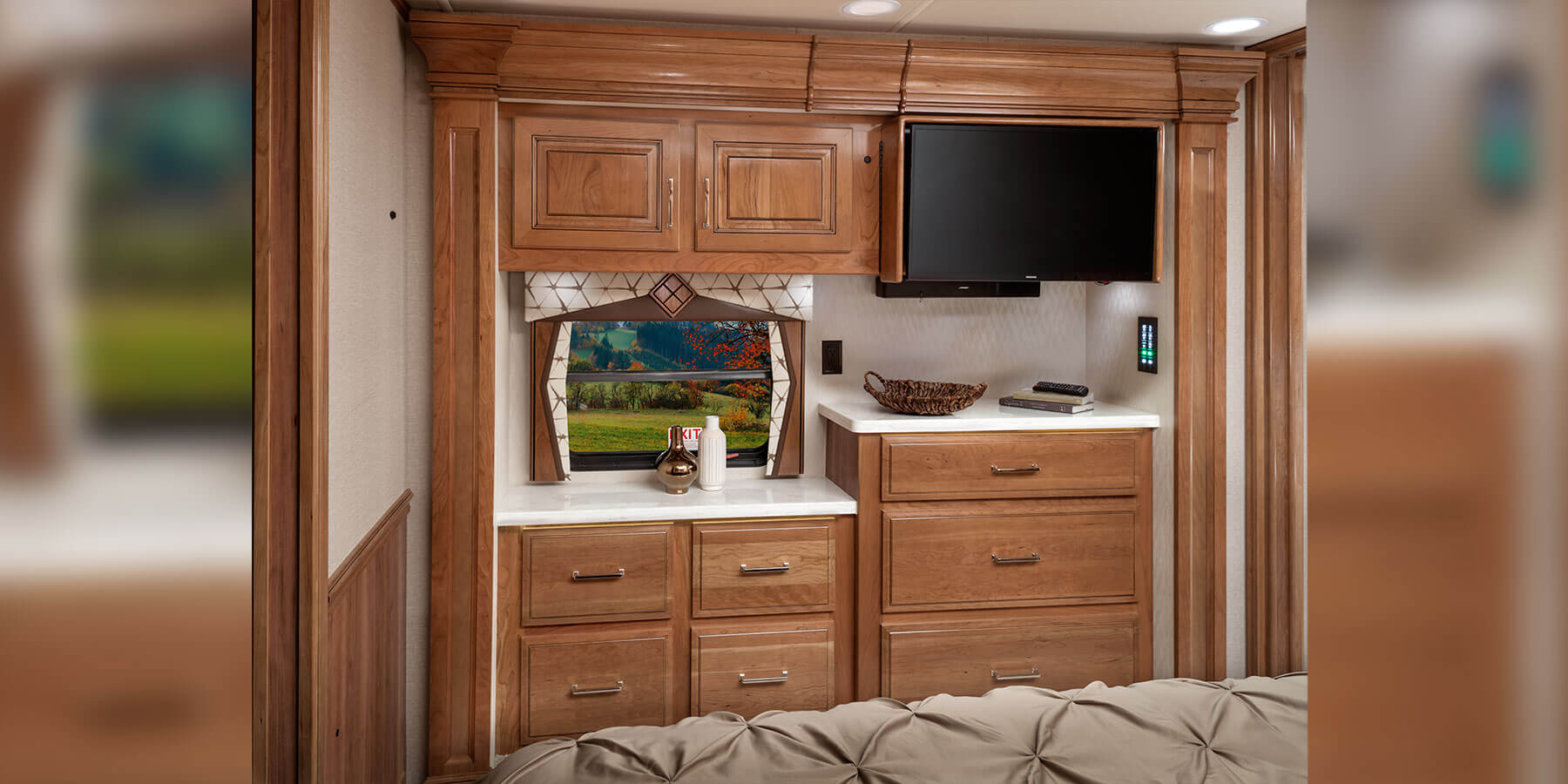

Bedroom

Television Samsung 32" LED Slim 1080P Smart TV
Sound Bose Solo 5 sound bar
Bedroom Mattress / Bedding Select Comfort Sleep Number king size mattress
Nightstands Nightstands with USB ports and solid surface tops
Ceiling Fan Ceiling fan
Bedroom Wardrobe Large cedar-lined wardrobe with LED lit, motion activated closet rod
DVD Systems Samsung Blu-ray player

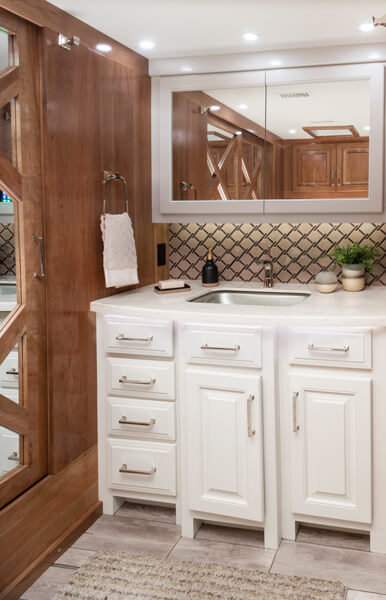

Bathroom

Bathroom Countertop(s) Solid surface countertops with integrated glass sink and LED accent lighting
Toilet Thetford Tecma china toilet(s) with push button flush 44A, 44F, 42H, 44W); Tecma in Master Bath & Aria in stool room (44B)

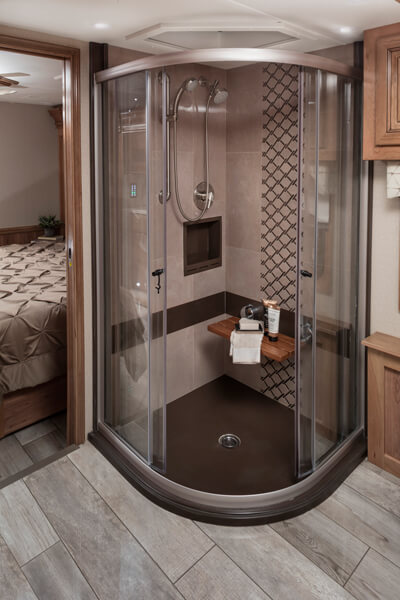

Bathroom Shower Porcelain tiled shower wall with skylight
Shower Seat Teakwood shower seat (Not available in 44F)
Bathroom Ventilation Maxxair Deluxe power exhaust vent fan with intake
Shower Head Fixed shower head with separate hand held spray wand

Safety

Blind Spot Monitoring Blind spot monitoring system
Security System Security system with glass shatter sensors
Lights Porch light and motion sensor security lights
Smoke Alarm Smoke alarm
Carbon Monoxide Detector Combination carbon monoxide detector and gas alarm
Security Safe Safe

Options

Canadian Standards CSA Optional
Dinette Option 1 Booth dinette passenger side (44A)
Theater Seating 100" theater seat passenger side (44B and 42DEQ)
Solar Solar panels (Dual-100 watt) with Morningstar SunSaver Duo solar panel charge controller
WiFi Extender Antenna Winegard WIFI extender with 4G/LTE
Dinette Option 2 Booth dinette driver side (44B, 44W, and 42DEQ)
Reclining Sofa Option 1 100" reclining sofa passenger side (44B and 42DEQ)
Theater Seating Option 2 82" theater seat passenger side (44A)
Theater Seating Option 3 82" theater seat driver side (44W)
Theater Seating Option 4 74" theater seat passenger side (44F)
Satellite Dish Winegard in-motion dome, roof mounted satellite dish
