2019 Reatta

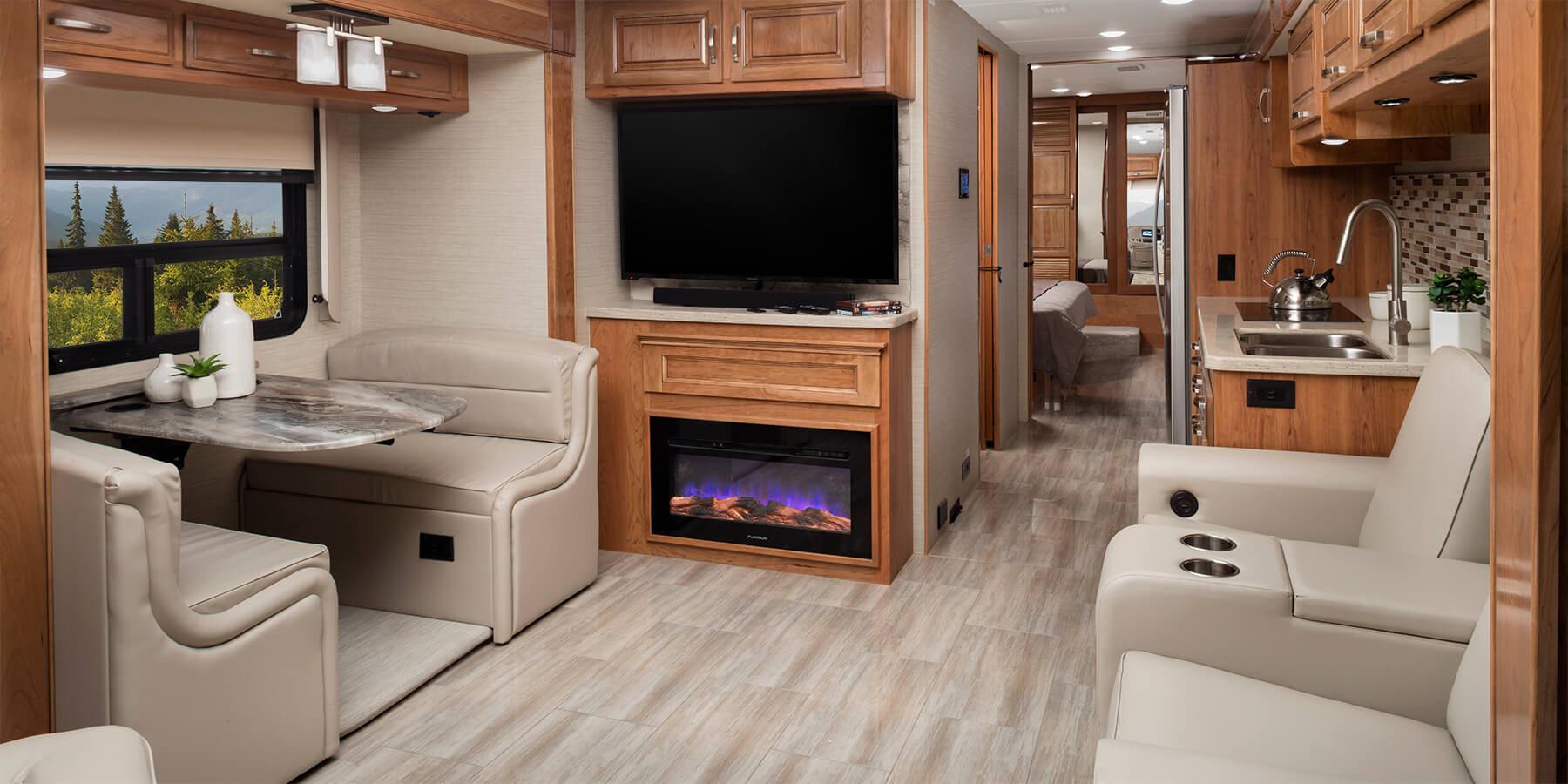

The newest addition to the luxury diesel pusher lineup, the all-new Reatta is shorter in length, but not in luxury. Built on a Spartan K1 raised-rail chassis with independent front suspension, the Reatta combines the smooth ride RVers have come to expect from Entegra Coach with eye-catching exterior choices, modern interiors and high-end, residential-style features.

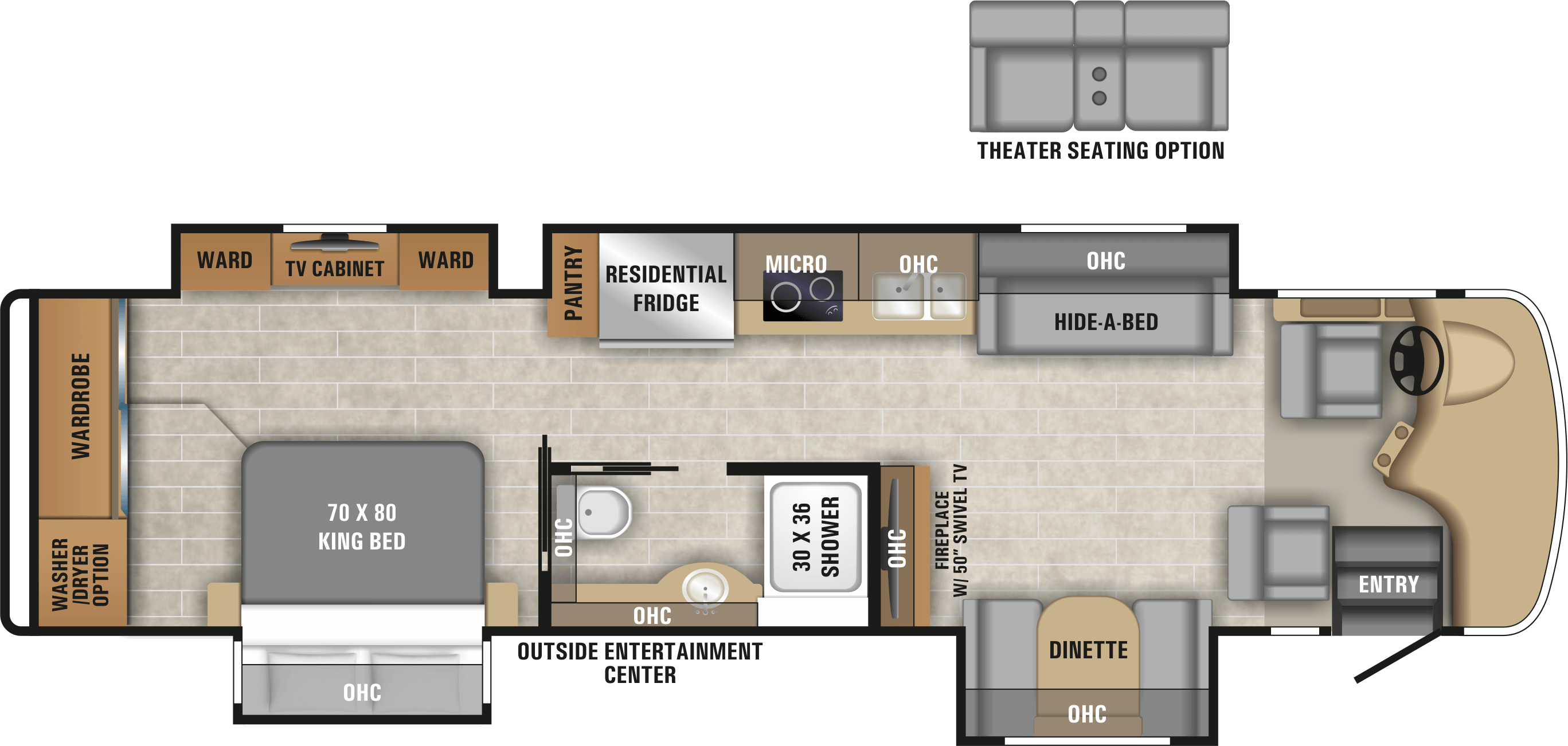

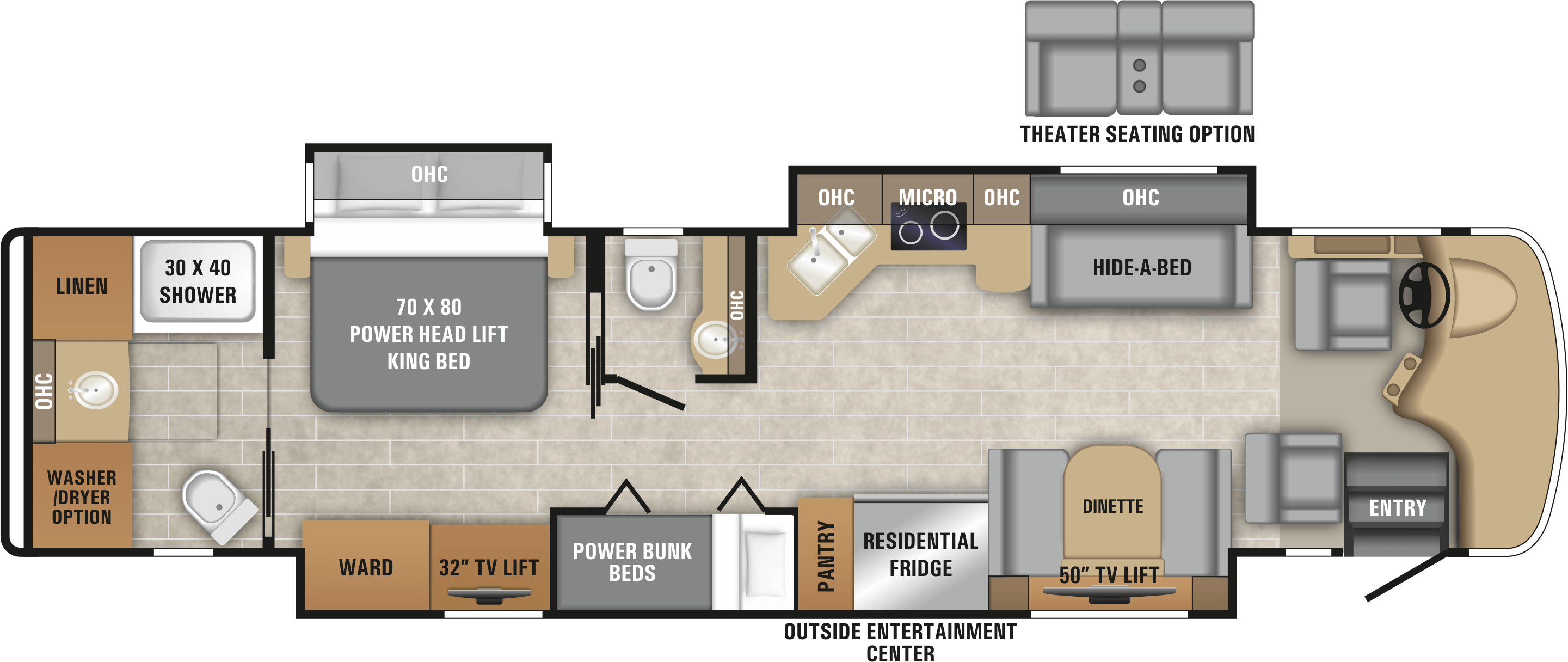

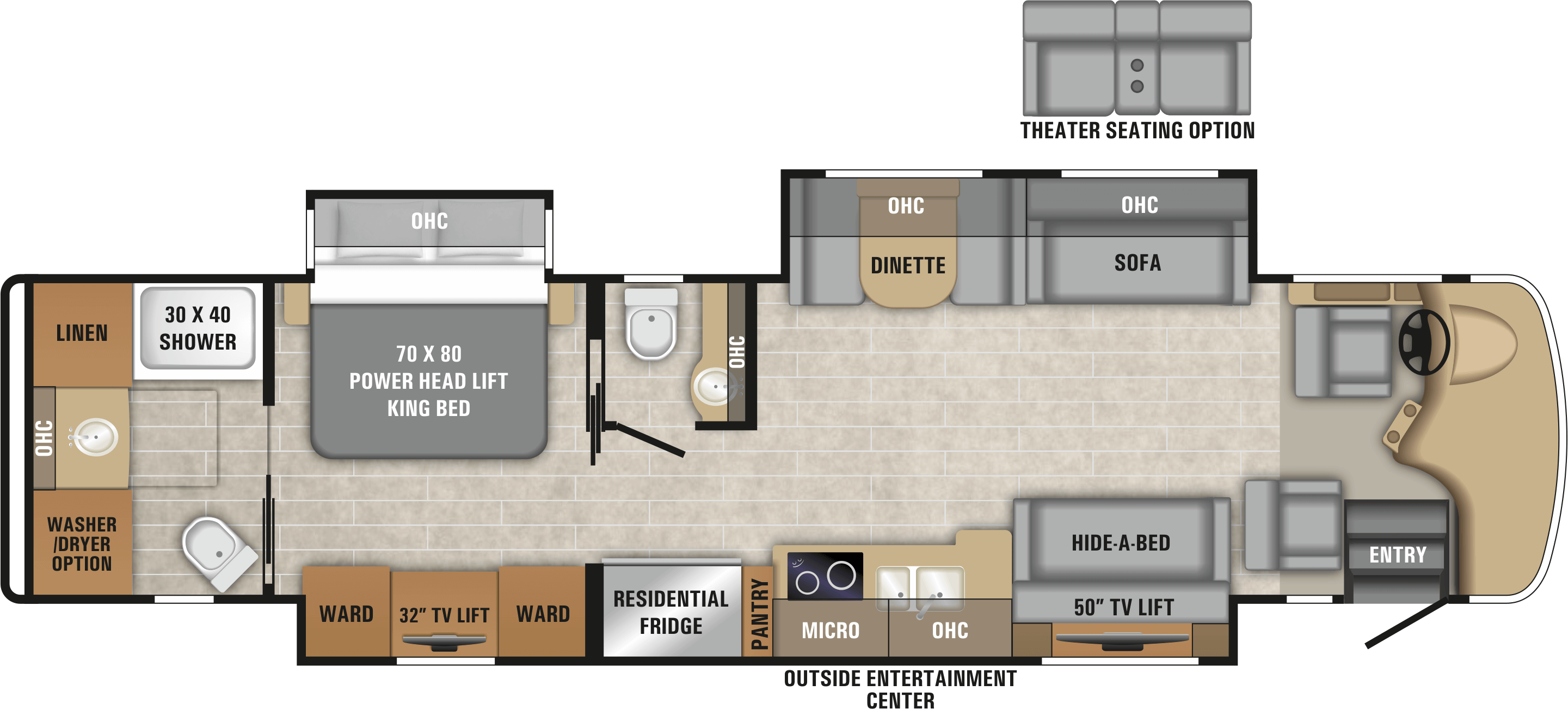

Floorplans

Ward = wardrobe

Lav = bathroom sink

Med = medicine cabinet

Ohc = overhead cabinets

Fridge = refrigerator

Micro = microwave

Exterior Graphics

Standards & Options

Chassis

Air Connection Remote air connection
Alternator 170-amp alternator
Braking System Variable geometry turbo (VGT) brake
Chassis Spartan K1 raised rail chassis
Chassis Battery Chassis batteries (2) 12 volt
DEF Tank 10-gal. DEF tank (driver side fill)
Engine Cummins B turbocharged 360 HP engine 800 lb.- ft. torque at 1,800 RPM
Engine Block Heater 750 watt engine block heater
Front Axle IFS independent 12,600-lb. front axle (37MB), 14,320-lb front axle (39BH/39T2)
Fuel Tank 100-gal. fuel tank
Hitch 10,000-lb. hitch with 7/4-pin plug
Leveling System Equalizer hydraulic automatic leveling system
Radiator Rear-mounted radiator
Rear Axle Rear axle 20,000-lb. (37MB) 22,000-lb (39BH/39T2)
Rear Axle Ratio 4.88 rear axle ratio
Shocks Bilstein 46mm shocks
Tires Michelin 275/80R 22.5” tires
Transmission Allison 3000 MH 6-speed transmission

Construction

Floor Floor with vacuum bonded layers of Darco underbelly, a welded aluminum frame, R-9 bead-foam insulation and 5/8" Structurewood
Frame X-Bridge frames welded into chassis frame
Front Cap Steel-reinforced front cap and windshield frame
Insulation Insulation with reflective Flexfoil roof (R-24), front and
Roof One-piece fiberglass roof w/ 3/8” plywood decking and 4" arched aluminum roof truss
Slideouts Electric-powered slideout rooms
Walls Sidewalls High Gloss gelcoat vacuum bonded laminated

Heat, AC, Water & Power

Air Conditioning 15,000-BTU standard profile A/Cs (2) with heat pump and digital thermostat
Batteries L16 AGM batteries (2), (6v/390 amp hrs. ea.)
Black Holding Tank Sprayer Black holding tank sprayer
Black Tank Management Macerator holding tank dump system w/ manual gate valves
Electrical Hookup 50-amp power cord
Generator Onan 8,000-watt diesel generator with auto gen start on slide-out tray
Heating System 35,000 BTU Furnace (37MB) /1-20,000 and 1-30,000 (39BH/T2)
Inverter 2,000-watt pure sine wave inverter with 100 amp battery charger
Power Management Surge protector transfer switch
Propane 16.5 gal propane tank
Water Filtration City and tank water filtration system
Water Heater 10 gal gas/electric water heater
Winterization Drain System Winterizing drain system

Exterior

Daytime Running Lights Daytime running lights
Entrance Door Power entrance door awning with LED lights
Exterior 3M front protective film mask
Exterior Entertainment Exterior 39” LED,TV on TV bracket
Headlights Halogen high and low beam headlights
Keypad Handle Grab handle and keypad system for Keyless entry
LED Fog Lights Halogen fog lights
LED Lights LED marker, turn lights, docking lights and accent lights
Mirrors Heated, remote control, side-view mirrors w/ integrated cameras
Patio Awnings Power patio awning with LED lights
Rear Mudflap Full-width rear mudflap, w/chrome nameplate
Satellite Dish Winegard in-motion satellite dome w/ prep for Trav'ler satellite dish
