Revere the Road
THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.

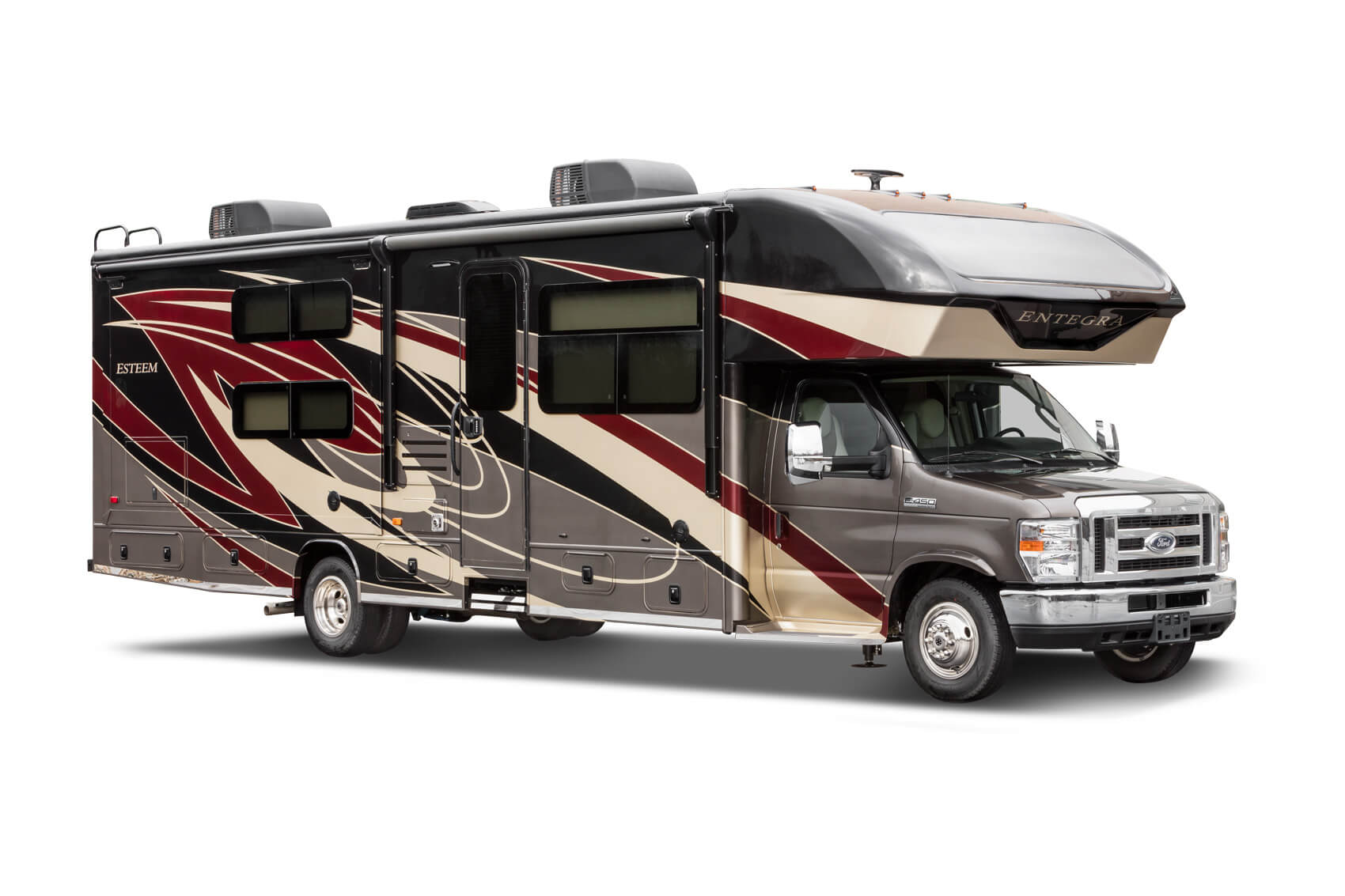

2018 Esteem
Built on a Ford E-450 chassis with a 305 horsepower engine, and with features such as slam-latch baggage doors, frameless windows and our signature one-piece seamless front cap with automotive-bonded panoramic window, you’ll love the journey as much as the destination.
Brochure
Floorplans

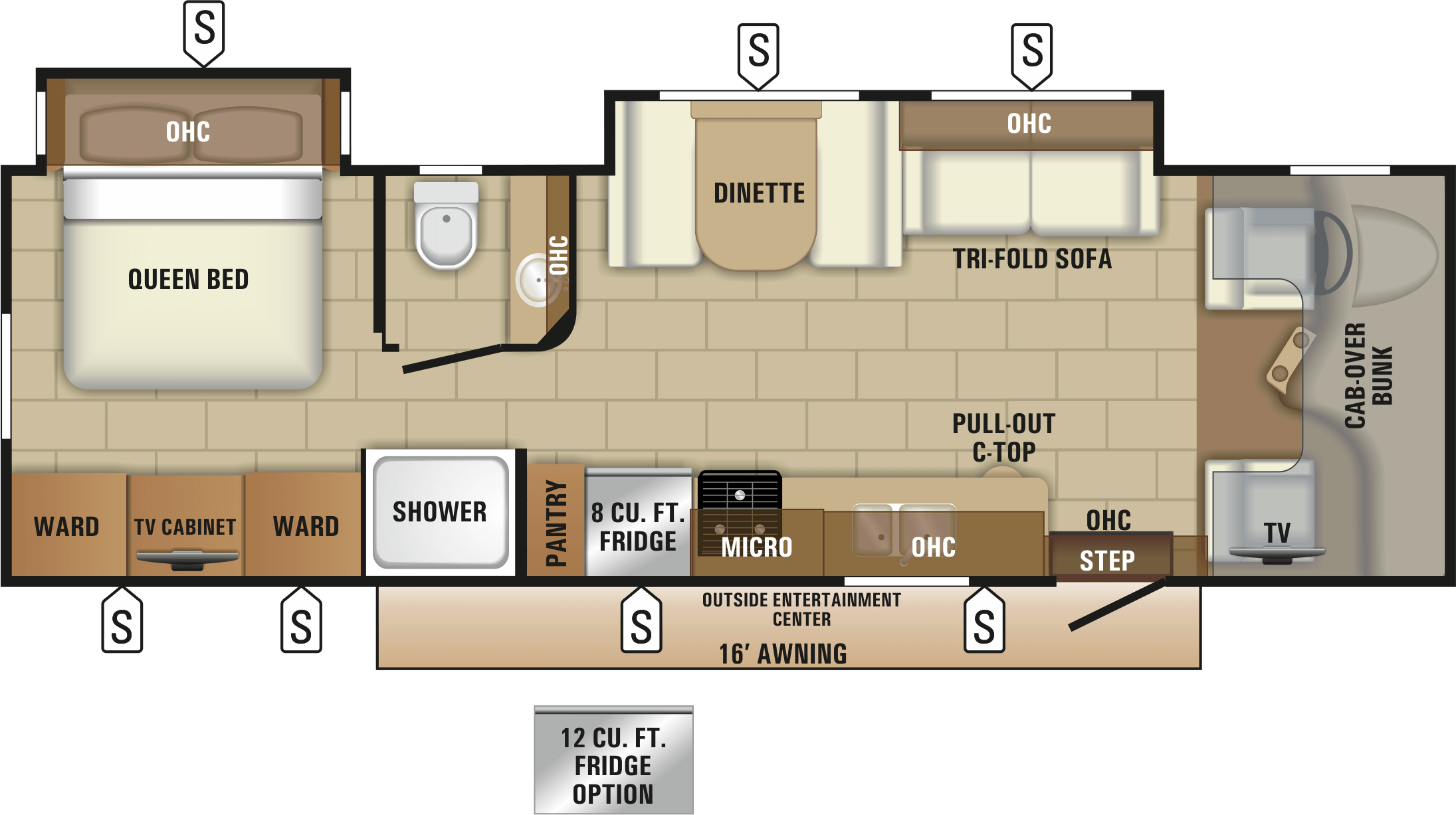

2018 Esteem | 29V
Specs
| Exterior Length | 32' 6" |
| Exterior Width | 100" |
| Exterior Height with A/C and Satellite | 11' 6" |
| Interior Height | 84" |
| Wheel Base | 223" |
| Fresh Water Capacity (gals) | 47 |
| Grey Waste Water Capacity (gals) | 41 |
| Black Waste Water (gals) | 32 |
| Gross Vehicle Weight Rating (lbs) | TBD |
| Gross Combined Weight Rating (lbs) | TBD |
| Front Gross Axle Weight Rating (lbs) | TBD |
| Rear Gross Axle Weight Rating (lbs) | TBD |
| Fuel Tank Capacity (gals) | TBD |
| Furnace (BTU Output) | TBD |
360°

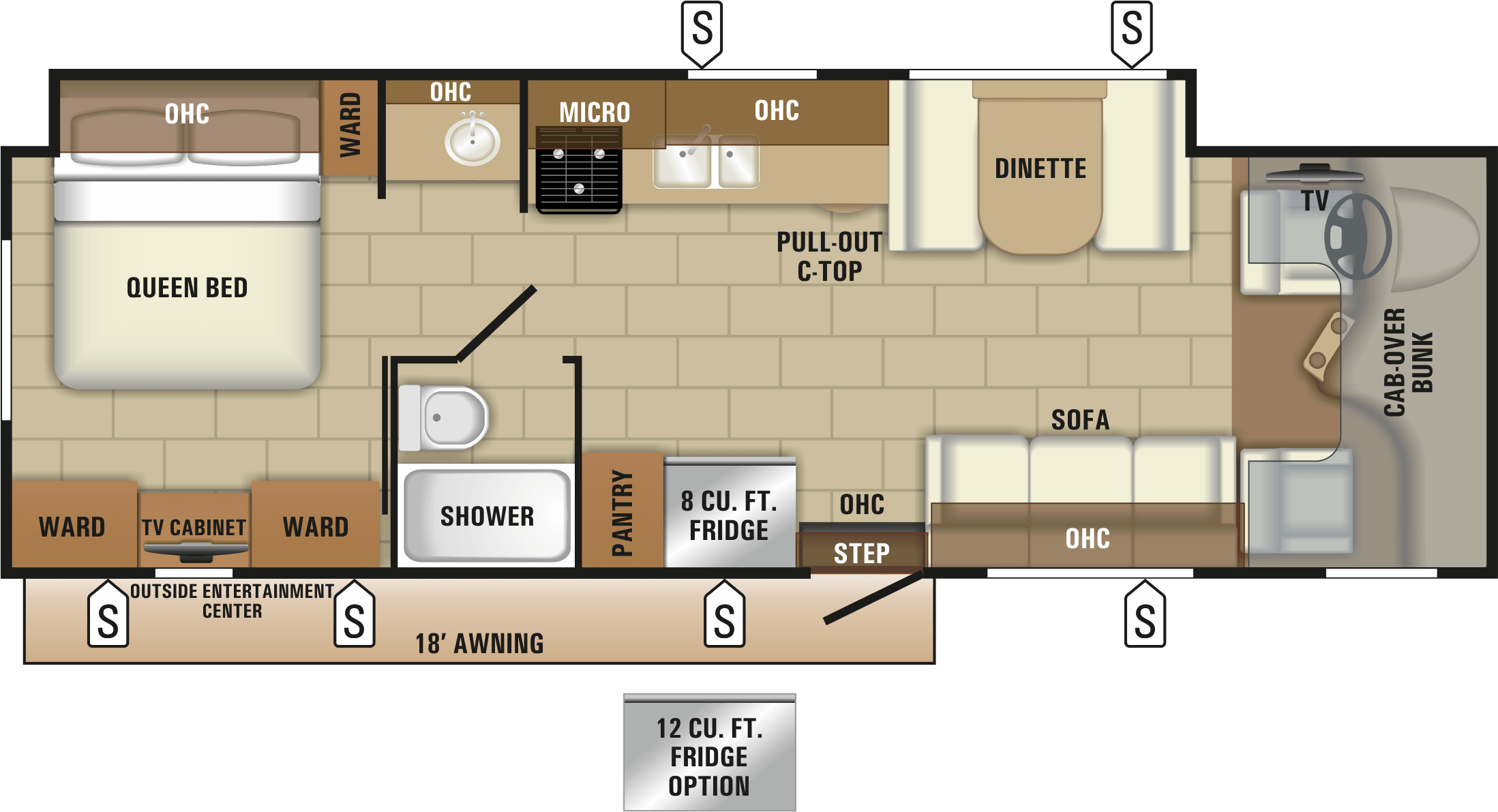

2018 Esteem | 30X
Specs
| Exterior Length | 32' 6" |
| Exterior Width | 100" |
| Exterior Height with A/C and Satellite | 11' 6" |
| Interior Height | 84" |
| Wheel Base | 223" |
| Fresh Water Capacity (gals) | 47 |
| Grey Waste Water Capacity (gals) | 41 |
| Black Waste Water (gals) | 31 |
| Gross Vehicle Weight Rating (lbs) | TBD |
| Gross Combined Weight Rating (lbs) | TBD |
| Front Gross Axle Weight Rating (lbs) | TBD |
| Rear Gross Axle Weight Rating (lbs) | TBD |
| Fuel Tank Capacity (gals) | TBD |
| Furnace (BTU Output) | TBD |
360°

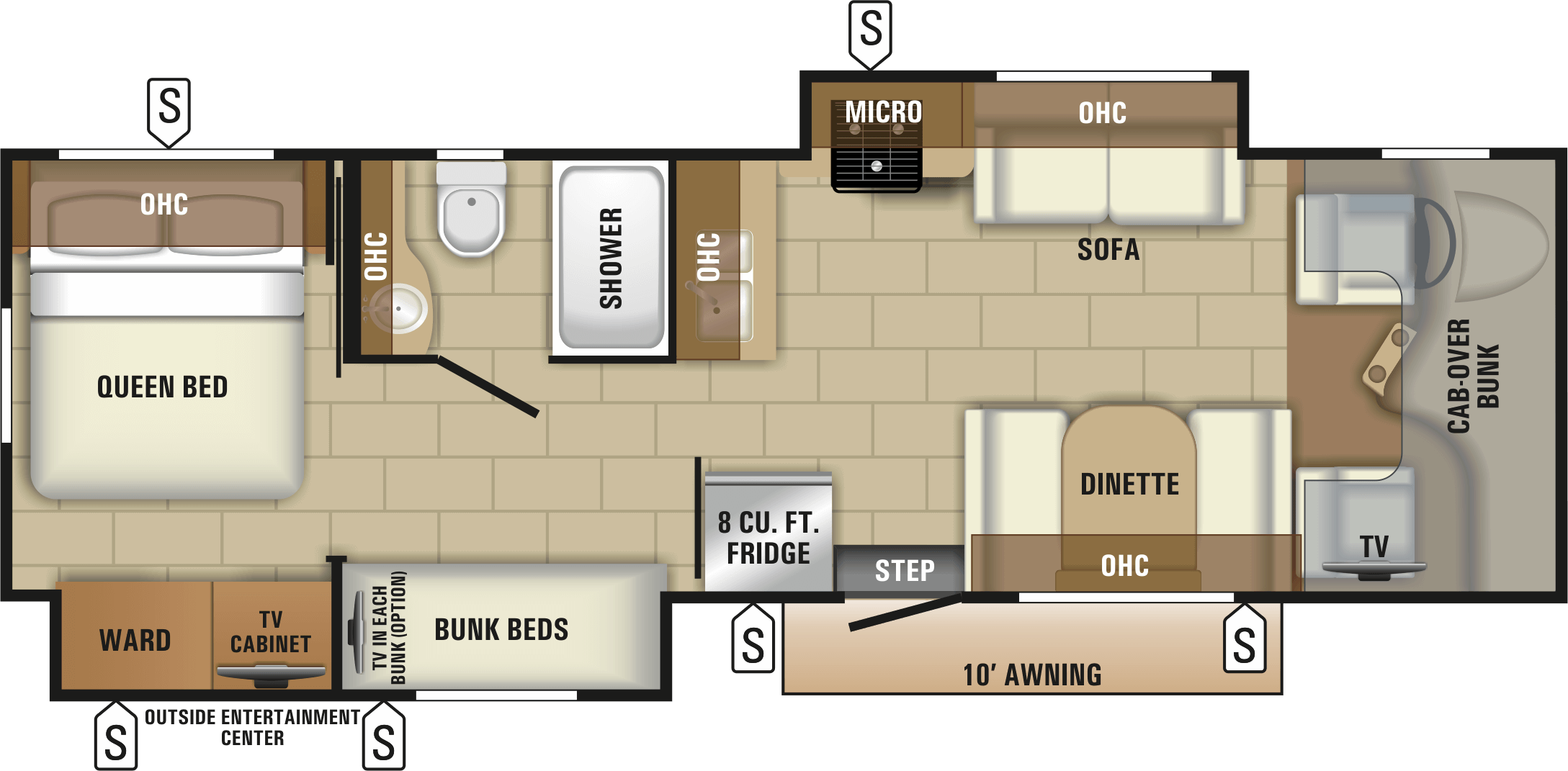

2018 Esteem | 31L
Specs
| Exterior Length | 32' 6" |
| Exterior Width | 100" |
| Exterior Height with A/C and Satellite | 11' 6" |
| Interior Height | 84" |
| Wheel Base | 223" |
| Fresh Water Capacity (gals) | 47 |
| Grey Waste Water Capacity (gals) | 41 |
| Black Waste Water (gals) | 32 |
| Gross Vehicle Weight Rating (lbs) | TBD |
| Gross Combined Weight Rating (lbs) | TBD |
| Front Gross Axle Weight Rating (lbs) | TBD |
| Rear Gross Axle Weight Rating (lbs) | TBD |
| Fuel Tank Capacity (gals) | TBD |
| Furnace (BTU Output) | TBD |
360°
Ward = wardrobe
Lav = bathroom sink
Med = medicine cabinet
Ohc = overhead cabinets
Fridge = refrigerator
Micro = microwave
All Floorplans
2018 Esteem | 29V
2018 Esteem | 30X
2018 Esteem | 31L

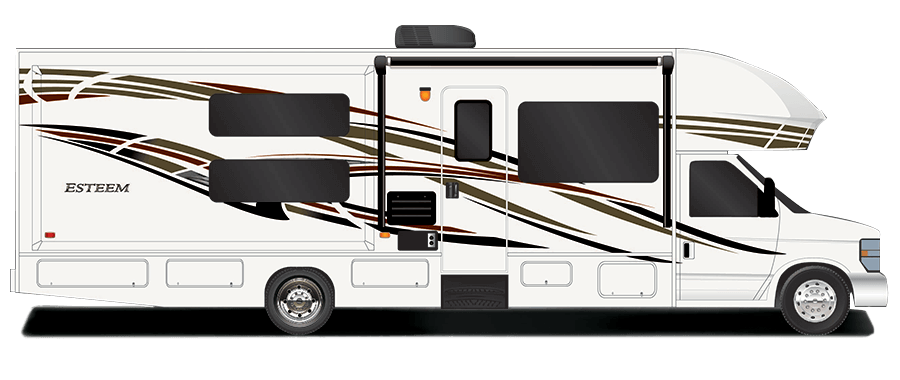

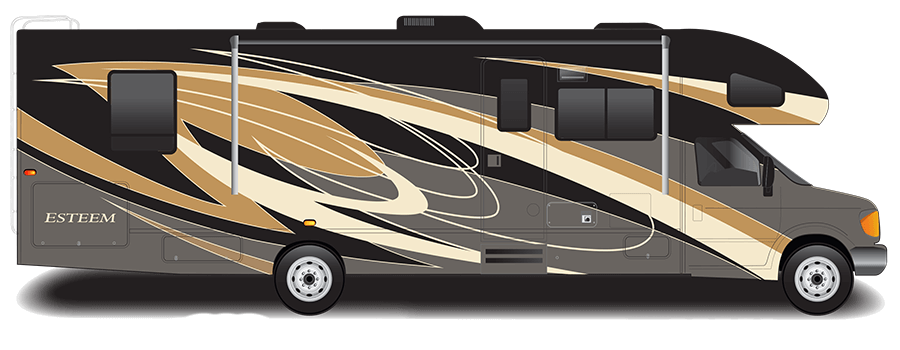

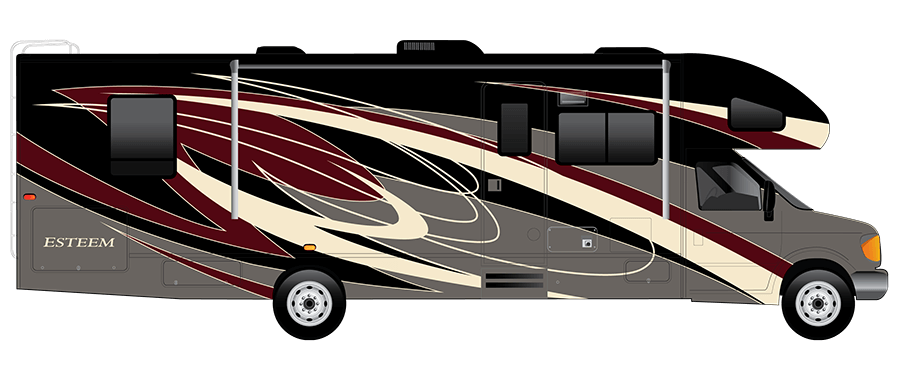

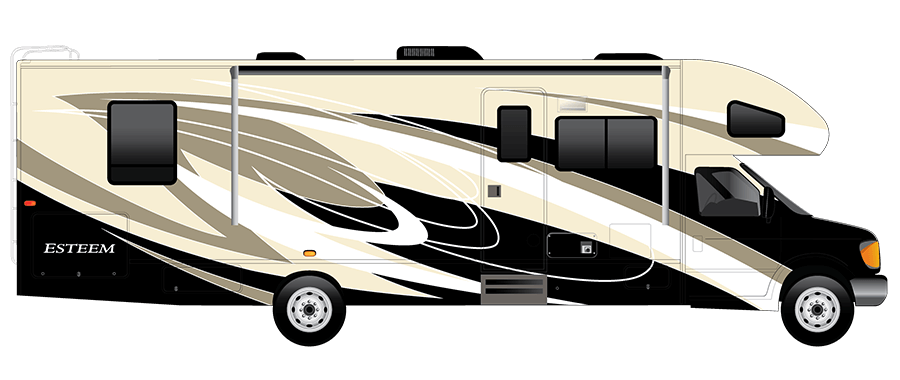

Exterior Graphics
Standards & Options
Chassis
| Alternator | 120-amp alternator |
| Braking System | Power anti-lock brakes w/power steering |
| Chassis | Ford E-450 chassis |
| Engine | Triton 6.8L EFI V-10 305HP engine w/420 lb-ft torque |
| Fuel Tank | 55-gallon fuel tank |
| Hitch | 7,500-pound hitch w/750-lb tongue capacity & 7-pin plug |
| Ride & Handling Package | Computer-balanced driveshaft, Hellwig® helper springs, rubber isolation mounts, Bilstein® shocks, oversized stabilizer bar |
| Transmission | 6-speed automatic TorqShift series transmission w/ overdrive |
Construction
| Floor | Vacuum-bonded, laminated floor |

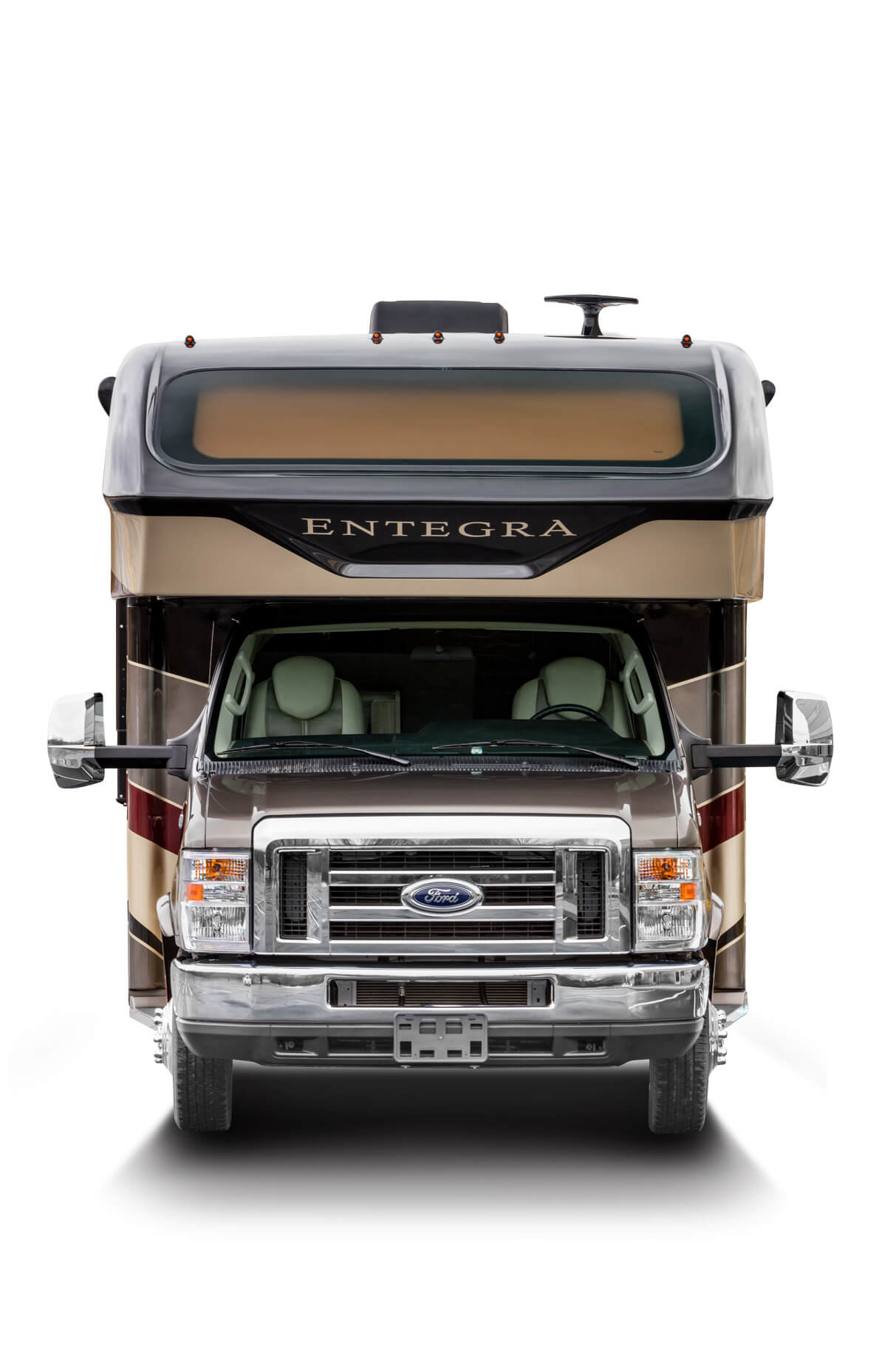

| Front Cap | Seamless, molded front fiberglass cap w/ 30” x 82” automotive-bonded panoramic front window |
| Insulation | Bead-foam insulation (R-24 max roof, R-9 max floor, R-5 max walls) |
| Roof | Vacuum-bonded, one-piece fiberglass roof |
| Walls | Vacuum-bonded, laminated sidewalls |
Heat, AC, Water & Power
| Air Conditioning | 15,000-BTU A/C w/ heat pump, Optional (2) 11,000-BTU A/C |
| Batteries | House battery on slideout tray |
| Black Holding Tank Sprayer | Black holding tank sprayer |
| Generator | Onan® 4,000-watt MicroQuiet generator w/auto-changeover |
| Heating System | 30,000-BTU auto-ignition furnace w/ wall thermostat |
| Inverter | 1,000-watt inverter |
| Propane | 56-pound propane tank (16.5 GAL) |
| Water Filtration | Water filtration system |
| Water Heater | 6-gallon gas/electric DSI auto-ignition water heater |
| Water Pump | 12V demand water pump |
Exterior
| Cargo Features | Lockable exterior storage compartments with slam latches |
| Electrical System | 12V electrical system w/120V, 60-amp power converter |
| Entrance Door | Keyless entry door with touchpad lock system |
| Entrance Steps | Electric-powered entrance steps |
| Exterior | White fiberglass exterior w/ vinyl graphics, Optional Full-Body Paint |

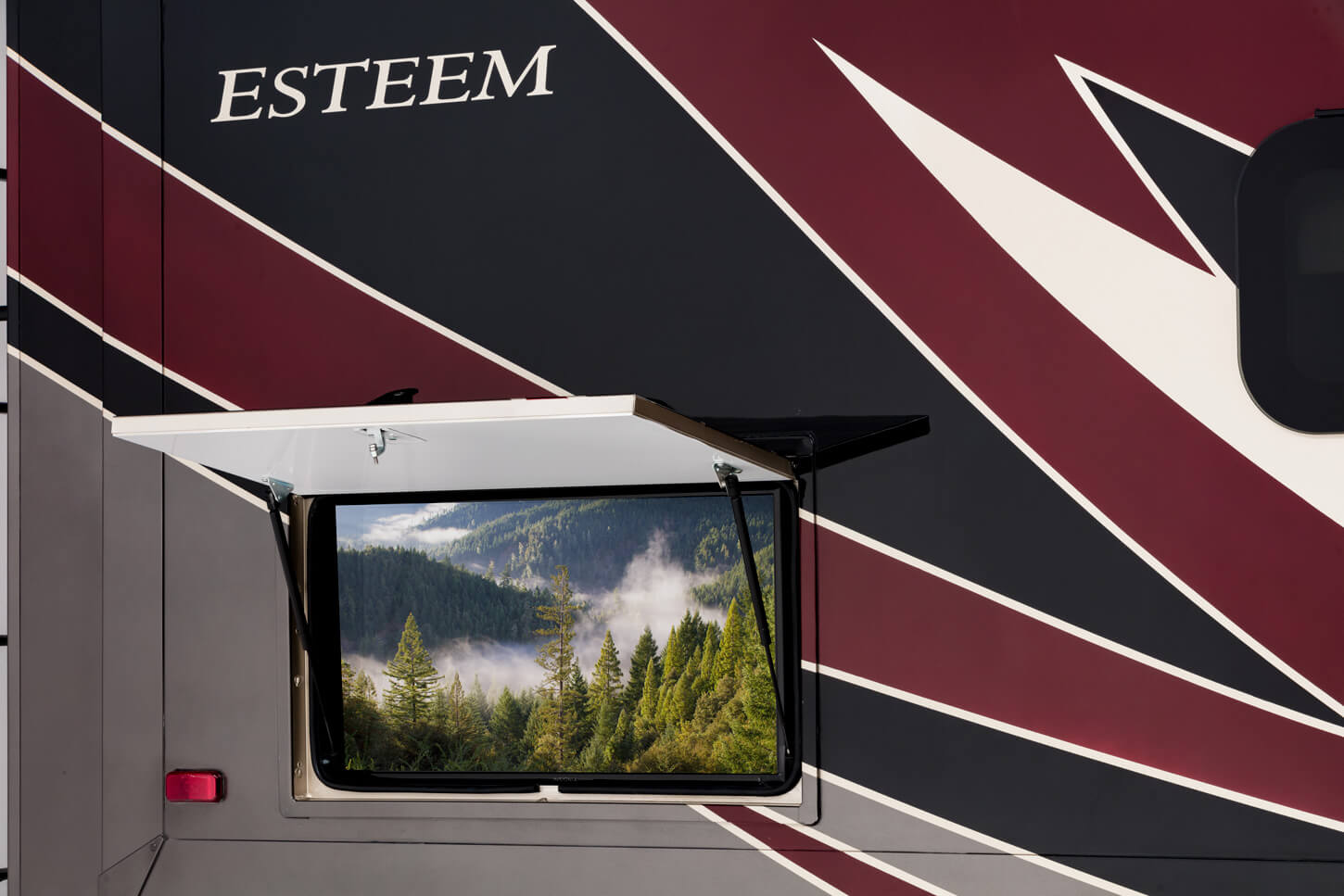

| Exterior Entertainment | 32" Exterior LED TV with high-output marine grade exterior speakers |
| Mirrors | Chrome, remote-controlled and heated sideview mirrors |
| Outside Shower | Outside shower |

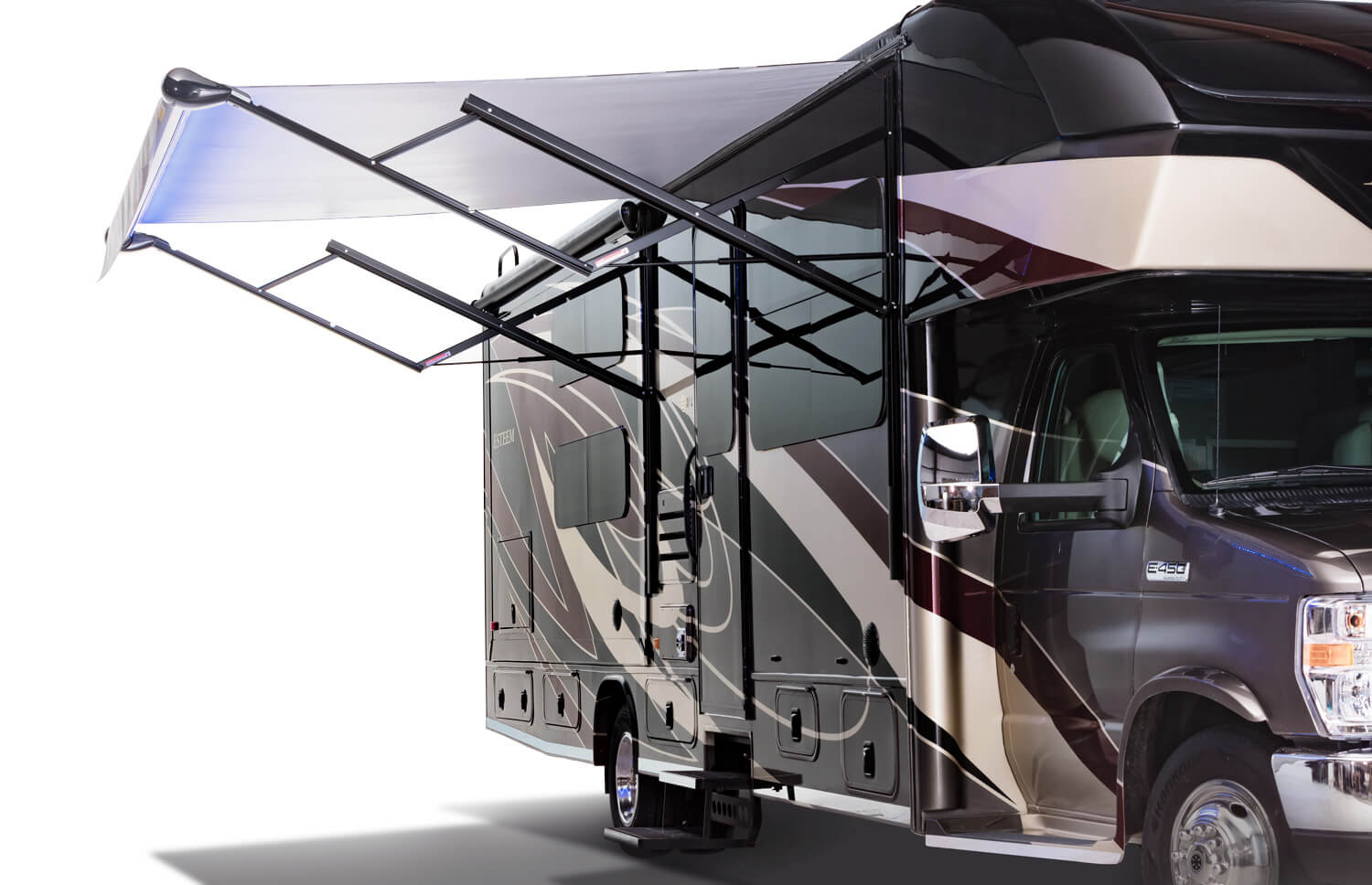

| Patio Awnings | 12V Electric awning w/ LED lights |
| Power Cord | 30-amp power cord |
| Running Boards | Fiberglass running boards |
| Satellite Dish | Prep for satellite dish |
| Slideout Awnings | Slideout Awnings (Full-Body Paint Units Only) |
| Taillights | LED taillights |
| Third Brake Light | Third brake light |
| TV Antenna | Digital antenna with signal booster |
| Windows | Frameless windows |

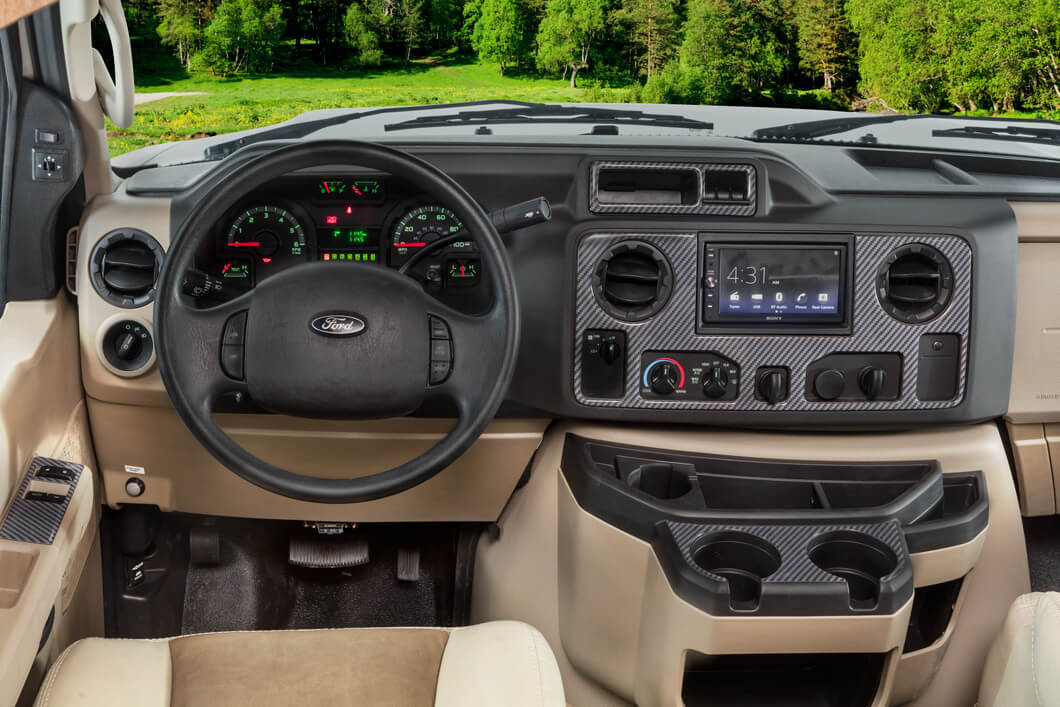

Cockpit
| Cameras | Backup and sideview cameras |
| Driver / Passenger Seats | 6-way power driver seat |
| Infotainment System(s) | Sony® infotainment system |
| Leveling System | Automatic hydraulic leveling jacks |
| Steering Wheel | Tilt steering wheel |
| Visors & Privacy Shade | Cab Privacy Curtain |
Interior

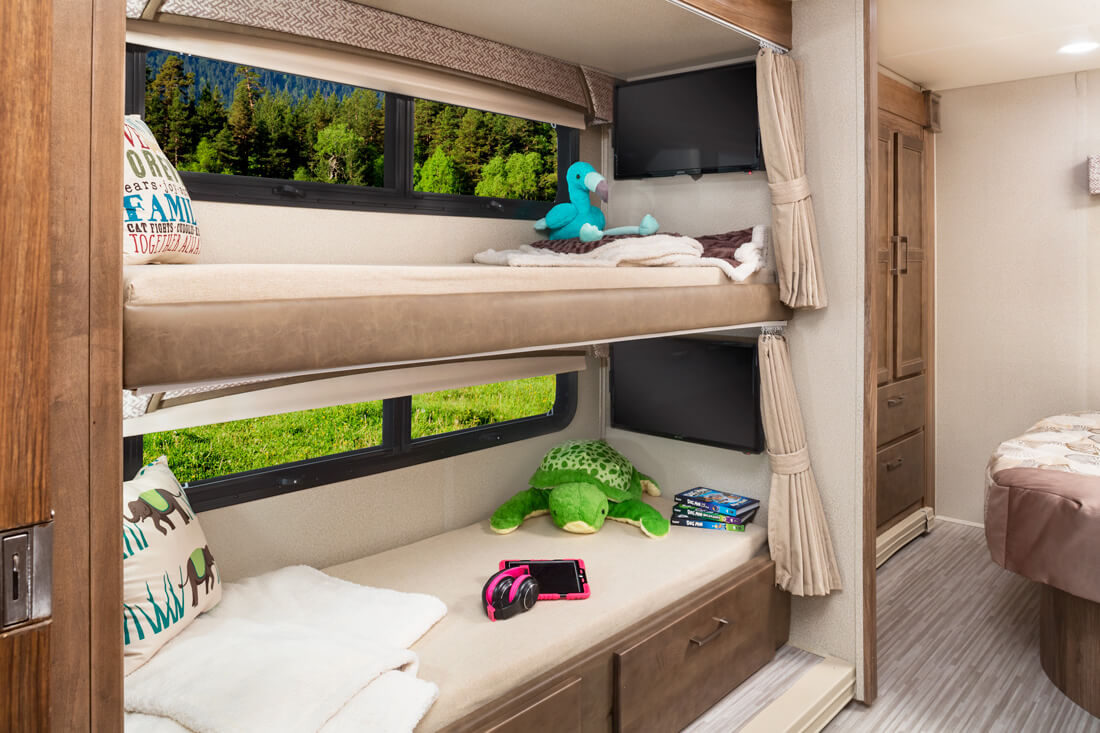

| Bunks | Bunk beds (300-lb. rating) (31L) |

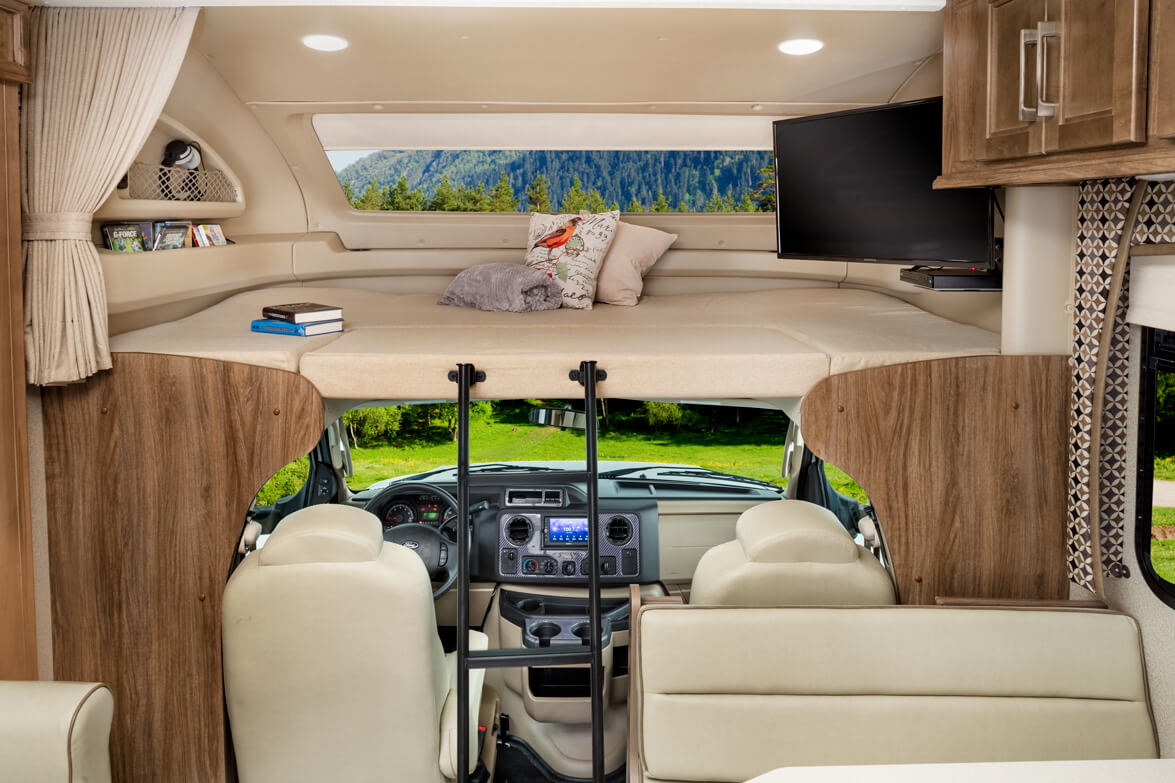

| Cab-Over Bunks | Full cab-over bunk (750-pound rating) |
| Flooring | Vinyl Flooring |
| Lighting | High-intensity, recessed LED ceiling lights |
| Window Treatments | Black out night roller shades |
| Television - Living Room | 32” LED HDTV with cable TV hookup and RG-6 coax |

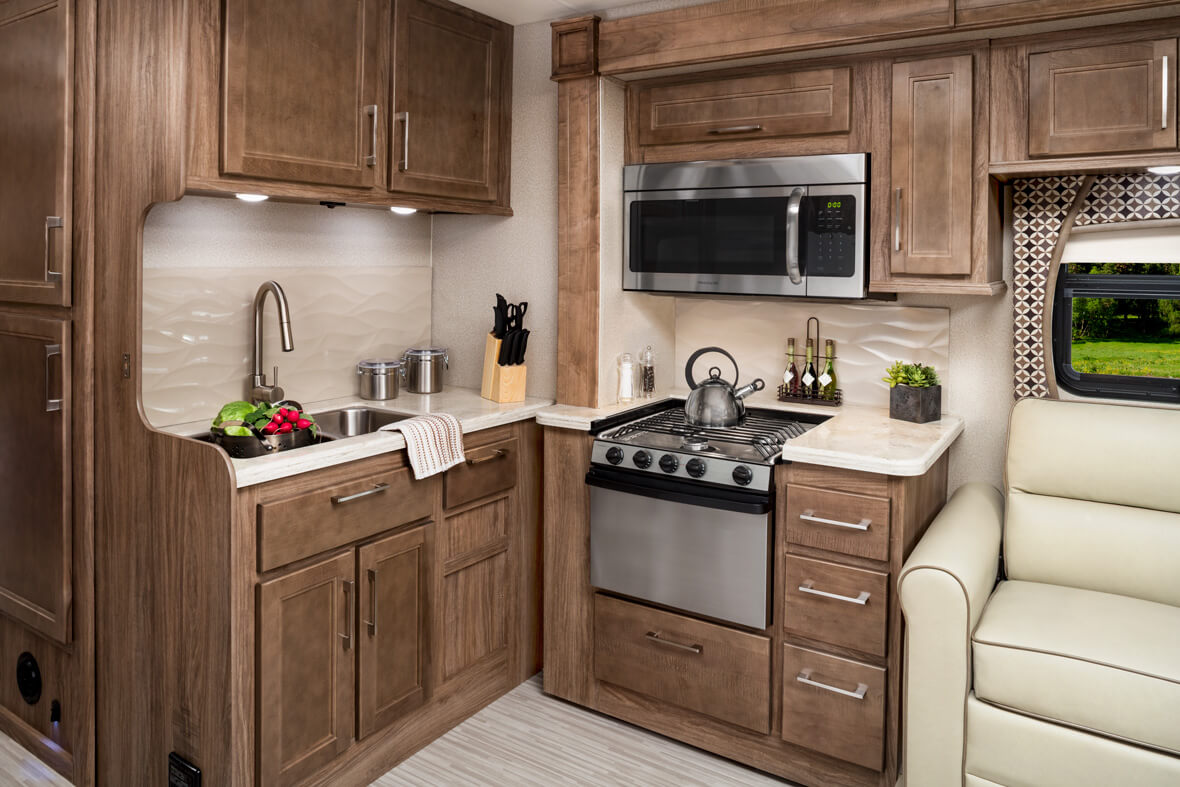

Kitchen
| Cooktop | Recessed stainless steel 3-burner range w/ 9,000-BTU SuperBurner™ and solid-surface covers |
| Dinette | Dream Dinette™ mechanism, easily raises/lowers tabletop |
| Drawer Guides | Ball-bearing drawer guides |
| Kitchen Countertops | Solid-surface kitchen countertops with recessed cooktop & covers |
| Microwave | Residential Size Microwave |
| Oven | Oven |

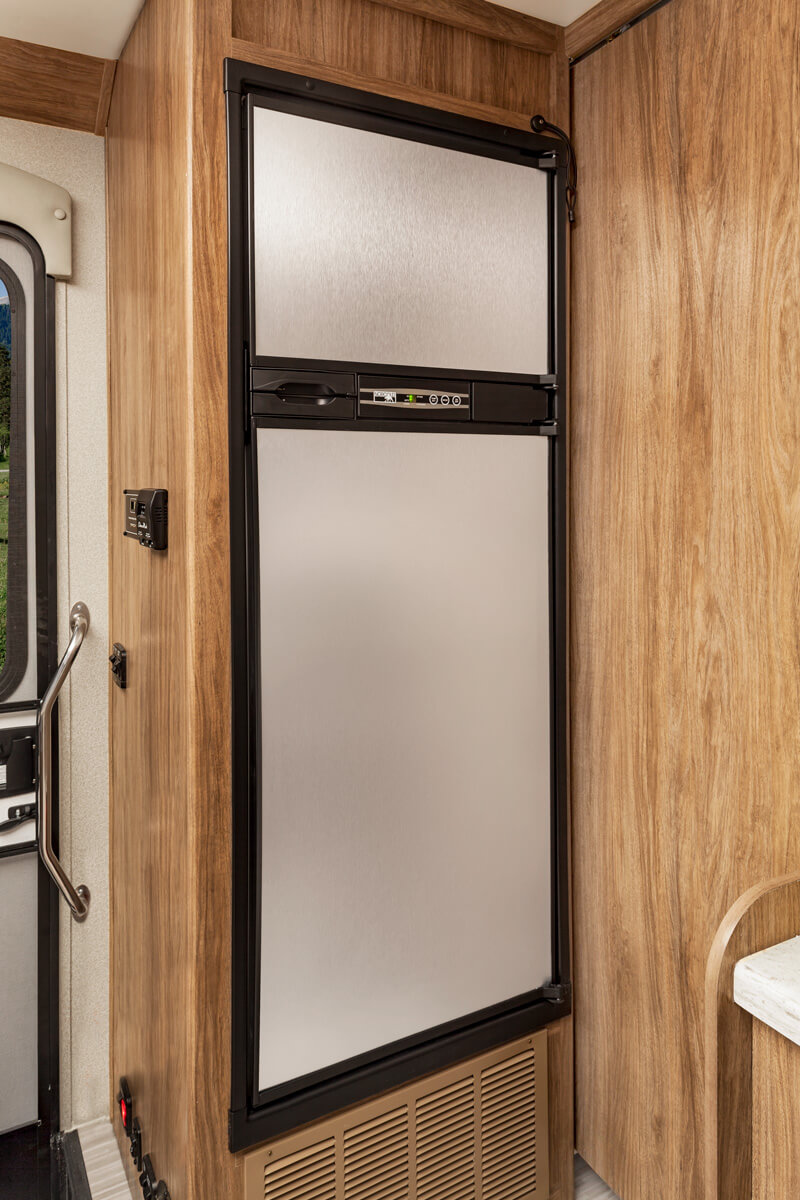

| Refrigerator | 8-cubic-foot, flush-mount, double door refrigerator with stainless steel finish, Optional 12 Cu.Ft. |
