THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.
2017 Aspire
REWARD YOUR AMBITIONS
You’ve followed your aspirations and ambitions—it’s time to reward yourself. Experience the Aspire and enjoy the amenities, including XITE G3 infotainment system, JBL premium audio sound system, and pulsing third brake light, to name a few. Take a deeper look and you’ll see why this is the coach for which you’ve worked so hard.
Brochure
Floorplans
Ward = wardrobe
Lav = bathroom sink
Med = medicine cabinet
Ohc = overhead cabinets
Fridge = refrigerator
Micro = microwave
2017 Aspire|38M|Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
Specs
| Gross Vehicle Weight Rating (lbs) | 41,000 |
| Gross Combined Weight Rating (lbs) | 56,000 |
| Front Gross Axle Weight Rating (lbs) | 17,000 |
| Rear Gross Axle Weight Rating (lbs) | 24,000 |
| Tag Axle Gross Weight Rating (lbs) | N/A |
| Exterior Length | 40' 6" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 9" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 100 |
| Grey Waste Water Capacity (gals) | 62 |
| Black Waste Water (gals) | 41 |
| Wheel Base | 261" |

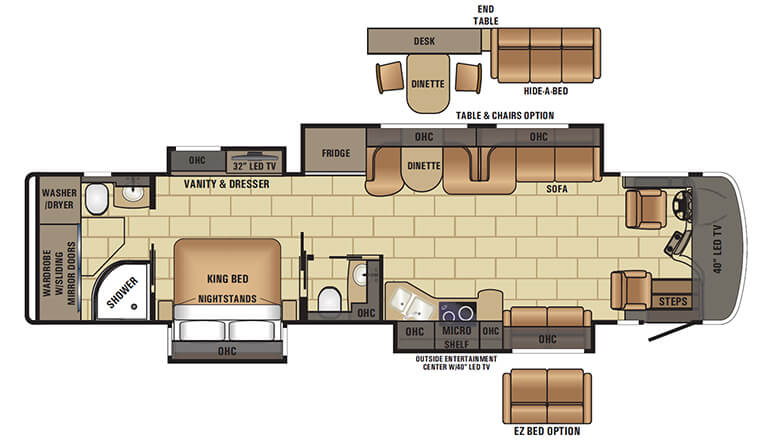

2017 Aspire|40P|Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
Specs
| Gross Vehicle Weight Rating (lbs) | 41,000 |
| Gross Combined Weight Rating (lbs) | 56,000 |
| Front Gross Axle Weight Rating (lbs) | 17,000 |
| Rear Gross Axle Weight Rating (lbs) | 24,000 |
| Tag Axle Gross Weight Rating (lbs) | N/A |
| Exterior Length | 40' 6" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 9" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 100 |
| Grey Waste Water Capacity (gals) | 62 |
| Black Waste Water (gals) | 41 |
| Wheel Base | 261" |

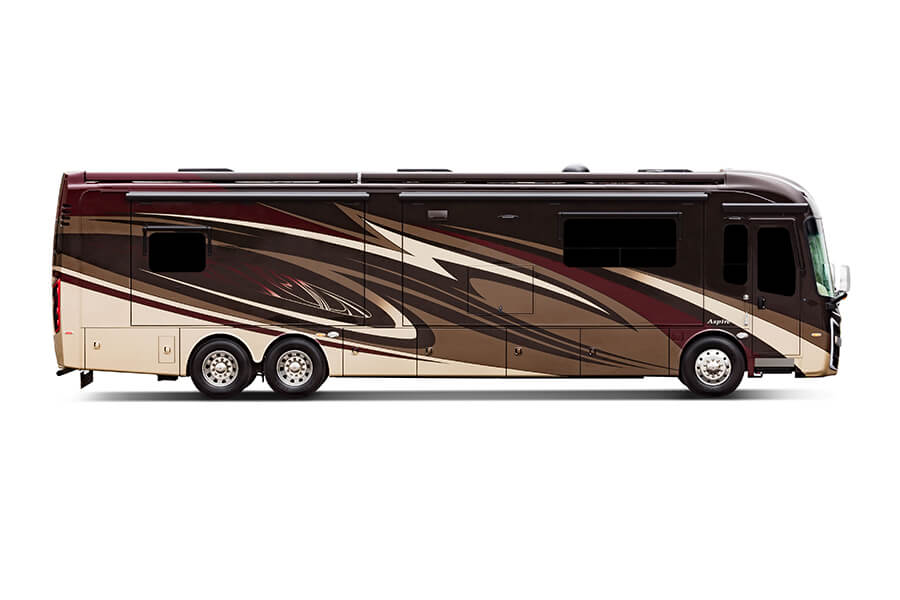

2017 Aspire|42DEQ|Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
Specs
| Gross Vehicle Weight Rating (lbs) | 49,000 |
| Gross Combined Weight Rating (lbs) | 64,000 |
| Front Gross Axle Weight Rating (lbs) | 17,000 |
| Rear Gross Axle Weight Rating (lbs) | 20,000 |
| Tag Axle Gross Weight Rating (lbs) | 12,000 |
| Exterior Length | 43' 2" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 9" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 100 |
| Grey Waste Water Capacity (gals) | 62 |
| Black Waste Water (gals) | 41 |
| Wheel Base | 296" |
2017 Aspire|42RBQ|Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
Specs
| Gross Vehicle Weight Rating (lbs) | 49,000 |
| Gross Combined Weight Rating (lbs) | 64,000 |
| Front Gross Axle Weight Rating (lbs) | 17,000 |
| Rear Gross Axle Weight Rating (lbs) | 20,000 |
| Tag Axle Gross Weight Rating (lbs) | 12,000 |
| Exterior Length | 43' 2" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 9" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 100 |
| Grey Waste Water Capacity (gals) | 62 |
| Black Waste Water (gals) | 41 |
| Wheel Base | 296" |
2017 Aspire|44B|Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
Specs
| Gross Vehicle Weight Rating (lbs) | 49,000 |
| Gross Combined Weight Rating (lbs) | 64,000 |
| Front Gross Axle Weight Rating (lbs) | 17,000 |
| Rear Gross Axle Weight Rating (lbs) | 20,000 |
| Tag Axle Gross Weight Rating (lbs) | 12,000 |
| Exterior Length | 44' 11" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 9" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 100 |
| Grey Waste Water Capacity (gals) | 62 |
| Black Waste Water (gals) | 41 |
| Wheel Base | 320" |
2017 Aspire|44R|Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
Specs
| Gross Vehicle Weight Rating (lbs) | 49,000 |
| Gross Combined Weight Rating (lbs) | 64,000 |
| Front Gross Axle Weight Rating (lbs) | 17,000 |
| Rear Gross Axle Weight Rating (lbs) | 20,000 |
| Tag Axle Gross Weight Rating (lbs) | 12,000 |
| Exterior Length | 44' 11" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 9" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 100 |
| Grey Waste Water Capacity (gals) | 62 |
| Black Waste Water (gals) | 41 |
| Wheel Base | 320" |

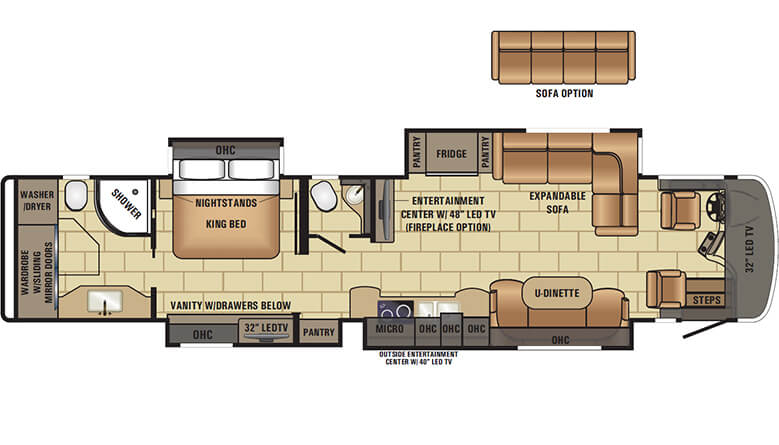

2017 Aspire|44U|Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
Specs
| Gross Vehicle Weight Rating (lbs) | 49,000 |
| Gross Combined Weight Rating (lbs) | 64,000 |
| Front Gross Axle Weight Rating (lbs) | 17,000 |
| Rear Gross Axle Weight Rating (lbs) | 20,000 |
| Tag Axle Gross Weight Rating (lbs) | 12,000 |
| Exterior Length | 44' 11" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 12' 9" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 100 |
| Grey Waste Water Capacity (gals) | 62 |
| Black Waste Water (gals) | 41 |
| Wheel Base | 320" |
2017 Aspire|44W|Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
Specs
| Gross Vehicle Weight Rating (lbs) | 49,000 |
| Gross Combined Weight Rating (lbs) | 64,000 |
| Front Gross Axle Weight Rating (lbs) | 17,000 |
| Rear Gross Axle Weight Rating (lbs) | 20,000 |
| Tag Axle Gross Weight Rating (lbs) | 12,000 |
| Exterior Length | 44' 11" |
| Exterior Width | 101" |
| Exterior Height with A/C and Satellite | 153" |
| Interior Height | 84" |
| Fresh Water Capacity (gals) | 100 |
| Grey Waste Water Capacity (gals) | 62 |
| Black Waste Water (gals) | 41 |
| Wheel Base | 320" |
All Floorplans

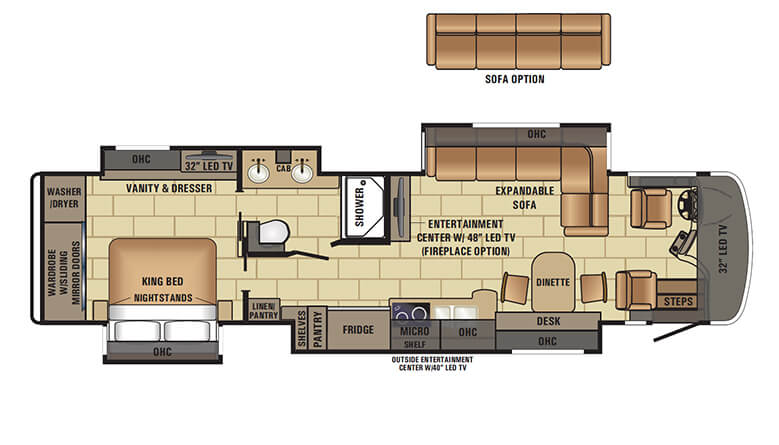

2017 Aspire | 38M
Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
2017 Aspire | 40P
Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel

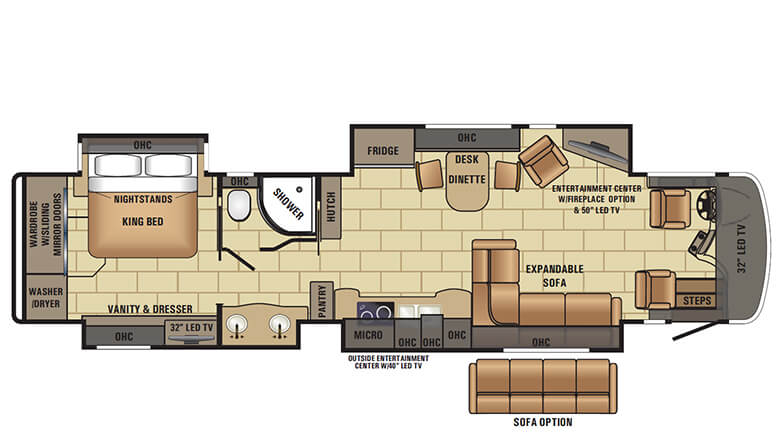

2017 Aspire | 42DEQ
Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel

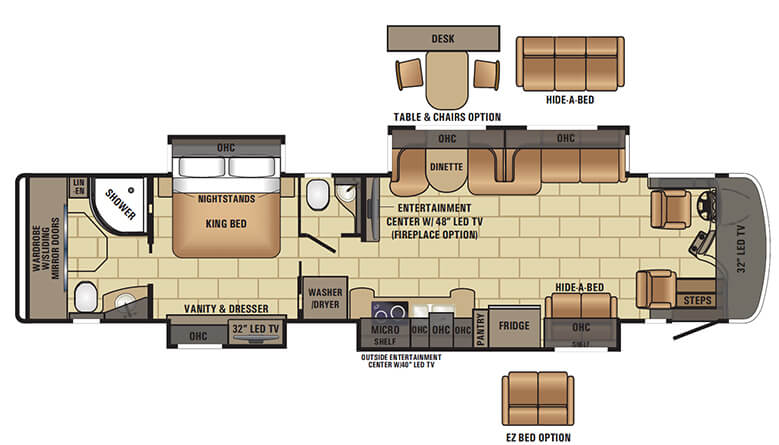

2017 Aspire | 42RBQ
Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel

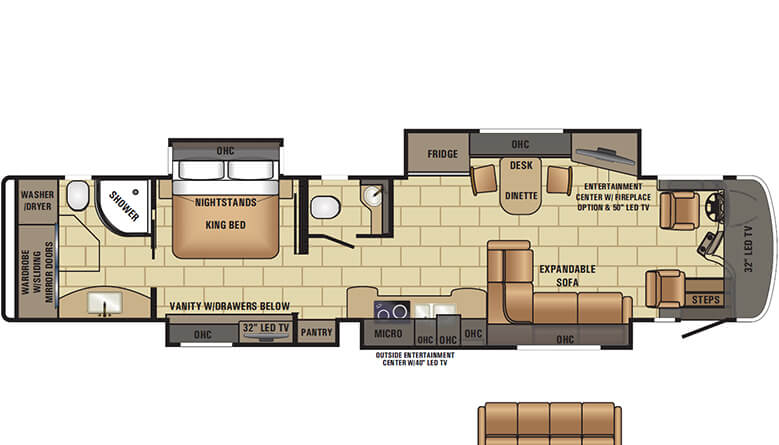

2017 Aspire | 44B
Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel

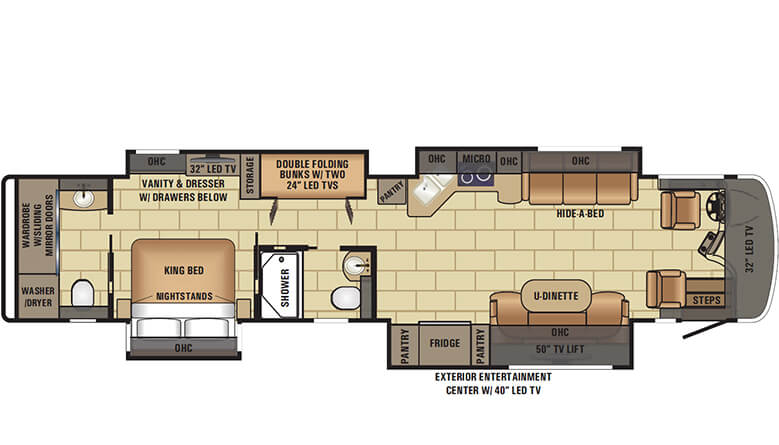

2017 Aspire | 44R
Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
2017 Aspire | 44U
Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel

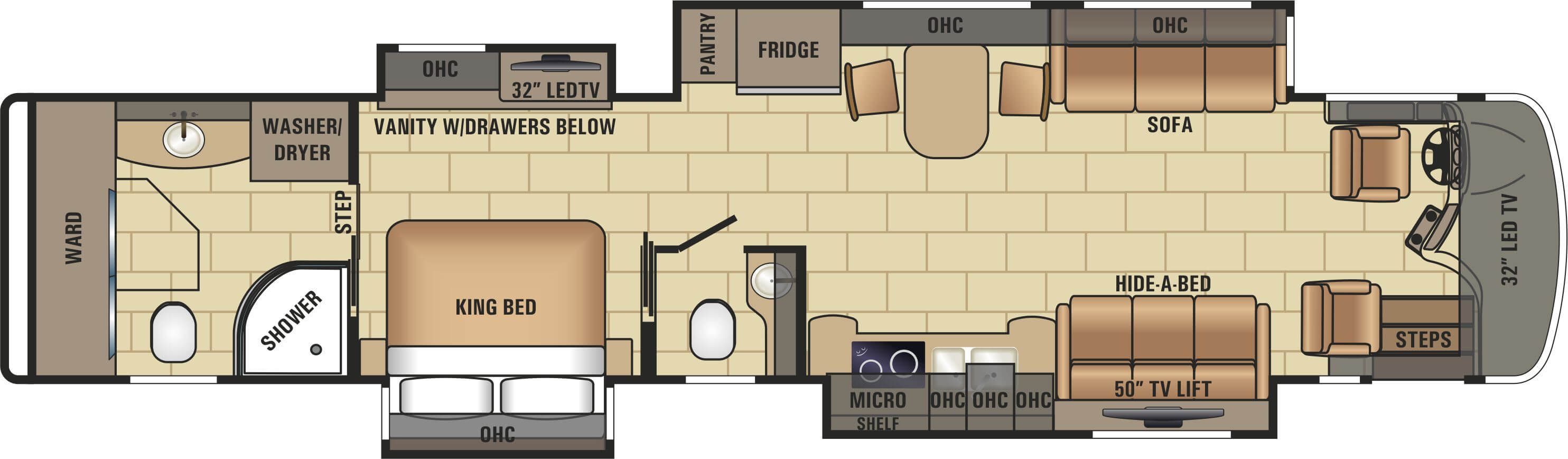

2017 Aspire | 44W
Chassis and Engine Size: Cummins ISL 450 HP 8.9L Turbocharged Diesel
360°

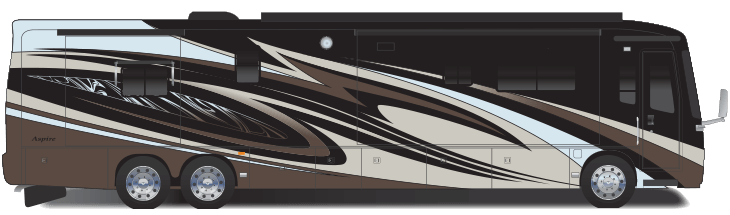

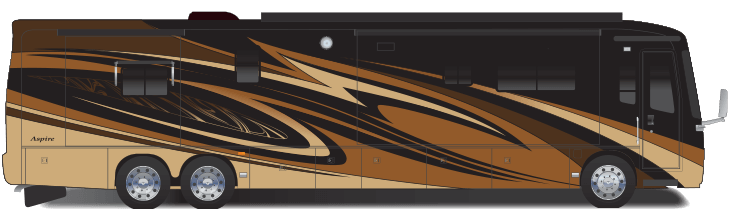

Exterior Graphics
Standards & Options
Chassis
| Chassis | Spartan K2 Mountain Master raised rail chassis |
| Engine | Cummins ISL turbocharged 450 HP engine 1,250 lb. ft. torque at 1,400 RPM |
| Transmission | Allison 3000 MH 6-speed transmission |
| Engine Block Heater | 1,000 watt engine block heater |
| Front Suspension | Reyco Granning IFS independent front air suspension |
| Rear Suspension | |
| Front Axle | Reyco Granning front axle 17,000-lb. wide track |
| Rear Axle | Rear axle 20,000-lb., tag axle 12,000-lb. |
| Rear Axle Ratio | 4.88 rear axle ratio |
| Hitch | 15,000-lb. hitch with 7/4-pin plug |
| Tag Axle | Tag axle air dump |
| Radiator | Side-mounted radiator |
| Braking System | ABS disc brakes on front and drive axle/drum brakes on tag axle & two-stage engine brake |
| Traction Control | |
| Shocks | Bilstein shocks |
| Fuel Tank | 100-gal. fuel tank (dual fill) |
| DEF Tank | Dual DEF fill (44B, 44U, 42RBQ, 42DEQ) |
| Tires | Goodyear G670 315/80R 22.5" Tires (Front) and G670 295/80 R 22.5" Tires (rear) |
| Turning Radius | |
| Chassis Battery | Chassis batteries (2) |
| Alternator | 170-amp alternator |
| Air Connection | Remote air connection |
Construction
| Frame | X-Bridge frames welded into chassis frame |
| Underbelly | Enclosed, insulated and heated floor and thermostat controlled heating in storage area |
| Insulation | Insulation with reflective Flexfoil floor (R-33), roof (R-24), sidewalls (R-16), front and rear caps (R-22) |
| Floor | 2" x 4" floor truss construction |
| Floor Decking | 3/4" 7-ply plywood main floor decking |
| Walls | Aluma-Tru Superstructure construction on 12"-16" centers |
| Slideouts | Flush-mounted electric-powered slideout rooms with remote control |
| Roof | One-piece fiberglass roof with 3/8" plywood decking and 4" arched aluminum roof truss |
Heat, AC, Water & Power
| Propane | |

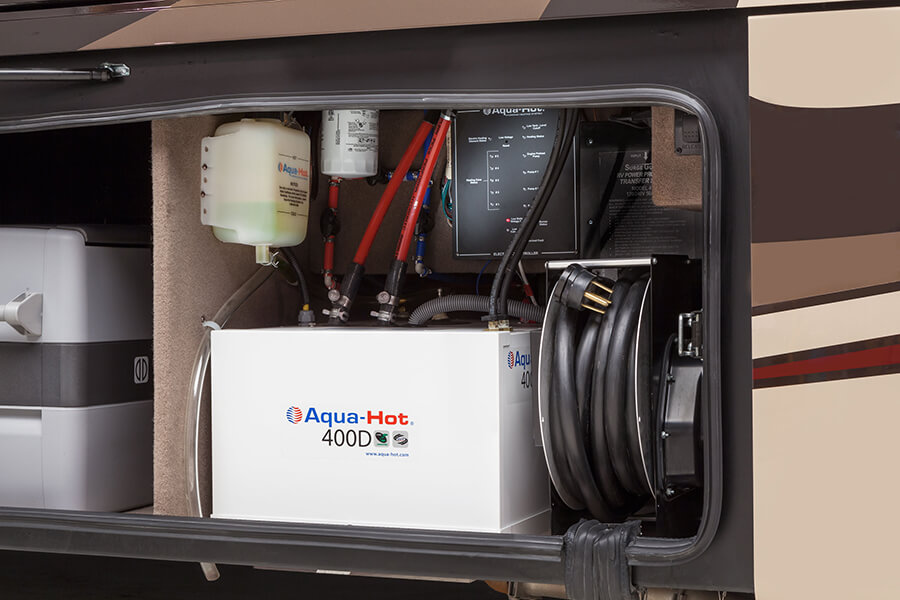

| Heating System | Aqua-Hot 400 diesel hydronic water and heating system with in-floor heat throughout |
| Air Conditioning | 15,000-BTU low profile A/Cs (3) with heat pump, digital thermostat, and roof to ground condensation drain tubes |
| Electrical Hookup | 50-amp power cord with electric reel |

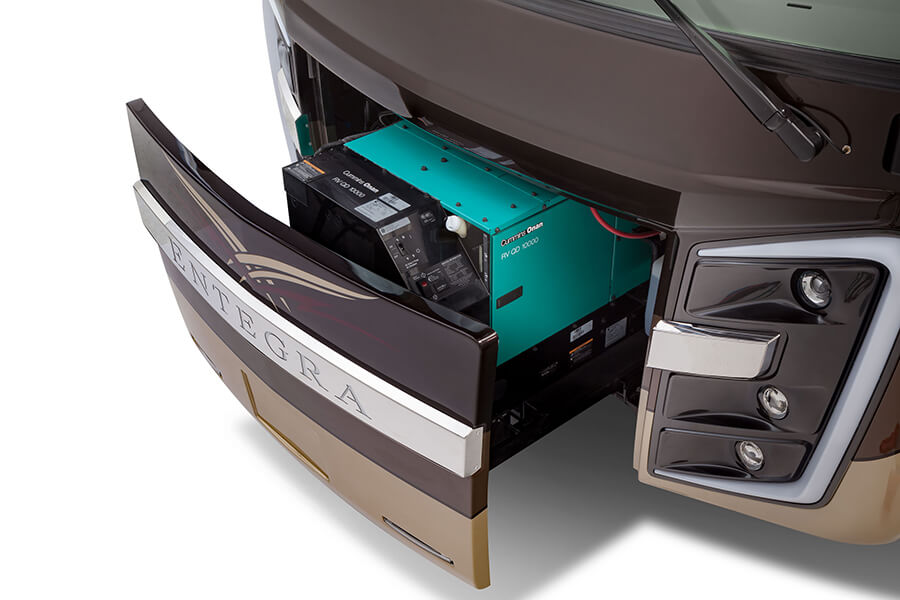

| Generator | Onan 10,000-watt diesel generator with auto gen start on slide-out tray |
| Inverter | 2,800-watt pure sine wave inverter |
| Batteries | L16 AGM batteries (2), (6v/390 amp hrs. ea.) |
| Power Management | Solar power prep |
| Water Hose w/ Electric Reel | Water hose with electric reel |
| Tank Flush | Black holding tank sprayer |
| Black Tank Management | Macerator holding tank dump system with manual gate valves, & manual back-up system |
| Water Monitoring | SeeLevel tank monitoring system |
| Water Filtration | City and tank water filtration system |
| Winterization Drain System | Winterizing drain system |
| Tank Vents | 360 Siphon tank vent(s) |
Exterior
| Exterior Walls | 2-1/2" exterior wall with welded tubular aluminum construction and high-gloss, gel-coat fiberglass |
| Front/Rear Cap | Steel-reinforced front cap and windshield frame |
| Exterior | 3M front protective film mask |
| Headlights | LED high beam headlights and Xenon low beam headlights |
| Fog Lights | LED fog lights |
| Daytime Running Lights | Daytime running lights |
| LED Lights | LED marker and turn lights the full length of the coach |
| Docking Lights | LED docking lights |
| Accent Lights | LED accent lights on underside of slideout rooms curbside |
| Keypad | Lighted grab handle with keypad system |
| Keyless Fob | Keyless entry with key fob |
| Entrance Steps | |
| Entrance Door | Aire-Secure travel locks for all pocket doors |
| Door Awning | Carefree power entrance door awning with LED lights |
| Window Awnings | Carefree window shade awning and slideout awnings |
| Patio Awnings | Roof mounted Girard Vision dual pitched patio awning with LED lights |
| Mirrors | Heated, remote control, side-view mirrors with integrated cameras |
| Windows | Frameless, dual-pane, tinted, safety-glass windows |
| Entertainment | Exterior 40" Samsung LED HDTV on TV bracket with extend, tilt and swivel arm and JBL multimedia stereo receiver with Bluetooth audio streaming |

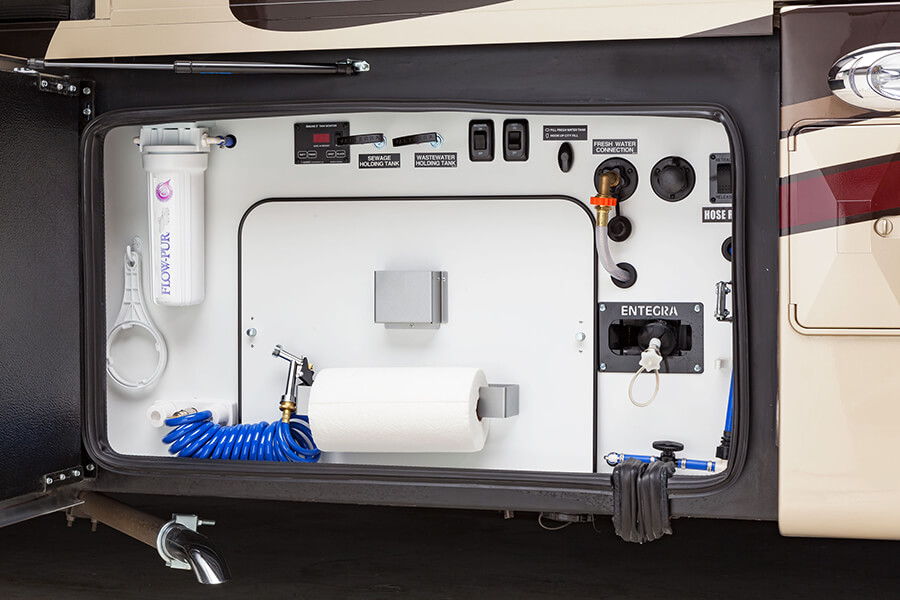

| Utility Center | Exterior utility center, heated and enclosed with system monitor panel |
| Cargo Features | |
| Satellite Dish | Winegard in-motion satellite dome with prep for Trav'ler satellite dish |
| TV Antenna | TV Antenna |
| Engine Door | Power rear engine door |
| Rear Mudflap | Full-width rear mudflap, with chrome "Aspire" nameplate |
| Lights | Motion sensor security lights (2) |
| Third Brake Light | Pulsing Third Brake Light |

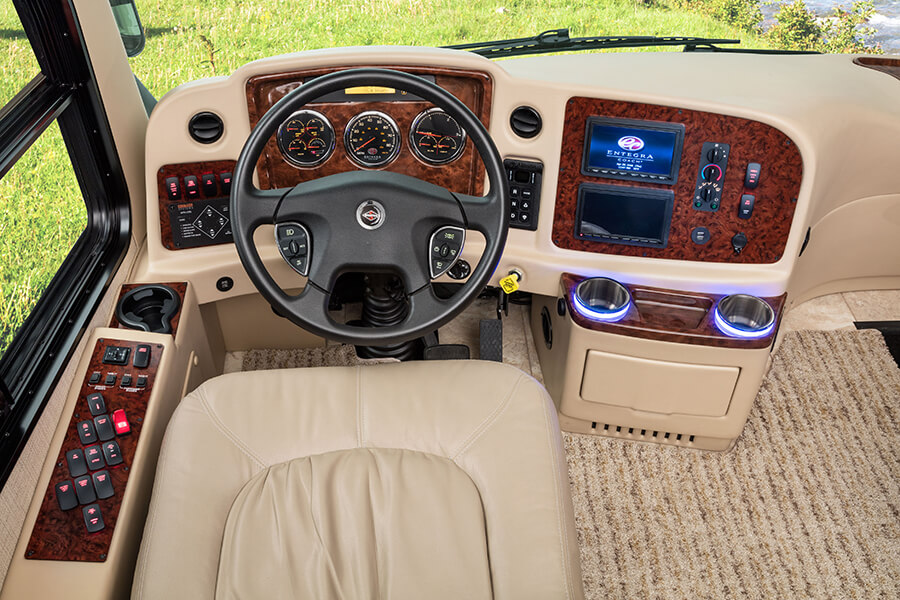

Cockpit
| Flooring | Powered flush stepwell cover |
| Visors & Privacy Shade | Powered front sun visors and privacy shade |
| Windshield | Ultra-Vision one-piece wrap-around tinted windshield |
| Driver / Passenger Seats | Ultraleather, power adjustable driver and passenger seats with integrated 3-point lap and shoulder safety belts |
| Steering Wheel | VIP leather-wrapped, tilt and telescoping steering wheel with integrated controls for cruise and wipers |
| Monitoring System(s) | Spartan Message Center with LCD display featuring: odometer, tachometer, fuel economy, fuel remaining, outside air temp., coolant temp., engine oil temp. and pressure, transmission temp., turbo boost pressure, air pressure, trip meter, speed and voltage |
| Infotainment System(s) | Dual 7" touchscreen in-dash infotainment center with Rand McNally RV navigation, Bluetooth, SiriusXM, AM/FM tuner, integrated camera control, and House Mode whole coach audio distribution |
| Sound System | JBL premium audio with calibrated 180-watt DSP amplifier and 5 speakers including subwoofer |
| Leveling System | Hydraulic automatic leveling jack system |
| Power Features | Battery boost system |
| Pedals | Powered adjustable foot pedals |

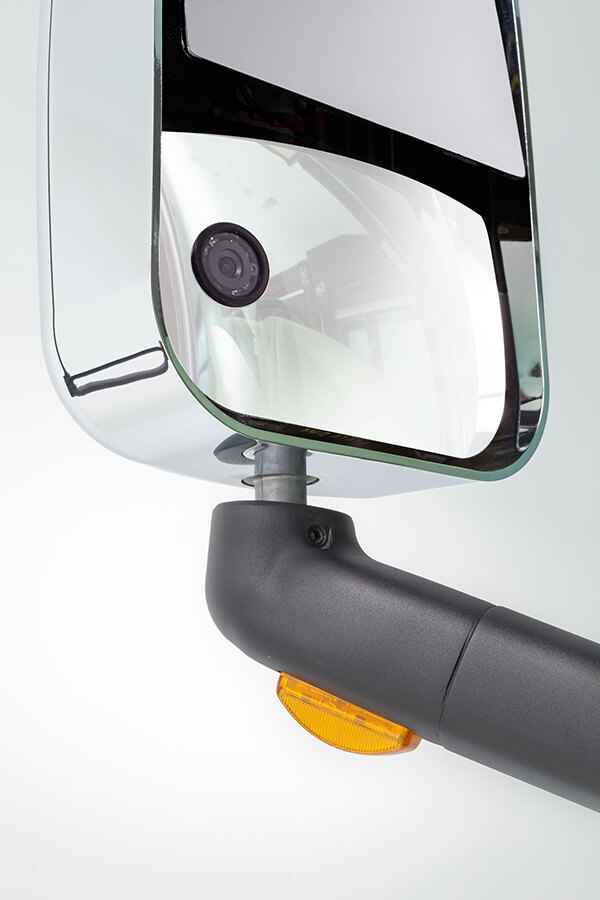

| Cameras | Color, dual back-up camera and monitor system with side and rear views |
| Trip Management System | |
| Additional Amenities | Chrome, LED lit cup holders and dual USB ports in dash |
Interior

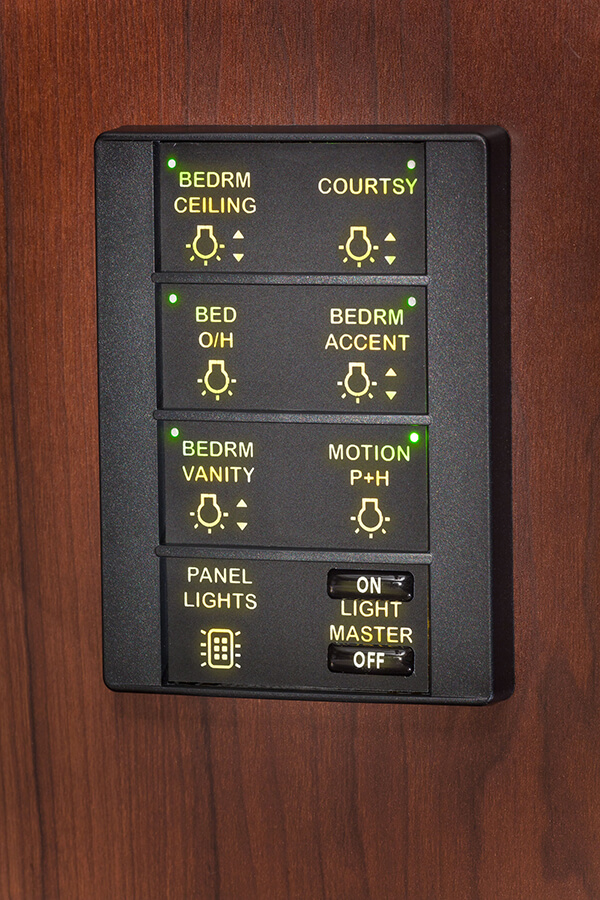

| Lighting System | Multiplex controlled lighting system |
| Lighting | LED recessed 12V lighting |
| Flooring | 12" x 24" porcelain tile floor |

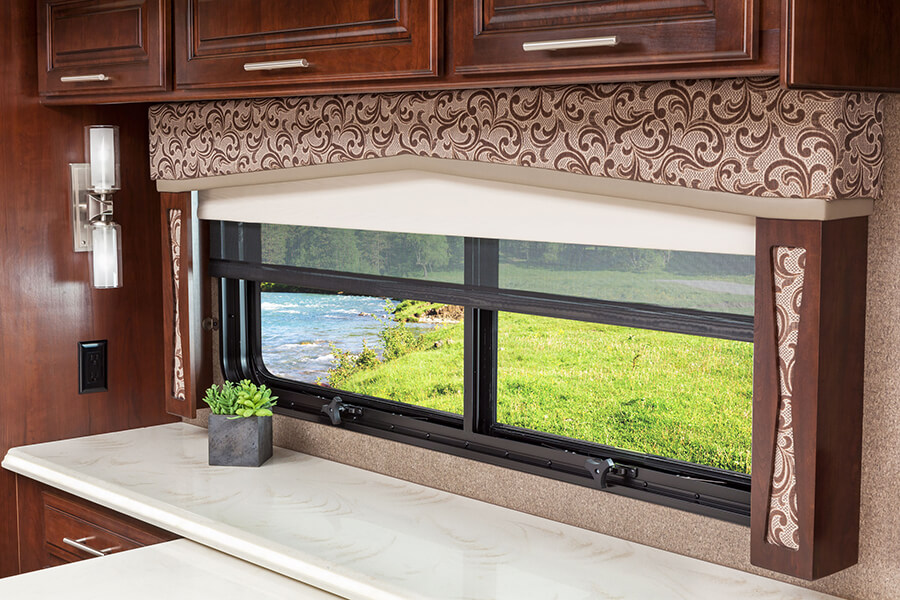

| Window Treatments | Manual solar day and black out night shades |

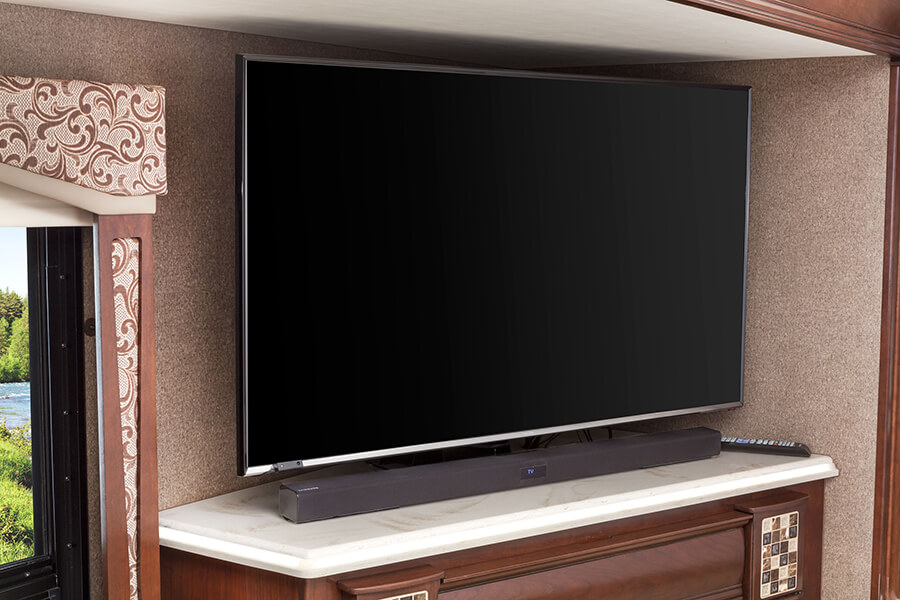

| Television - Living Room | Samsung 50" LED HDTV (42DEQ, 44B, 44R) / Samsung 48" LED HDTV (38M, 42RBQ, 44U) |
| Television - Front Overhead | Samsung 32" LED HD TV in front overhead (40" in the 40P) |
| Sound - Living Room | Samsung sound bar |
| Furniture | Ultraleather hide-a-bed sofa(s) |
| Washer/Dryer | Stacked washer and dryer |

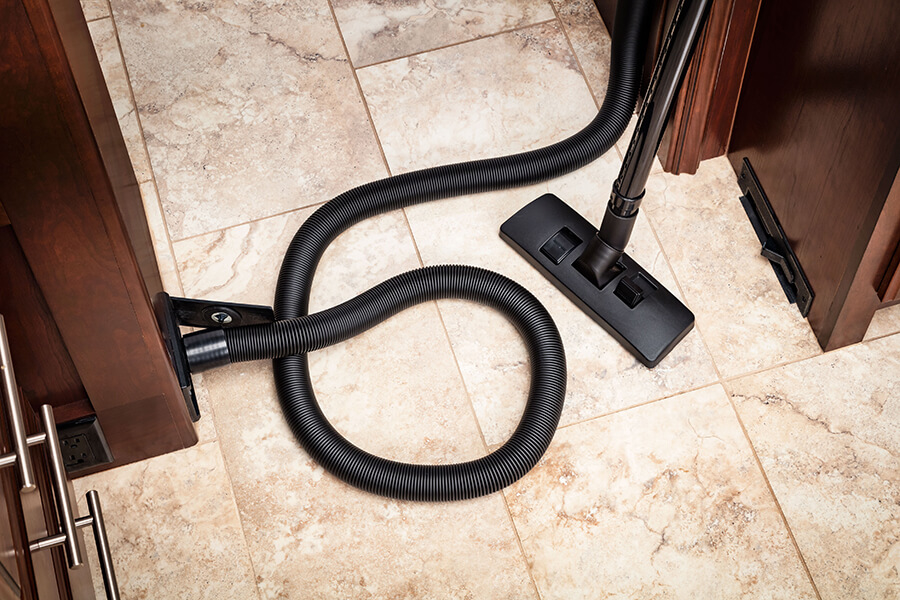

| Central Vacuuming System | Central vacuum system |
| Electric Fireplace | |
| DVD Systems | Blu-ray players in living area & bedroom |
| Additional Storage | In-step storage with pull-out tray |

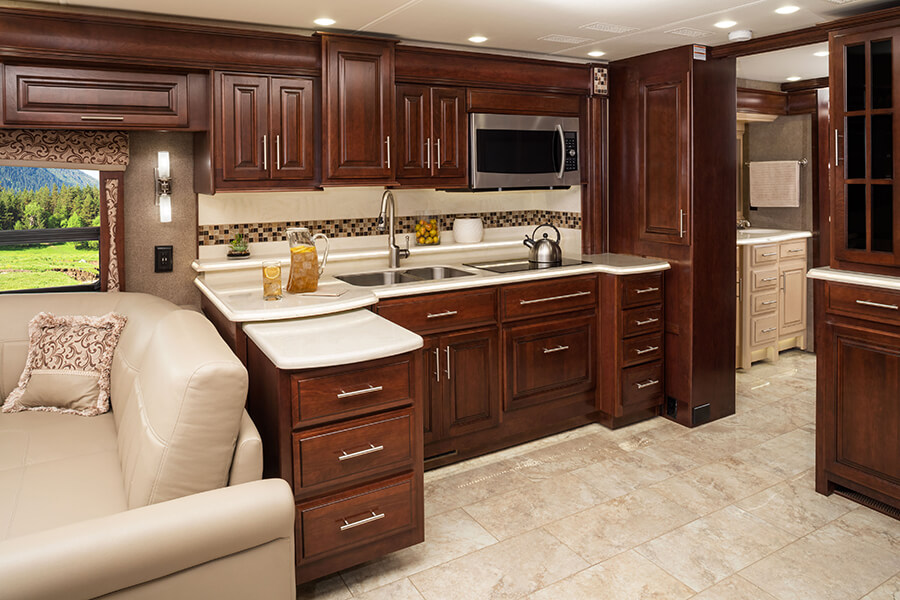

Kitchen

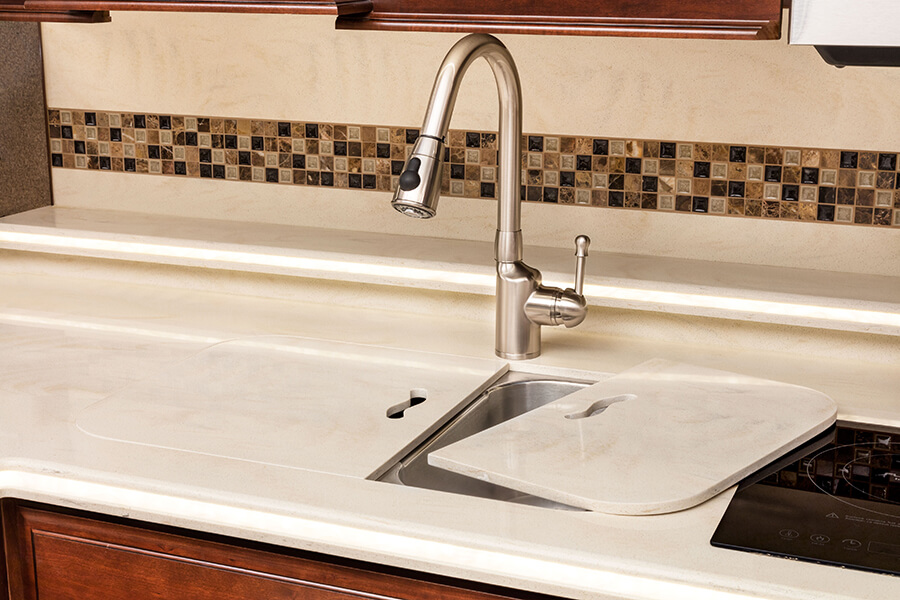

| Countertops | Dimmable LED lit solid surface countertops with stainless steel sink |
| Cabinet Extension | |
| Backsplash | |
| Cutting Board | |
| Silverware Drawer | Silverware drawer |

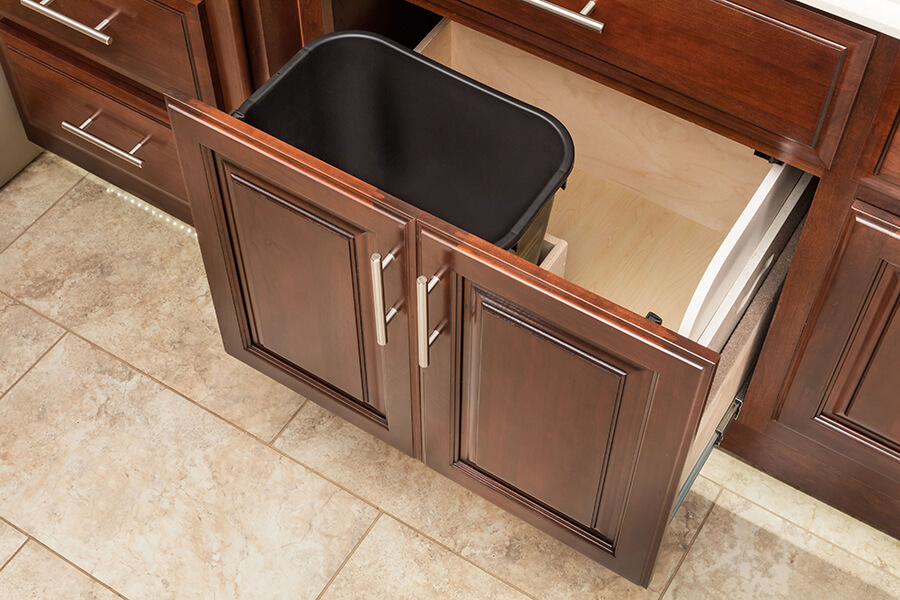

| Waste Basket | Large deep drawer with waste basket |
| Dishwasher | |
| Cooktop | Induction cooktop |
| Microwave | Samsung 1.7 cu. ft. convection microwave oven |
| Refrigerator | Samsung residential 23 cu. ft. refrigerator with ice maker and water dispenser |
Bedroom
| Television | Samsung 32" LED HDTV in bedroom |
| Sound | Samsung sound bar |
| Bed | Denver King Mattress |
| Ceiling Fan | Ceiling fan |
| Wardrobe | Automatic lights in wardrobe |
Bathroom
| Countertop(s) | LED lit solid surface countertop(s) with integrated sink |
| Toilet | Porcelain toilet, with push button flush |
| Shower Door | Clear glass shower door |
| Shower | One-piece fiberglass shower with skylight |
| Vent | Power vent |
Safety
| Security System | Security system with glass shatter sensors |
| Smoke Alarm | Smoke alarm |
| Carbon Monoxide Detector | Carbon monoxide detector |
| Propane Alarm | Propane alarm |
| Security Safe | Security safe |
Options
| Canadian Standards | Optional |
| Satellite Dish - US | Winegard Trav'ler satellite dish - DIRECTV |
| Satellite Dish - CA | Winegard Trav'ler satellite dish - Shaw Direct |
| Solar | |
| Freezer | |
| L-Sofa Lounger with Hide-A-Bed | (38M, 42DEQ, 44B and 44U) |
| 100" Sofa with Incliner & Hide-A-Bed | (42DEQ, 44B and 44U) |
| Slideout Storage Tray | Optional |
| Second Girard Patio Awning | Optional |
| Fireplace | (N/A on 40P, 44R, & 44W) |
| Dishwasher Drawer | Optional |
Décor Options
Entegra Coach peace of mind
2-year warranty and 3-year roadside assistance
At Entegra Coach, excellence doesn’t end with our stunning interiors and superior craftsmanship. We back each luxury coach with the industry’s highest level of service—including a 2-year warranty and 3-year roadside assistance.
Bahama Wind
Buttercup
Island Pearl
Silver Cloud
