THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.
2021 REATTA
LENGTH 39' 11" | WIDTH 101"
The Reatta offers modern luxury in a shorter Class A body with independent front suspension (IFS). With a digital dashboard that features an improved graphics processor, enjoy the convenience of having a 360° camera monitoring, built-in GPS navigation, radio control, and Bluetooth® phone commands all at your fingertips. You can feel confident knowing you have everything you need as you experience your next great adventure.

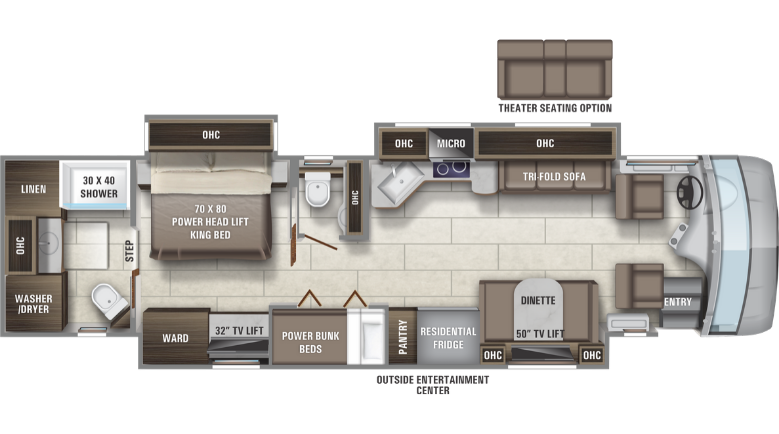

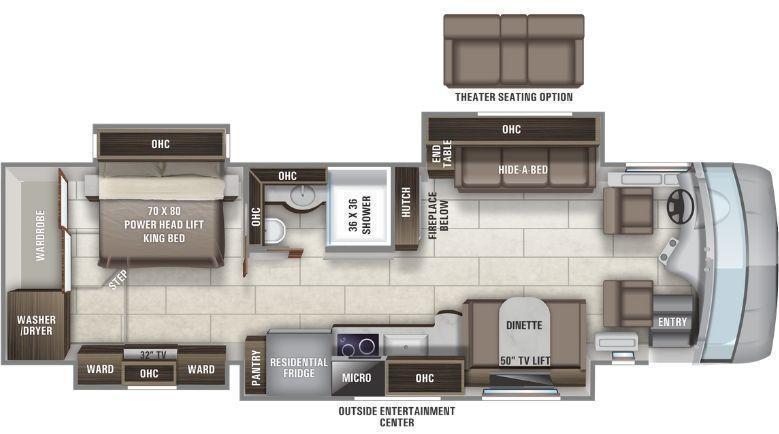

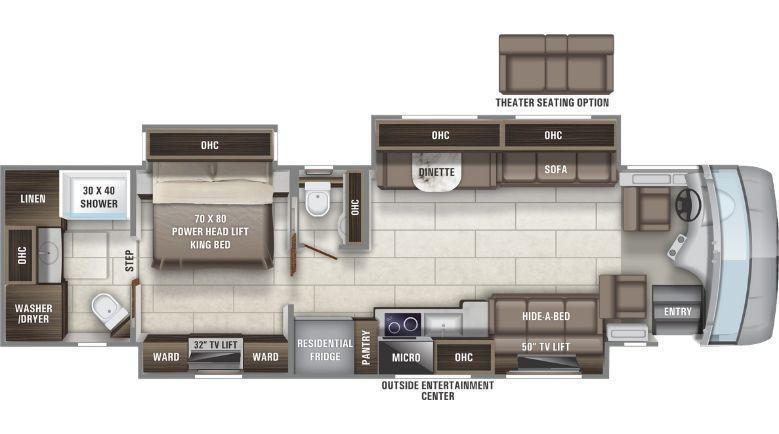

Floorplans

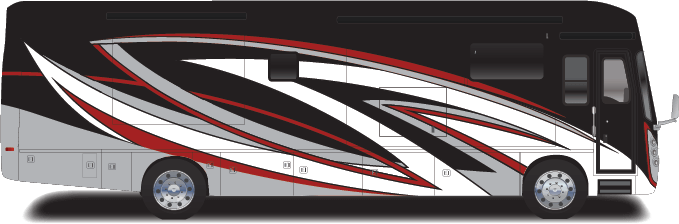

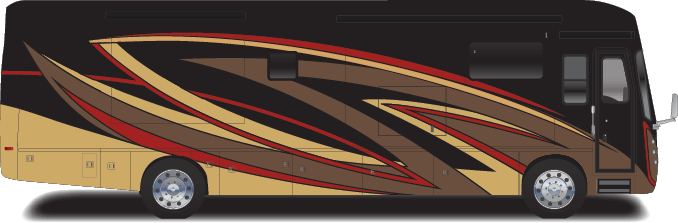

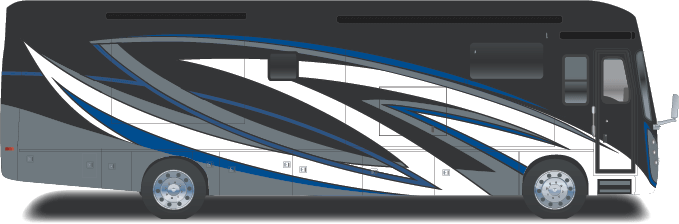

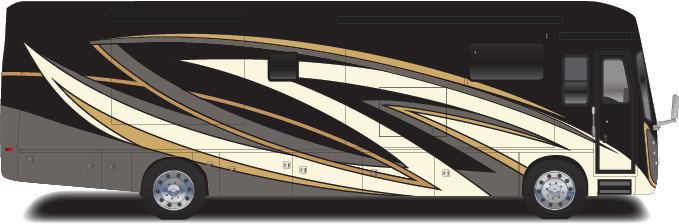

Exterior Graphics
STANDARDS & OPTIONS
Air Connection
Remote air connection
Leveling System
Equalizer hydraulic automatic leveling system
Alternator
170-amp alternator
Braking System
ABS brakes on front and rear
Chassis
Spartan® K1 raised-rail chassis
Chassis Battery
(2) 12V chassis batteries
DEF Tank
10-gal. DEF tank (driver side fill)
Engine
Cummins® B6.7 turbocharged 360 HP engine 800 lb. ft. torque at 1,800 RPM
Engine Block Heater
750 watt engine block heater
Engine Brake
Variable geometry turbo (VGT) engine brake
Front Axle
Independent front air suspension (IFS) front axle- 12,600-lb.(37K) 14,320-lb.(39BH/39T2)
Front Suspension
Independent front air suspension
Fuel Tank
100-gal. fuel tank (driver side fill)
Hitch
10,000-lb. hitch with 7/4-pin plug
Radiator
Rear-mounted radiator
Rear Axle
Rear axle 20,000-lb. (37K) 22,000-lb. (39BH/39T2)
Rear Axle Ratio
4.88 rear axle ratio
Shocks
Bilstein® 46mm shocks
Tires
Michelin® 275/80R 22.5" tires
Tow Air Brake System
Spartan® Safehaul tow vehicle air brake system
Transmission
Allison® 3,000 MH 6-speed transmission
Turning Radius
55° turning radius
Tire Pressure Monitoring
Tire pressure monitoring system (TPMS) with temperature monitoring
Décor Options
