THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.
2021 REATTA XL
LENGTH 40' 11" | WIDTH 101"
This beautifully designed coach provides elegance and luxury in a smaller package with independent front suspension (IFS). The 2021 model makes the interior feel complete with added design options and appliance updates. Plus, impressive technology coupled with exceptional handling and drivability allow you to navigate the open road securely and with ease.

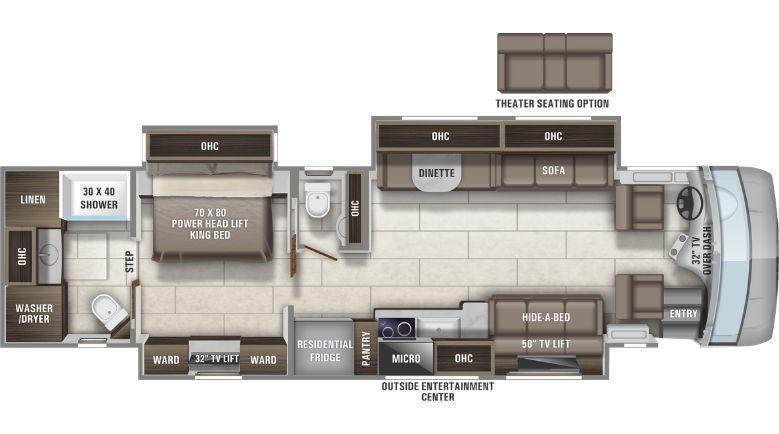

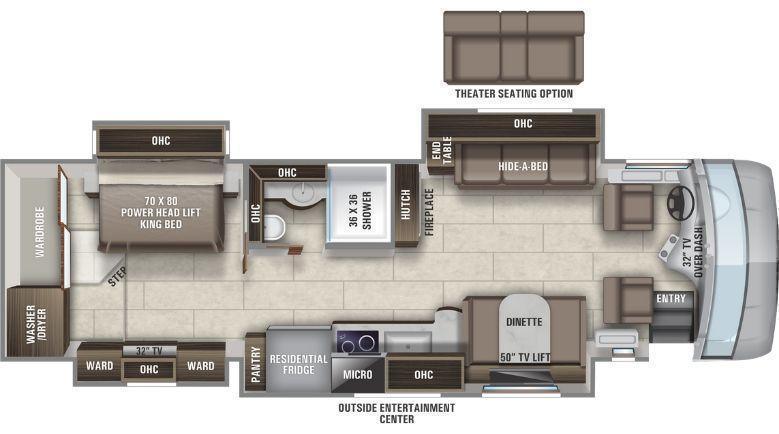

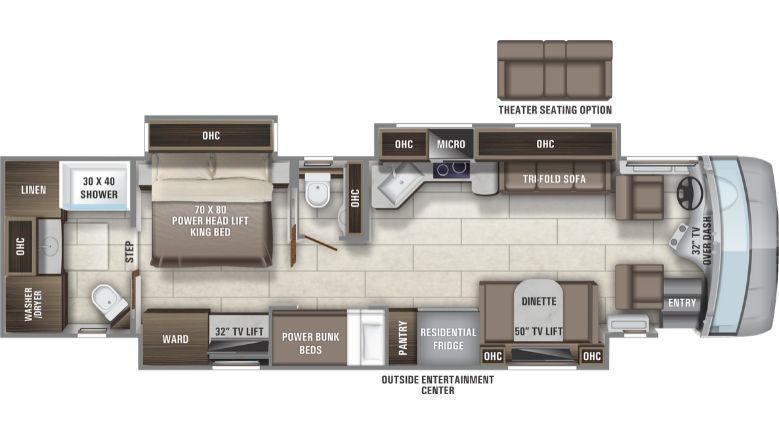

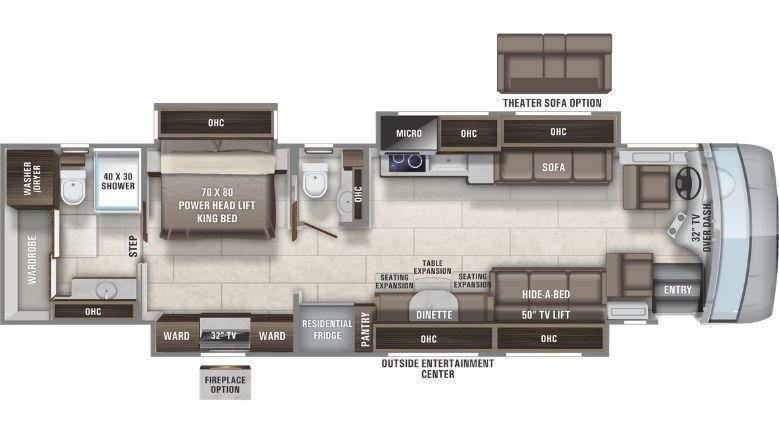

Floorplans

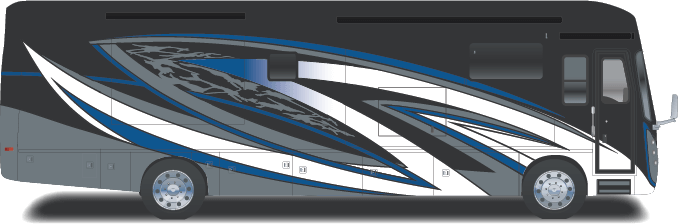

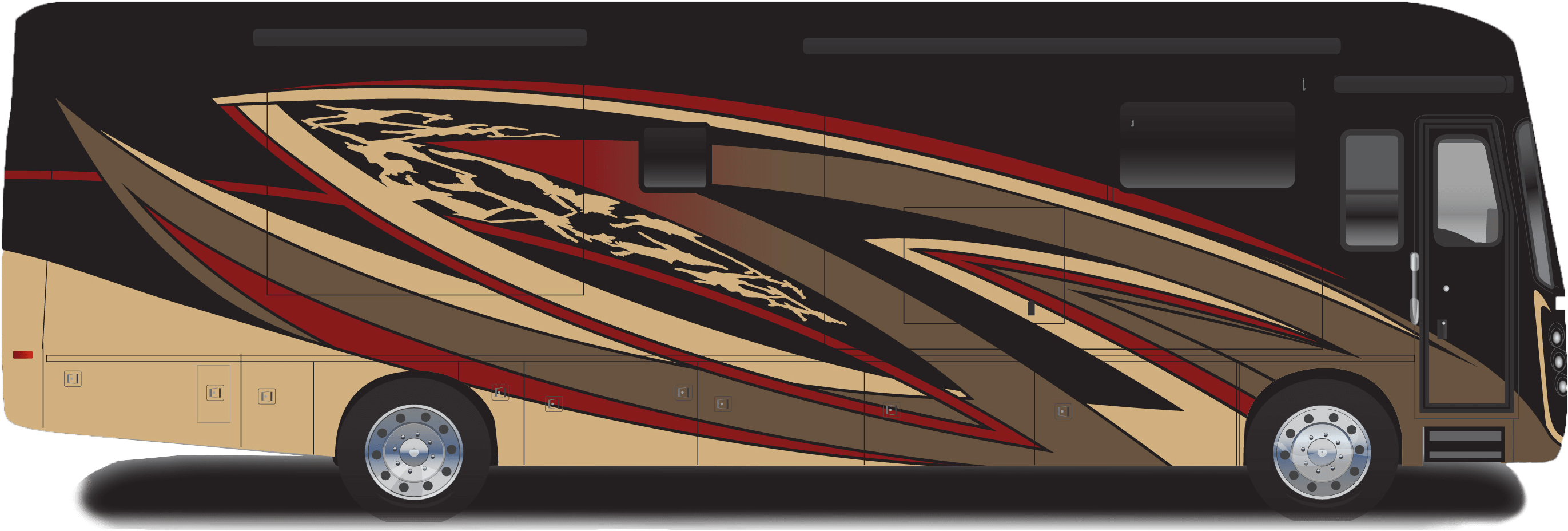

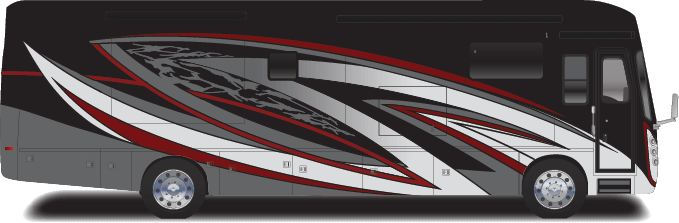

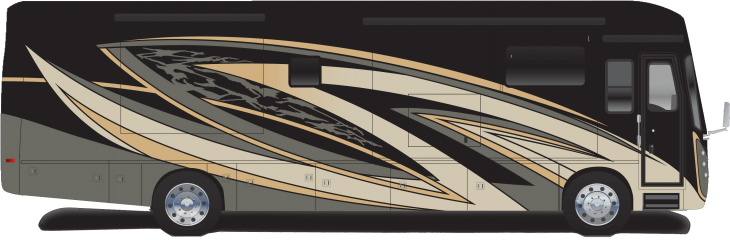

Exterior Graphics
STANDARDS & OPTIONS
Air Connection
Remote air connection
Chassis
Spartan® K2 raised-rail chassis
Engine
Cummins® L9 turbocharged 380 HP engine 1,150 lb. ft. torque at 1,400 RPM
Transmission
Allison® 3,000 MH 6-speed transmission
Radiator
Rear-mounted radiator
Alternator
170 amp alternator
Engine Block Heater
1,000 watt engine block heater
Engine Brake
Variable geometry turbo (VGT) engine brake
Front Suspension
Independent front air suspension (IFS)
Front Axle
14,320 lb. rating
Rear Axle
22,000 lb. rating
Rear Axle Ratio
4.88 rear axle ratio
Tires
Michelin® 275/80R 22.5" tires
Tire Pressure Monitoring
Tire pressure monitoring system (TPMS) with temperature monitoring
Shocks
Bilstein® 46mm shocks
Leveling System
Equalizer hydraulic automatic coach leveling
Chassis Battery
(2) 12V chassis batteries
Fuel Tank
100 gal. fuel tank
DEF Tank
10 gal. DEF tank
Turning Radius
55 degree turning radius
Tow Air Brake System
Spartan® Safehaul tow vehicle air brake system
Hitch
10,000 lb. hitch with 7/4-pin plug
Braking System
ABS brakes on front and rear
Décor Options
