THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.
2021 ASPIRE
LENGTH 44' 11" | WIDTH 101" | SLEEPS UP TO 2
The Aspire luxury diesel coach is the perfect road companion. You'll feel right at home with modern interior features, like premium Villa® furniture throughout, easy-clean appliances and a new sliding kitchen window. The new Valid 12.3" high- brightness digital dash with improved graphics paired with impactful technology updates, such as 360° camera monitoring, provide you with the luxury you deserve.

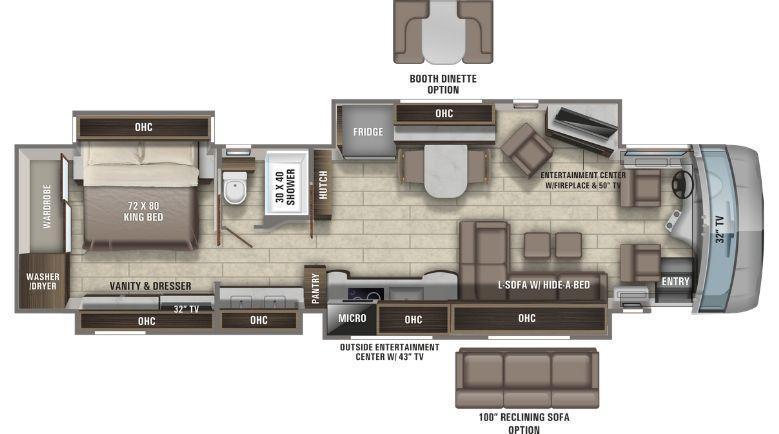

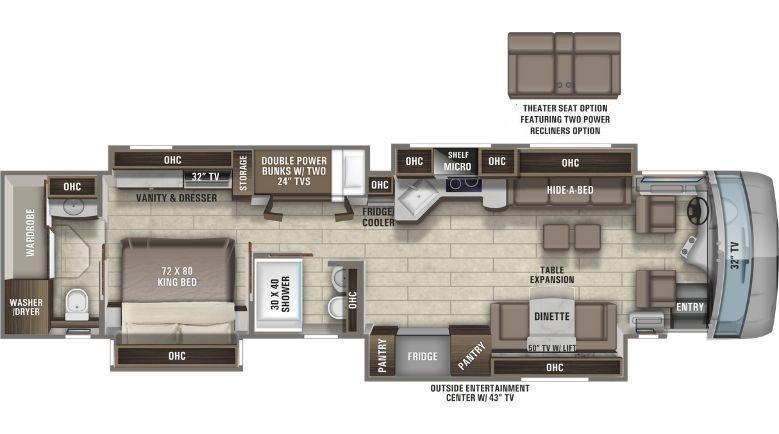

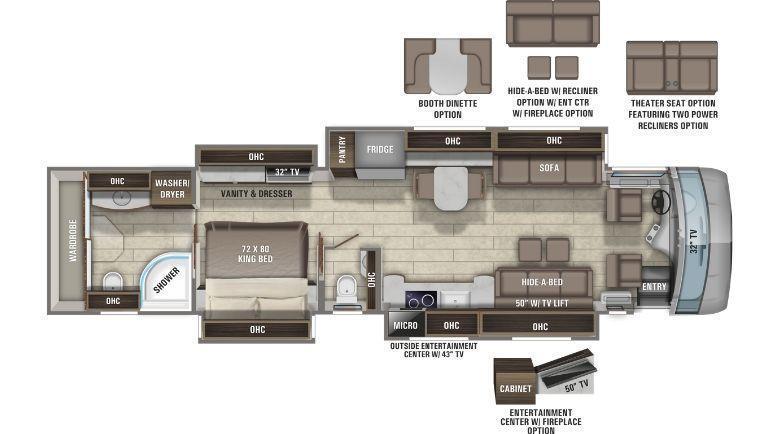

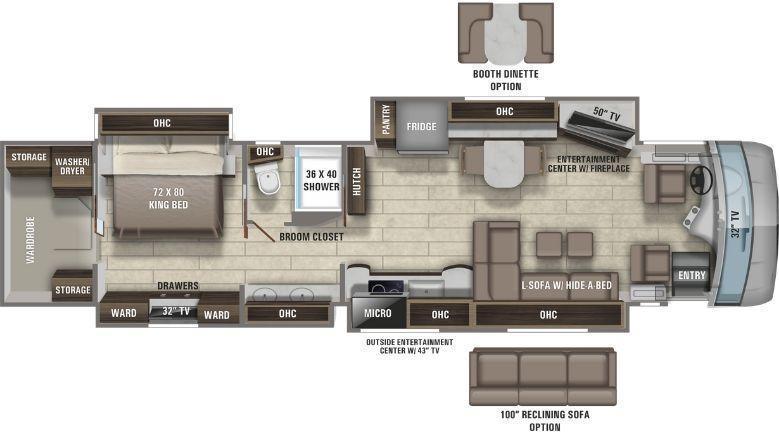

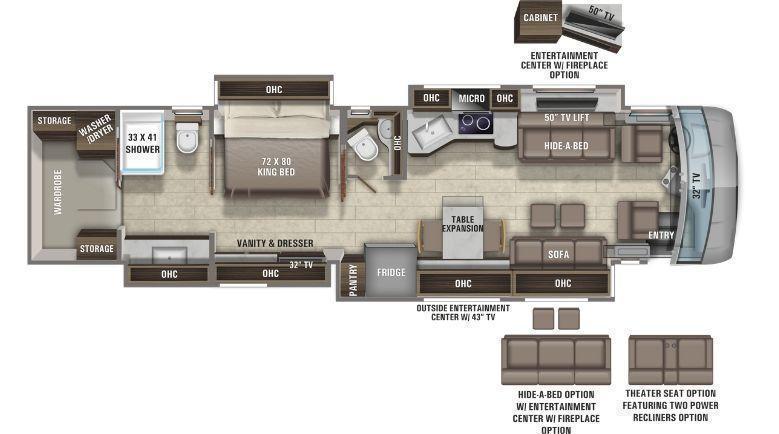

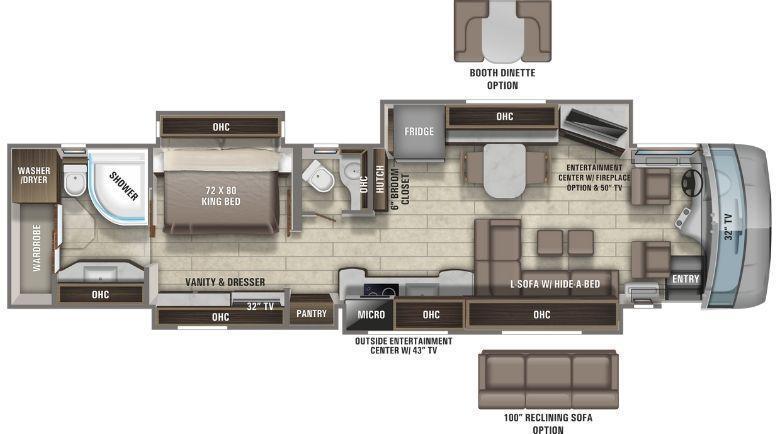

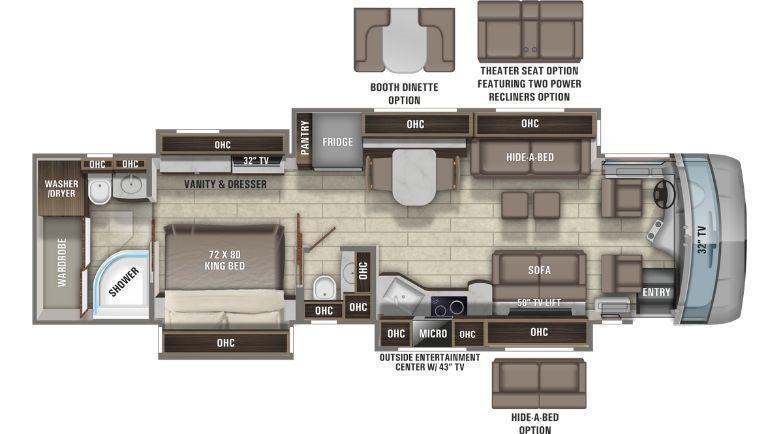

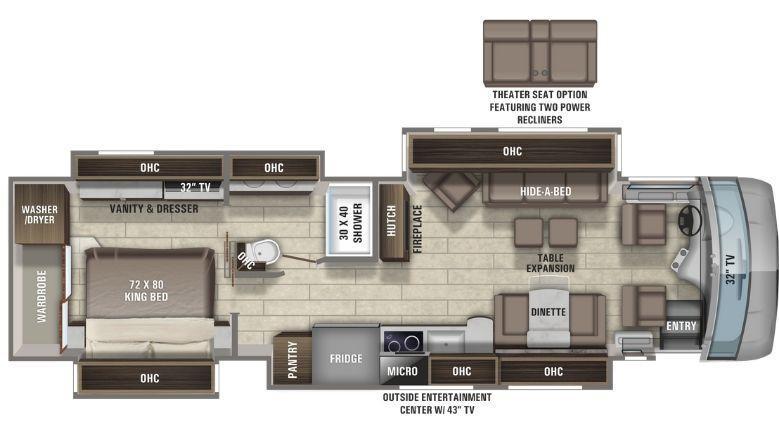

Floorplans

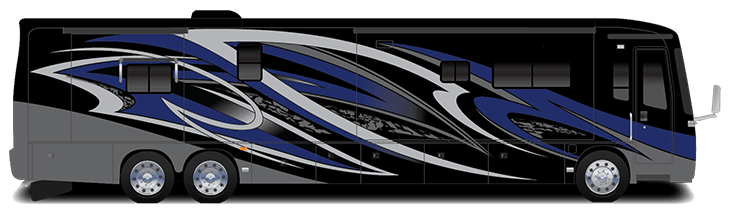

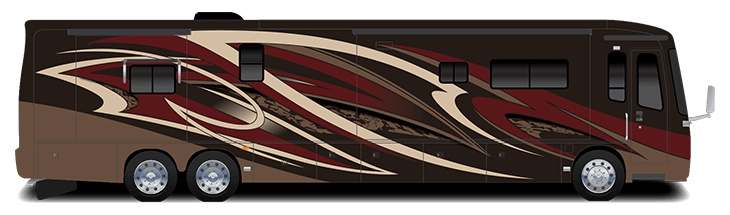

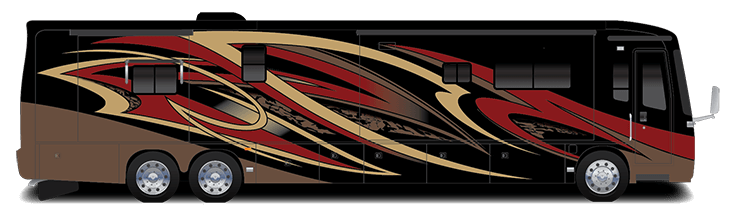

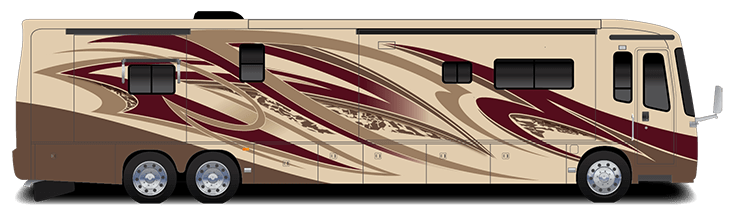

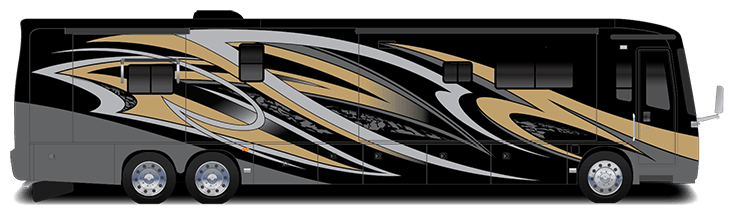

Exterior Graphics
STANDARDS & OPTIONS
Air Connection
Remote air connection
Chassis
Spartan® K2 raised-rail chassis
Engine
Cummins® L9 turbocharged 450 HP engine 1,250 lb. ft. torque at 1,400 RPM
Transmission
Allison® 3,000 MH 6-speed transmission
Radiator
Side-mounted radiator
Alternator
170 amp alternator
Engine Block Heater
1,000 watt engine block heater
Engine Brake
Two-stage engine brake
Front Axle
Reyco® Granning®- 17,000 lb. rating
Front Suspension
Independent front air suspension (IFS)
Rear Axle
Meritor- 20,000 lb. rating (Dana®- 24,000 lb. rating on 38M/40P)
Tag Axle
Tag axle with air dump- 12,000 lb. rating (N/A 38M and 40P)
Braking System
ABS disc brakes on front axle, drum brakes on drive and tag axle (ABS disc brakes on front and rear axle on 38M and 40P)
Rear Axle Ratio
4.88 rear axle ratio (4.78 on 38M and 40P)
Tires
Michelin® 315/80R 22.5" tires (front) and 295/80R 22.5" tires (rear)
Tire Pressure Monitoring
Tire pressure monitoring system (TPMS) with temperature monitoring
Shocks
Bilstein® 46mm shocks
Leveling System
Equalizer hydraulic automatic coach leveling
Chassis Battery
(2) 12V chassis batteries
Fuel Tank
150 gal., dual fill fuel tank (100 gal. fuel tank on 38M and 40P)
DEF Tank
15 gal. DEF tank (10 gal. DEF tank on 38M, 40P, 44R)
Turning Radius
55 degree turning radius
Tow Air Brake System
Spartan® Safehaul tow vehicle air brake system
Hitch
15,000 lb. hitch with 7/4-pin plug (10,000 lb. hitch on 38M and 40P)
Décor Options
