THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.
2021 ANTHEM
LENGTH 44' 11" | WIDTH 101" | SLEEPS UP TO 2
In the Anthem luxury coach, you'll enjoy the journey more than the destination. With new interior and appliance features like industry-exclusive swivel dinette seats, larger shower, and the EZ clean stainless Fisher & Paykel® dishwasher drawer, you'll feel comfortable during any adventure that awaits you. Technology upgrades such as the updated Xite® XSG3 radio system and Bluetooth® functionality built right into the steering wheel help to provide effortless control while staying focused on the road ahead. Additionally, exclusive E-Z Steer technology allows for superior ride and handling.

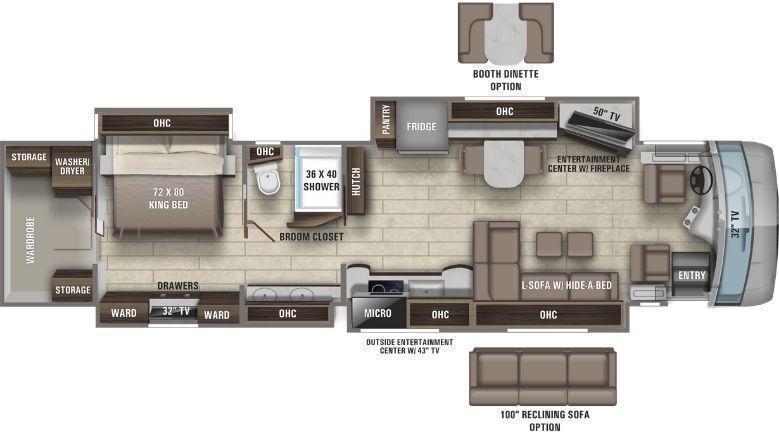

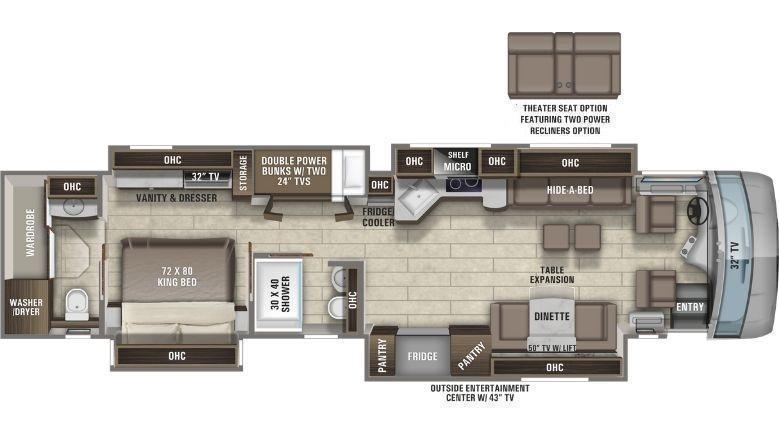

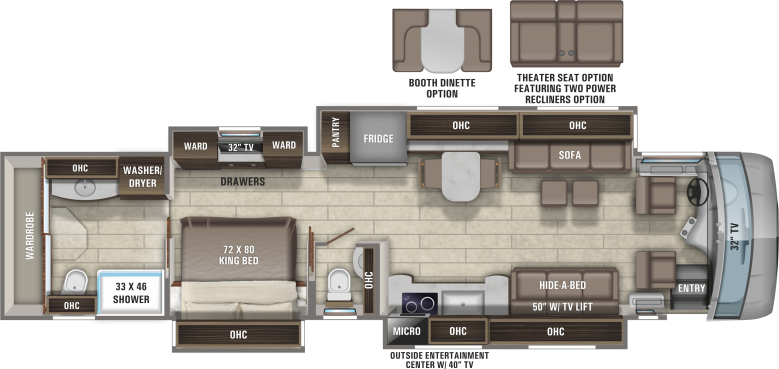

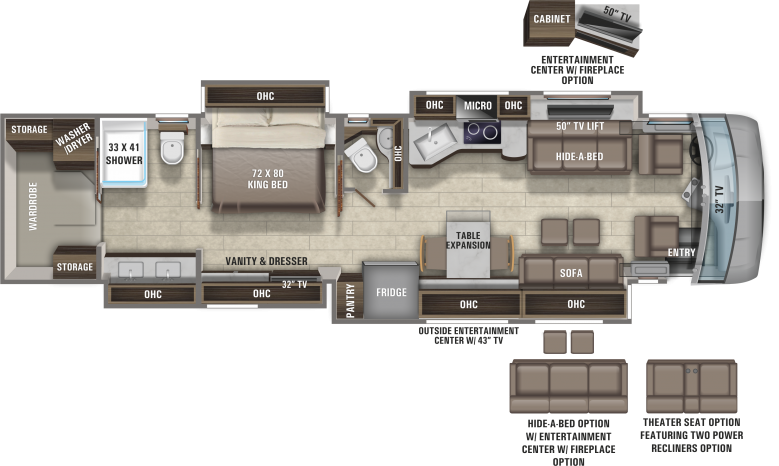

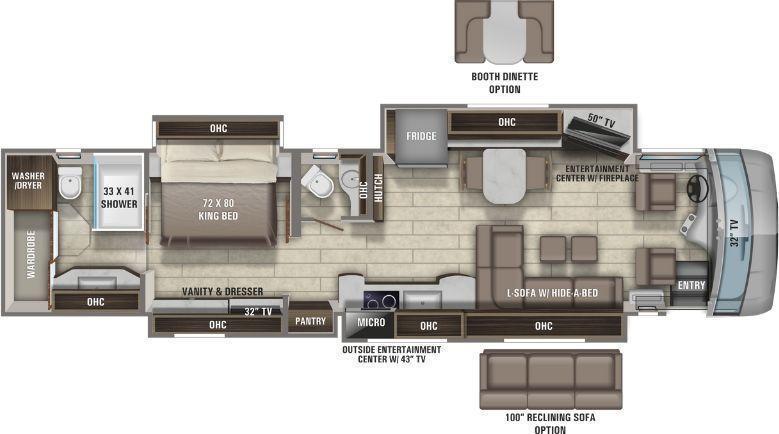

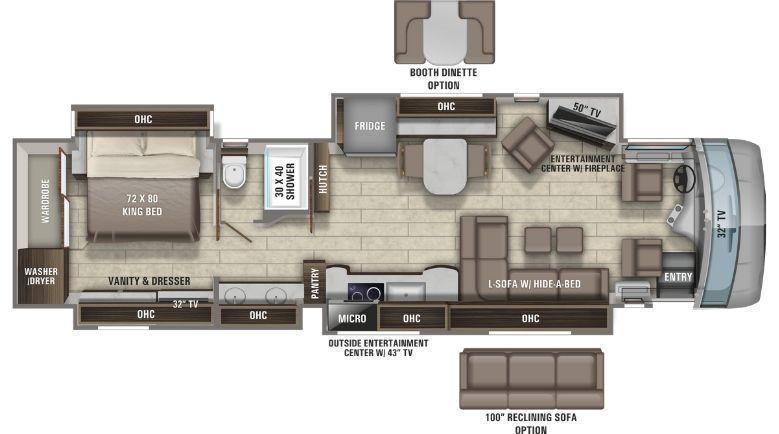

Floorplans

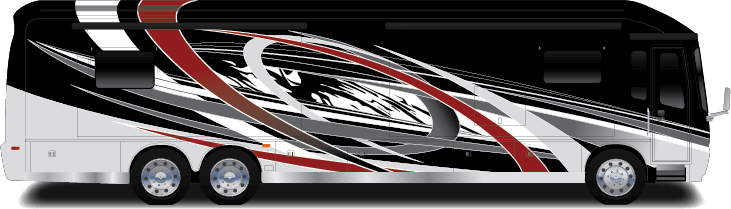

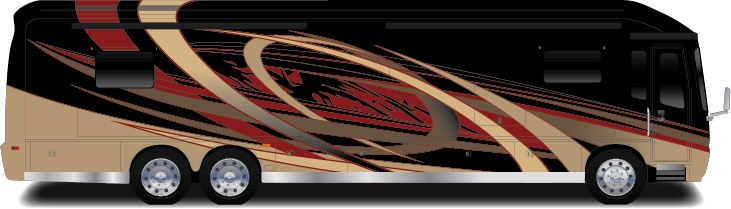

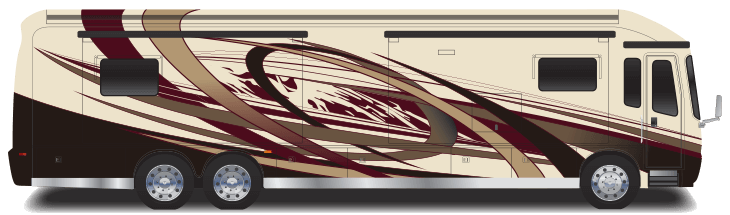

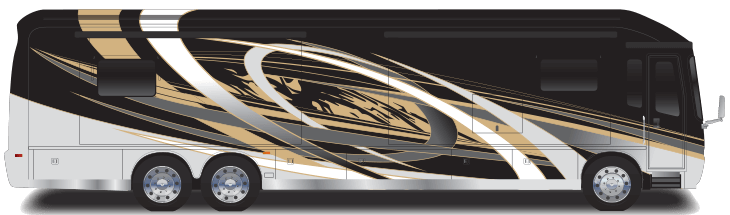

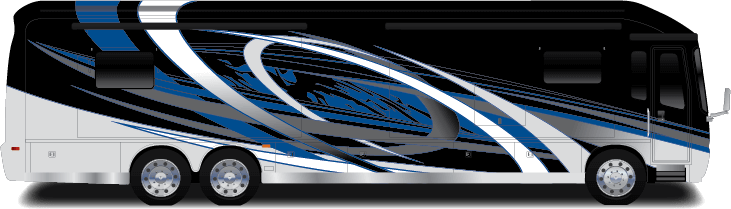

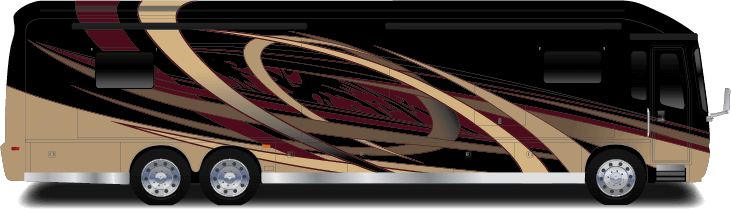

Exterior Graphics
STANDARDS & OPTIONS
Chassis
Spartan® K2 raised-rail chassis
Engine
Cummins® L9 turbocharged 450 HP engine 1,250 lb. ft. torque at 1,400 RPM
Transmission
Allison® 3,000 MH 6-speed transmission
Radiator
Side-mounted radiator
Alternator
170 amp alternator
Engine Block Heater
1,000 watt engine block heater
Engine Brake
Two-stage engine brake
Leveling System
Equalizer hydraulic automatic coach leveling
Air Leveling
Valid air leveling system with auxiliary air compressor
Front Axle
Reyco® Granning®- 20,000 lb. rating
Front Suspension
Independent front air suspension (IFS)
Rear Axle
Meritor - 20,000 lb. rating
Tag Axle
Tag axle with air dump- 12,000 lb. rating
Braking System
ABS disc brakes on front axle, drum brakes on drive and tag axle
Rear Axle Ratio
4.88 rear axle ratio
Tires
Michelin® XZA 365/80R 22.5" tires (front) and XZA 315/80R 22.5" tires (rear)
Tire Pressure Monitoring
Tire pressure monitoring system (TPMS) with temperature monitoring
Traction Control
Automatic traction control
Shocks
Bilstein® shocks- 60mm front axle & 46mm rear/tag axles
Air Connection
Remote air connection
Chassis Battery
(2) 12V chassis batteries
Fuel Tank
150 gal. fuel tank(dual fill)
DEF Tank
15 gal. DEF tank (dual fill)
Turning Radius
55 degree turning radius
Tow Air Brake System
Spartan® Safehaul tow vehicle air brake system
Hitch
15,000 lb. hitch with 7/4-pin plug
E-Z Drive
—
