THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.
2020 ASPIRE
LENGTH 45' 5" | WIDTH 101" | SLEEPS UP TO 2
Beauty, style, and superior handling. This coach keeps you uplifted in ultimate comfort, while preserving the image of exceptional design. With Entegra Coach's signature C-lights and stunning décor selections, this luxury diesel motorcoach gives you that luxury resort feeling, while taking you on life's journey.

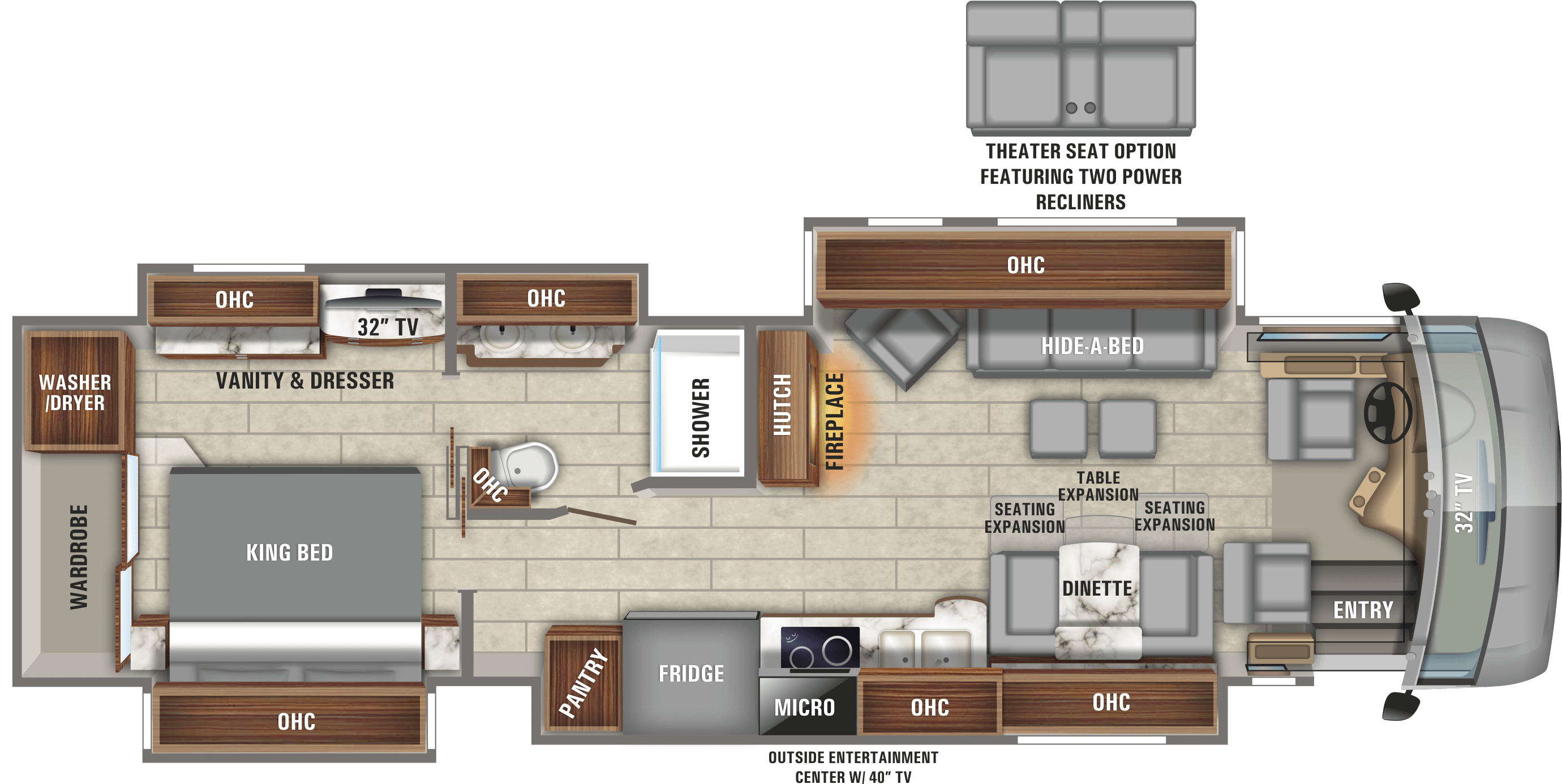

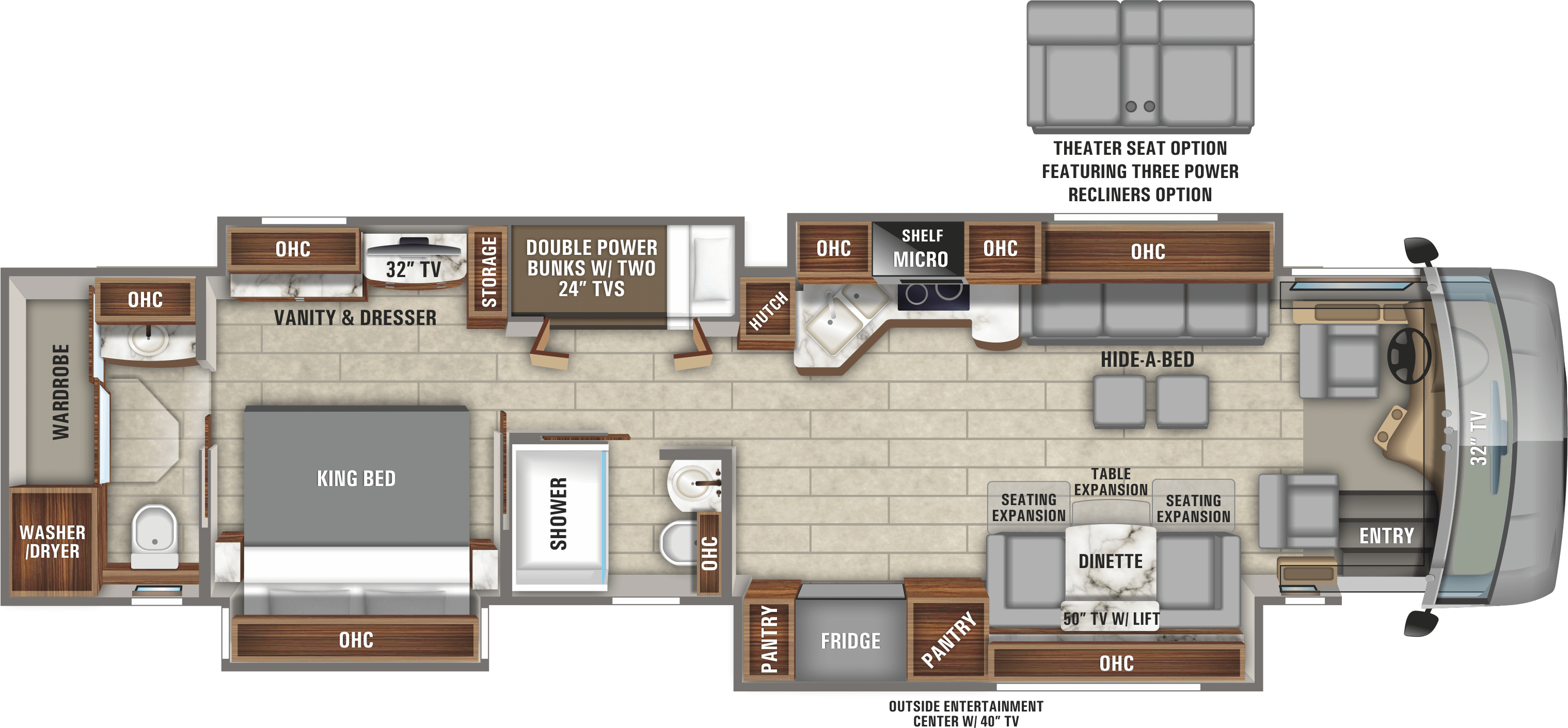

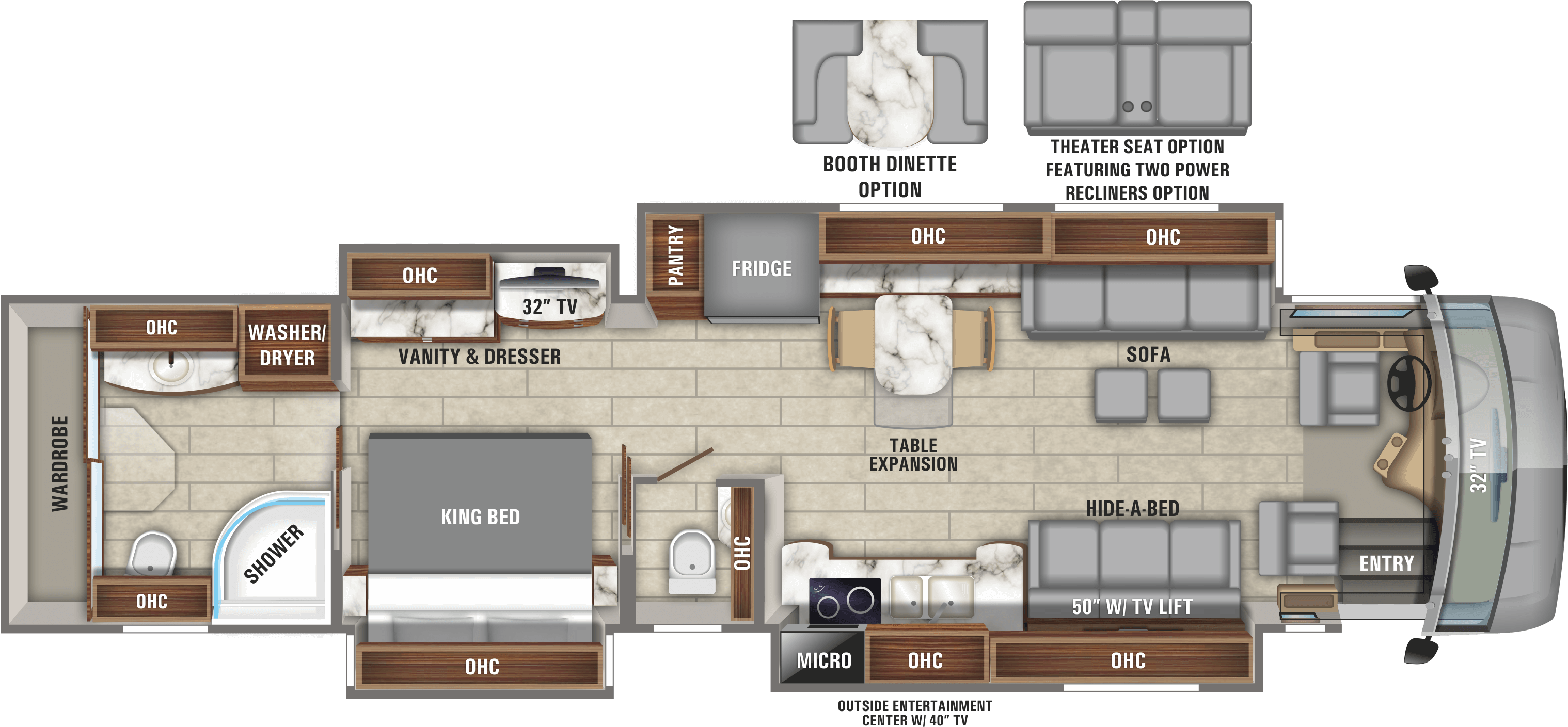

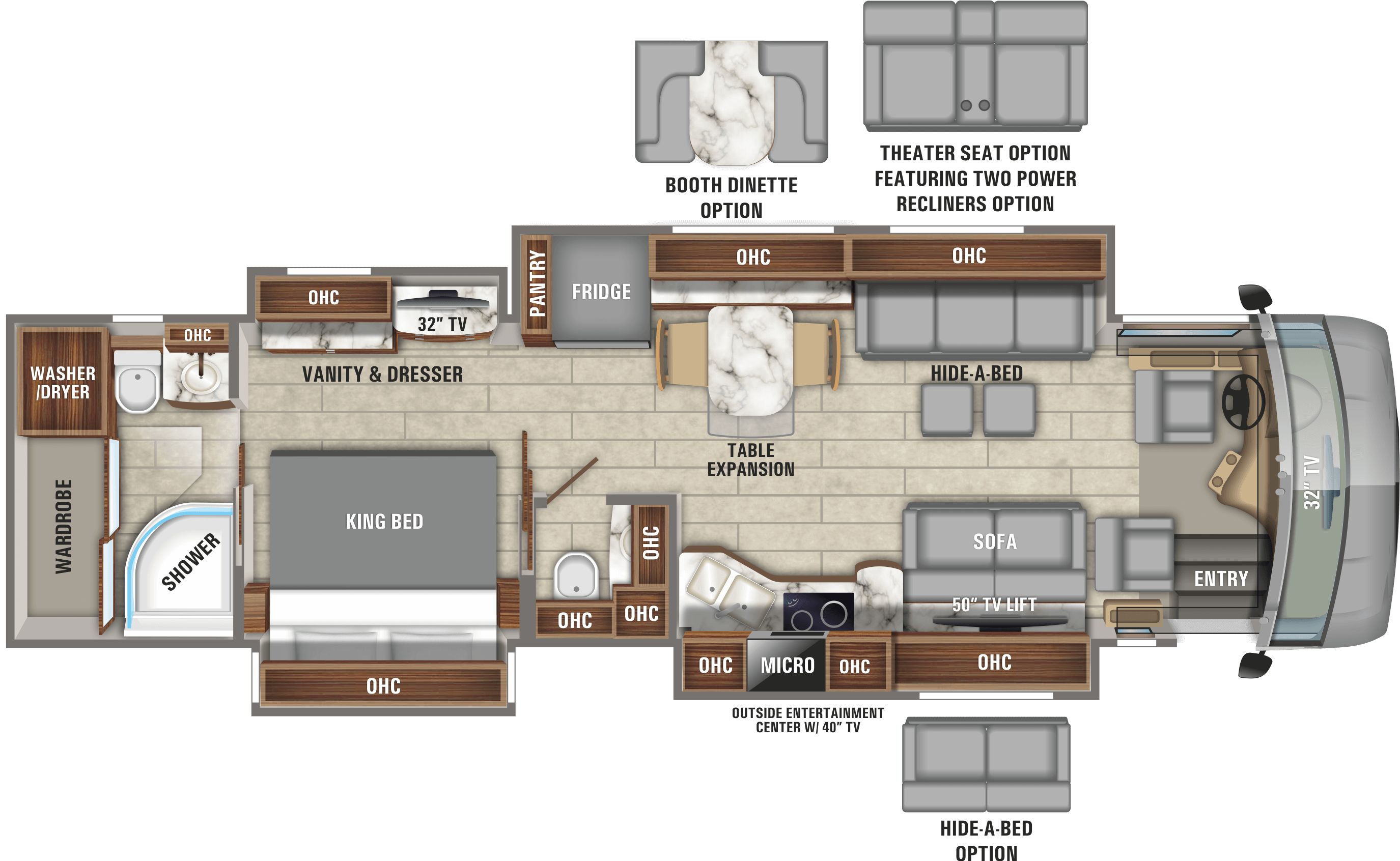

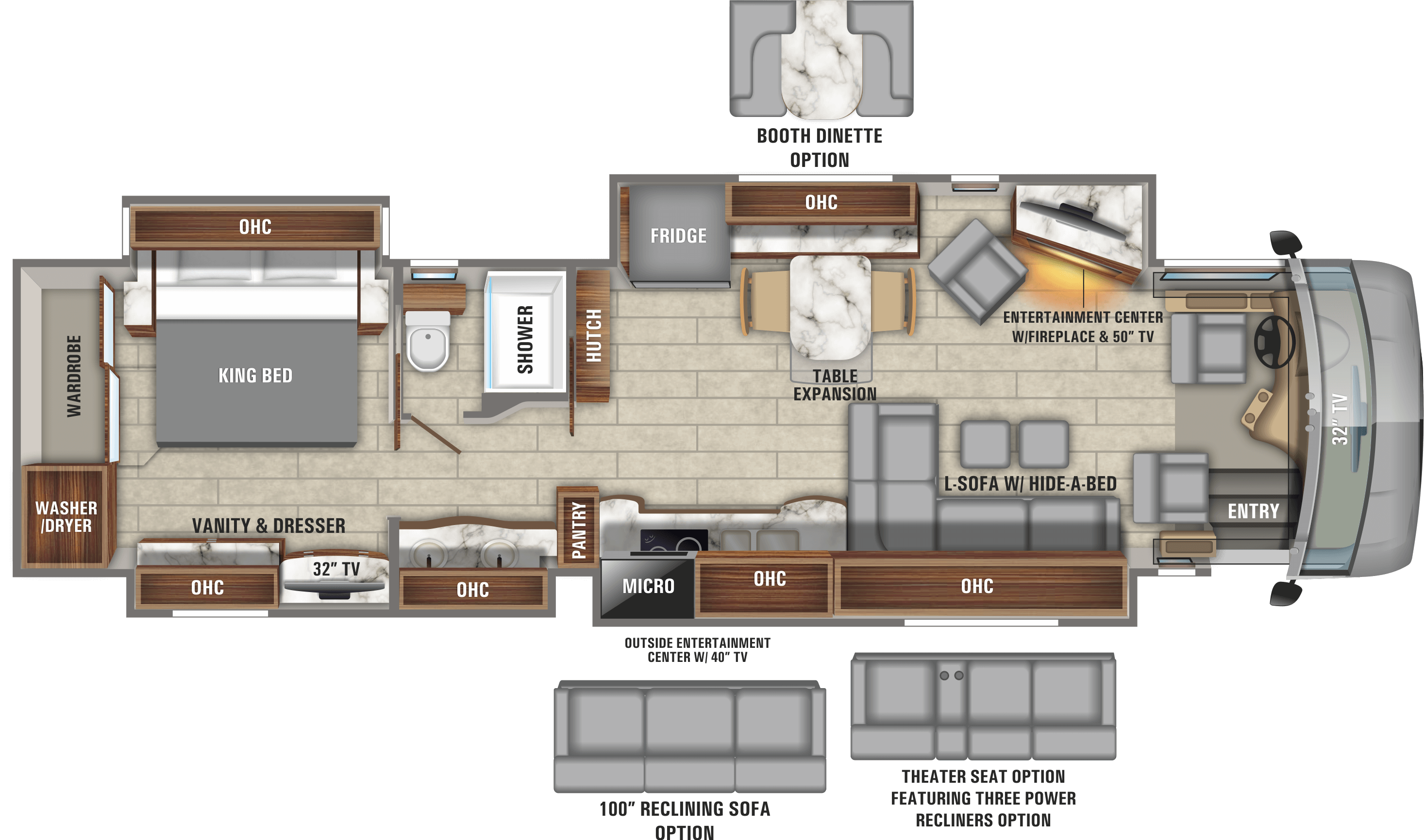

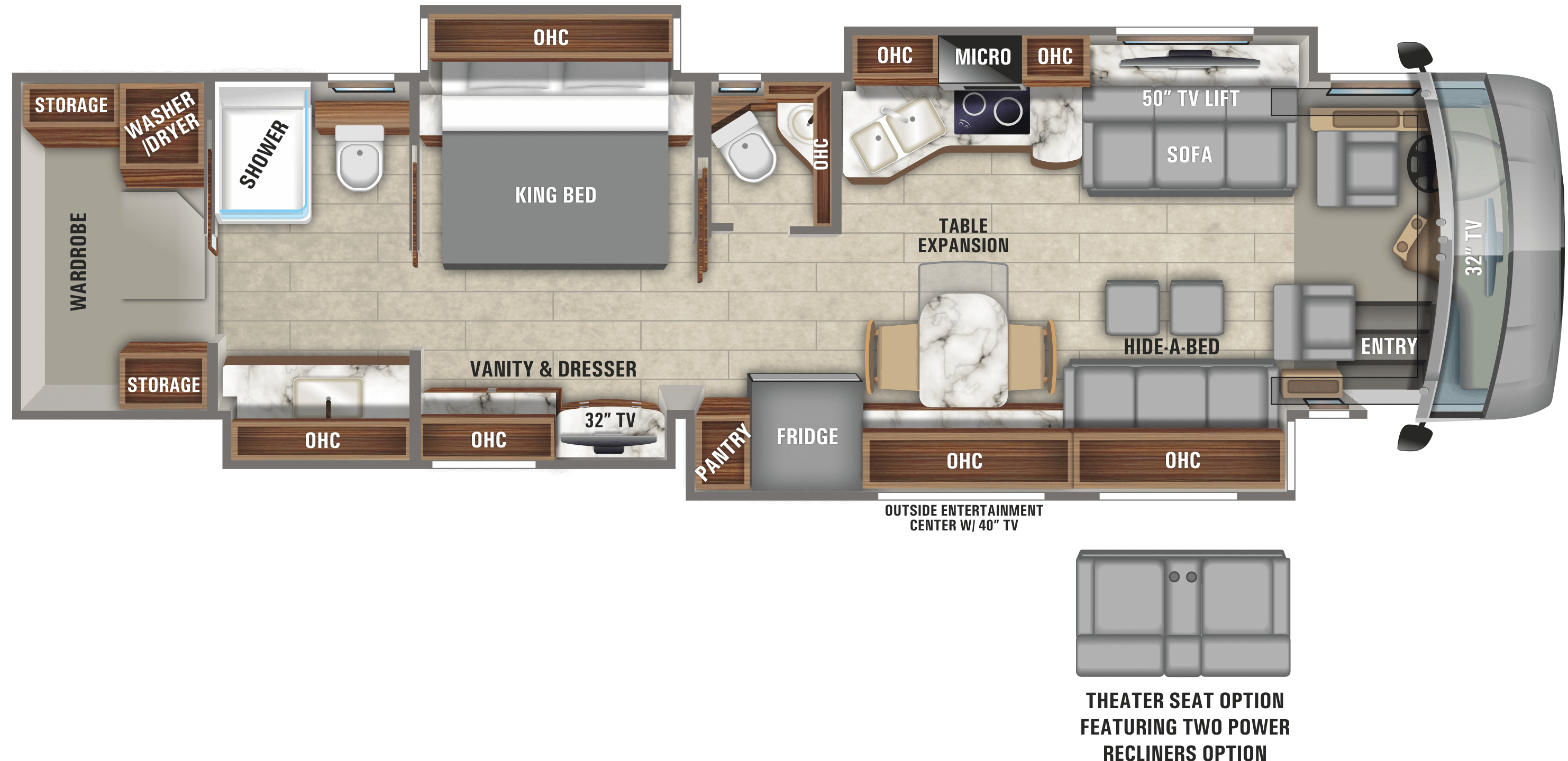

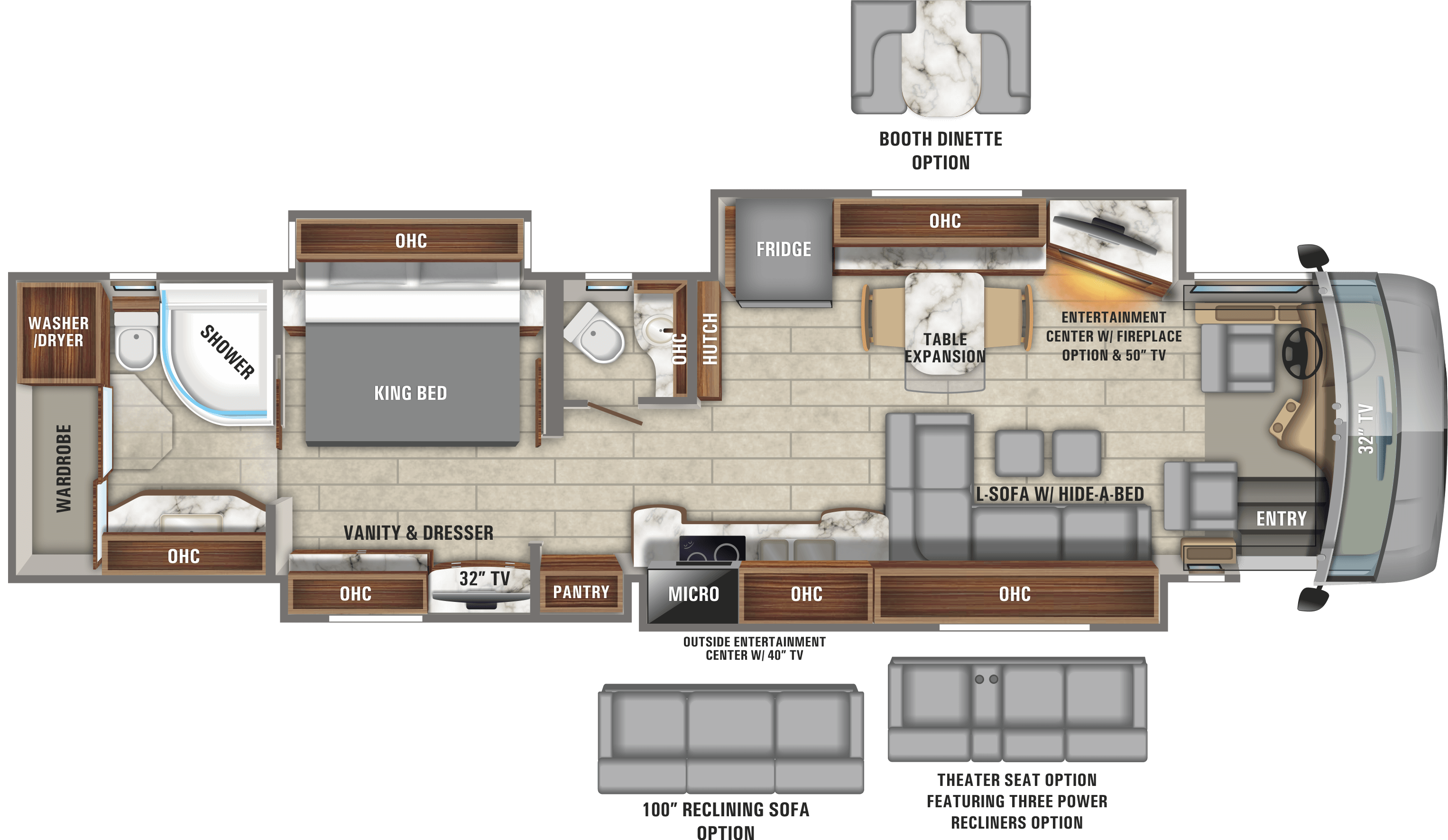

Floorplans

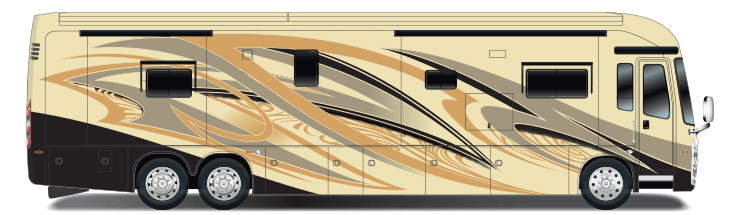

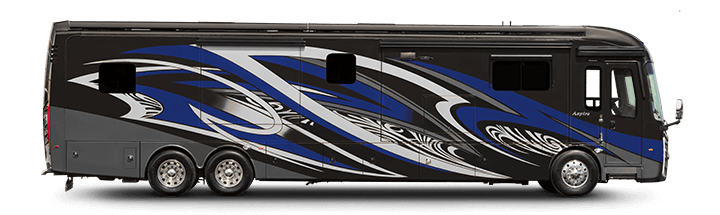

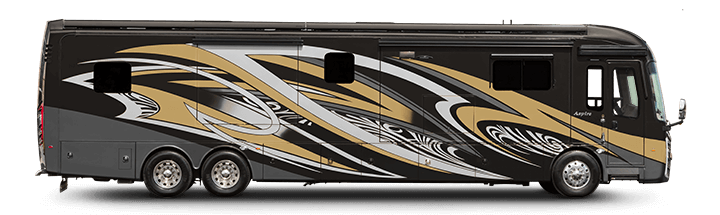

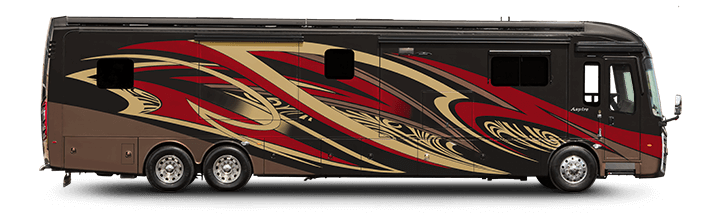

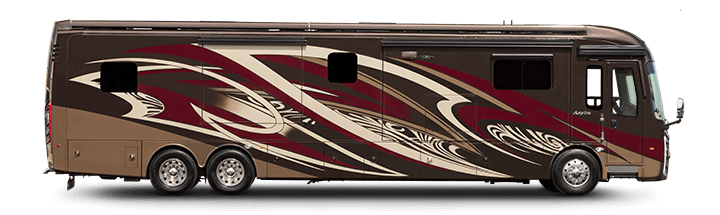

Exterior Graphics
STANDARDS & OPTIONS
Chassis
Spartan K2 raised rail chassis
Engine
Cummins L9 turbocharged 450 HP engine 1,250-lb. ft. torque at 1,400 RPM
Transmission
Allison 3000 MH 6-speed transmission
Engine Block Heater
1,000 watt engine block heater
Front Suspension
Reyco Granning IFS independent front air suspension
Rear Suspension
Dana rear suspension
Front Axle
Reyco Granning independent 17,000-lb. front axle with air suspension
Rear Axle
Dana rear axle 20,000-lb., tag axle 12,000-lb. (Rear axle 24,000-lb. and no tag on 38M and 40P)
Rear Axle Ratio
4.88 rear axle ratio
Hitch
15,000-lb. hitch with 7/4-pin plug, (10,000-lb hitch on 38M and 40P)
Tag Axle
Tag axle air dump (Not available on 38M and 40P)
Radiator
Side-mounted radiator
Braking System
ABS disc brakes on front axle, drum brakes on drive and tag axle (ABS disc brakes on front and rear axle on 38M and 40P)
Engine Brake
Two-stage engine brake
Shocks
Bilstein 46mm shocks
Fuel Tank
150-gal. fuel tank (100-gal. fuel tank on 38M and 40P) dual fill
DEF Tank
15 gallon DEF tank (dual fill except on 38M, 40P, 44R)
Tires
Michelin 315/80R 22.5" tires (front) and 295/80R 22.5" tires (rear)
Turning Radius
55-degree turning radius
Chassis Battery
Chassis batteries 2-12 volt
Alternator
170-amp alternator
Air Connection
Remote air connection
Tow Air Brake System
Safehaul tow air brake system
Leveling System
Equalizer hydraulic automatic leveling
Décor Options
