THE QUIETEST RIDING, BEST HANDLING COACH ON THE MARKET TODAY. PERIOD.
2020 ANTHEM
LENGTH 44' 11" | WIDTH 101" | SLEEPS UP TO 2
Once you drive this coach, featuring E-Z Steer technology, you will never give another coach a second thought. The Anthem is engineered for the future and boasts a digital dash that gives you effortless control through beautiful composition. Nothing can keep you from exploring, and this vehicle connects you to the world outside and beyond with innovative technology.

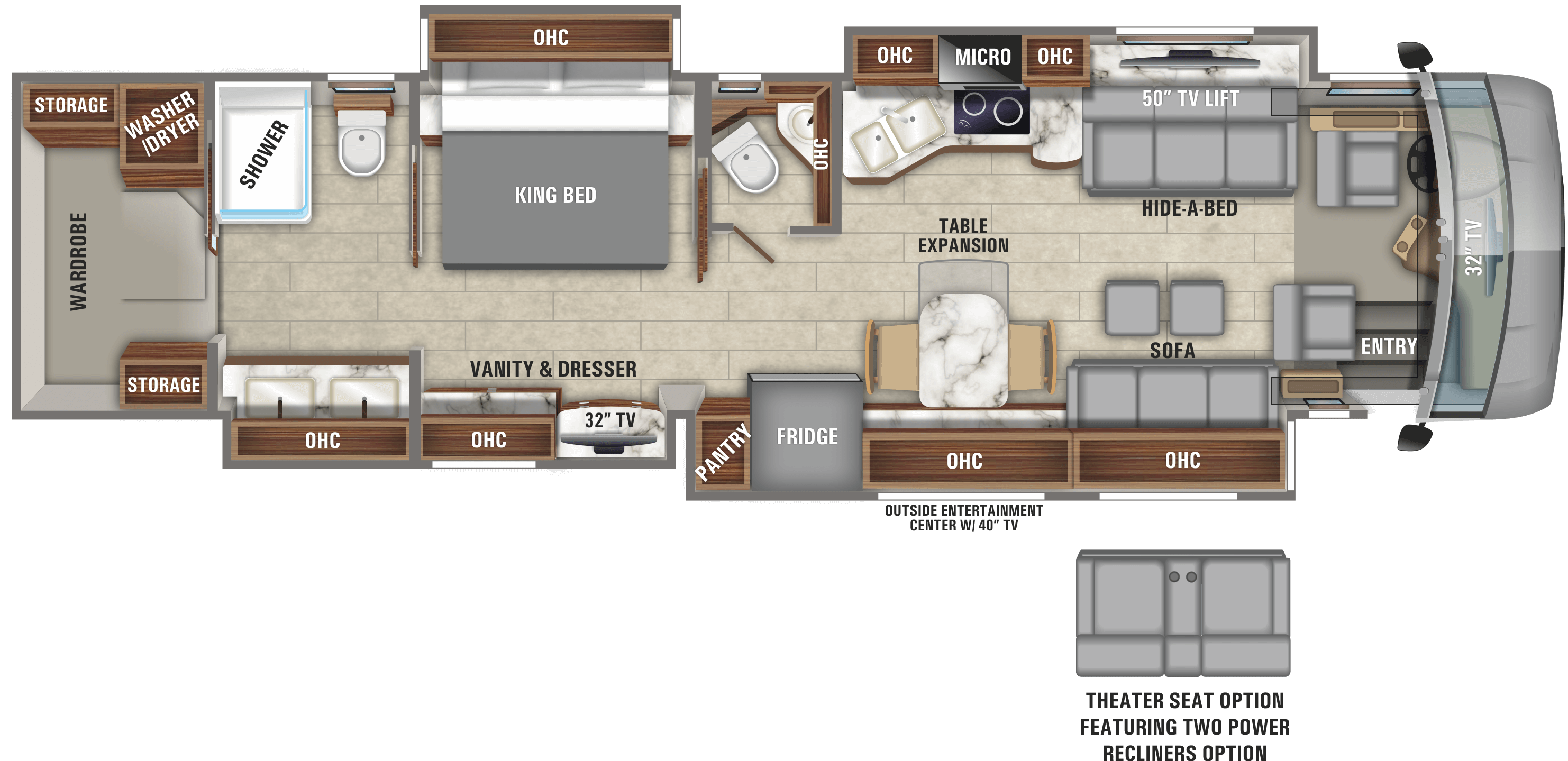

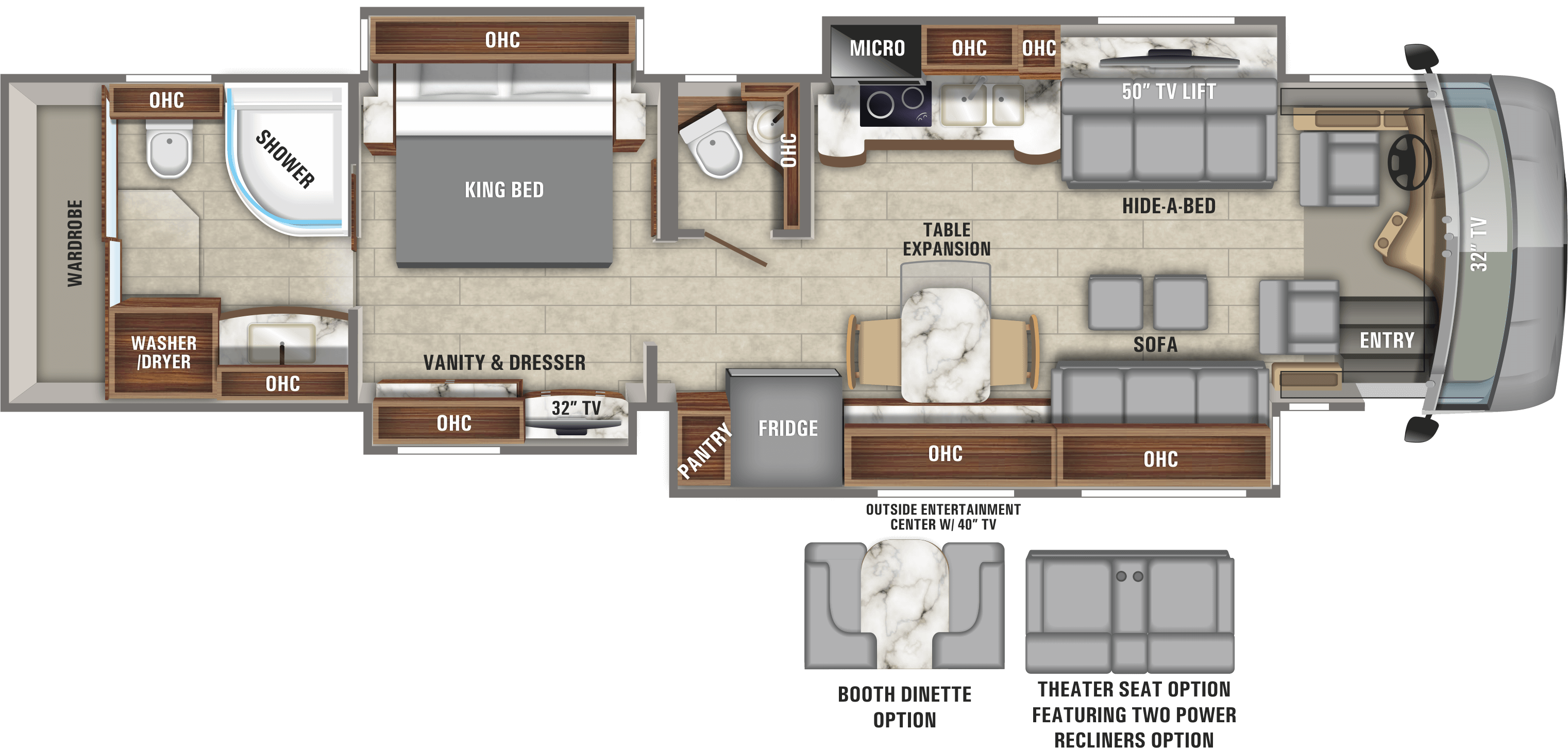

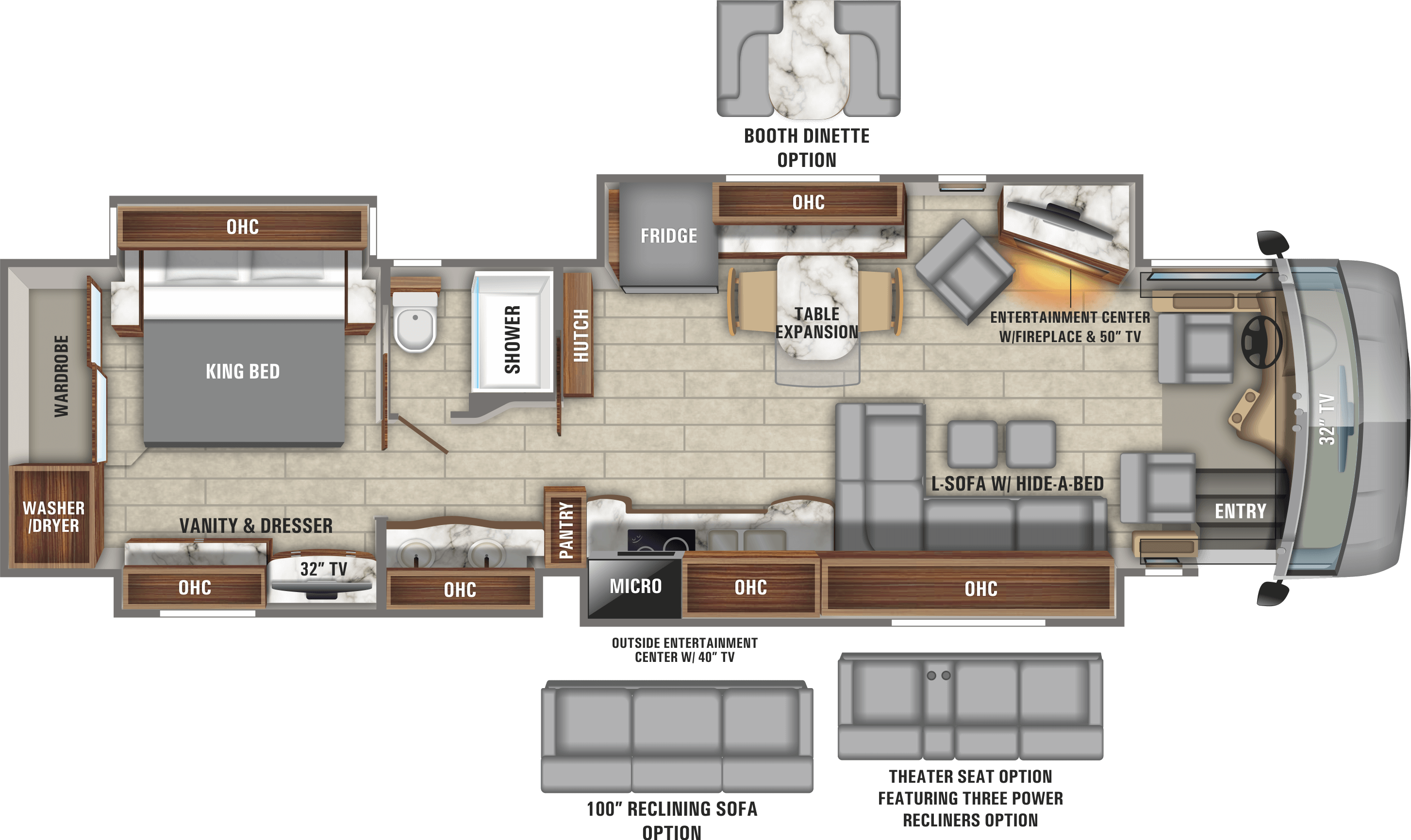

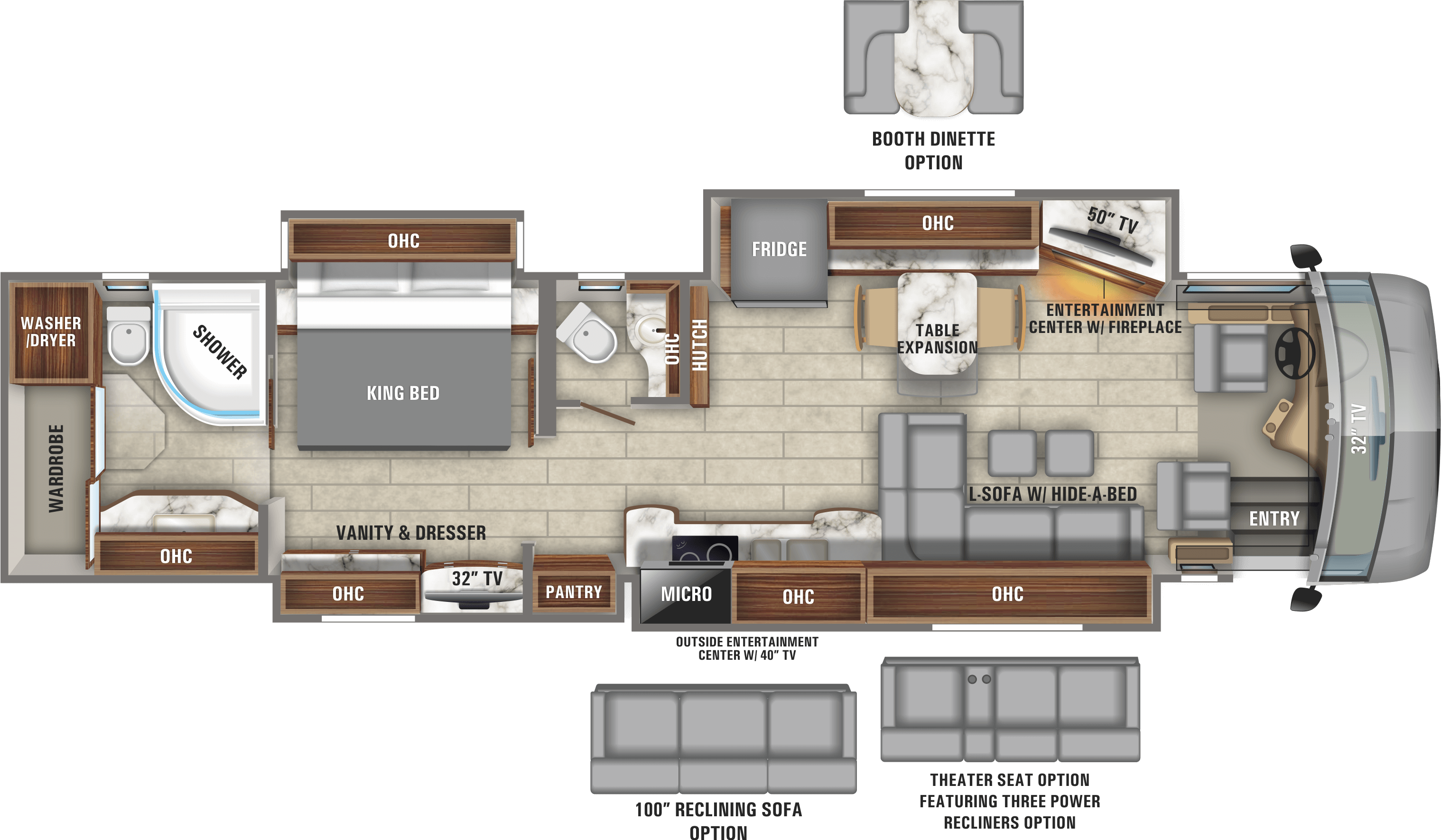

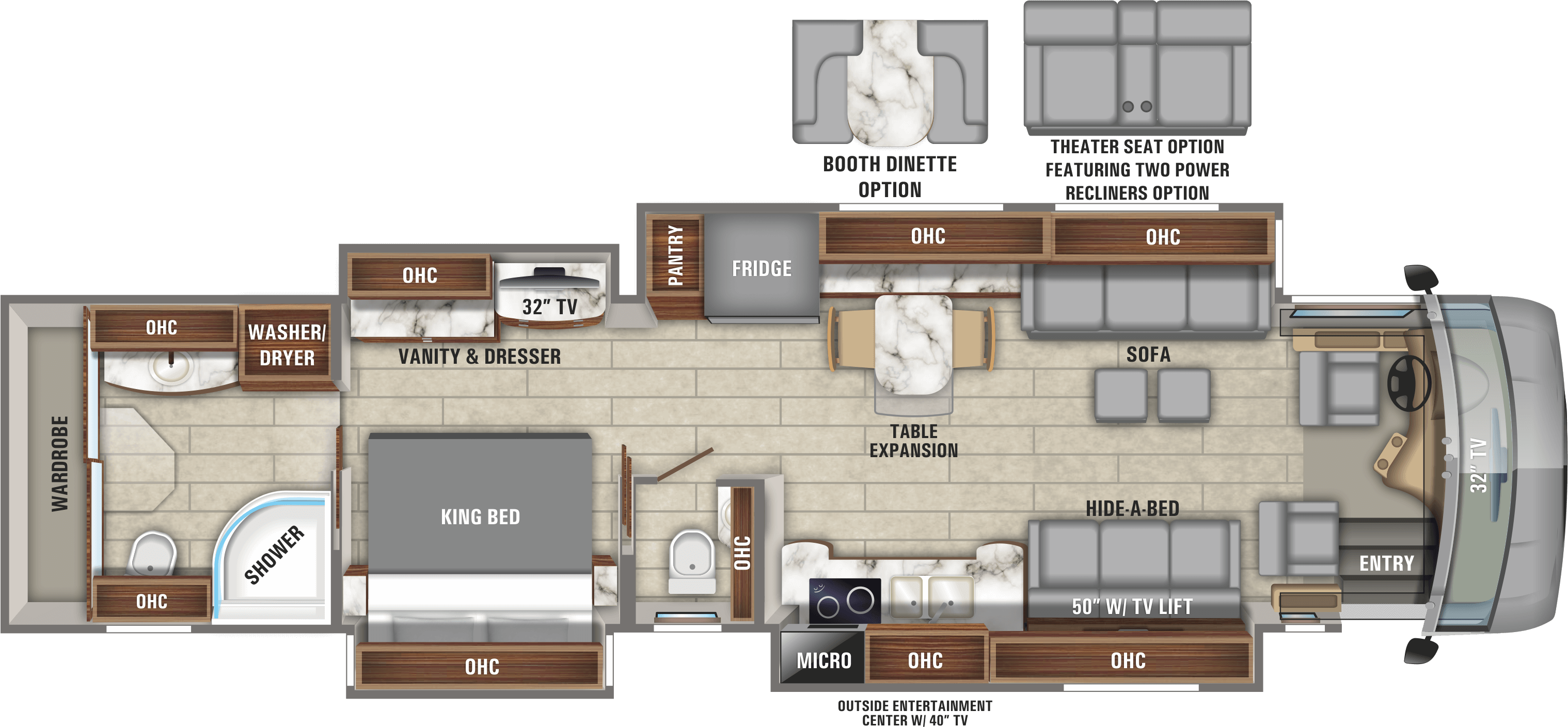

Floorplans

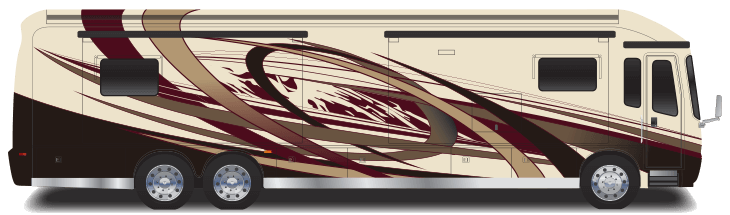

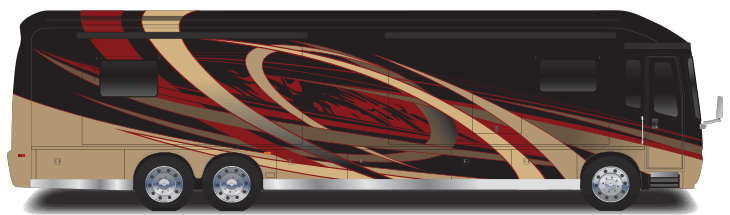

Exterior Graphics
STANDARDS & OPTIONS
Chassis
Spartan K2 raised rail chassis
Engine
Cummins L9 turbocharged 450 HP engine 1,250-lb. ft. torque at 1,400 RPM
Transmission
Allison 3000 MH 6-speed transmission
Engine Block Heater
1,000 watt engine block heater
Front Suspension
Reyco Granning IFS independent front air suspension
Rear Suspension
Dana rear suspension
Front Axle
Reyco Granning independent 20,000-lb. front axle with air suspension
Rear Axle
Dana rear axle 20,000-lb., tag axle 12,000-lb.
Rear Axle Ratio
4.88 rear axle ratio
Hitch
15,000-lb. hitch with 7/4-pin plug
Tag Axle
Tag axle air dump
Leveling System
Valid air leveling system with auxiliary air compressor
Radiator
Side-mounted radiator
Braking System
ABS disc brakes on front axle, drum brakes on drive and tag axle
Engine Brake
Two-stage engine brake
Traction Control
Automatic traction control
Shocks
Bilstein shocks- 60MM front & 46MM rear/tag
Fuel Tank
150-gal. fuel tank (dual fill)
DEF Tank
15 gallon DEF tank (dual fill)
Tires
Michelin XZA 1 365/80R 22.5" tires (front) and XZA 2 315/80R 22.5" tires (rear)
Turning Radius
55-degree turning radius
Chassis Battery
Chassis batteries 2-12 volt
Alternator
170-amp alternator
Air Connection
Remote air connection
Tow Air Brake System
Safehaul tow air brake system
Tire Pressure Monitoring
Tire pressure monitor system
Décor Options
