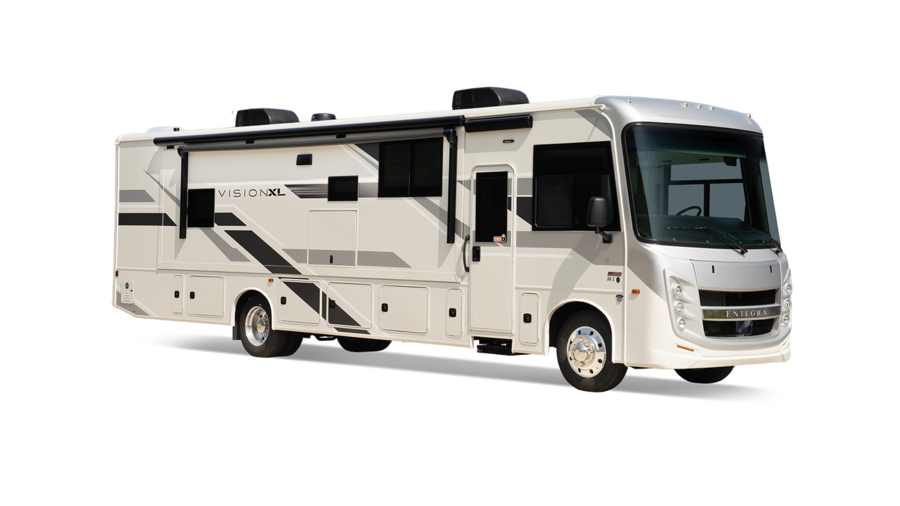

2020 Vision XL

Introducing, all-new for 2020, our Vision XL. This new addition to our gas Class A family is built on the Ford F53 chassis, and offers 320 horse power, with electronic fuel injection and 460 lb.-ft. of torque. This coach is full of passion, craftsmanship, dynamics and elegance. With ultimate refinement, the Vision XL is a step above and features the EZ Drive Elite package, backup and sideview cameras with monitor, huge frameless windows, exterior entertainment center with LED TV mounted on a swivel bracket and single-disc DVD/FM and radio. Vision XL was created for those seeking new landscapes and is everything you would expect, and more, from a Class A Motorhome, created by Entegra Coach.

Gallery

All | Exterior | Interior

Vision XL 34B

Vision XL

Floorplans

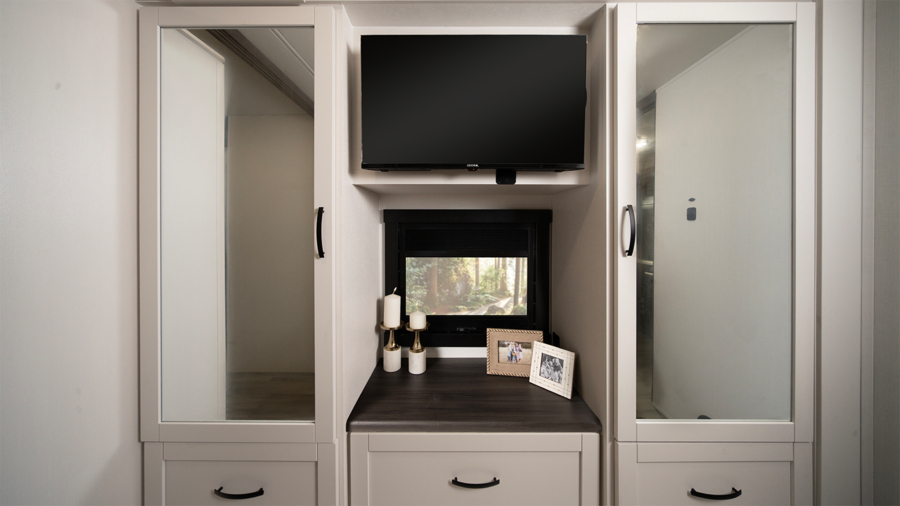

Ward = wardrobe

Lav = bathroom sink

Med = medicine cabinet

Ohc = overhead cabinets

Fridge = refrigerator

Micro = microwave

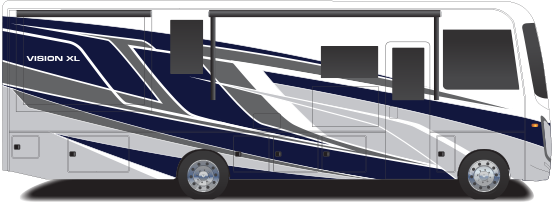

Exterior Graphics

Standards & Options

Chassis

Alternator	175-amp alternator
Braking System	Front and rear disc, four-wheel anti-lock brakes
Chassis	Ford F53 22,000-lb (34B, 34G)/ 24,000-lb (36A) GVWR chassis
Chassis Battery	12V chassis battery
Engine	6.8L Triton V-10 320 HP gas engine with electronic fuel injection and 460 LB-FT torque
E-Z Drive Elite	Heavy duty front stabilizer bar, rear stabilizer bar, computer-balanced driveshaft, jounce bumpers and SACHS shocks
Hitch	5,000-lb. rear hitch receiver with dual connector and Seven-pin plug
Tires	22.5-inch Michelin radial tires
Transmission	6-speed automatic TorqShift transmission with overdrive and tow haul mode

Construction

Exterior Walls	Cream, high-gloss gel coat fiberglass walls
Front Cap	Seamless, one-piece fiberglass front and rear caps
Insulation	Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls)
Roof	Seamless crowned fiberglass roof

Heat, AC, Water & Power

Air Conditioning	15,000-BTU A/C with heat pump & 13,500-BTU A/C
Batteries	(2) 6V AGM (220Ah) house batteries on slideout tray
Generator	Onan® Marquis Gold Genset 5,500-watt generator with auto-gen start
Heating System	Auto-ignition, 31,000-BTU ducted furnace
Inverter	1,200-watt inverter
Propane	56-lb., 16.5-gallon propane tank
Water Filtration	Water filtration system
Water Heater	10-gallon gas/electric water heater
Water Pump	12V demand water pump

Exterior

Cargo Features	Lockable pass-through storage compartments with side hinged slam-latch doors
Entrance Door	Entrance door with industry’s largest travel view window and shade
Entrance Steps	Electric-powered, double-step entry
Exterior	Vinyl graphics
Exterior Entertainment	Exterior entertainment center w/LED TV mounted on swivel bracket & DVD/AM/FM radio & speakers
LED Lights	LED marker lights
Outside Shower	Outside shower

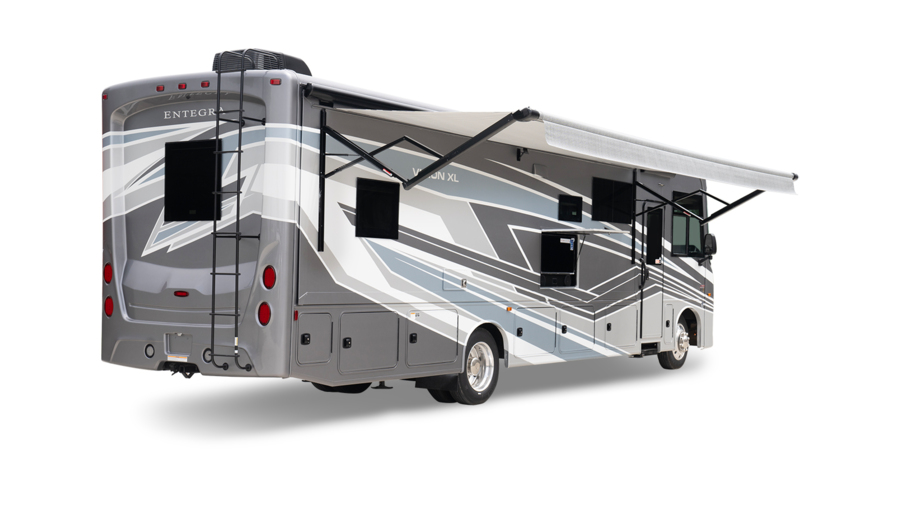

Patio Awnings	Electric patio awning with LED lights
Power Cord	50-amp electrical service cord
Satellite Dish	Prep for satellite dish
Slideout Awnings	Slideout topper awnings
Third Brake Light	Third brake light
Windows	Frameless windows

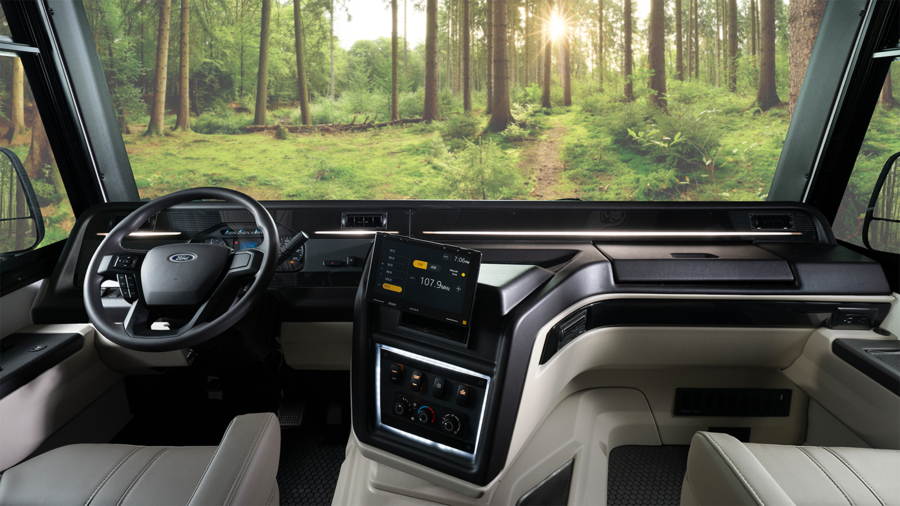

Cockpit

Cameras	Backup and side-view cameras with monitor
Driver / Passenger Seats	Six-way power driver and passenger seats
Flooring	Linoleum flooring
Infotainment System(s)	Sony Infotainment Dash Radio w/GPS
Leveling System	Automatic hydraulic leveling jacks
Side Consoles	Driver/passenger cockpit table
Visors & Privacy Shade	Power sun shade on front windshield
Windshield	120" Panoramic windshield

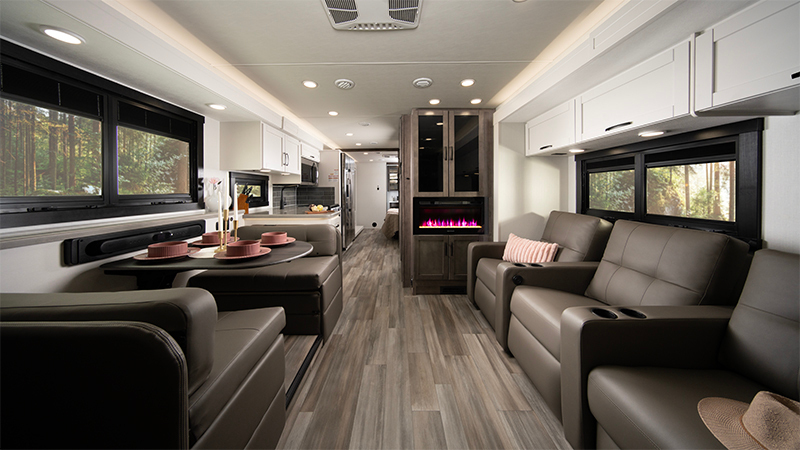

Interior

Bunks	Bunks—300-pound rating (36A)
Cabinetry	Raised-panel hardwood cabinet doors
Ceiling	84-inch interior ceiling height with padded vinyl ceiling
Electric Fireplace	Furrion electric fireplace
Fascia	LED lit hardwood fascia
Lighting System	High-intensity recessed LED ceiling lights
Window Treatments	Day/night roller shades and decorative window valance
Television - Living Room	LED living room TV

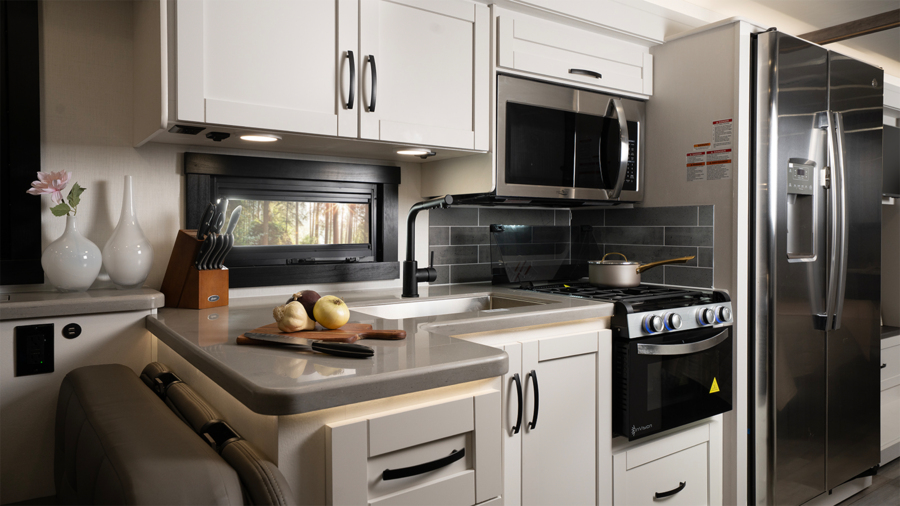

Kitchen

Cooktop	Furrion all-in-one cooktop and oven
Dinette	Entegra-exclusive easy operation legless dinette table
Drawer Guides	Ball-bearing drawer guides
Kitchen Countertops	Solid-surface kitchen countertops
Kitchen Backsplash	Decorative tile kitchen backsplash
Microwave	Residential size convection microwave

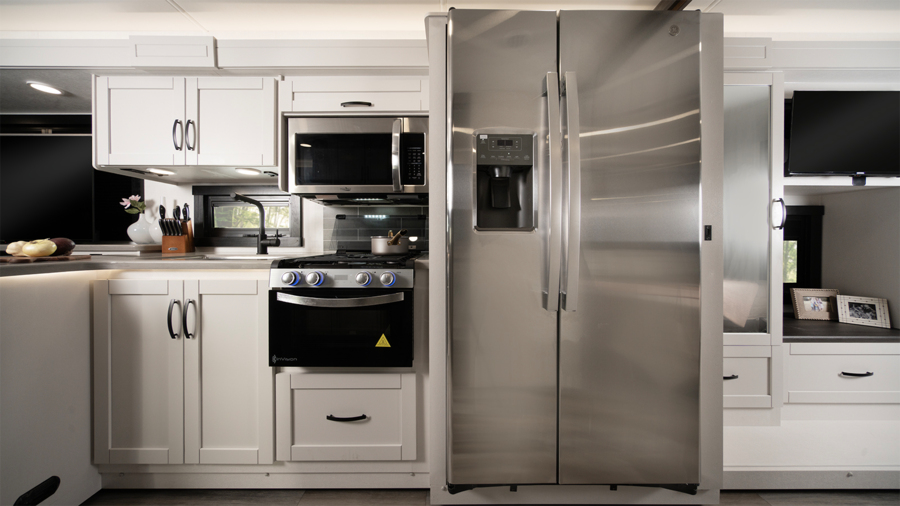

Refrigerator	21 cu. ft. residential refrigerator

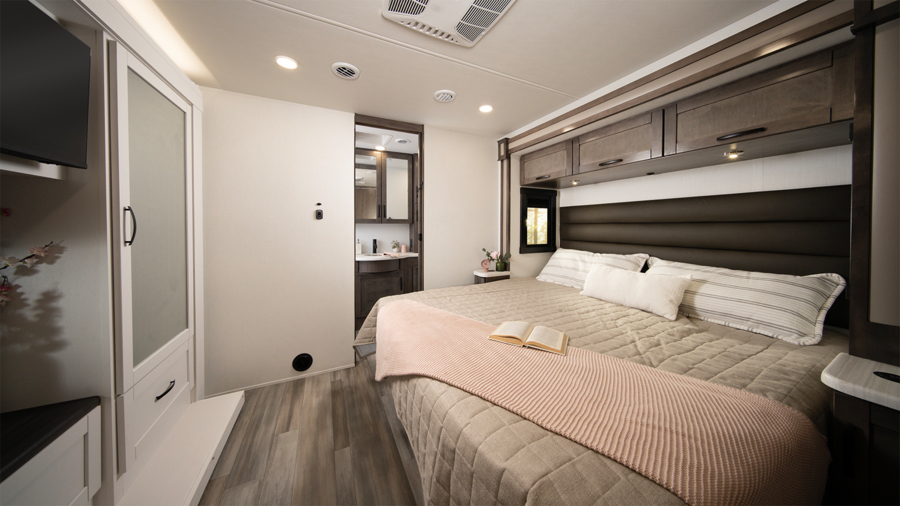

Bedroom

Bedroom Mattress / Bedding	King- sized bed with bedspread
Television	Bedroom 32" LED TV

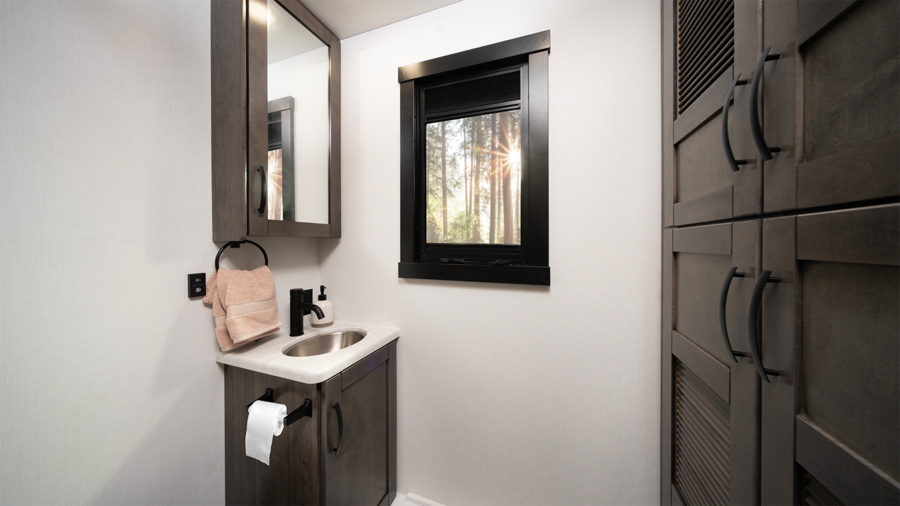

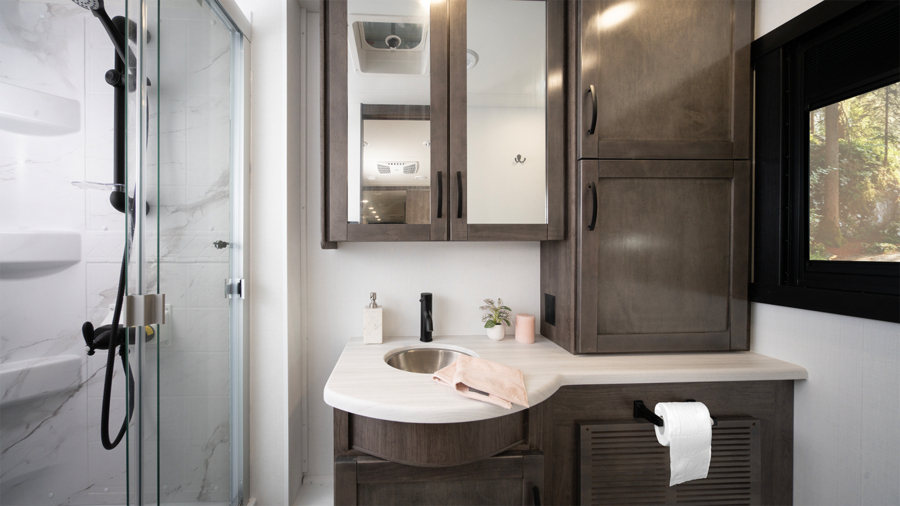

Bathroom

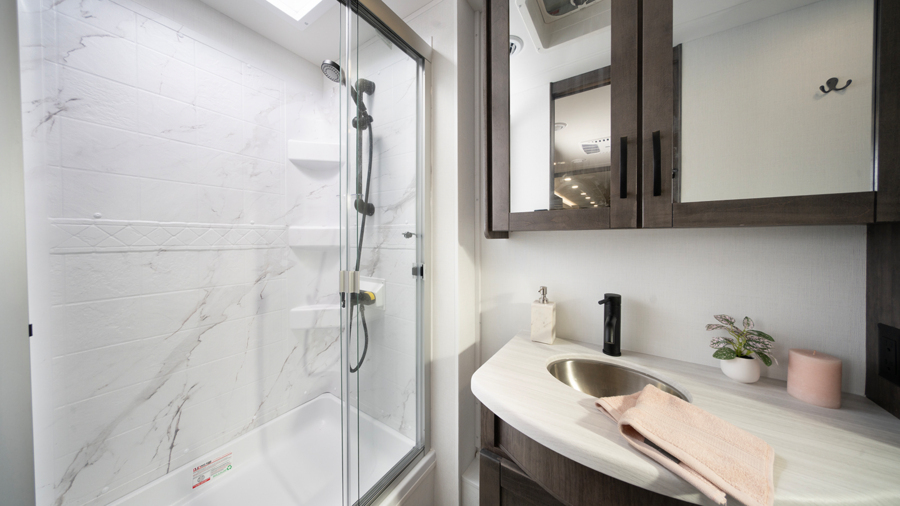

Bathroom Shower	Shower with glass door, skylight and light
Bathroom Ventilation	Bathroom powered roof vent with wall switch
Toilet	Toilet with foot flush

Safety

Seat Belts	Seat belts in every designated seating position

Options

Canadian Standards	Canadian Standards- CSA
Customer Value Package (Mandatory)	5.5 KW generator, 50 amp electrical service, 1,200 watt inverter, Automatic hydraulic leveling jacks, Backup and sideview camera, Driver/passenger cockpit table, Electric awning with LED lights, Exterior entertainment center with LED TV and single disc DVD/FM radio, Frameless windows, Infotainment system, JRide plus package, LED TV in living room, Roller shades, Slideout cover awnings, Solid-surface kitchen countertops

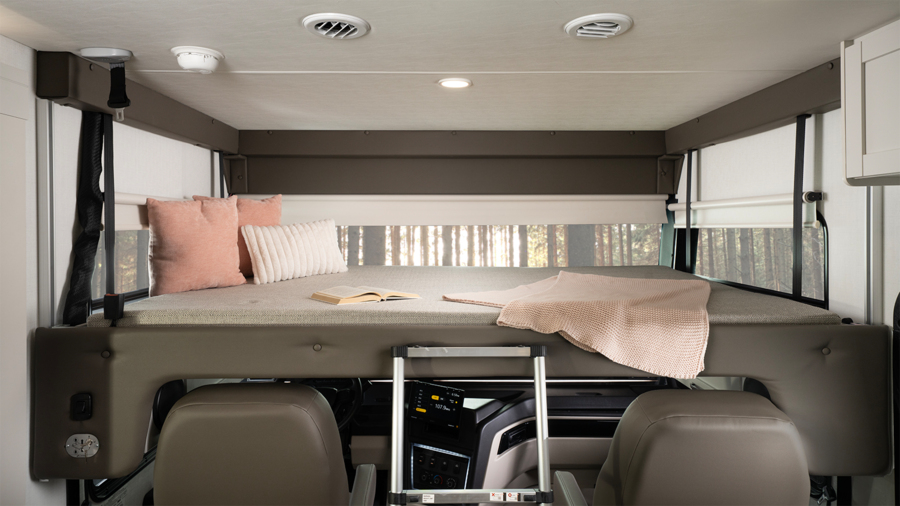

Overhead Bunk	Front Overhead Bunk
Refrigerator	12 cu. ft., 4-door gas/electric refrigerator
Theater Seating Option 1	Power sofa theater seating
Washer/Dryer	Washer/ Dryer combination
Reclining Sofa Option 2	93" straight reclining sofa

Décor Options

Entegra Coach peace of mind

2-year warranty

At Entegra Coach, excellence doesn’t end with our stunning interiors and superior craftsmanship. We back each luxury coach with the industry’s highest level of service—including a 2-year warranty.

2-year warranty details

Wheel Base	228"
Exterior Length	36' 11"
Exterior Height with A/C and Satellite	12' 10"
Exterior Width	101"
Interior Height	84"
Fresh Water Capacity (gals)	72
Grey Waste Water Capacity (gals)	40
Black Waste Water (gals)	40
Gross Vehicle Weight Rating (lbs)	22,000
Gross Combined Weight Rating (lbs)	26,000
Front Gross Axle Weight Rating (lbs)	8,000
Rear Gross Axle Weight Rating (lbs)	15,000
Tag Axle Gross Weight Rating (lbs)	N/A
Fuel Tank Capacity (gals)	80
Furnace (BTU Output)	35,000

Furnace (BTU Output)	35,000
Black Waste Water (gals)	50
Grey Waste Water Capacity (gals)	40
Fresh Water Capacity (gals)	72
Fuel Tank Capacity (gals)	80
Wheel Base	238"
Interior Height	84"
Gross Vehicle Weight Rating (lbs)	22,000
Gross Combined Weight Rating (lbs)	26,000
Front Gross Axle Weight Rating (lbs)	8,000
Rear Gross Axle Weight Rating (lbs)	15,000
Tag Axle Gross Weight Rating (lbs)	N/A
Exterior Length	36' 6"
Exterior Width	101"
Exterior Height with A/C and Satellite	12' 10"

Gross Vehicle Weight Rating (lbs)	24,000
Gross Combined Weight Rating (lbs)	30,000
Front Gross Axle Weight Rating (lbs)	9,000
Rear Gross Axle Weight Rating (lbs)	15,500
Tag Axle Gross Weight Rating (lbs)	N/A
Exterior Length	38' 10"
Exterior Width	101"
Exterior Height with A/C and Satellite	12' 10"
Interior Height	84"
Fresh Water Capacity (gals)	72
Grey Waste Water Capacity (gals)	40/40
Black Waste Water (gals)	51/51
Fuel Tank Capacity (gals)	80
Furnace (BTU Output)	(2) 30,000
Wheel Base	252"

Luxury Diesel

Gas Class A

Class C

2020 Vision XL

Gallery

Floorplans

2020 Vision XL | 34B

2020 Vision XL | 34G

2020 Vision XL | 36A

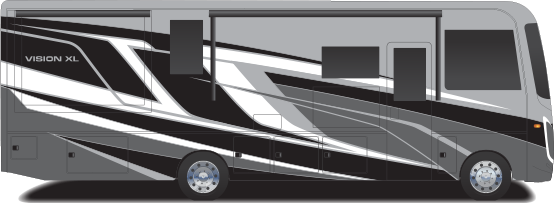

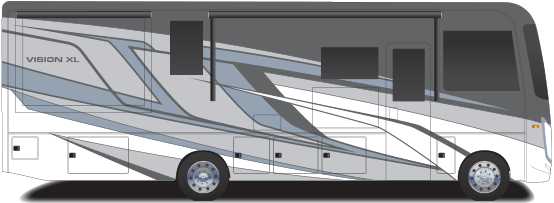

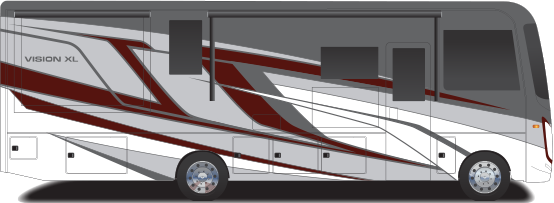

Exterior Graphics
