2021 Aspire

The Aspire luxury diesel coach is the perfect road companion. You’ll feel right at home with modern interior features, like premium Villa® furniture throughout, easy-clean appliances and a new sliding kitchen window. The new Valid 12.3” high- brightness digital dash with improved graphics paired with impactful technology updates, such as 360° camera monitoring, provide you with the luxury you deserve.

Product Video

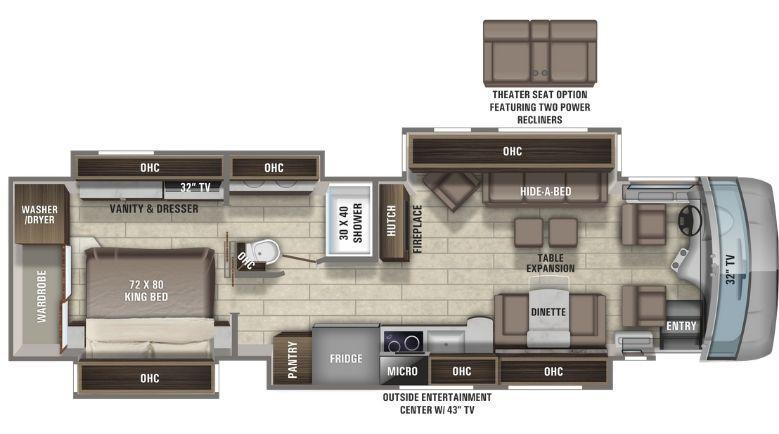

Ward = wardrobe

Lav = bathroom sink

Med = medicine cabinet

Ohc = overhead cabinets

Fridge = refrigerator

Micro = microwave

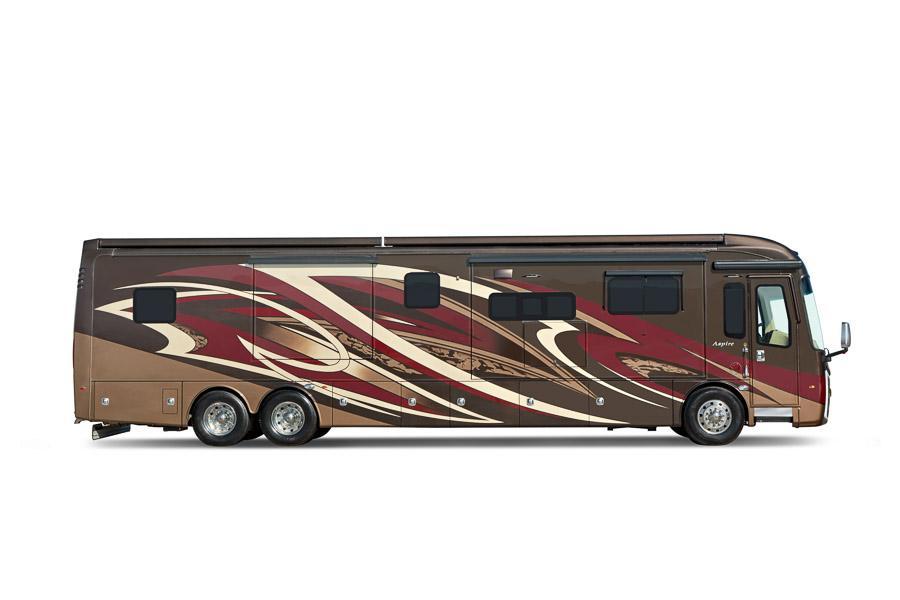

Exterior Graphics

Standards & Options


Air Connection Remote air connection
Chassis Spartan® K2 raised-rail chassis
Engine Cummins® L9 turbocharged 450 HP engine 1,250 lb. ft. torque at 1,400 RPM
Transmission Allison® 3,000 MH 6-speed transmission
Radiator Side-mounted radiator
Alternator 170 amp alternator
Engine Block Heater 1,000 watt engine block heater
Engine Brake Two-stage engine brake
Front Axle Reyco® Granning®- 17,000 lb. rating
Front Suspension Independent front air suspension (IFS)
Rear Axle Meritor- 20,000 lb. rating (Dana®- 24,000 lb. rating on 38M/40P)
Tag Axle Tag axle with air dump- 12,000 lb. rating (N/A 38M and 40P)
Braking System ABS disc brakes on front axle, drum brakes on drive and tag axle (ABS disc brakes on front and rear axle on 38M and 40P)
Rear Axle Ratio 4.88 rear axle ratio (4.78 on 38M and 40P)
Tires Michelin® 315/80R 22.5” tires (front) and 295/80R 22.5” tires (rear)
Tire Pressure Monitoring Tire pressure monitoring system (TPMS) with temperature monitoring
Shocks Bilstein® 46mm shocks
Leveling System Equalizer hydraulic automatic coach leveling
Chassis Battery (2) 12V chassis batteries
Fuel Tank 150 gal., dual fill fuel tank (100 gal. fuel tank on 38M and 40P)
DEF Tank 15 gal. DEF tank (10 gal. DEF tank on 38M, 40P, 44R)
Turning Radius 55 degree turning radius
Tow Air Brake System Spartan® Safehaul tow vehicle air brake system
Hitch 15,000 lb. hitch with 7/4-pin plug (10,000 lb. hitch on 38M and 40P)


Roof 4" arched aluminum trusses filled with bat insulation and reflective Flexfoil® topped with 3/8" plywood decking then one-piece fiberglass
Walls 2-1/2" exterior walls with Aluma-Tru™ welded tubular aluminum studs on 16" centers or less filled with bat and Flexfoil insulation then covered with high-gloss gelcoat fiberglass (R-16)
Floor 2" x 4" wood trusses on 16" centers or less filled with bat and Flexfoil insulation then topped with 3/4" 7-ply plywood decking (R-33)
Frame X-Bridge™ bracing welded into chassis frame
Front Cap Insulated front and rear caps (R-24) with steel-reinforced front cap and windshield frame
Slideouts Entegra-exclusive Relia-Torque flush-mounted 12V slideout system with VegaTouch and rocker switch controls

Heat, AC, Water & Power

Heated Tanks Aqua-Hot® heated basement storage on thermostat
Generator Onan® 10,000 watt diesel generator, with automatic start, on slide-out tray
Inverter 3,000 watt pure sine wave inverter
Batteries (2) L16 AGM batteries (6V/390 amp hrs. ea.)
Electrical Hookup 50 amp power cord on electric powered reel
Power Management Premium surge protector with smart transfer switch
Air Conditioning (3) 15,000 BTU A/C units with heat pumps and condensation drain system

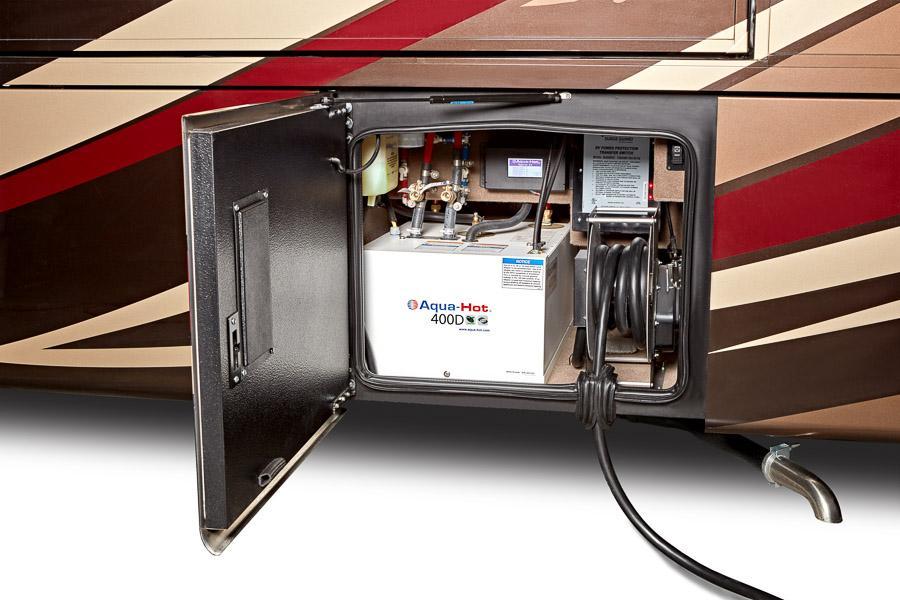

Heating System Aqua-Hot® 400D hydronic water and heating system with in-floor heat throughout
Black Tank Management Sani-Con® Macerator holding tank dump system with manual gate valves and manual backup
Black Holding Tank Sprayer Black holding tank sprayer
Water Filtration City and tank water filtration system
Winterization Drain System Winterizing drain system
Water Monitoring Trutank™ ultrasonic tank monitoring system displayed on VegaTouch screen
Water Hose w/ Electric Reel Water hose with electric reel

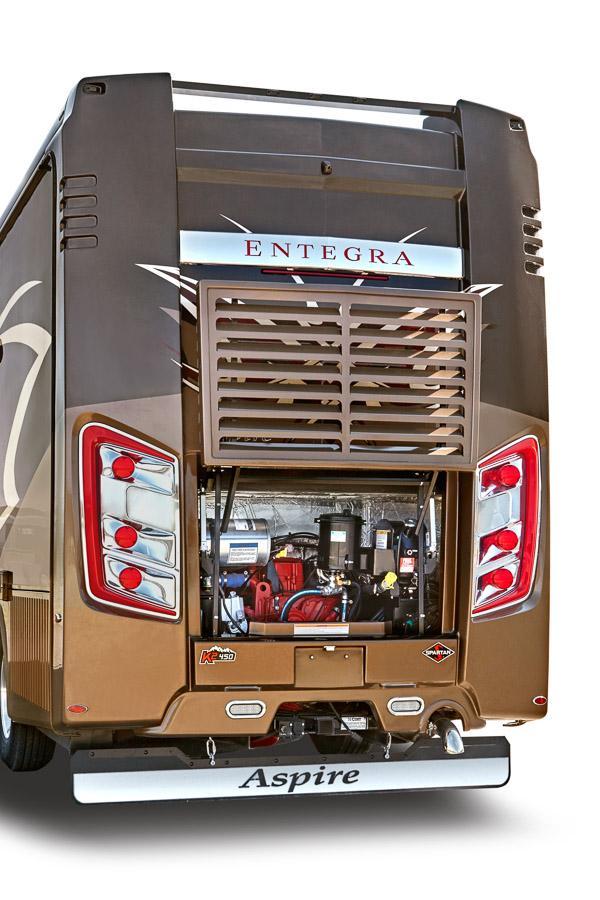

Engine Door Power rear engine door with manual override
Patio Awnings Dual roof-mounted Girard® Vision dual pitched patio awnings with LED lights
Door Awning Girard® power entrance door awning with LED lights
Slideout Awnings Girard® slideout awnings
Window Awnings Girard® window awnings
Windows Frameless, dual-pane, tinted, safety-glass windows
Keypad Handle Lit grab handle with keypad system for keyless entry
Exterior Entertainment 43” Samsung® 4K UHD Smart TV with JBL Bar Studio sound bar on TV bracket with extend, tilt and swivel arm
Mirrors Chrome, heated, remote control, side-view mirrors with integrated cameras
Exterior Diamond Shield™ front protective film mask
Headlights LED low beam headlights, Halogen high beam headlights and fog lights
Daytime Running Lights Daytime running lights
Accent Lights LED accent lights under passenger slideout rooms
LED Lights LED marker lights, turn lights, license plate light, accent lights, & docking lights
Rear Mudflap Full-width rear mudflap, with chrome “Aspire” nameplate
Satellite Dish - US Winegard® TRAV'LER satellite dish DIRECTV®- standard with USA option
Satellite Dish - CA Winegard® TRAV'LER satellite dish Shaw TV- standard with CSA option
TV Antenna Winegard® Rayzar Z1 TV antenna
WiFI Winegard® WIFI extender with 4G/LTE
Utility Center Heated exterior utility center with 5" LED Firefly® tank monitoring panel
Cargo Features Power locking baggage doors, basement storage tray
Paint Sikkens custom full body paint
Third Brake Light LED third brake light
Solar Solar power prep
Entrance Door Removable screen on entry door


Cameras Xite™ 360° camera system that displays on digital dash screen

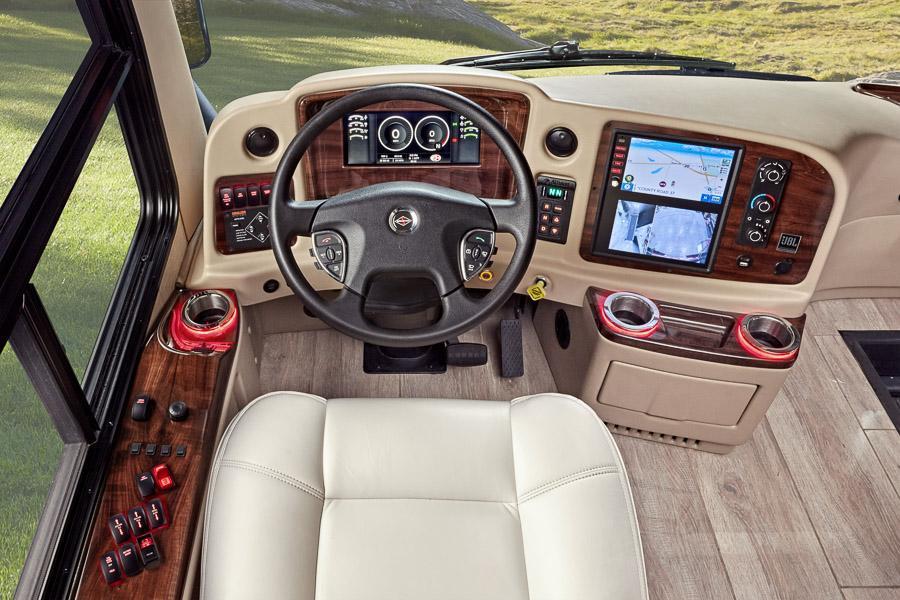

Dash Valid 12.3" digital dash with quad core graphics processor with ability to display on-board diagnostics, traditional instument cluster, 360 degree camera system or Rand McNally™ GPS navigation.
Infotainment System(s) Xite™ XSG3 infotainment system with navigation, Bluetooth, Sirius XM and AM/FM tuner
Sound System JBL® premium 5-speaker audio sound system with speakers, amplifier and DVC sub-woofer
Windshield Ultra-Vision® one-piece wrap-around tinted windshield
Start Push button start system
Steering Wheel VIP, power tilt and telescoping steering wheel with integrated controls for cruise, wipers radio controls and Bluetooth phone functionality
Driver / Passenger Seats 6-way power, lumbar, Ultra-Leather driver and passenger seats with integrated seatbelt
Power Features Powered flush stepwell cover
Pedals Power adjustable brake and accelerator pedals
Visors & Privacy Shade Powered front sun visors and privacy shade
Side Consoles Wrapped dash with molded side consoles
Additional Amenities (2) dual USB ports and (2) 12V socket for charging


Television - Front Overhead Samsung® 32” LED 1080P Smart TV in front overhead
Command Center 10” VegaTouch touchpad system for complete integration of coach controls (mobile app available)
Television - Living Room 50” Samsung® 4K UHD Smart TV
DVD Systems Sony® HD Blu-Ray® player
Sound - Living Room Samsung® sound bar with sub-woofer
Furniture Premium Villa Ultraleather® furniture
Flooring Hand-laid, high-gloss porcelain floor tiles
Lighting Premium, recessed, 12V, LED lighting
Ceiling Decorative ceiling feature with integrated accent lighting
Window Treatments Manual solar day shades and blackout night shades
Central Vacuuming System Central vacuum system
Interior Doors Aire-Secure™ travel locks for all pocket doors
Bar Bar area with beverage chiller and rain glass upper cabinet door with LED accent lighting (44R only)
Cabinetry Handcrafted hardwood cabinetry
Fascia Handcrafted hardwood fascia
Bunks 300-lb. bunk capacity (44R only)
Washer/Dryer Whirlpool® stacked washer and dryer


Refrigerator Whirlpool® stainless steel residential refrigerator with ice maker and water dispenser
Cooktop Induction cooktop with matching wood cover
Microwave Whirlpool® 1.9 cu. ft. convection microwave oven

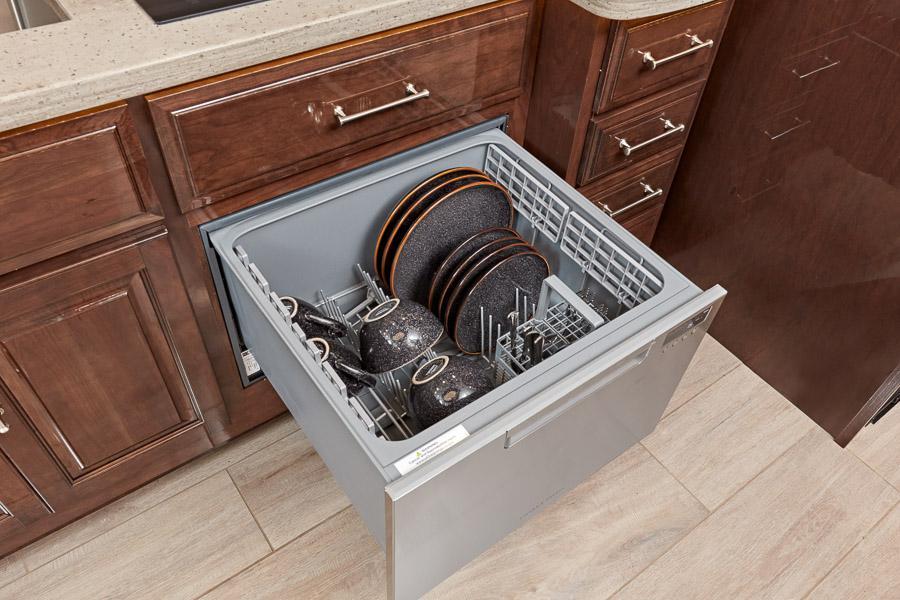

Dishwasher 24" stainless EZ clean Fisher and Paykel Dishwasher
Kitchen Countertops Solid surface countertops with dimmable LED accent lighting
Sink Single-bowl, stainless steel sink
Vent Maxxair® power vent exhaust fan with intake and touch screen control
Waste Basket Large deep drawer for waste basket with easy access trash chute (trash chute not available on 40P and 44R)
Storage Slide out storage tray(s) in overhead cabinet

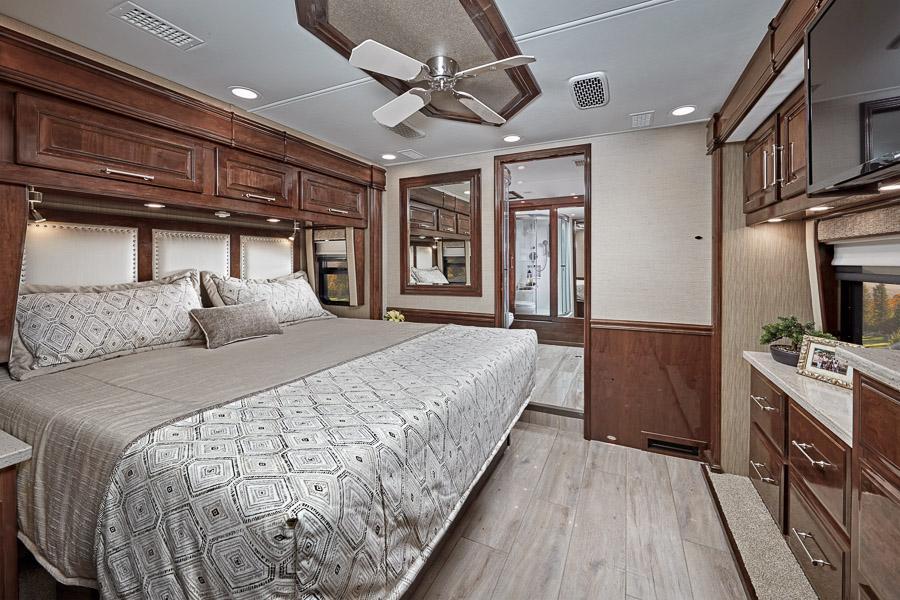

Bedroom Mattress / Bedding King-sized gel memory-foam mattress

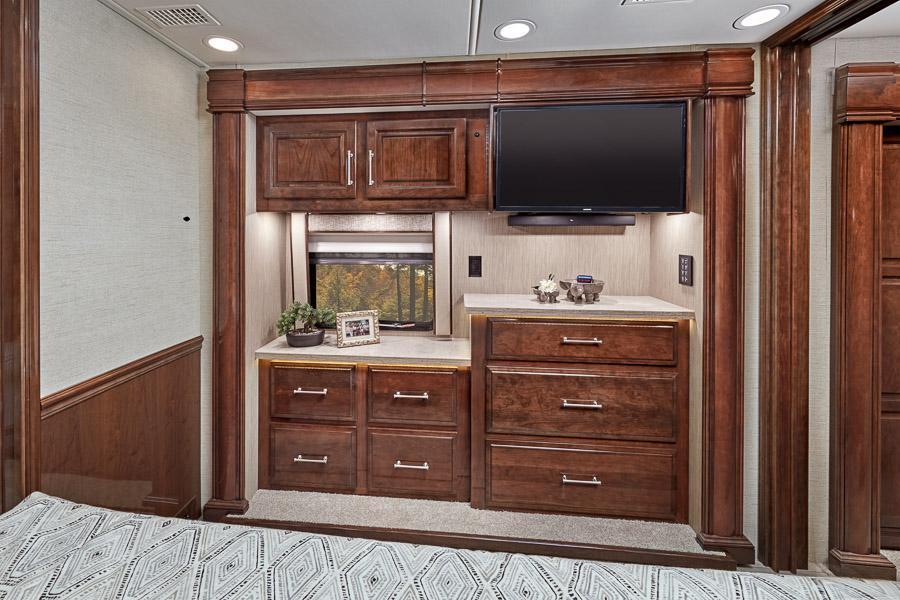

Television 32” Samsung® LED Slim 1080P Smart TV
DVD Systems Sony® Blu-Ray® player
Sound JBL® Studio sound bar
Ceiling Fan Ceiling fan
Nightstands Nightstands with USB ports and solid surface tops
Bedroom Wardrobe Motion activated LED light in wardrobe

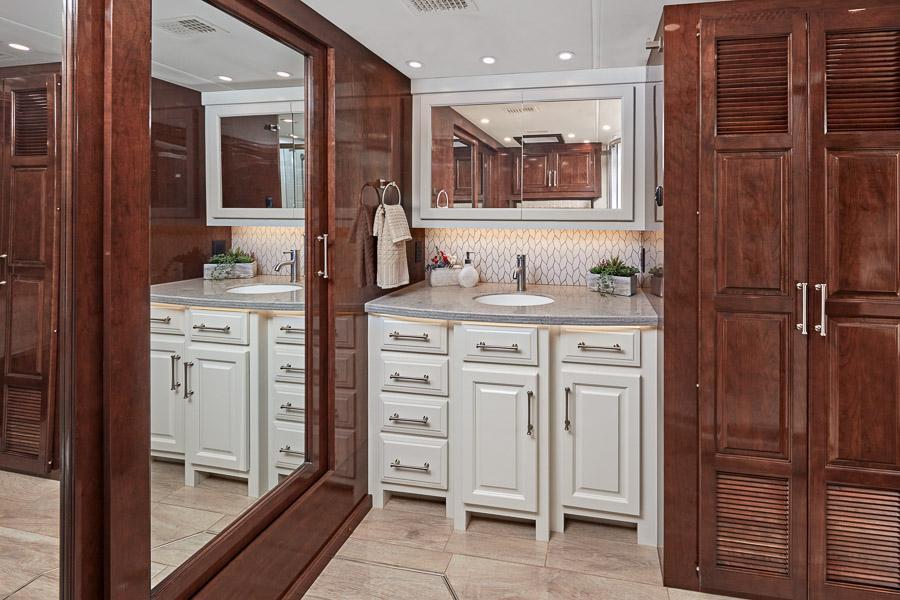

Bathroom Countertop(s) Solid surface countertops with dimmable LED accent lighting
Sink Integrated sink

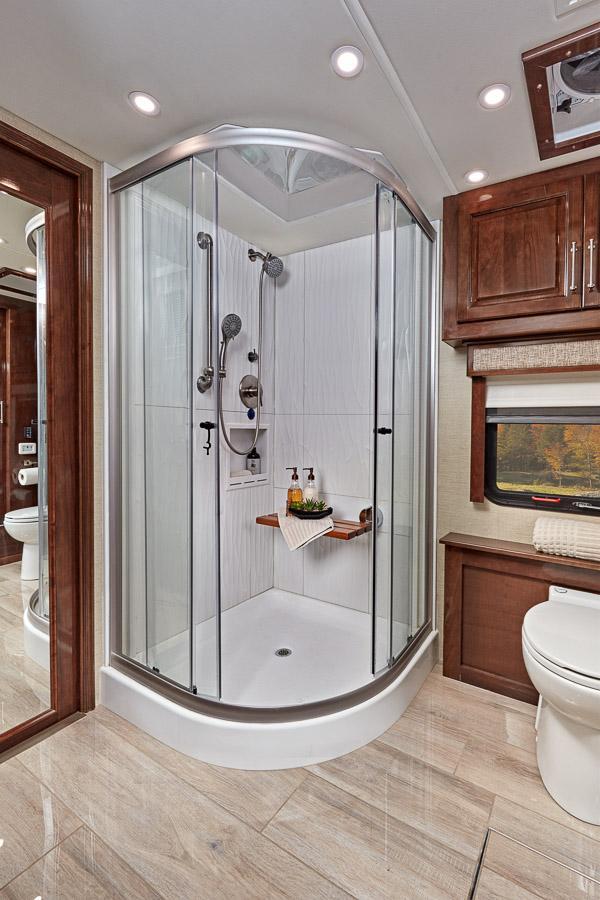

Bathroom Shower Textured porcelain tile shower with skylight and clear glass shower door
Shower Seat Teakwood shower seat (N/A 44F)
Shower Head Fixed shower head and separate hand held spray wand
Water Saving System Aqua View Showermiser water saving system
Toilet SaniFlo macerator toilet in main bath (N/A 42DEQ, 44Z)
Bathroom Ventilation Maxxair® power exhaust fan with intake


Carbon Monoxide Detector Carbon monoxide detector
Lights Porch light and motion sensor security lights
Security System Security system with glass shatter sensors
Smoke Alarm Smoke alarm
Security Safe Safe
Seat Belts Seat belts in every designated seating position


Canadian Standards Canadian Standards- CSA
Fireplace Fireplace
Theater Seating Theater seating with power recliners and fixed console
Theater Seating Option 2 Theater seating with power recliners and hide-a-bed
Reclining Sofa Option 2 100" power reclining sofa
Sofa w/TV Lift
Fireplace/TV/entertainment center and work station ILO sofa Fireplace/TV/entertainment center and work station ILO sofa
Satellite Dish Winegard In-Motion satellite dome
Satellite Dish - US Winegard TRAV'LER Dish Network
Solar Dual 100 watt solar panels
Additional Batteries 2 additional AGM batteries (4 total)
Dinette Dinette Booth

Décor Options

Entegra Coach peace of mind

2 years
3 years
5 years

2-year warranty and 3-year roadside assistance

At Entegra Coach, excellence doesn’t end with our stunning interiors and superior craftsmanship. We back each luxury coach with the industry’s highest level of service—including a 2-year warranty and 3-year roadside assistance.

2-year warranty details

3-year roadside assistance details
