2020 Aspire
Beauty, style, and superior handling. This coach keeps you uplifted in ultimate comfort, while preserving the image of exceptional design. With Entegra Coach's signature C-lights and stunning décor selections, this luxury diesel motorcoach gives you that luxury resort feeling, while taking you on life’s journey.
![2020 Aspire](/uploads/images/rvs/models/2020/Aspire/AspireCockpit2020.jpg)
Brochure

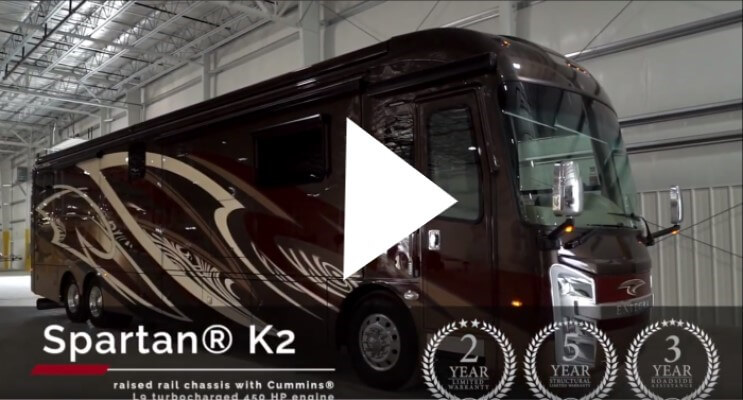

Product Video
2020 Aspire
Floorplans
Ward = wardrobe
Lav = bathroom sink
Med = medicine cabinet
Ohc = overhead cabinets
Fridge = refrigerator
Micro = microwave

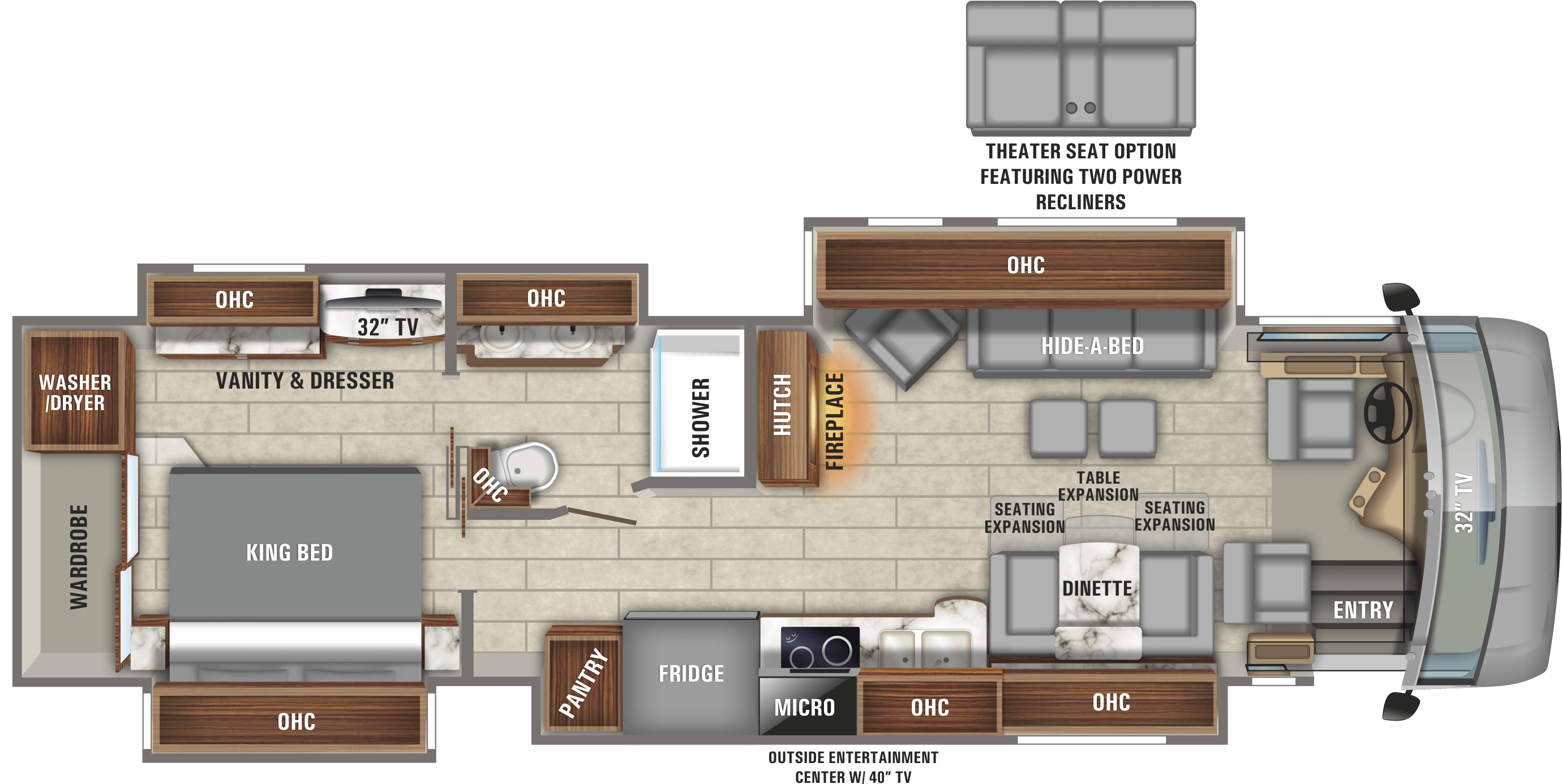

2020 Aspire|38M
![38M](/uploads/images/rvs/models/2020/Aspire/38M(1).png)
Specs
Gross Vehicle Weight Rating (lbs) | 41000 |
Gross Combined Weight Rating (lbs) | 51000 |
Front Gross Axle Weight Rating (lbs) | 17000 |
Rear Gross Axle Weight Rating (lbs) | 24000 |
Exterior Length | 40' 11" |
Exterior Width | 101" |
Exterior Height with A/C and Satellite | 12' 8" |
Interior Height | 84" |
Fresh Water Capacity (gals) | 100 |
Grey Waste Water Capacity (gals) | 62 |
Black Waste Water (gals) | 41 |
Fuel Tank Capacity (gals) | 100 |
Furnace (BTU Output) | 65,600 Aqua-Hot |
Wheel Base | 261 |
2020 Aspire|40P
![40P](/uploads/images/rvs/models/2020/Aspire/40P.png)
Specs
Gross Vehicle Weight Rating (lbs) | 41000 |
Gross Combined Weight Rating (lbs) | 51000 |
Front Gross Axle Weight Rating (lbs) | 17000 |
Rear Gross Axle Weight Rating (lbs) | 24000 |
Exterior Length | 40' 11" |
Exterior Width | 101" |
Exterior Height with A/C and Satellite | 12' 8" |
Interior Height | 84" |
Fresh Water Capacity (gals) | 100 |
Grey Waste Water Capacity (gals) | 62 |
Black Waste Water (gals) | 41 |
Fuel Tank Capacity (gals) | 150 |
Furnace (BTU Output) | 65,600 Aqua-Hot |
Wheel Base | 261 |
2020 Aspire|42DEQ
![42DEQ](/uploads/images/rvs/models/2020/Aspire/42DEQ.png)
Specs
Gross Vehicle Weight Rating (lbs) | 49000 |
Gross Combined Weight Rating (lbs) | 64000 |
Front Gross Axle Weight Rating (lbs) | 17000 |
Rear Gross Axle Weight Rating (lbs) | 20000 |
Tag Axle Gross Weight Rating (lbs) | 12000 |
Exterior Length | 43' 5" |
Exterior Width | 101" |
Exterior Height with A/C and Satellite | 12' 8" |
Interior Height | 84" |
Fresh Water Capacity (gals) | 100 |
Grey Waste Water Capacity (gals) | 62 |
Black Waste Water (gals) | 41 |
Fuel Tank Capacity (gals) | 150 |
Furnace (BTU Output) | 65,600 Aqua-Hot |
Wheel Base | 296 |
2020 Aspire|44B
![44B](/uploads/images/rvs/models/2020/Aspire/44B.png)
Specs
Gross Vehicle Weight Rating (lbs) | 49000 |
Gross Combined Weight Rating (lbs) | 64000 |
Front Gross Axle Weight Rating (lbs) | 17000 |
Rear Gross Axle Weight Rating (lbs) | 20000 |
Tag Axle Gross Weight Rating (lbs) | 12000 |
Exterior Length | 44' 11" |
Exterior Width | 101" |
Exterior Height with A/C and Satellite | 12' 11" |
Interior Height | 84" |
Fresh Water Capacity (gals) | 100 |
Grey Waste Water Capacity (gals) | 62 |
Black Waste Water (gals) | 41 |
Fuel Tank Capacity (gals) | 150 |
Furnace (BTU Output) | 65,600 Aqua-Hot |
Wheel Base | 320 |
2020 Aspire|44F
![44F](/uploads/images/rvs/models/2020/Aspire/33F.png)
Specs
Gross Vehicle Weight Rating (lbs) | 49000 |
Gross Combined Weight Rating (lbs) | 64000 |
Front Gross Axle Weight Rating (lbs) | 17000 |
Rear Gross Axle Weight Rating (lbs) | 20000 |
Tag Axle Gross Weight Rating (lbs) | 12000 |
Exterior Length | 45' 5" |
Exterior Width | 101" |
Exterior Height with A/C and Satellite | 12' 8" |
Interior Height | 84" |
Fresh Water Capacity (gals) | 100 |
Grey Waste Water Capacity (gals) | 62 |
Black Waste Water (gals) | 41 |
Fuel Tank Capacity (gals) | 150 |
Furnace (BTU Output) | 65,600 Aqua-Hot |
Wheel Base | 320 |
2020 Aspire|44R
![44R](/uploads/images/rvs/models/2020/Aspire/44R.png)
Specs
Gross Vehicle Weight Rating (lbs) | 49000 |
Gross Combined Weight Rating (lbs) | 64000 |
Front Gross Axle Weight Rating (lbs) | 17000 |
Rear Gross Axle Weight Rating (lbs) | 20000 |
Tag Axle Gross Weight Rating (lbs) | 12000 |
Exterior Length | 44' 11" |
Exterior Width | 101" |
Exterior Height with A/C and Satellite | 12' 8" |
Interior Height | 84" |
Fresh Water Capacity (gals) | 100 |
Grey Waste Water Capacity (gals) | 62 |
Black Waste Water (gals) | 41 |
Fuel Tank Capacity (gals) | 150 |
Furnace (BTU Output) | 65,600 Aqua-Hot |
Wheel Base | 320 |
2020 Aspire|44W
![44W](/uploads/images/rvs/models/2020/Aspire/44W.png)
Specs
Gross Vehicle Weight Rating (lbs) | 49000 |
Gross Combined Weight Rating (lbs) | 64000 |
Front Gross Axle Weight Rating (lbs) | 17000 |
Rear Gross Axle Weight Rating (lbs) | 20000 |
Tag Axle Gross Weight Rating (lbs) | 12000 |
Exterior Length | 44' 11" |
Exterior Width | 101" |
Exterior Height with A/C and Satellite | 12' 8" |
Interior Height | 84" |
Fresh Water Capacity (gals) | 100 |
Grey Waste Water Capacity (gals) | 62 |
Black Waste Water (gals) | 41 |
Fuel Tank Capacity (gals) | 150 |
Furnace (BTU Output) | 65,600 Aqua-Hot |
Wheel Base | 320 |
All Floorplans
![38M](/uploads/images/rvs/models/2020/Aspire/38M(1).png)
2020 Aspire | 38M
![40P](/uploads/images/rvs/models/2020/Aspire/40P.png)
2020 Aspire | 40P
![42DEQ](/uploads/images/rvs/models/2020/Aspire/42DEQ.png)
2020 Aspire | 42DEQ
![44B](/uploads/images/rvs/models/2020/Aspire/44B.png)
2020 Aspire | 44B
![44F](/uploads/images/rvs/models/2020/Aspire/33F.png)
2020 Aspire | 44F
![44R](/uploads/images/rvs/models/2020/Aspire/44R.png)
2020 Aspire | 44R
![44W](/uploads/images/rvs/models/2020/Aspire/44W.png)
2020 Aspire | 44W
360°
Exterior Graphics
Standards & Options
Chassis
Chassis | Spartan K2 raised rail chassis |
Engine | Cummins L9 turbocharged 450 HP engine 1,250-lb. ft. torque at 1,400 RPM |
Transmission | Allison 3000 MH 6-speed transmission |
Engine Block Heater | 1,000 watt engine block heater |
Front Suspension | Reyco Granning IFS independent front air suspension |
Rear Suspension | Dana rear suspension |
Front Axle | Reyco Granning independent 17,000-lb. front axle with air suspension |
Rear Axle | Dana rear axle 20,000-lb., tag axle 12,000-lb. (Rear axle 24,000-lb. and no tag on 38M and 40P) |
Rear Axle Ratio | 4.88 rear axle ratio |
Hitch | 15,000-lb. hitch with 7/4-pin plug, (10,000-lb hitch on 38M and 40P) |
Tag Axle | Tag axle air dump (Not available on 38M and 40P) |
Radiator | Side-mounted radiator |
Braking System | ABS disc brakes on front axle, drum brakes on drive and tag axle (ABS disc brakes on front and rear axle on 38M and 40P) |
Engine Brake | Two-stage engine brake |
Shocks | Bilstein 46mm shocks |
Fuel Tank | 150-gal. fuel tank (100-gal. fuel tank on 38M and 40P) dual fill |
DEF Tank | 15 gallon DEF tank (dual fill except on 38M, 40P, 44R) |
Tires | Michelin 315/80R 22.5" tires (front) and 295/80R 22.5" tires (rear) |
Turning Radius | 55-degree turning radius |
Chassis Battery | Chassis batteries 2-12 volt |
Alternator | 170-amp alternator |
Air Connection | Remote air connection |
Tow Air Brake System | Safehaul tow air brake system |
Leveling System | Equalizer hydraulic automatic leveling |
Construction
Frame | X-bridge frames welded into chassis frame |
Underbelly | Heated basement storage area |
Insulation | Insulation with reflective Flexfoil floor (R-33), roof (R-24), sidewalls (R-16), front and rear caps (R-22) |
Floor | 2" x 4" floor truss construction |
Floor Decking | 3/4" 7-ply plywood main floor decking |
Walls | Aluma-Tru superstructure construction on 12"-16" centers |
Slideouts | Flush-mounted electric-powered slideout rooms with with both VegaTouch and separate rocker switch controls |
Roof | One-piece fiberglass roof with 3/8" plywood decking and 4" arched aluminum roof truss |
Heat, AC, Water & Power
Heating System | Aqua-Hot 400 diesel hydronic water and heating system with in-floor heat throughout |
Air Conditioning | 15,000-BTU low profile A/Cs (3) with heat pumps and condensation drain system |
Electrical Hookup | 50-amp power cord with electric reel |
Generator | Onan 10,000-watt diesel generator with auto gen start on slide-out tray |
Inverter | 3,000 watt pure sine wave inverter |
Batteries | L16 AGM batteries (2),(6V/390 amp hrs. each) |
Power Management | Premium surge protector with smart transfer switch |
Water Hose w/ Electric Reel | Water hose with electric reel |
Tank Flush | Black holding tank sprayer |
Black Tank Management | Macerator holding tank dump system with manual gate valves |
Water Monitoring | Trutank ultrasonic tank monitoring system |
Water Filtration | City and tank water filtration system |
Winterization Drain System | Winterizing drain system |
Exterior
Exterior Walls | 2- 1/2" exterior wall with welded tubular aluminum construction and high-gloss, gel-coat fiberglass |
Front/Rear Cap | Steel-reinforced front cap and windshield frame |
Exterior | 3M front protective film mask |
Headlights | LED low beam headlights, Halogen high beam headlights |
Fog Lights | Halogen fog lights |
Daytime Running Lights | Daytime running lights |
LED Lights | LED marker lights, turn lights, accent lights and license plate light |
Docking Lights | LED docking lights |
Keypad | Lighted grab handle with keypad system |
Door Awning | Girard power entrance door awning with LED lights |
Window Awnings | Girard window shade awnings |
Patio Awnings | Roof mounted Girard Vision dual pitched patio awnings with LED lights |
Mirrors | Chrome, heated, remote control, Ramco side-view mirrors with integrated cameras |
Entertainment | Samsung 40" 4K UHD Smart tv w/ JBL Bar Studio sound bar on TV bracket with extend, tilt and swivel arm |

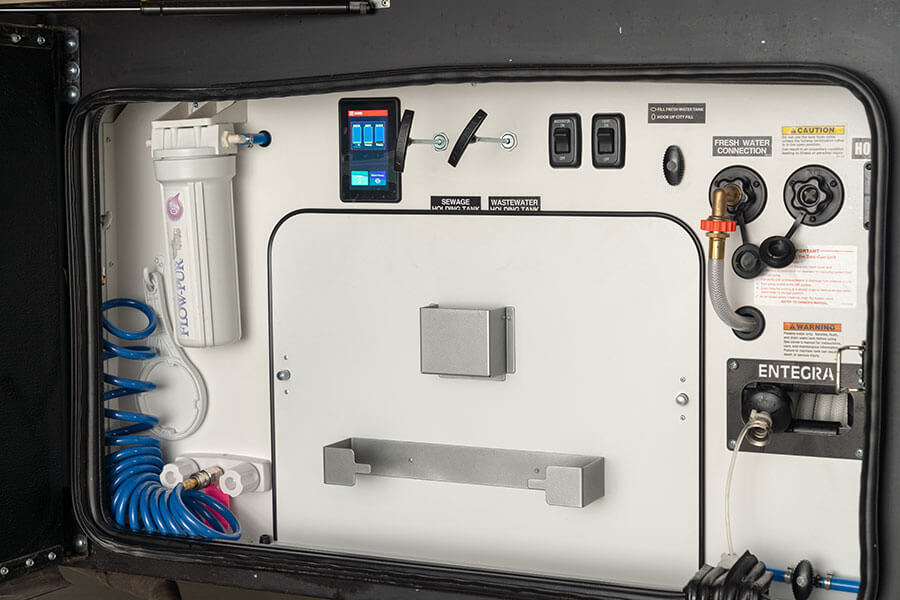

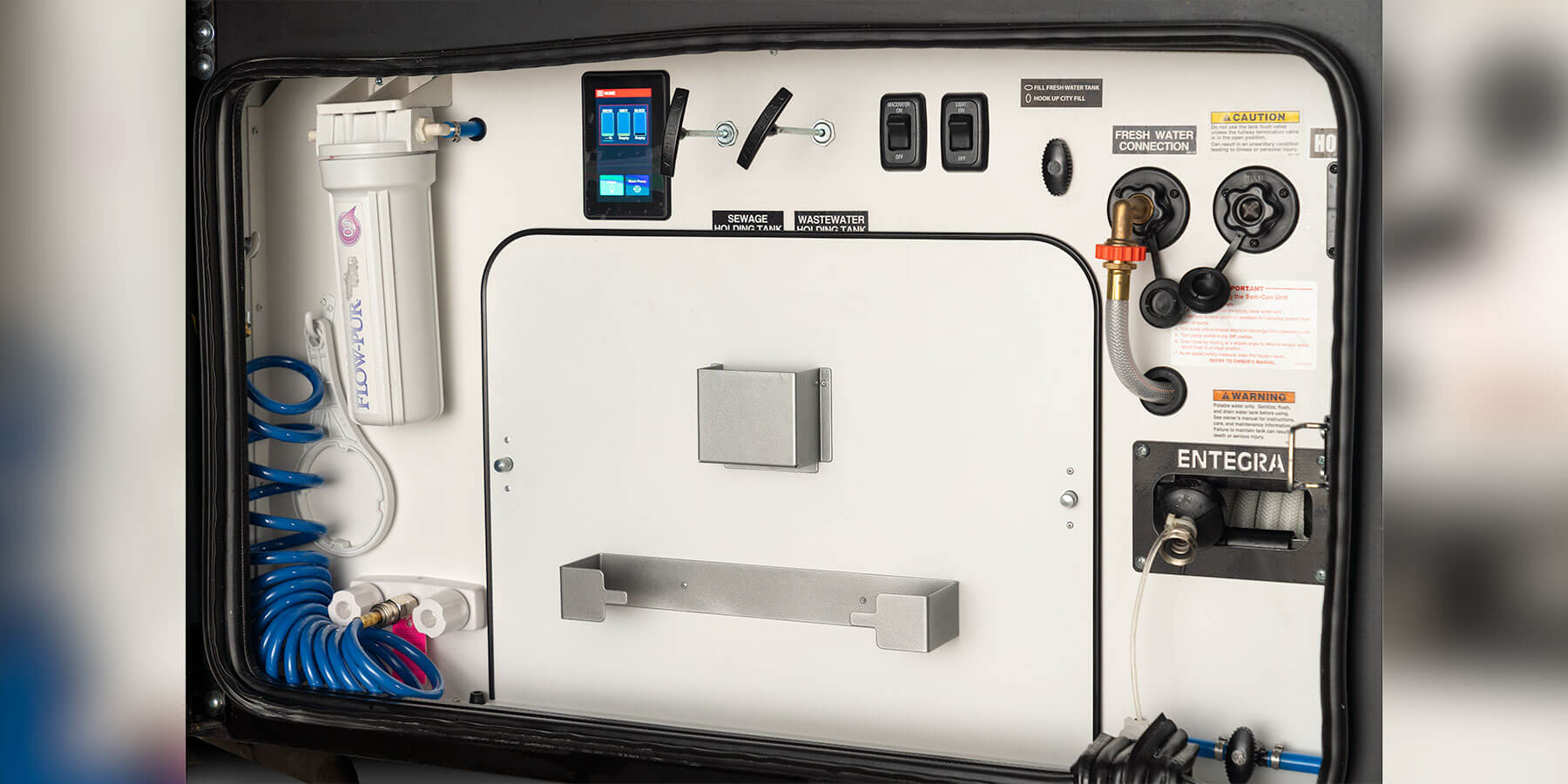

Utility Center | Exterior heated utility center with 5" Firefly system monitor panel |
TV Antenna | Winegard Rayzar Z1 TV antenna |
Engine Door | Power rear engine door with manual override |
Rear Mudflap | Full-width rear mudflap, with chrome "Aspire" nameplate |
Lights | Porch light and motion sensor security lights |

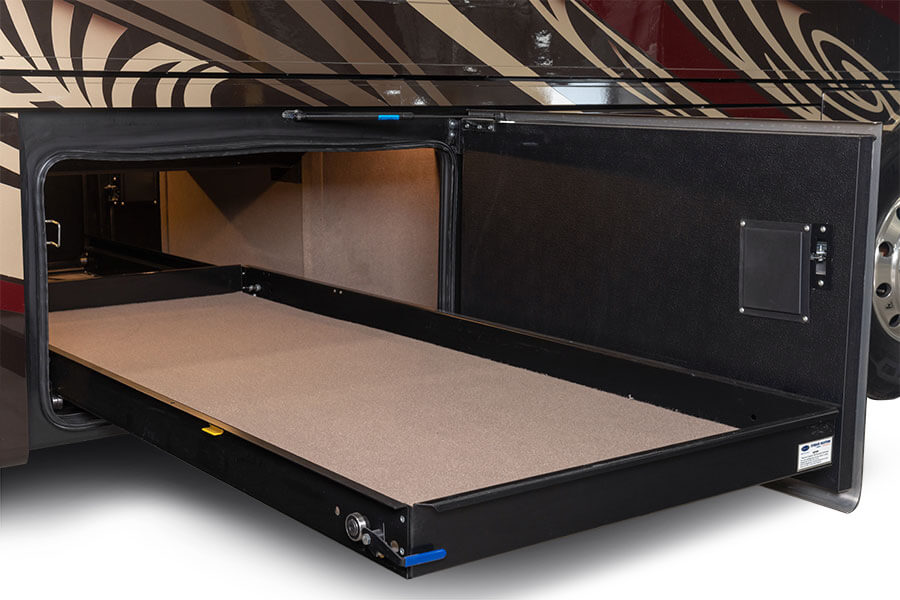

Cargo Features | Slideout storage tray |
Windows | Hehr frameless, dual-pane, tinted safety-glass windows |
Satellite Dish - CA | Winegard Trav'ler satellite dish Shaw TV - standard w/ CSA option |
Satellite Dish - US | Winegard Trav'ler satellite dish DIRECTV - standard w/ USA option |

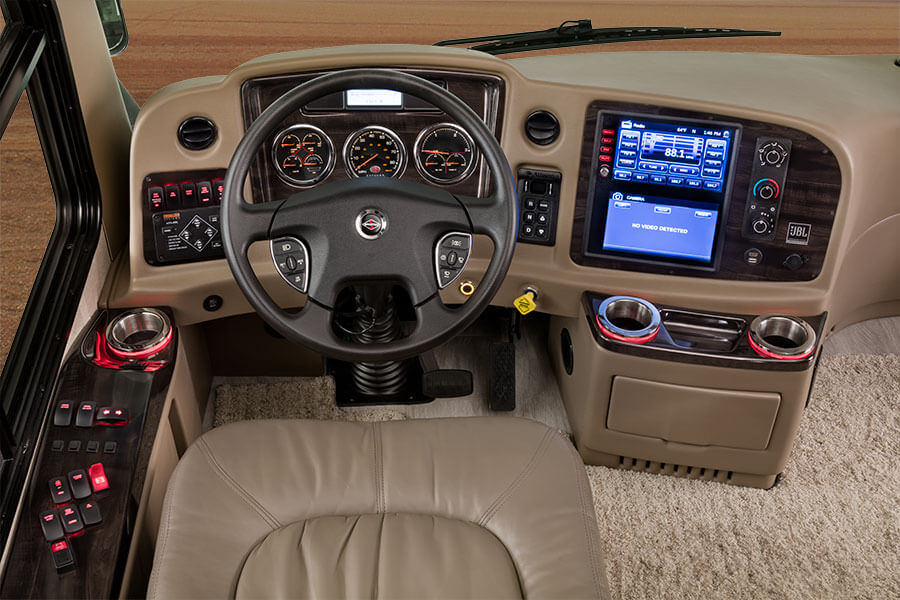

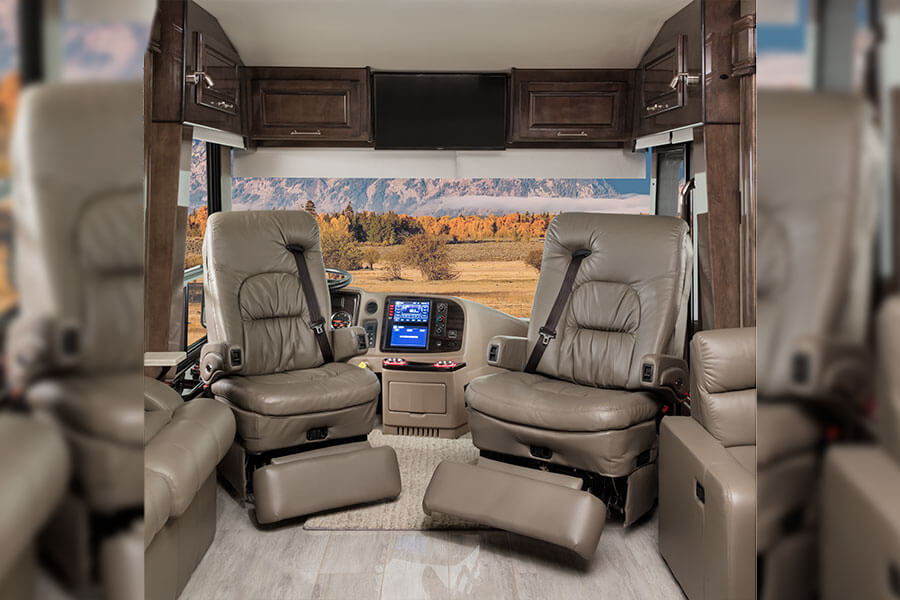

Cockpit
Flooring | Powered flush stepwell cover |
Visors & Privacy Shade | Powered front sun visors and privacy shade |
Windshield | Ultra-Vision one-piece wrap-around tinted windshield |
Driver / Passenger Seats | 6-way power, lumbar, Ultra-leather driver and passenger seats with integrated 3-point belt |
Start | Push button start |
Steering Wheel | VIP, tilt and telescoping steering wheel with integrated controls for cruise and wipers |
Side Consoles | Wrapped dash with molded side consoles |
Monitoring System(s) | Spartan Message Center with LCD display featuring: odometer, tachometer, fuel economy, fuel remaining, outside air temp., coolant temp., engine oil temp. and pressure, transmission temp., turbo boost pressure, air pressure, trip meter, speed and voltage |
Infotainment System(s) | Dual 9" touchscreen in-dash infotainment center with Rand McNally RV navigation, Bluetooth, Sirius XM, AM/FM tuner, integrated camera control |
Sound System | JBL premium audio sound system with speakers, amplifier and DVC sub-woofer |
Pedals | Power adjustable brake and accelerator pedals |
Cameras | Camera system with two side cameras and digital rear camera |
Additional Amenities | Two dual USB ports and 12v socket for charging |

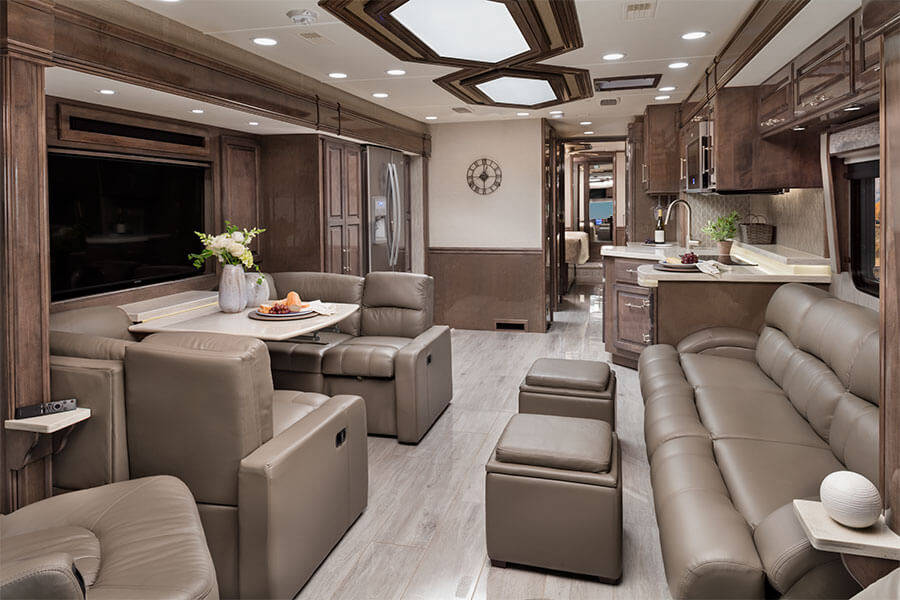

Interior
Lighting | Premium recessed LED 12V lighting |
Flooring | Hand laid high gloss 8" x 48" porcelain tile floor |
Window Treatments | Manual solar day and blackout night shades |
Television - Living Room | Samsung 50" 4K UHD Smart TV |
Television - Front Overhead | Samsung 32" LED Slim 1080P Smart TV in front overhead |
Sound - Living Room | Samsung HW-M360 sound bar with sub-woofer in living area |
DVD Systems | Samsung HD Blu-ray player in living area |
Furniture | Flexsteel furniture |
Washer/Dryer | Whirlpool stacked washer and dryer |
Central Vacuuming System | Central vacuum system |
Interior Doors | Aire-Secure travel locks for all pocket doors |
Command Center | 10" VegaTouch touch screen coach systems control panel |

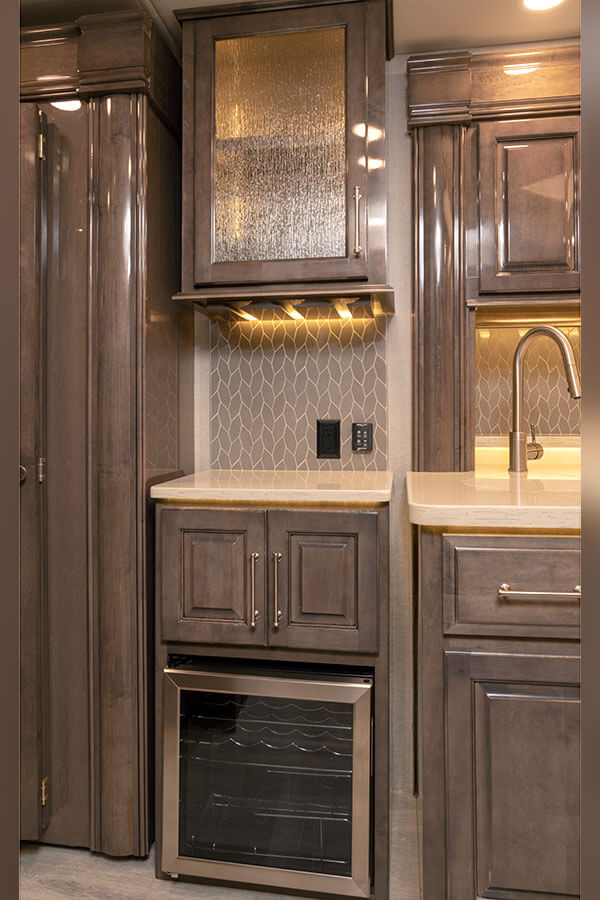

Bar | Bar area with beverage chiller, rain glass door on upper cabinet w/ LED accent lighting (44R) |

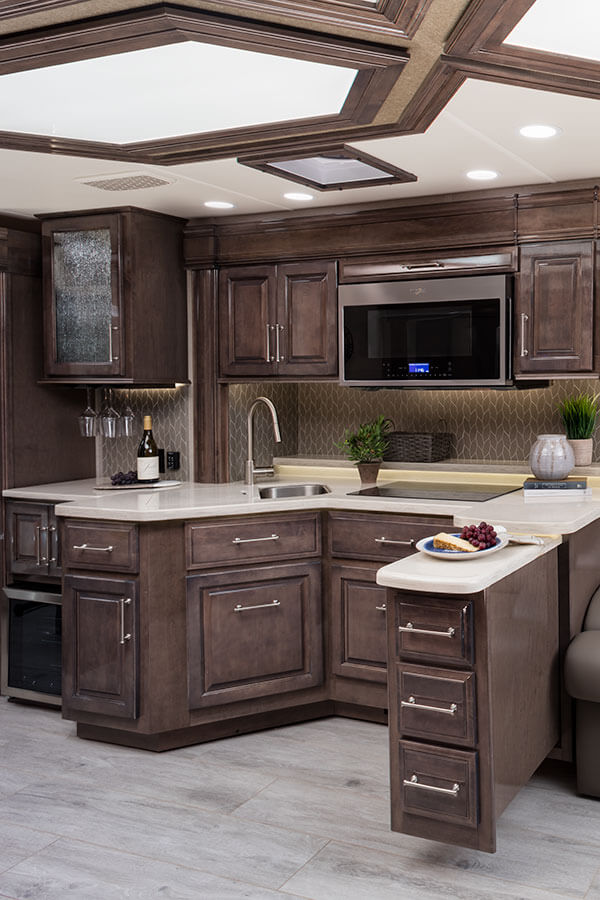

Kitchen
Countertops | Solid surface countertops with stainless steel sink and dimable LED accent lighting |
Waste Basket | Large deep drawer for waste basket with easy access trash chute (trash chute not available on 40P and 44R) |

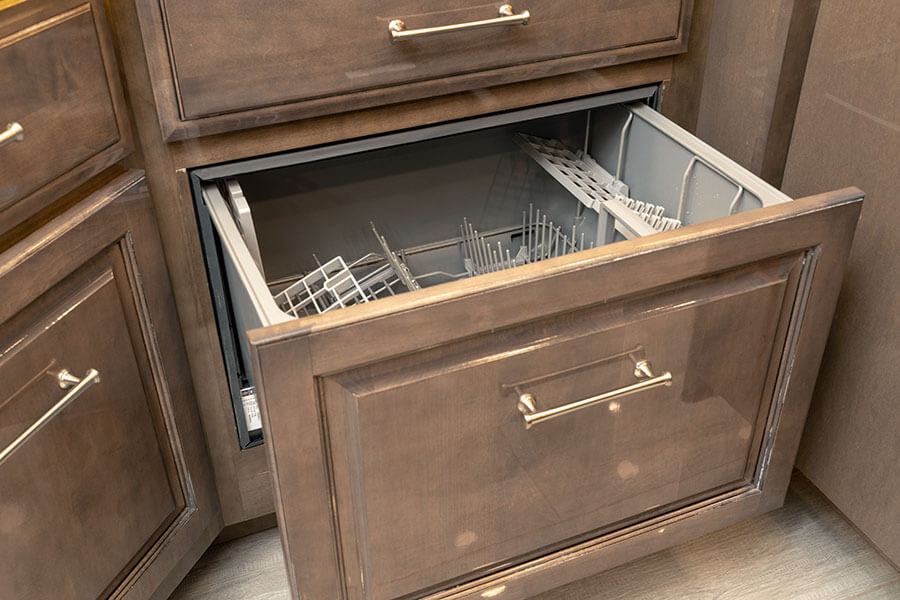

Dishwasher | Dishwasher drawer with wood raised panel drawer front |
Cooktop | Induction cooktop with matching wood cover |
Microwave | Whirlpool 1.9 cu. ft. convection microwave oven |
Refrigerator | Whirlpool stainless steel residential refrigerator with ice maker and water dispenser |
Vent | Maxxair power vent exhaust fan |

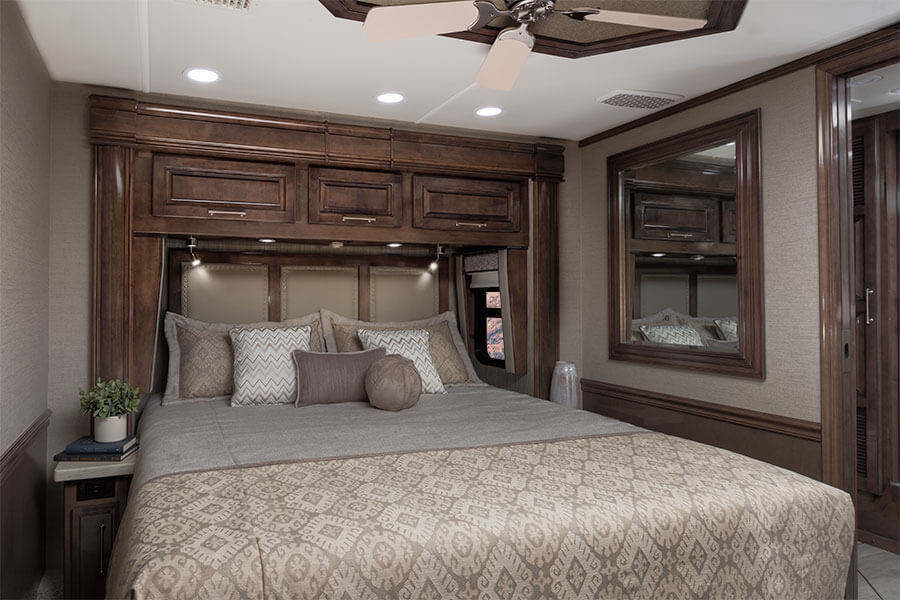

Bedroom
Television | Samsung 32" LED Slim 1080P Smart TV |
Sound | JBL Studio sound bar |
Bed | King size gel memory foam mattress |
Nightstands | Nightstands with USB ports and solid surface tops |
Ceiling Fan | Ceiling fan |
Wardrobe | Motion activated LED light in wardrobe |
DVD Systems | Samsung Blu-ray player |
Bathroom
Countertop(s) | Solid surface countertops with integrated sink and dimmable LED accent lighting |

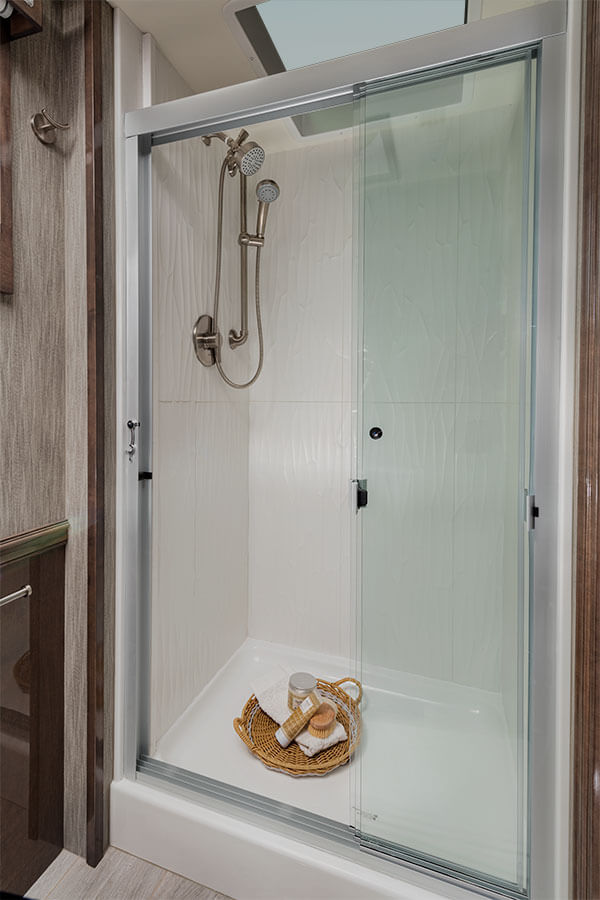

Shower | Marble patterned shower with skylight and clear glass shower door |
Vent | Maxxair power exhaust fan with intake |
Safety
Security System | Security system with glass shatter sensors |
Smoke Alarm | Smoke alarm |
Carbon Monoxide Detector | Combination carbon monoxide detector and gas alarm |
Options
Canadian Standards | CSA Optional |
Fireplace | LED lit fireplace with 1500w heating element (38M, 44B and 42DEQ) |
Dinette | Booth dinette driver side (44B, 42DEQ, 40P and 44W) |
Theater Seating | 100" reclining theater seat & fixed console passenger side (44B and 42DEQ) |
Theater Seating Option 2 | 82" reclining theater seat & fixed consolde driver side (38M, 44R and 44W) |
Solar | Solar panels (Dual-100 watt) with Morningstar Sunsaver Duo solar panel charge controller |
WiFi Extender Antenna | Winegard WIFI extender with 4G/LTE |
Batteries | Batteries- 2 additional AGM, 4 total (N/A on 38M and 40P) |
Reclining Sofa | 100" reclining sofa passenger side (44B and 42DEQ) |
Theater Seating Option 3 | 74" reclining theater seating, driver side and 60" hide a bed, passenger side (40P) |
Satellite Dish | Winegard in-motion dome, roof mounted satellite dish |
Baggage Doors | Power Locking Baggage Doors |
Décor Options
Entegra Coach peace of mind
![Entegra Coach peace of mind](/uploads/rvs/sliders/7-2+5-badges-final.jpg)
2-year warranty and 5-year structural warranty
At Entegra Coach, excellence doesn’t end with our stunning interiors and superior craftsmanship. We back each luxury coach with the industry’s highest level of service—including a 2-year limited warranty and a 5-year structural limited warranty.
